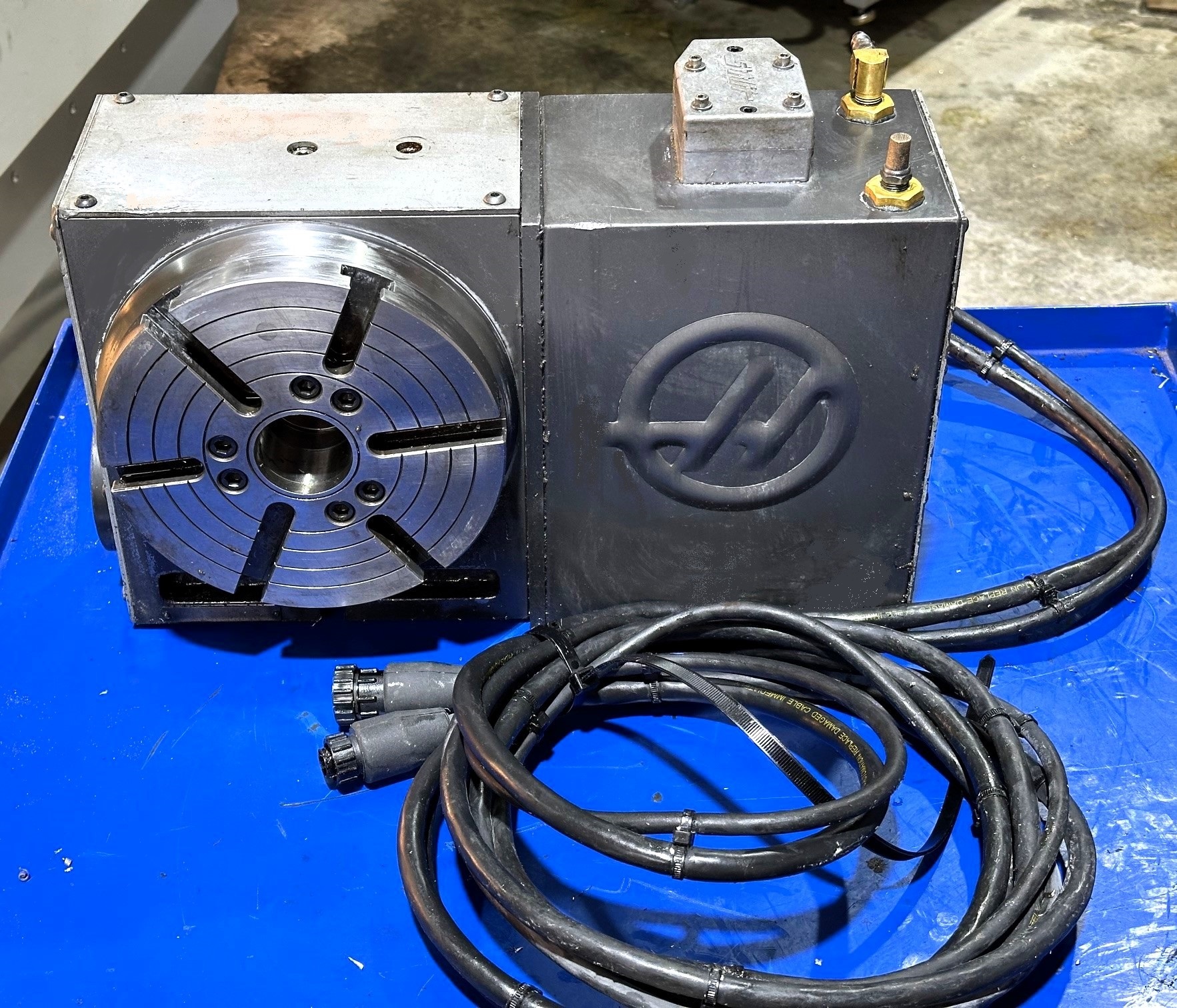

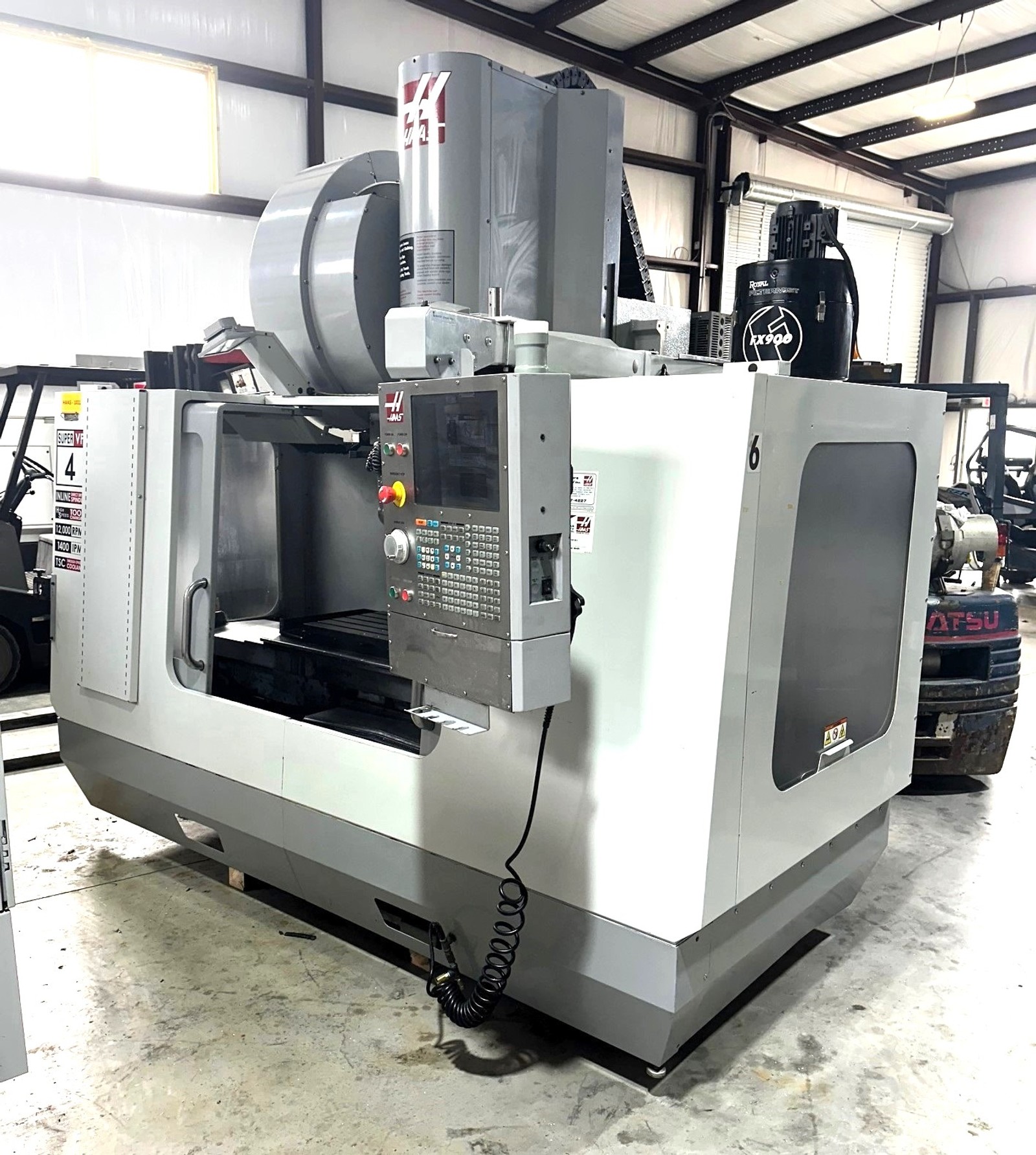

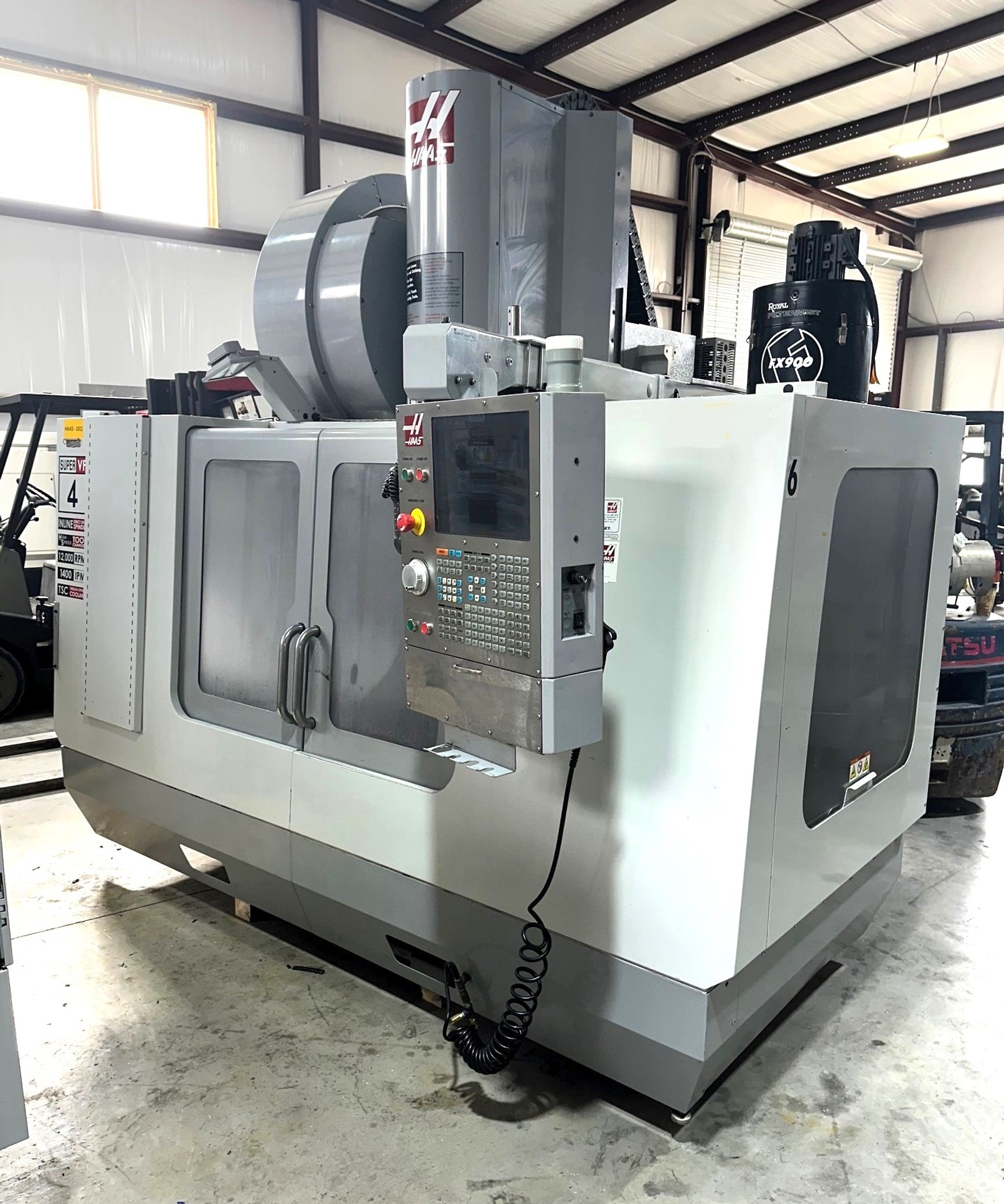

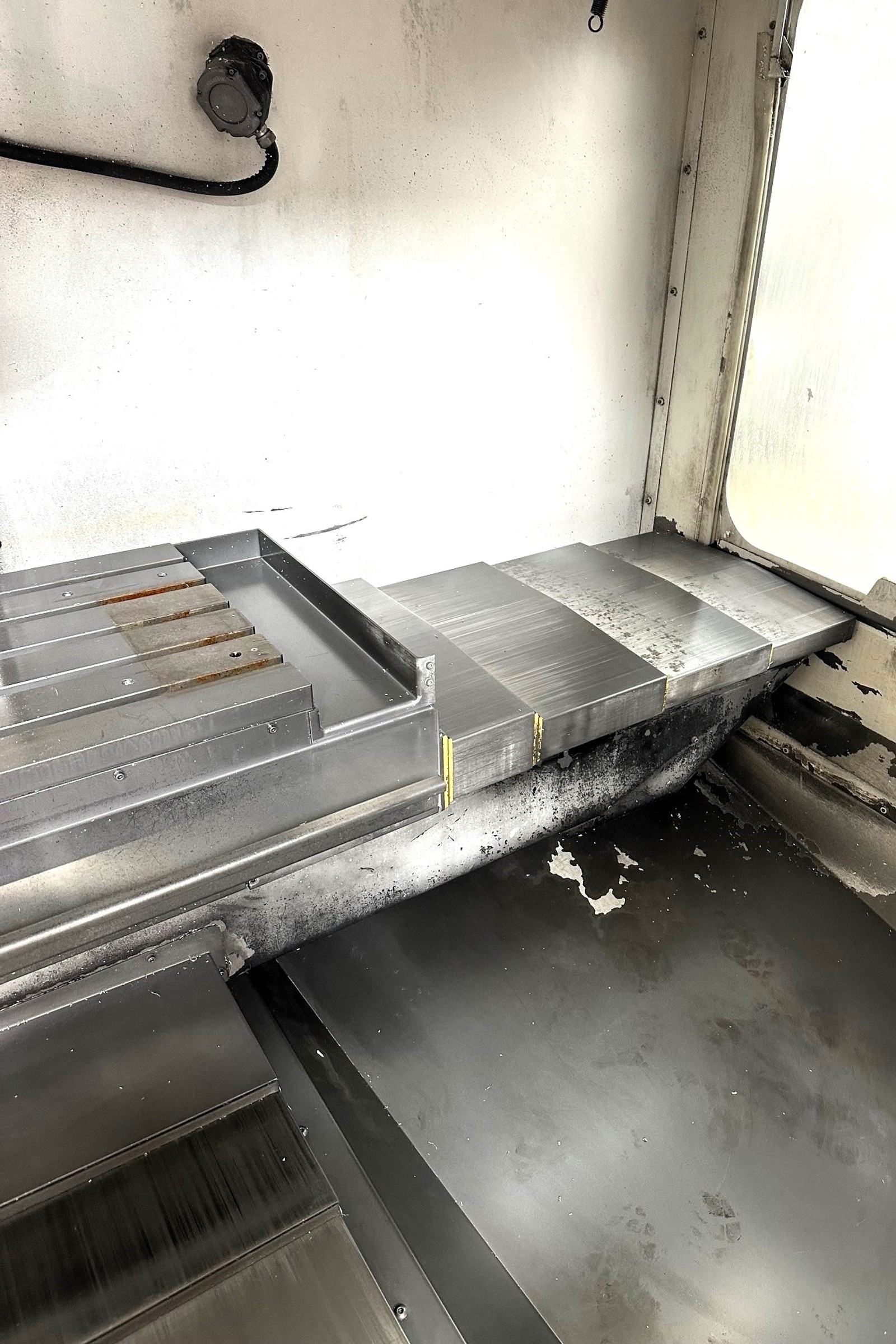

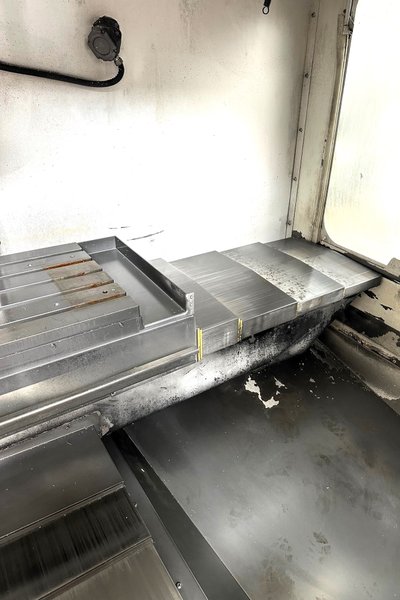

HAAS VF-4SS, 50.20.25", 15000 RPM, 40 SMTC, 30 HP, Cat 40, TSC, Rotary Table, Fifth Axis, WIPS, HSM, PC, Auger

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, HORIZ/VERT, CNC

Stock

None

Model

VF-4SS

Dealer Location

South Carolina

Request a Quote
View Contact Information

Spec Sheet

X-Axis 50"
Y-Axis 20"
Z-Axis 25"

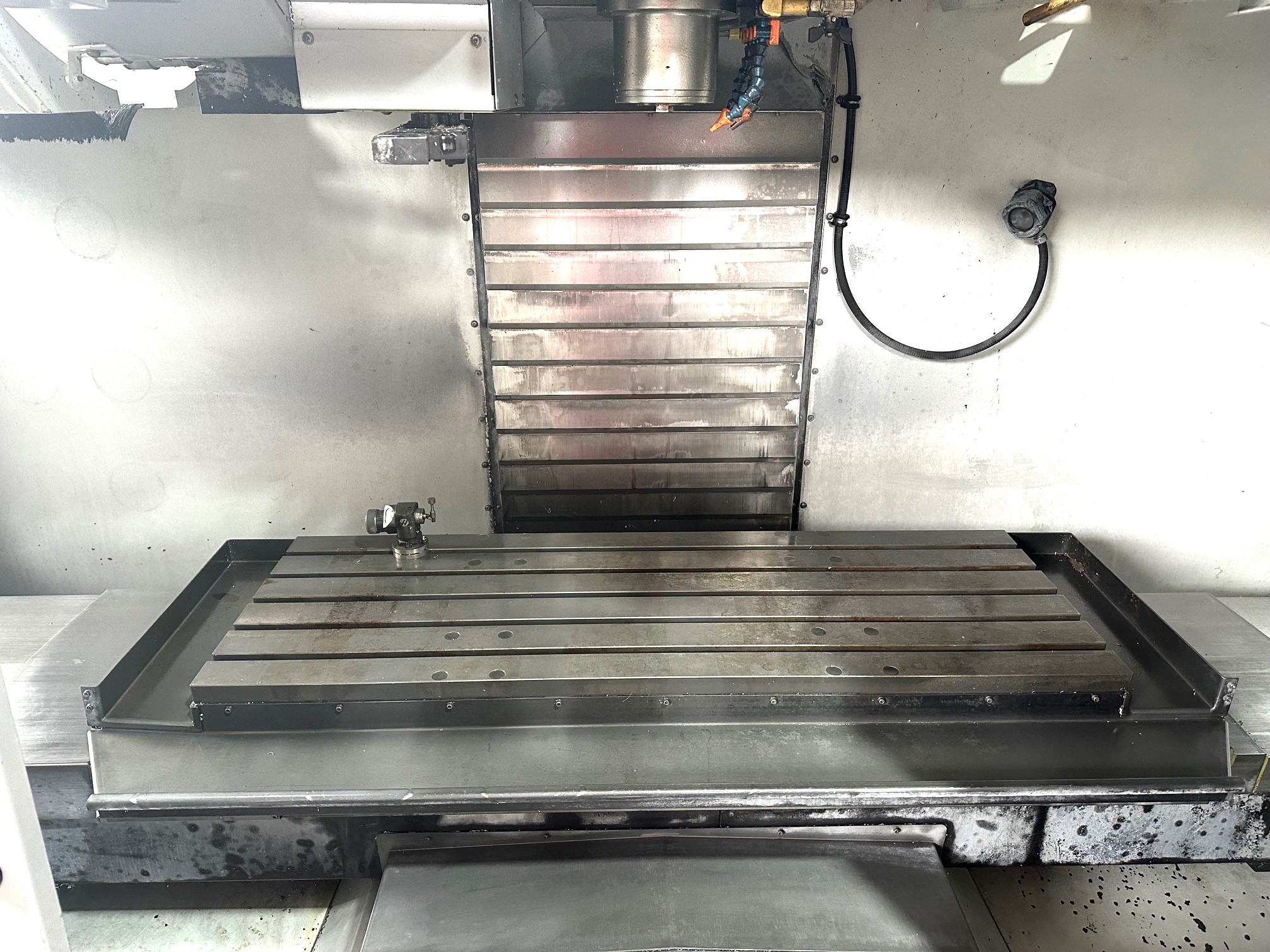

Table Size 52" x 18"
Spindle Speed 15,000 RPM
Spindle Taper CAT 40
Spindle Motor 30 HP
Tools 40
Table Load Capacity 1750 lbs.
Rapid Traverse Rates 1400 IPM
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs.
Machine Dimensions (L x W x H) 138.9" x 110" x 123.5"
Machine Weight 13,000 lbs.
Spindle Nose to Table Top 4" - 29"
Spindle Torque 75 ft. lbs.
Tool Change Time (T - T / C - C) 1.6 / 2.2 Seconds
