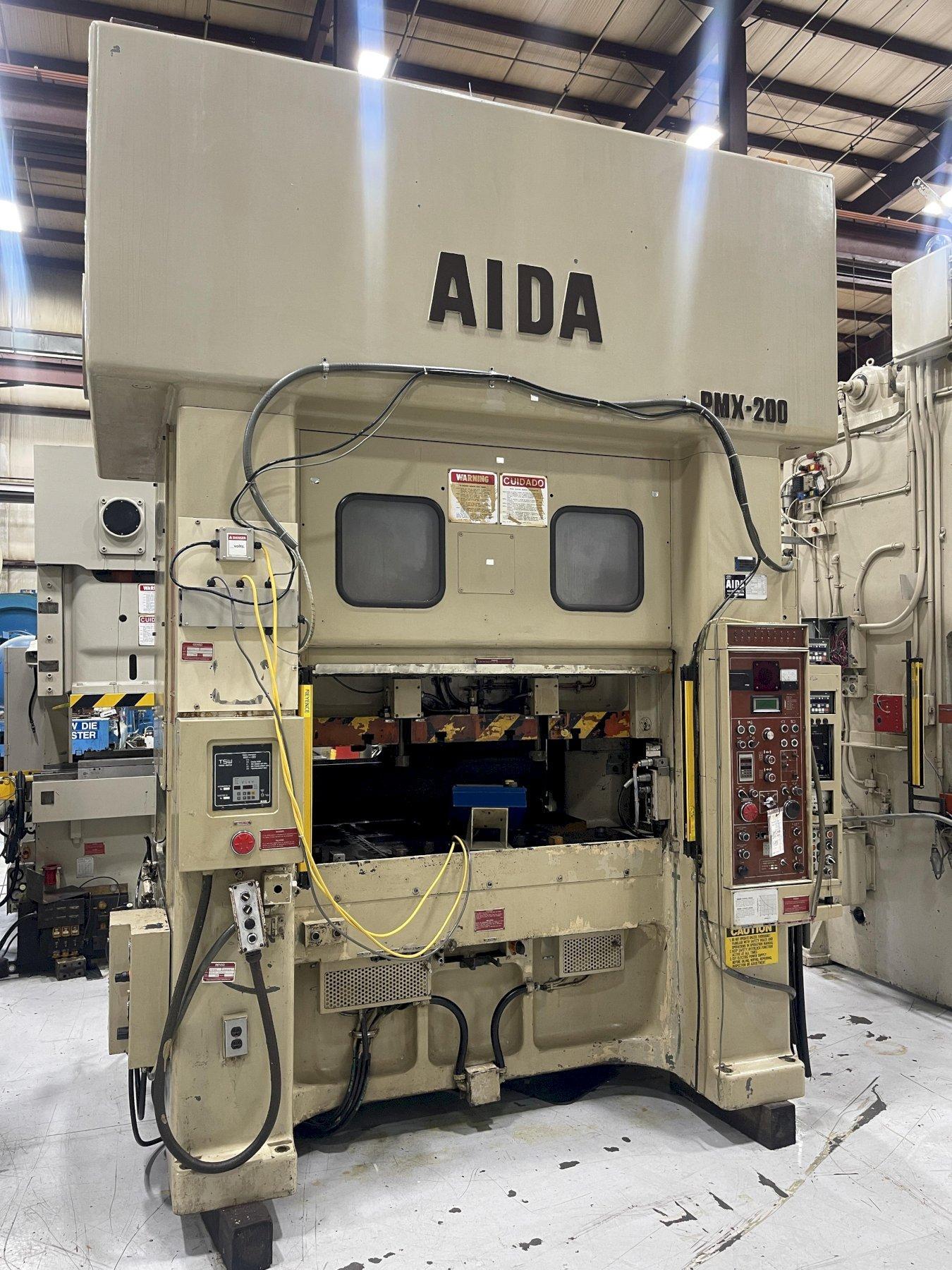

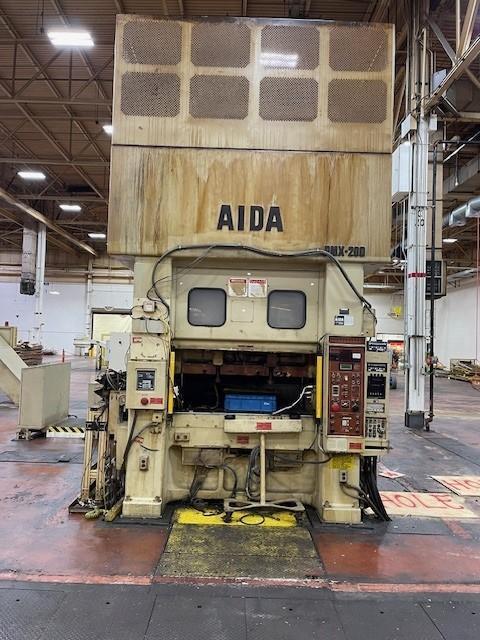

200-TON AIDA PMX-L2-200(1) USED MECHANICAL METAL STAMPING PRESS FOR SALE, YEAR 1990

Manufacturer

AIDA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2885

Model

PMX-L2-200(1)

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 200
Stroke - 7.87 inches
Shut Height - 28.6 inches
Adjustment - 5.9 inches
Bed Size - 61" LR x 37.4" FB
Ram Area - 61" LR x 32.6" FB
SPM - 40-80 VSPM


Standard Specifications
Used Aida PMX-L2-200(1)

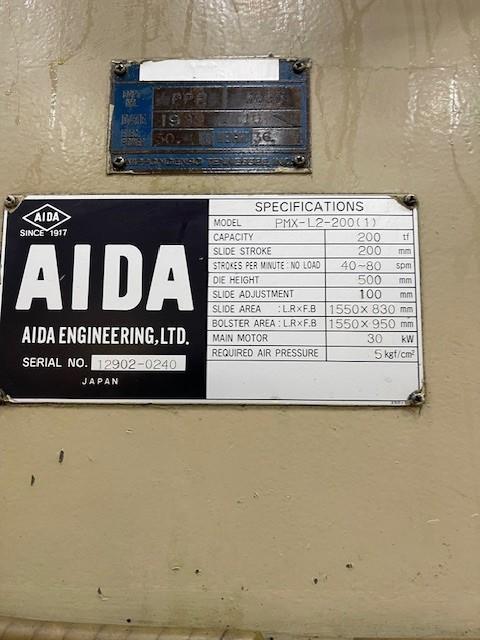

Serial Number 12902-0240
Progressive Die Link Drive Stamping Press
200 ton Metric Capacity
220 ton US Capacity
7.87" Stroke
19.6" Die Height Over Bolster
28.6" Shut Height Over Bed
5.9" Adjustment
61"  LR x 37.4" Bed Area
61" LR  x 32.6" Slide Area
40-80 VSPM

Equipment and Features
Air Clutch and Brake
Progressive Link Motion Drive
- Reduces Snap-through
- Increases Time in the Forming Portion of Stroke
Dynamic Slide Balancing
Automatic Recirculating Lube System
Hydraulic Overload Protection
38" Floor To Top of Bolster
8-Point Oil Film Slide Guide System
Micro Inch Capability
40 HP Main Motor, 460V 60HZ
11.8" Thick T-Slotted Bolster
T-Stand Palm Buttons
33.5" Wide Windows
Safety Doors Front and Back
Flush Floor Standing

Weight 79,360 lbs.
Overall Height:  16' 10" Tall
Shipping Dimension: 9' 8.5" Wide

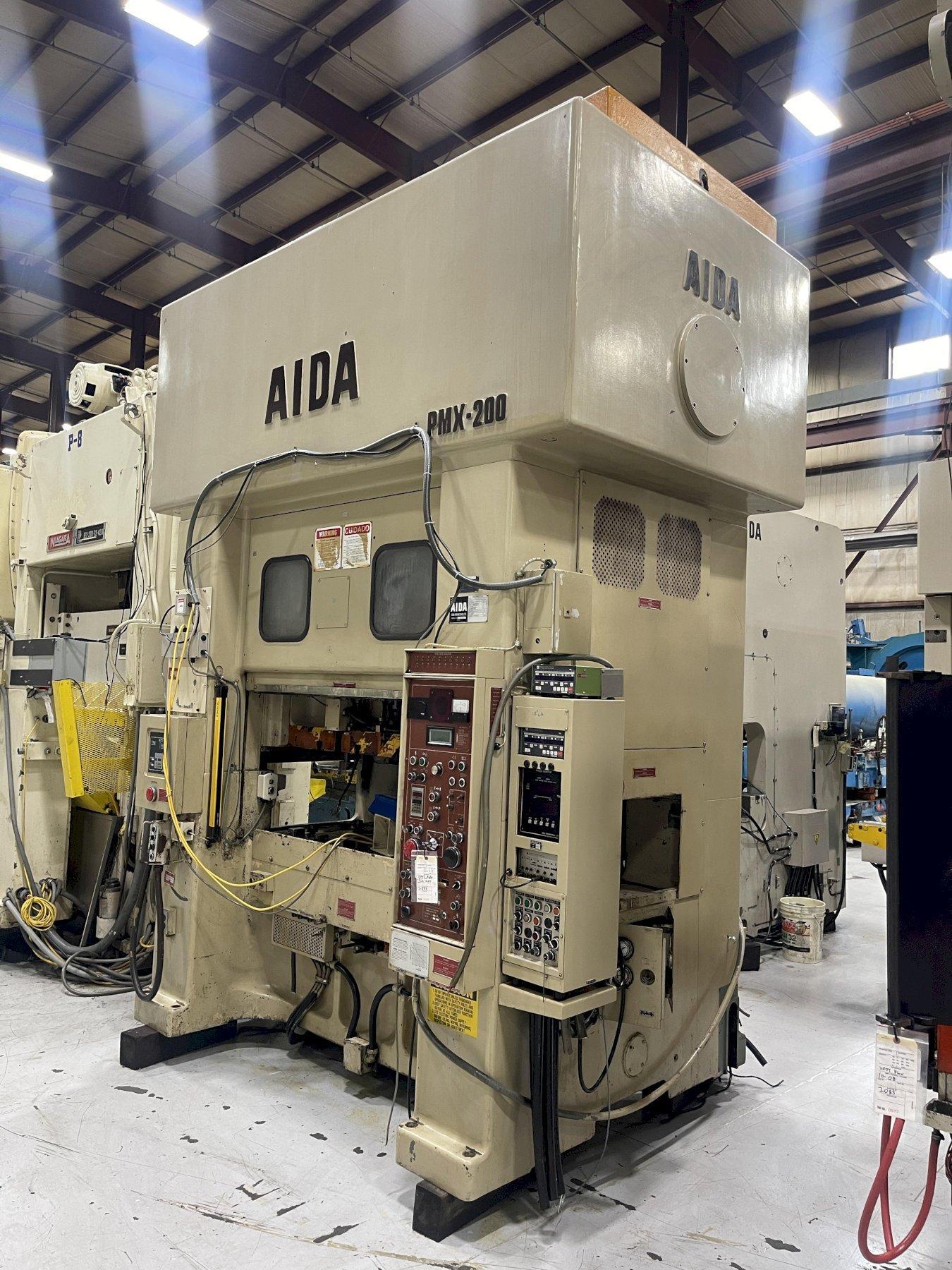

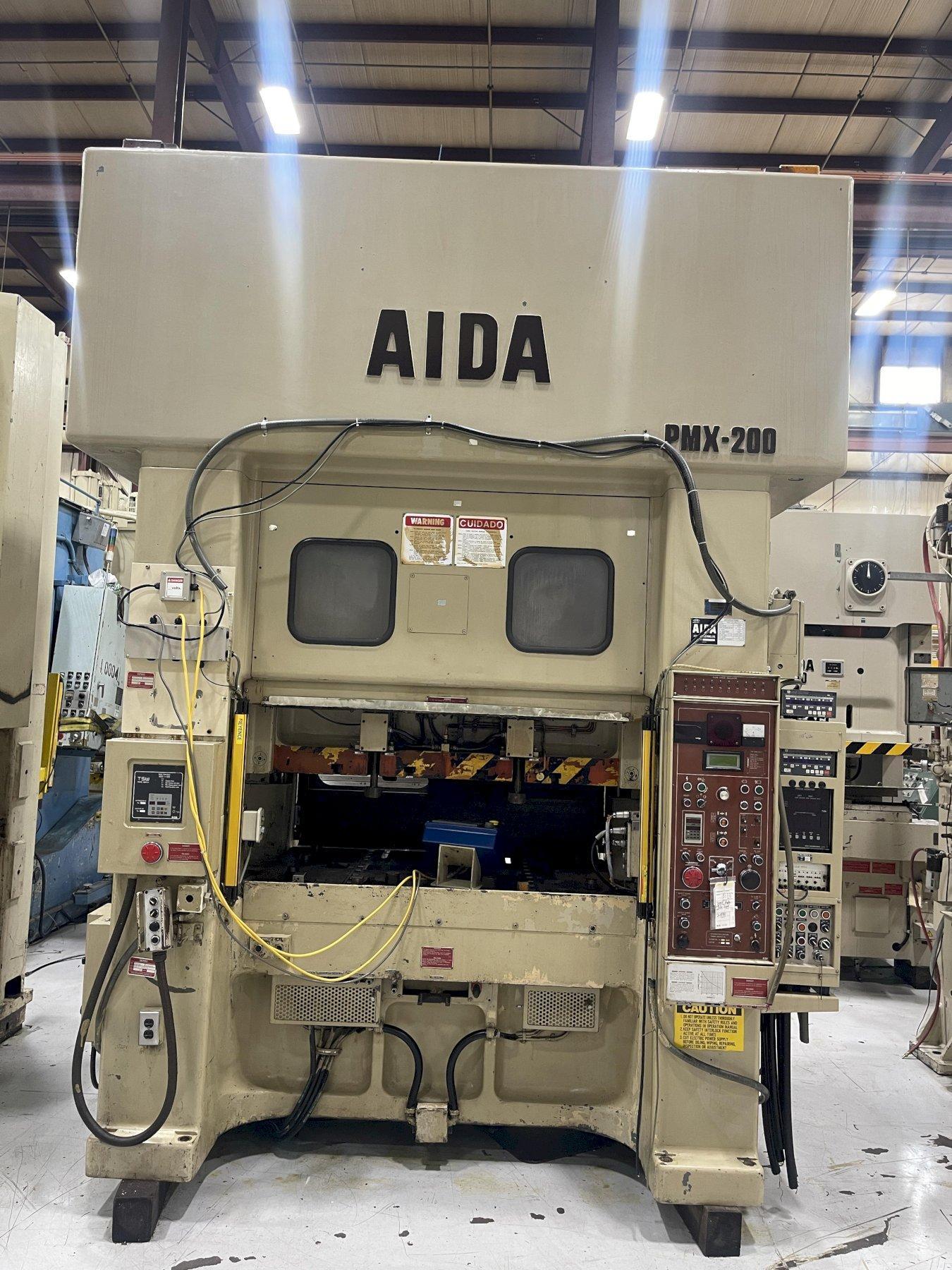

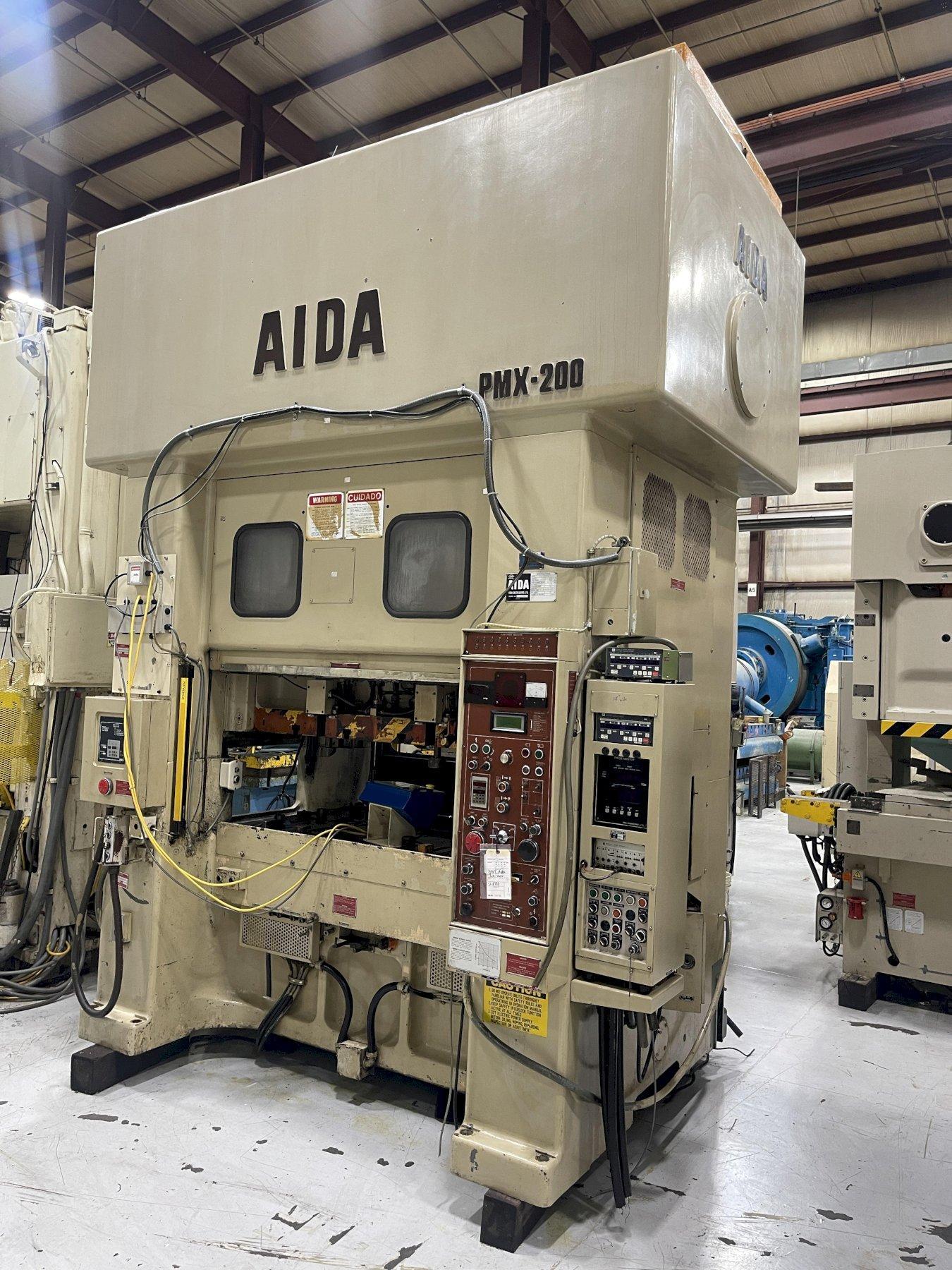

This Used 200-ton Aida PMX Press can be seen underpower in the S&G Press Livonia Michigan Warehouse.

The 200-ton Aida PMX Press delivers precise control throughout the stroke and maximizes material flow in the forming zone, ensuring consistent quality in metal stamping. Its durable build reduces downtime and maintenance costs, while high-speed operation enhances productivity, meeting deadlines efficiently. Versatile for progressive stampings, forming, and blanking operations, it's an ideal choice.

Aida Link Drive Mechanical Metal Stamping Press For Sale
