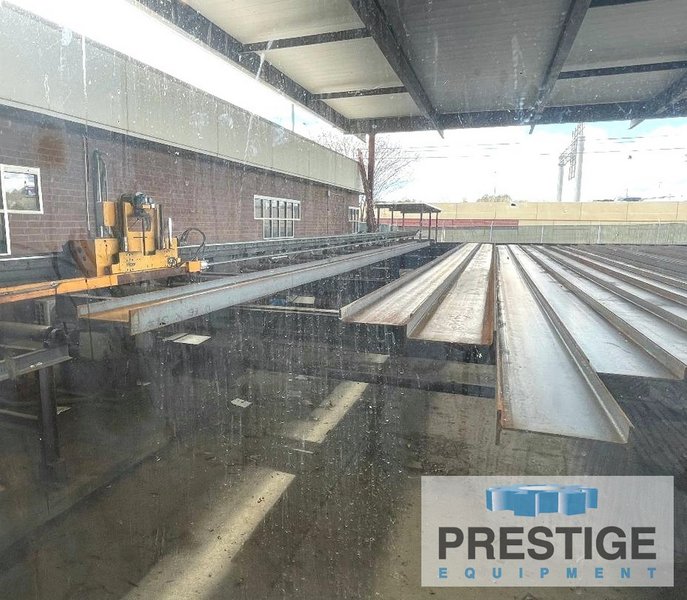

Ficep 1001 DDB Drill & Saw Line, Monospindle Rotating Drill Head, ATC, Ficep Pegaso CNC, Material Handling, 2013 #43408

Stock

43408

Model

1001 DDB

Dealer Location

New York

Spec Sheet

Reference #43408

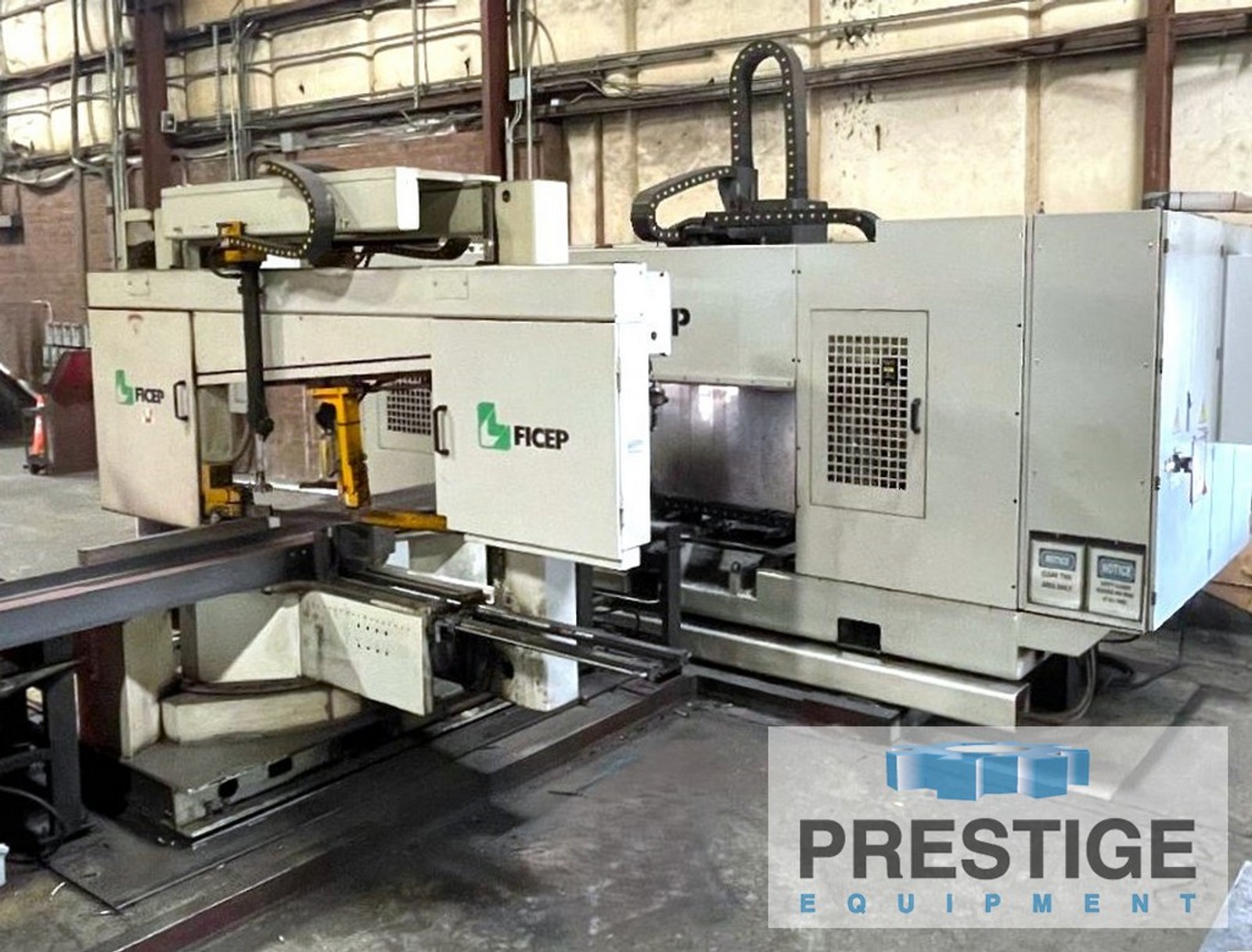

Ficep 1001 DDB Drill & Saw Line with Material Handling

FEATURES:

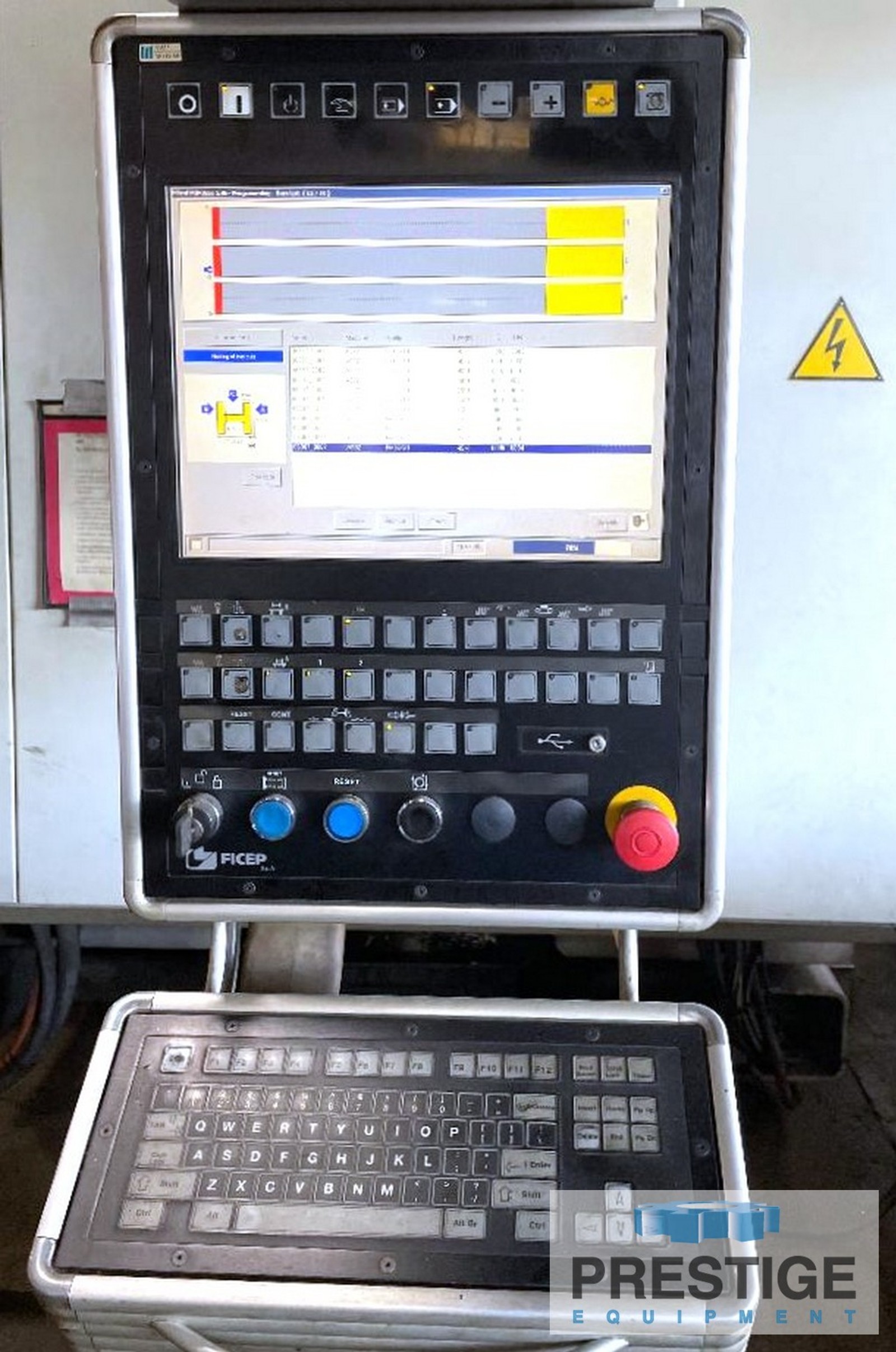

Ficep Pegaso CNC Control
(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides
(6) Position Tool Changer
Scribing
Carriage Feed

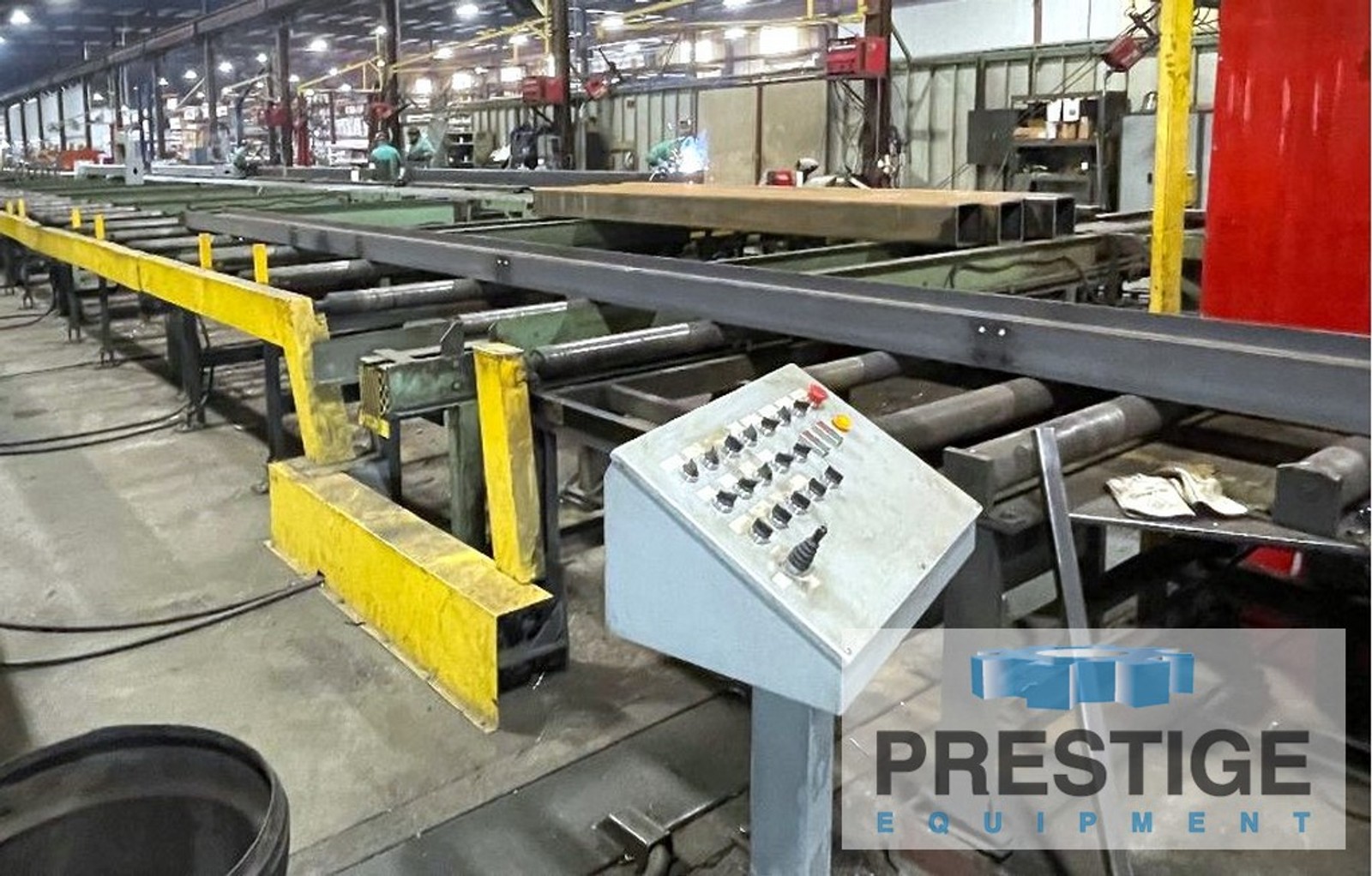

65' Powered Infeed Conveyor With Transfers

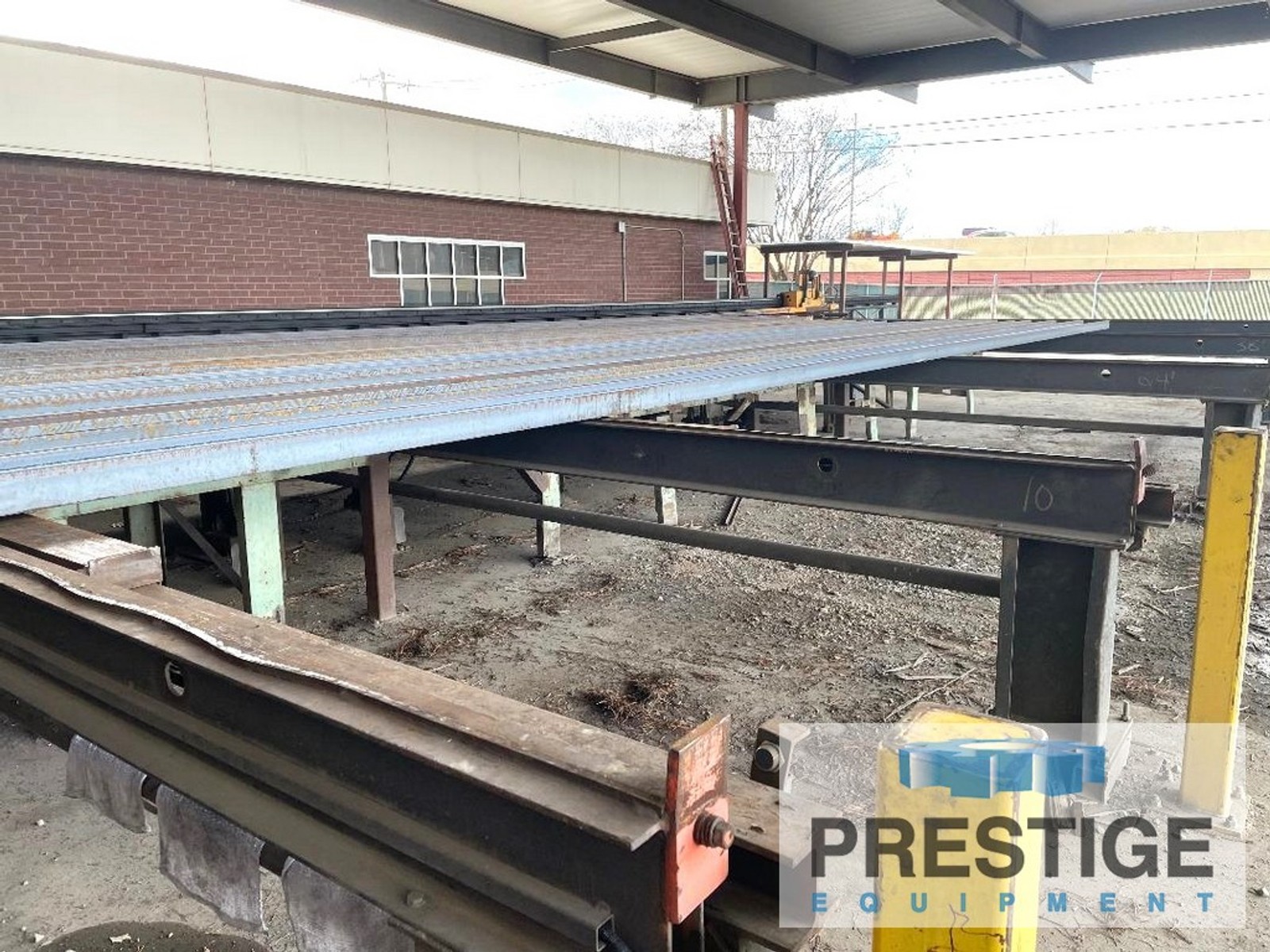

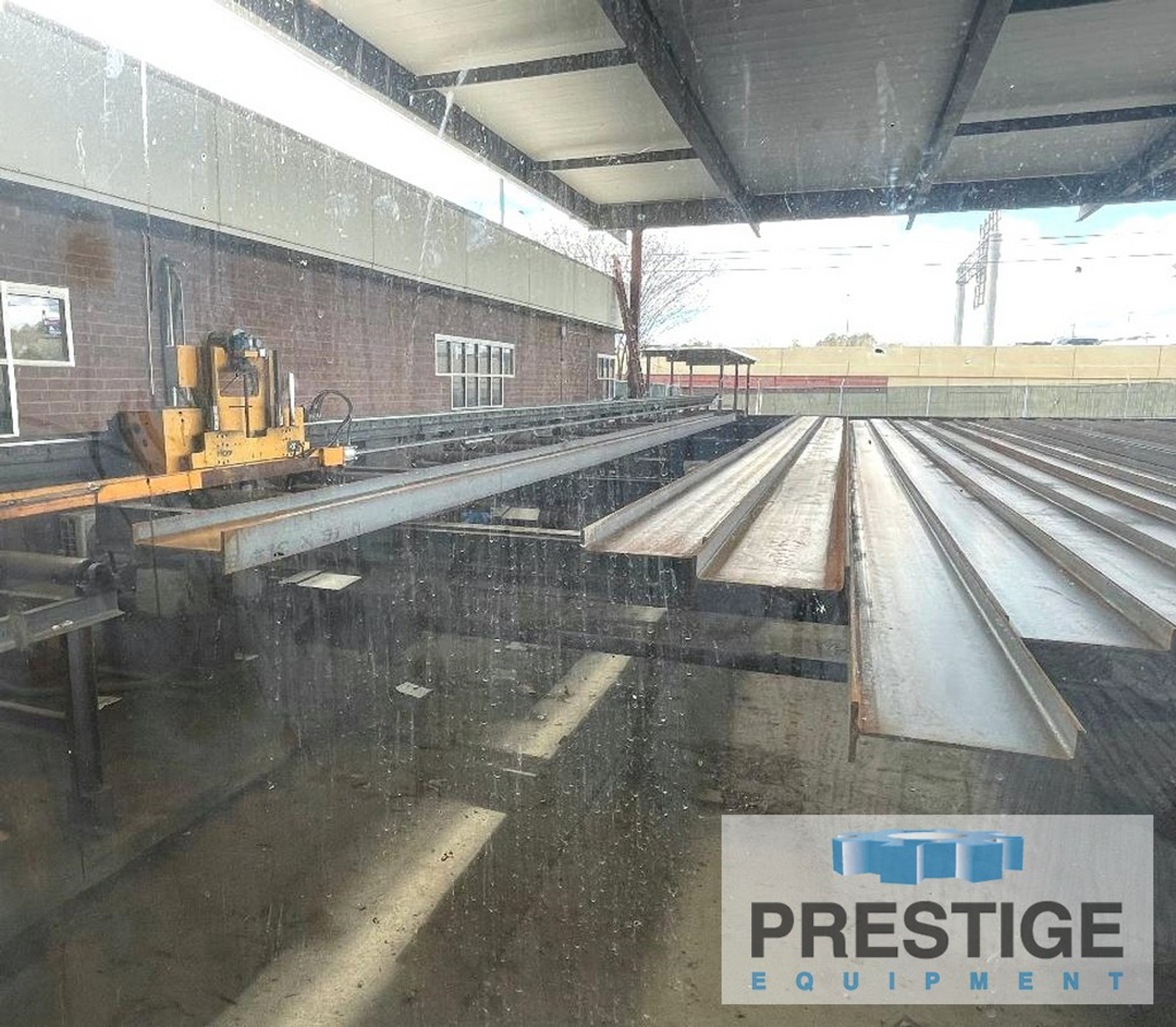

40' Outfeed Powered Conveyor

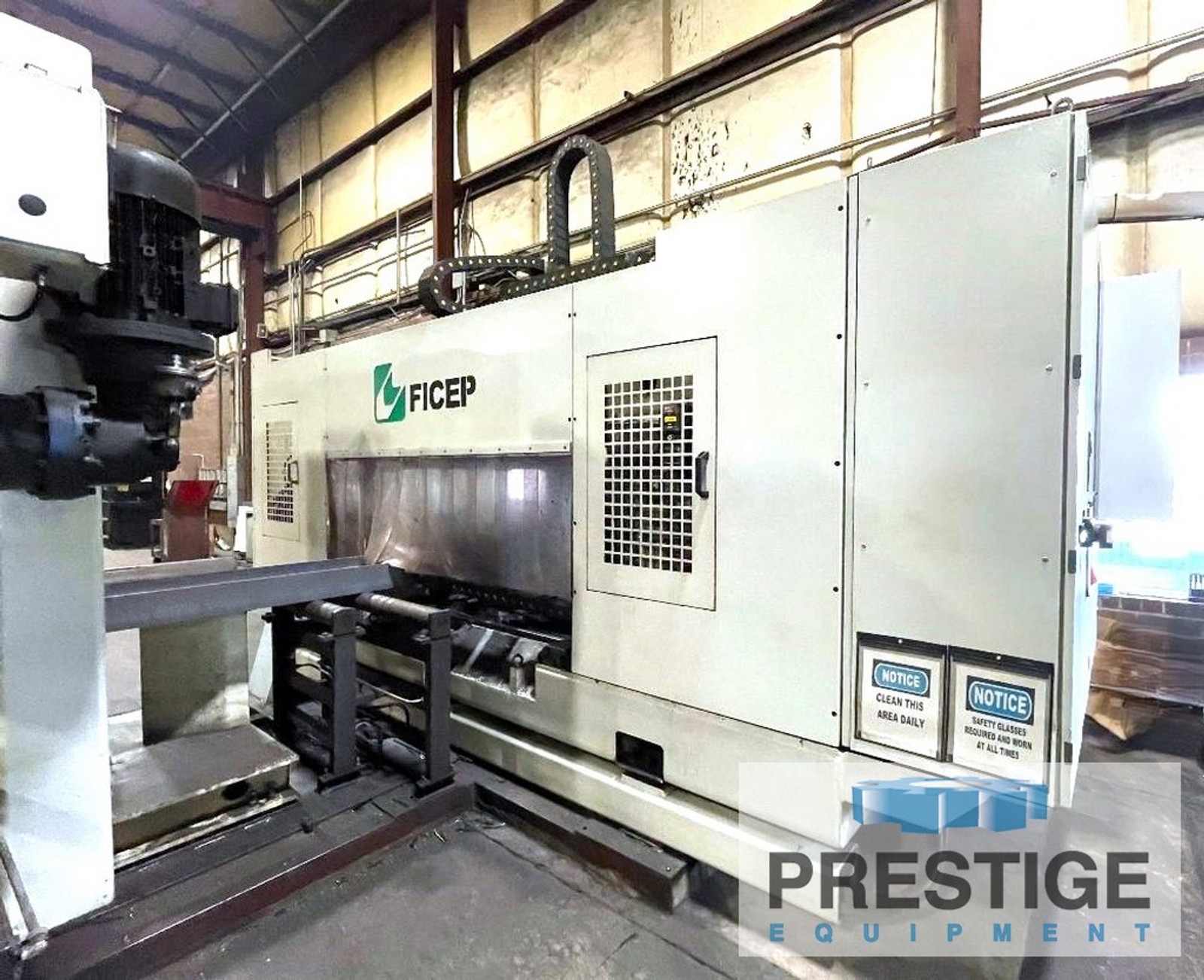

FICEP 1001 DDB DRILL:
No. Of Spindles, Rotating ............ 1
Beam Depth, Min - Max ............... 3-1/8" - 40"
Flange Height, Min - Max ............. 3/8" - 17-3/4"
Maximum Drill Diameter ............... 1-9/16"
Maximum Drill Thickness .............. 4"
Spindle Motor ........................ 22 HP
Spindle Speed ........................ 180 - 2500 RPM

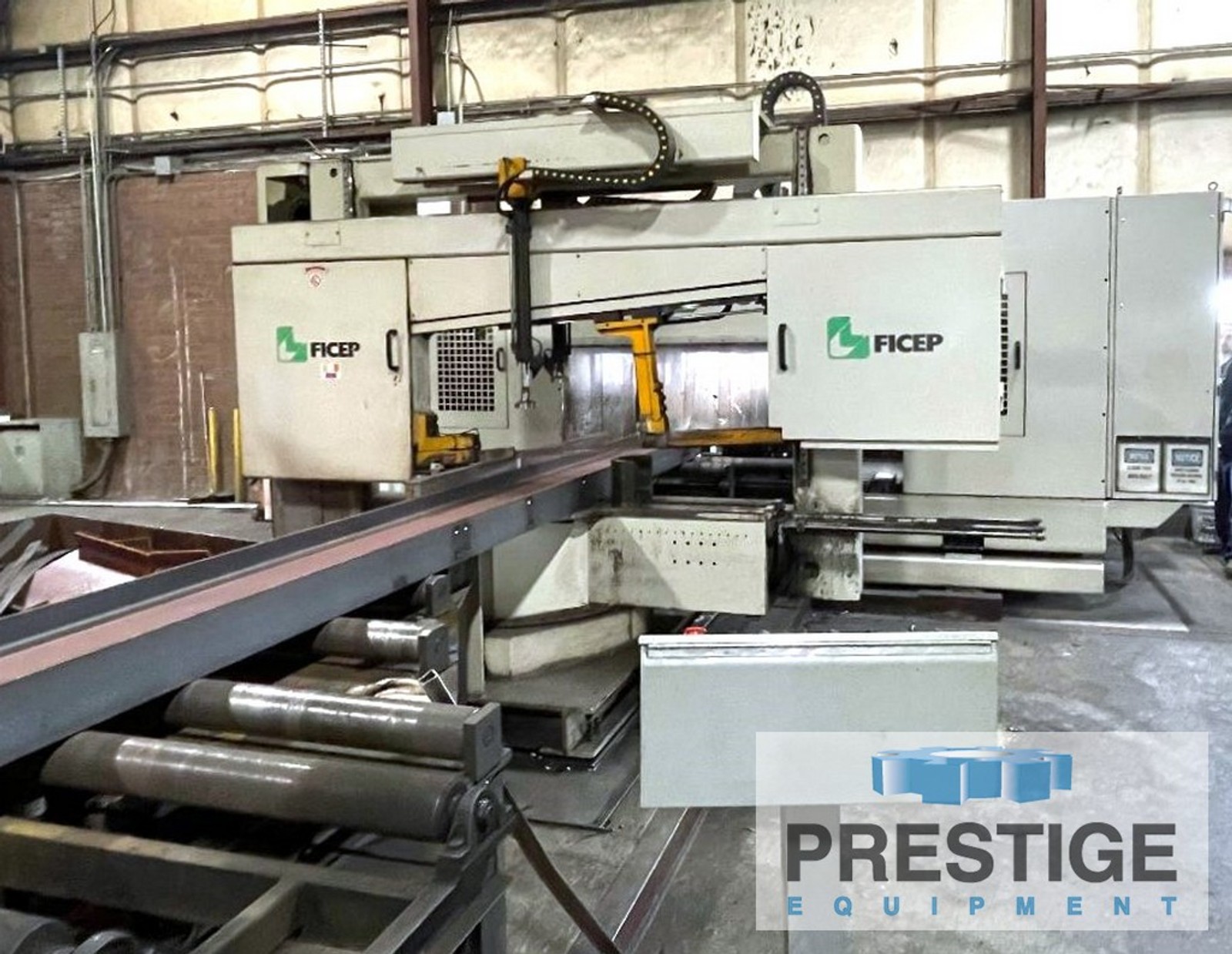

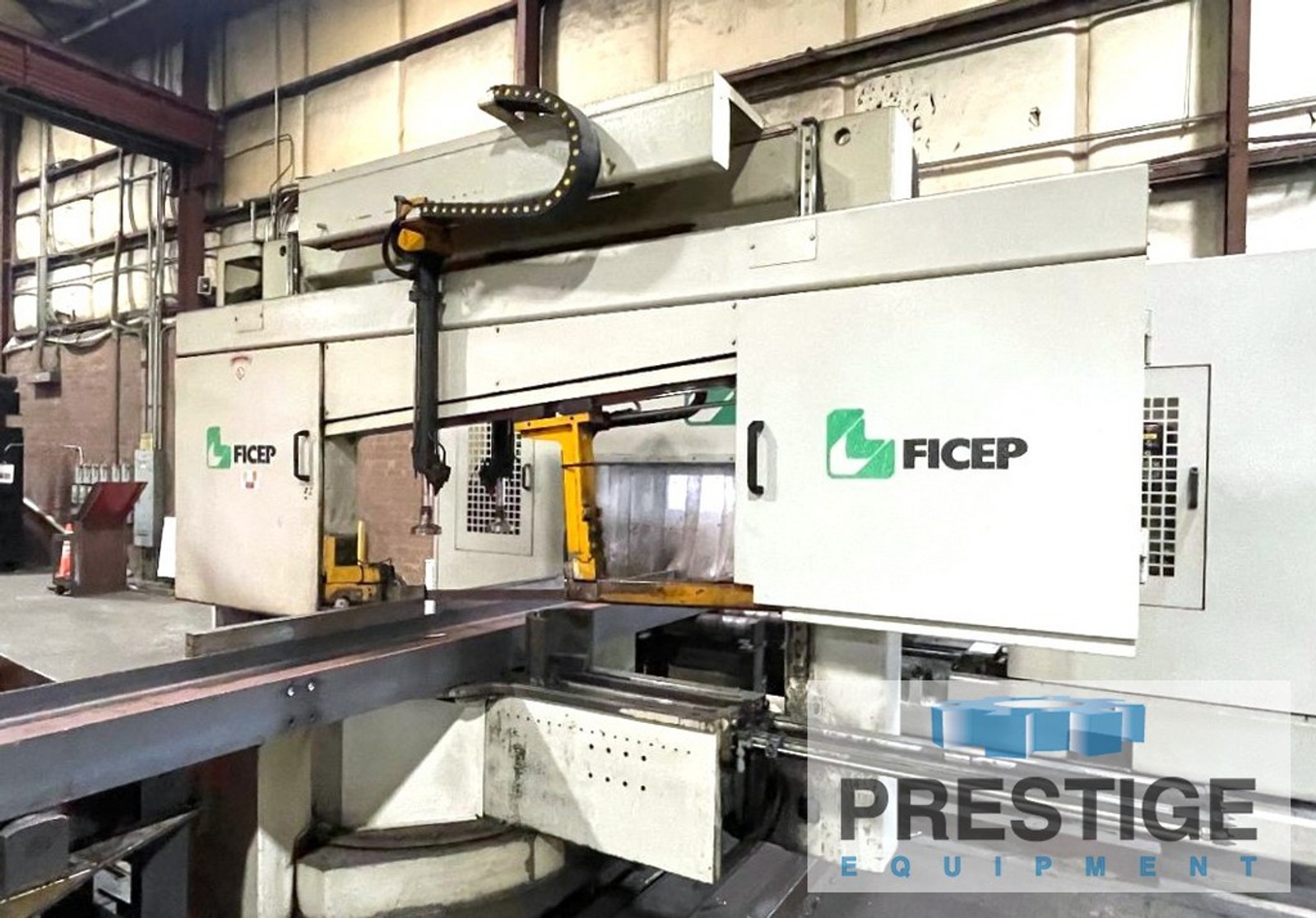

FICEP K100 BAND SAW:
Max. Sawing Capacity at 90° .......... 40" x 17-3/4"
Sawing Capacity at 45° ............... 24-3/8" x 17-3/4""
Sawing Capacity at 60° ............... 13-3/4" x 13-3/4"
Blade Speed .......................... 196 - 557 FPM
Motor Power .......................... 12 HP

EQUIPPED WITH:
Ficep Pegaso CNC Control
(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides
(6) Position Tool Changer
Scribing On 3-Sides
Carriage Feed
65' Powered Infeed Conveyor With Transfers
40' Outfeed Powered Conveyor

NOTES:
Inspect In Plant Under Power

No Video Available
