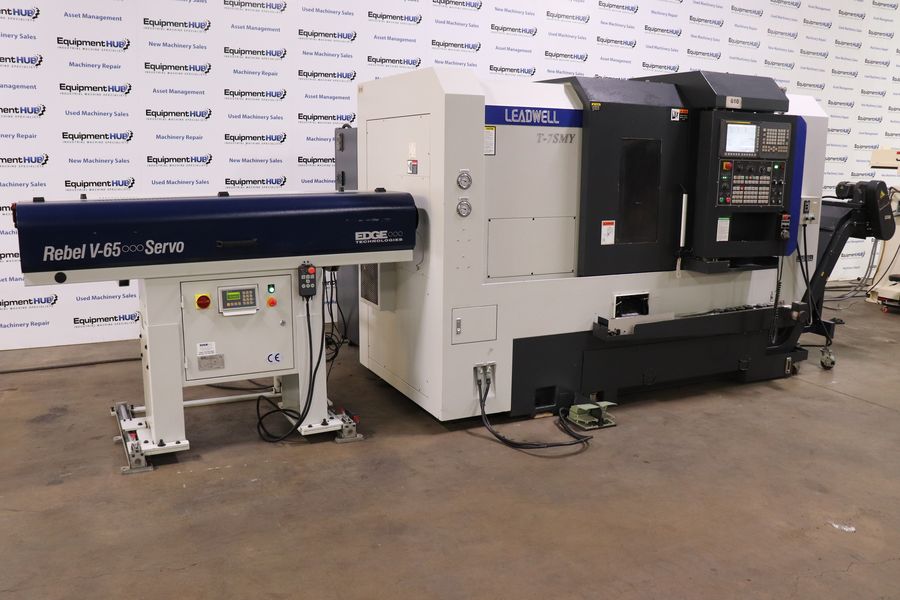

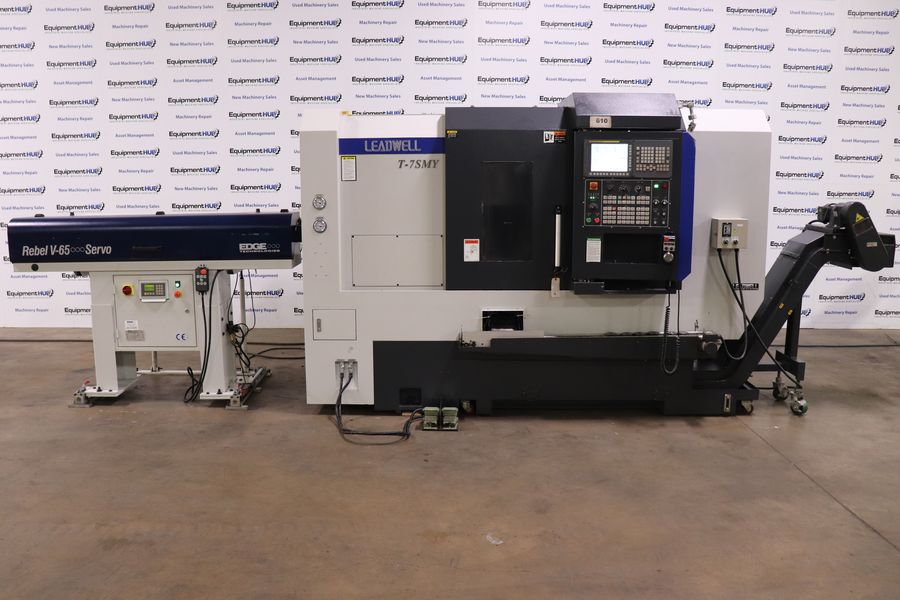

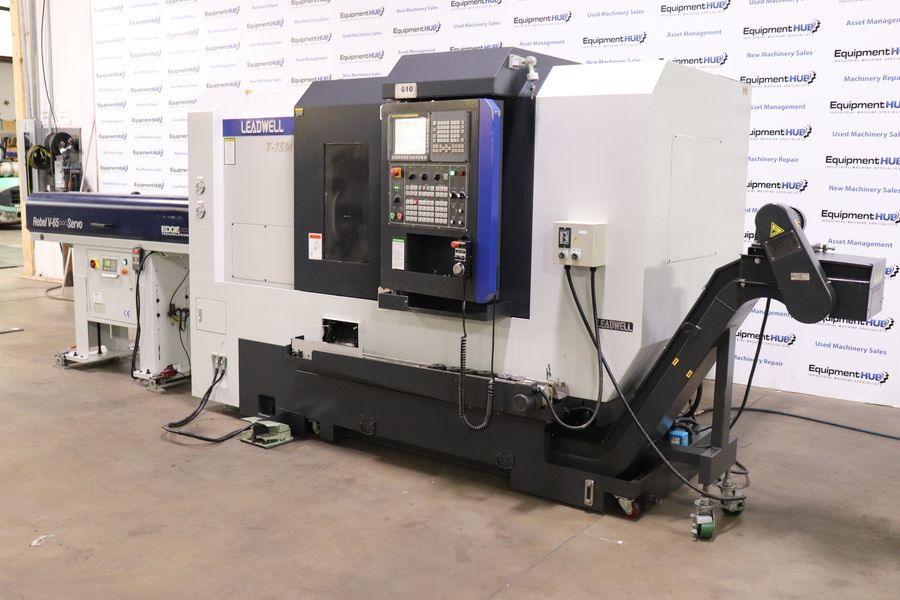

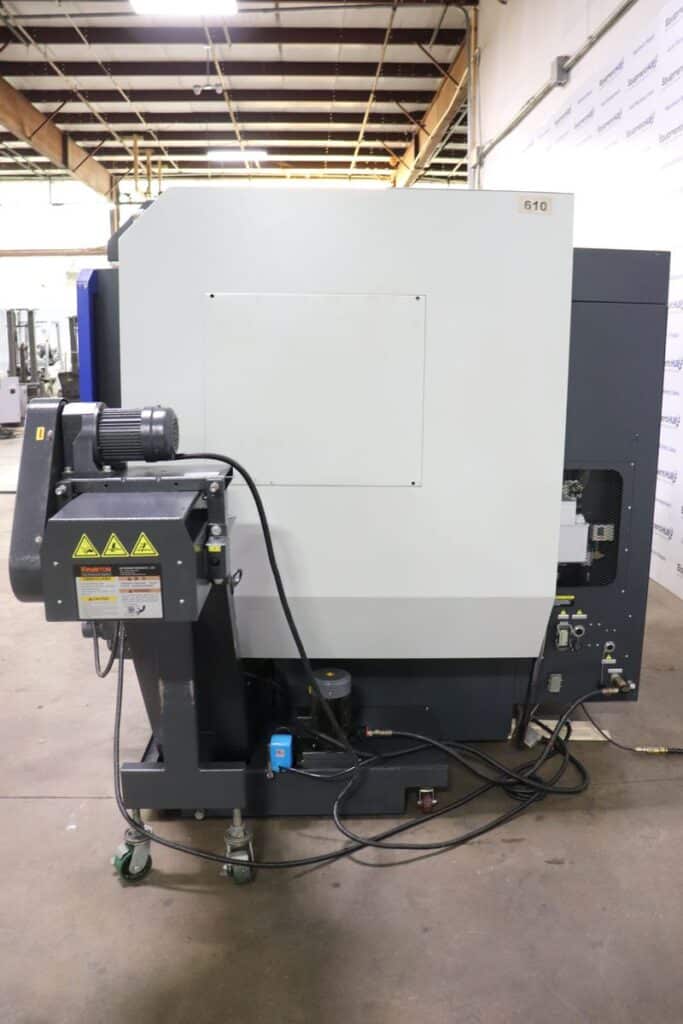

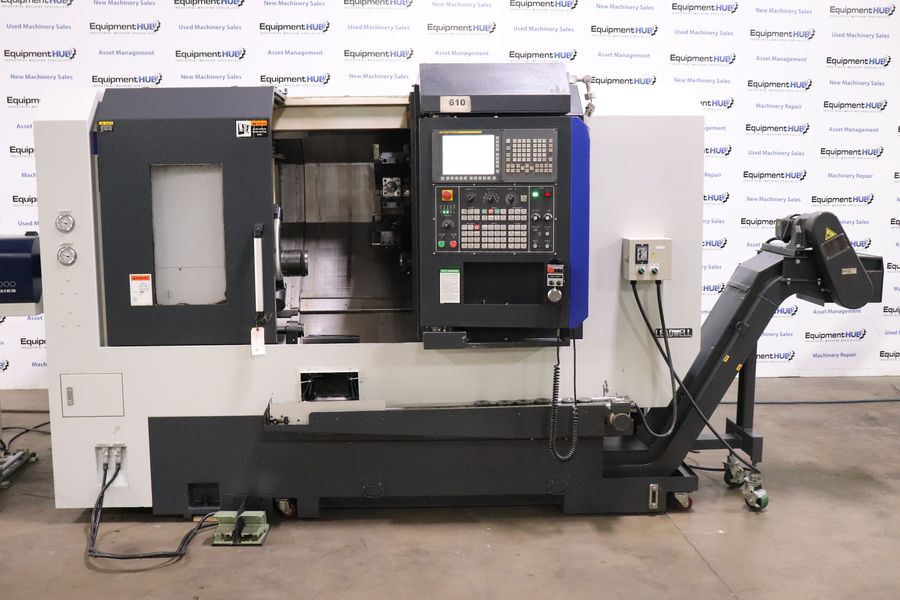

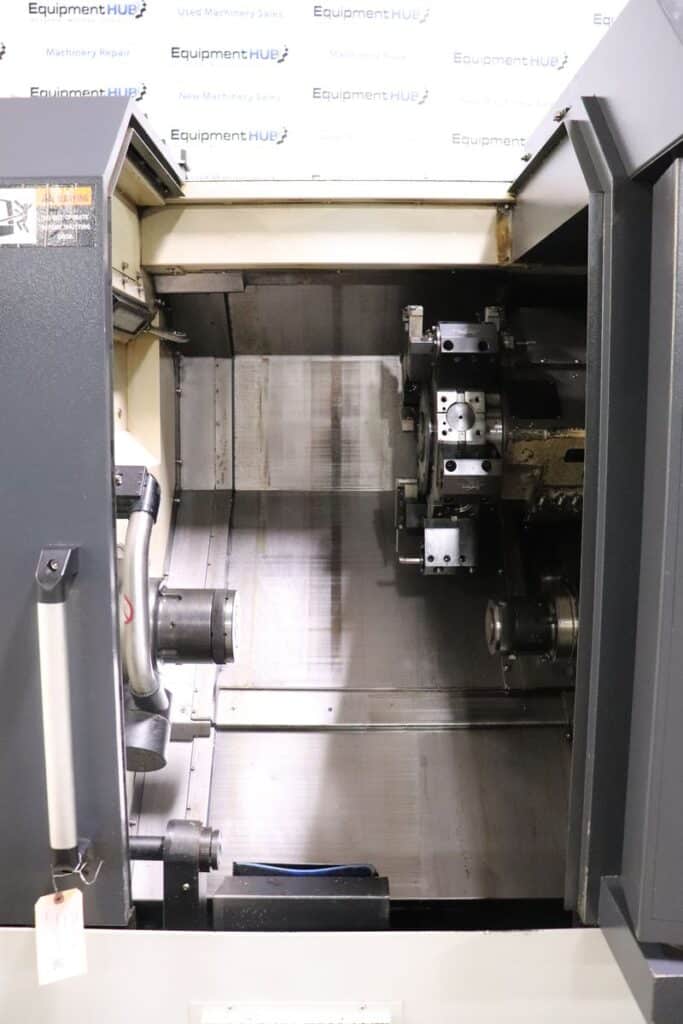

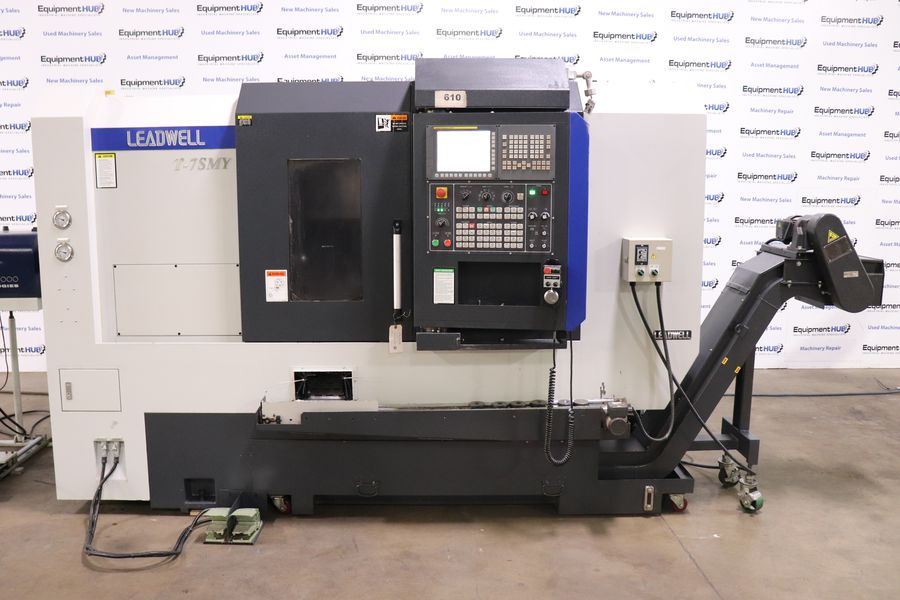

2018 Leadwell T-7SMY CNC Lathe w/ Bar Feeder

Manufacturer

Leadwell

Category

Lathes

Type

LATHES, CNC

Stock

170240002

Model

T-7SMY

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 170240002
  • Location: Stone Mountain, GA
  • Brand: Leadwell
  • Model: T-7SMY
  • Serial #: L2TAG0789
  • Year: 2018
  • Approx. Shipping Weight: 15,000 Lbs.
  • Approx. Shipping Dimensions: 21′ L x 8′ W x 7′ H

Specifications

  • Max Work Swing: 24.8″
  • Swing Over Cross Slide: 21.3″
  • Max. Turning Diameter: 14.9″
  • Max Turning Length: 18″
  • Max. Workpiece Weight: 375 Lbs.
  • X-Axis Travel: 8.1″
  • Z-Axis Travel: 17.7″
  • Y Axis: +/- 1.97″ (3.94″ Total Travel)

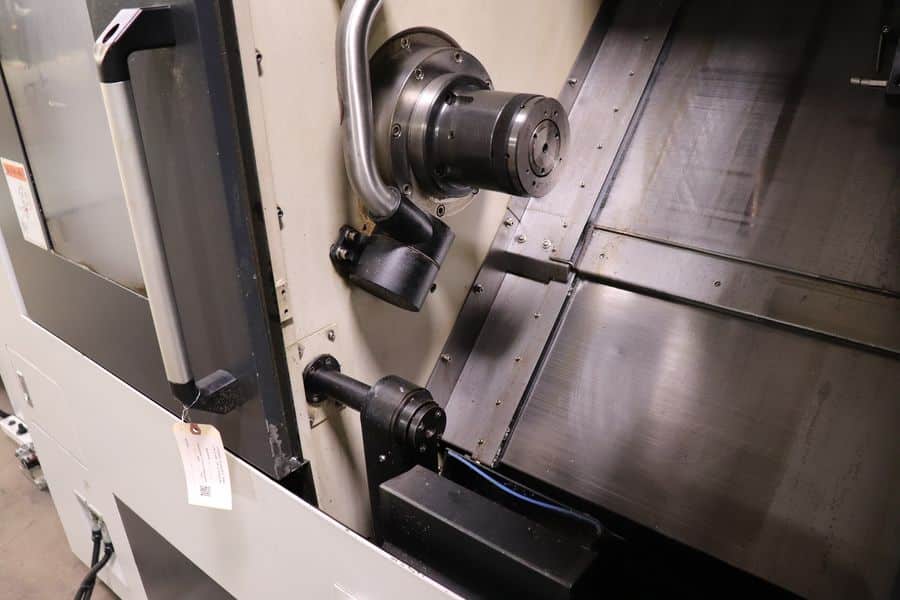

  • B Axis Travel: (Sub-Spindle)19.7″ (16.93″ with parts catcher)
  • C Axis on Main & Sub-Spindle: 0.001° (360,000 degrees)
  • Spindle Nose: A2-6
  • Chuck Diameter & Bar Capacity: 8″ / 2.5″
  • Spindle Bore: 3.0″
  • Spindle Speed: 4500 RPM

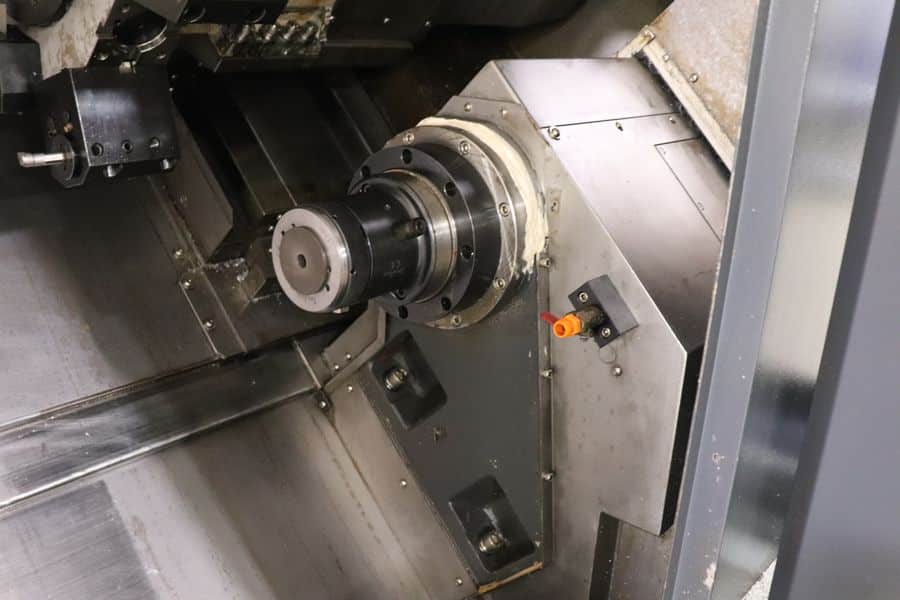

  • Sub Spindle Nose: A2-5
  • Sub-Spindle Chuck Diameter & Bar Capacity: 6″ / 1.63″
  • Sub-Spindle Spindle Bore: 2.0″
  • Sub-Spindle Spindle Speed: 6000 RPM

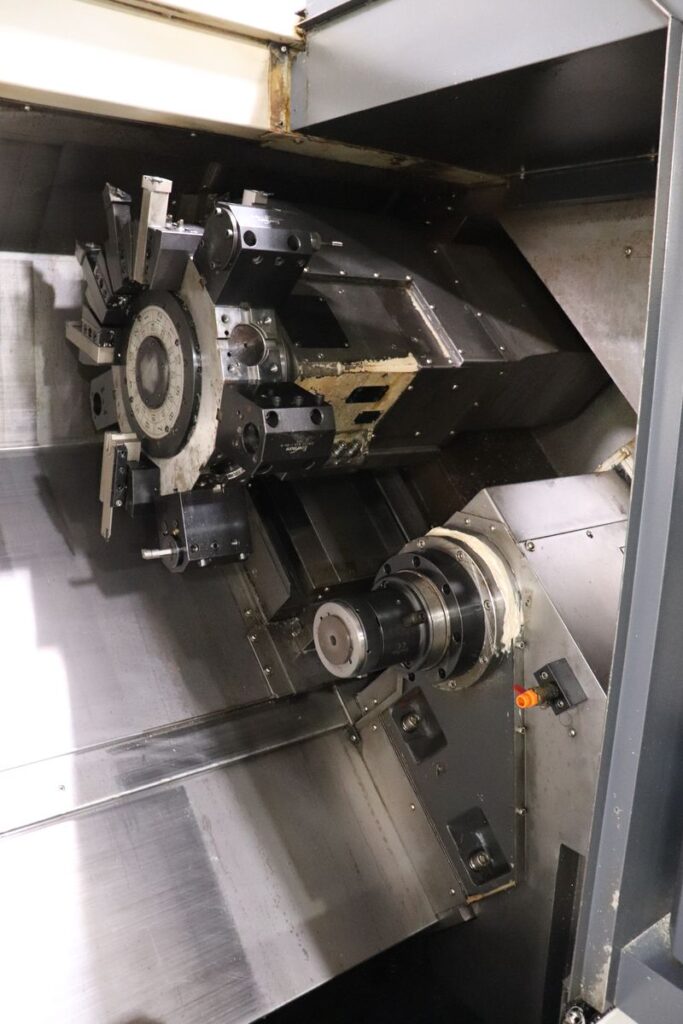

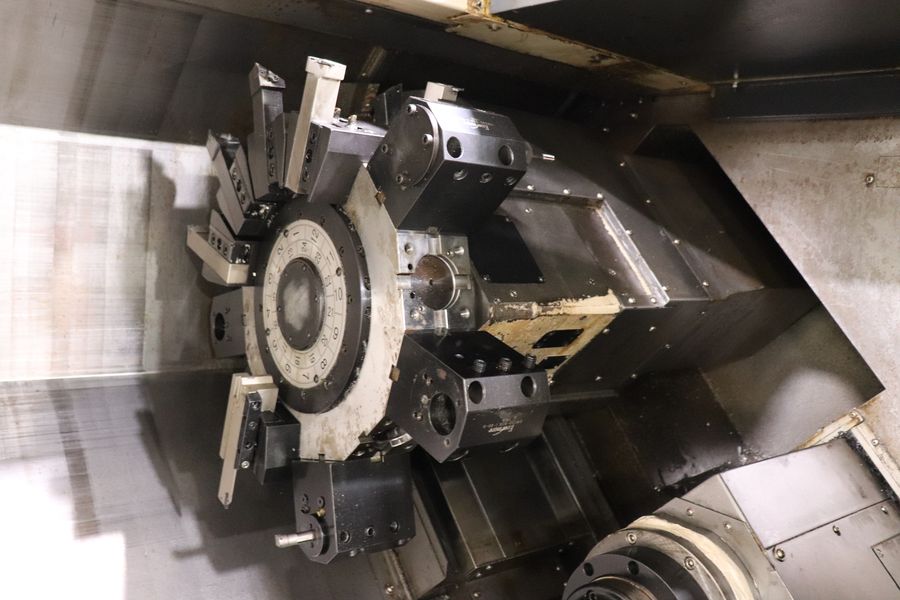

  • Turret Tool Stations: 12
  • Indexing Time Tool-to-Tool: 1.0 Sec.
  • Live Tooling Speed: 5,000 RPM
  • Electrical: 220V/3PH

Equipped With

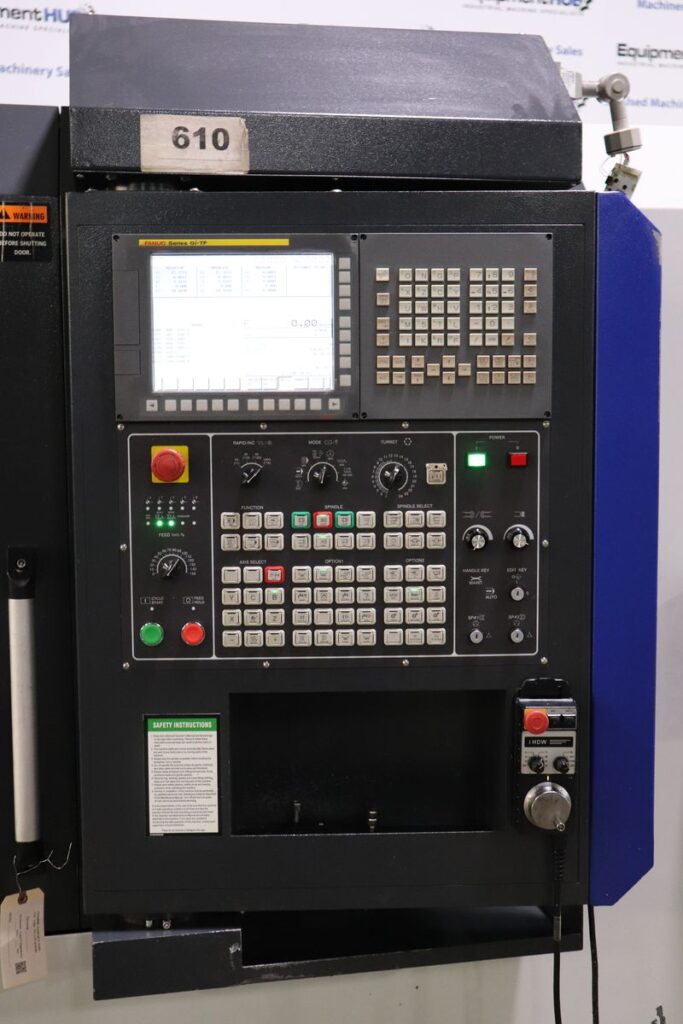

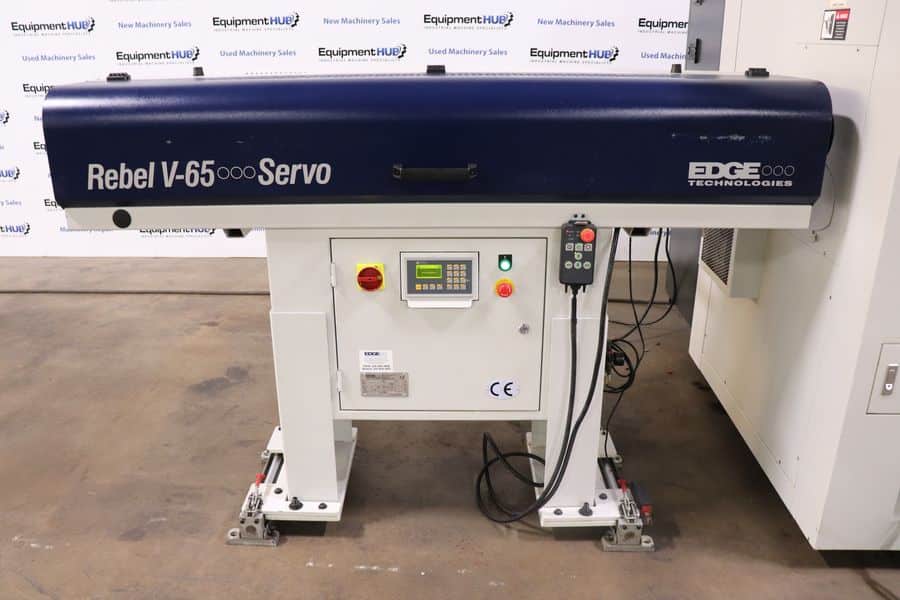

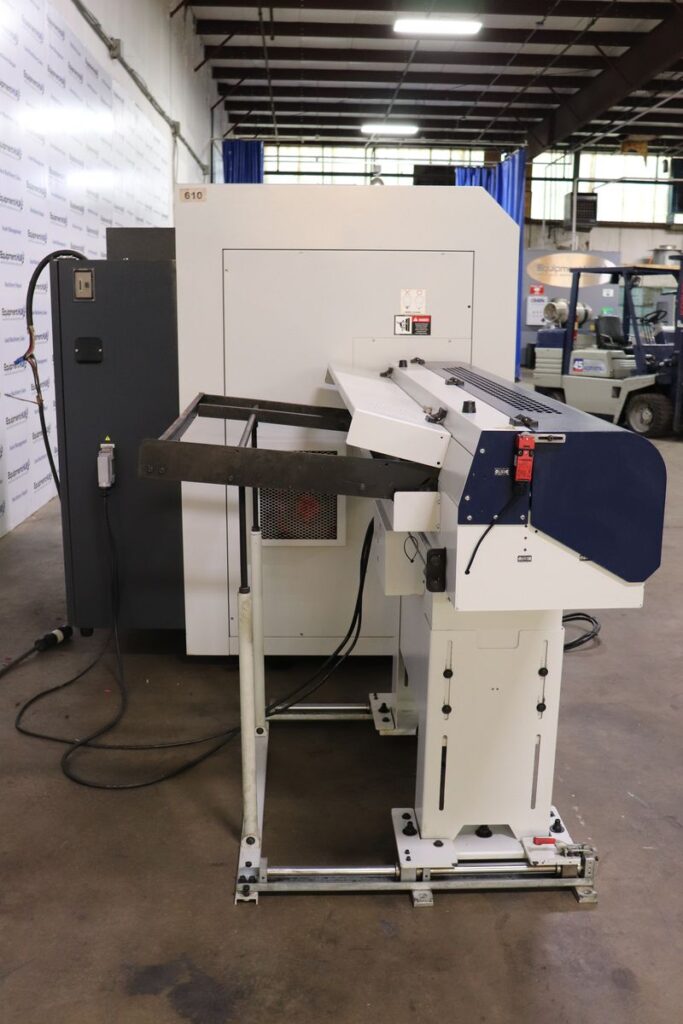

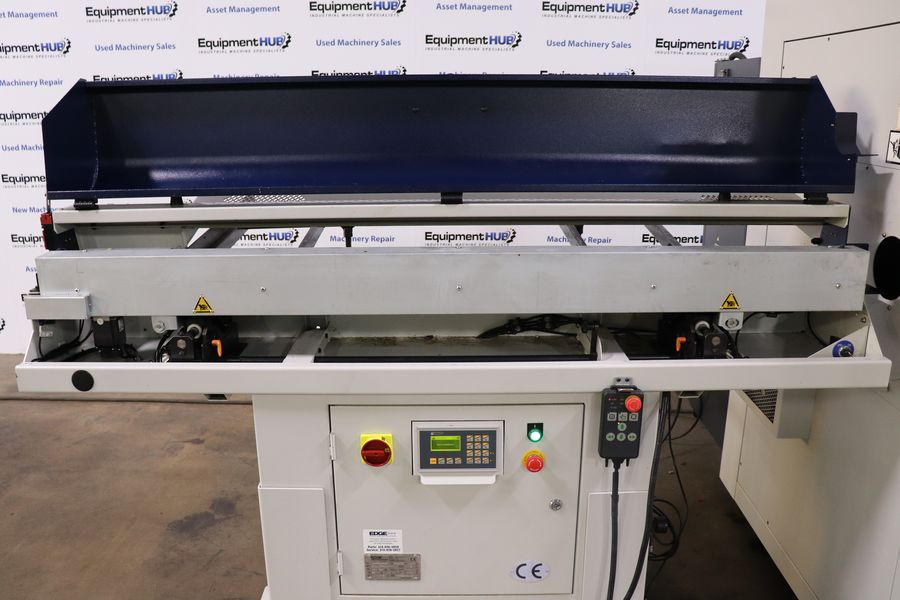

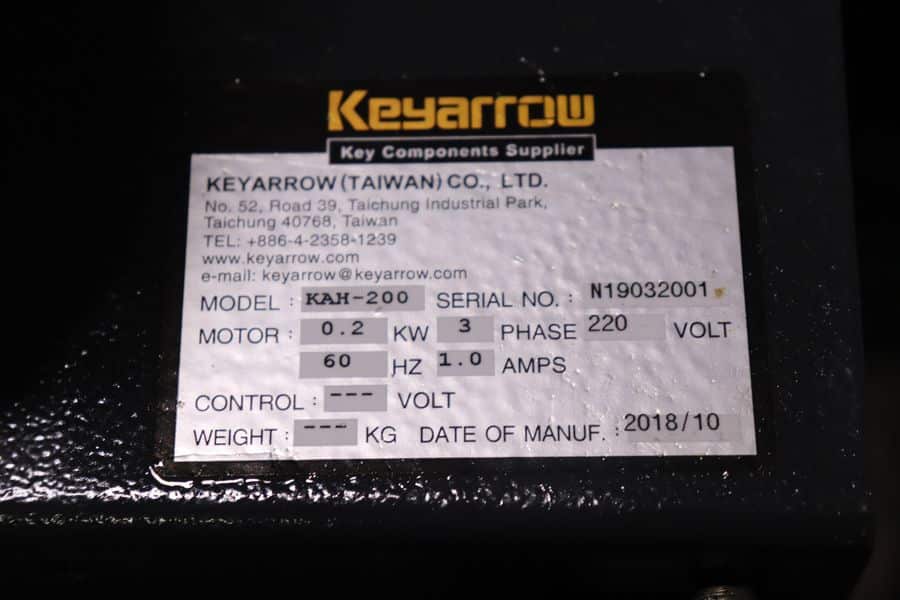

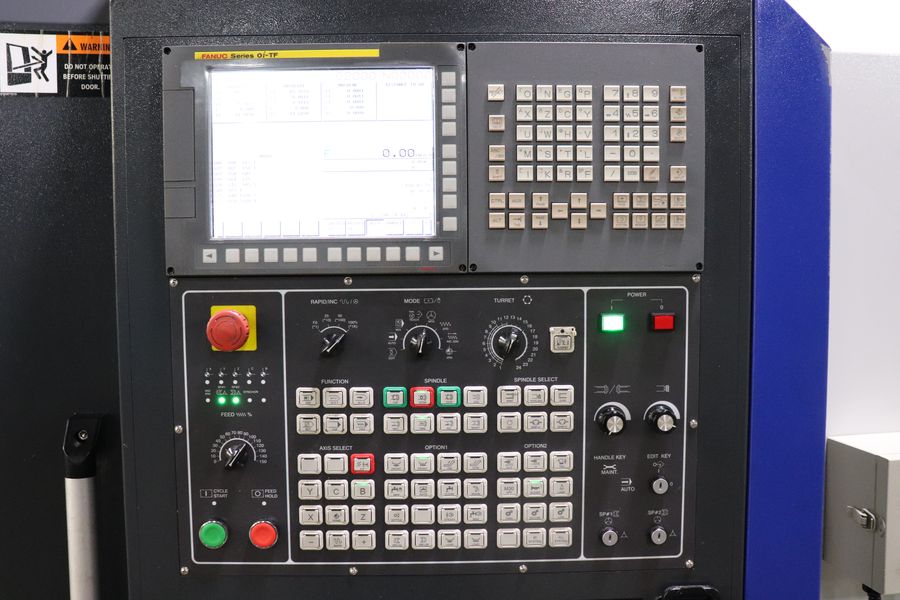

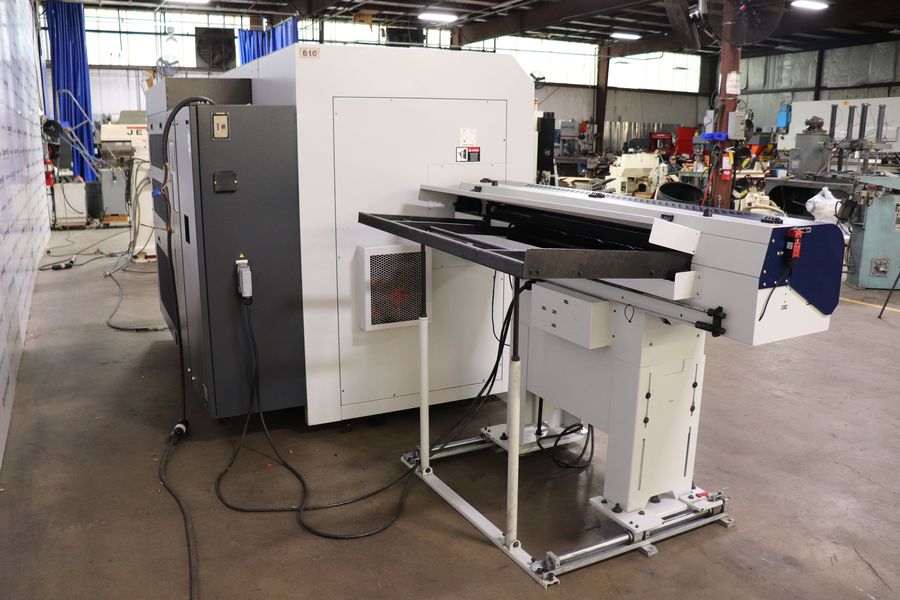

Fanuc OI-TF CNC Control, Edge Technologies Rebel V-65 Servo Bar Feed, Live Tool Turret, Qnty. 4 Live Tool Holders, Coolant System, Keyarrow Chip Conveyor, Hydraulic Turret Clamping, Parts Catcher, Tool Setter

Additional Info

The Leadwell CNC Lathe can be demoed upon request.
