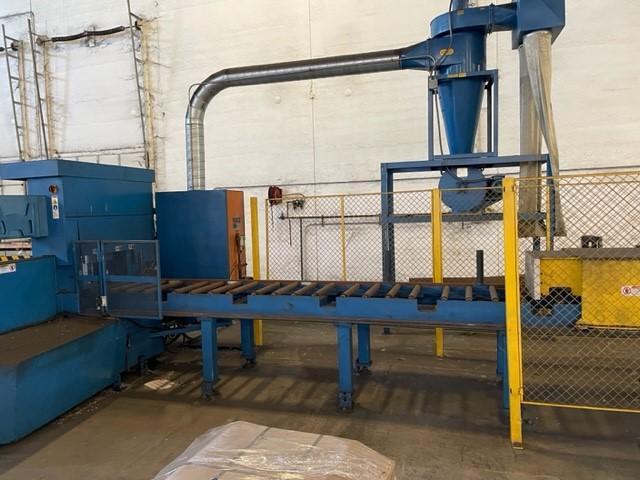

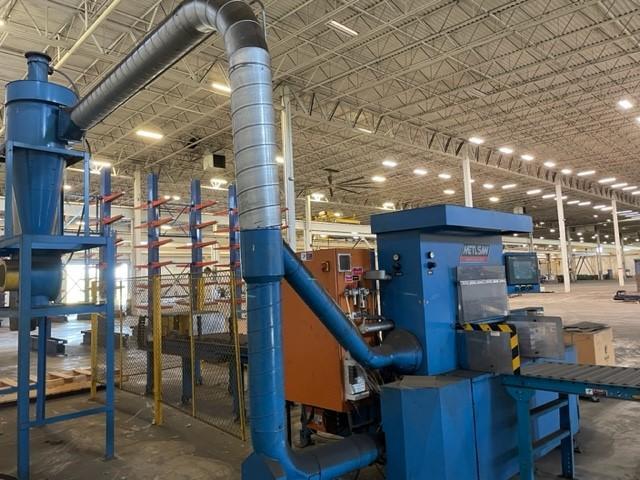

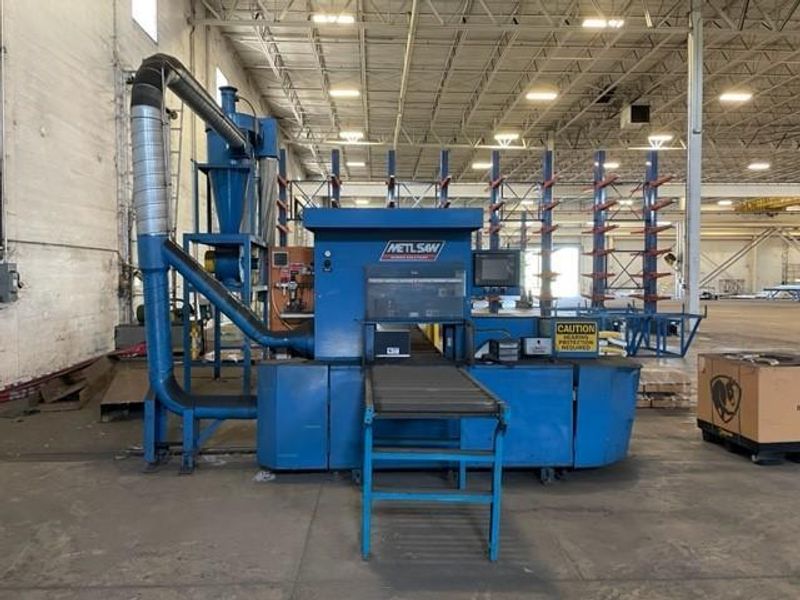

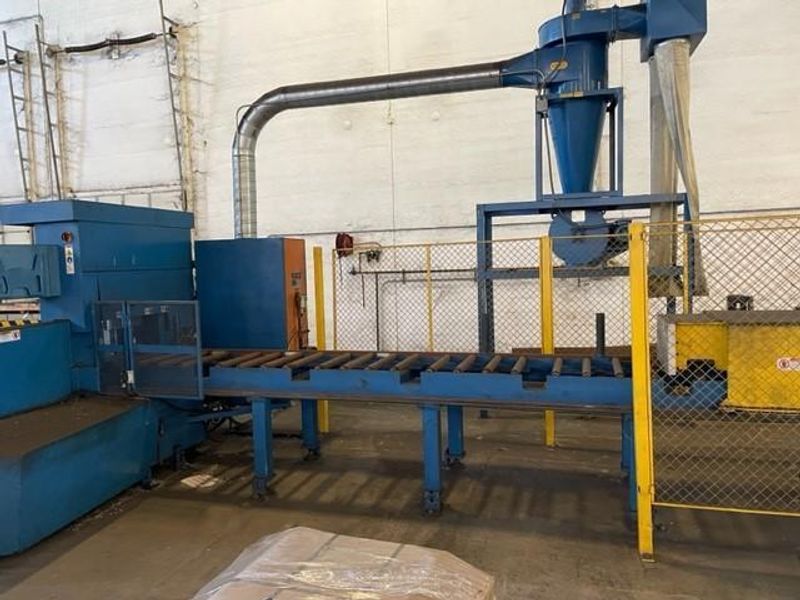

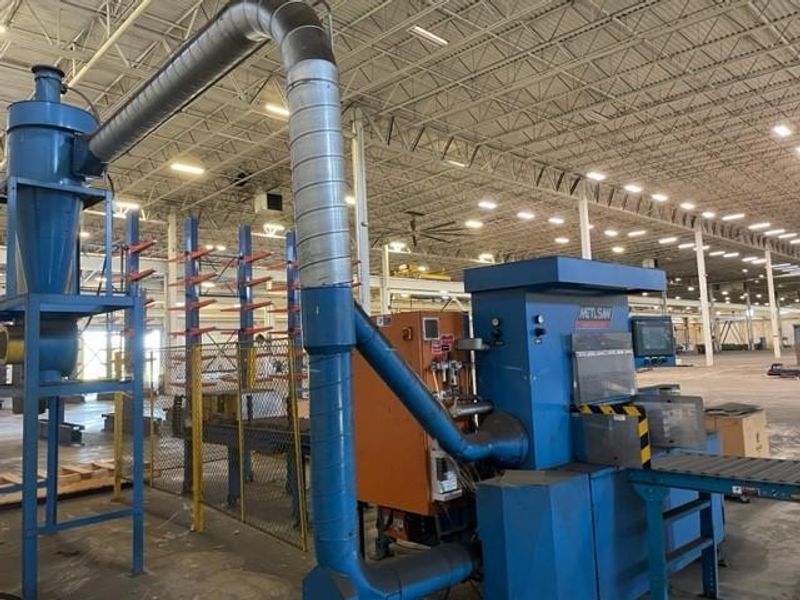

Metlsaw Model: CS2-T12 for 12’

Manufacturer

METLSAW

Stock

102136

Model

CS2-T12

Dealer Location

Michigan

Spec Sheet



Cutting Window: 24" (600mm)
Cutting Height: 8" to 14" (200-355mm)
Backgauge  Length: 12' (3.6m)
Cut Length Range: 1/2"-Unlimited (12mm-Unlimited)

Position Tolerance:  ±.003 (.08mm)
Vertical Squareness:  ±.0005" /in thick (.01mm/mm thick)
Horizontal Squareness:  ±.002 /ft (.05mm/mm)

Feed Rates
Motor: 30 HP (22KW)
Carriage Cutting Speed: To 500" /min (12,700mm/min)
Backgauge Increment Speed: To 500"/min (12,700mm/min)
Backgauge Reverse Speed: To 800" /min (20,000mm/min)

Power:  460/480 @ 80 amp
Air: 30 CFM @ 80 psi
