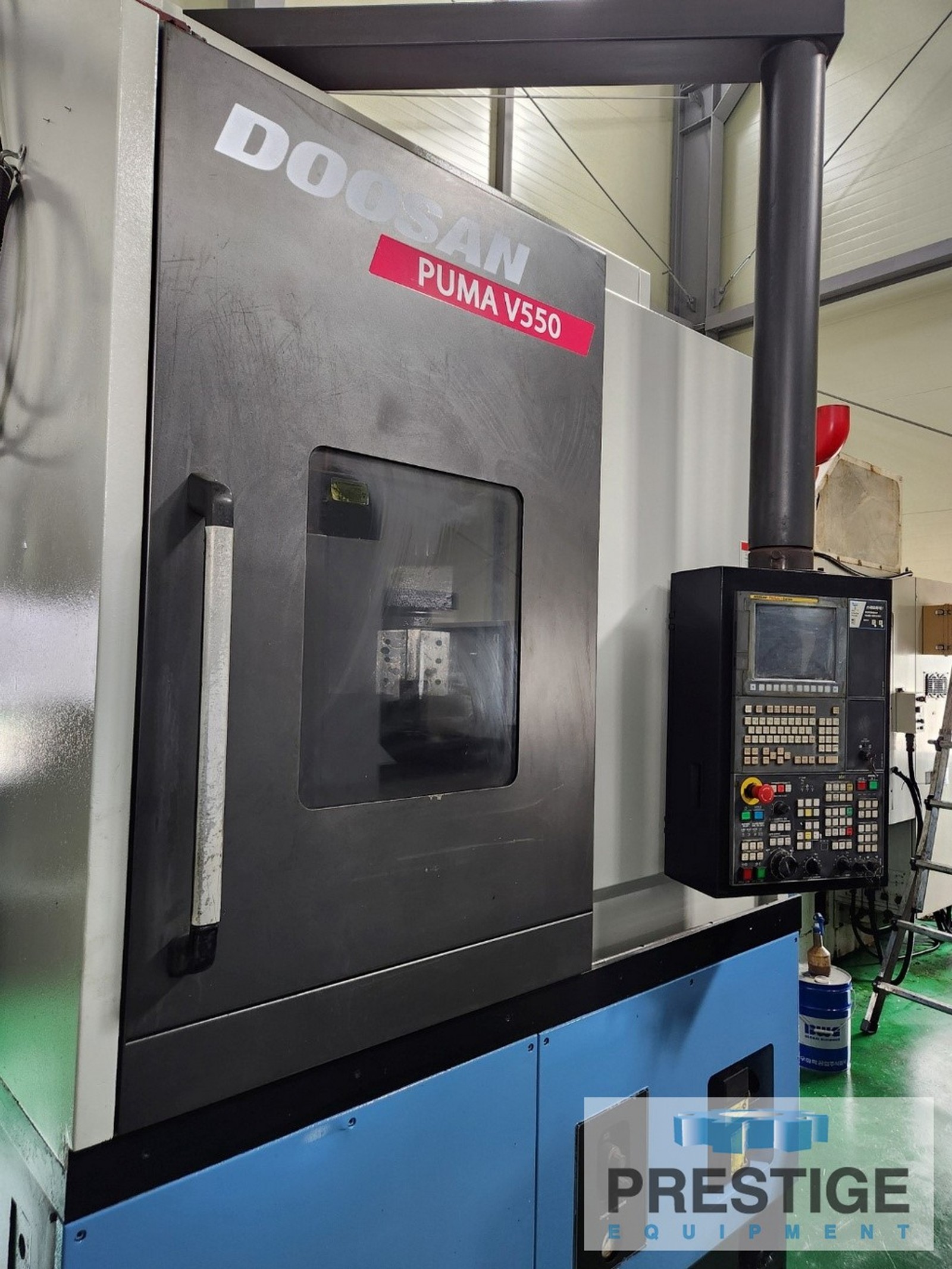

Doosan V550, 29"Swing, 2000 RPM, Fanuc CNC, 12 Pos. Turret, 21" 3-Jaw Chuck, Chip Conveyor, 2015, #43368

Manufacturer

DOOSAN

Category

Boring Mills

Stock

43368

Model

V550

Dealer Location

New York

Spec Sheet

Reference #43368
Doosan V550 31.5" CNC Vertical Turning Center

FEATURES:

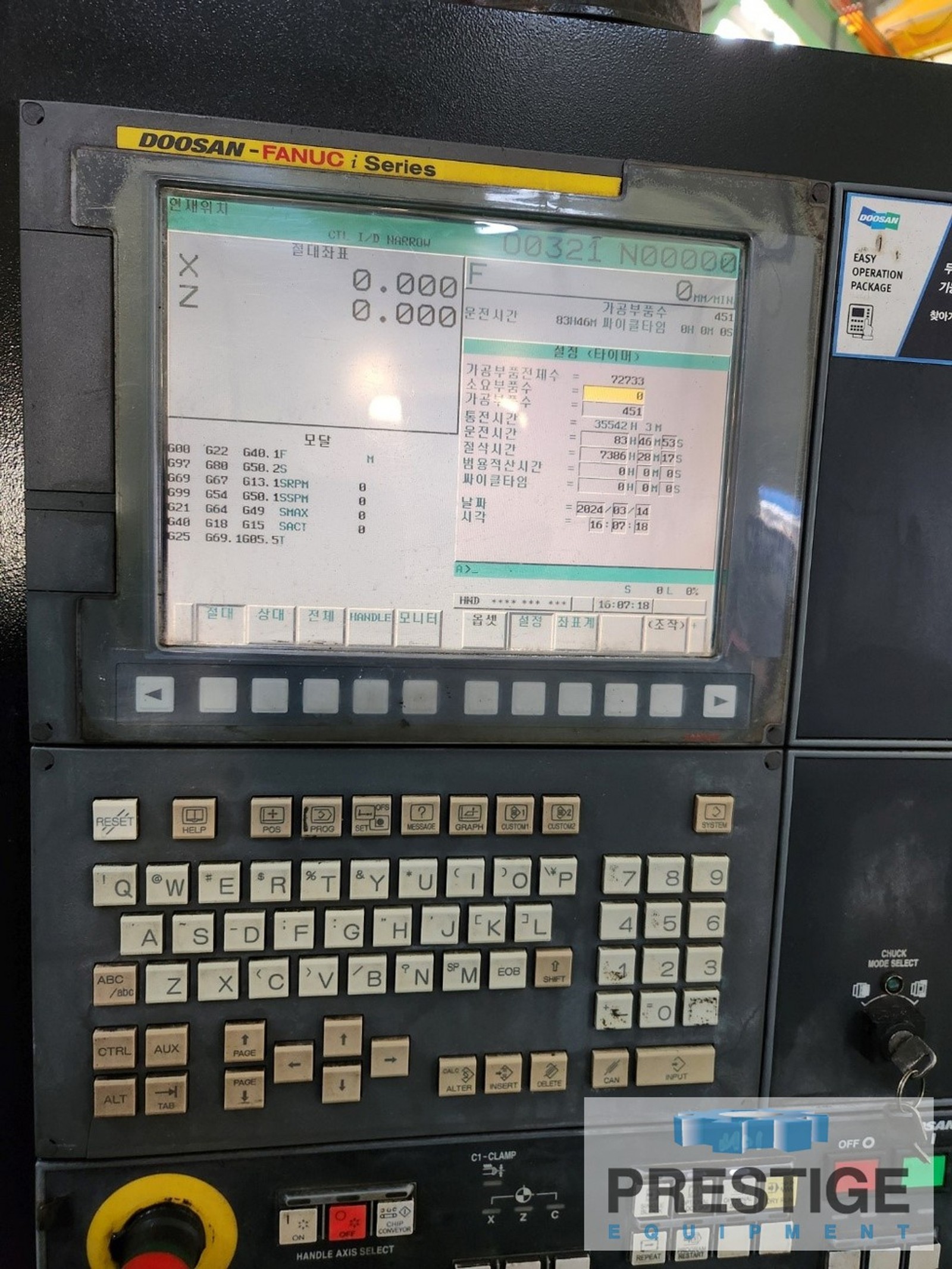

Fanuc Series i CNC Control

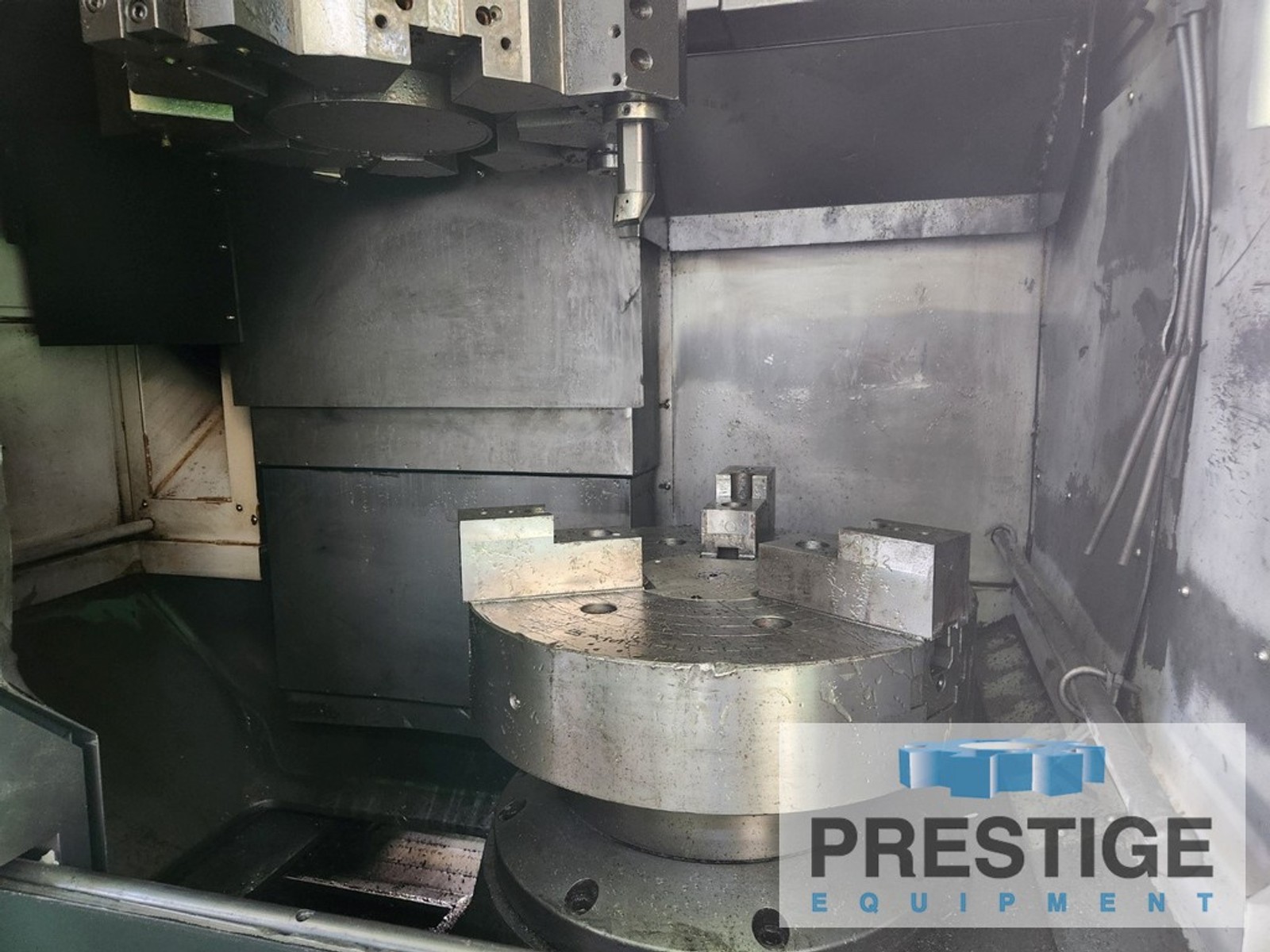

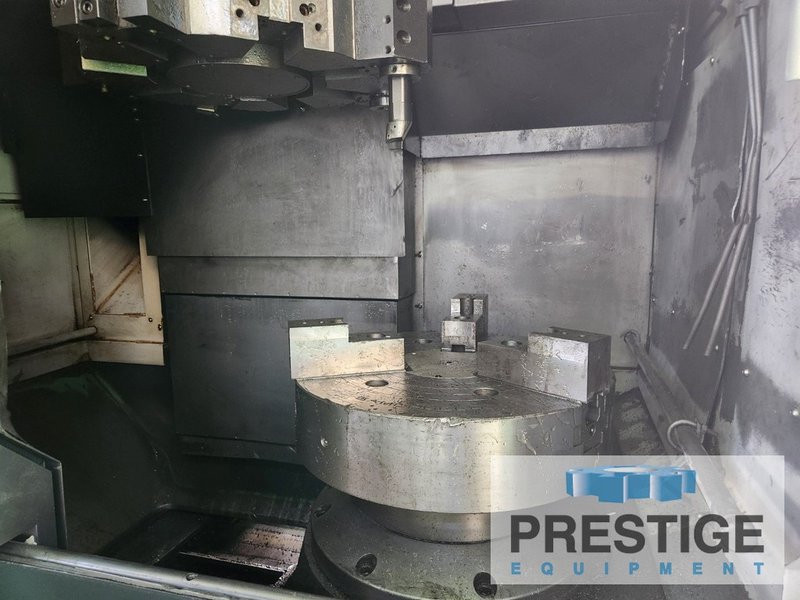

21" 3-Jaw Chuck

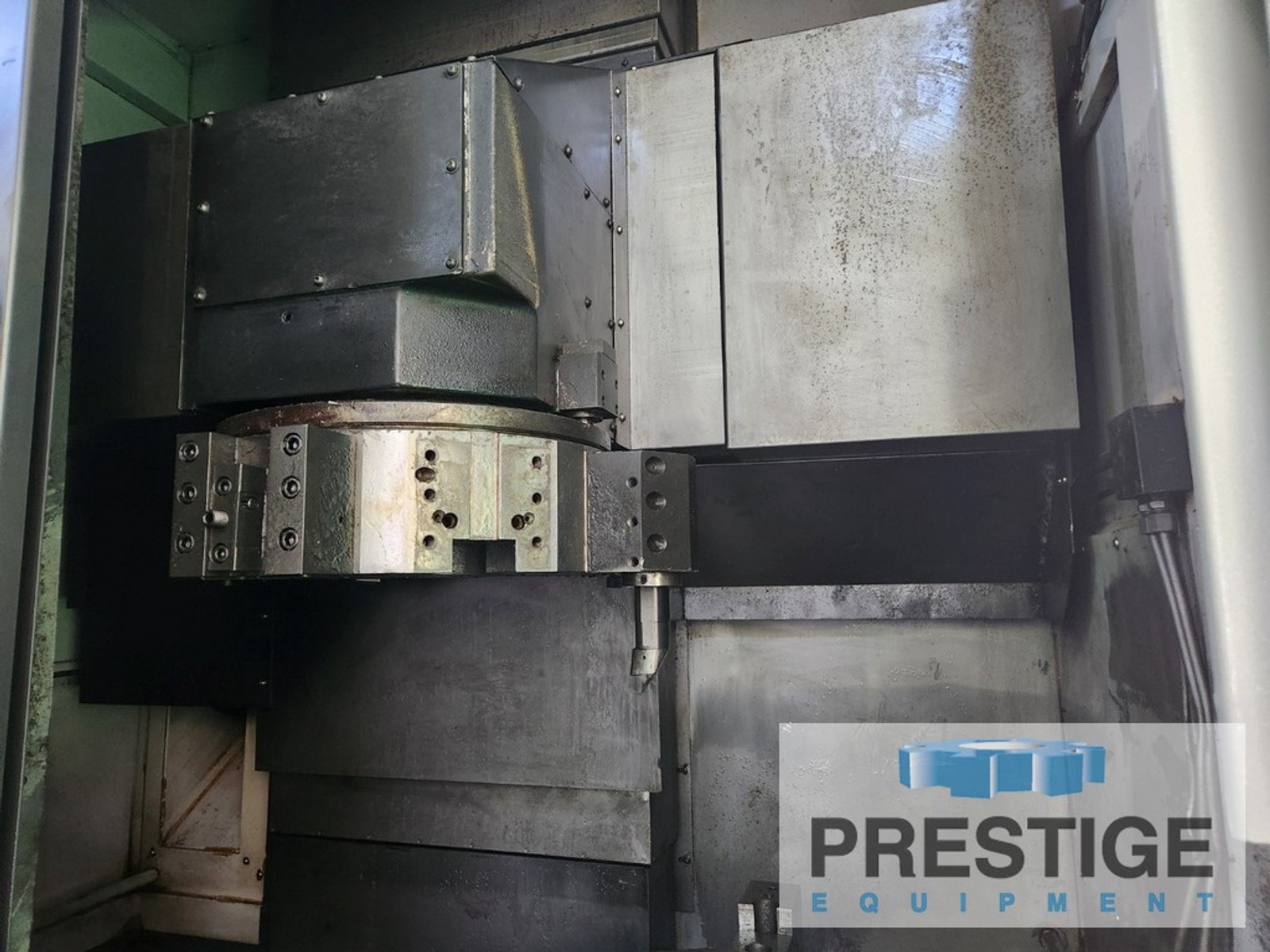

12 Position Turret

SPECIFICATIONS:
Maximum Swing ......................... 31.5"
Maximum Machining Diameter ............ 28.7"
Maximum Turning Height ................ 19.3"
Spindle Speeds ........................ 20-2000 RPM
Spindle Drive Motor ................... 50 HP AC
X-Axis Travel ......................... 19.3"
Z-Axis travel ......................... 31.0"
X-Axis Rapid Traverse Rate ............ 472 IPM
Z-axis Rapid Traverse Rate ............ 630 IPM
Maximum Feed Rate ..................... 236 IPM
Machine Weight ........................ 19,850 lbs

EQUIPPED WITH:
Fanuc Series i CNC Control
21" 3-Jaw Chuck
12 Position Turret
Splash Enclosures
