Davi MCB 3070WT 3.5" x 10', 2.75" Pre-Bend, Leonardo CNC, 180 HP, Overhead Support, Infeed Conveyor, 2009 #43401

Manufacturer

DAVI

Category

Rolls

Type

ROLLS, PLATE BENDING, INIT & DBL PINCH TYPE, (Incl Sheet Metal)

Stock

43401

Model

MCB 3070WT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43401

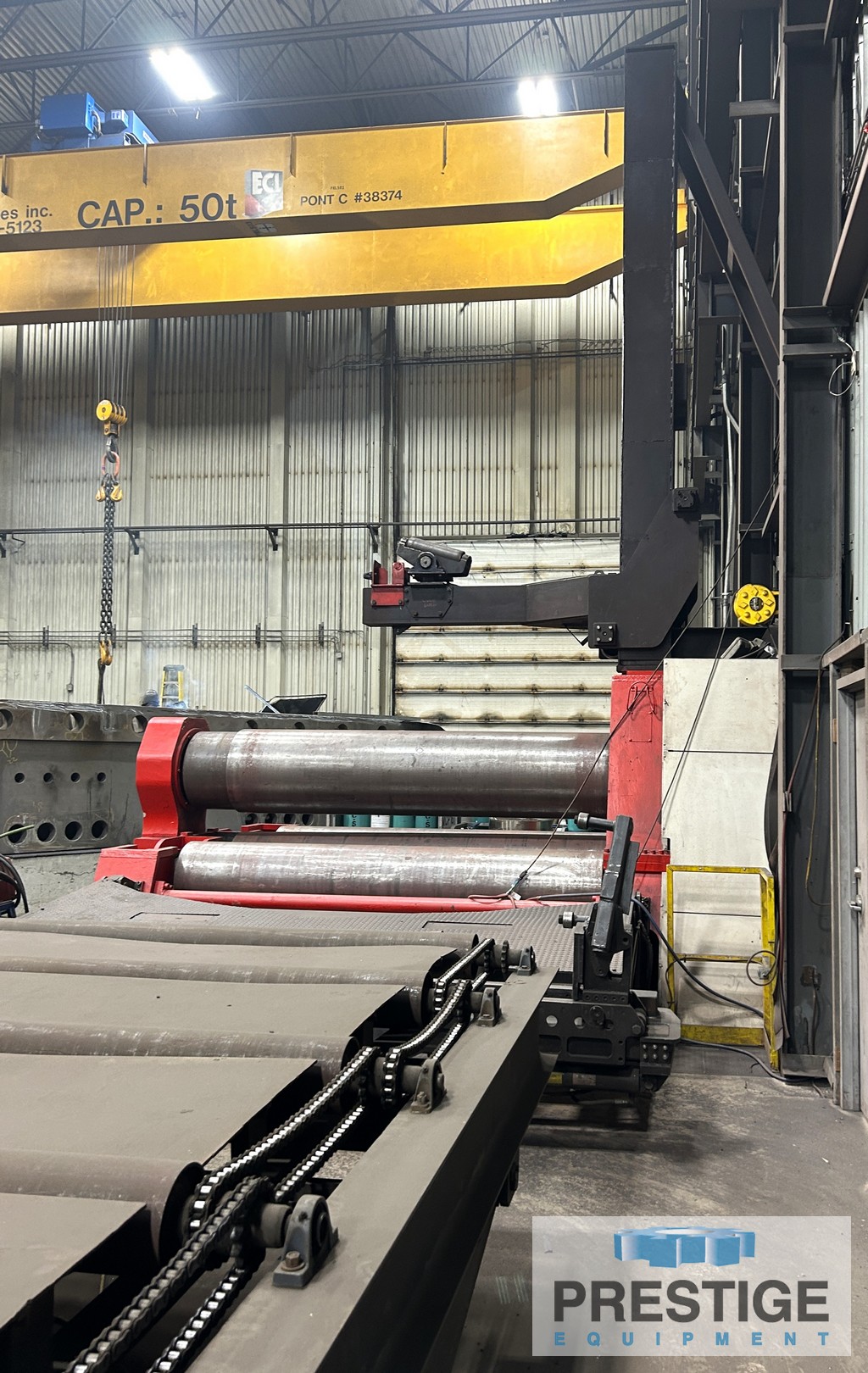

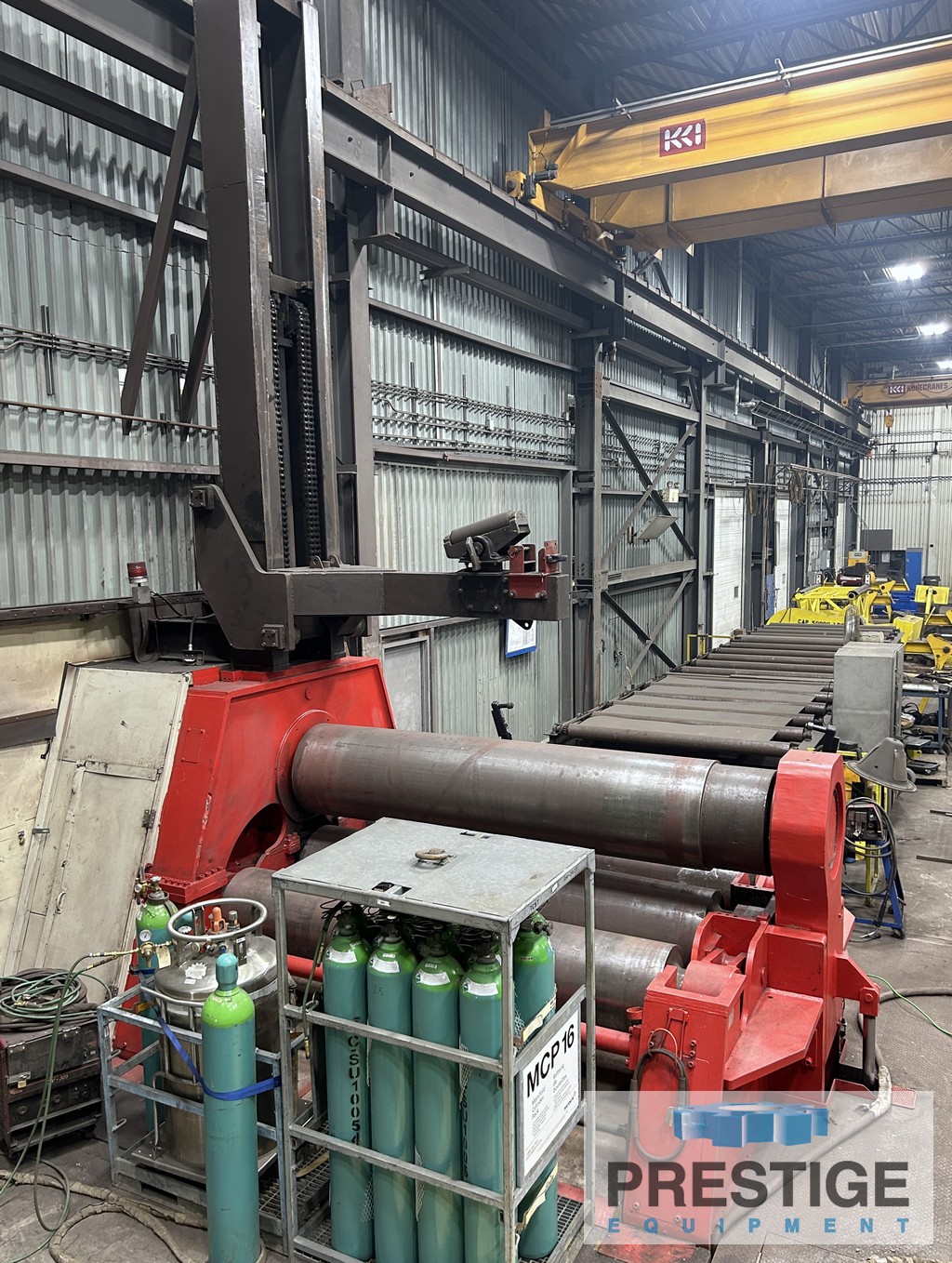

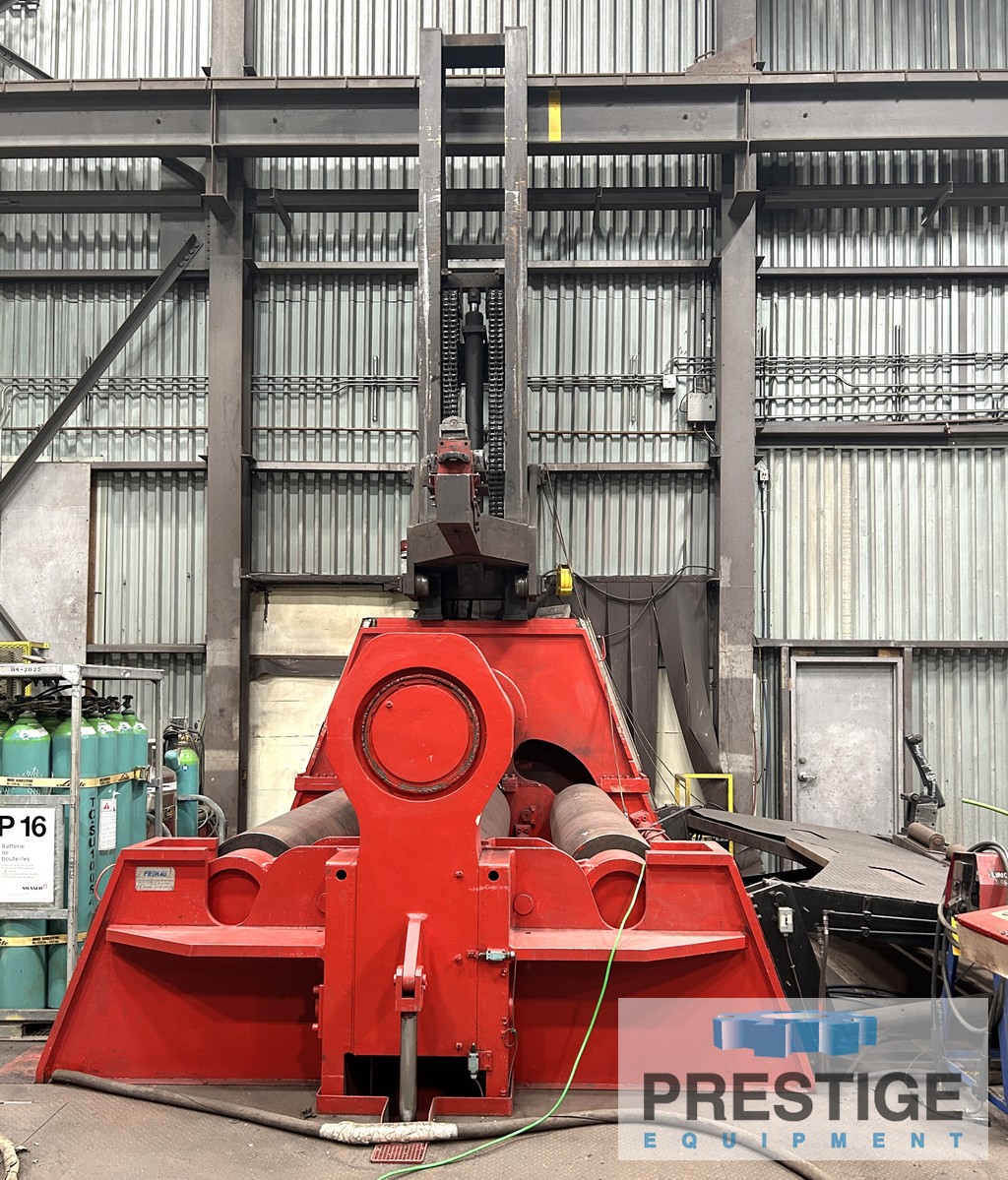

DAVI MCB 3070 WT 3.5" x 10' 4-Roll Hydraulic Plate Roll With CNC Control

FEATURES:

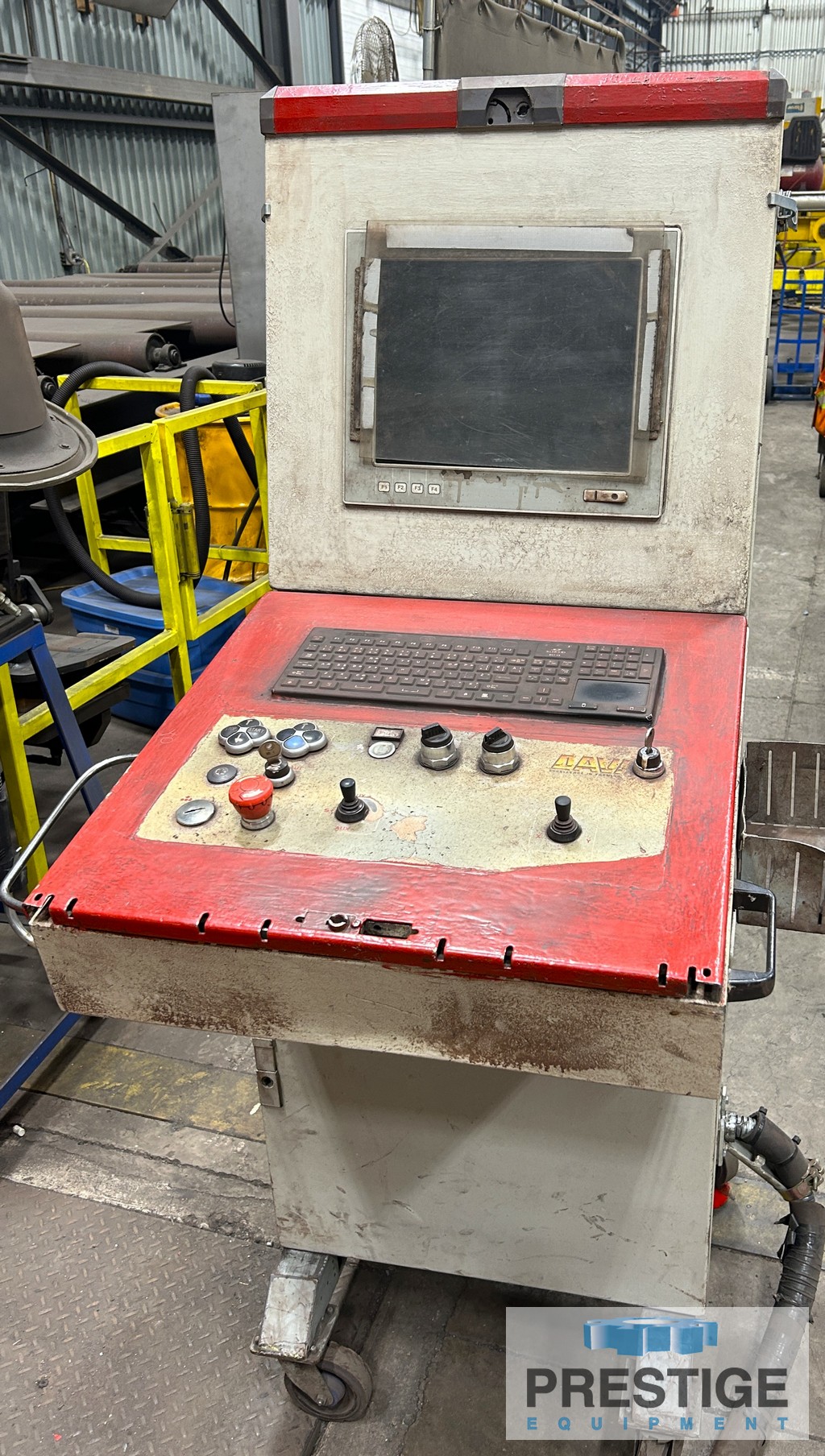

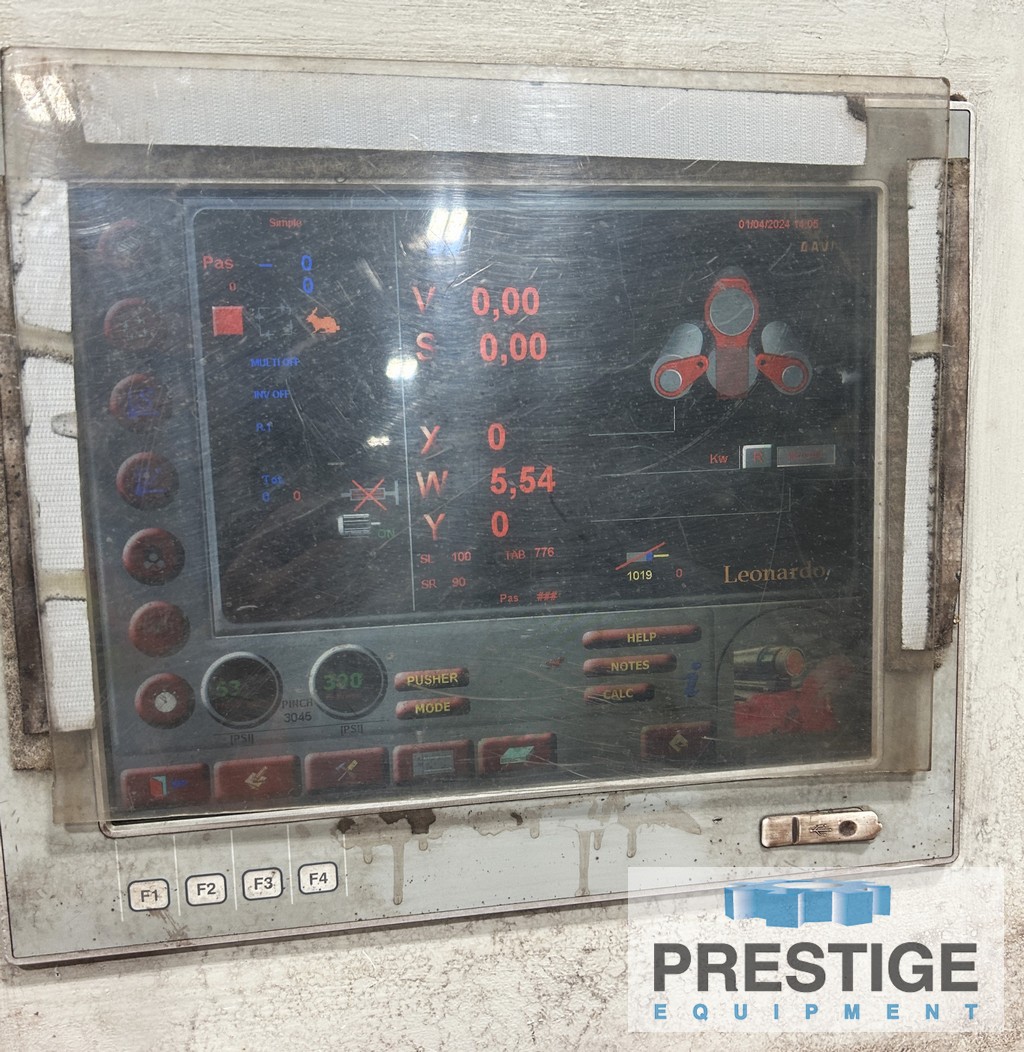

Leonardo CNC Control
Power Driven Top & Bottom Rolls

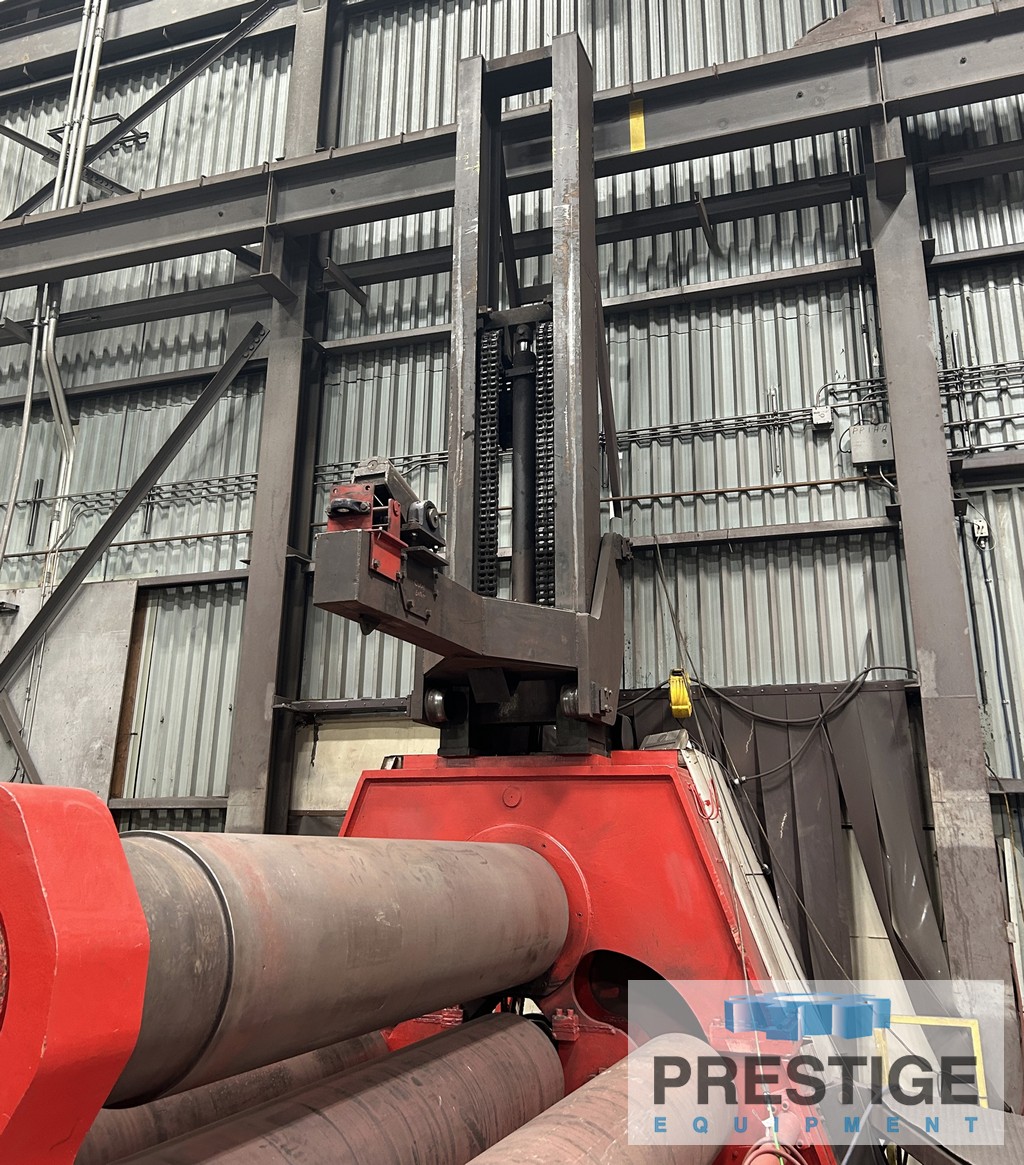

Overhead Plate Support

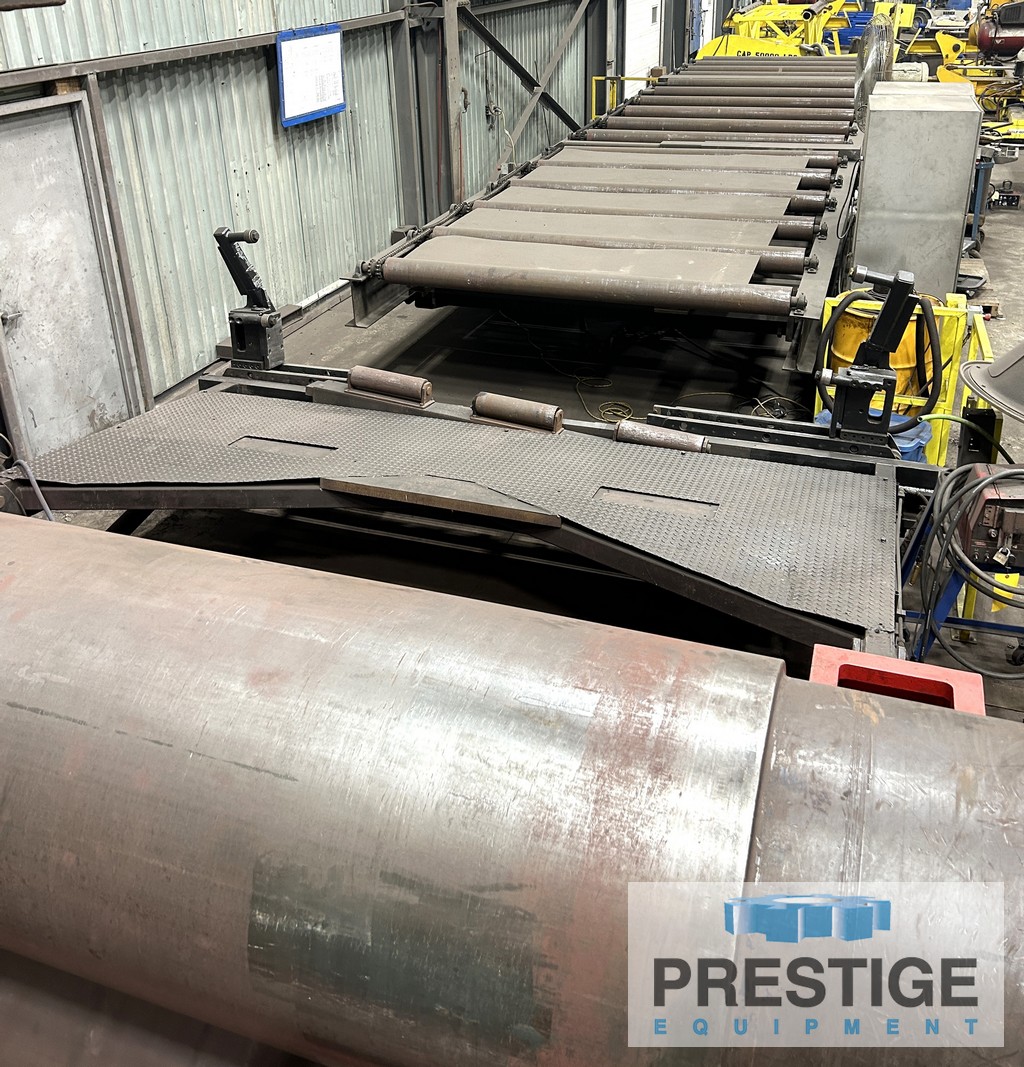

Infeed Plate Support & Conveyor
180 HP Main Motor
460 V 60 HZ Electrics

SPECIFICATION:
Top Roll Diameter ..................... 29"
Bottom Center Roll Diameter ........... 27.25"
Bottom Side Rolls, (2) ................ 21.25"
Main Motor Power ...................... 180 HP
CAPACITY, Rolling:
A36 (37, 000 PSI) @ 3 x Top Roll ...... 3.02" x 10'
A36 (37, 000 PSI) @ 10 x Top Roll ..... 3.69" x 10'
CAPACITY, Pre-Bending:
A36 (37, 000 PSI) @ 3 x Top Roll ...... 2.59" x 10'
A36 (37, 000 PSI) @ 10 x Top Roll ..... 3.12" x 10'

EQUIPPED WITH:
Leonardo CNC Control
Power Driven Top & Bottom Rolls
Overhead Plate Support
Infeed Plate Support & Conveyor
180 HP Main Motor
460 V 60 HZ Electrics

NOTES:
Inspect In Plant Under Power


Being Offered at Auction June 18th
https://www.prestigeequipment.com/auction/june-consignment/
