60" x 0.064" x 20,000 LB IOWA PRECISION SLEAR-1 SLITTING & CUT-TO-LENTH LINE: STOCK 17023

Manufacturer

IOWA PRECISION

Category

Miscellaneous Machines

Type

SLEAR LINES

Stock

17023

Model

60" x 0.064" x 20,000

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL # .................. L4529C
YEAR ......................  2004

Model Number .............. Iowa Precision Slear 1
Materials ................. CRS, Alum, Galv, Pre-Paint
Min./Max. Coil Width ...... 6" - 60"
Thickness Range ........... 0.015" - 0.064"
Maximum Shear ............. 45,000 PSI
Maximum Yield ............. 45,000 PSI
Maximum Coil Weight ....... 20,000#
Coil I.D. ................. 20" - 24" (Nominal)
Maximum Coil O.D. ......... 64"
Slitting Capacity ......... Five (5) Cuts of 0.060"/Six (6) Cuts of 0.045"
Minimum Slit Width ........ 3"
Line Direction ............ Right to Left
Stacker Length ............ 1 - 12'
Maximum Bundle ............ 18" x 10,000# @ 12'
Mode of Operation ......... Front Loop
Line Speed ................ 20 - 200 FPM / 20-150 FPM (using Scrap Winders)
Required Area ............. 20' x 70'
Required Power ............ 160 Amps

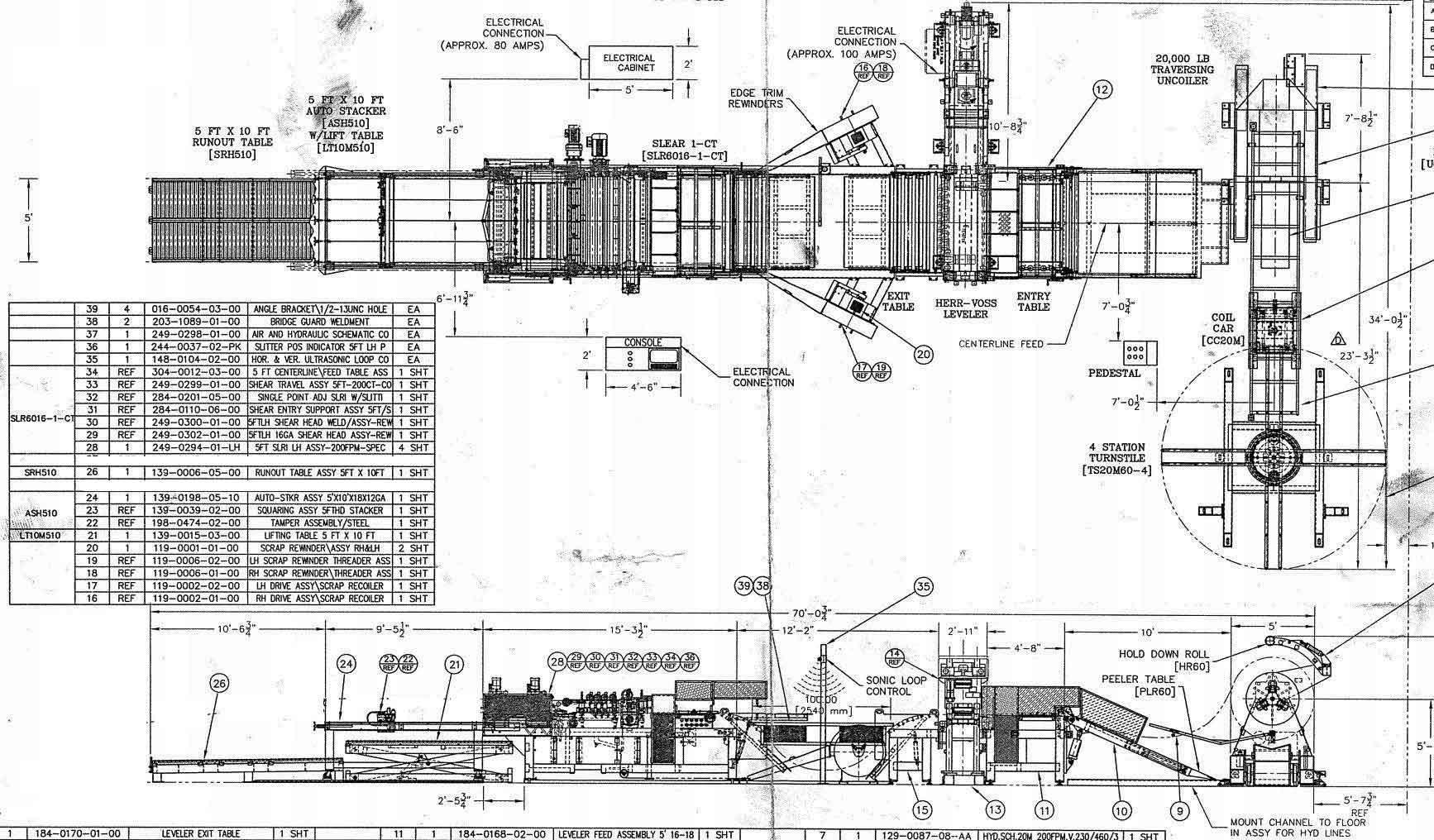

Consisting of the following:
-Entry Turnstile:
  Four (4) Arms x 20,000# per arm
  Powered Rotation
  Slotted for C-Hook

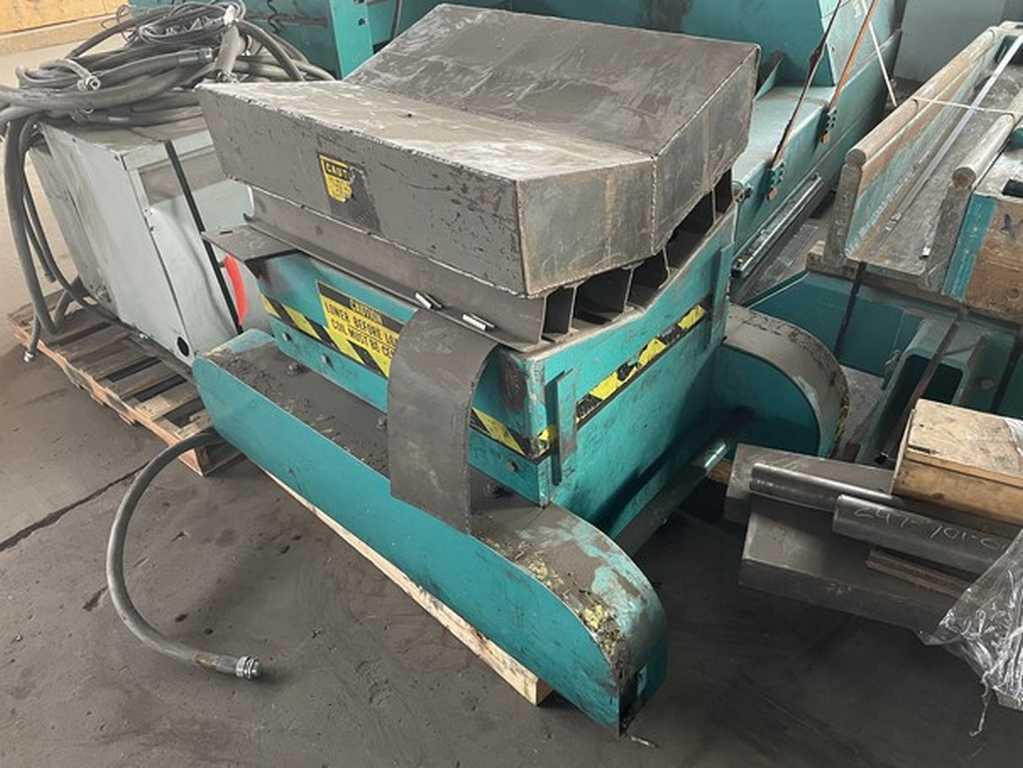

-Entry Coil Car:
  Low Boy Type
  Floor Mounted
  Powered Lift and Traverse

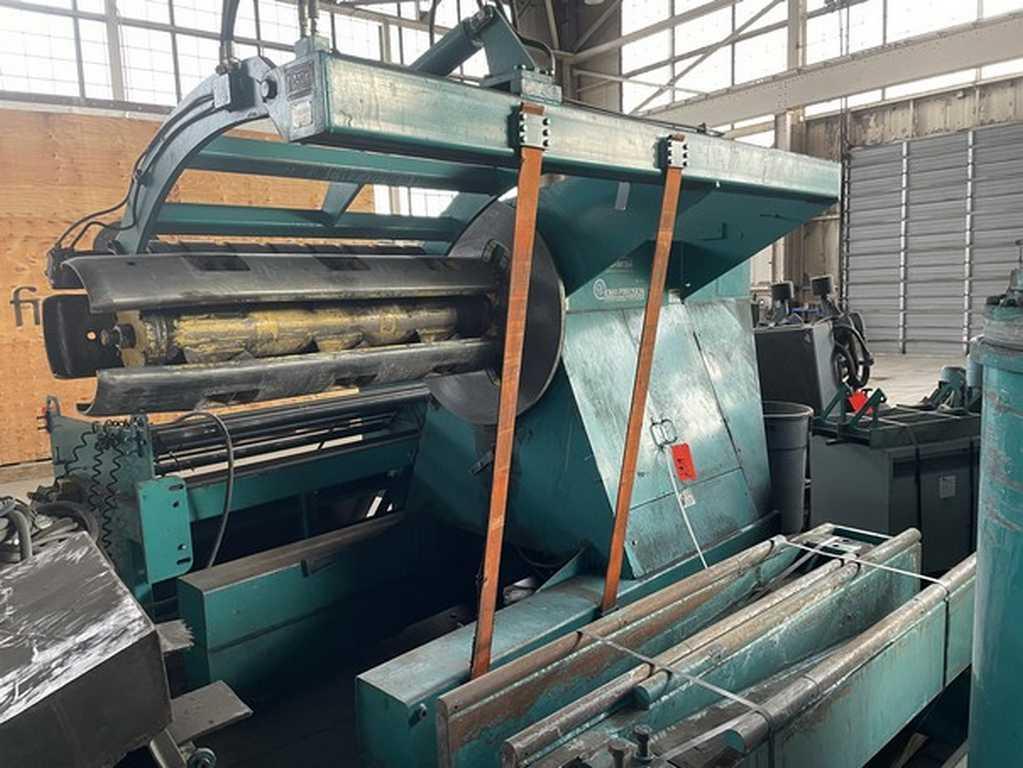

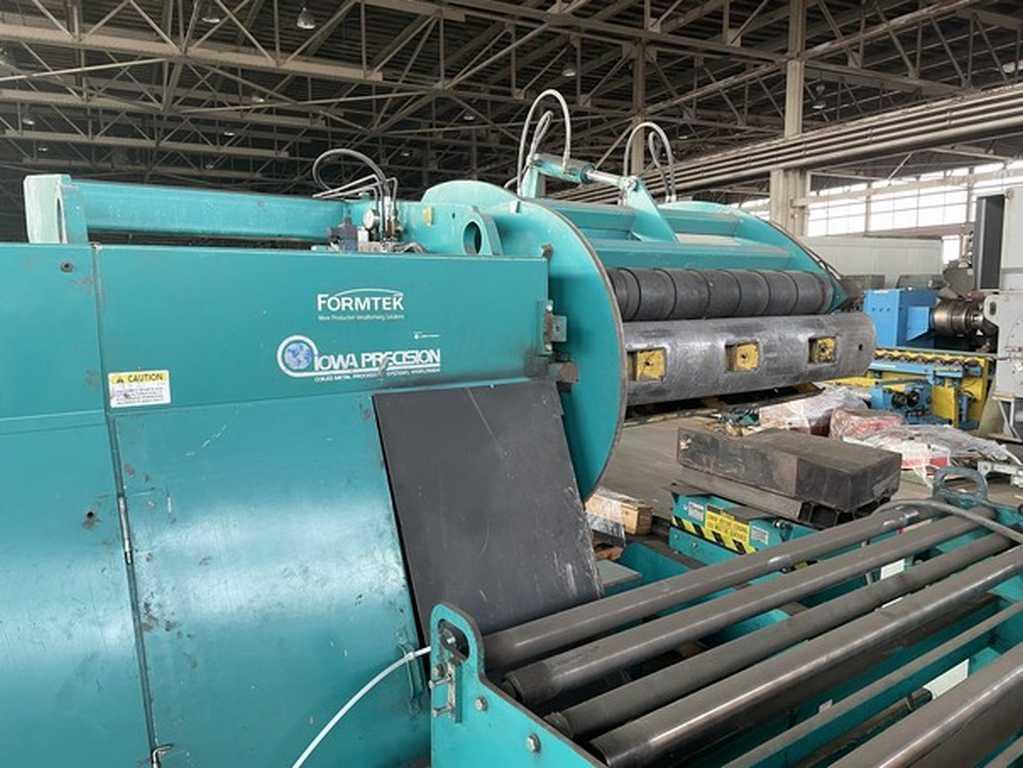

-Uncoiler:
  Mandrel Type
  Powered Expansion
  Feedup Drive
  Holddown with Powered Snubber
  Loop Control with Dancer Arm
  Self Contained Hydraulic Unit

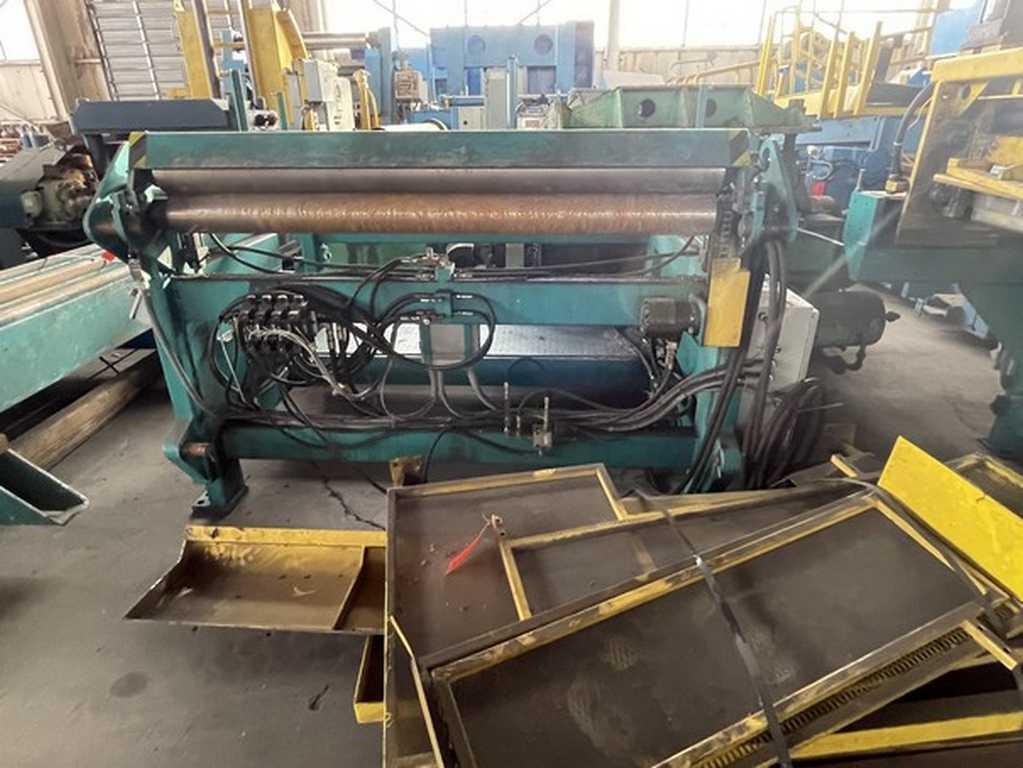

-Entry Unit:
  Extending Blade Peeler
  Powered Entry Pinch Roll
  Manual Side Guides
-Pit Section:

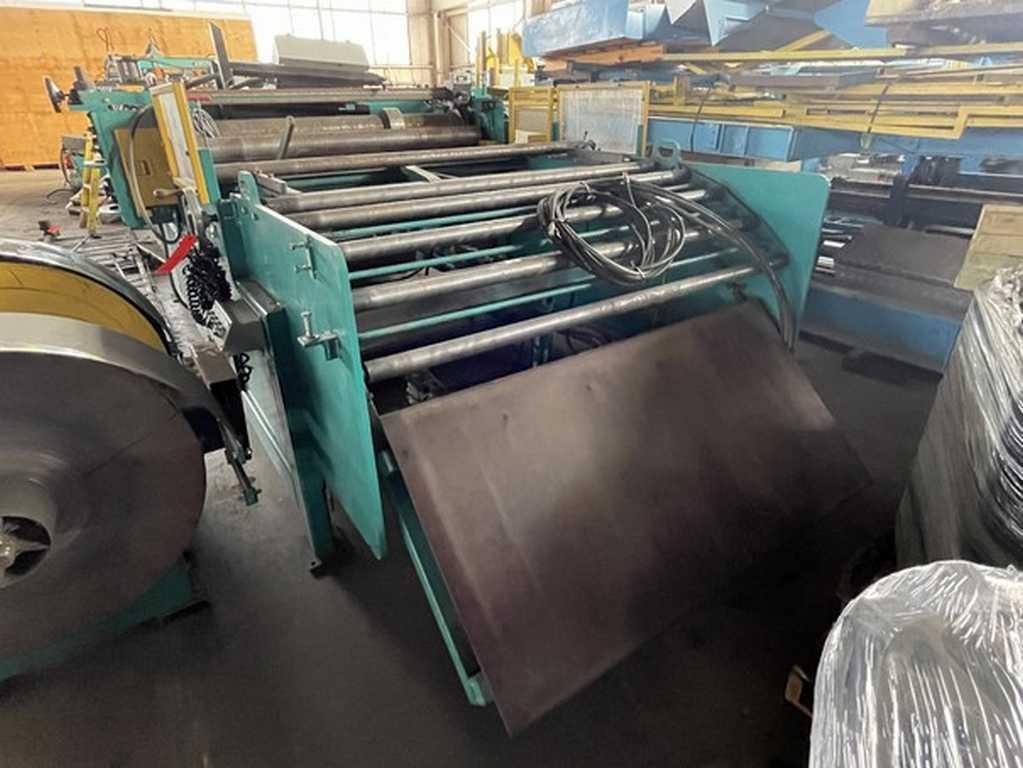

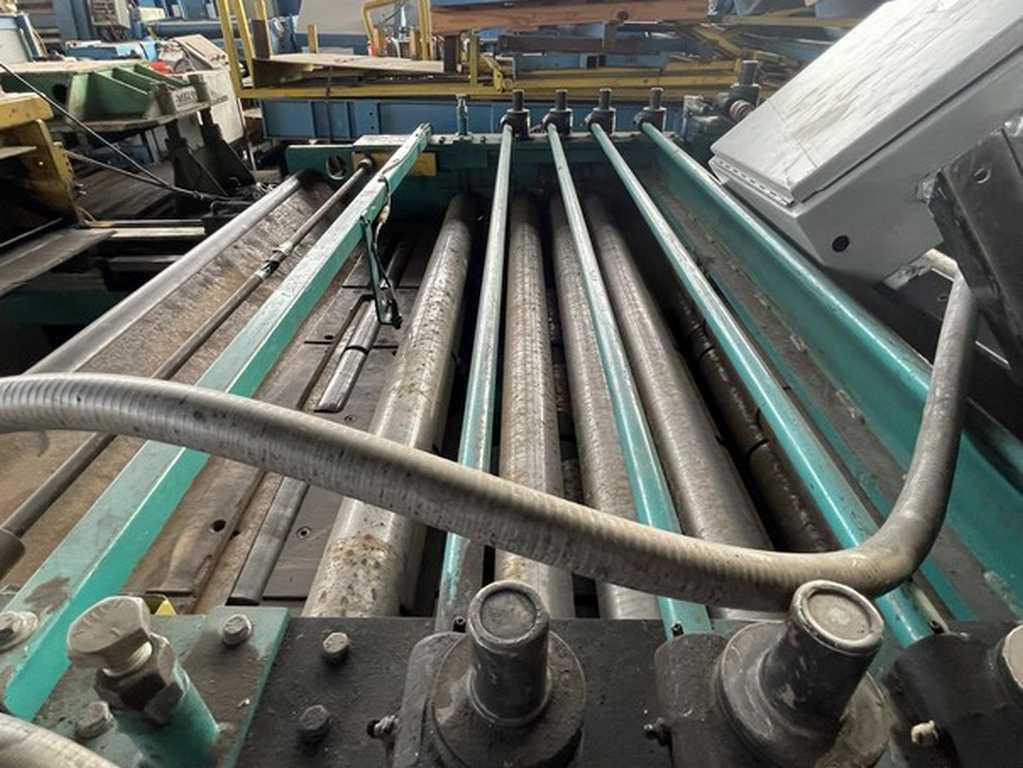

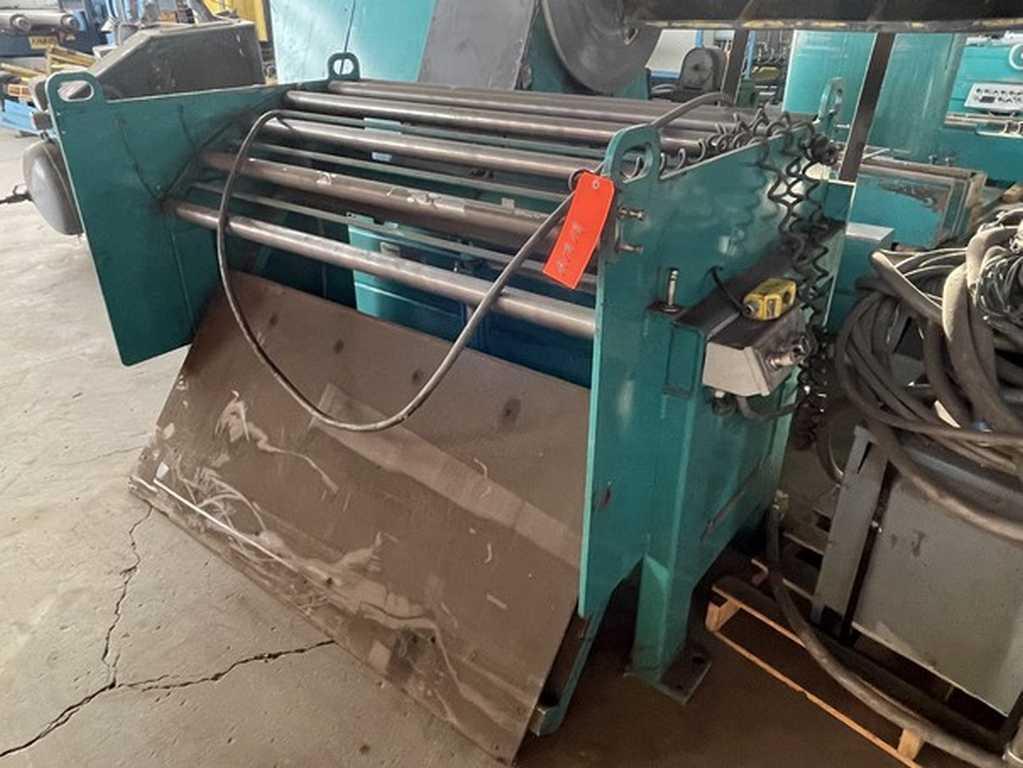

  Entry/Exit Cascade Rolls with Cross Over Tables
  Sonic Loop Control
  Manual Side Guides

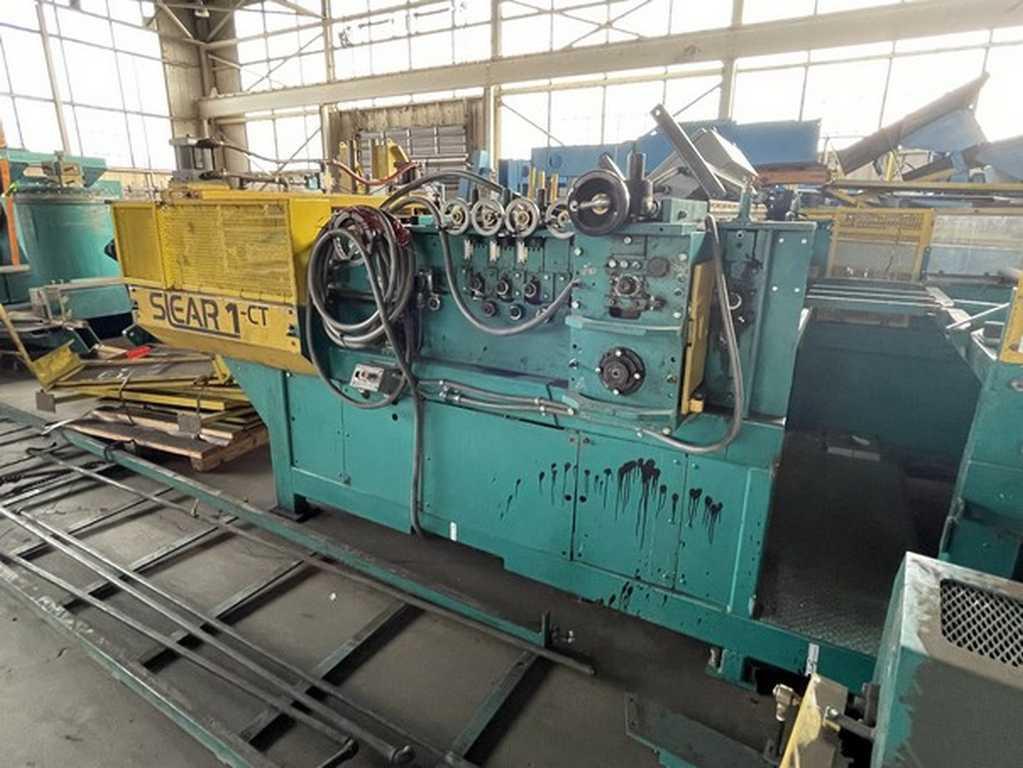

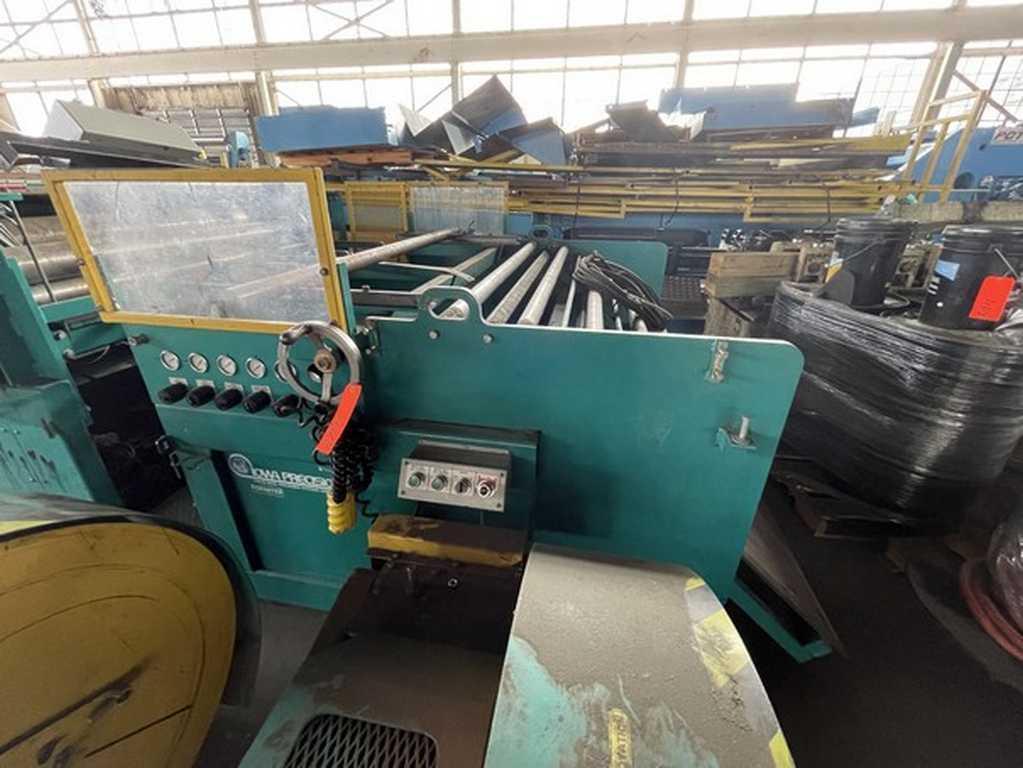

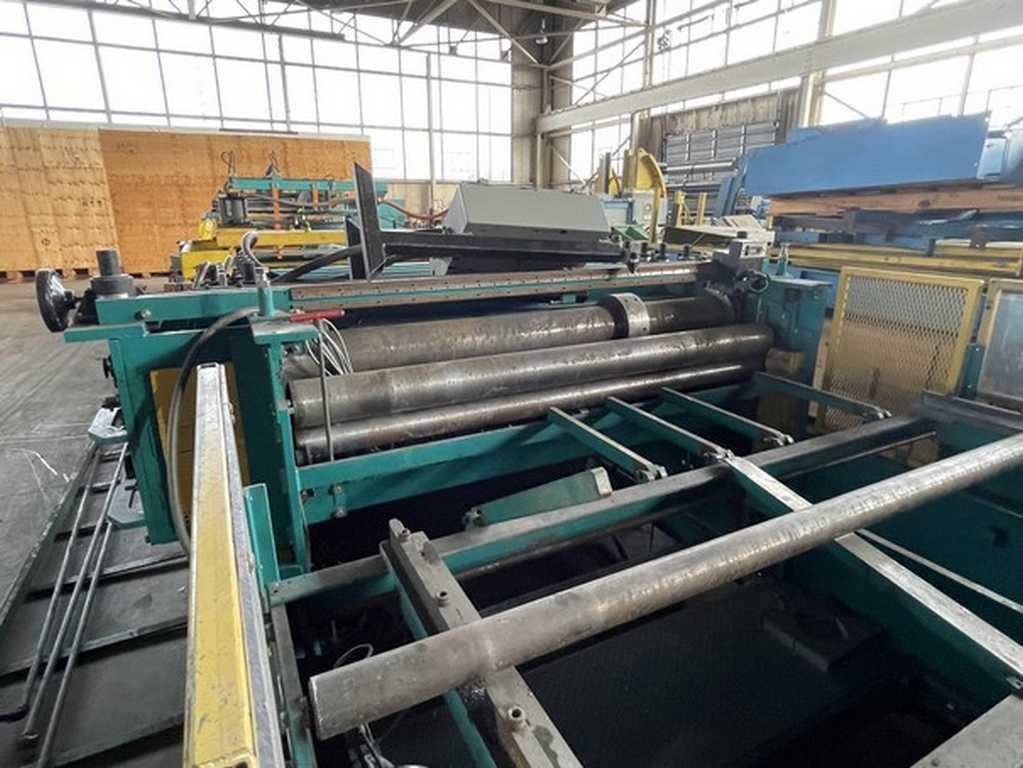

-Slear Unit:
  Powered Entry Pinch Rolls
  Slitter Head with Hub Type Tooling (5" Diameter Arbor)
  Fifteen (15) Slitter Knives
  Powered Pinch Rolls #2
  Flattener with Six (6) Work Rolls in a 3/3 Configuration
  Powered Exit Pinch Rolls

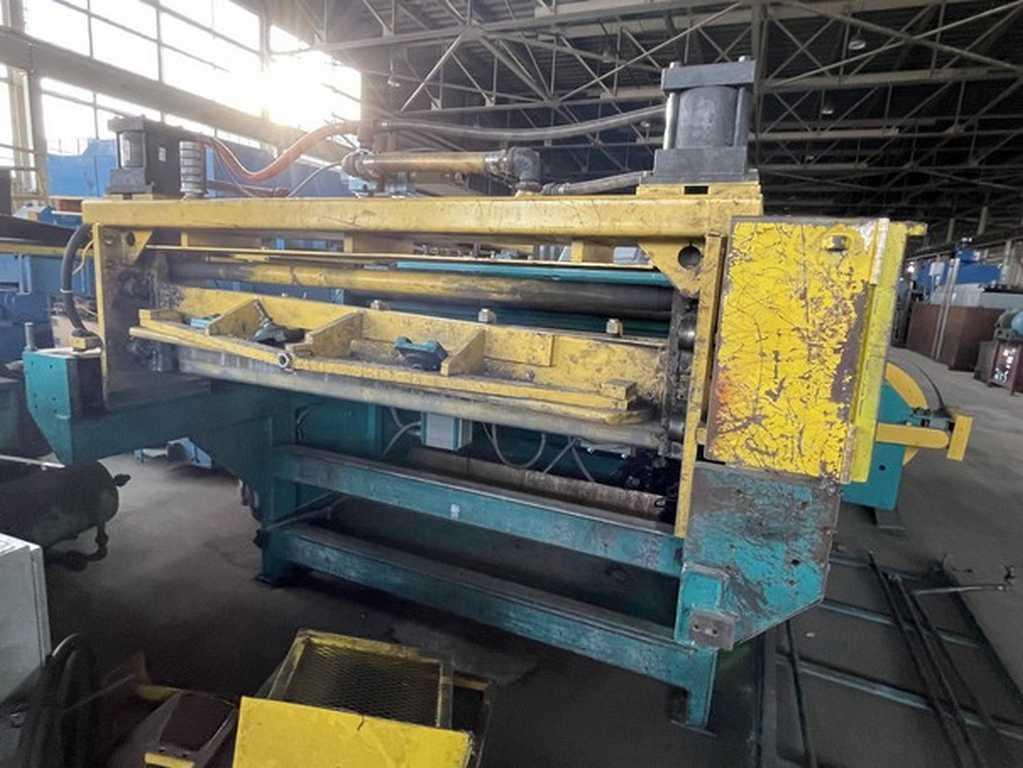

  Down Cut Shear on Traversing Track (Single Rake Blade)
  One (1) Spare Set of Shear Blades

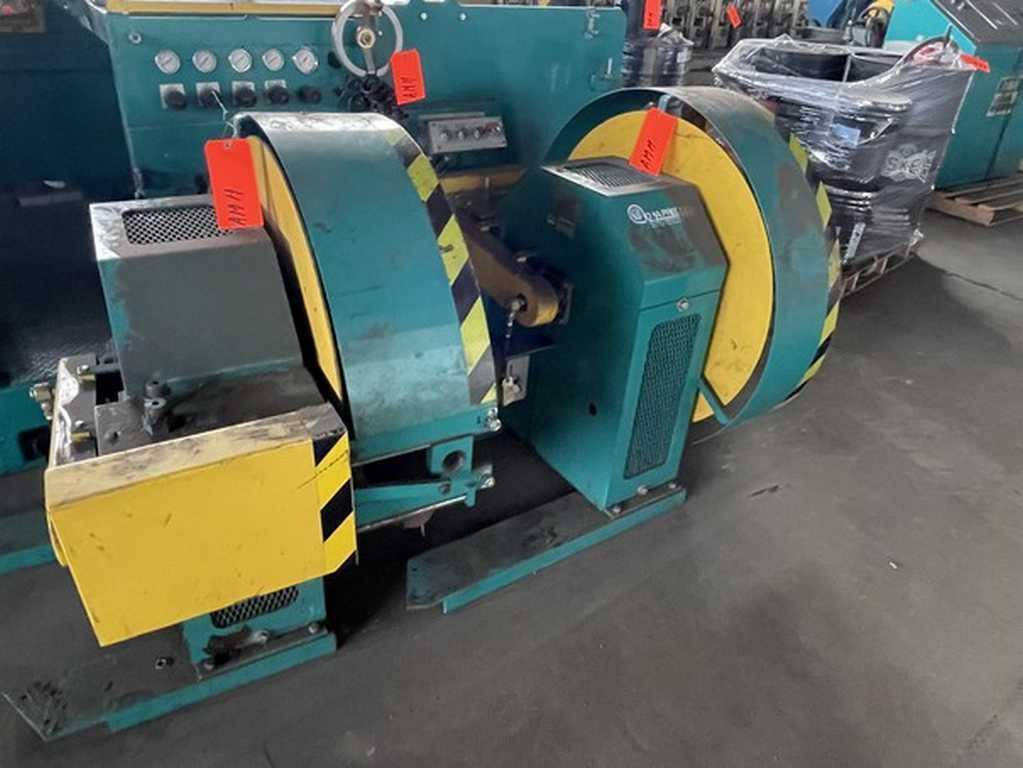

-Two (2) Scrap Winders:
  Minimum/Maximum Scrap Width:  0.250" - 1"
  Level Wind
  Automatic Scrap Dump

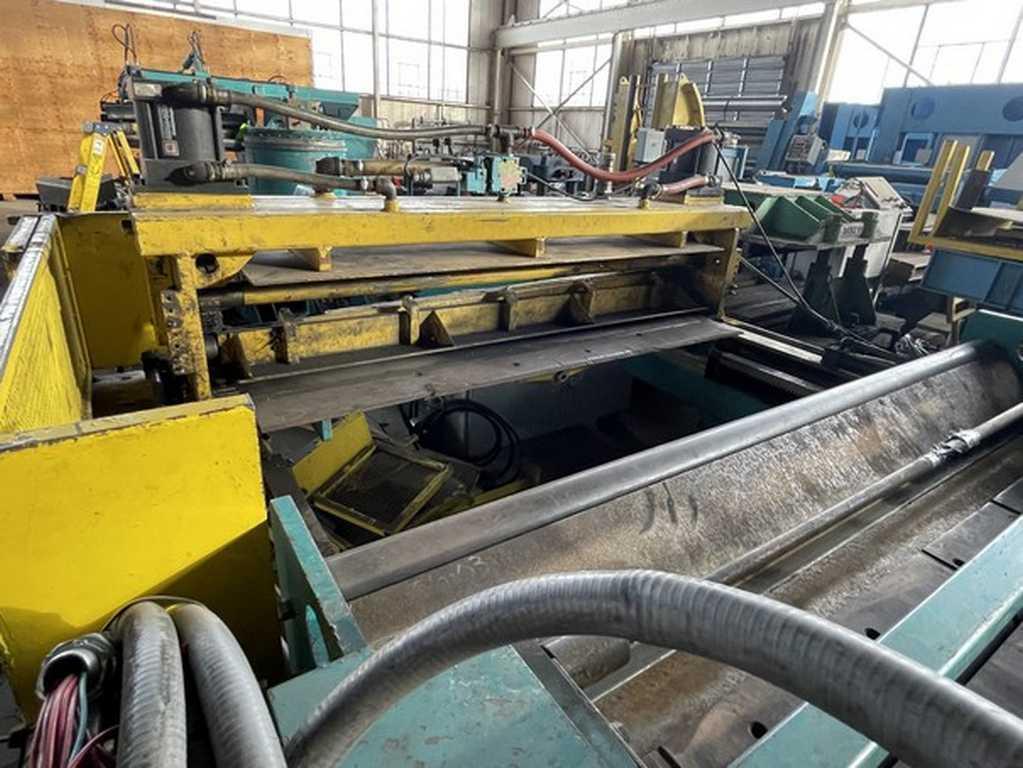

-Stacker (New in 2013):
  Manual Adjustable End Stop
  Manual Adjustable Side Tampers
  Avon Scissor Lift Table with Powered Roller Conveyor Top
  Three (3) Sheet Tampers
  Five (5) Blank Dividers
  Lift Table with Powered Conveyor Top
-Powered Side Discharge Conveyor (New in 2013):
  12' Length
  20,000# Capacity
  Twin Powered Rubber Belts
-Electronics:

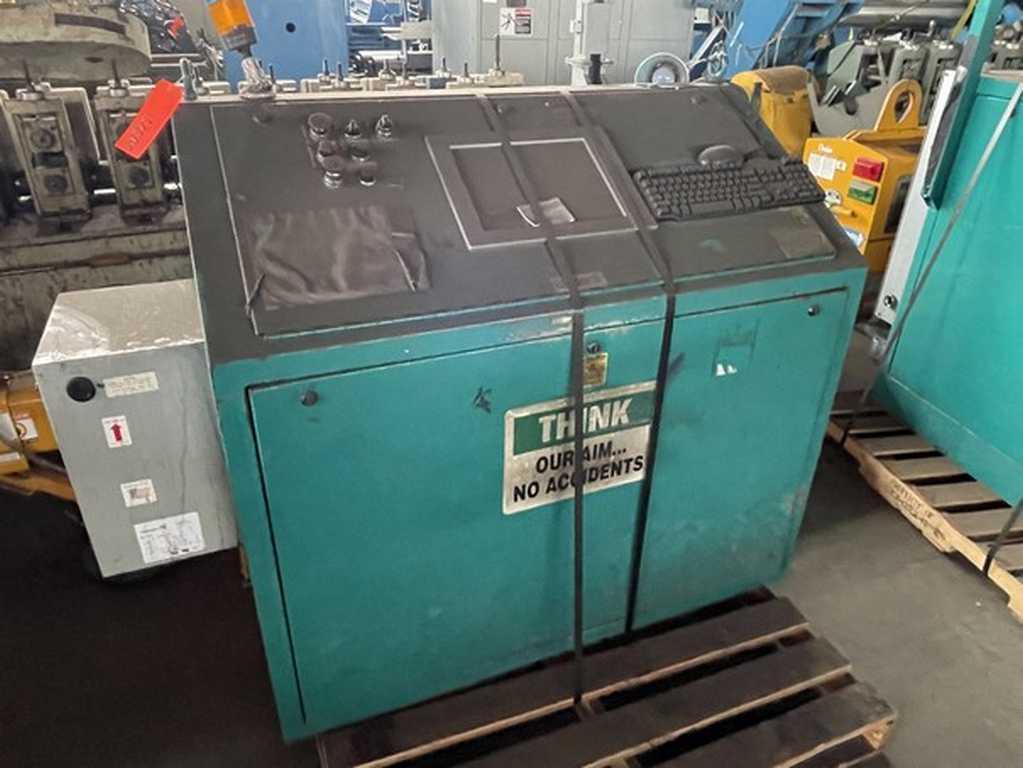

  Main Operators Console with Allen Bradley Touch Screen and PLC
  Aux. Control Consoles

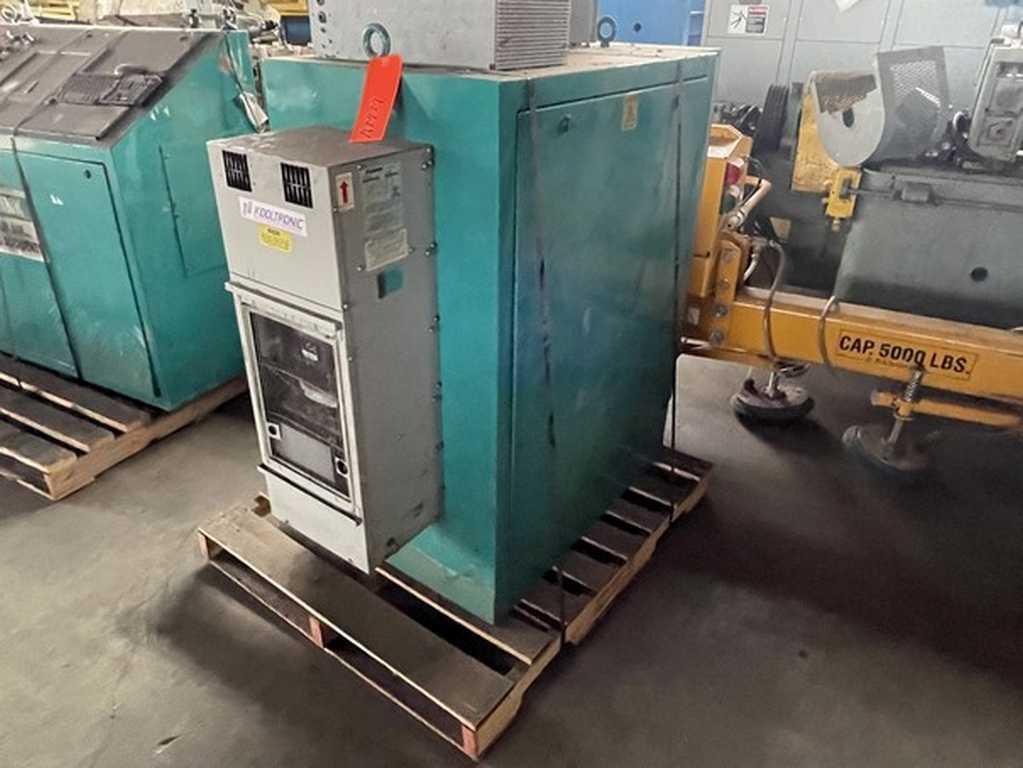

  AC/DC Cabinet
