Weight - 16500 pounds
SERIAL ......................... 3J6F1L-34

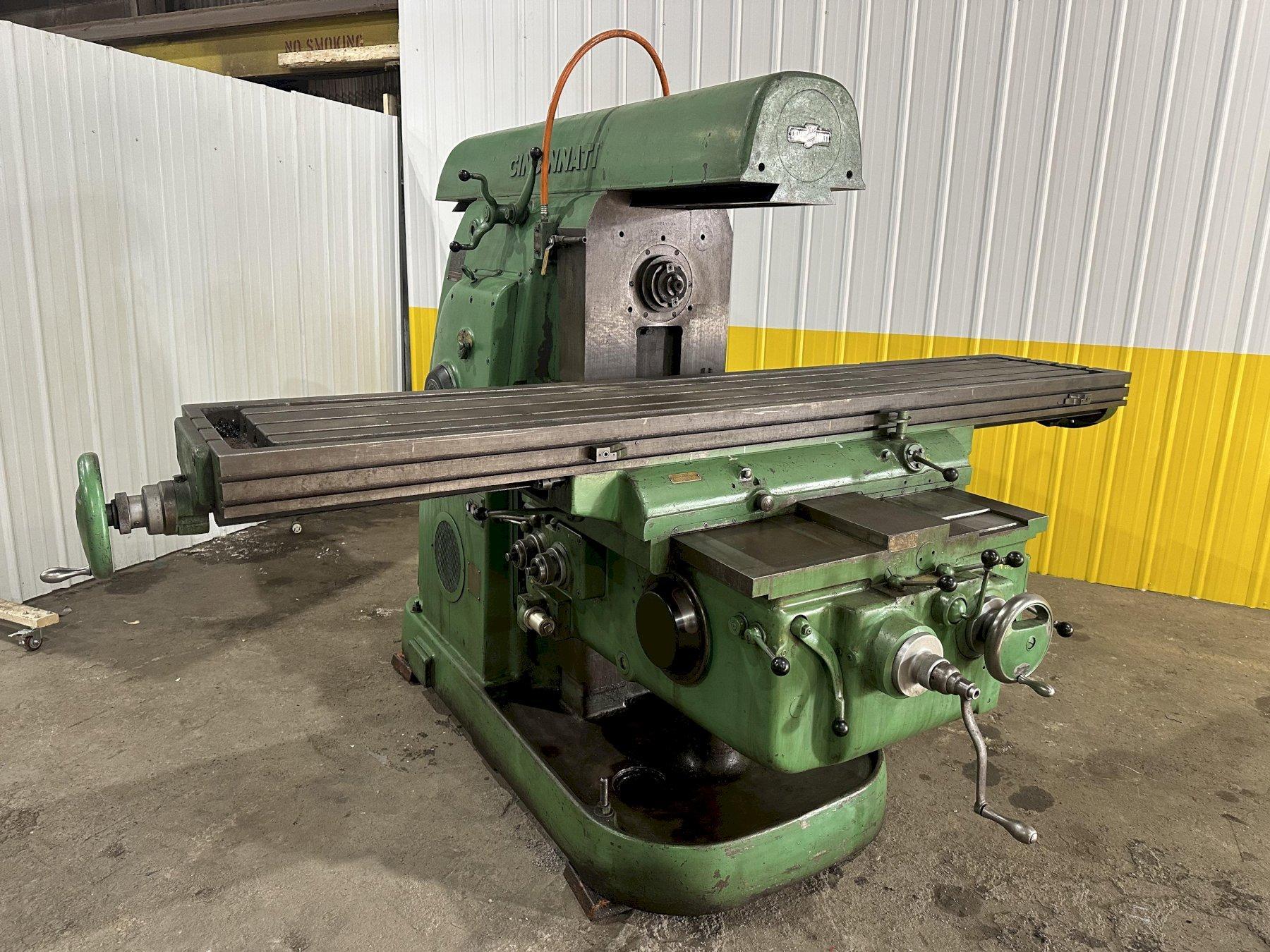

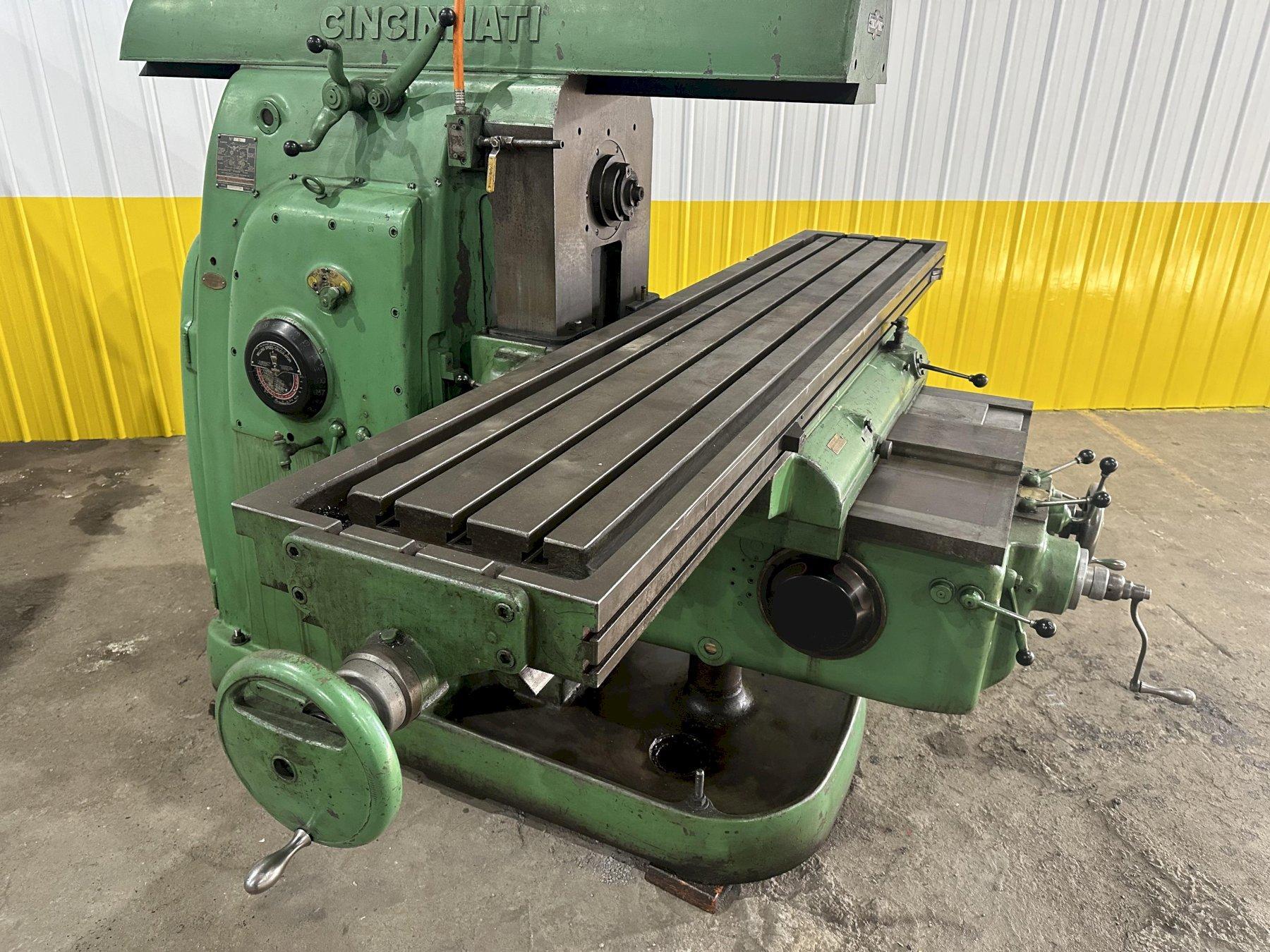

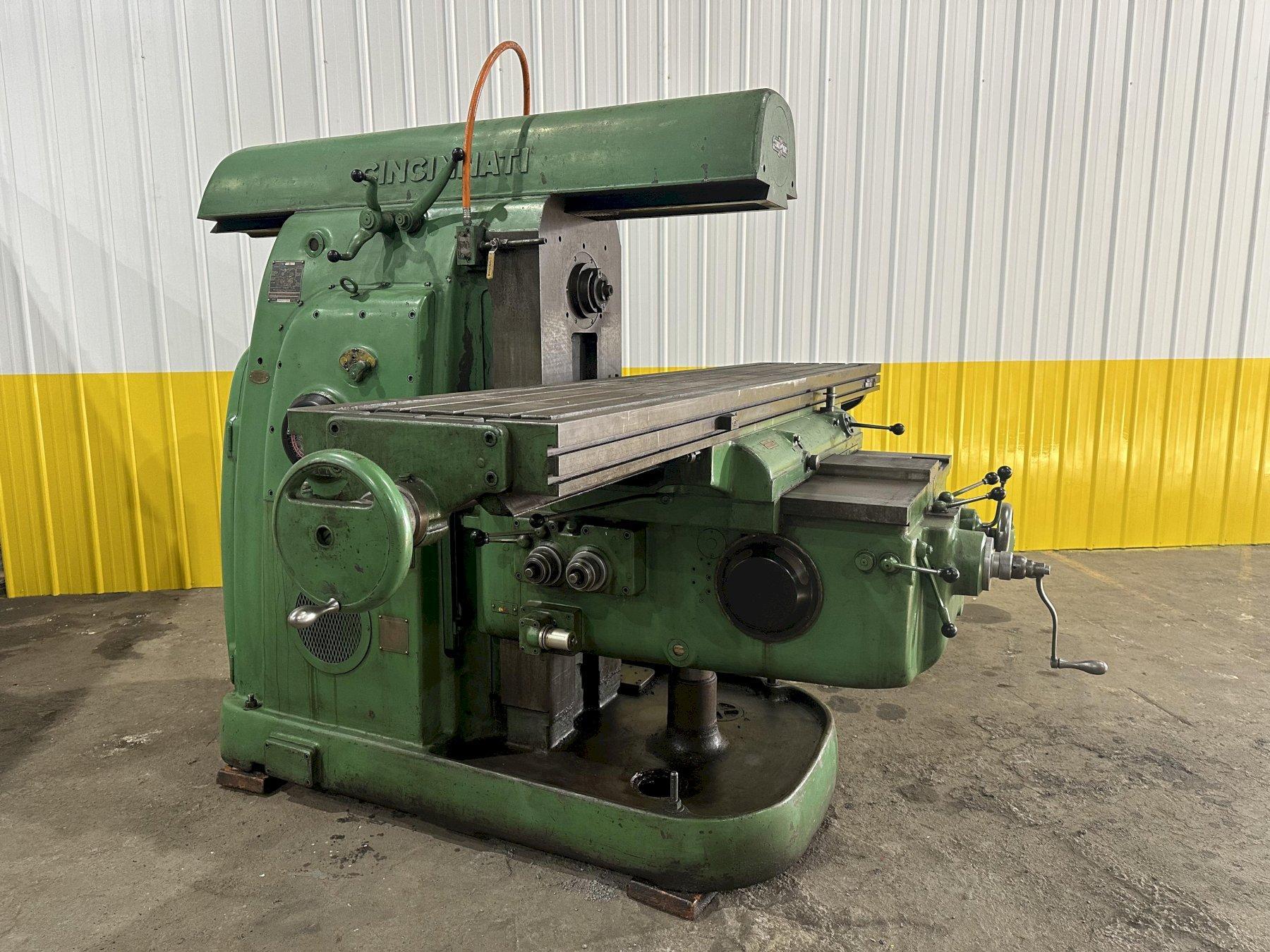

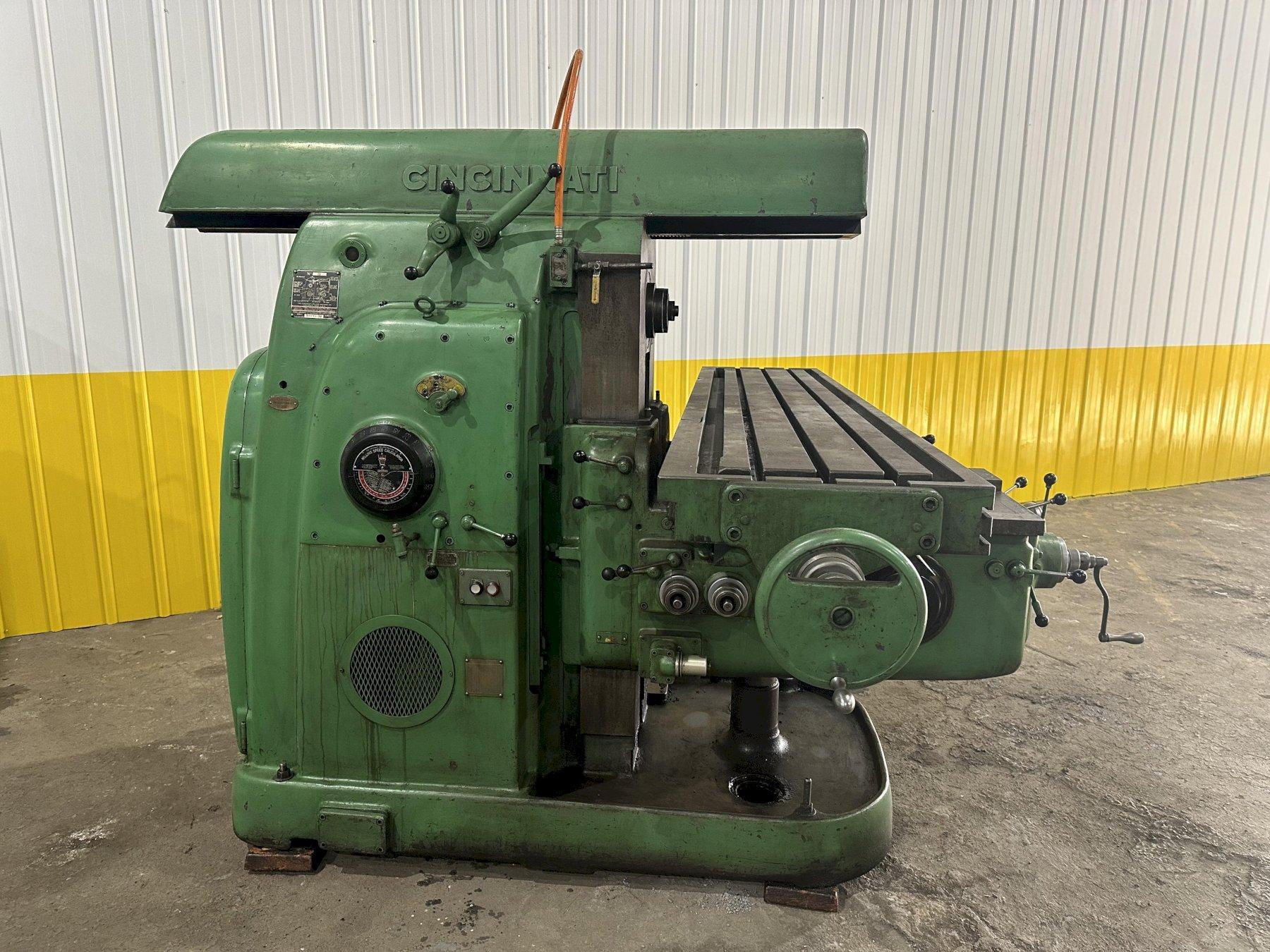

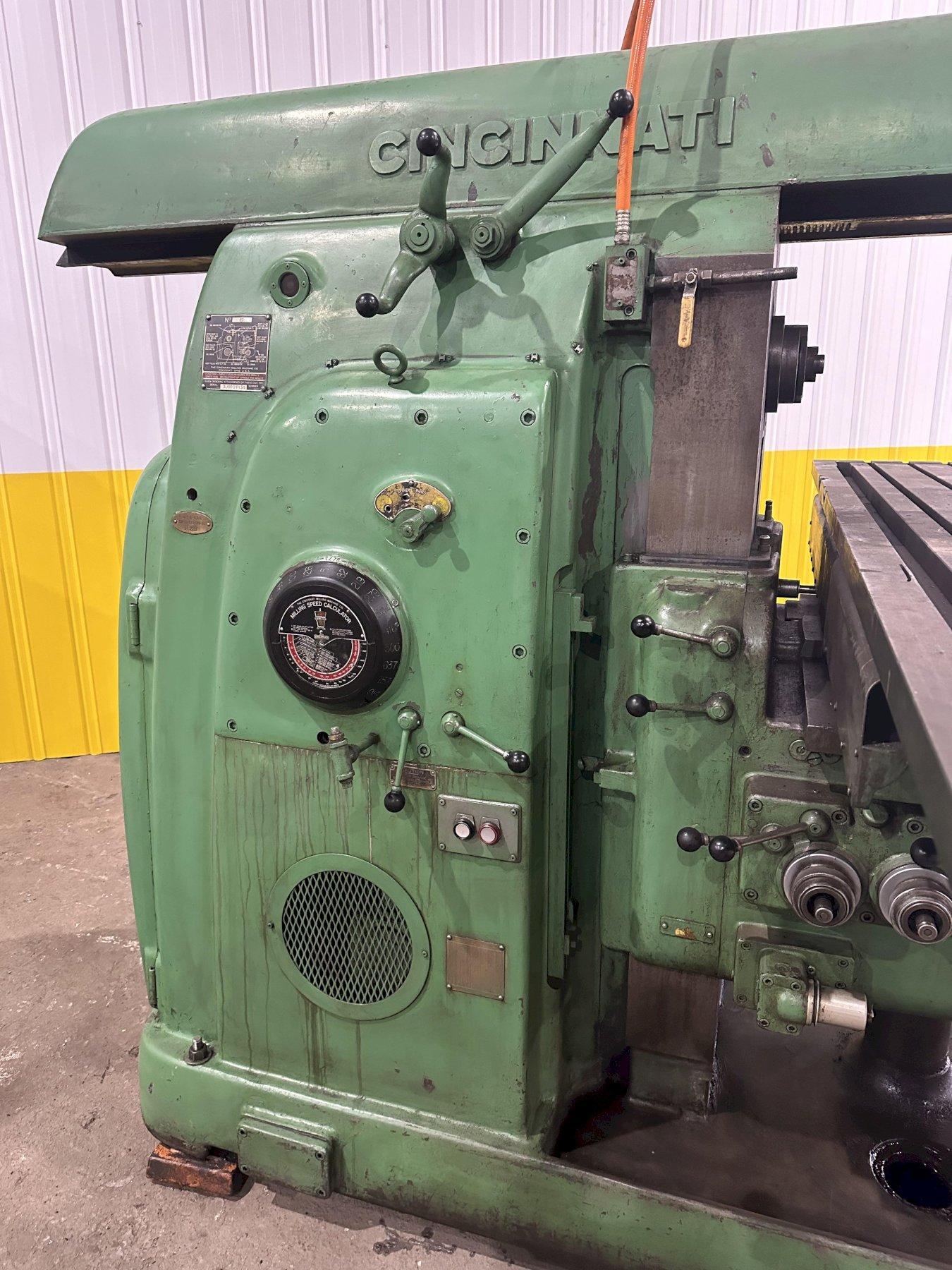

MODEL .......................... 6 HORIZONTAL

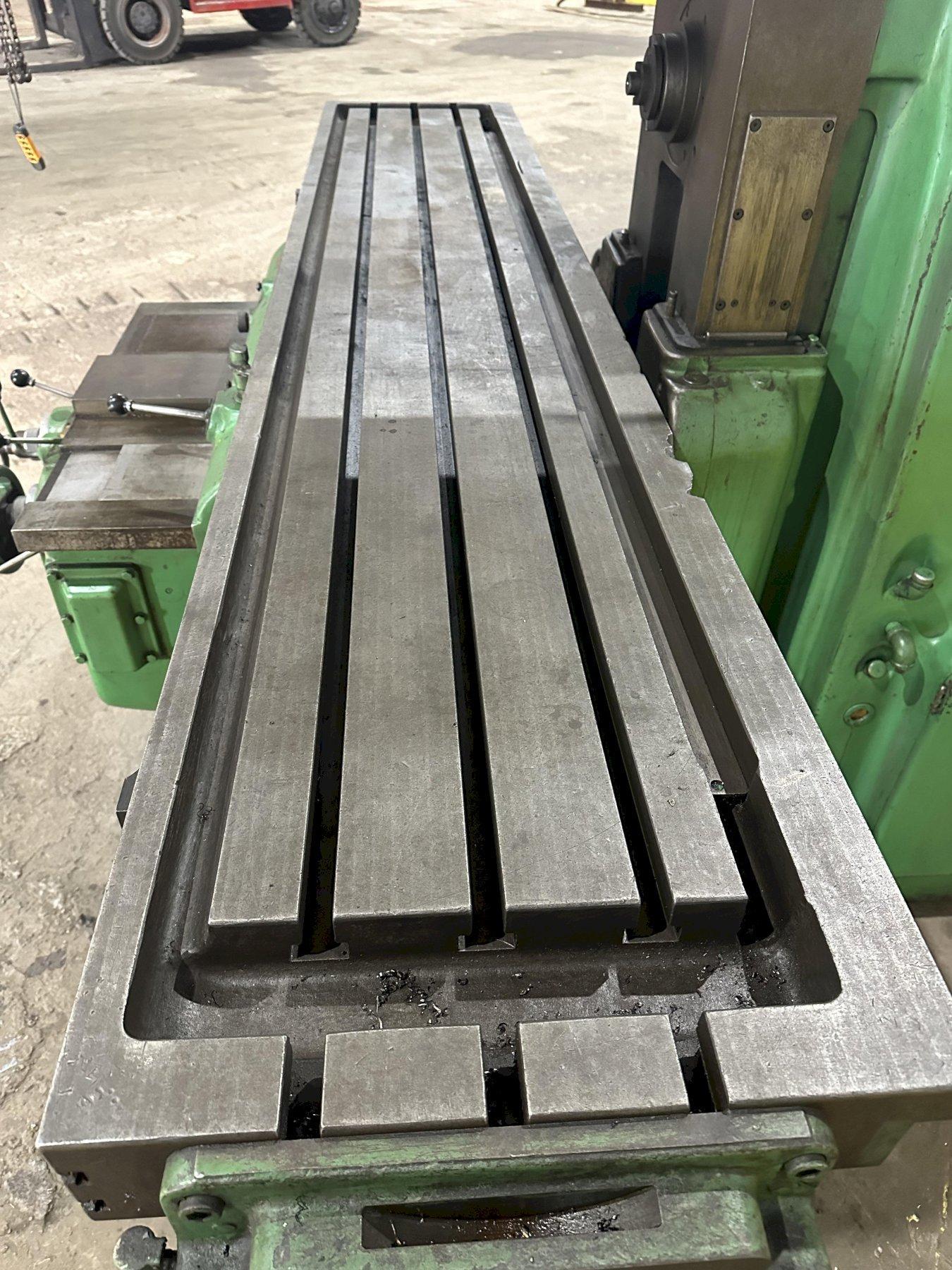

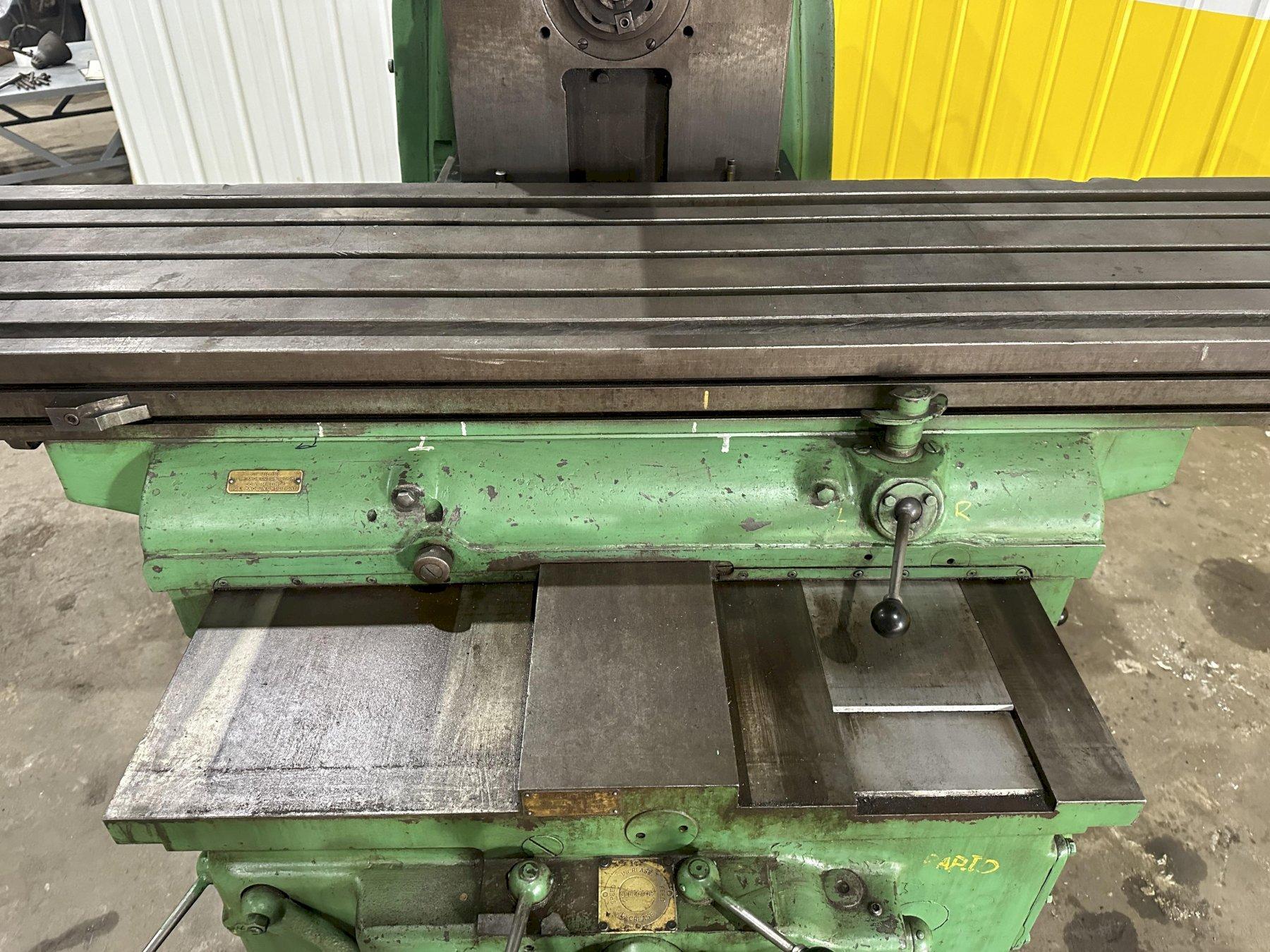

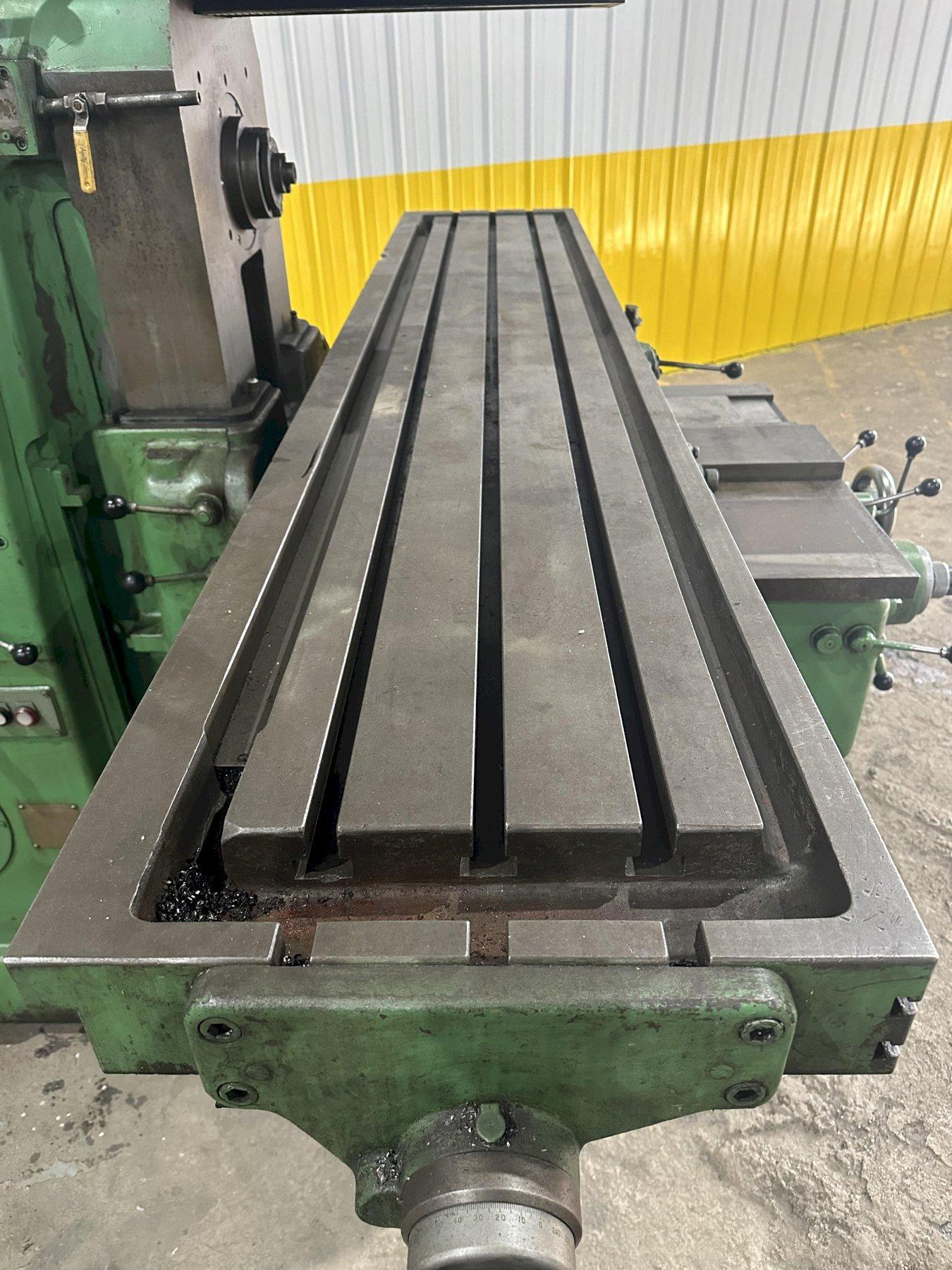

WORKING SURFACE OF TABLE ....... 104-1/2" X 20"

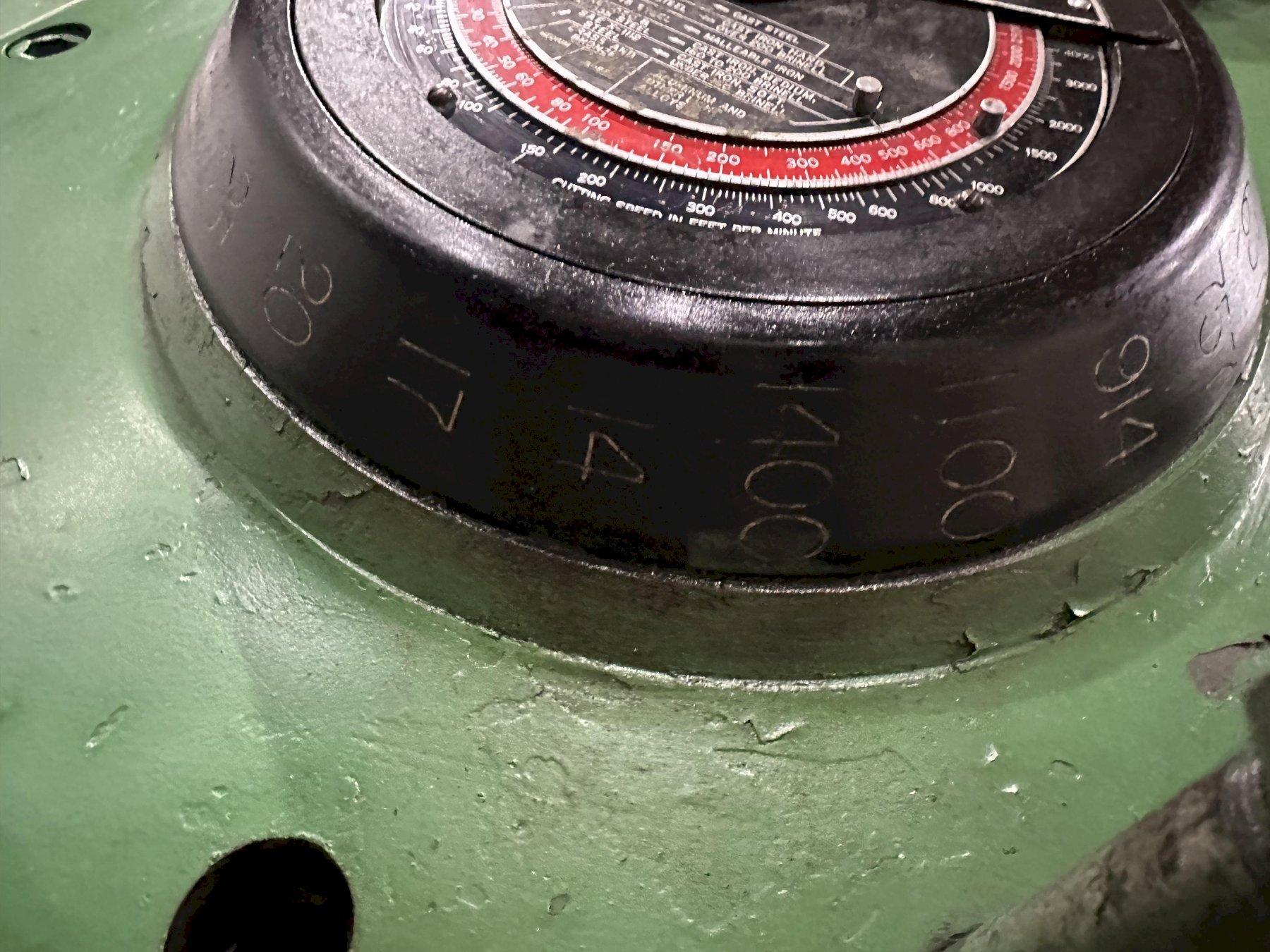

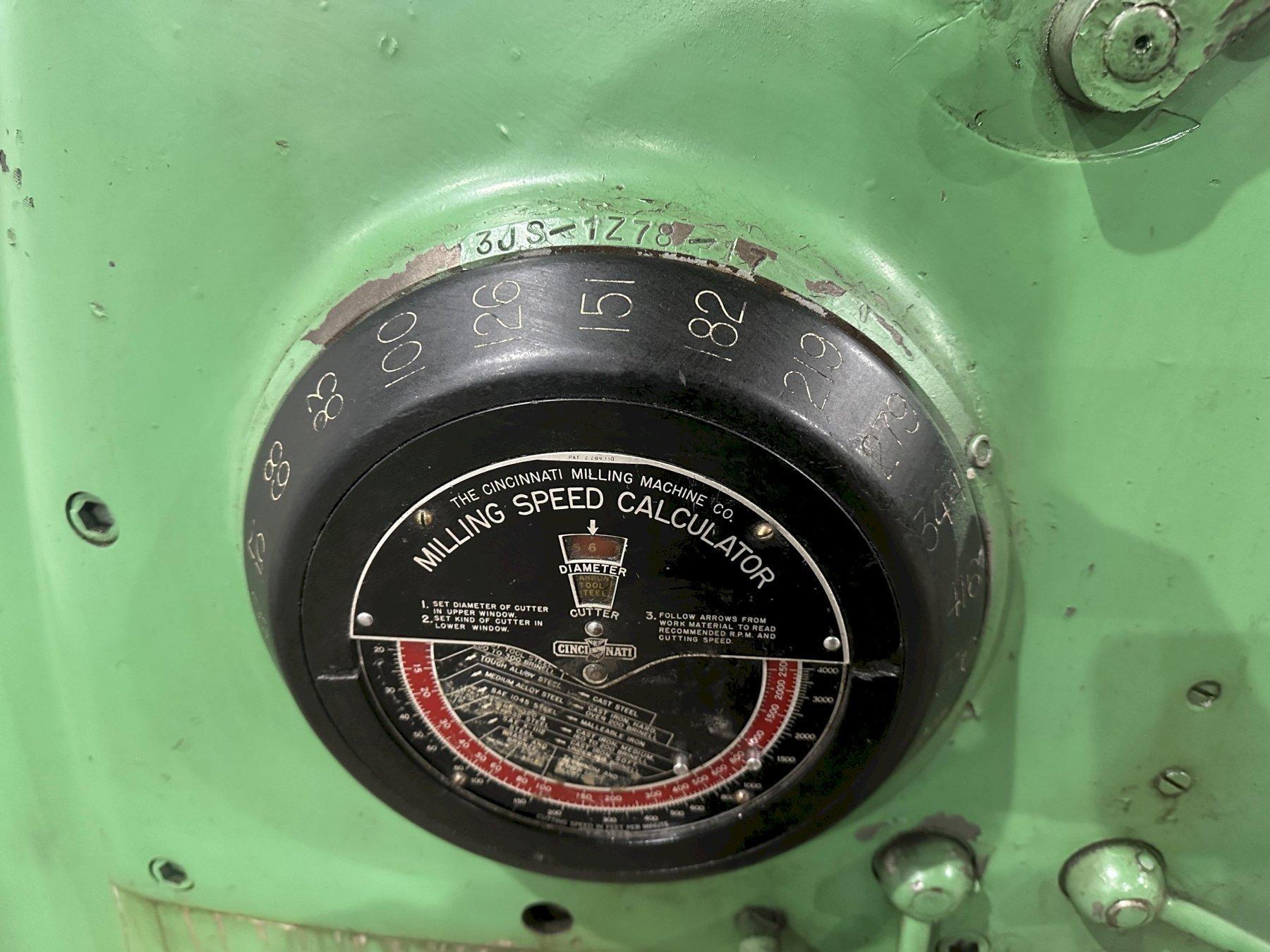

SPINDLE SPEEDS ................. (24) 14 TO 1400 RPM
LONGITUDINAL & CROSS FEEDS ..... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ................. (32) 3/32 TO 22-1/2 IPM
LONGITUDINAL TRAVEL ............ 60"
CROSS TRAVEL ................... 18"
VERTICAL TRAVEL ................ 20"
DISTANCE SPINDLE TO TABLE ...... 3/4" MINIMUM, 20-3/4" MAXIMUM

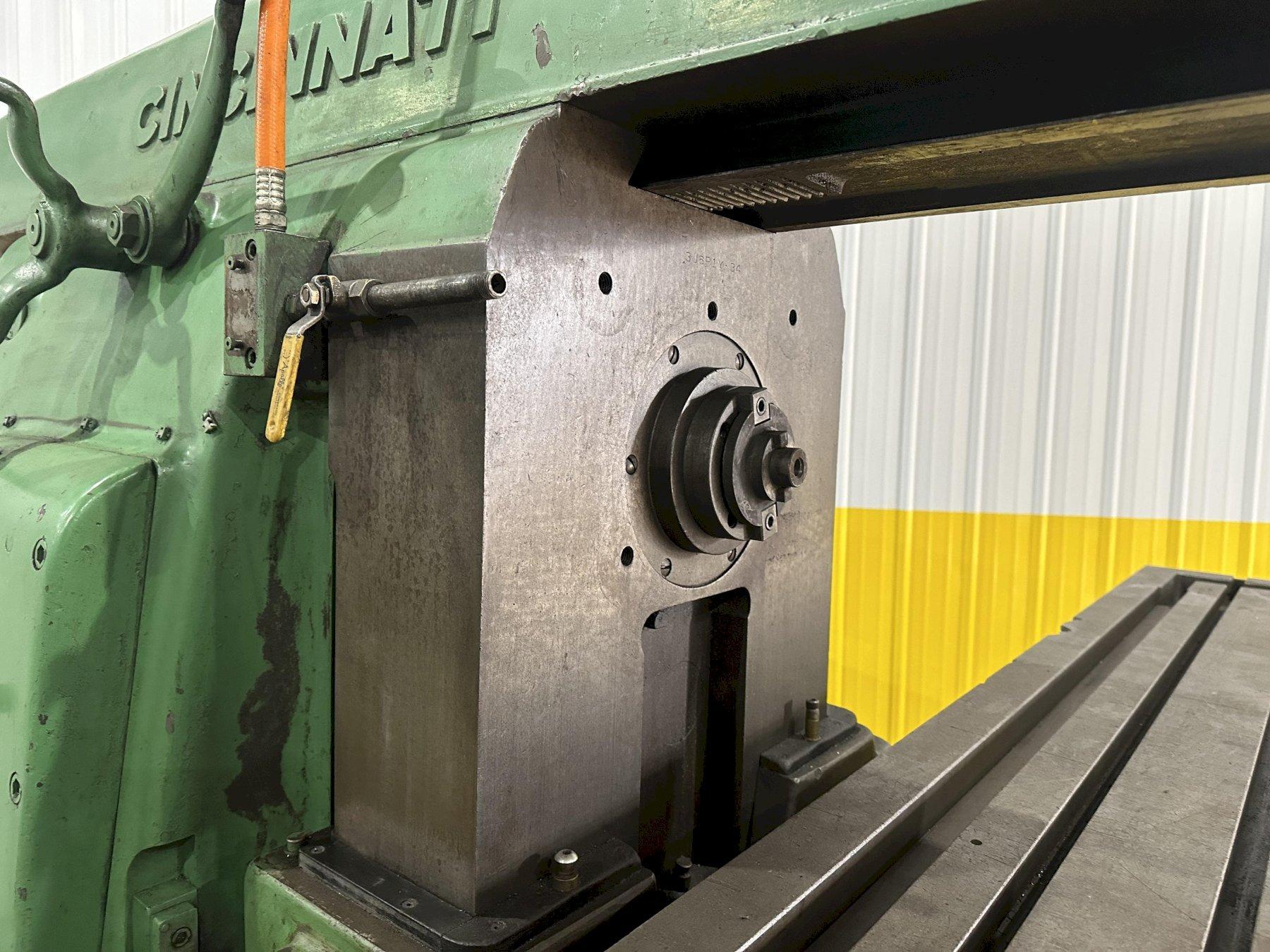

TAPER IN SPINDLE ............... #50 NS
POWER RAPID TRAVERSE ........... 150 IPM
DOVETAIL OVERARM ............... YES
AUTO LUBE & COOLANT ............ YES

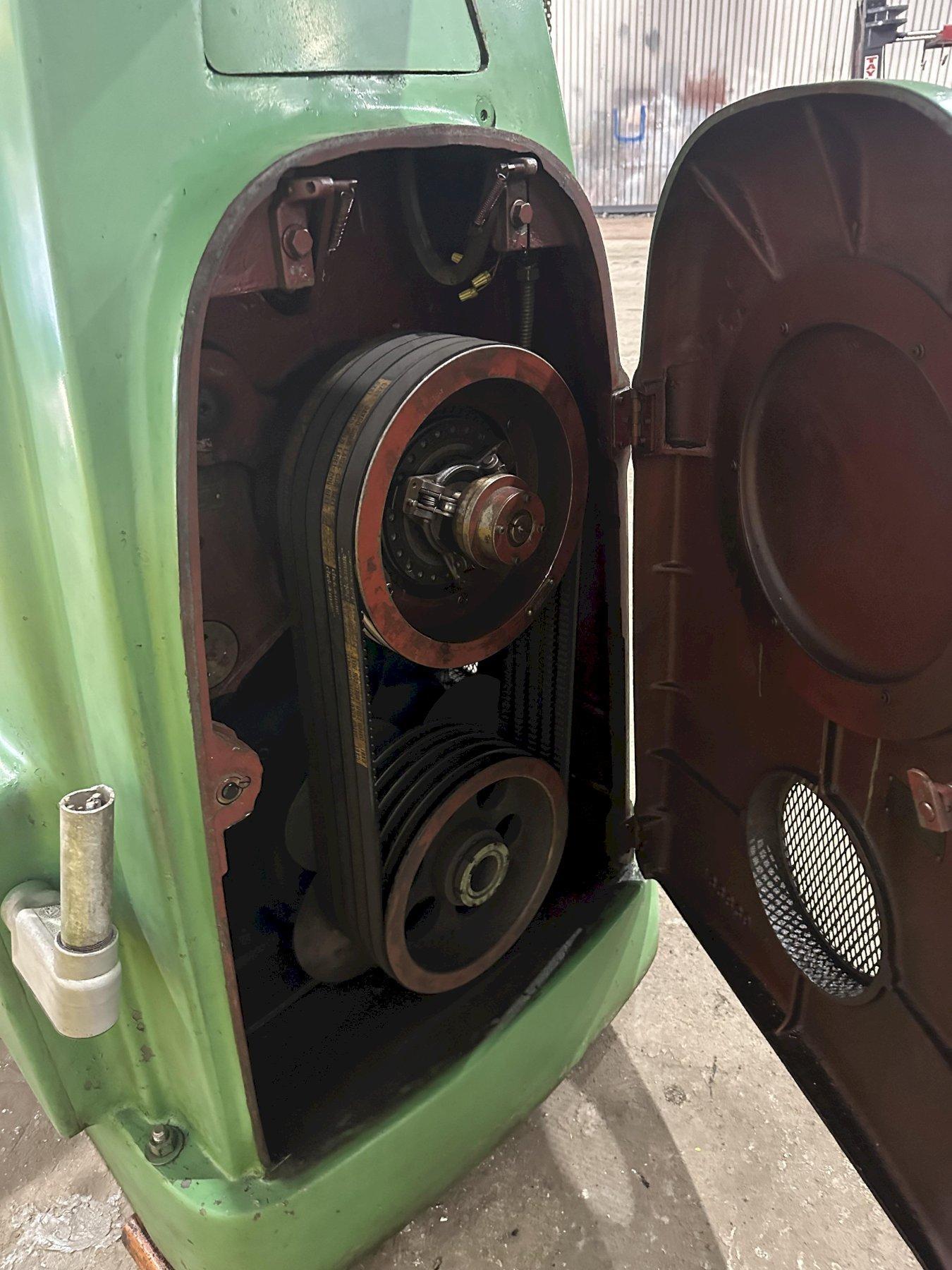

MAIN MOTOR ..................... 50 HORSEPOWER
