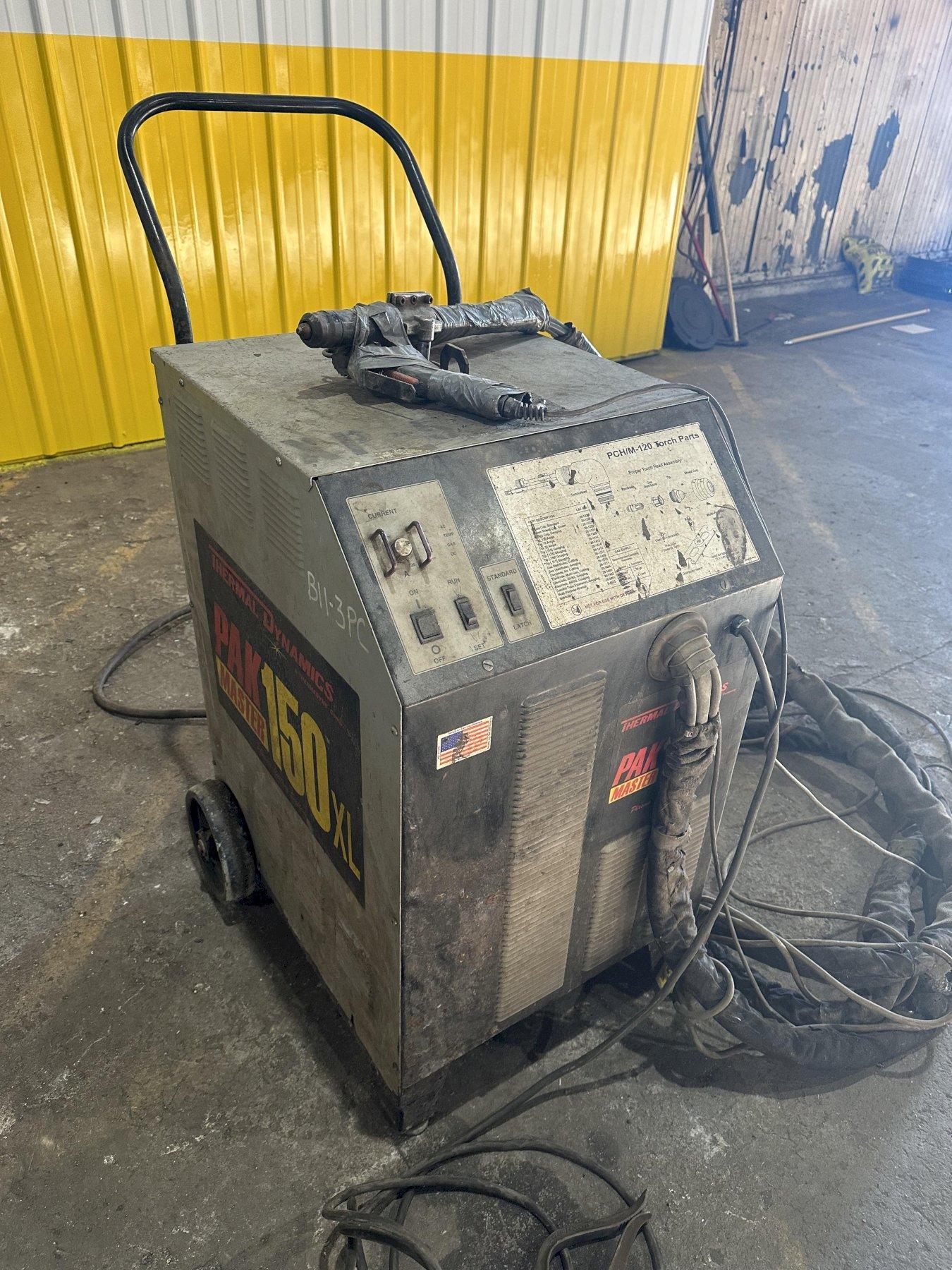

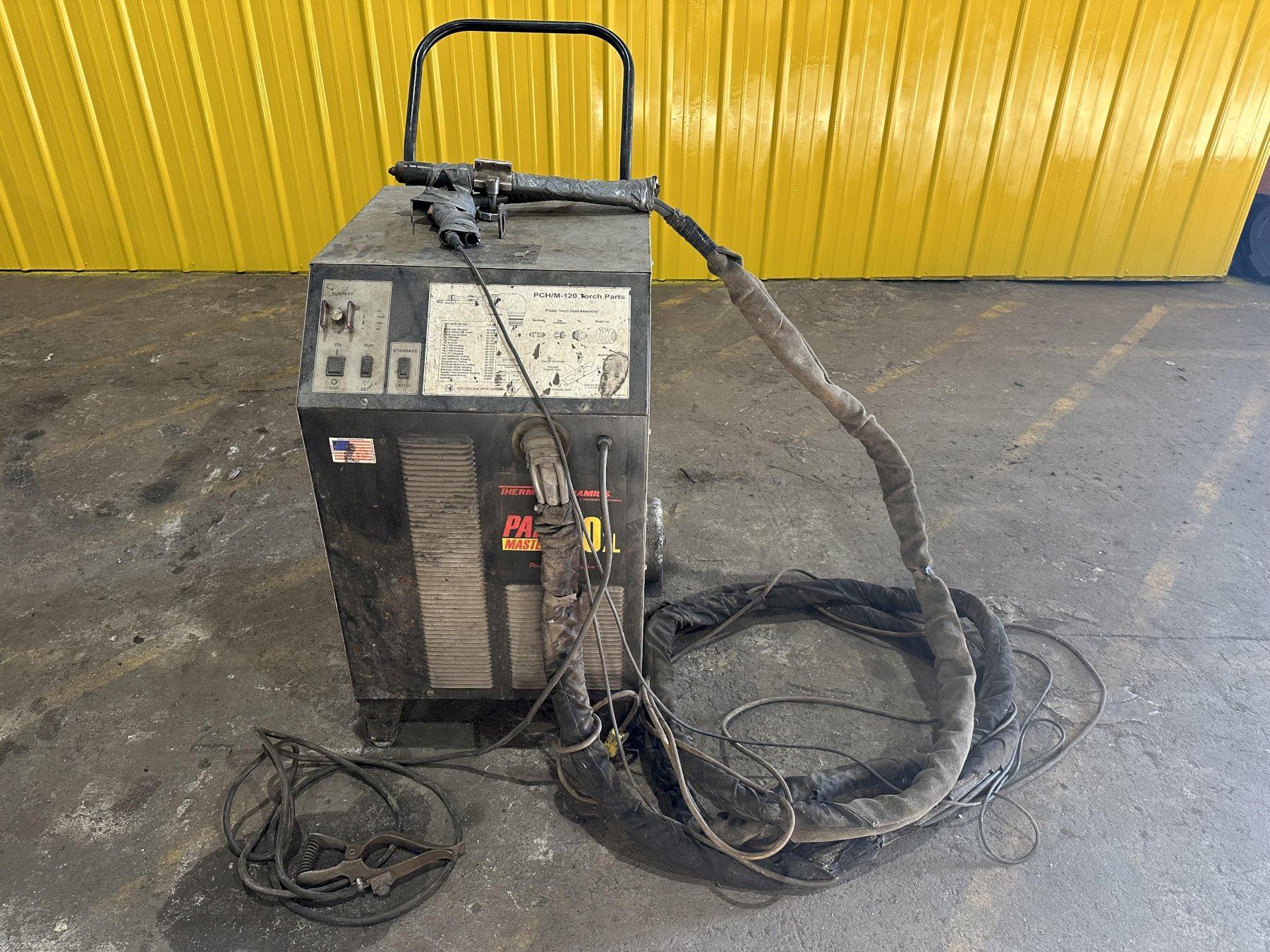

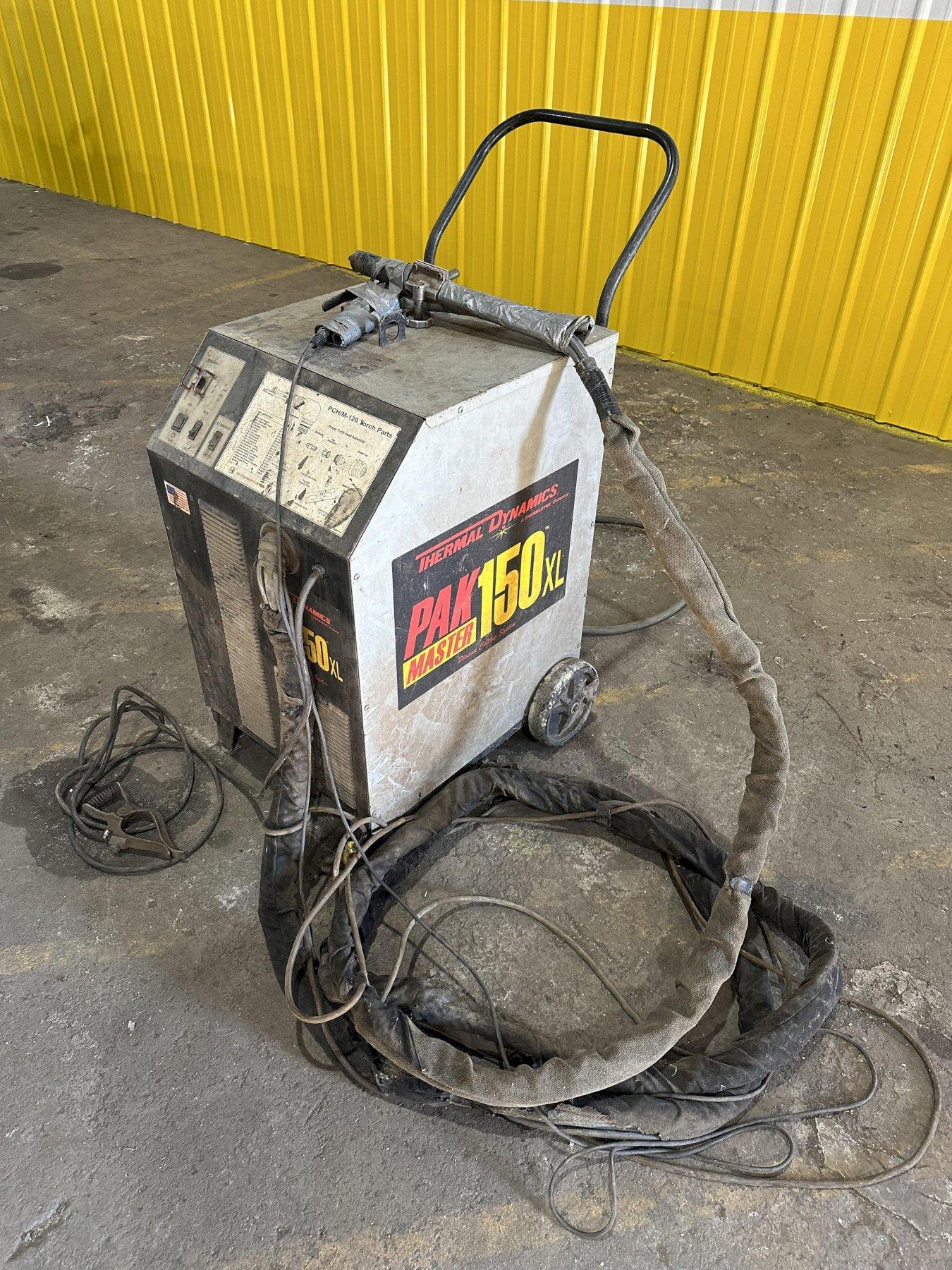

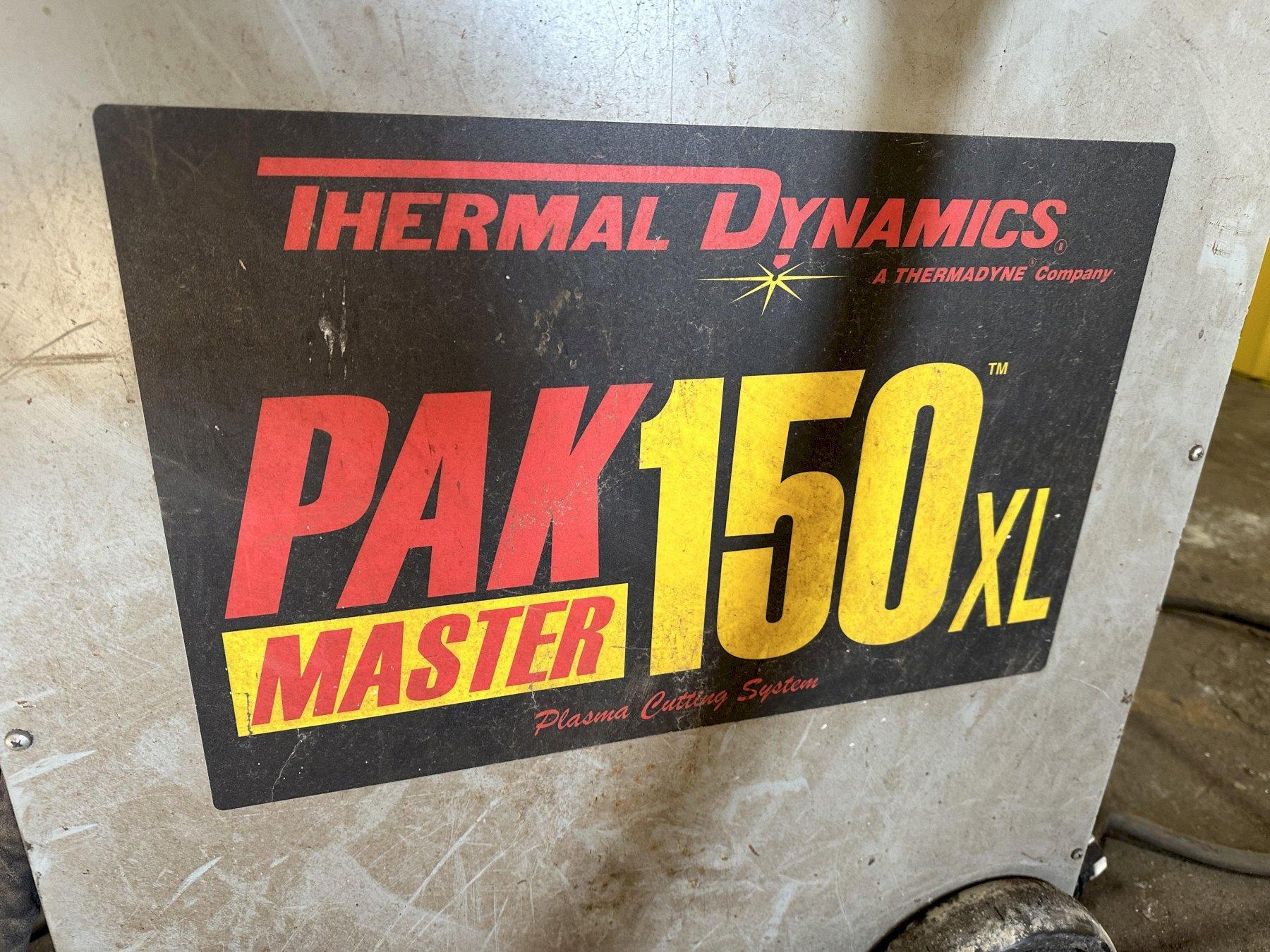

THERMAL DYNAMICS PAKMASTER 150 XL PLASMA CUTTER: STOCK #19814

Manufacturer

THERMAL DYNAMICS

Category

Fabricating Machines

Type

PLASMA CUTTERS

Stock

19814

Model

150 XL

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



Cut Capacity:
- 1-1/2” (38mm) Genuine Cut
- 1-3/4” (45mm) Severance
- 1” (25 mm) Pierce Capacity
Output Current: 30-120 Amps, Adjustable
Input Power:
- 208-230/460 VAC, 3ph, 50/60Hz,78/74/37 Amps
- 220/380-415 VAC, 3ph, 50/60Hz, 75/44/40 Amps
Duty Cycle: 60% @ 120A, 100% @ 100A
Dimensions:
- Length 35” (889mm)
- Width 24.5” (622mm)
- Height 45.4” (1153mm)
Weight: 275 lbs. (126 kg)
Ship Weight: 377 lbs. (171 kg)

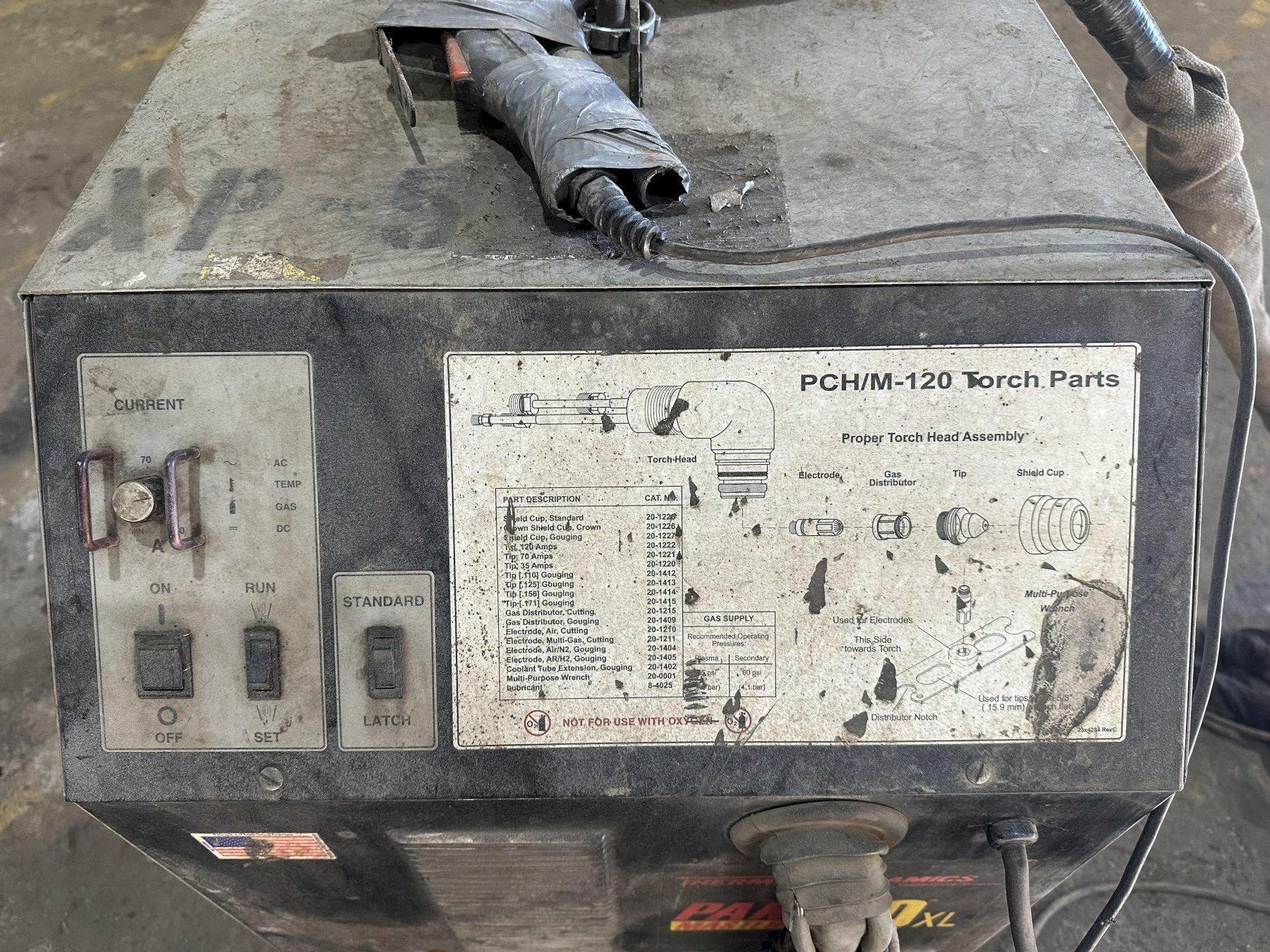

Panel Controls: On/Off Switch, Run/Set/Latch Switch, Output Current Potentiometer
Panel Indicators: AC Power, DC Output, Temperature, Gas Pressure
Work Cable: 20 ft. (6.1m) (includes clamp)
Input Power Cable: Refer to Following Options
Plasma Gas: Air, Nitrogen, Argon/Hydrogen
- Pressure: 65 psi (4.5 bar)
- Flow: 45-85 scfh (21-40 lpm)
Secondary Gas: Air, Carbon Dioxide, Nitrogen
- Pressure: 60 psi (4.1 bar)
- Flow: 340 scfh (160 lpm)
Total Flow: 426 scfh (200 lpm) Max.

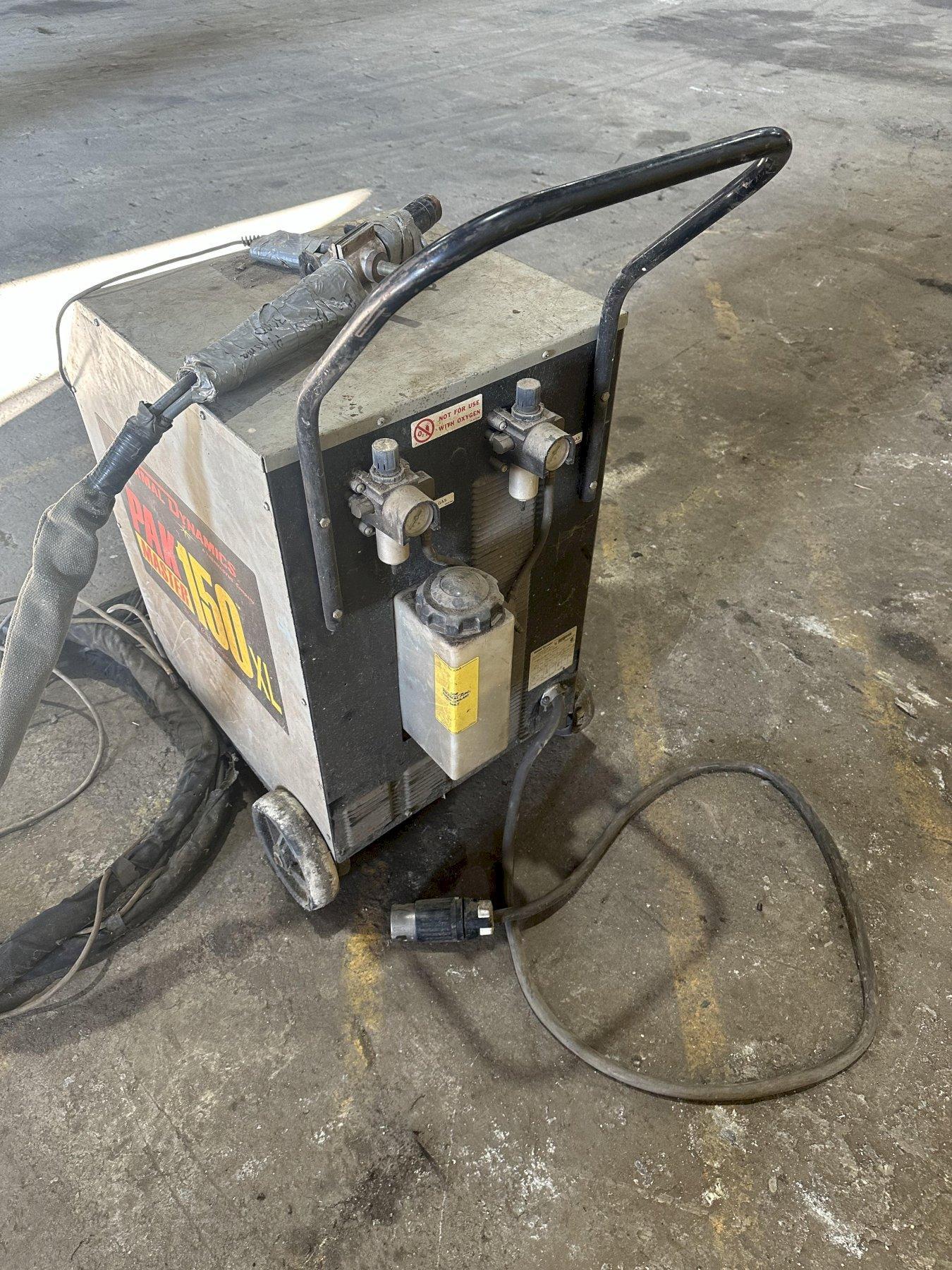

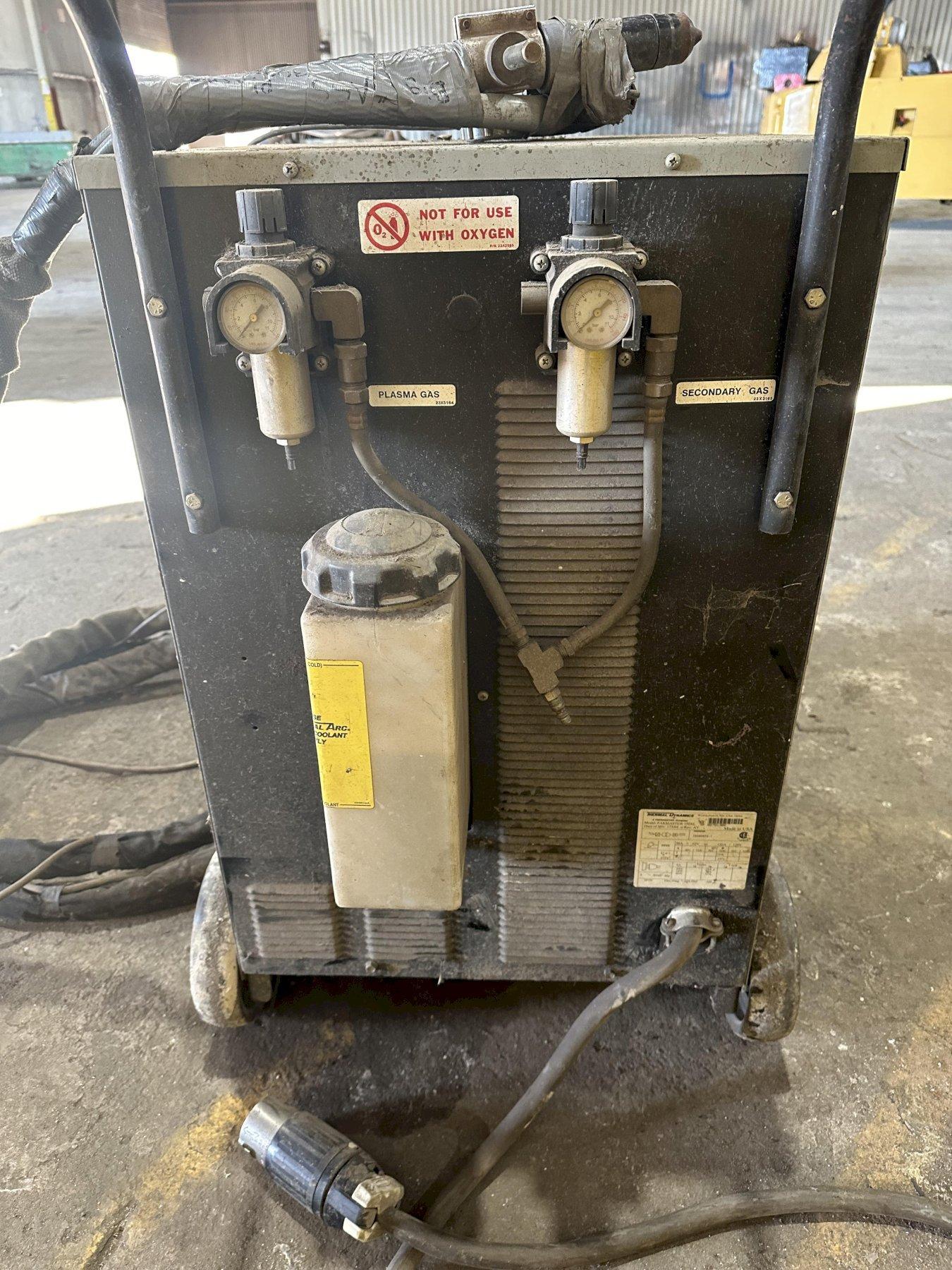

Gas Supply Connections: Inert “B” on rear panel (plasma and secondary shop air filter/regulator with “Y” hose provided)
Pilot: Electrode to Tip
Control: Hand Torch Switch, Hand Pendant, or Interface Cable

Torch Configurations

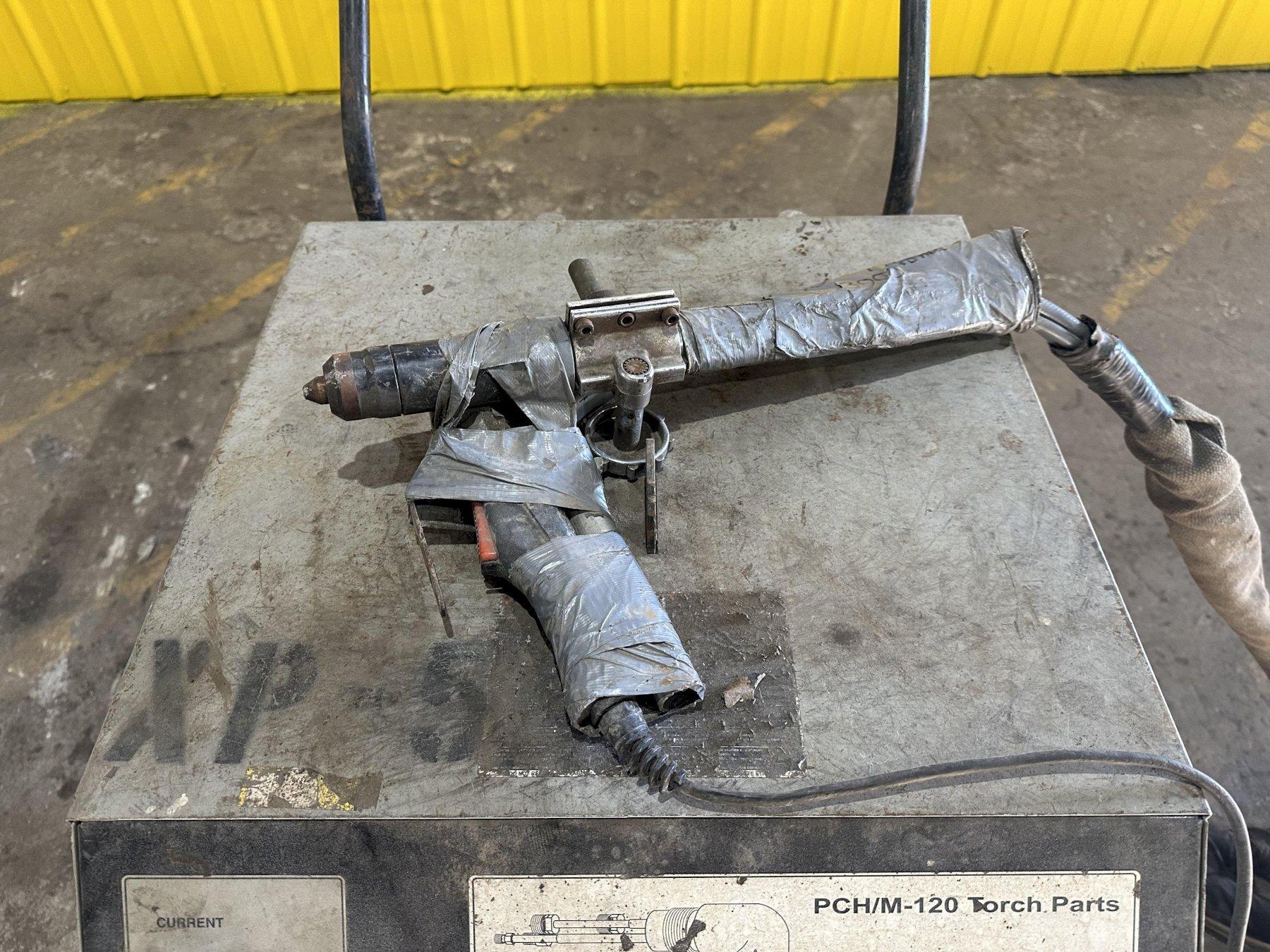

Torch: PCH/M-120
Hand:
- 70°or 90°Head
- 25 ft. (7.6m) or 50 ft. (15.2m) Leads
Machine:
- 180° Head
- 25 ft. (7.6m) or 50 ft. (15.2m)
- Shielded Leads
Certifications: IP-23C (water test), CSA,
