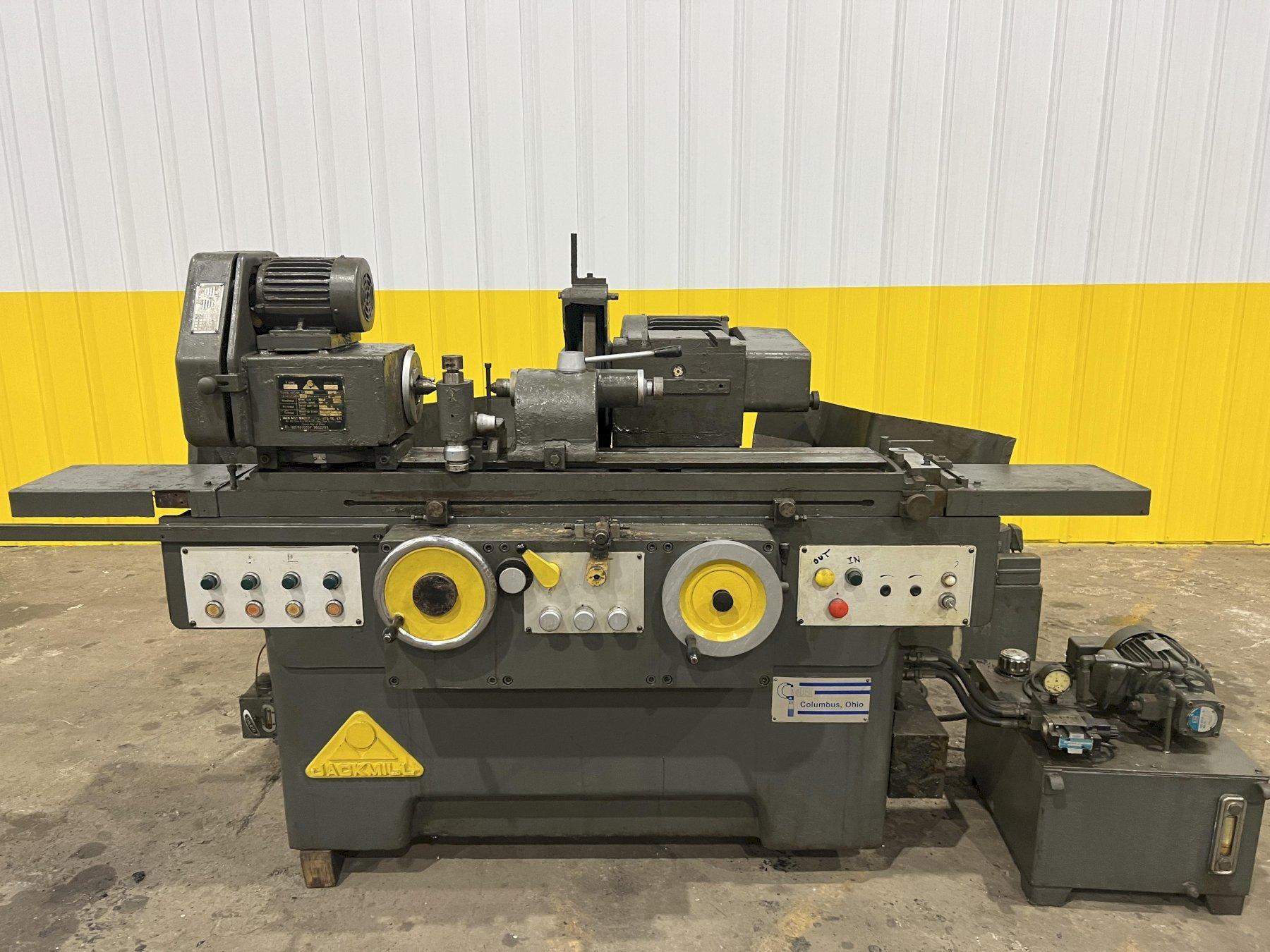

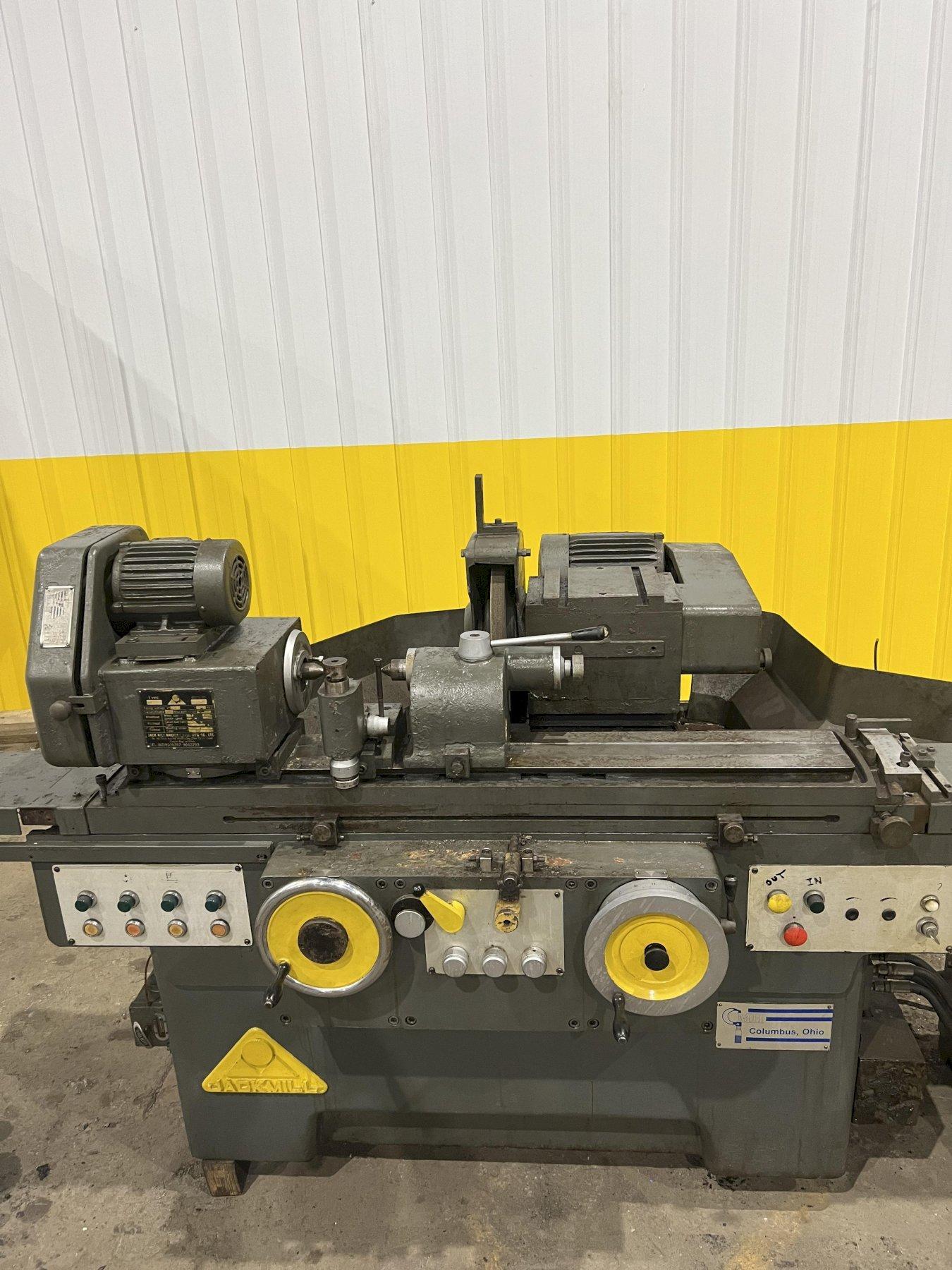

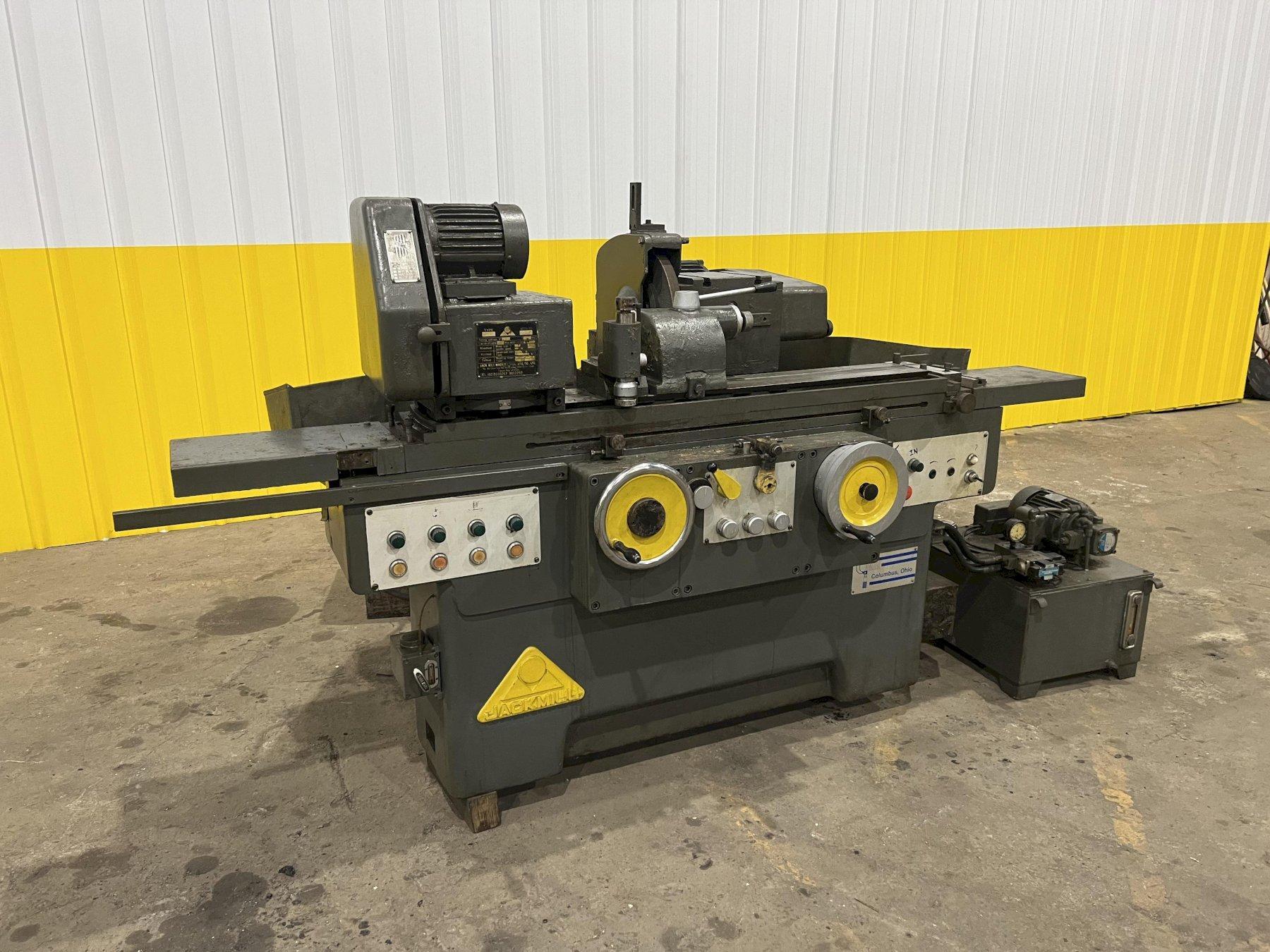

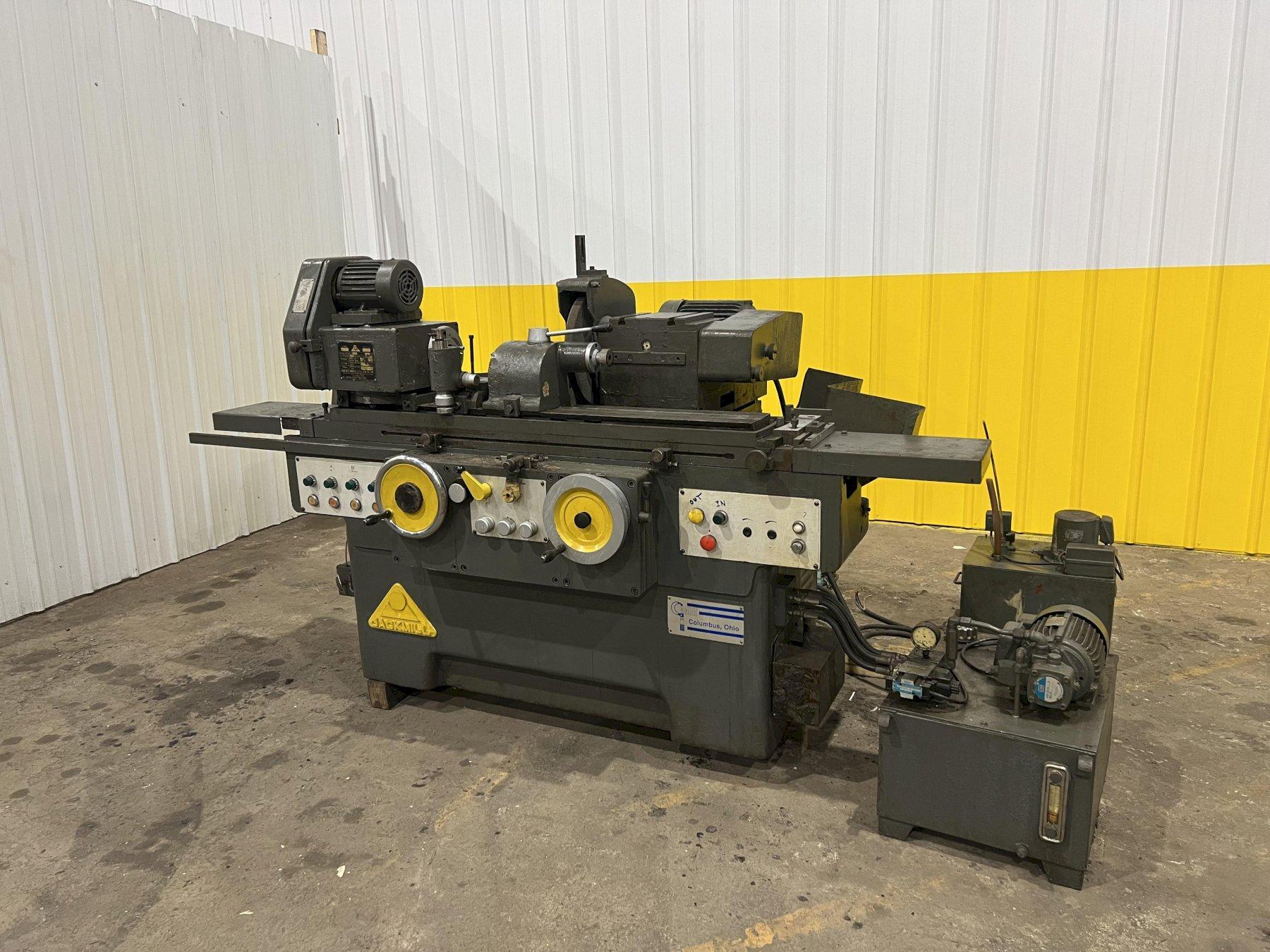

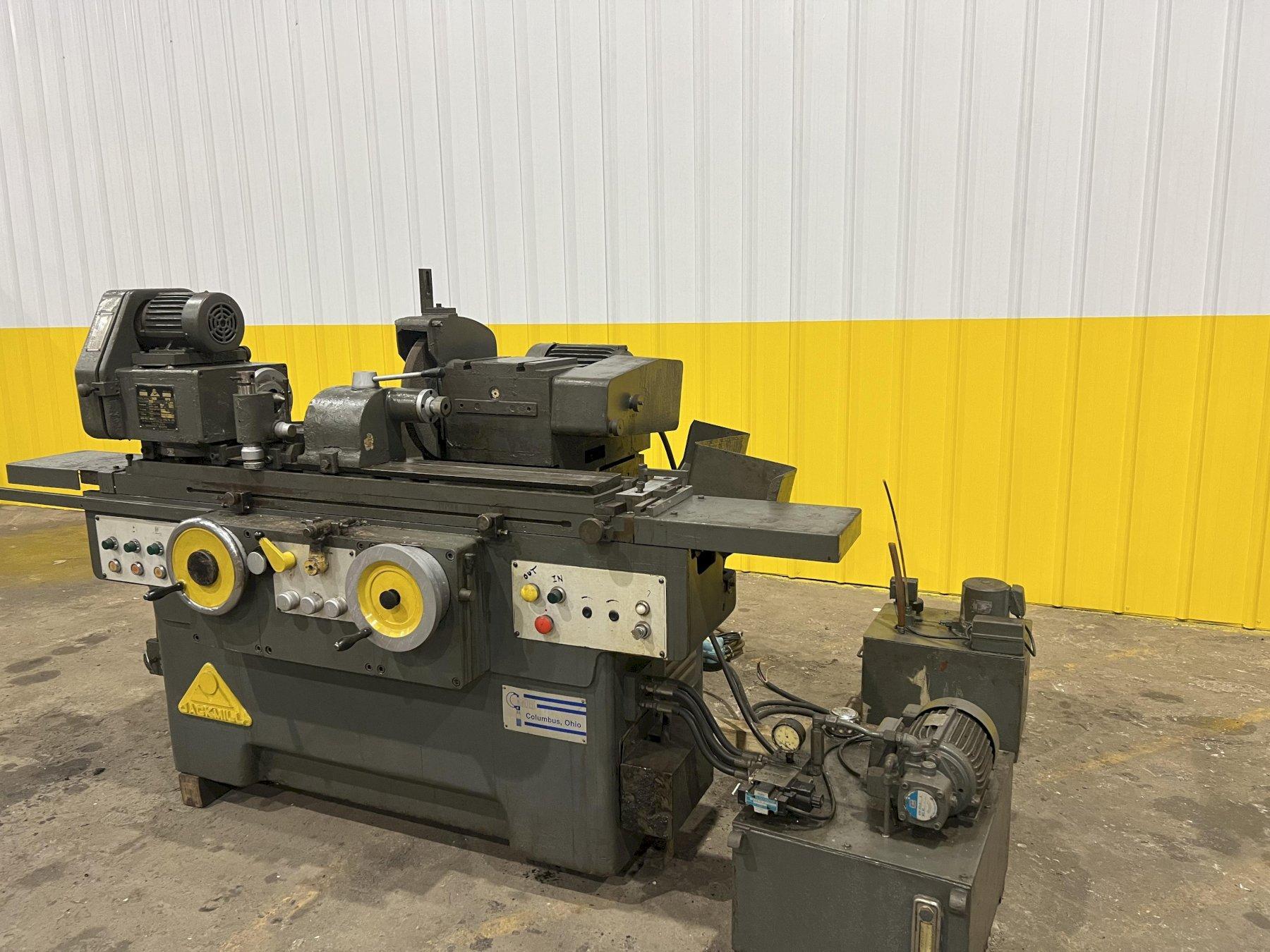

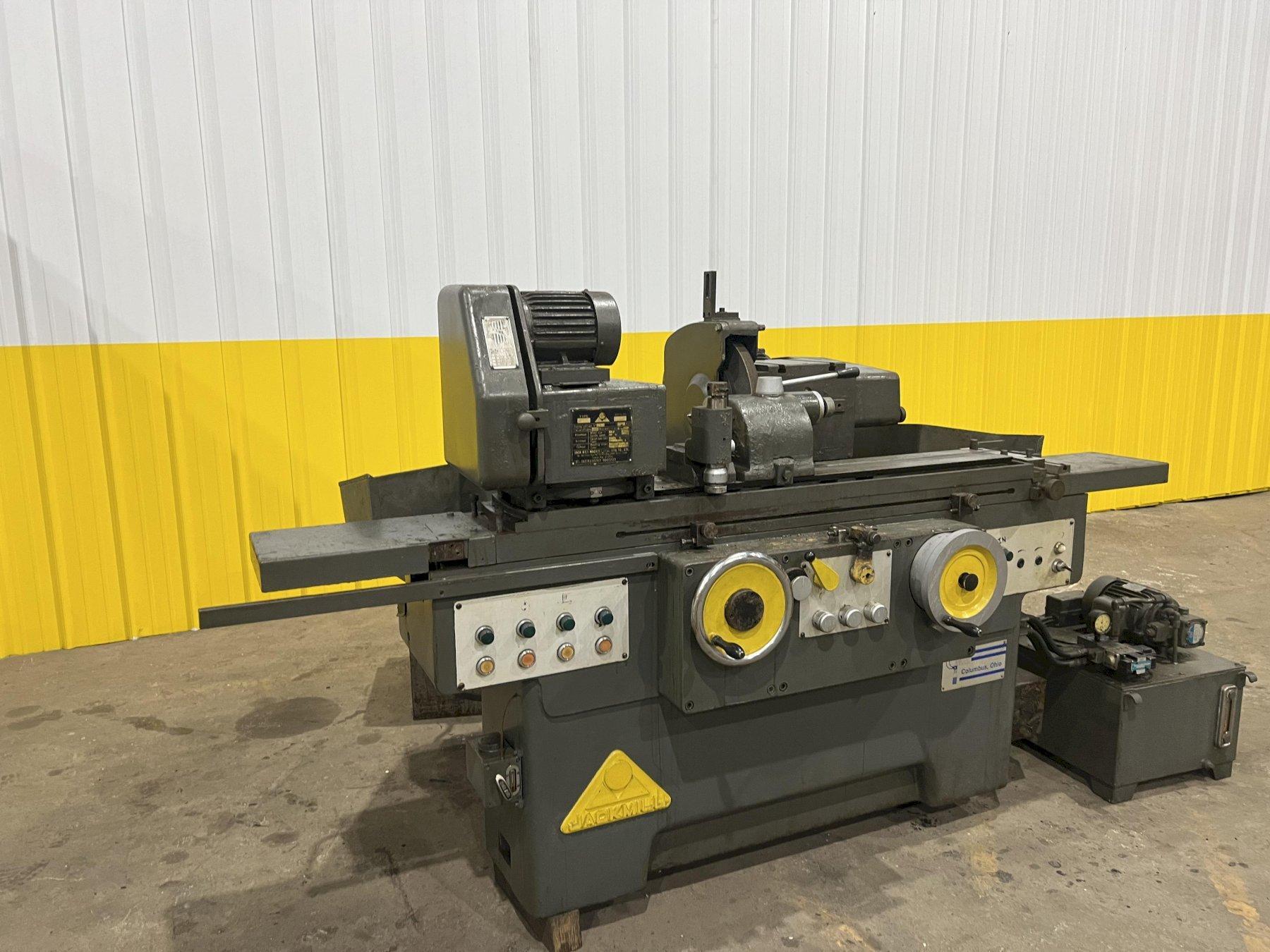

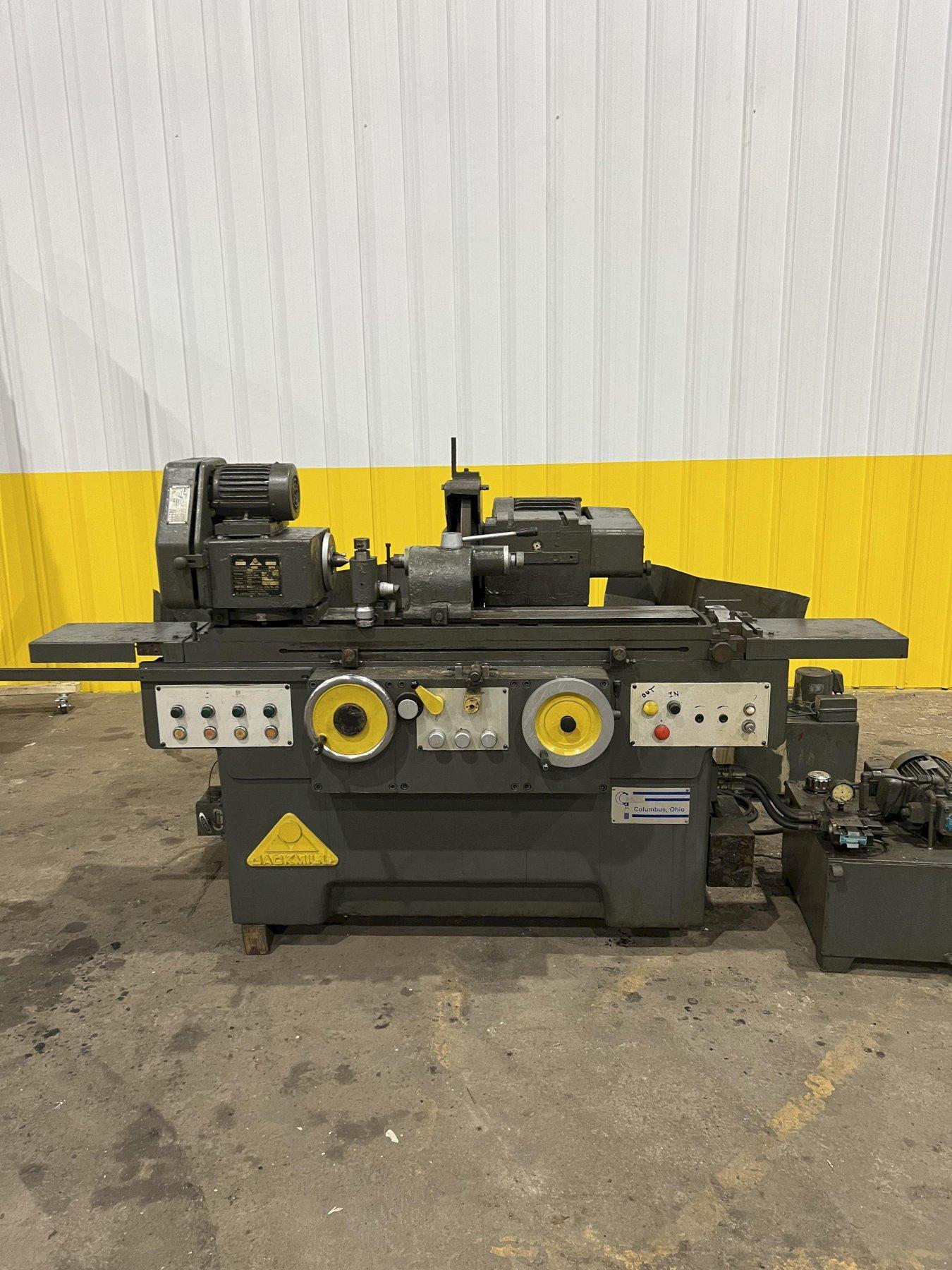

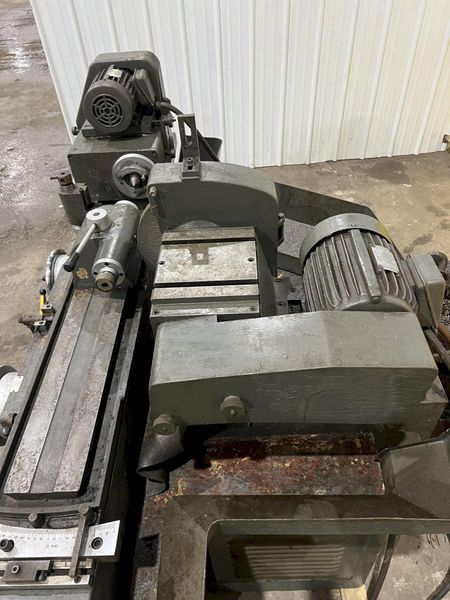

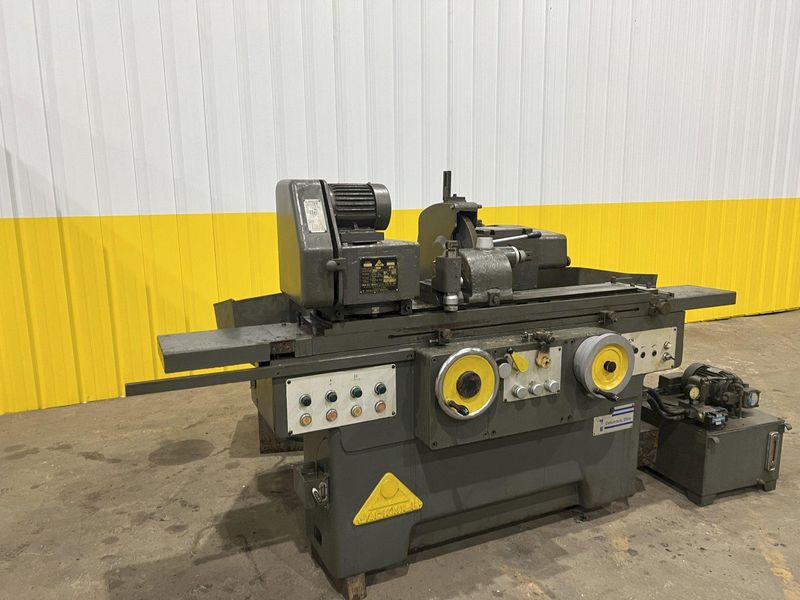

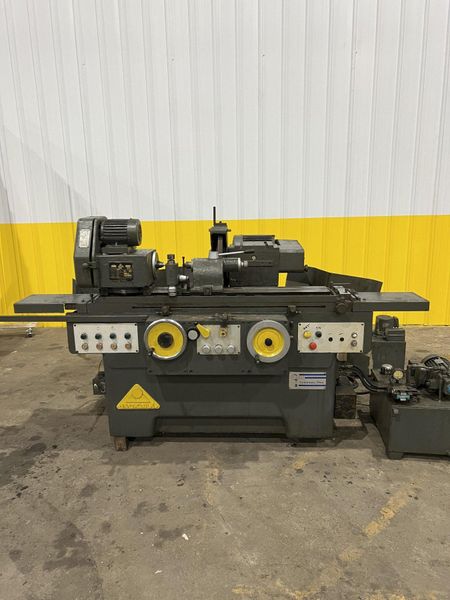

10" X 25" JACK MILL MODEL GU-650H HYDRAULIC UNIVERSAL ID/OD CYLINDRICAL GRINDER: STOCK #19819

Manufacturer

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, CNC

Stock

19819

Model

GU-650H

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

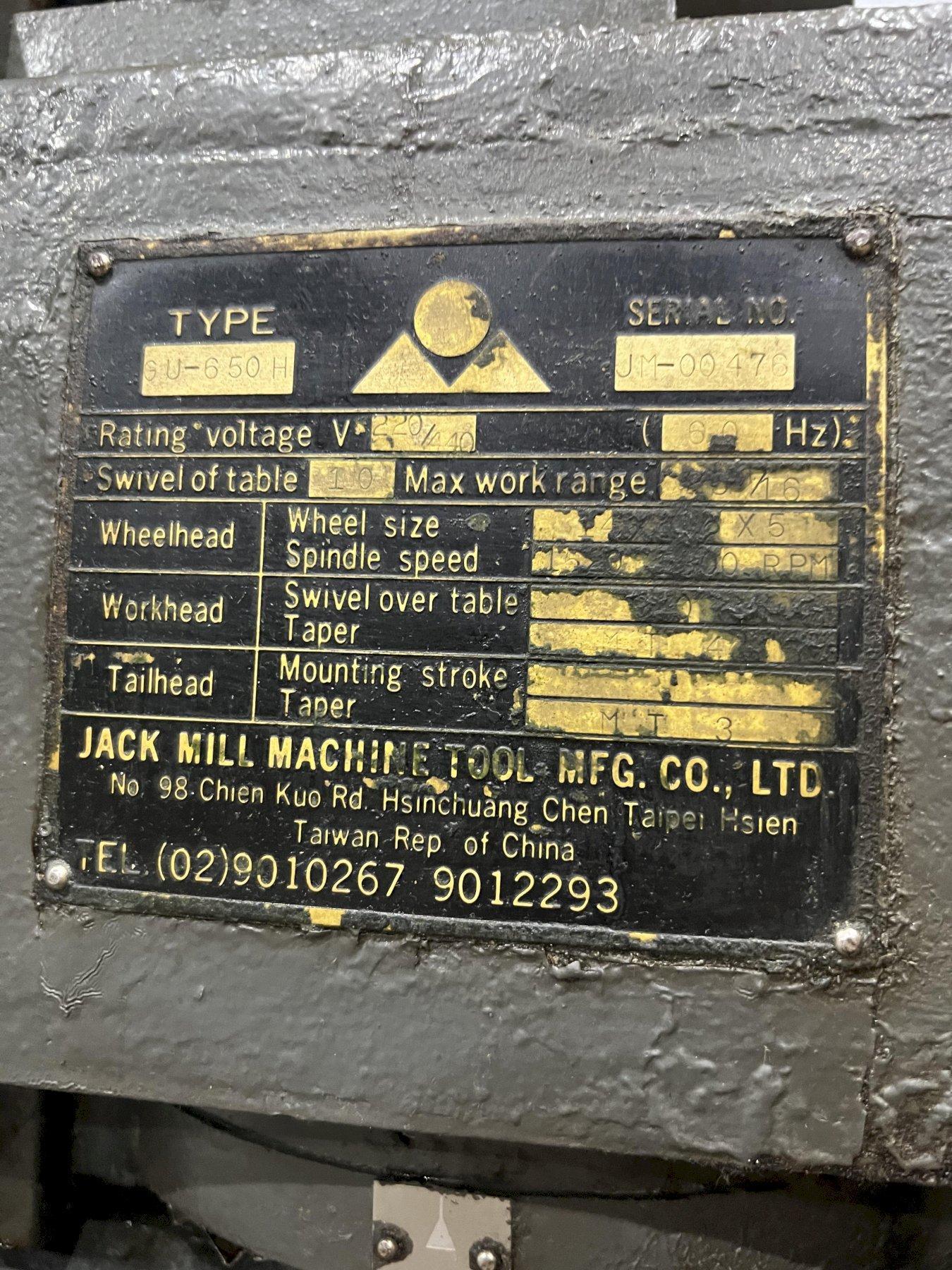

SERIAL ............................ UM-00476
MODEL / TYPE ...................... GU-650H
CAPACITY .......................... 11" X 25"

CAPACITY
GRINDING DIAMETER ................. 10"
DISTANCE BETWEEN CENTERS .......... 25-9/16"

TABLE
TRAVERSE SPEED .................... 2" TO 118"
TRAVEL PER HAND WHEEL ROTATION .... 1/2"

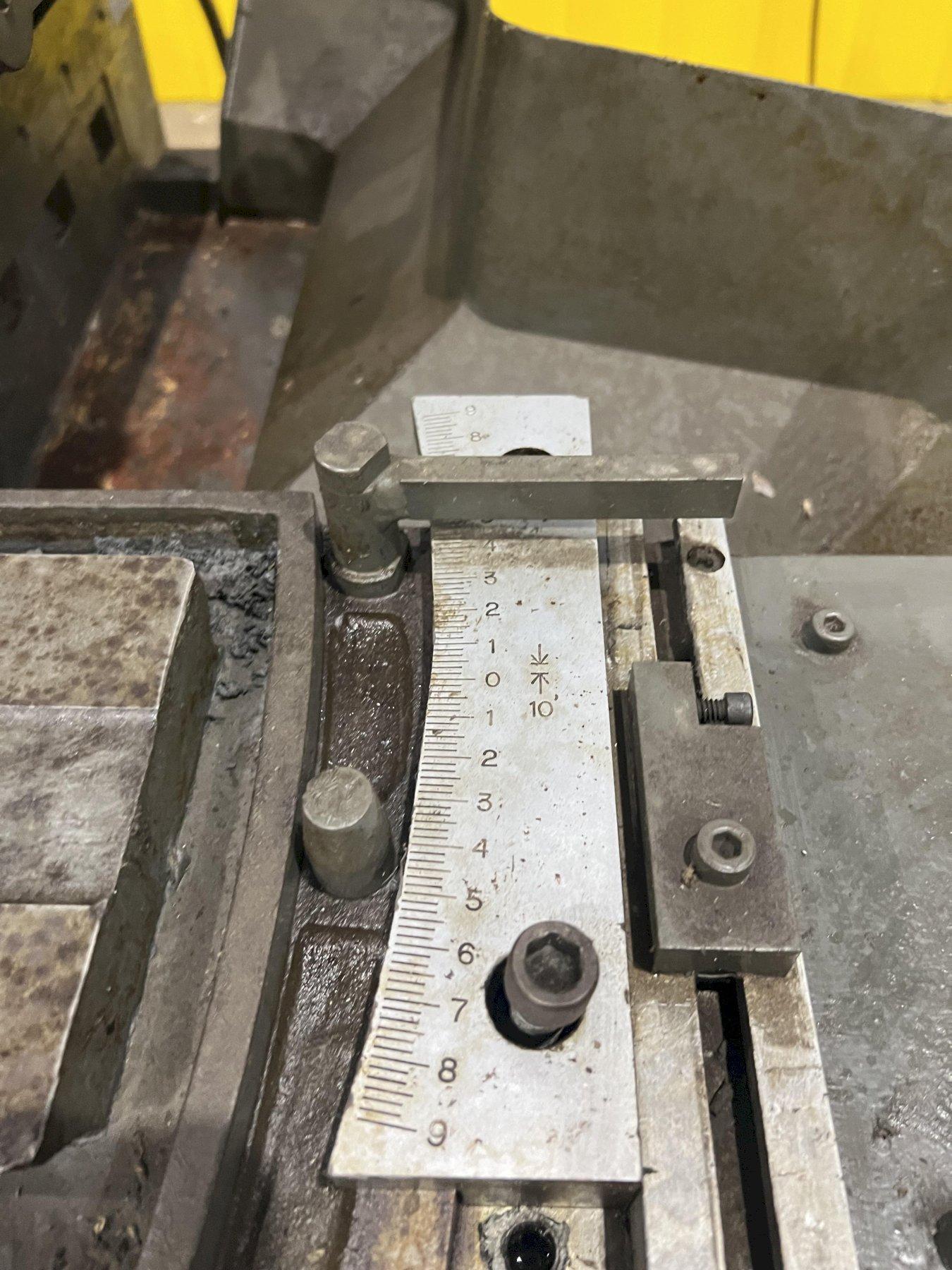

SWIVELLING ANGLE .................. +/- 10°

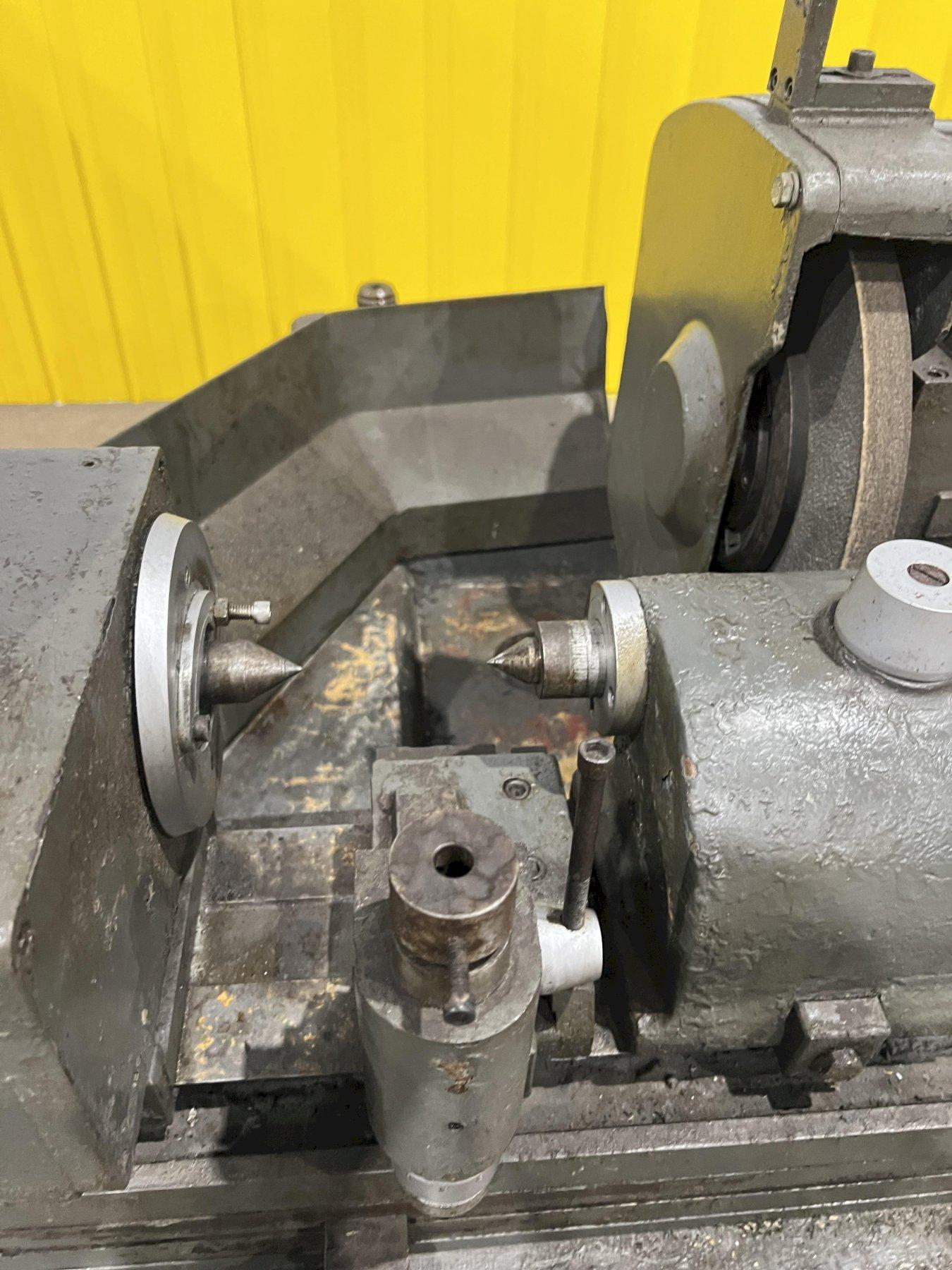

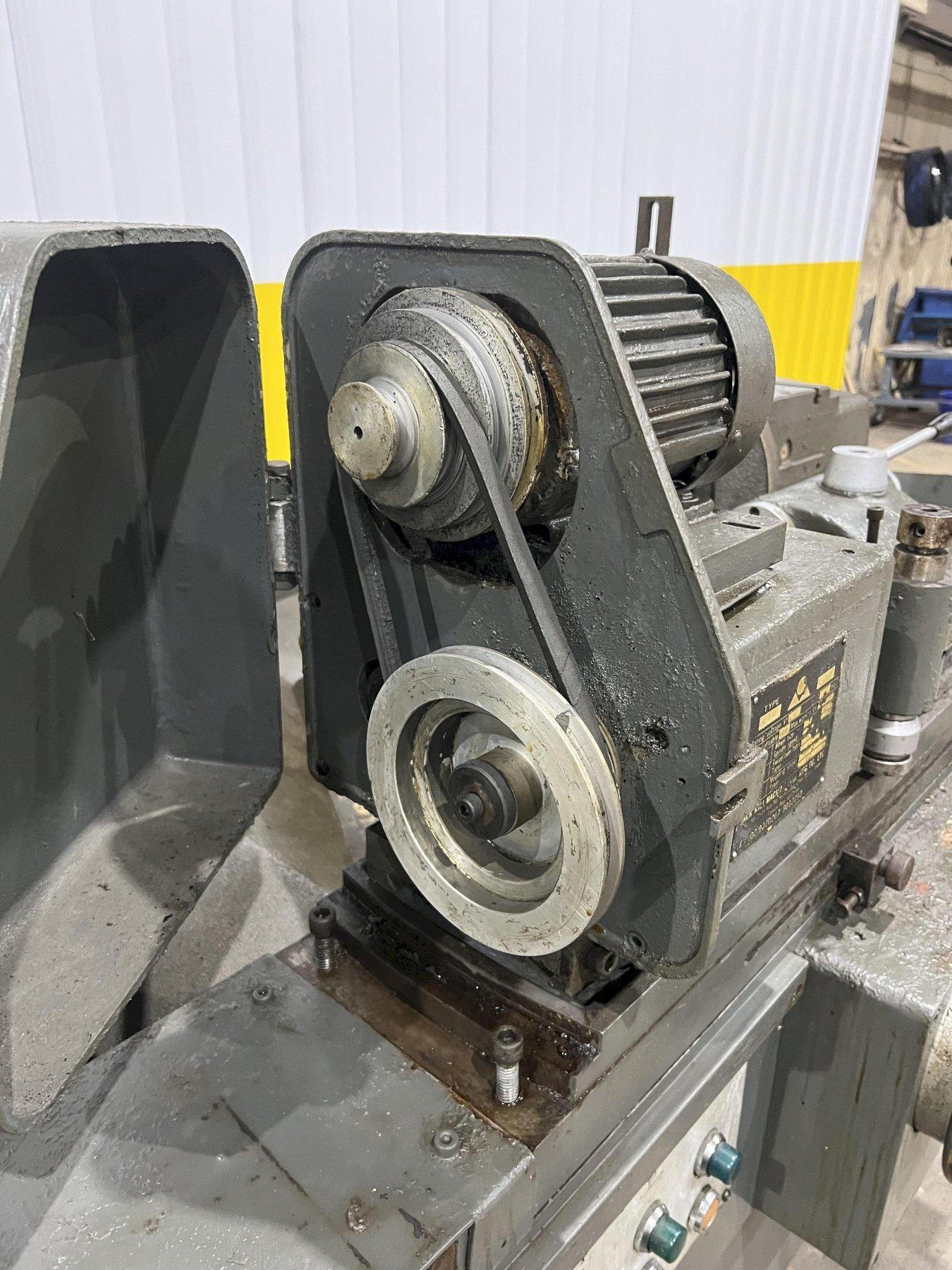

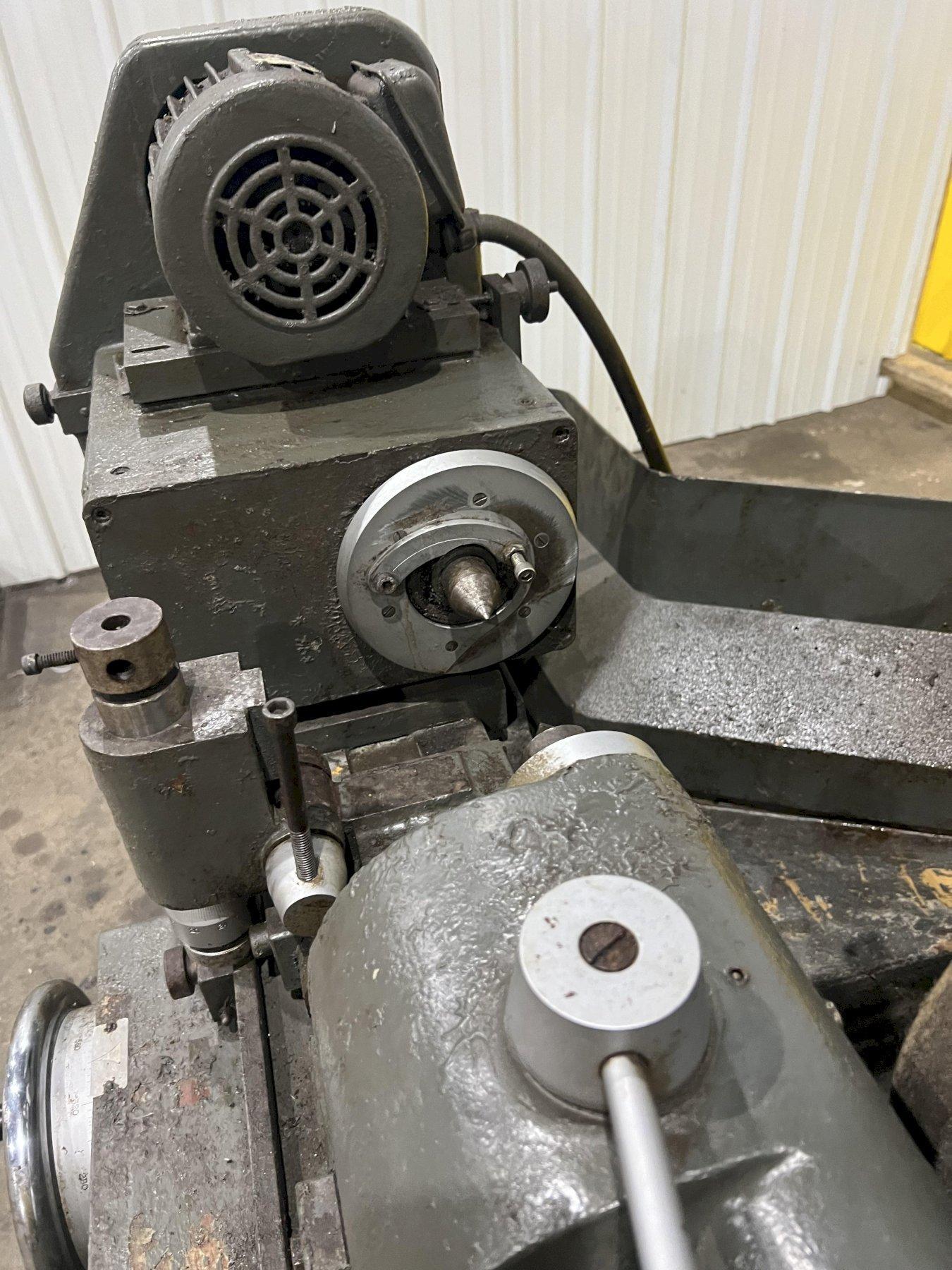

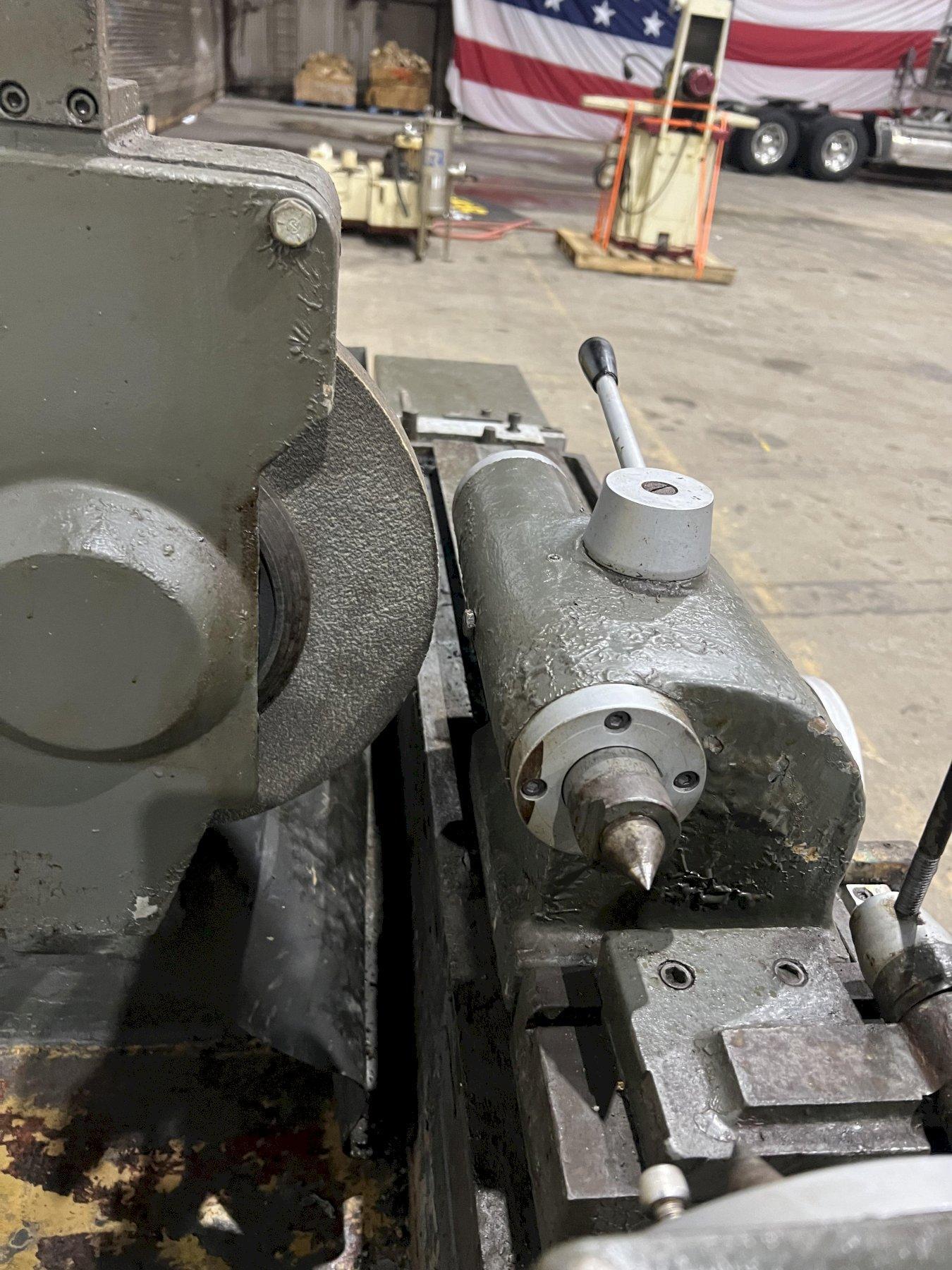

WORK HEAD & FOOTSTOCK
WORK SPINDLE TAPER HOLE ........... #4 MT

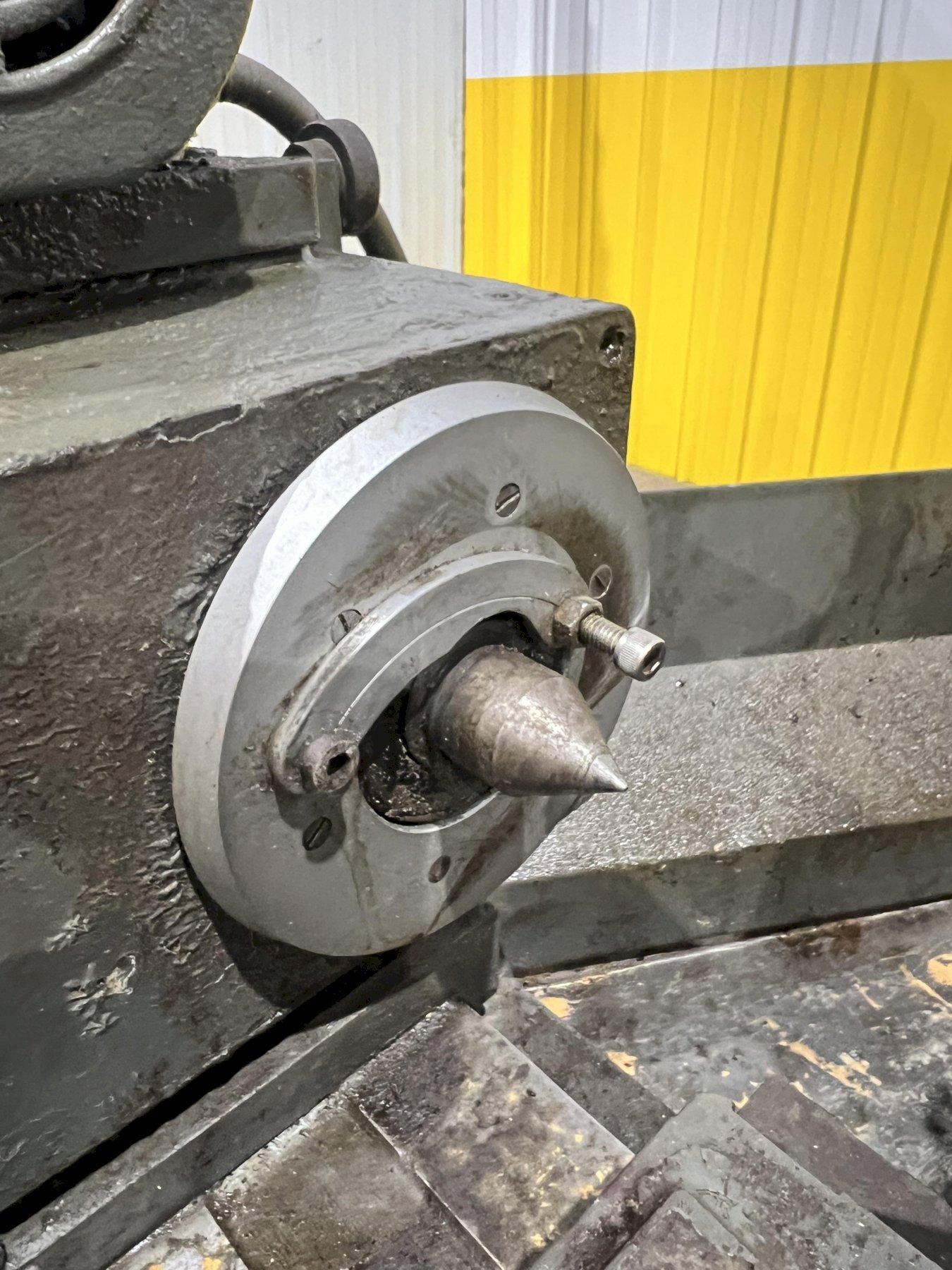

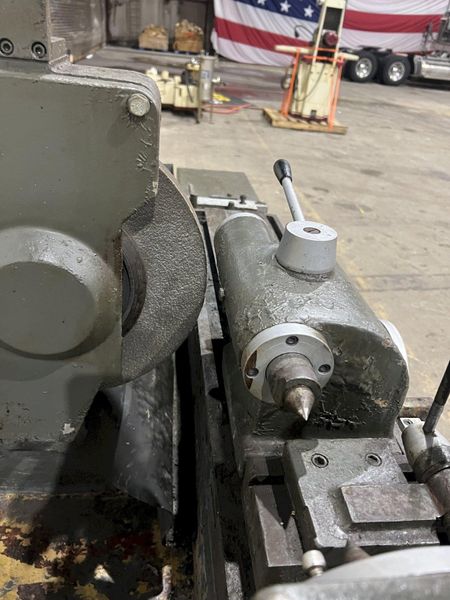

TAILSTOCK SPINDLE TAPER HOLE ...... #3 MT
WORK HEAD SWIVELLING ANGLE ........ 0 ~ +/- 90°

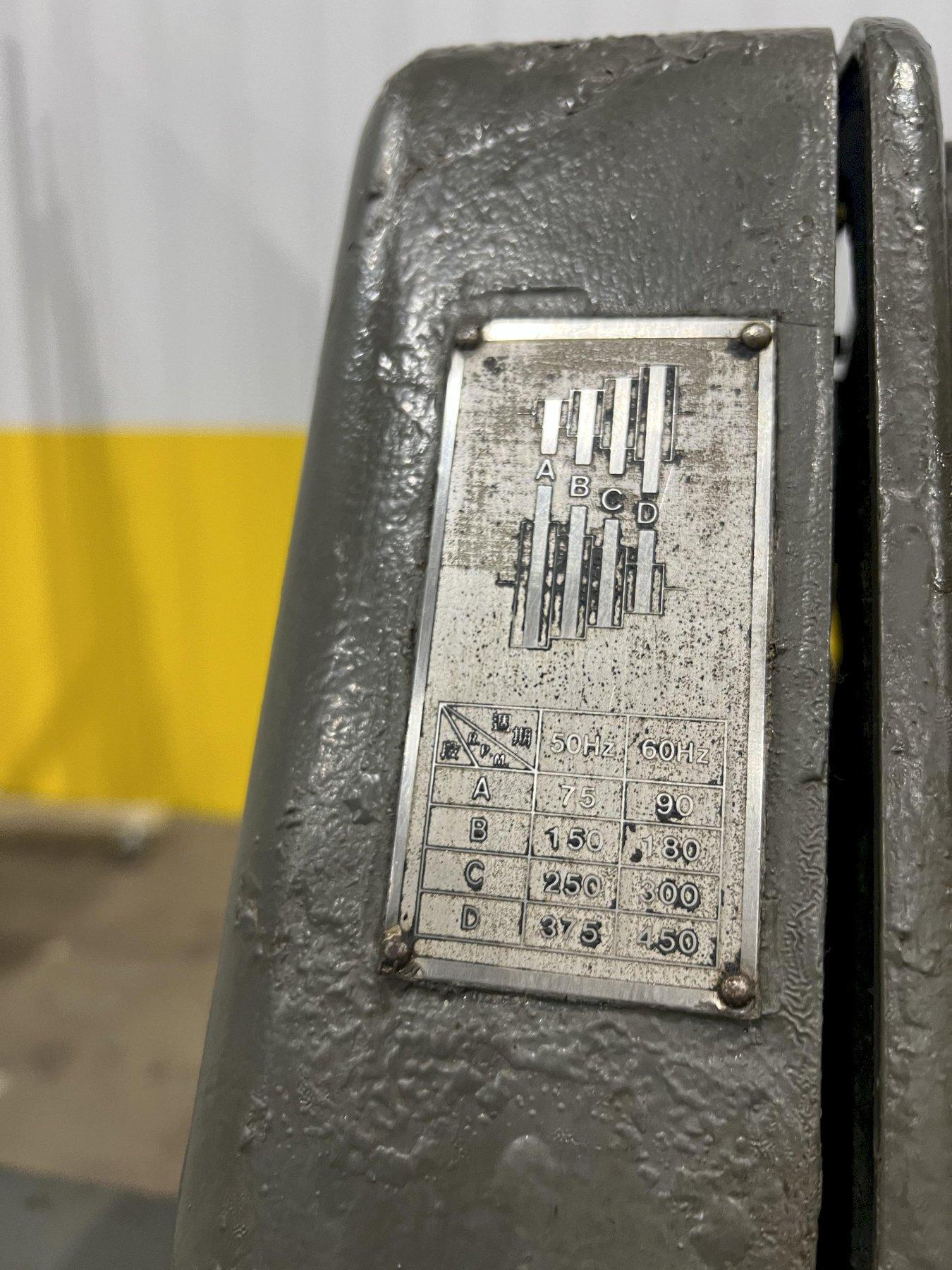

WORK SPINDLE SPEEDS ............... 90, 180, 300, 450 RPM

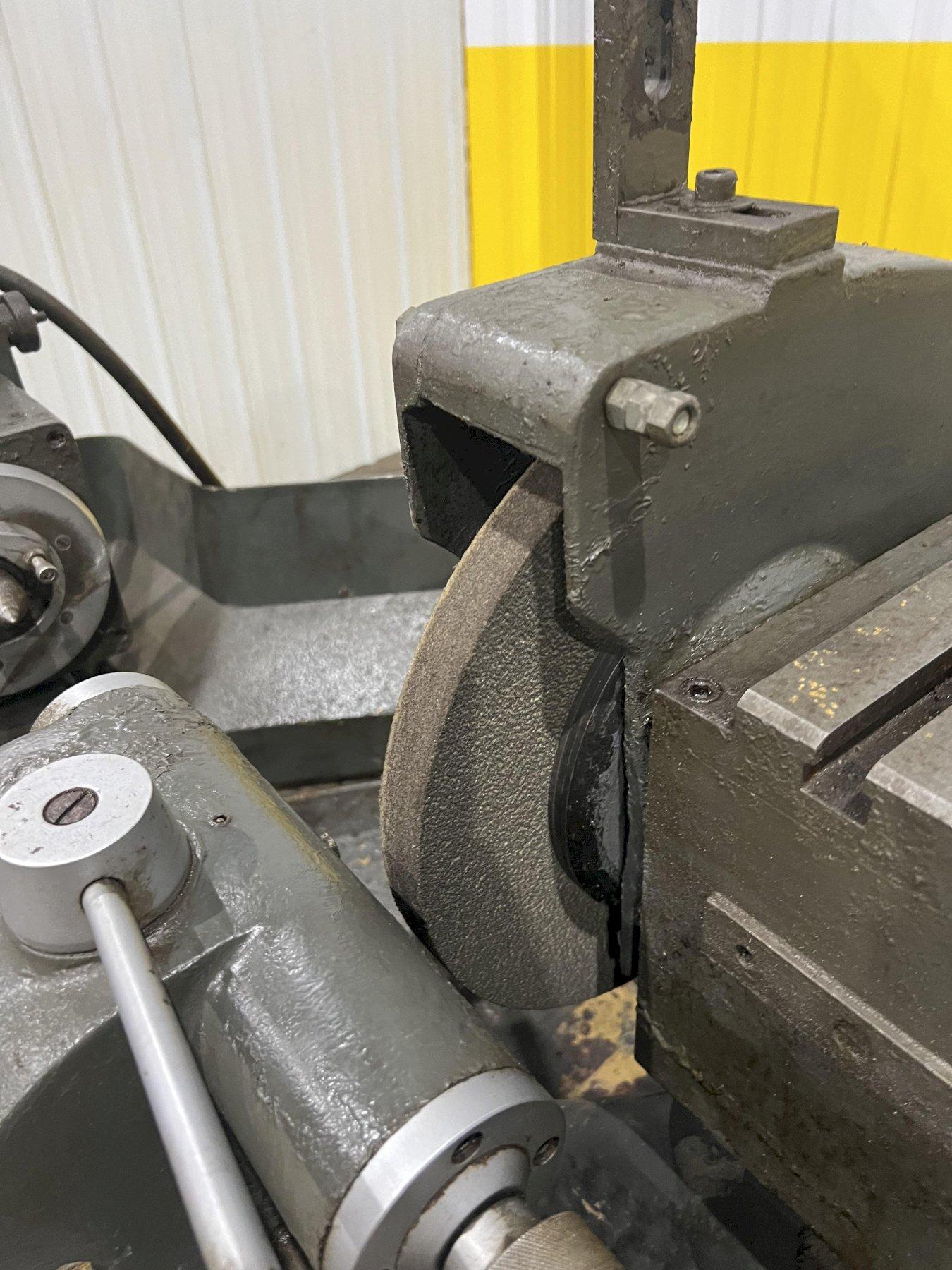

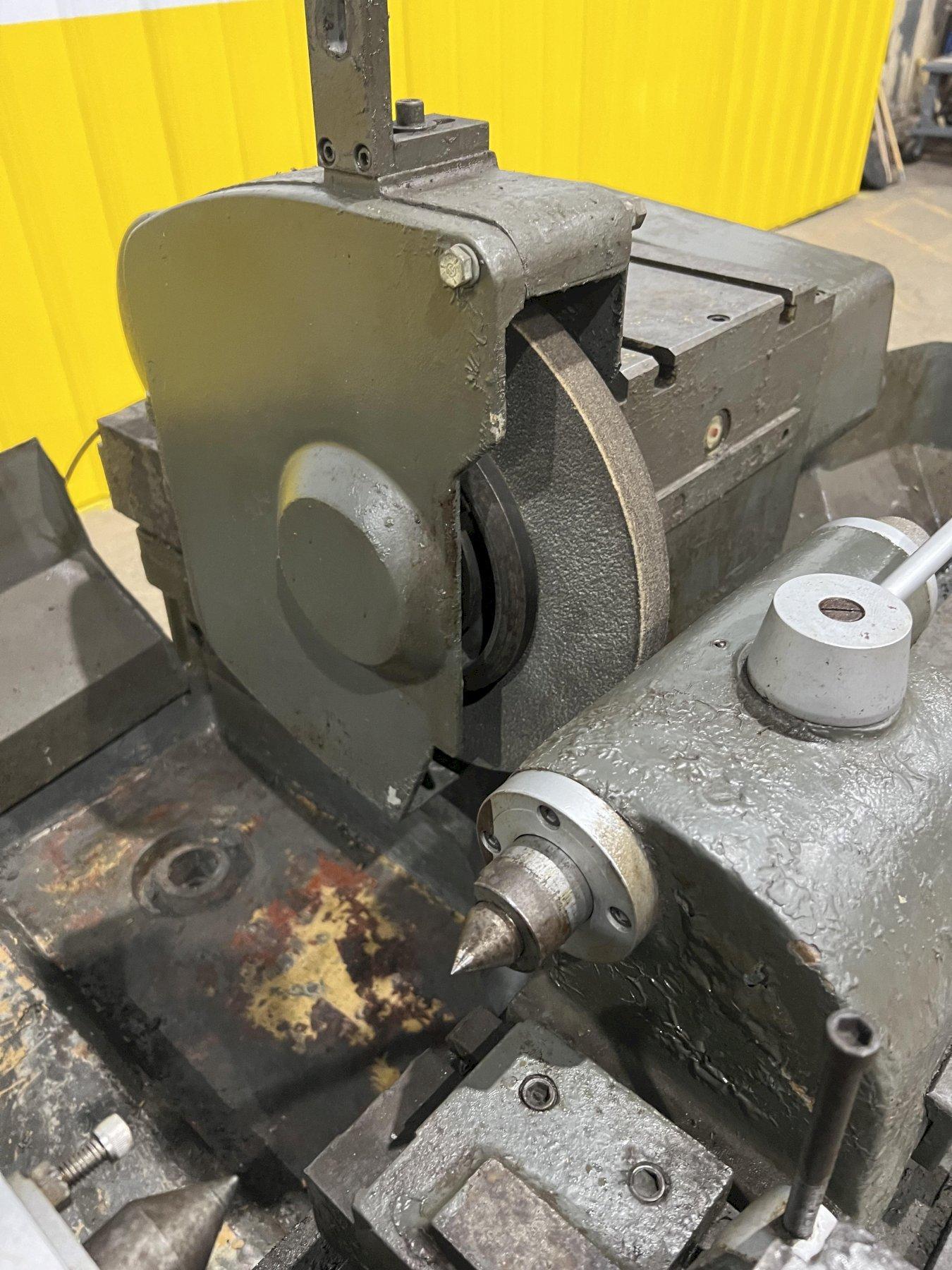

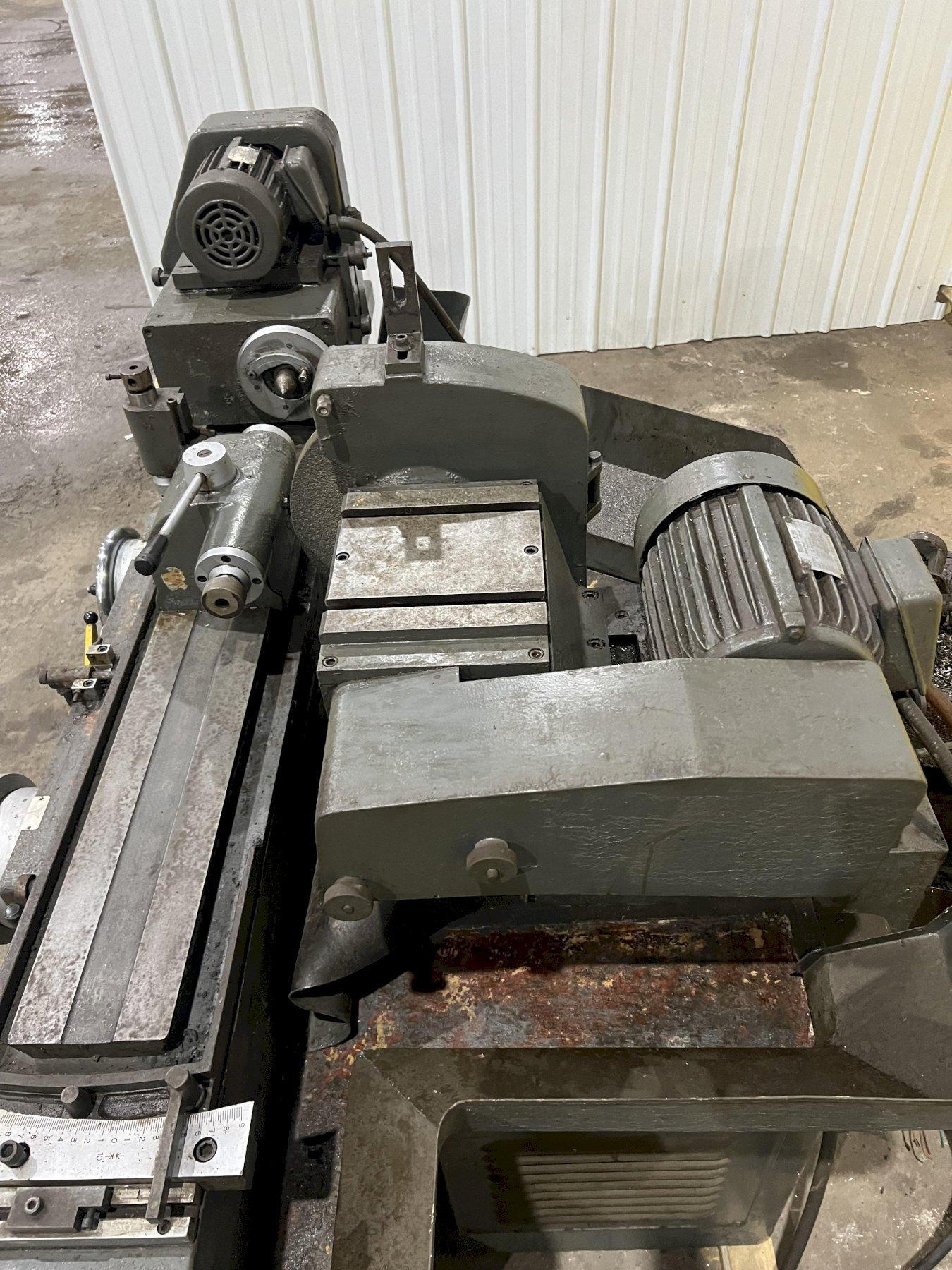

WHEELHEAD & WHEEL FEED
WHEEL SPINDLE SPEEDS .............. 1520, 1800 RPM
GRINDING WHEEL SIZE-STANDARD ...... 14" X 1-1/2" X 5"
IN-FEED PER HAND WHEEL ROTATION ... 0.001"
RAPID INFEED STROKE ............... 19/16"
WHEELHEAD SWIVELLING ANGLE ........ 0 ~ +/- 30°
INTERNAL WHEEL SPINDLE SPEED ...... 10,000, 15,000, 20,000 RPM

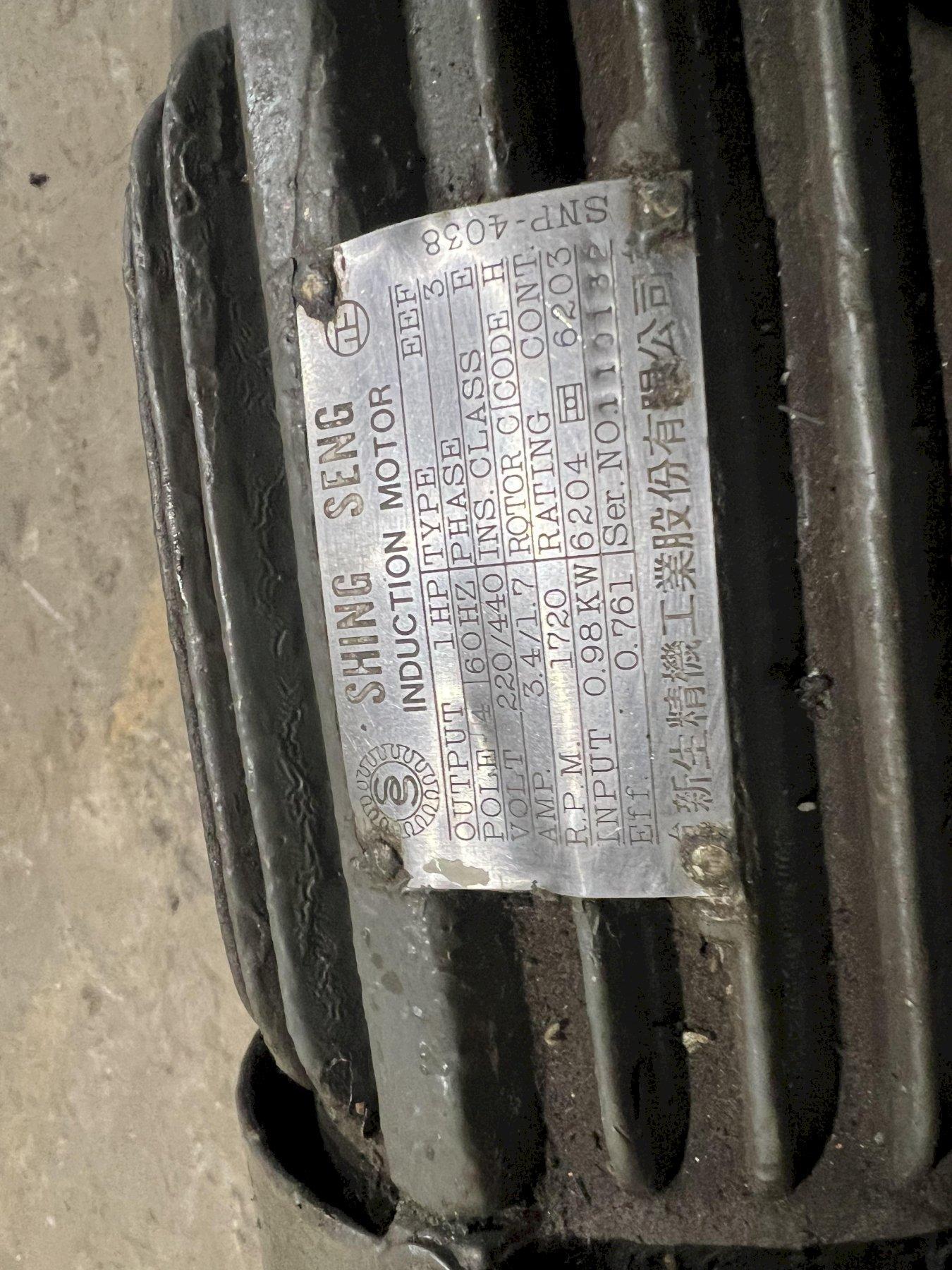

MOTORS

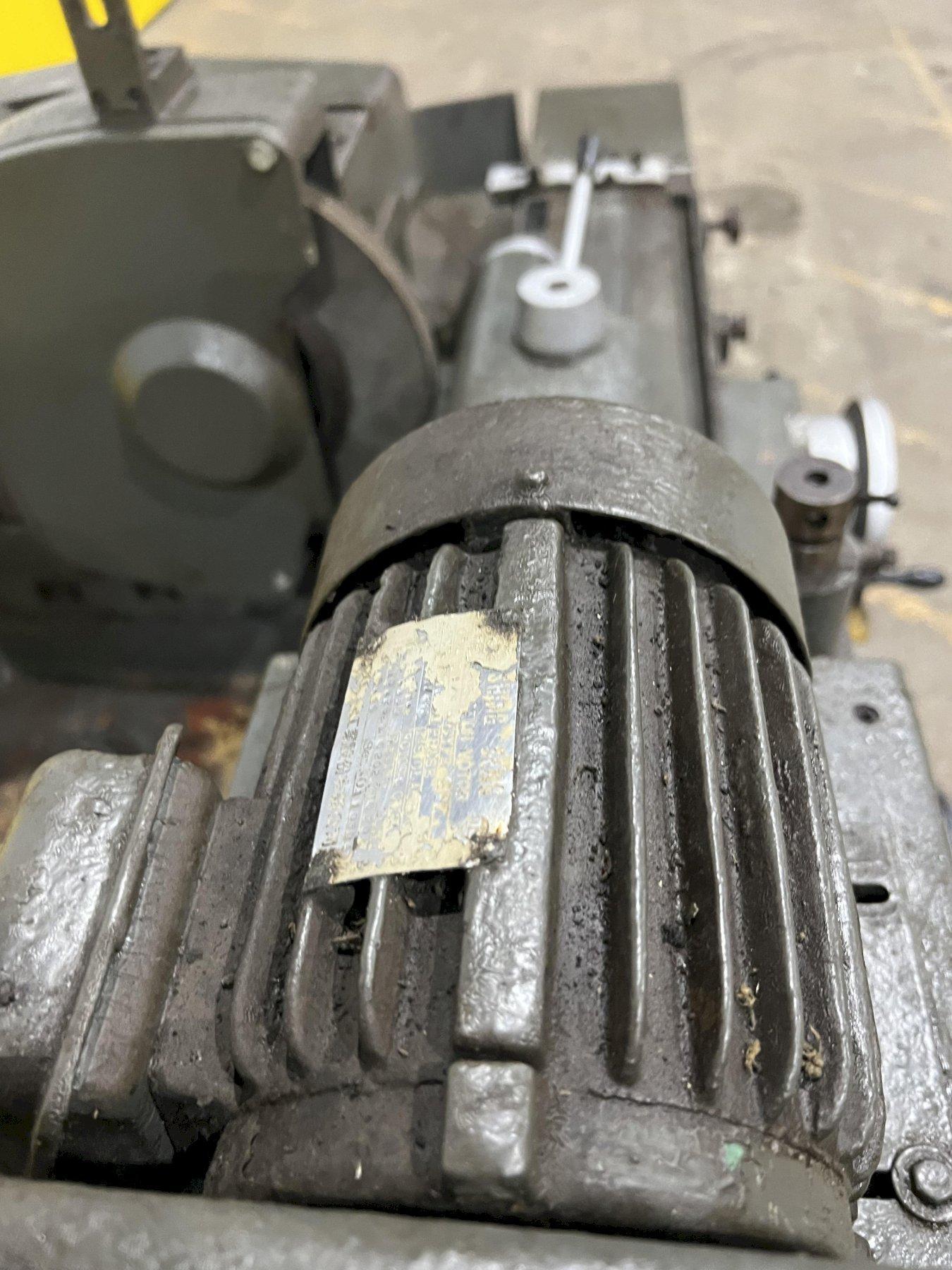

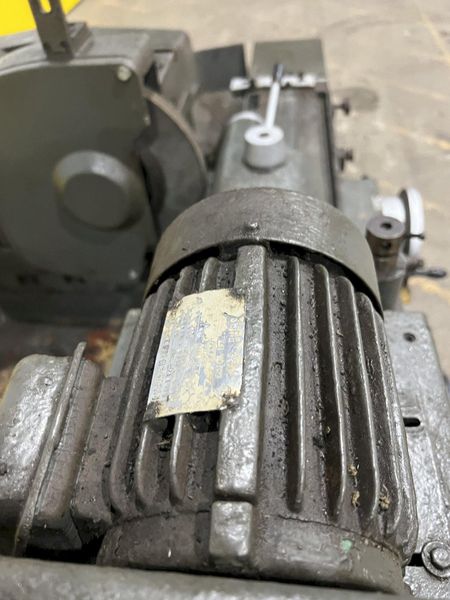

WHEEL SPINDLE MOTOR ............... 4 P
INTERNAL GRINDING SPINDLE MOTOR ... 2 P
WORK HEAD SPINDLE MOTOR ........... 6 P

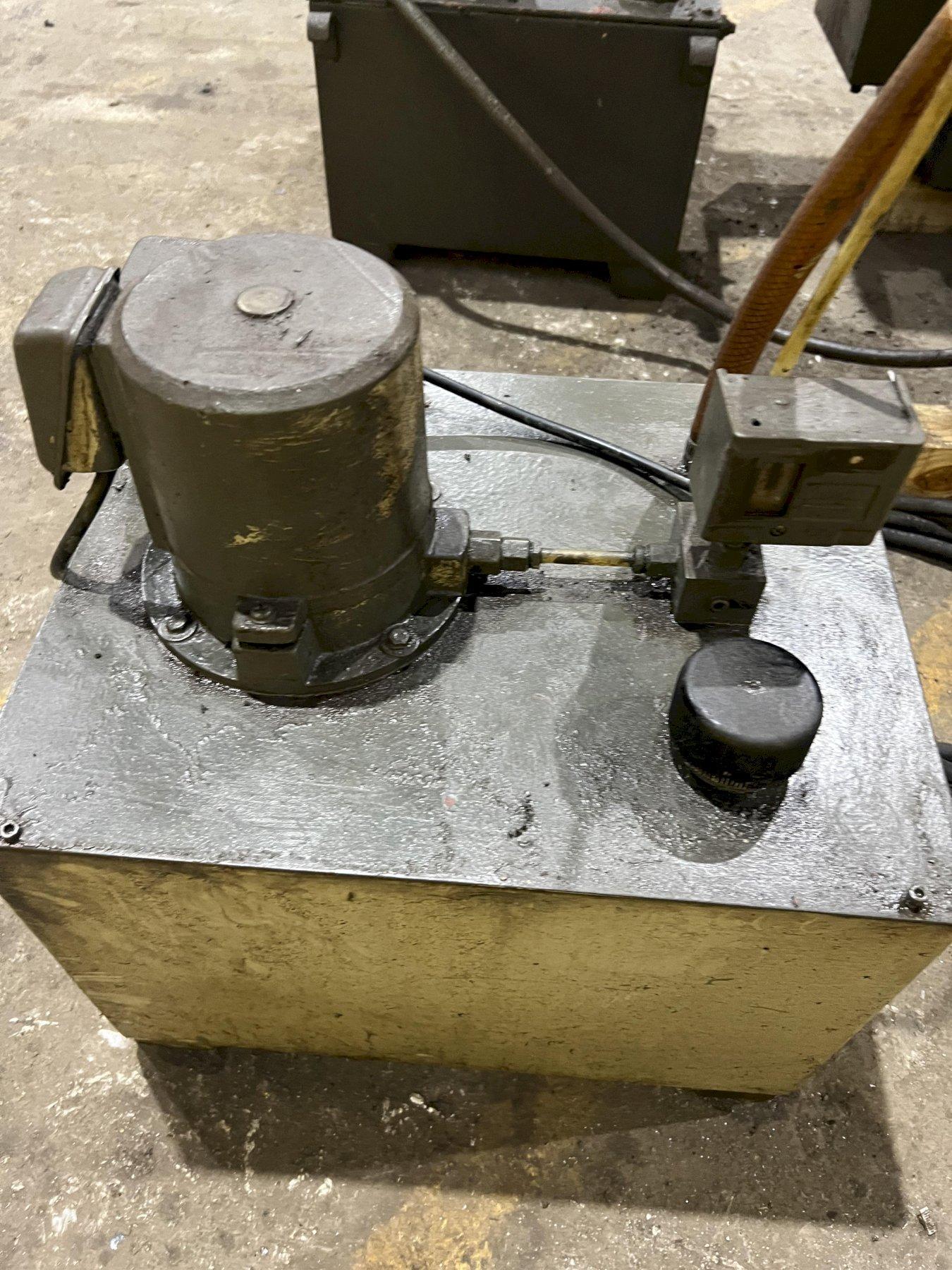

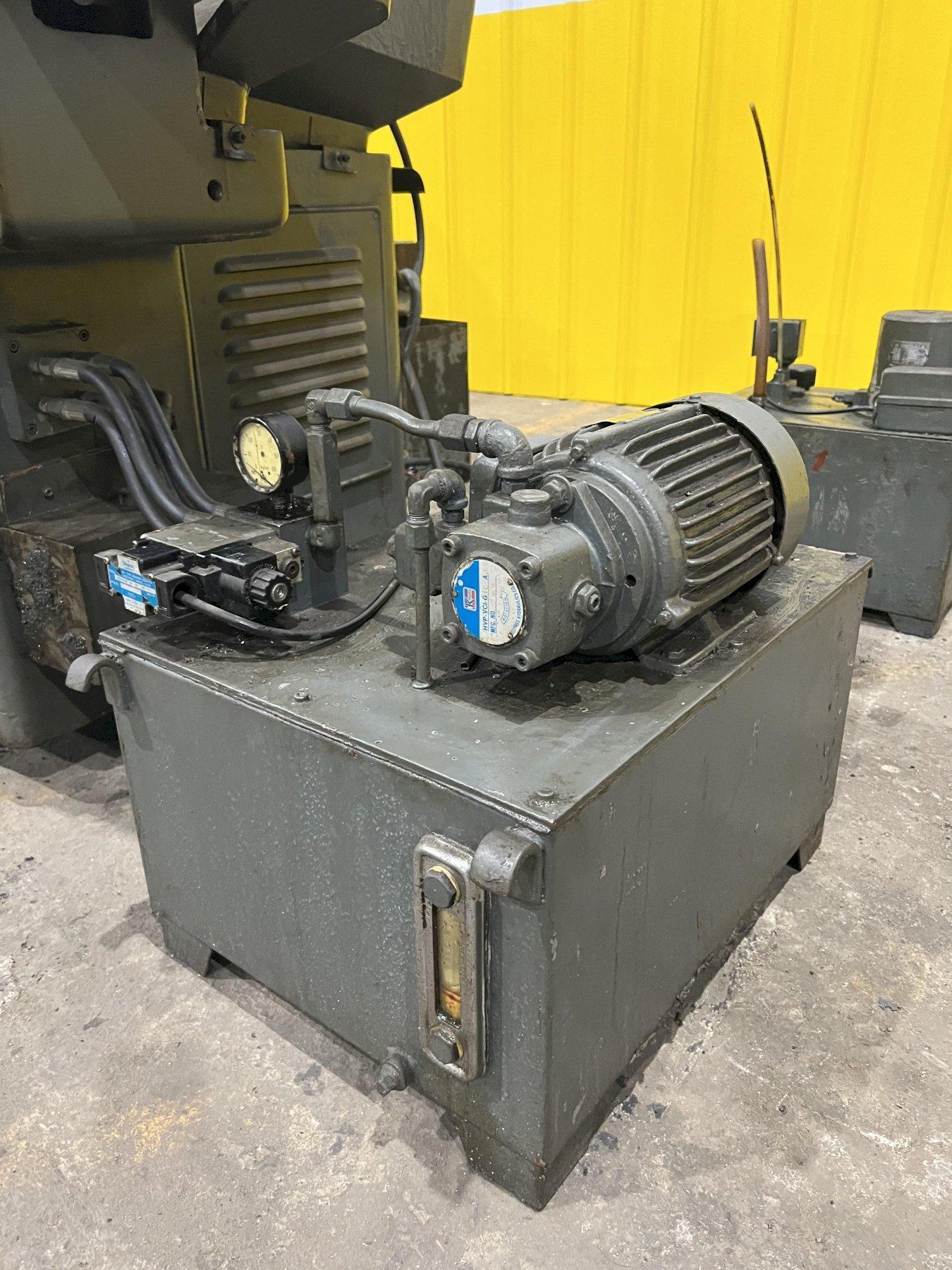

HYDRAULIC PUMP MOTOR .............. 4 P
COOLANT PUMP MOTOR ................ 2 P
