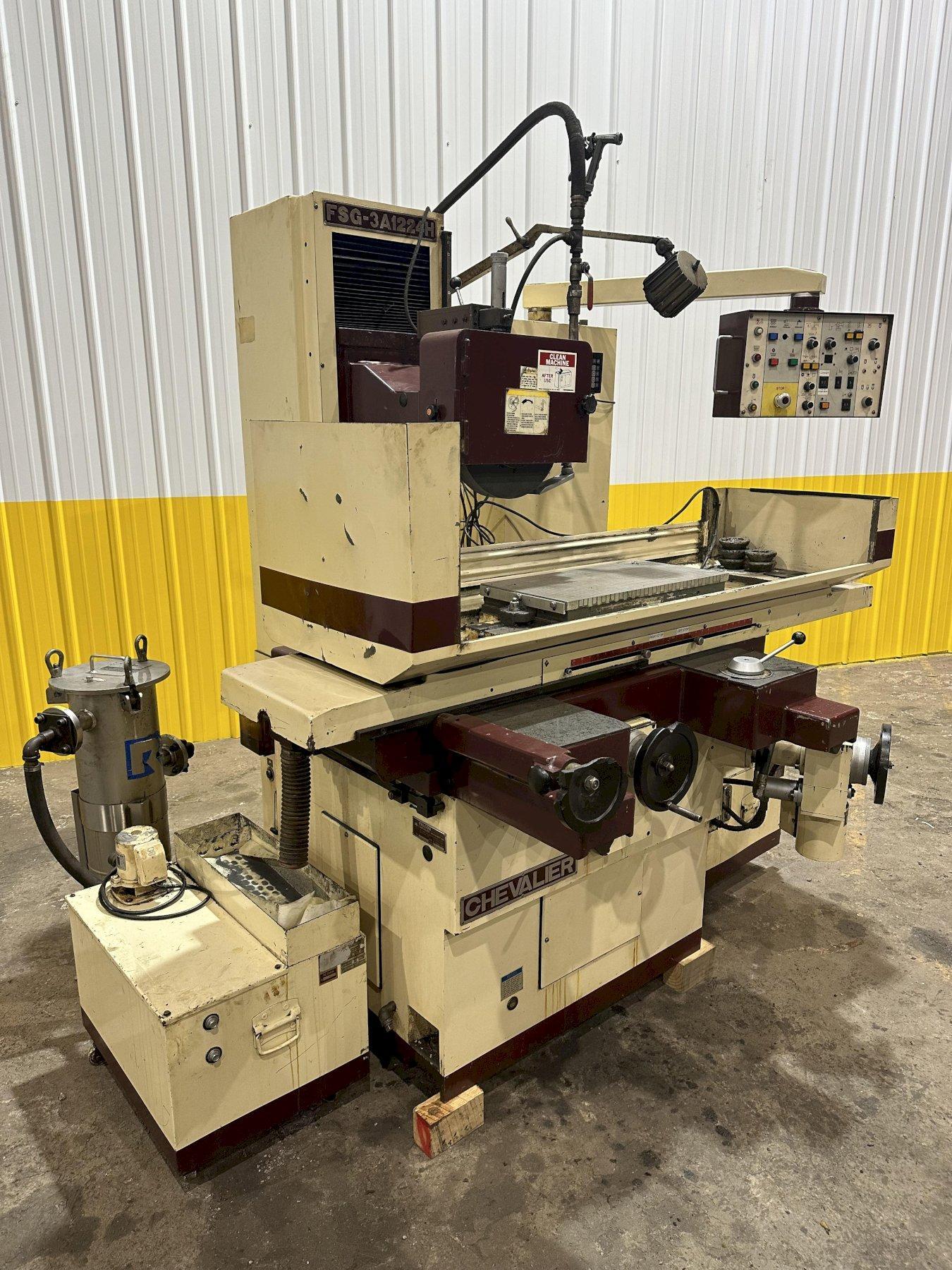

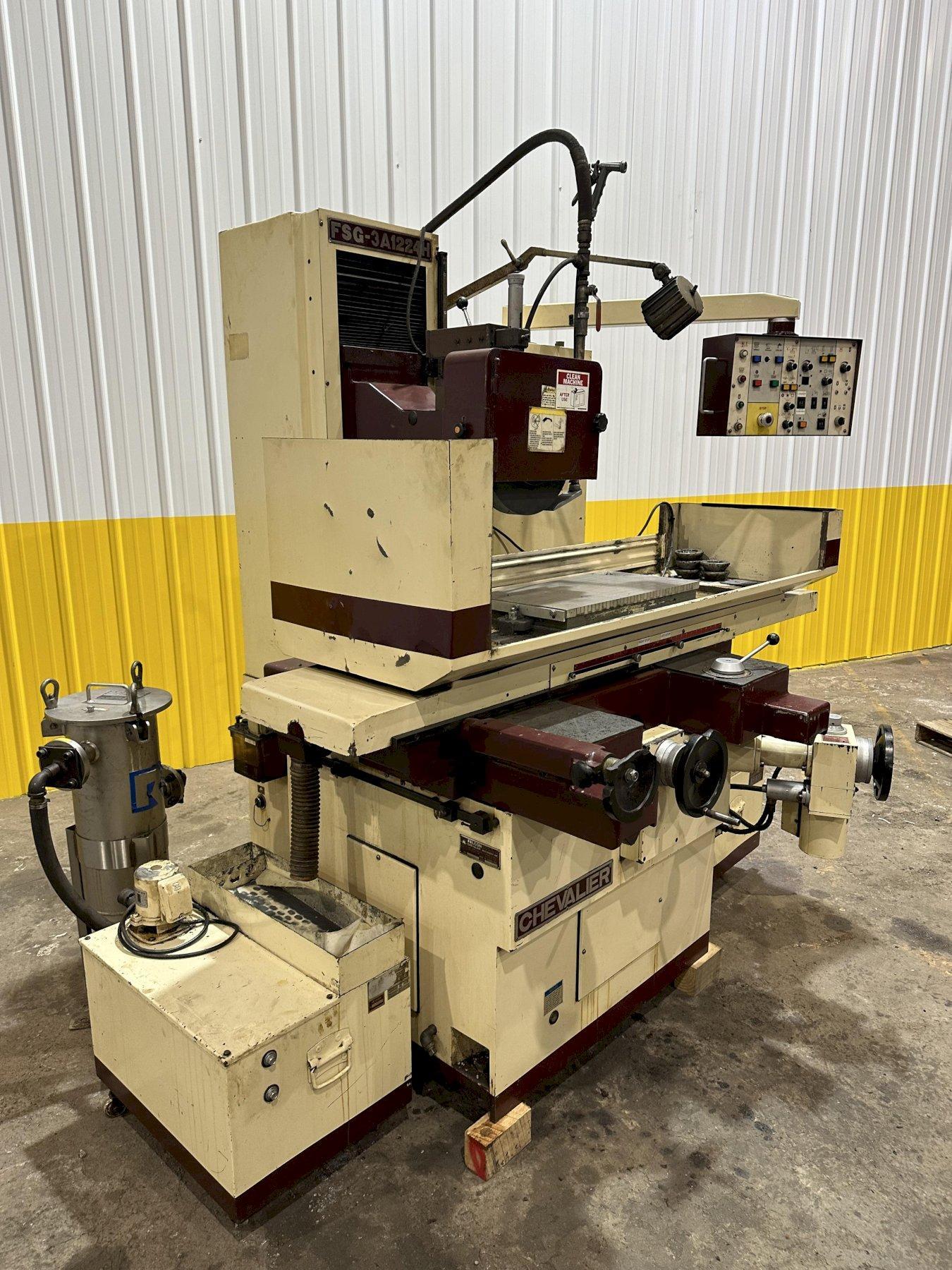

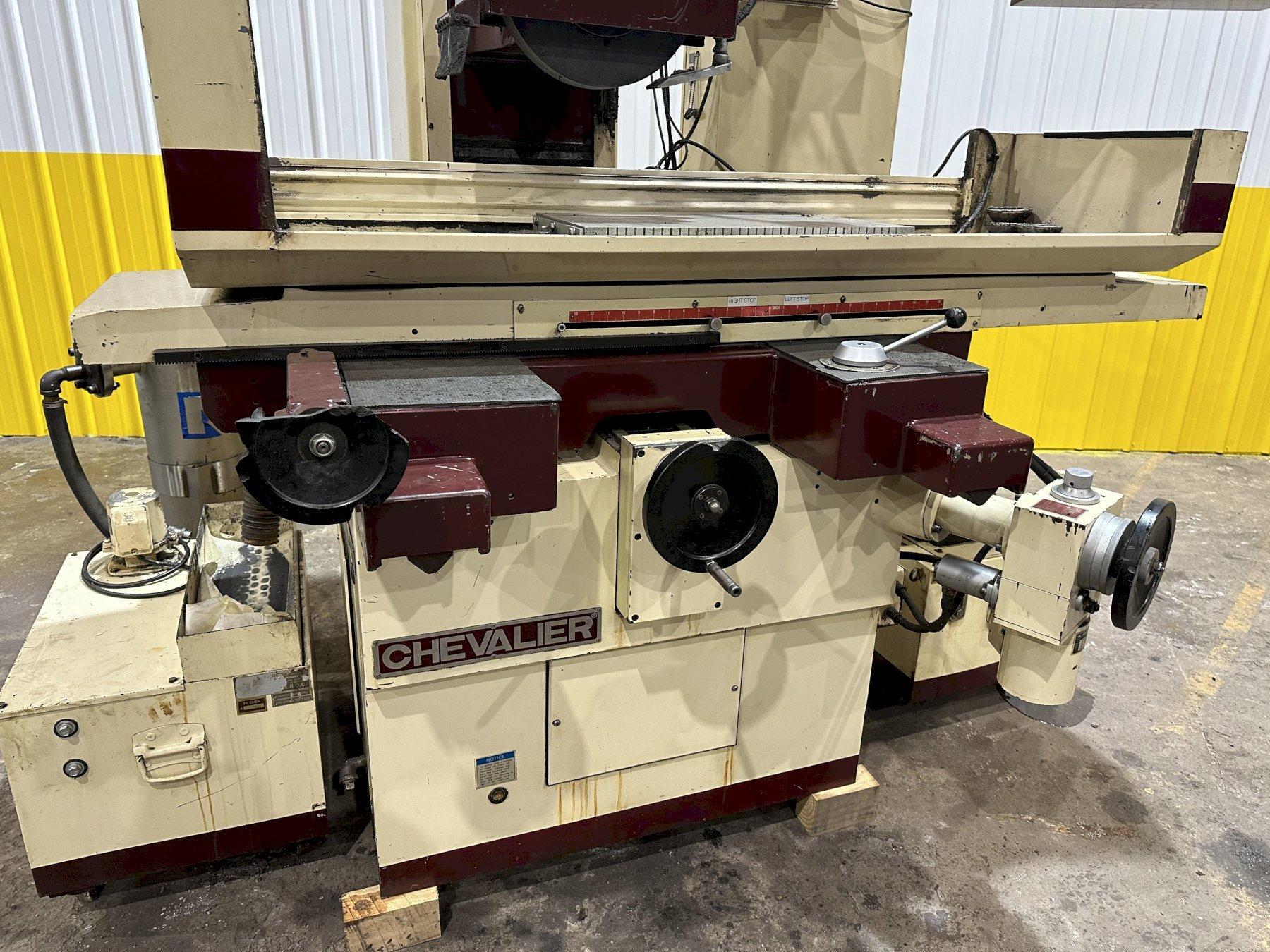

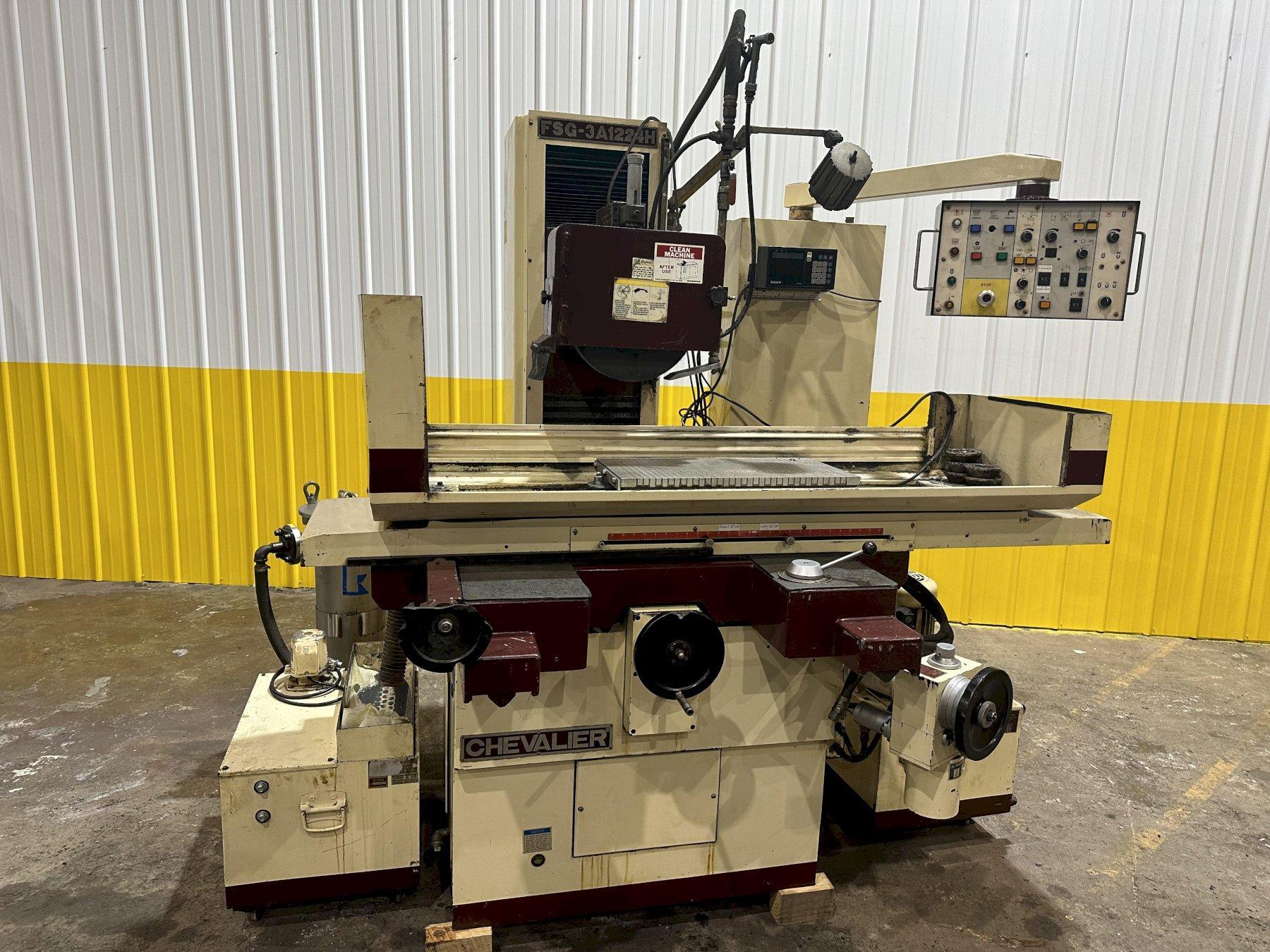

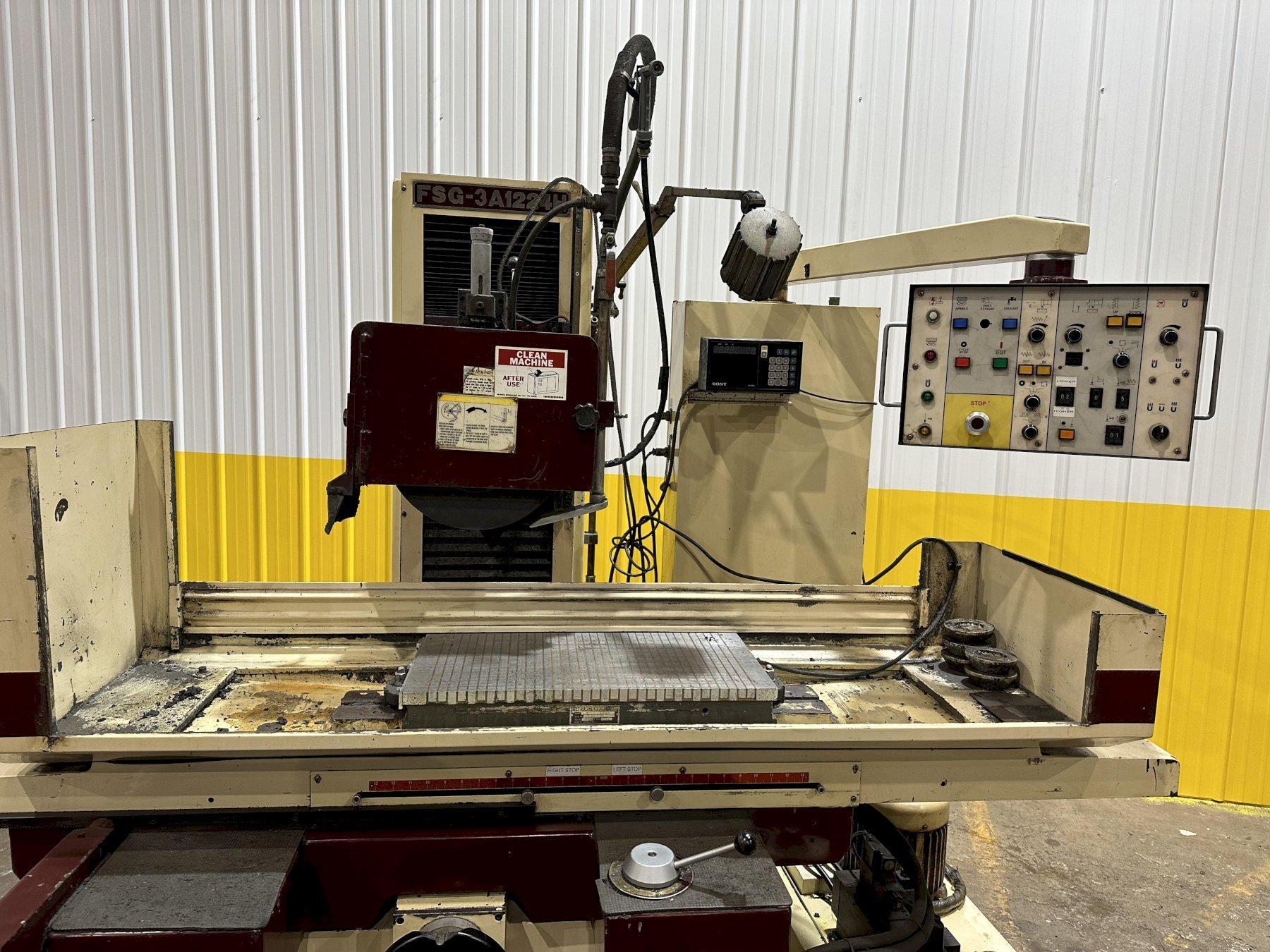

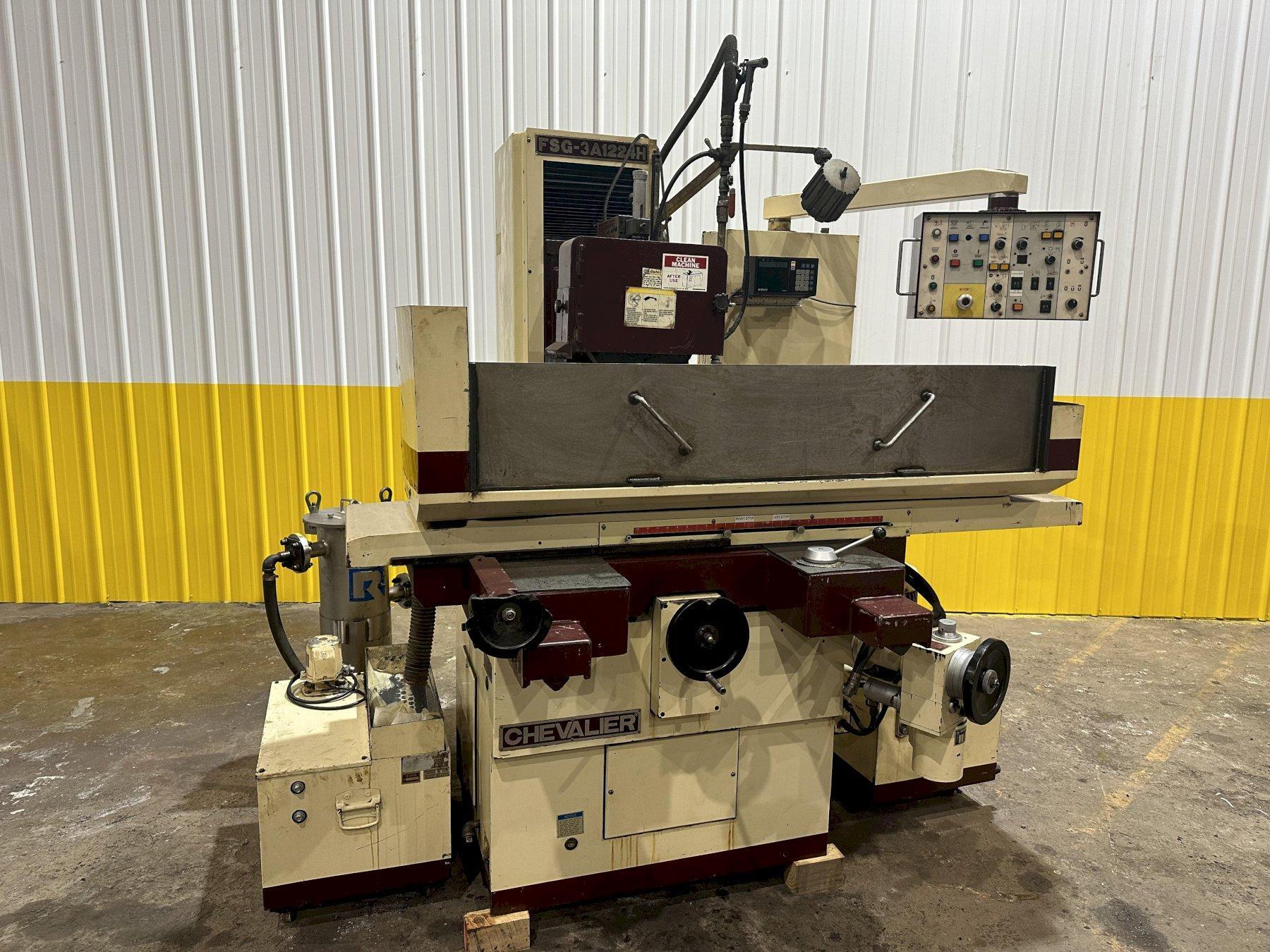

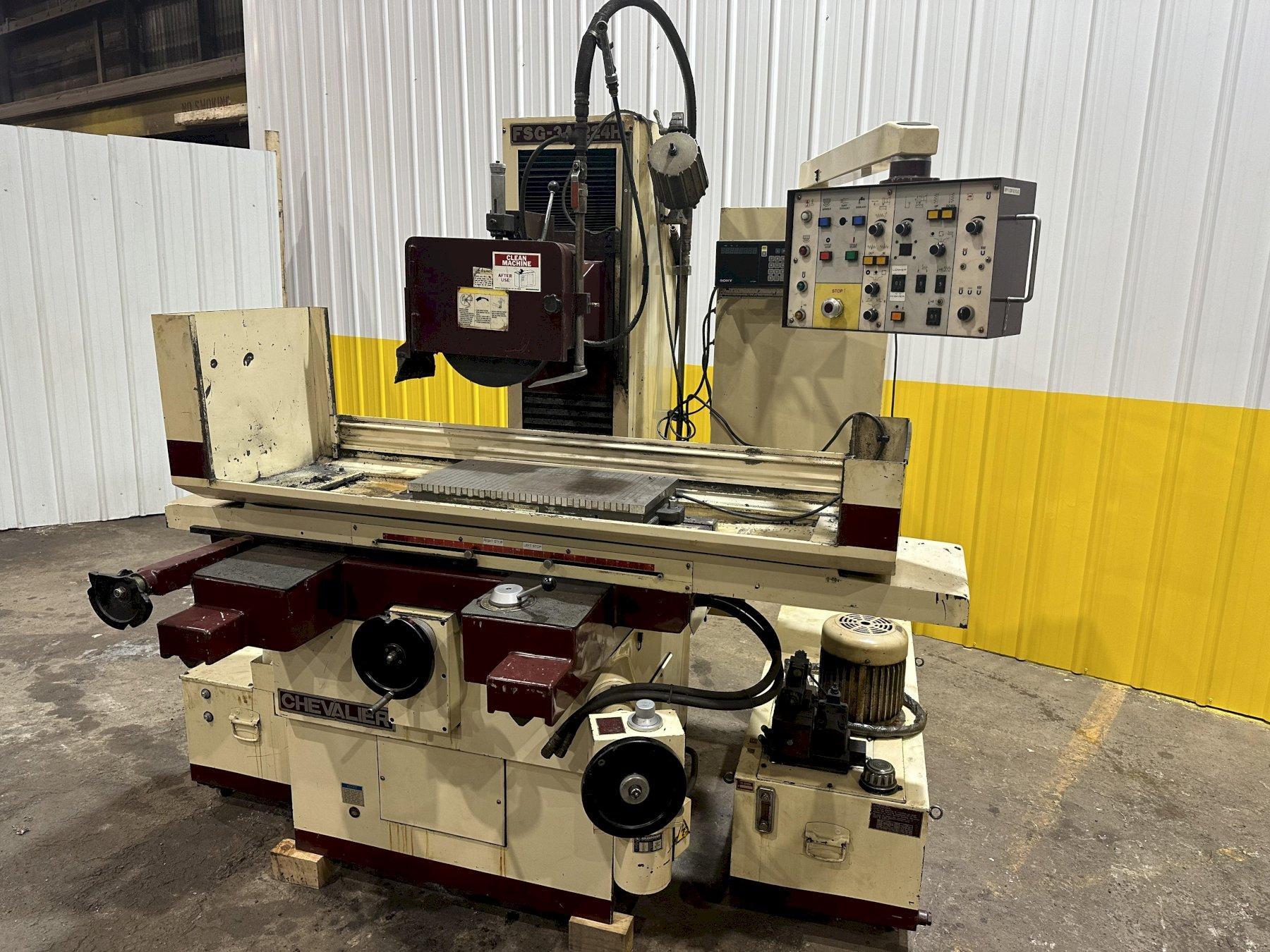

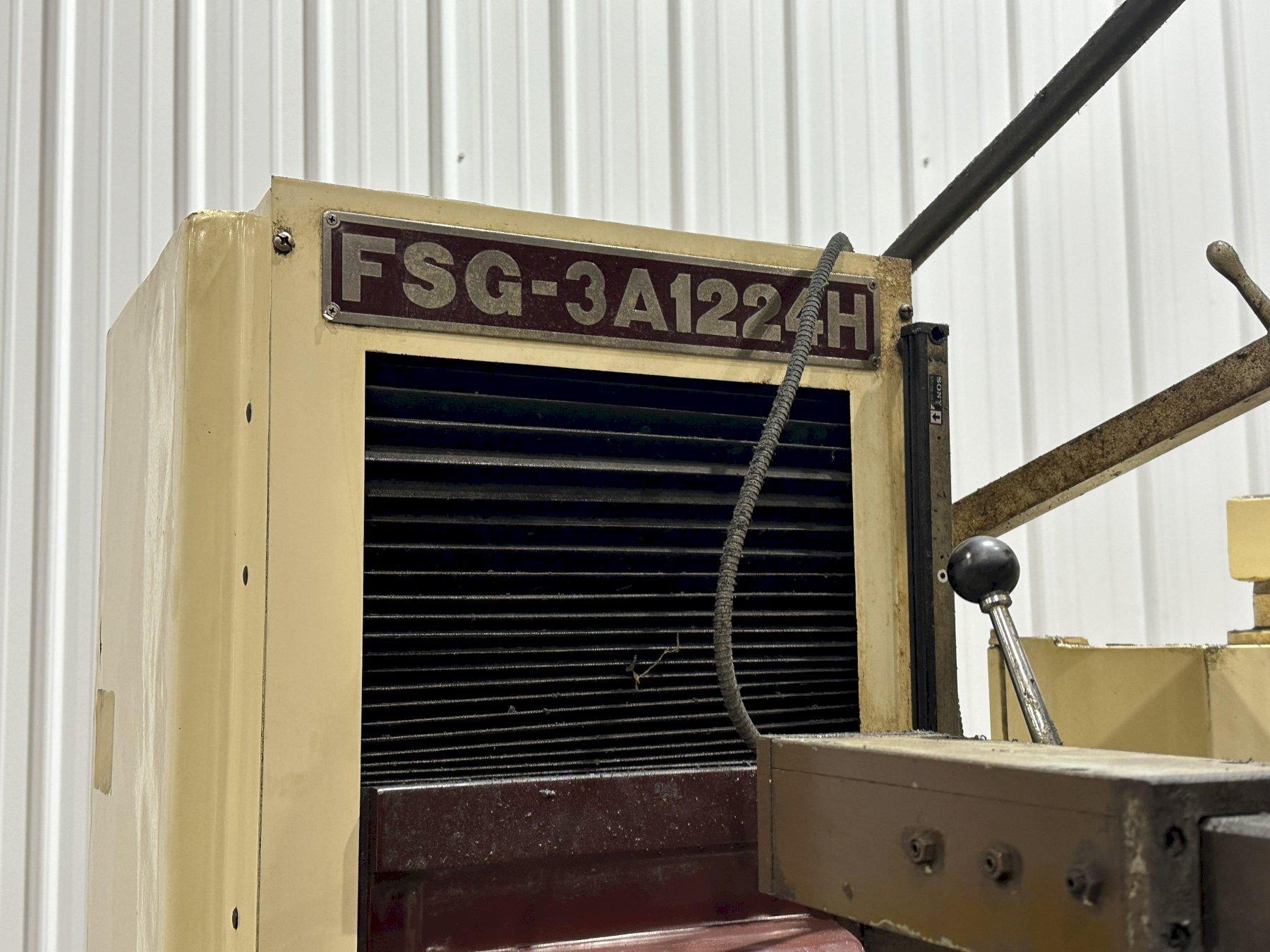

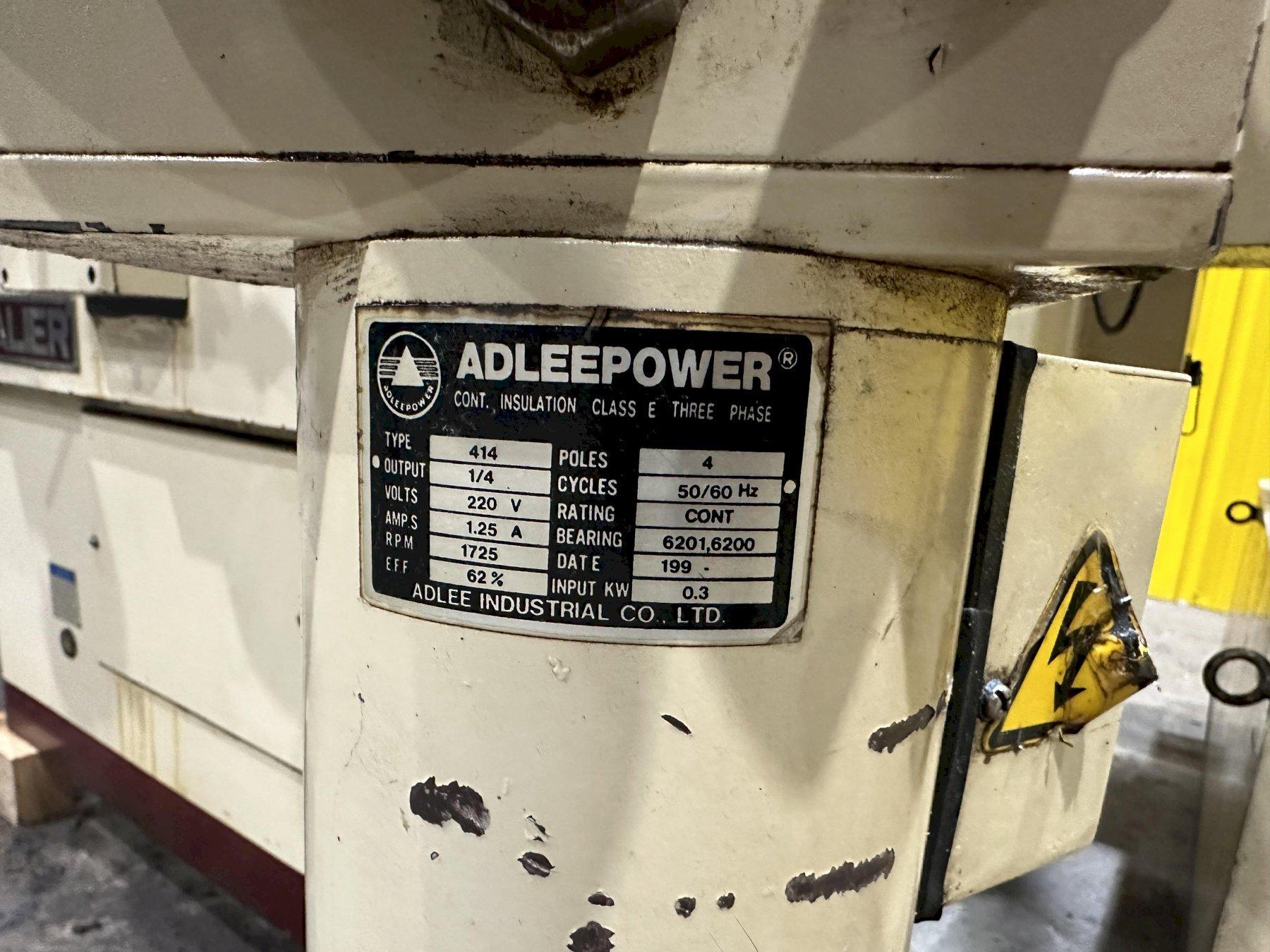

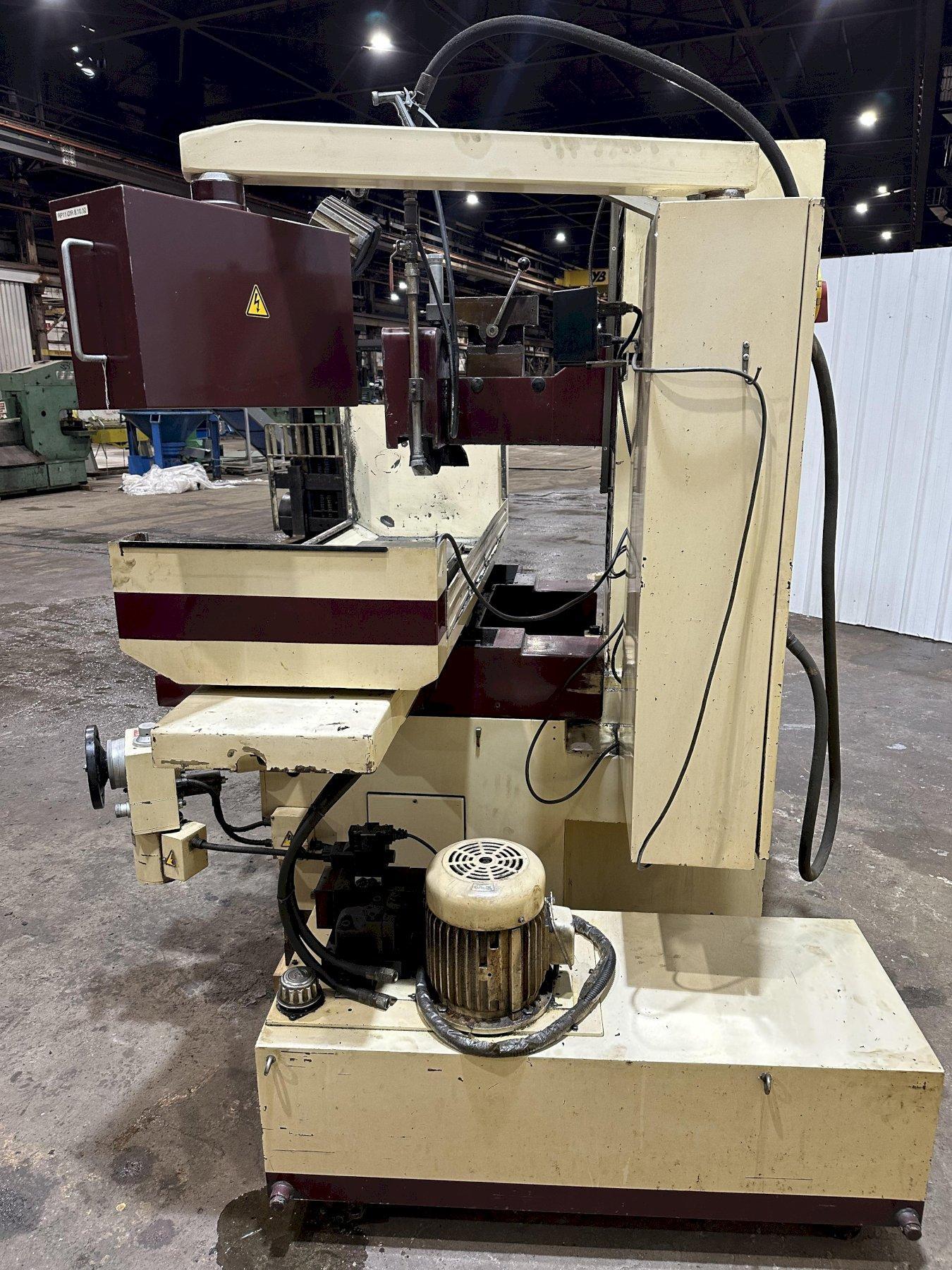

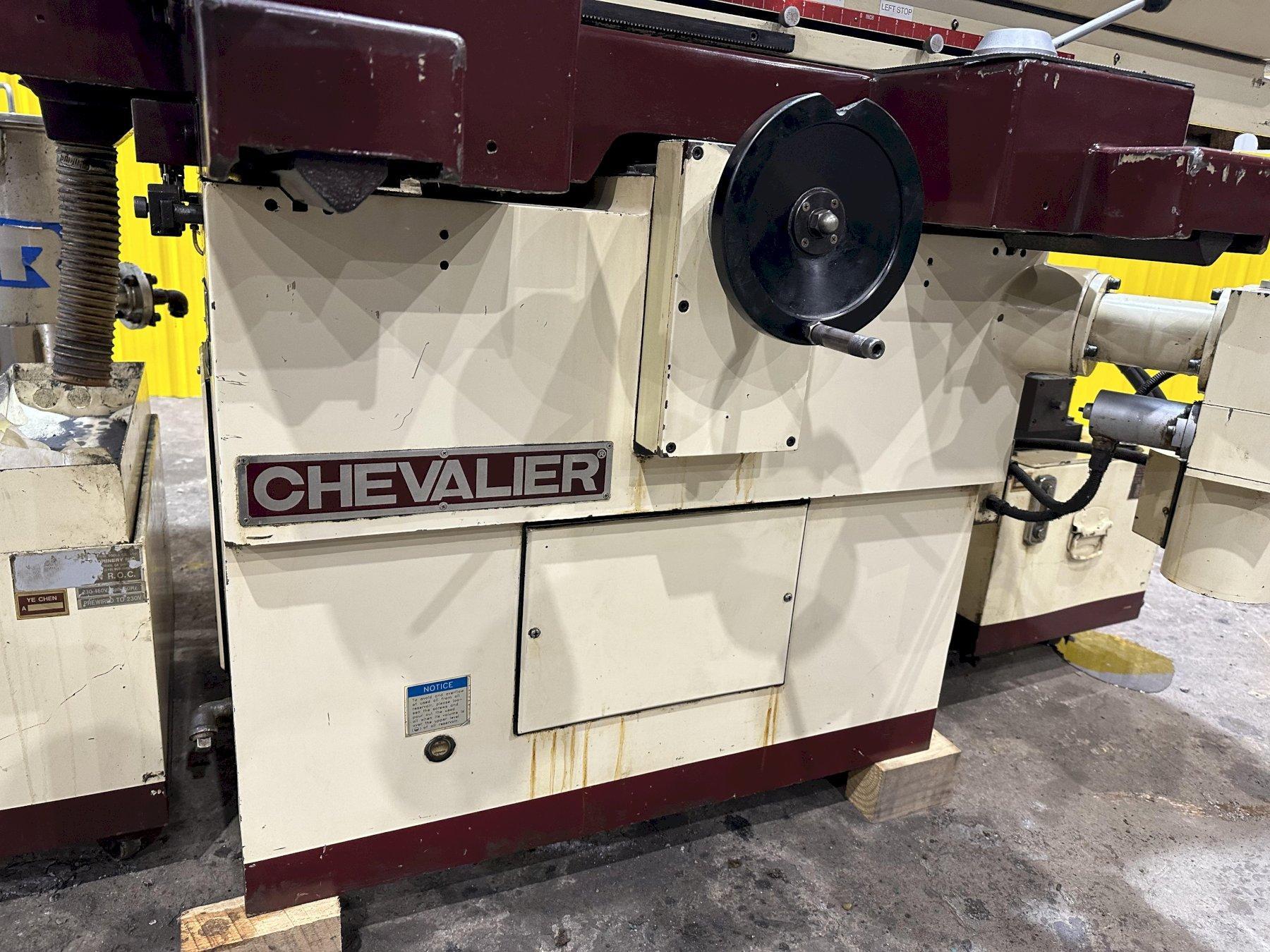

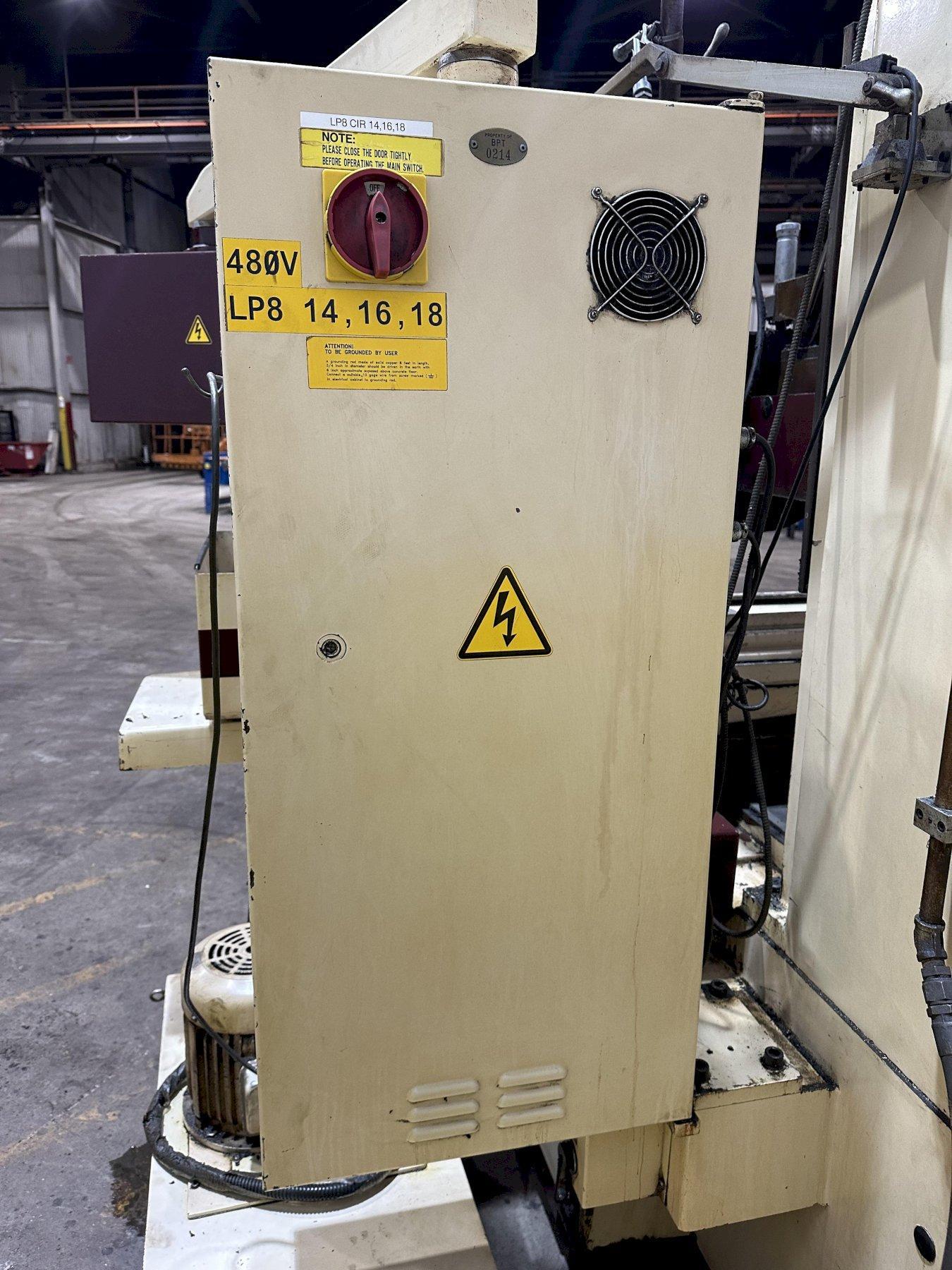

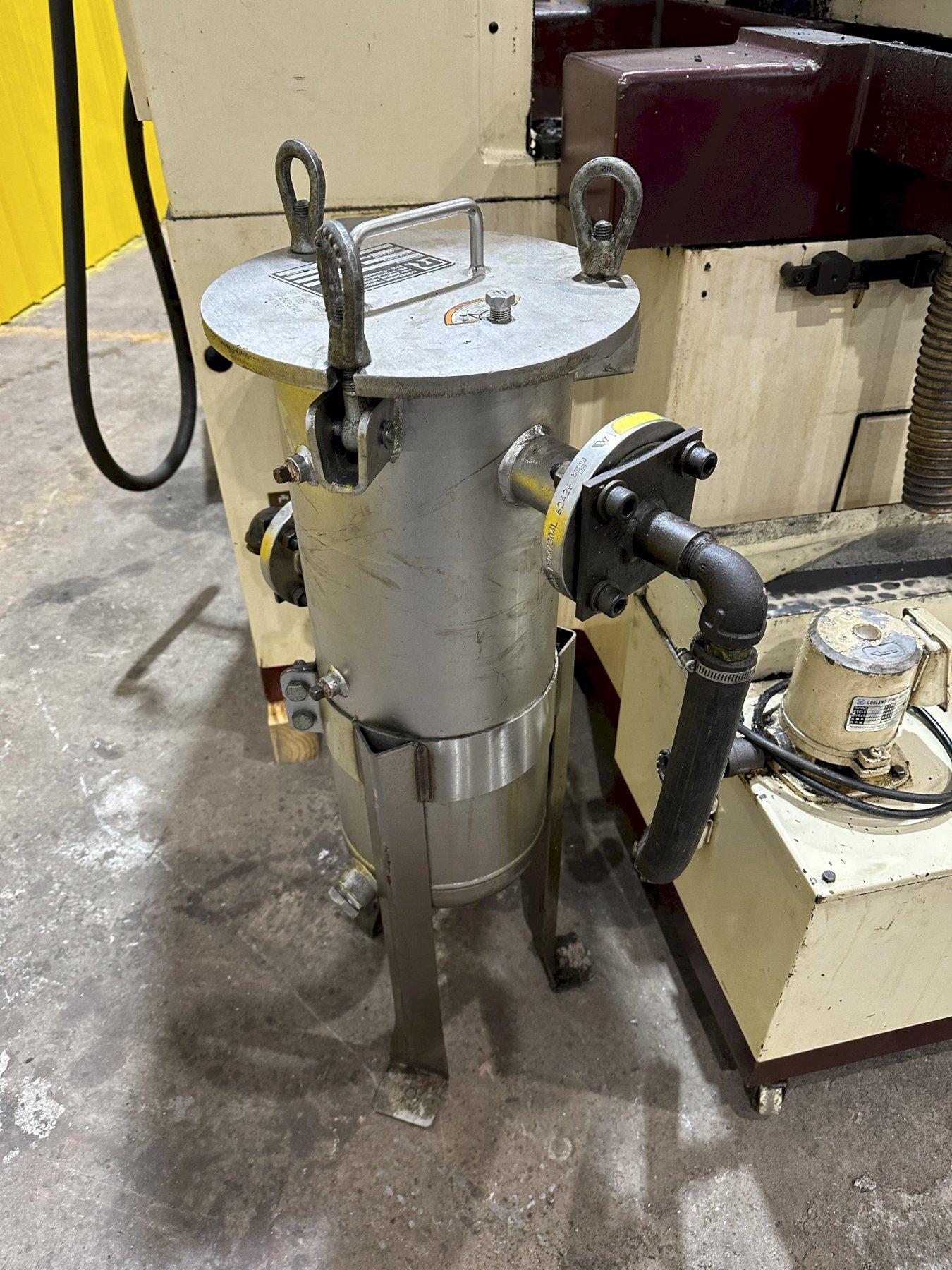

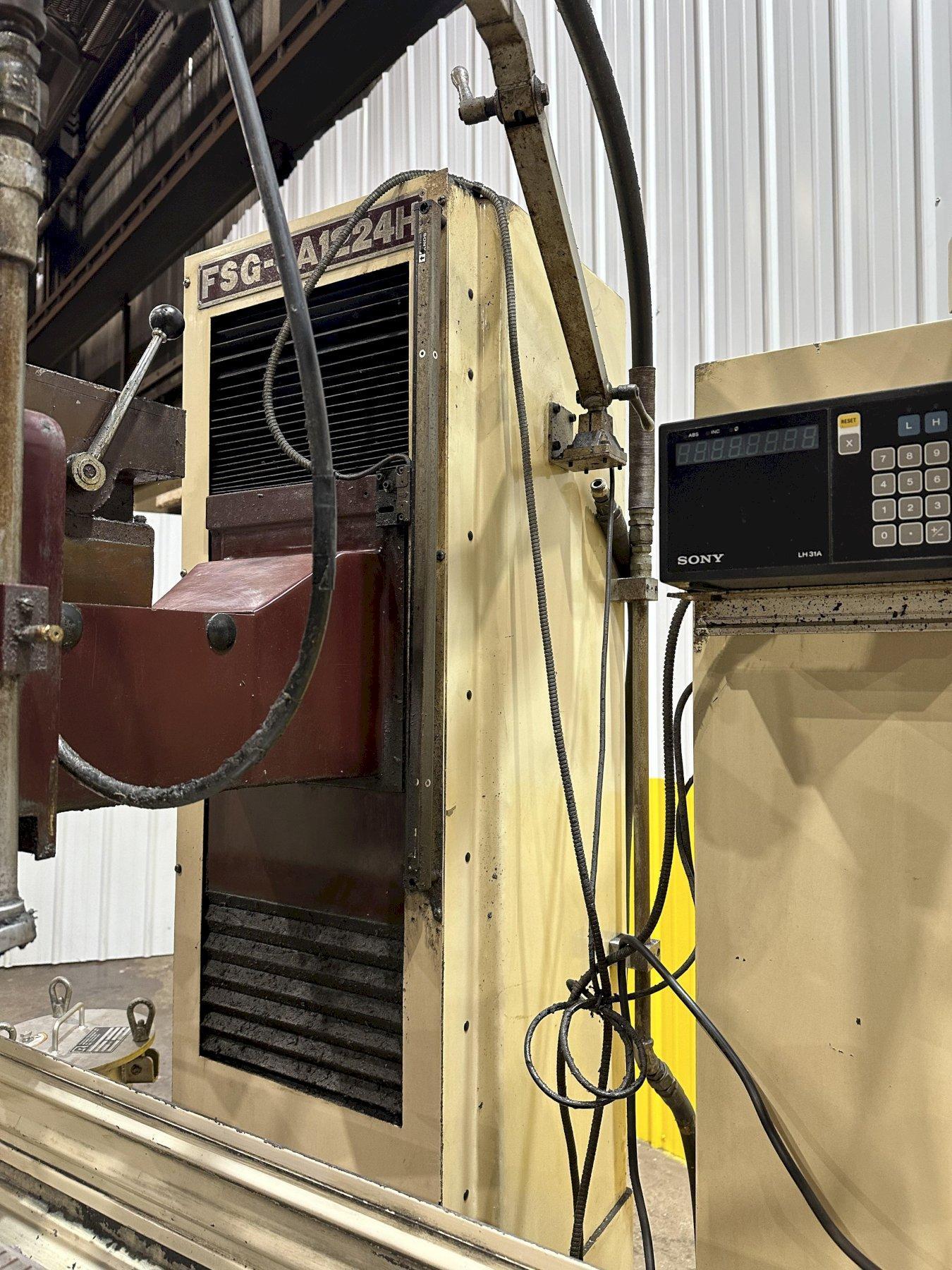

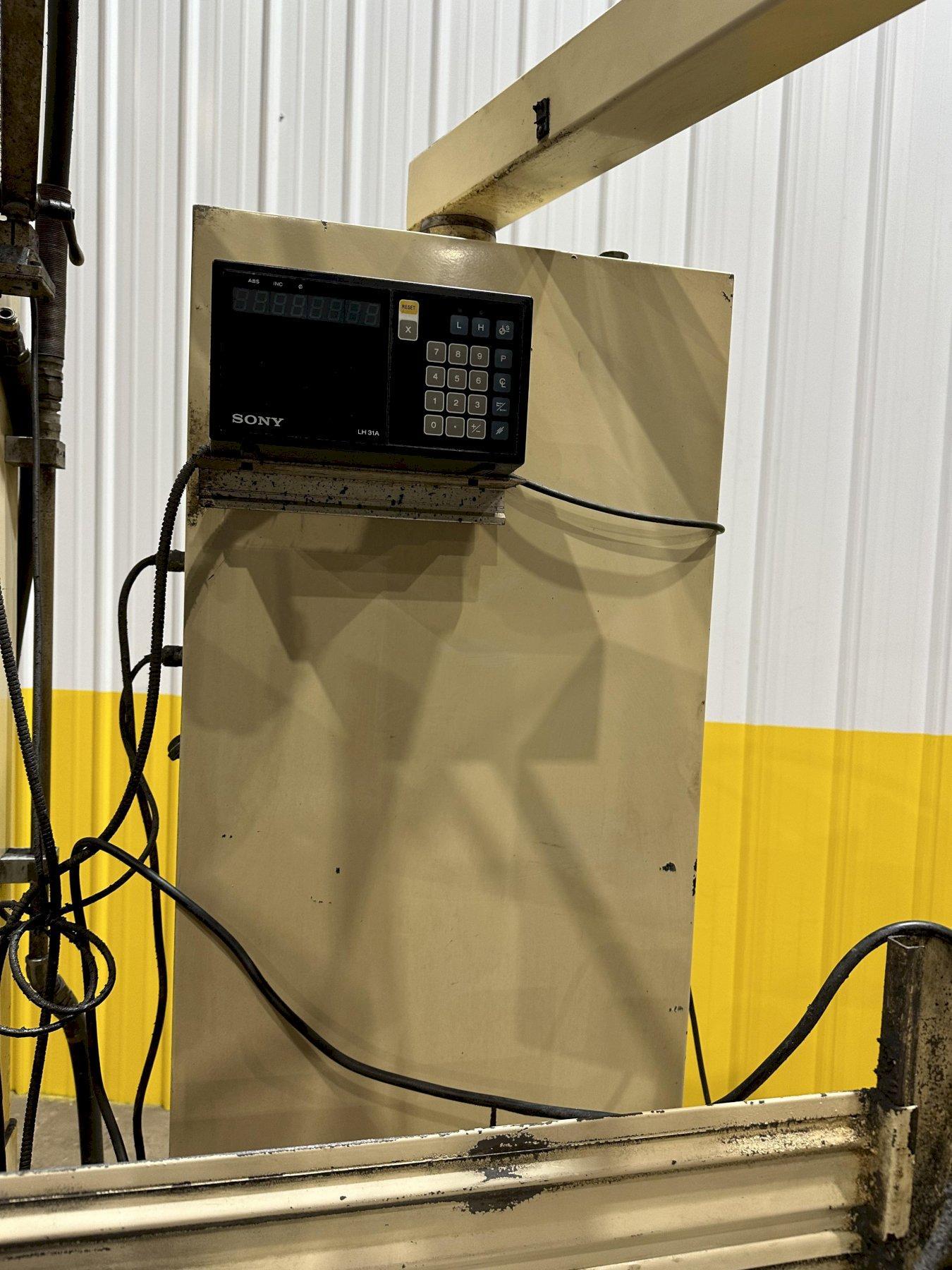

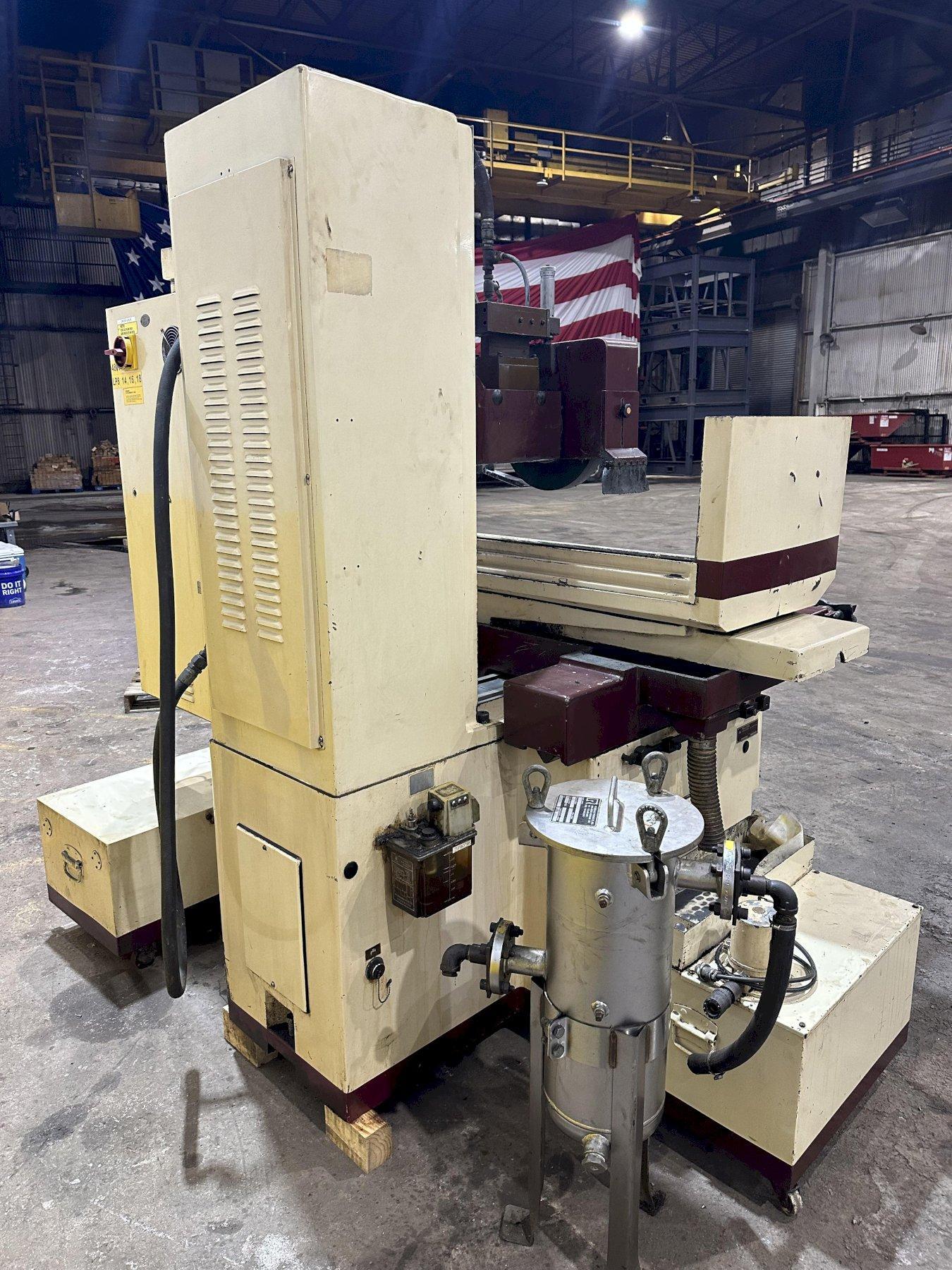

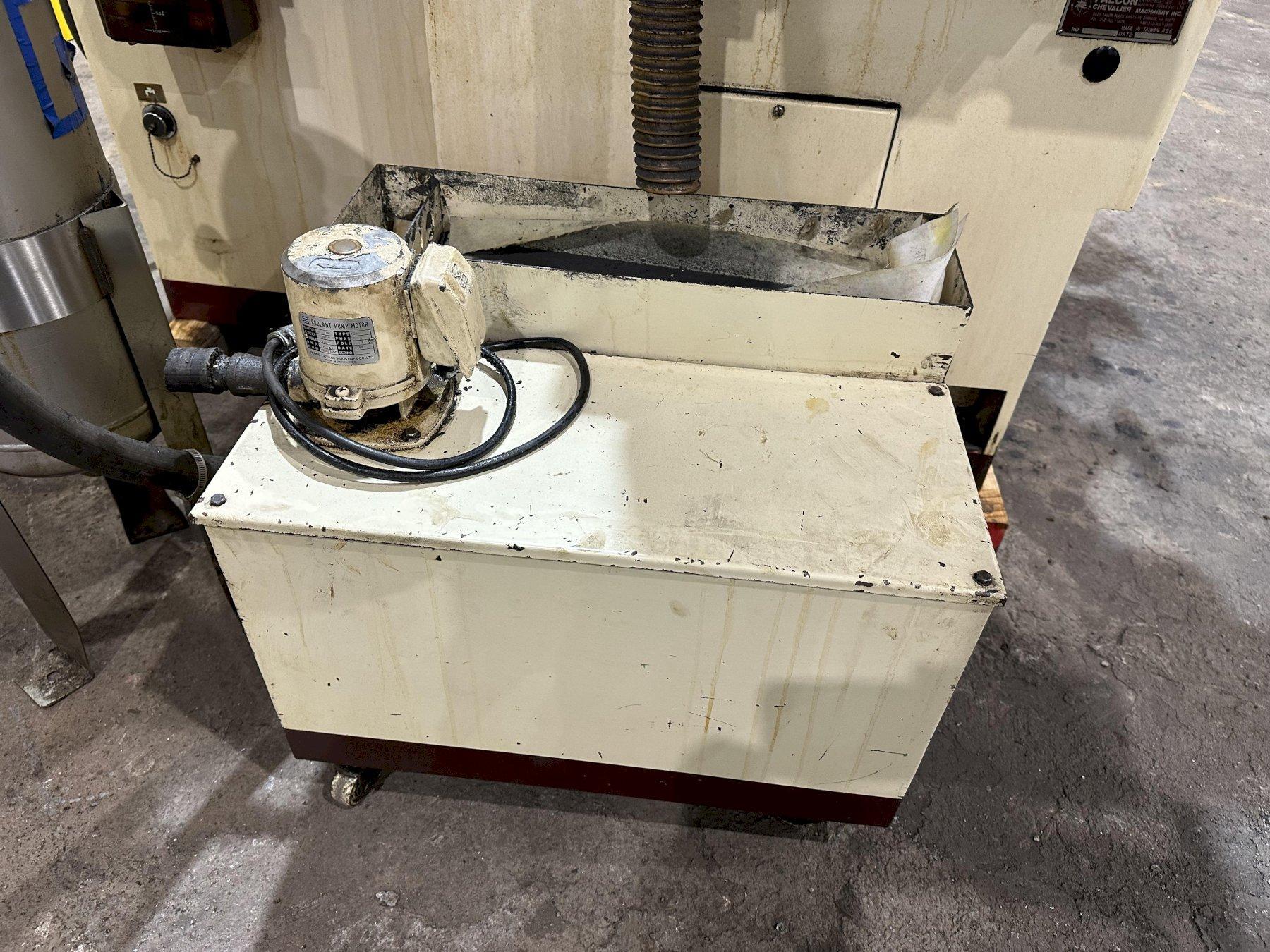

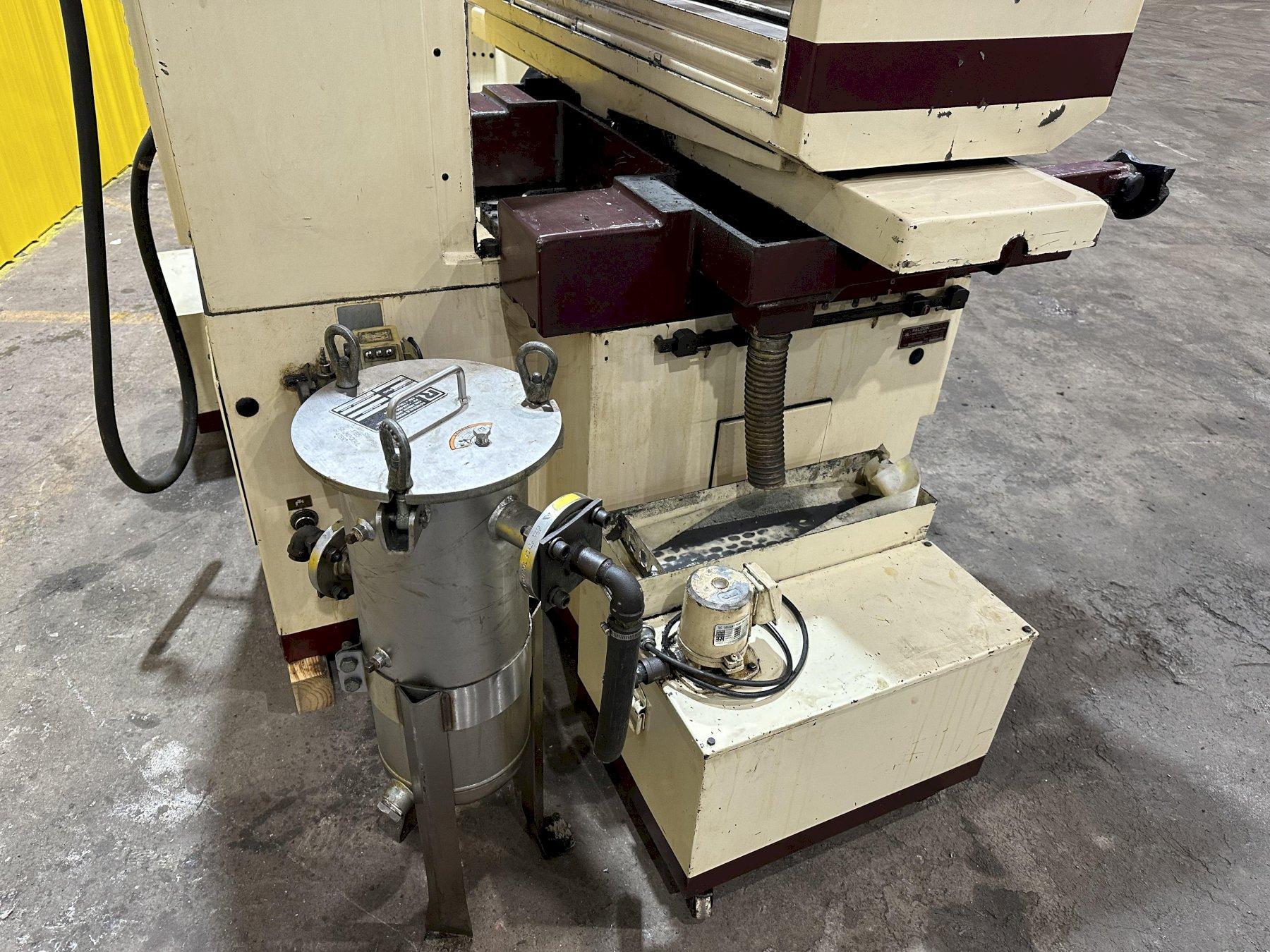

12" X 24" CHEVALIER MODEL #FSG-3A1224H 3 AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER: STOCK #19824

Manufacturer

CHEVALIER

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

19824

Model

FSG-3A1224H

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ........................................ FSG-3A1224H

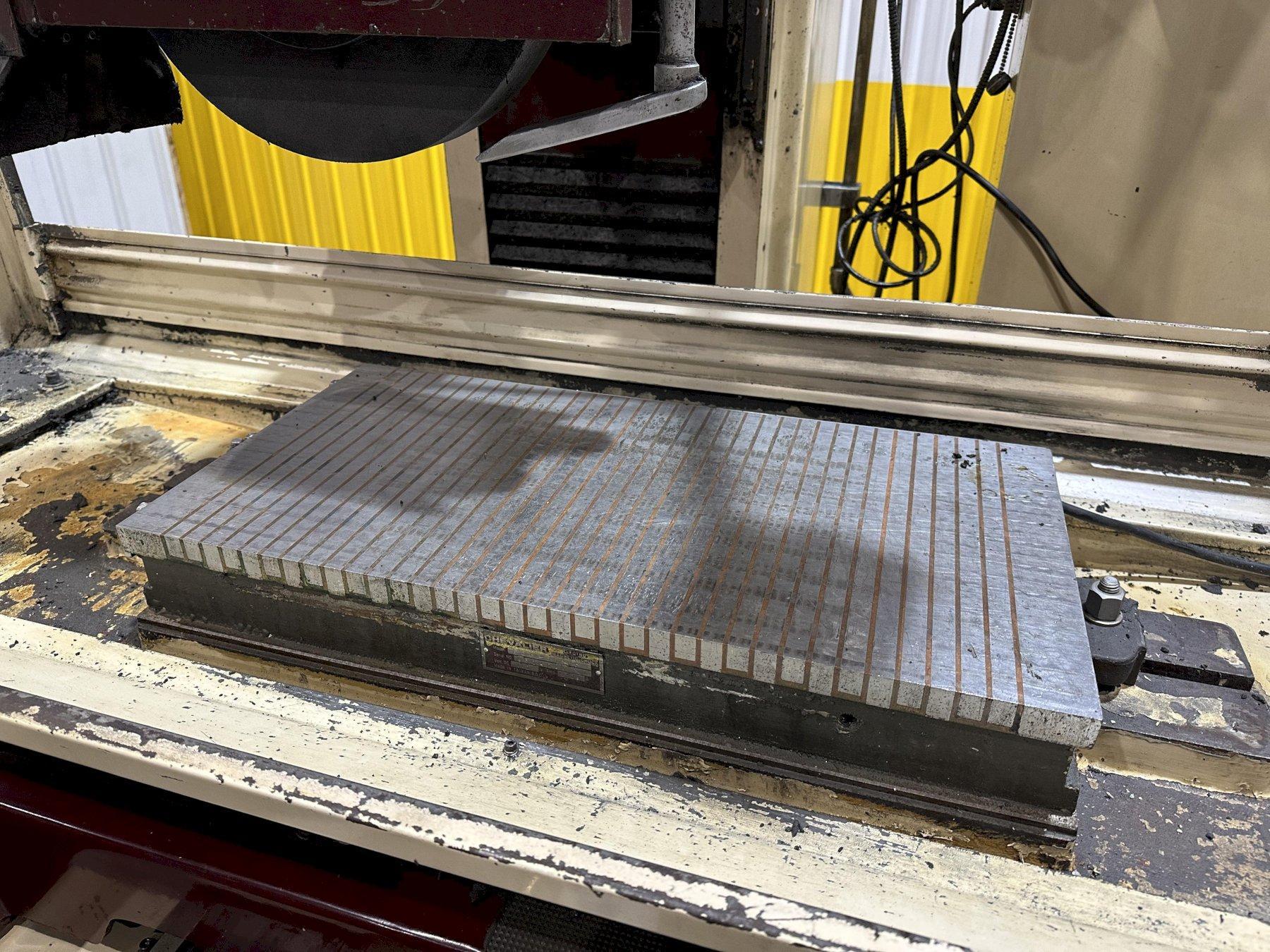

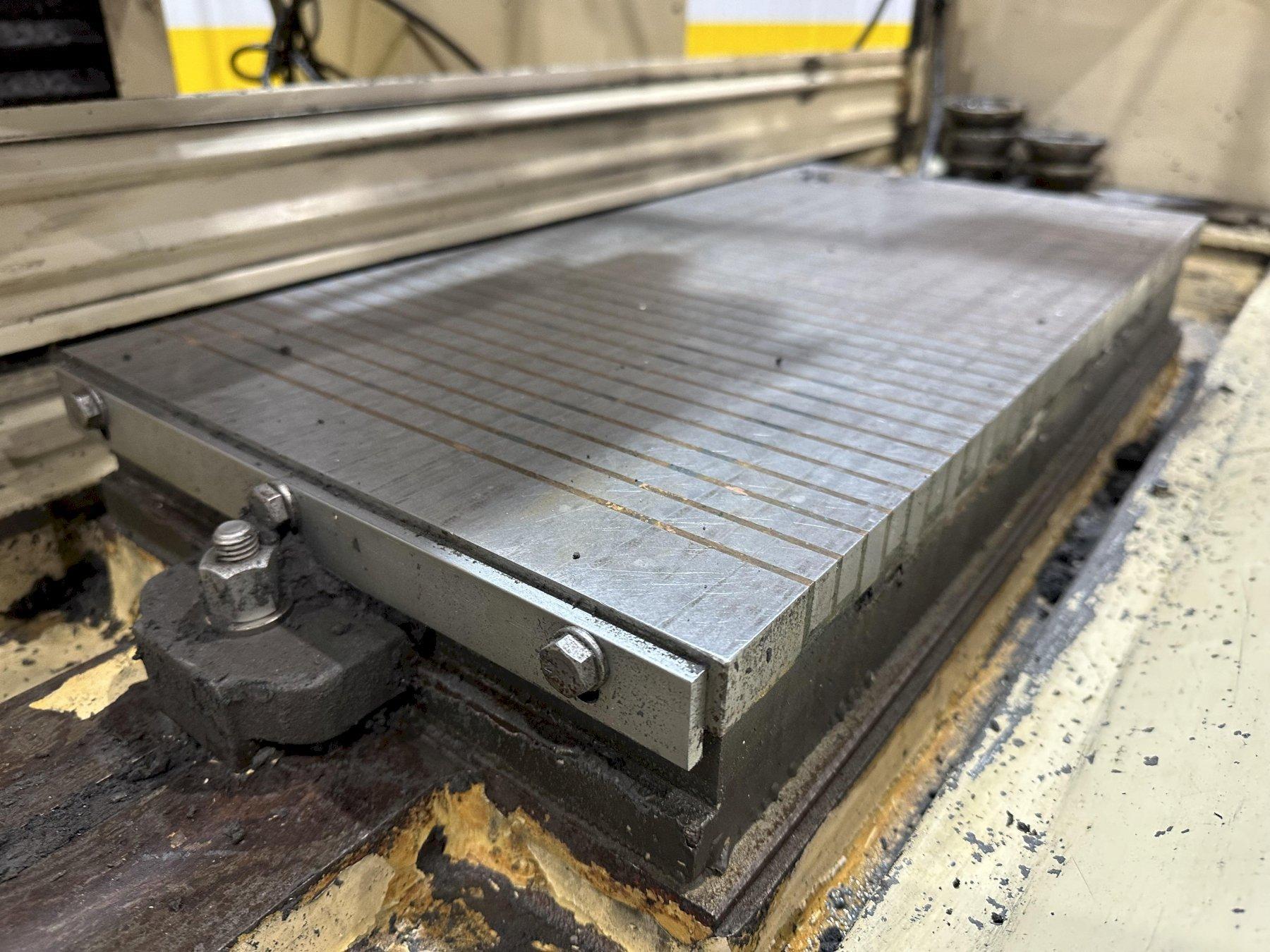

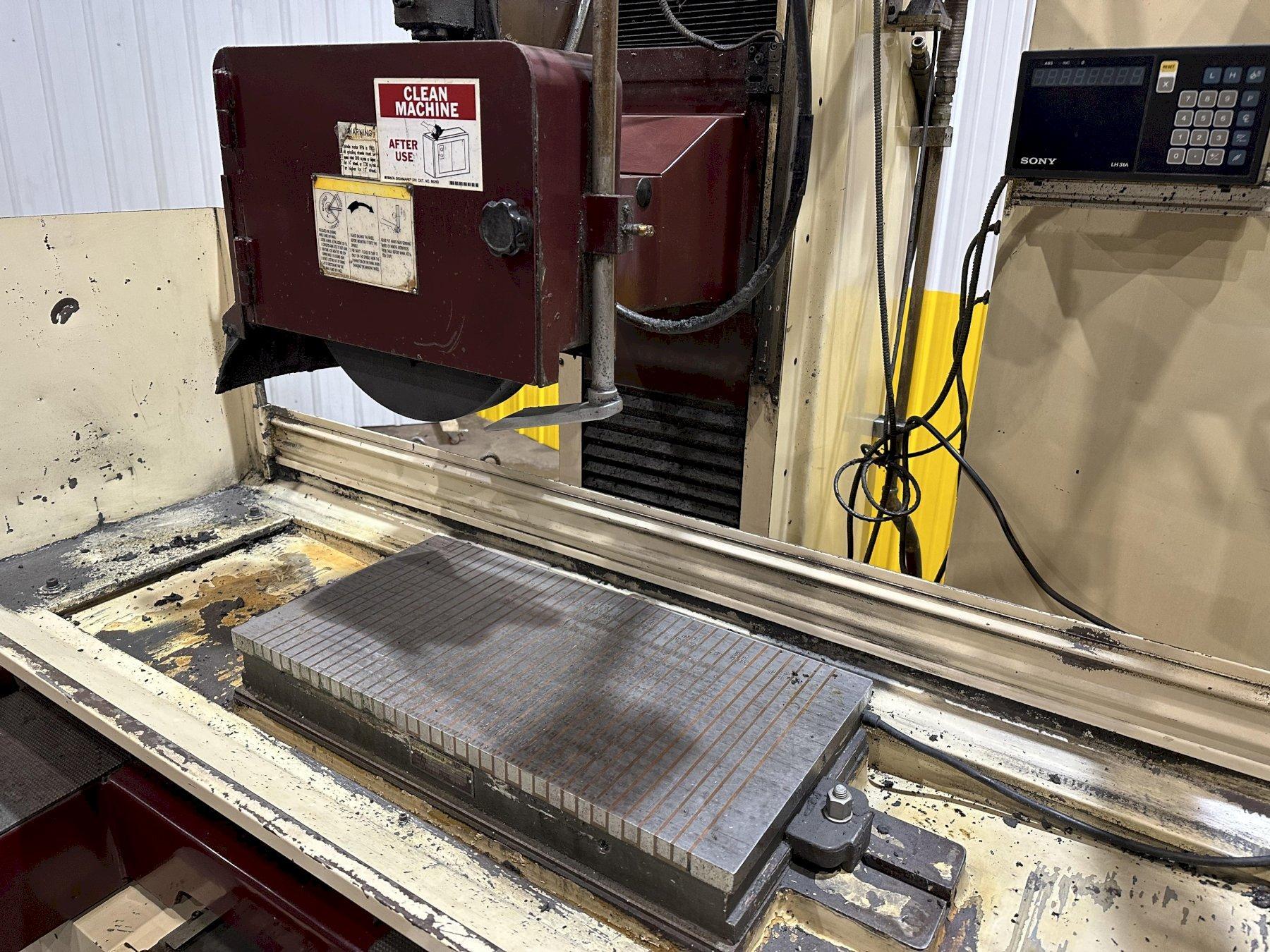

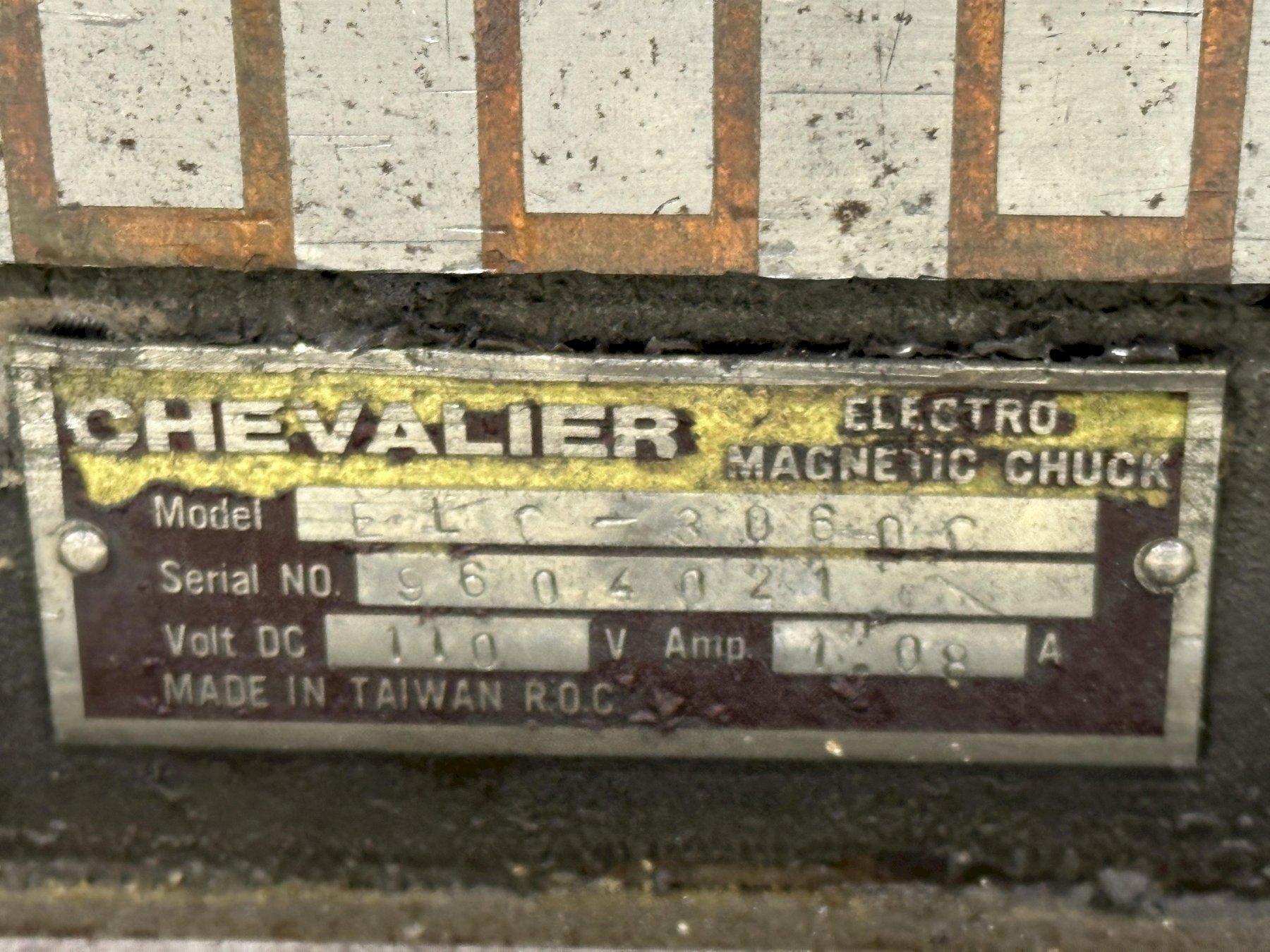

Table Size ................................... 12″ x 24″
Max. Distance From Table To Spindle Center ... 24-3/4″
Longitudinal Movement ........................ 25-5/8″ (Hydraulic)
Max. Travel .................................. 27-1/2″ (Manual)
Table Speed .................................. 16 – 82 FPM (Variable)
Cross Transverse Travel ......................
Rapid Travel ................................. 56 IPM
Auto Transverse Increment .................... .04 – .5″
Max. Auto Transverse Travel .................. 14-1/8″
Max. Manual Transverse Travel ................ 14-1/2″

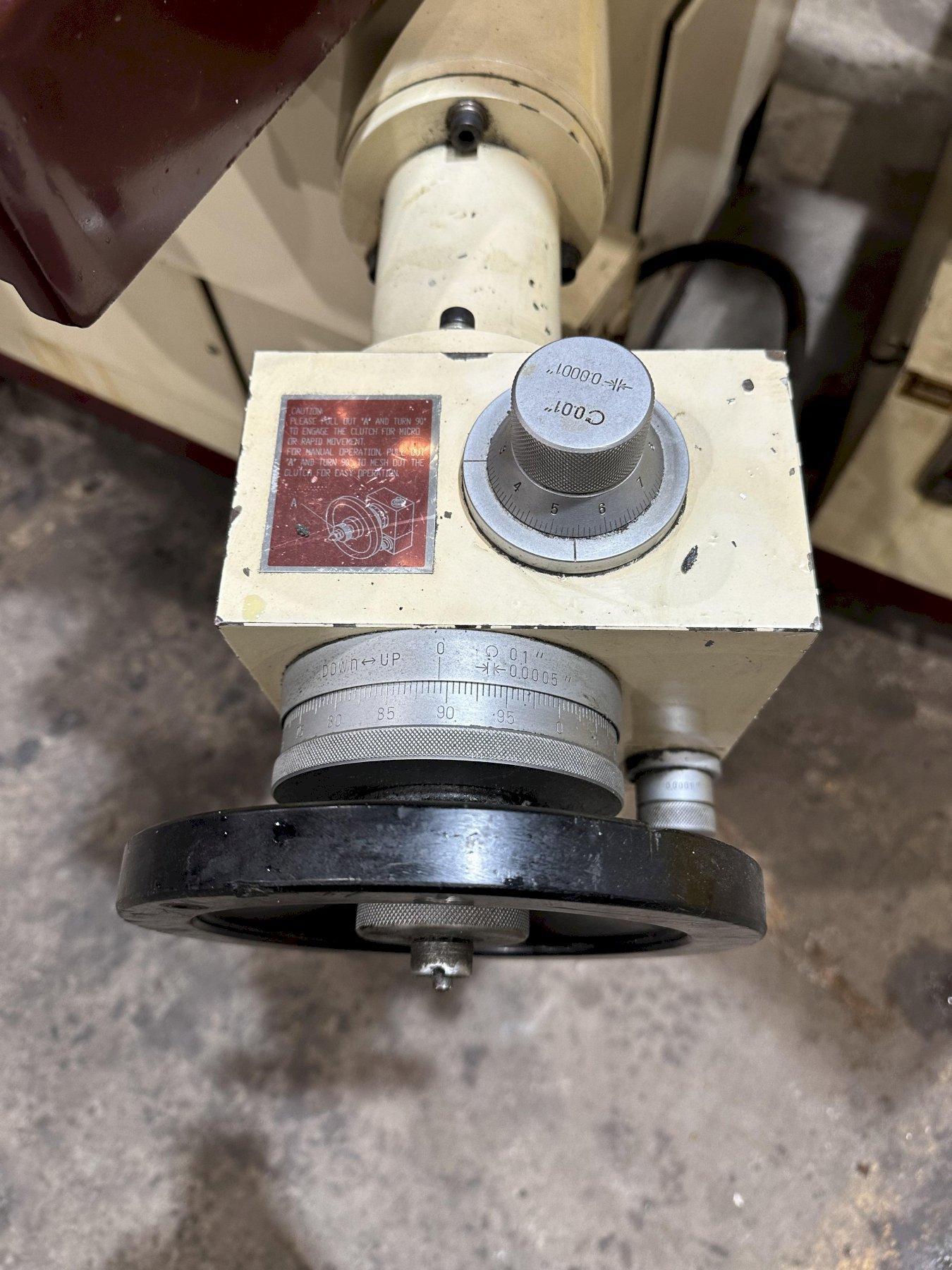

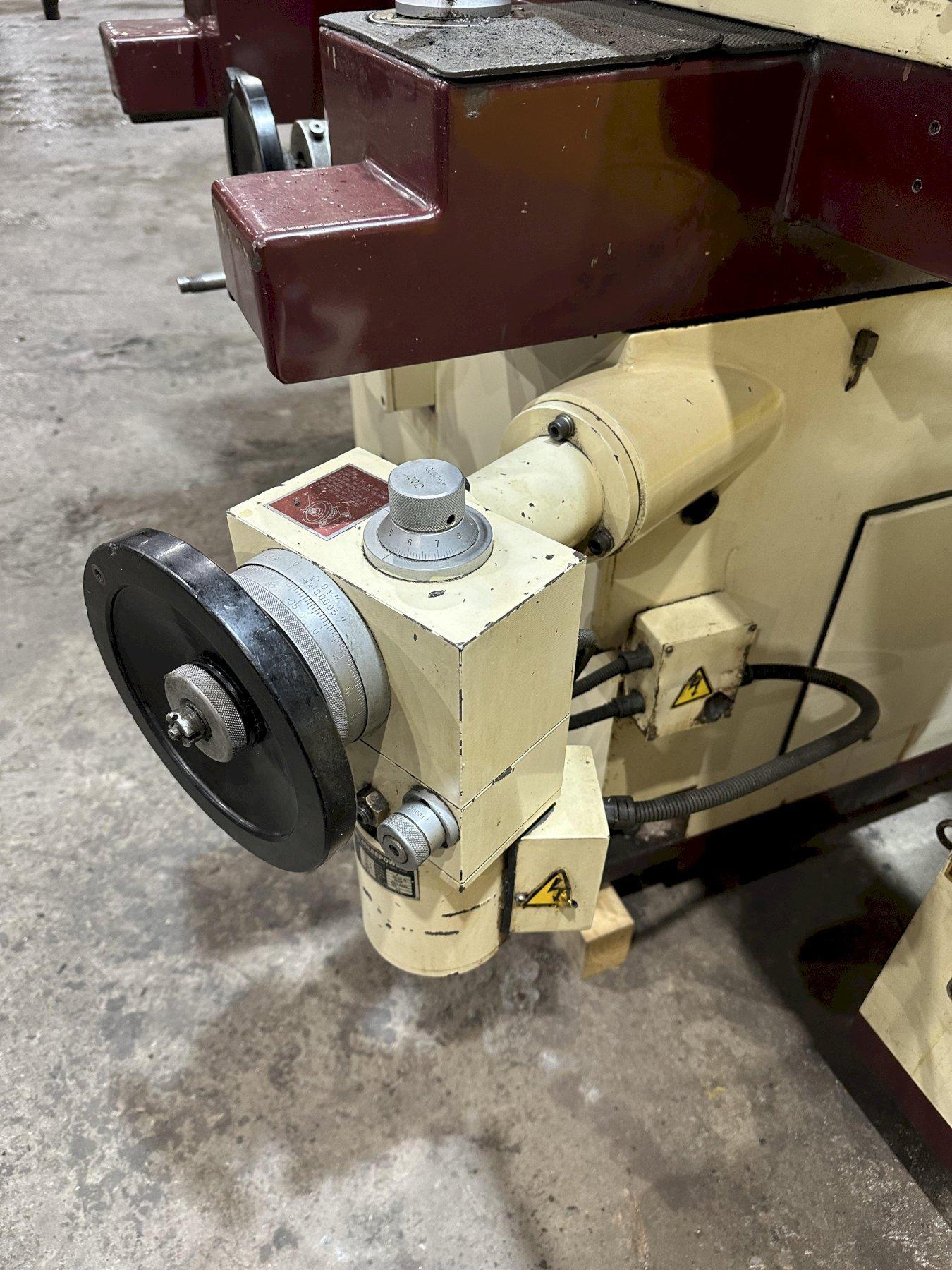

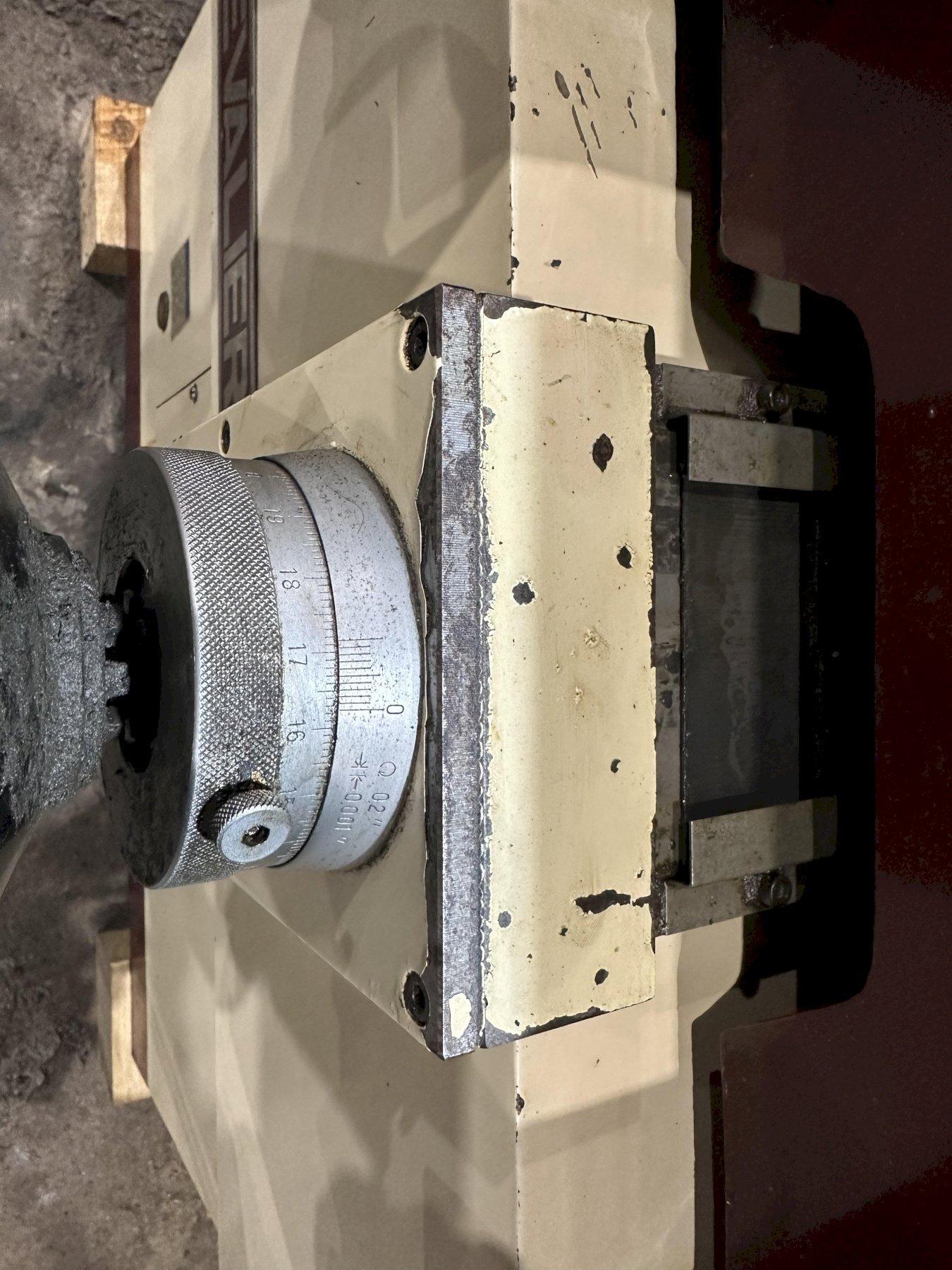

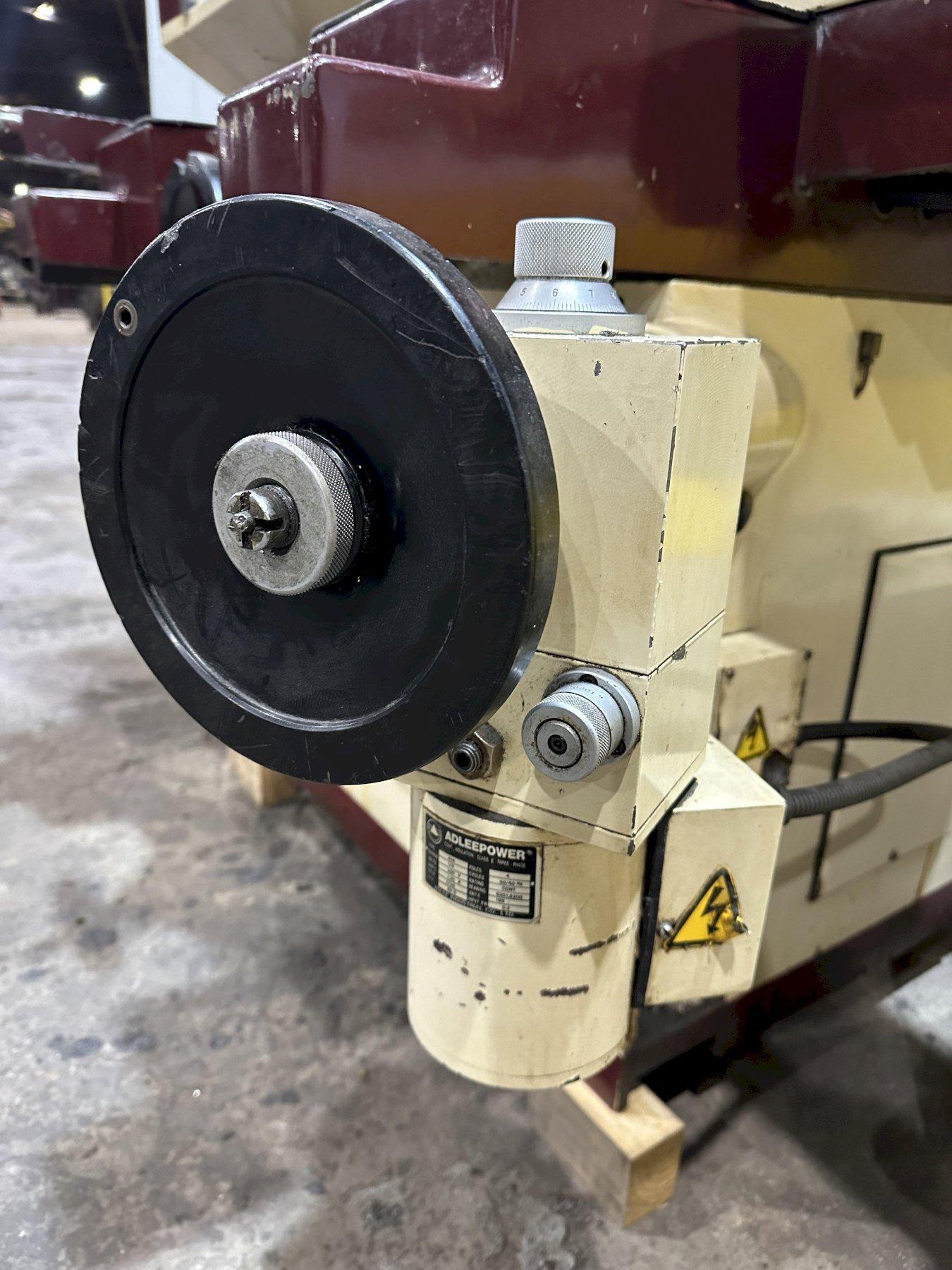

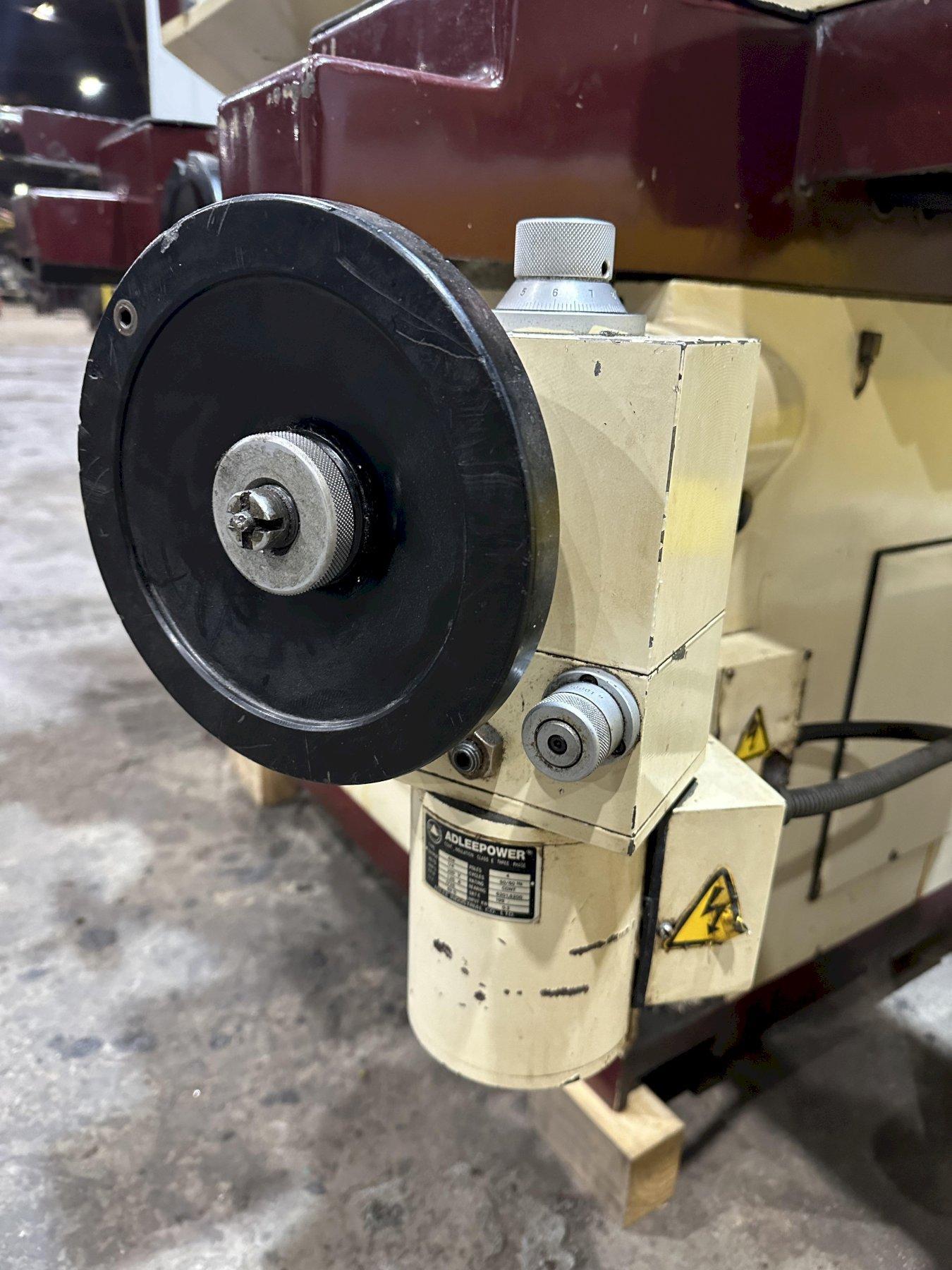

Wheelhead Vertical Infeed ....................
Automatic Infeed ............................. 0.0001″ – 0.0002″
Hand Wheel / Revolution ...................... 0.1″
Hand Wheel / Graduation ...................... 0.0005″
Rapid Travel ................................. 13 IPM
Micro Feed / Revolution ...................... 0.01″
Micro Feed / Graduation ...................... 0.0001″

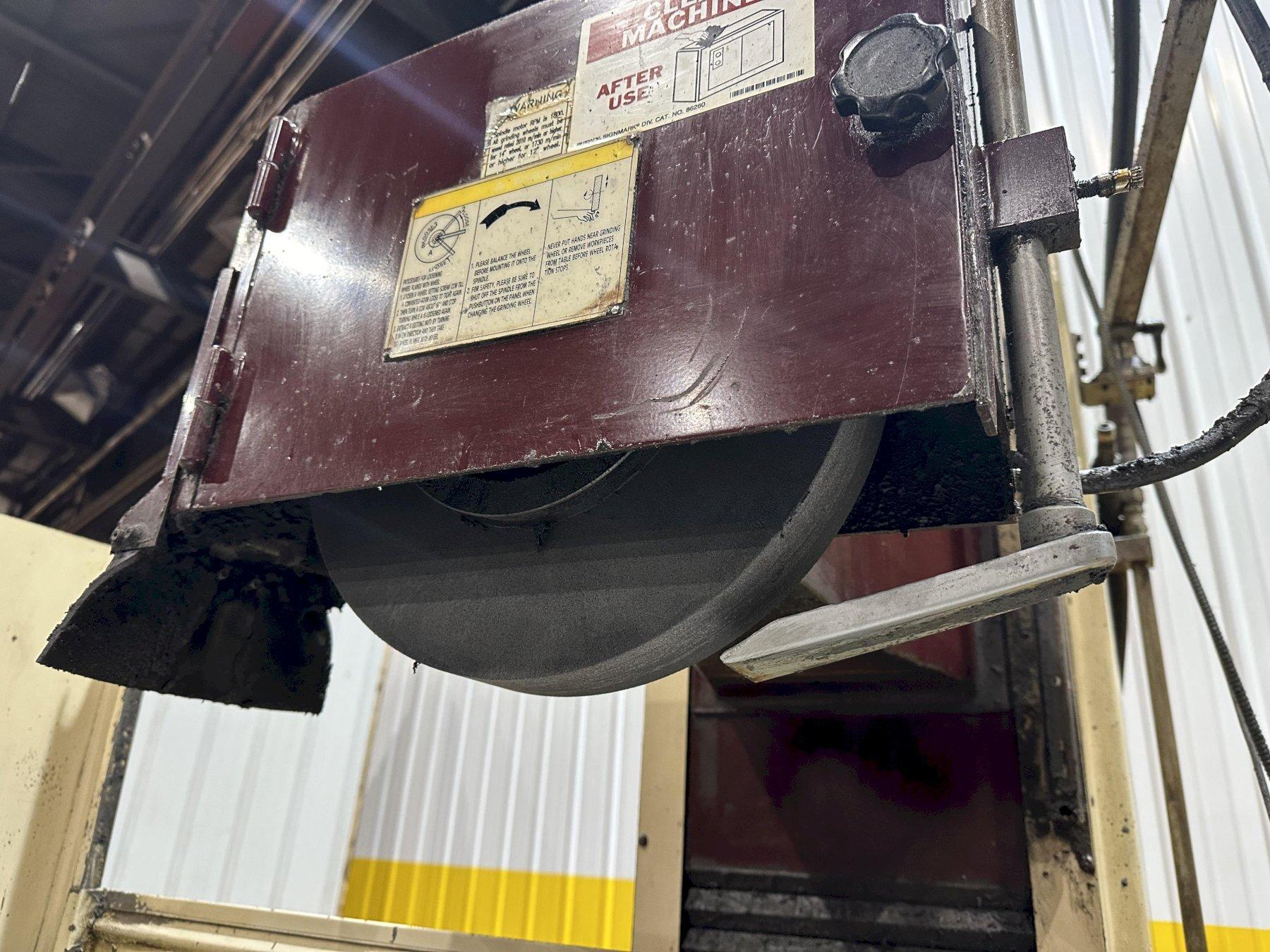

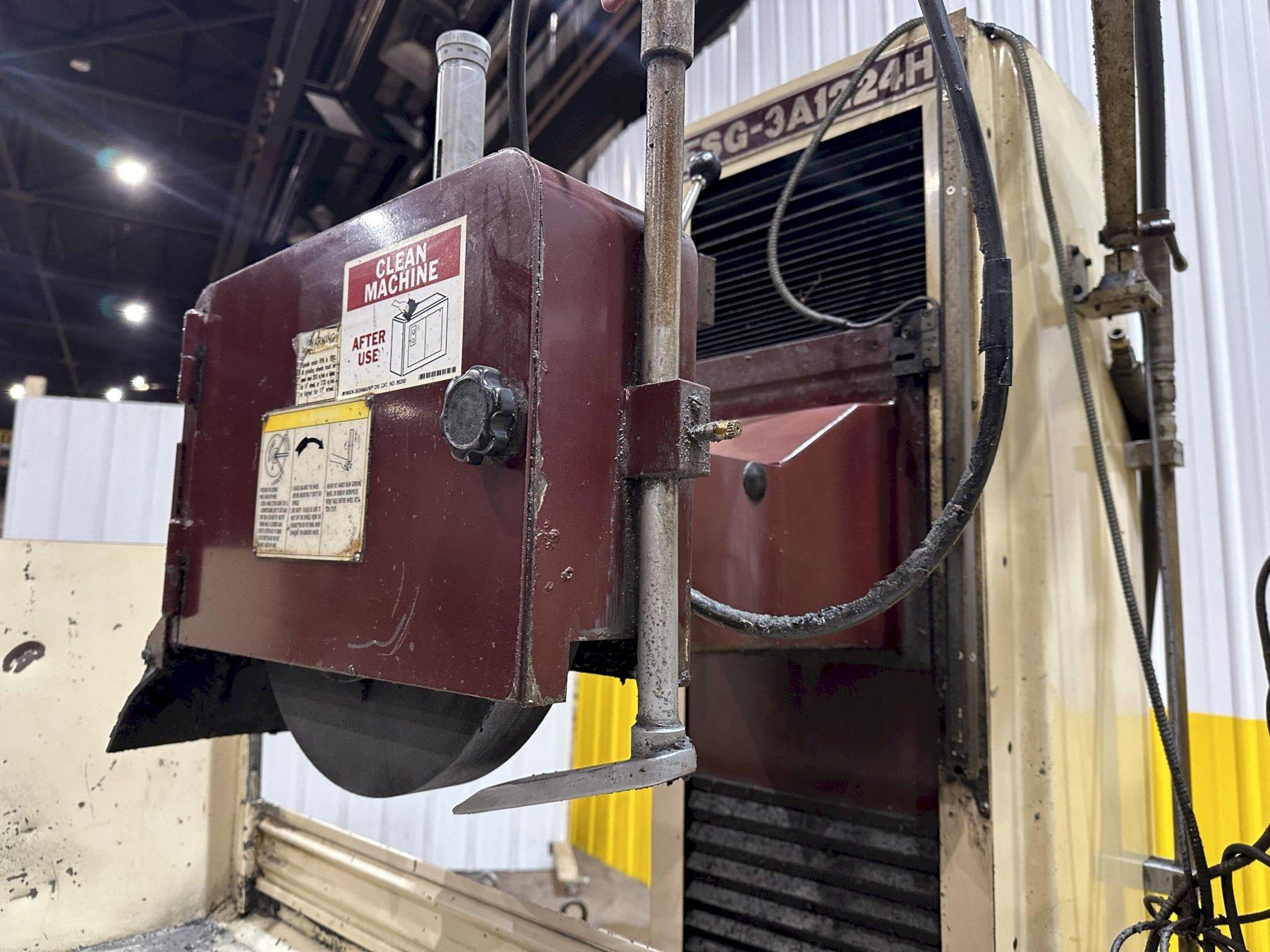

Standard Grinding Wheel ...................... 2″ x 14″ x 5″

Standard Features:
- High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding

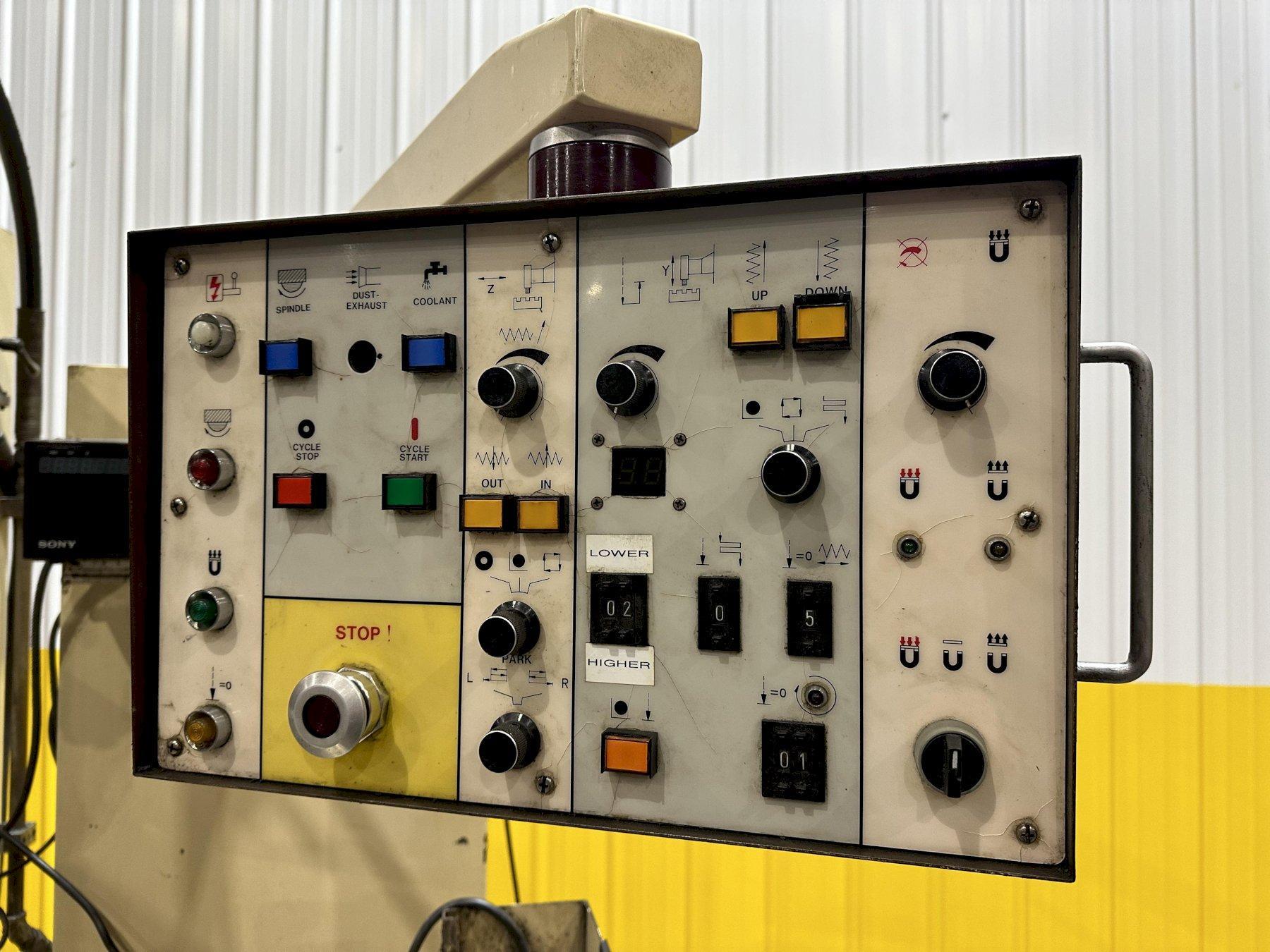

- 3-Axis fully automatic with surface and plunge grinding cycles

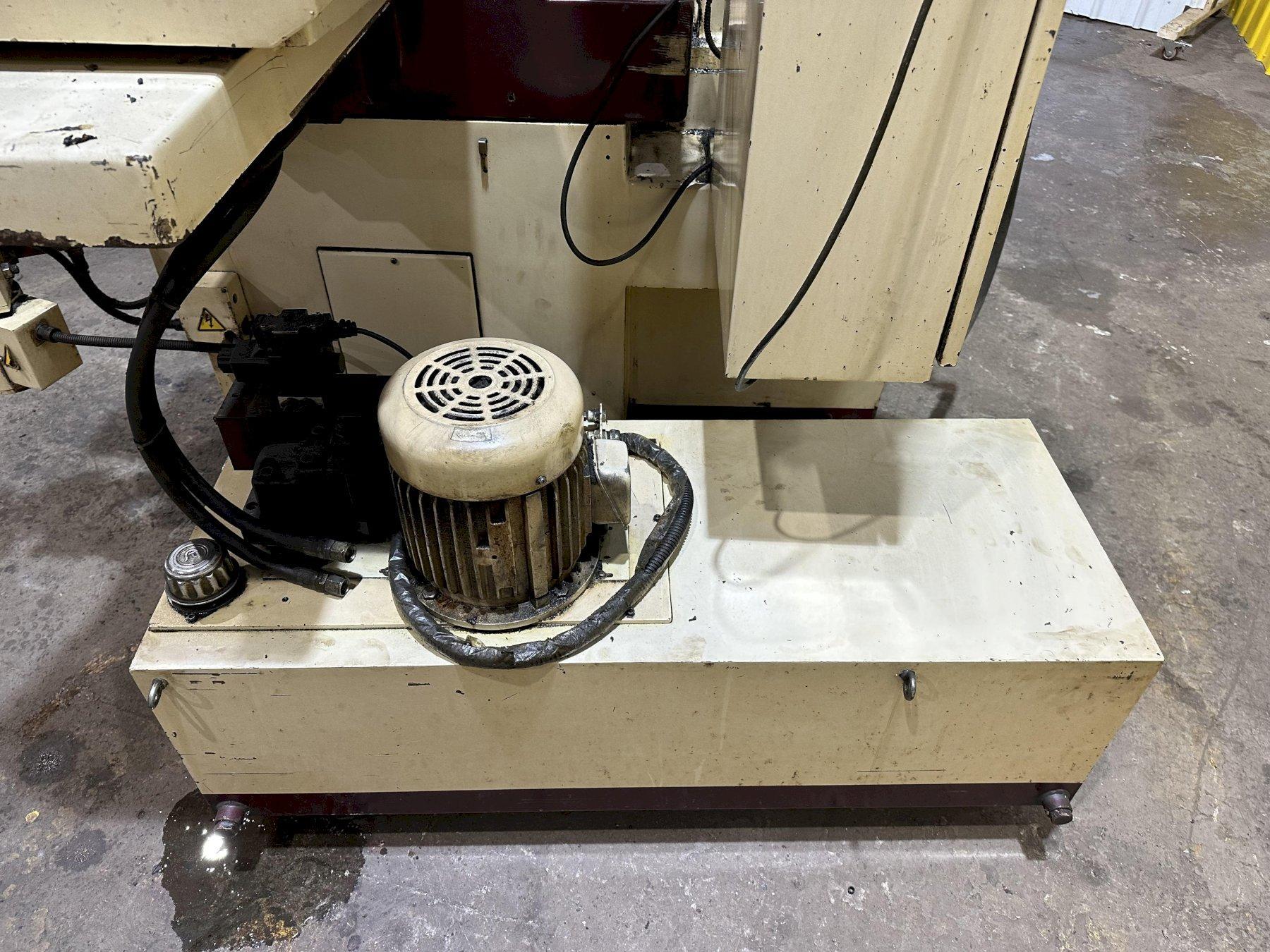

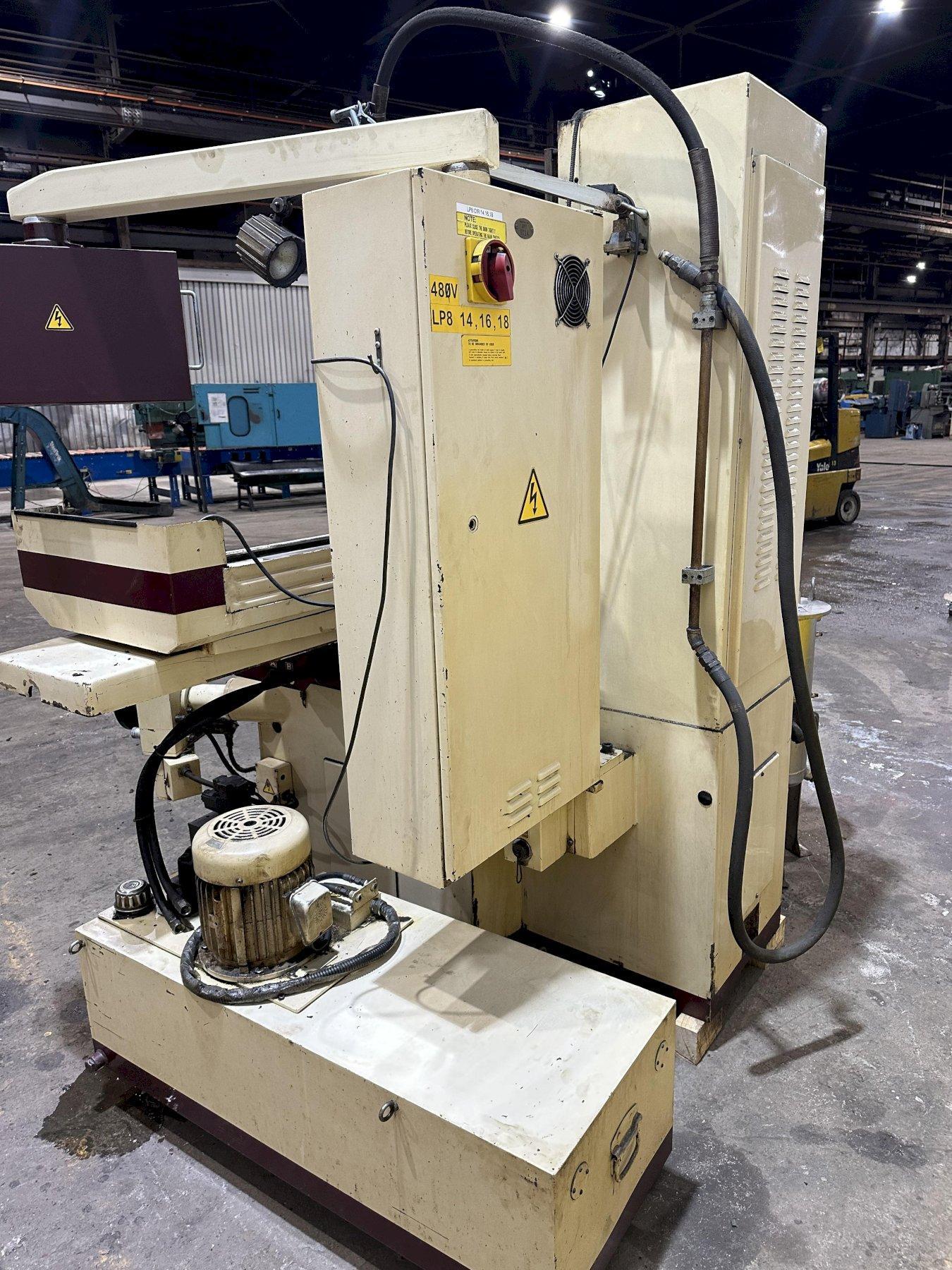

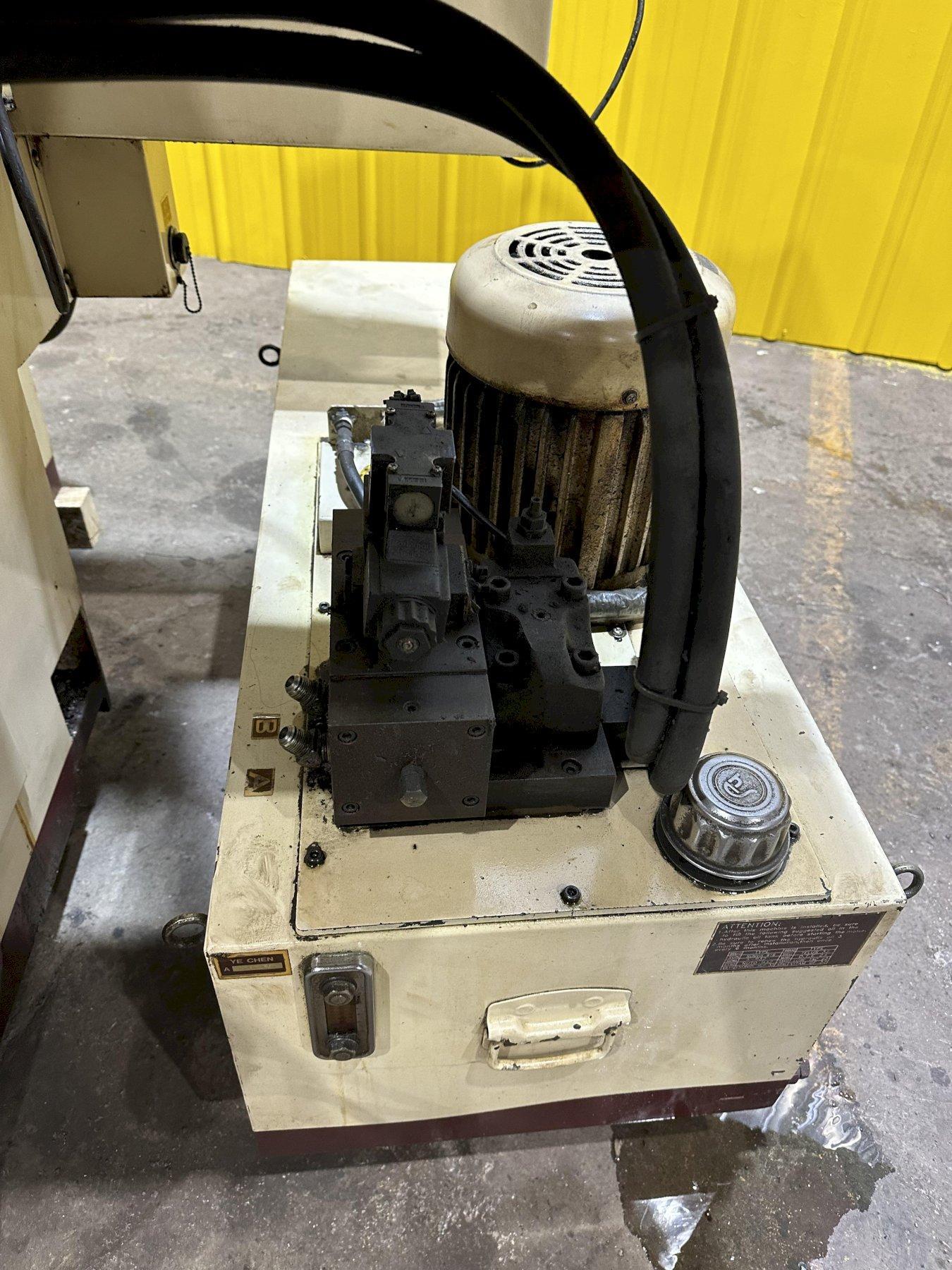

- Separate hydraulic system prevents vibration and reduces heat transference
- Saddle travels on Turcite-B coated and hand scraped double V guideways
- Meehanite cast iron
- Wheel head rises up automatically and table parks at left or right side after cycle is completed

Mechanical Specifications:
Dimensions .................................... 105″ x 72″ x 75″ H
Weight ........................................ approx. 4,630 lbs.
