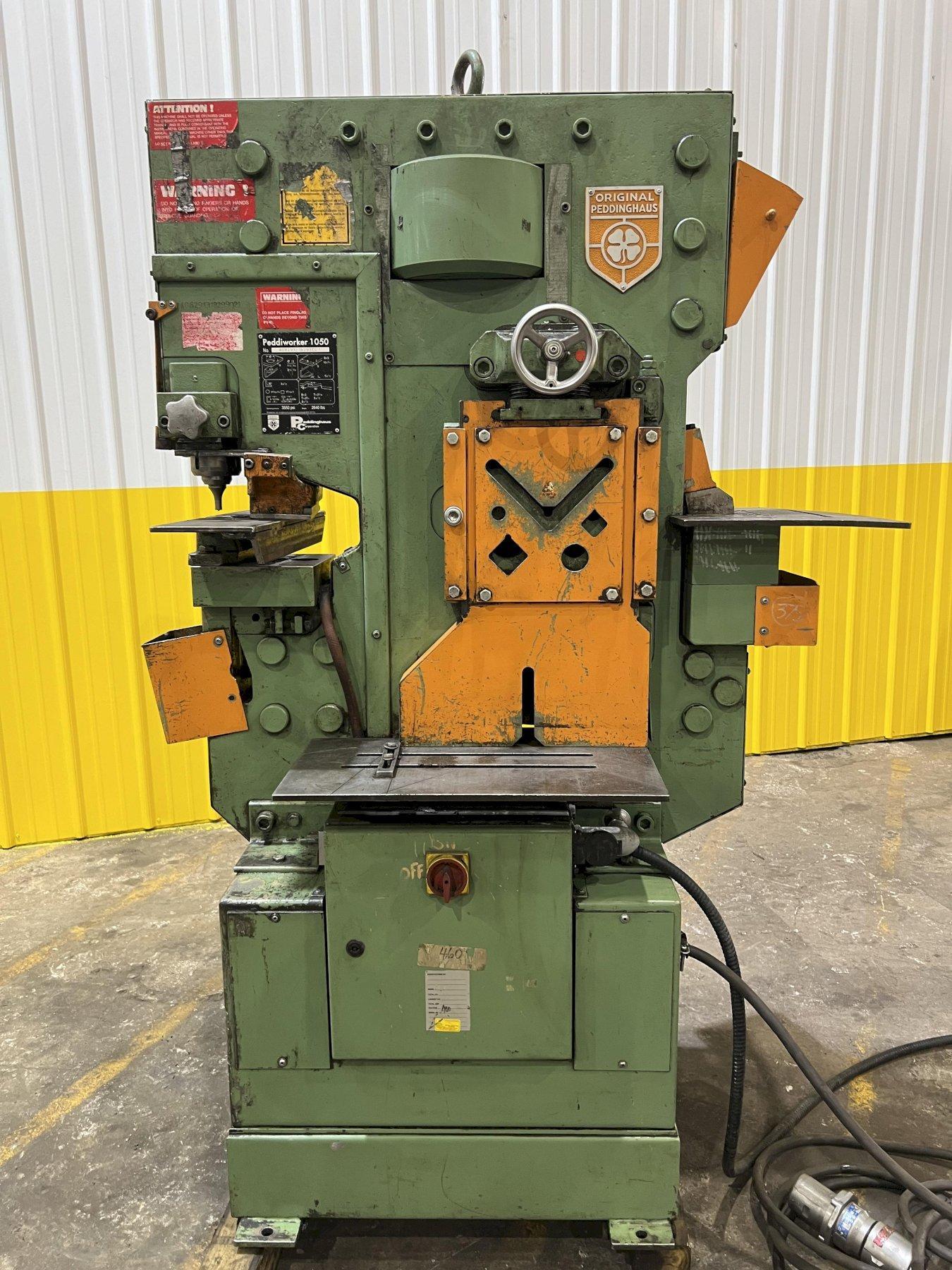

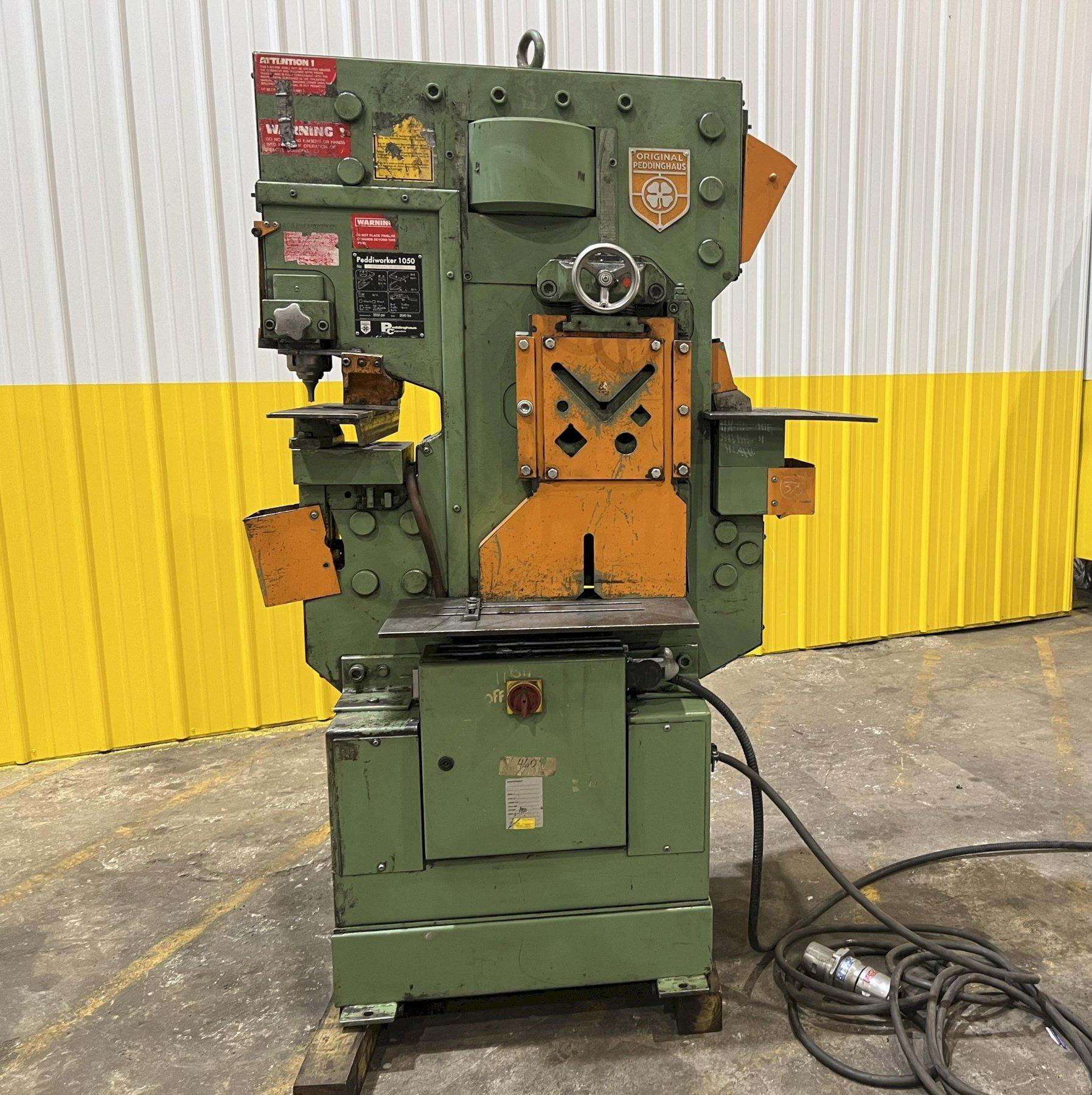

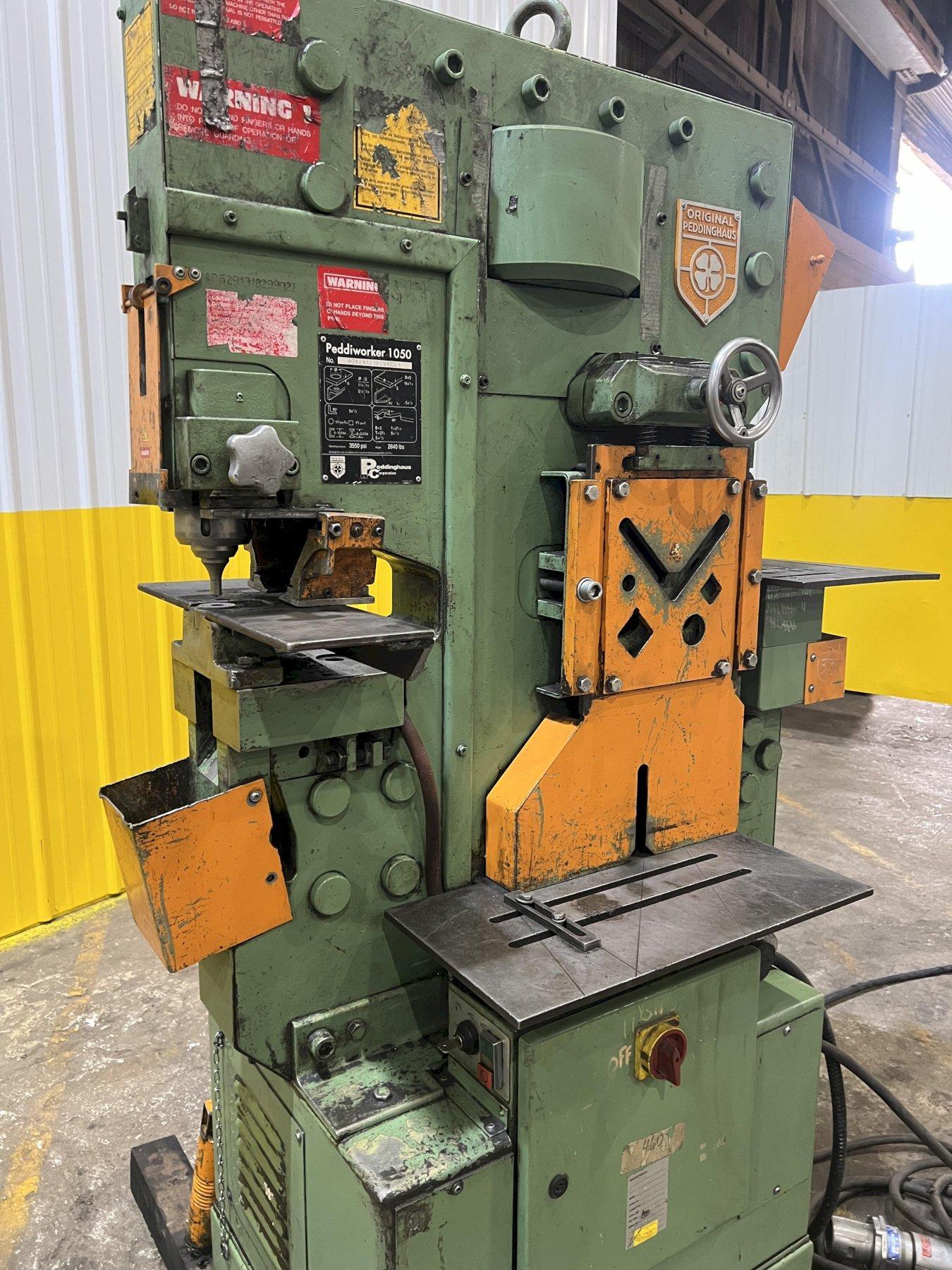

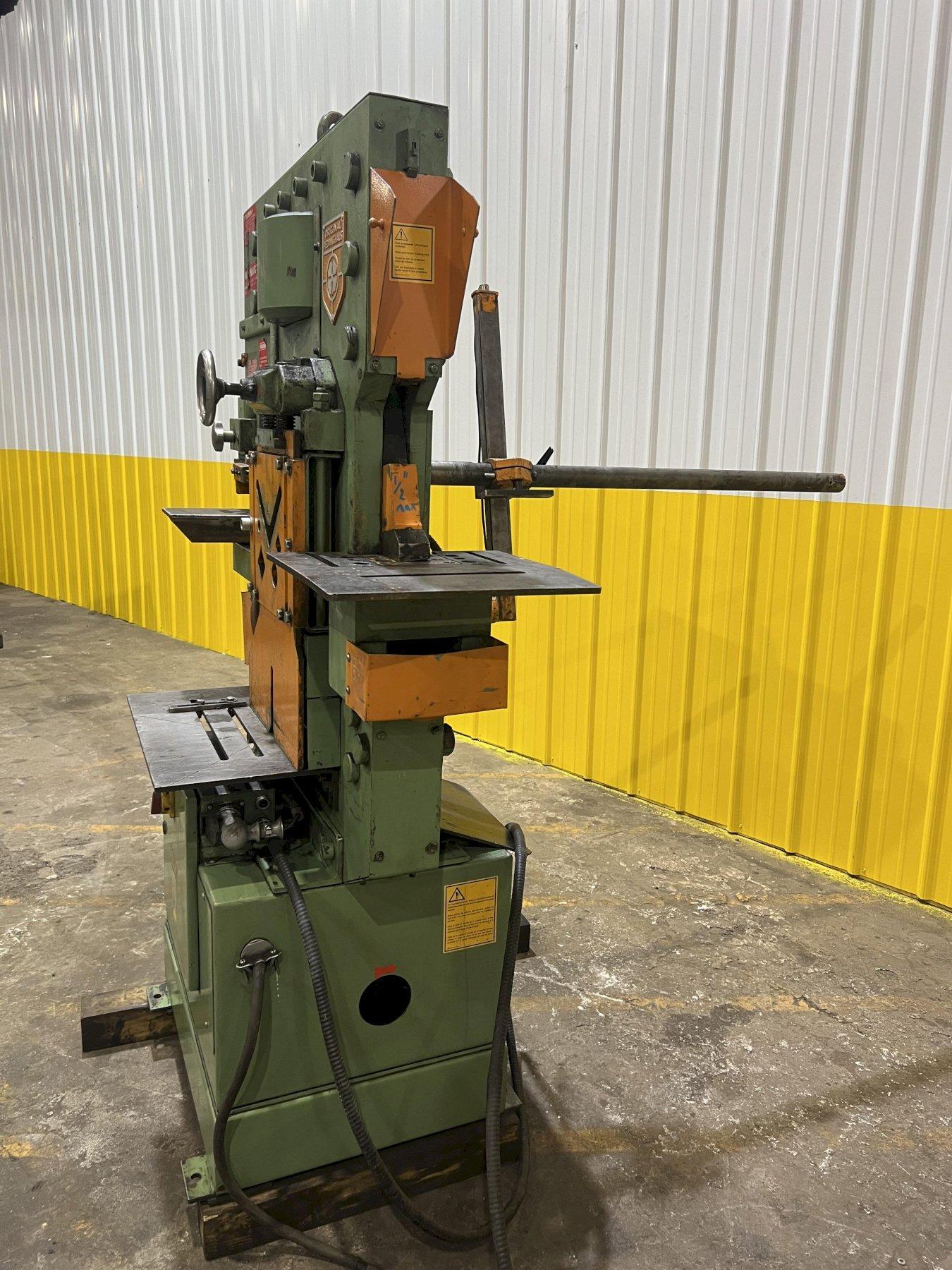

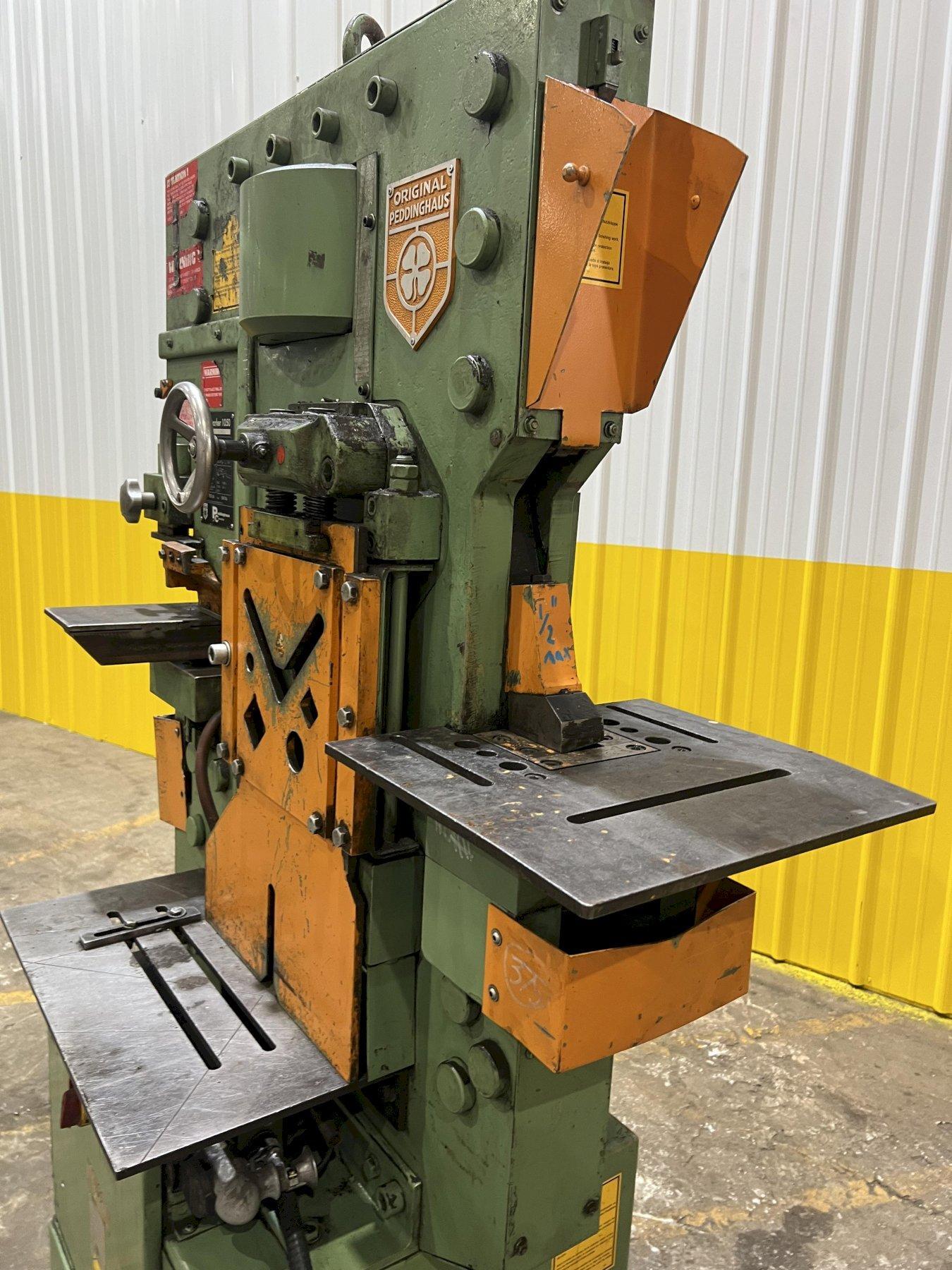

110 TON PEDDINGHAUS PEDDIWORKER MODEL #1050 HYDRAULIC IRONWORKER: STOCK #19922

Manufacturer

Category

Punches

Type

IRONWORKERS

Stock

19922

Model

1050

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

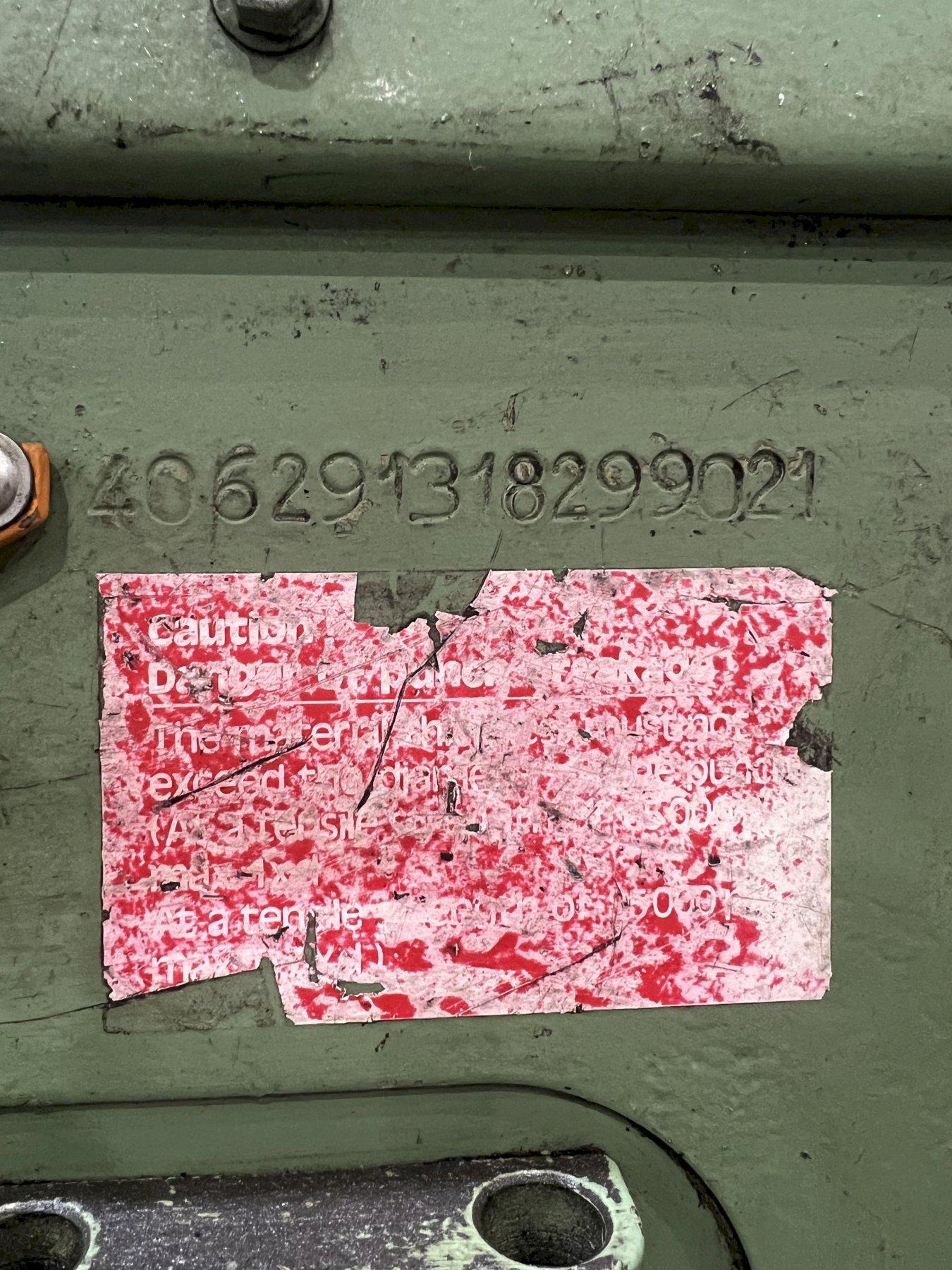

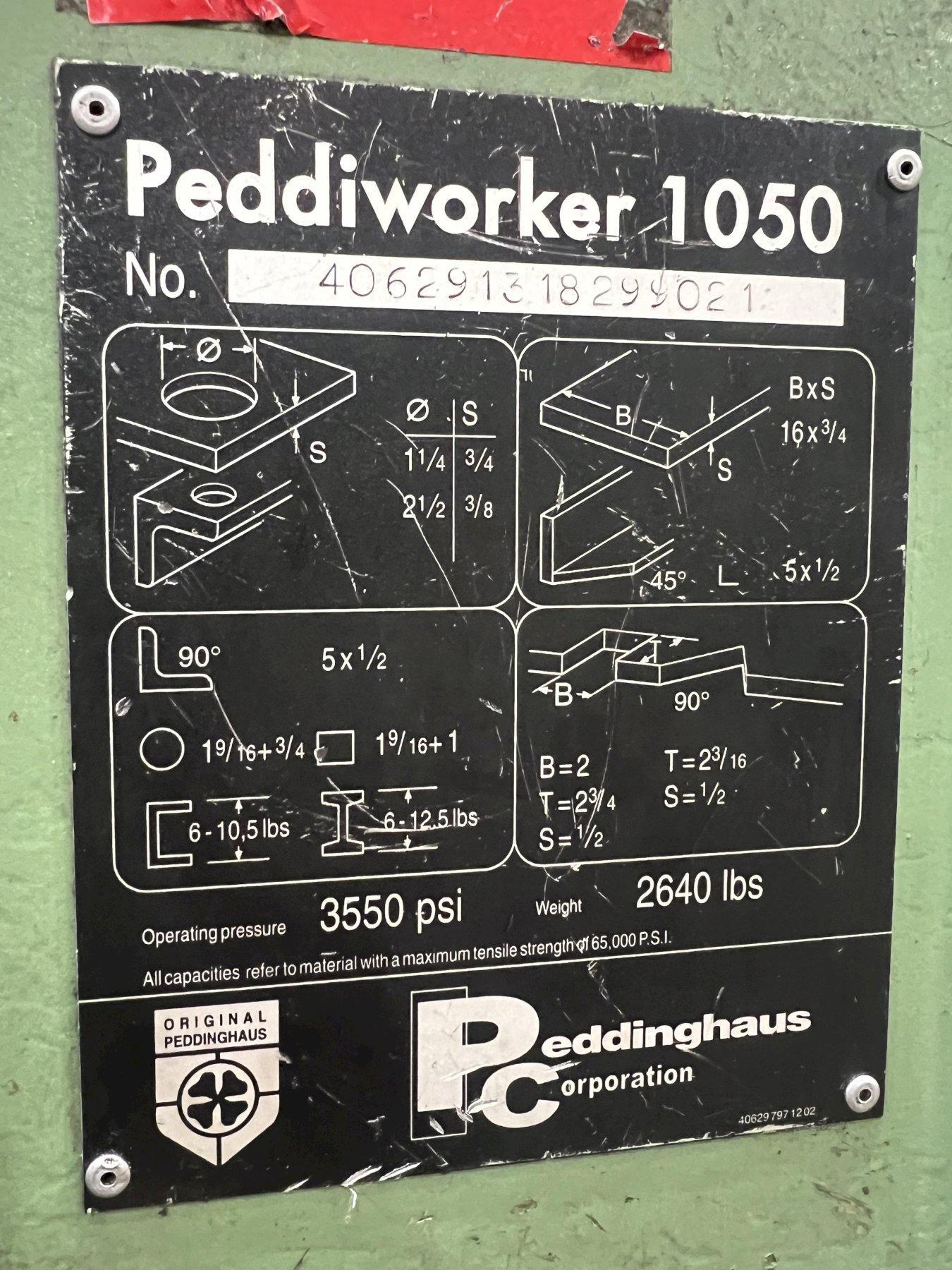

SERIAL ................... 406291218299021
MODEL .................... PEDDIWORKER 1050
STROKES ON PUNCH ......... 17
STROKE ................... 3/8" TO 1-5/8"
MOTOR .................... 5-1/2 HP

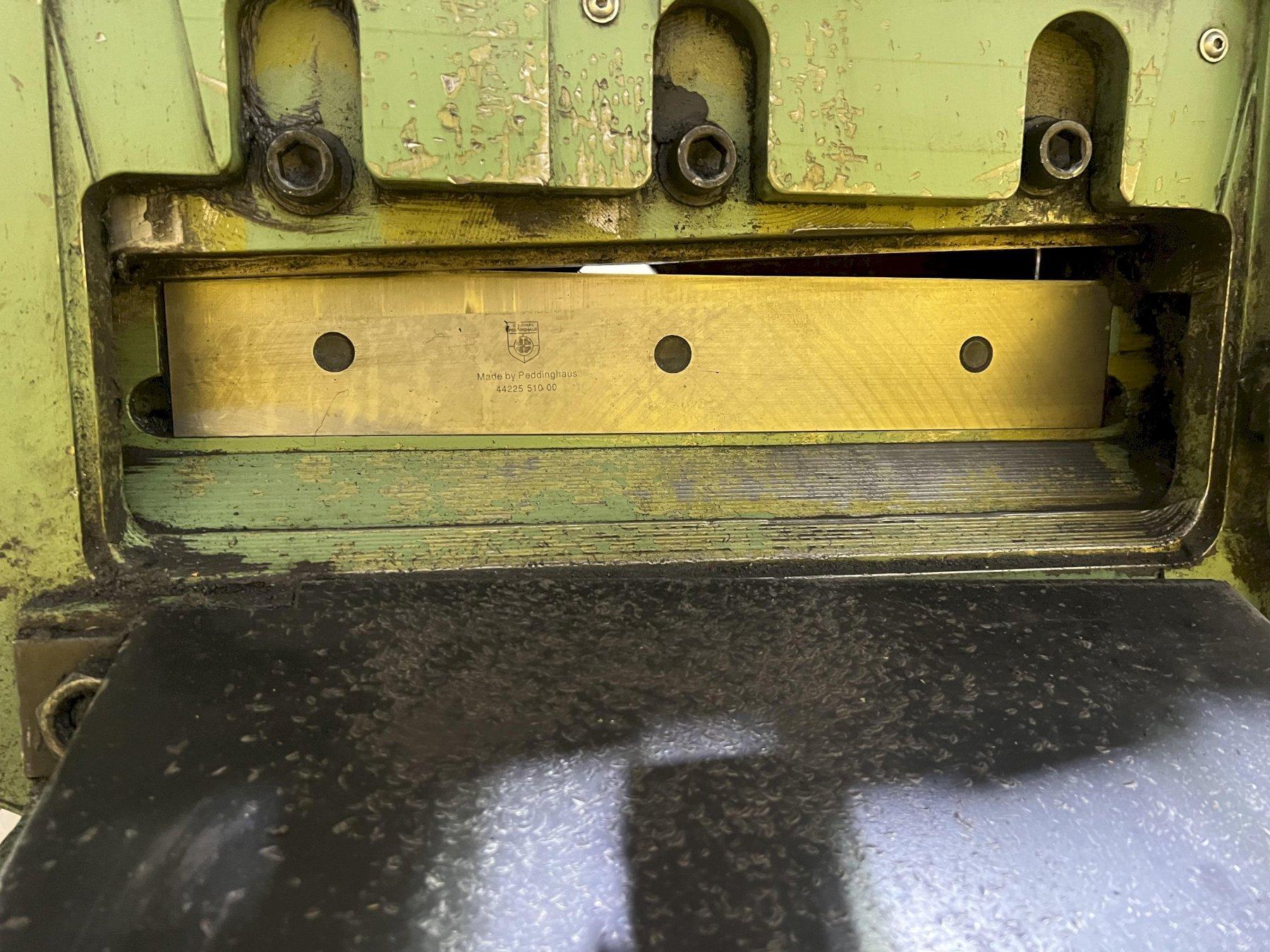

FLAT BAR SHEAR SPECIFICATION:
CAPACITY ................. 16" X 3/4"
                           12" X 5/8"
                           12" X 1"
45 DEGREE IRON CAPACITY .. 5" X 3/8"
BLADE CUT LENGTH ......... 16-1/2"
WORKING HEIGHT ........... 30"

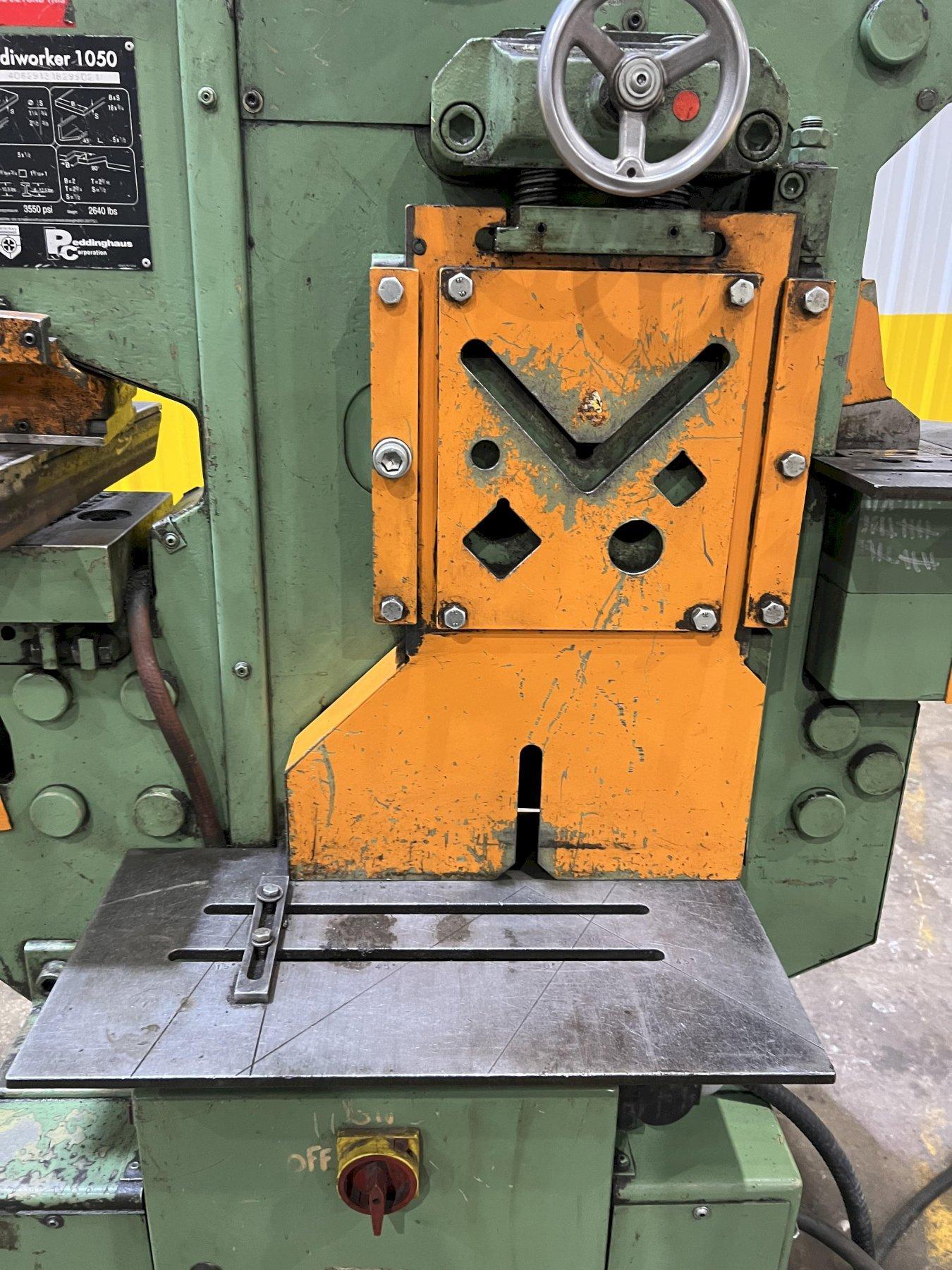

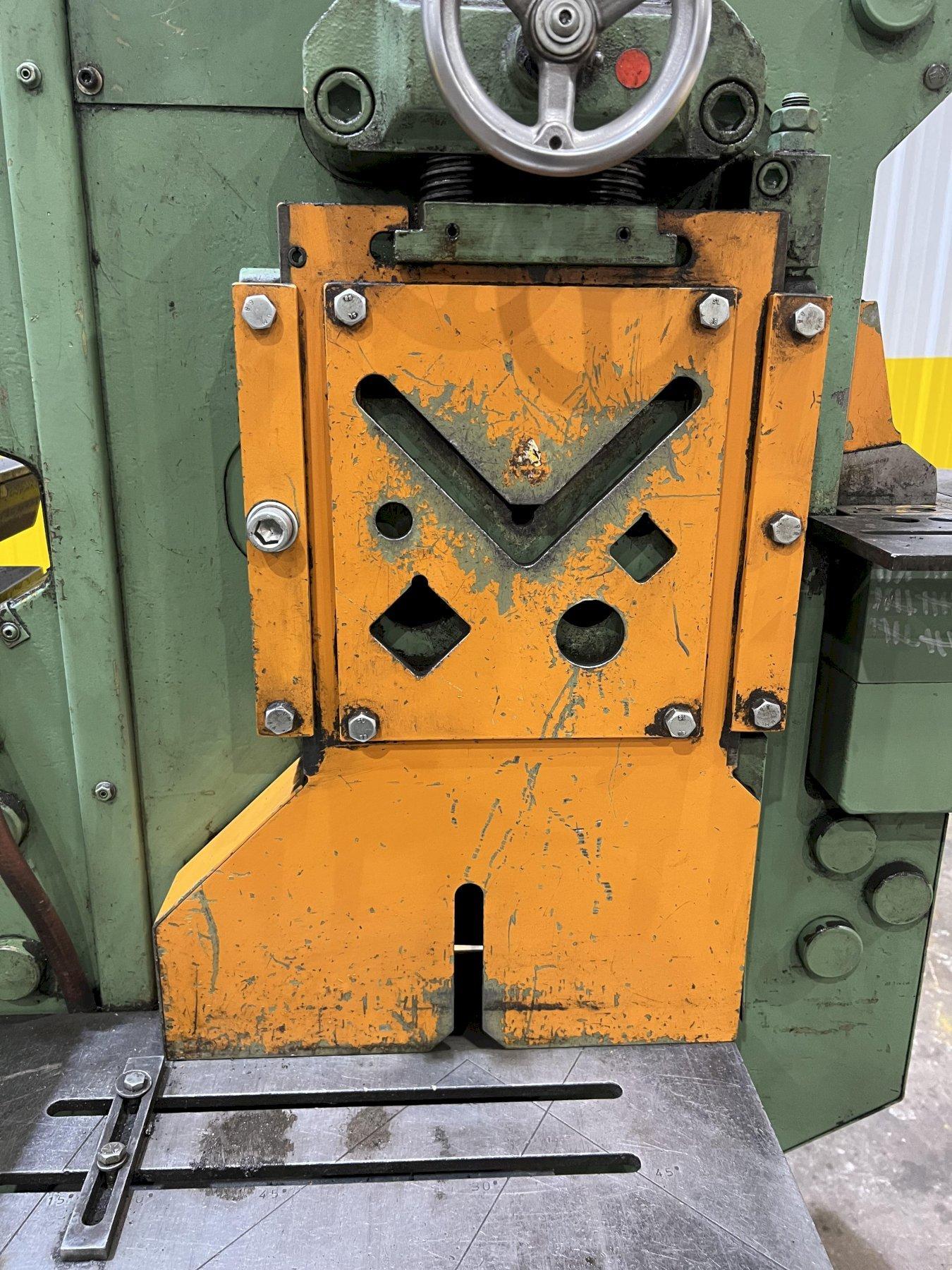

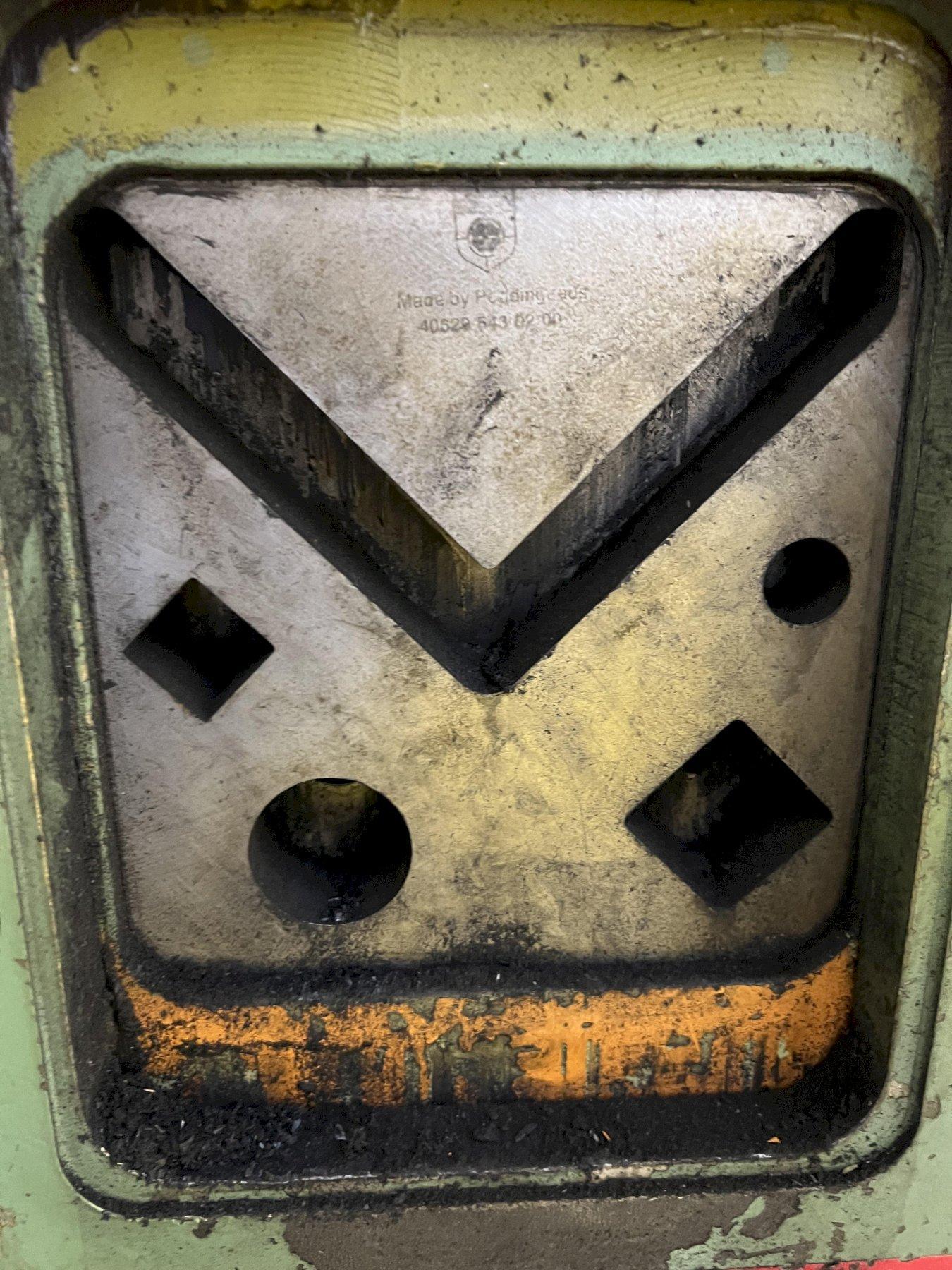

SECTION AND BAR STOCK SHEAR SPECIFICATION:
CROSS SECTION ............ 4-3/4" SQUARED

CUTS WITH STANDARD BLADES SPECIFICATION:
ANGLES, 90 DEGREES ....... 5" X 5" X 1/2"
ROUNDS ................... 1-9/16", 3/4"
SQUARES .................. 1-9/16", 1"

CUTS WITH SPECIAL KNIVES SPECIFICATION:
CHANNELS, 90 DEGREES ..... 6"
WORKING HEIGHT ........... 45-7/8" CENTER OF BLADE

SQUARE NOTCHER SPECIFICATION:
PLATE .................... 1/2"
ANGLES ................... 3" X 3/8"
CHANNELS IN FLANGE ....... 3" TO 5"
NOTCH WIDE ............... 2"
NOTCH DEPTH .............. 2-3/4"

TRIANGULAR NOTCHER SPECIFICATION:
PLATE .................... 1/2"
ANGLES ................... 2-1/2" X 3/8"
NOTCH DEPTH .............. 2-3/16"
WORKING HEIGHT ........... 44-1/4"

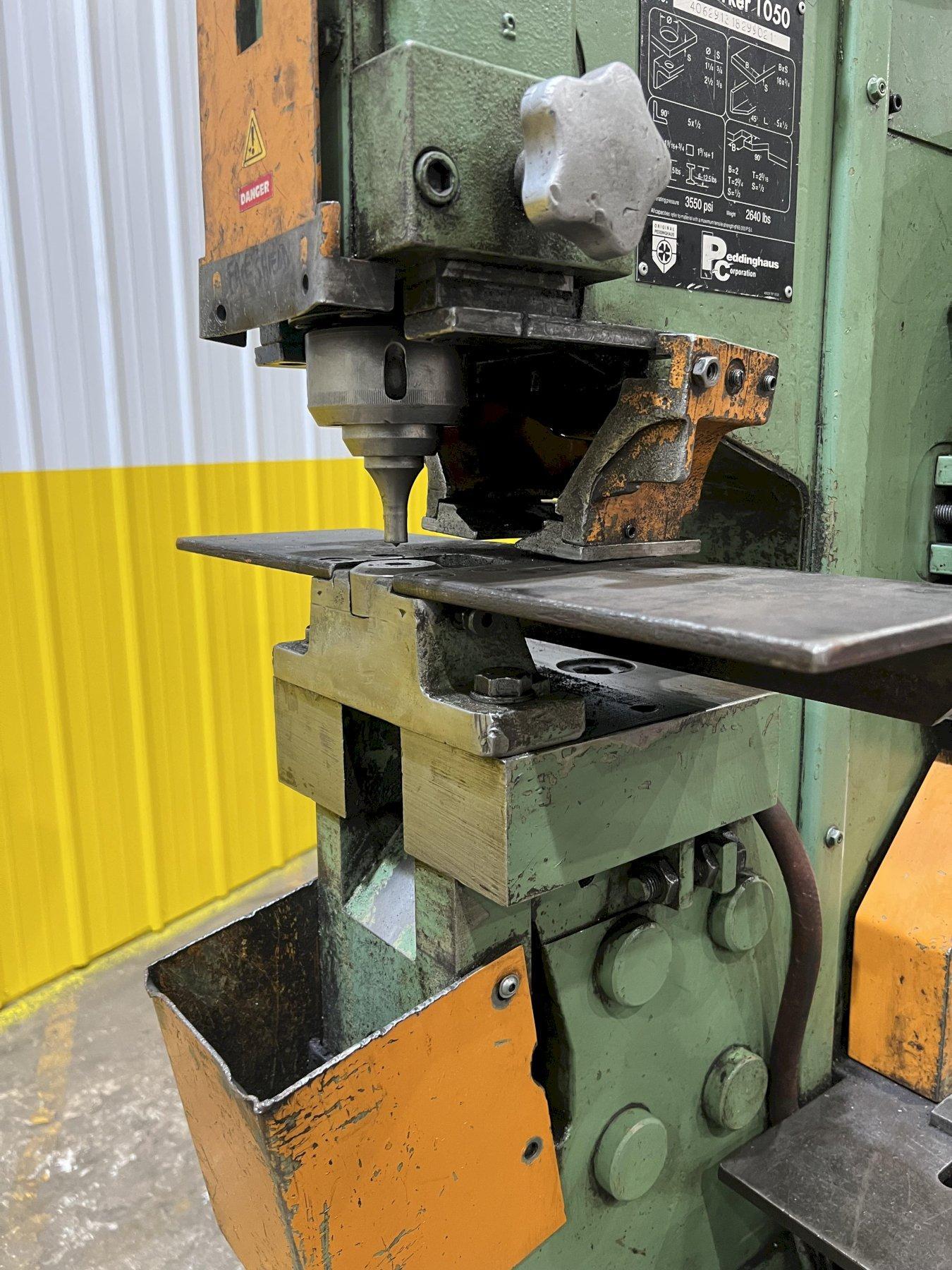

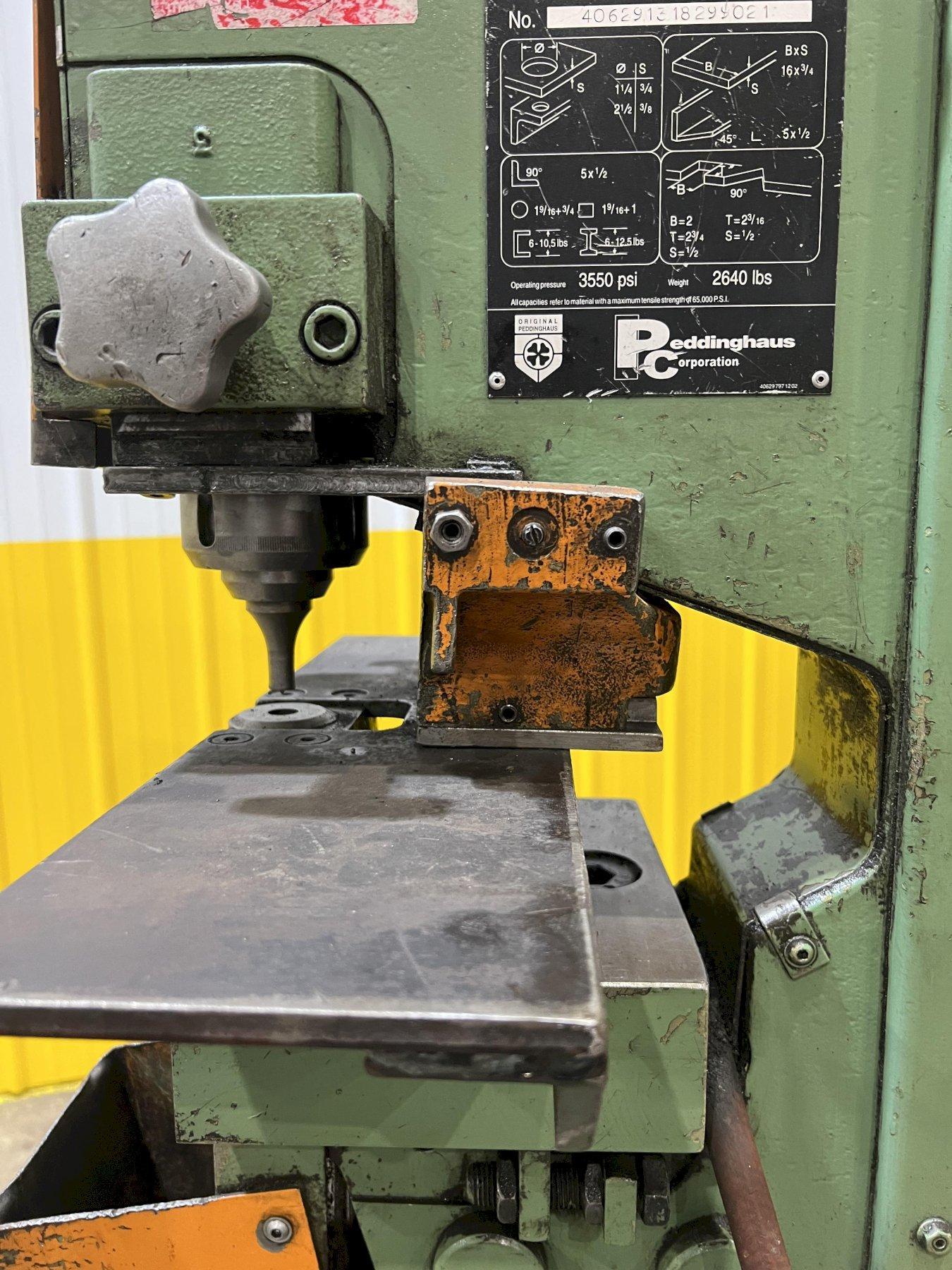

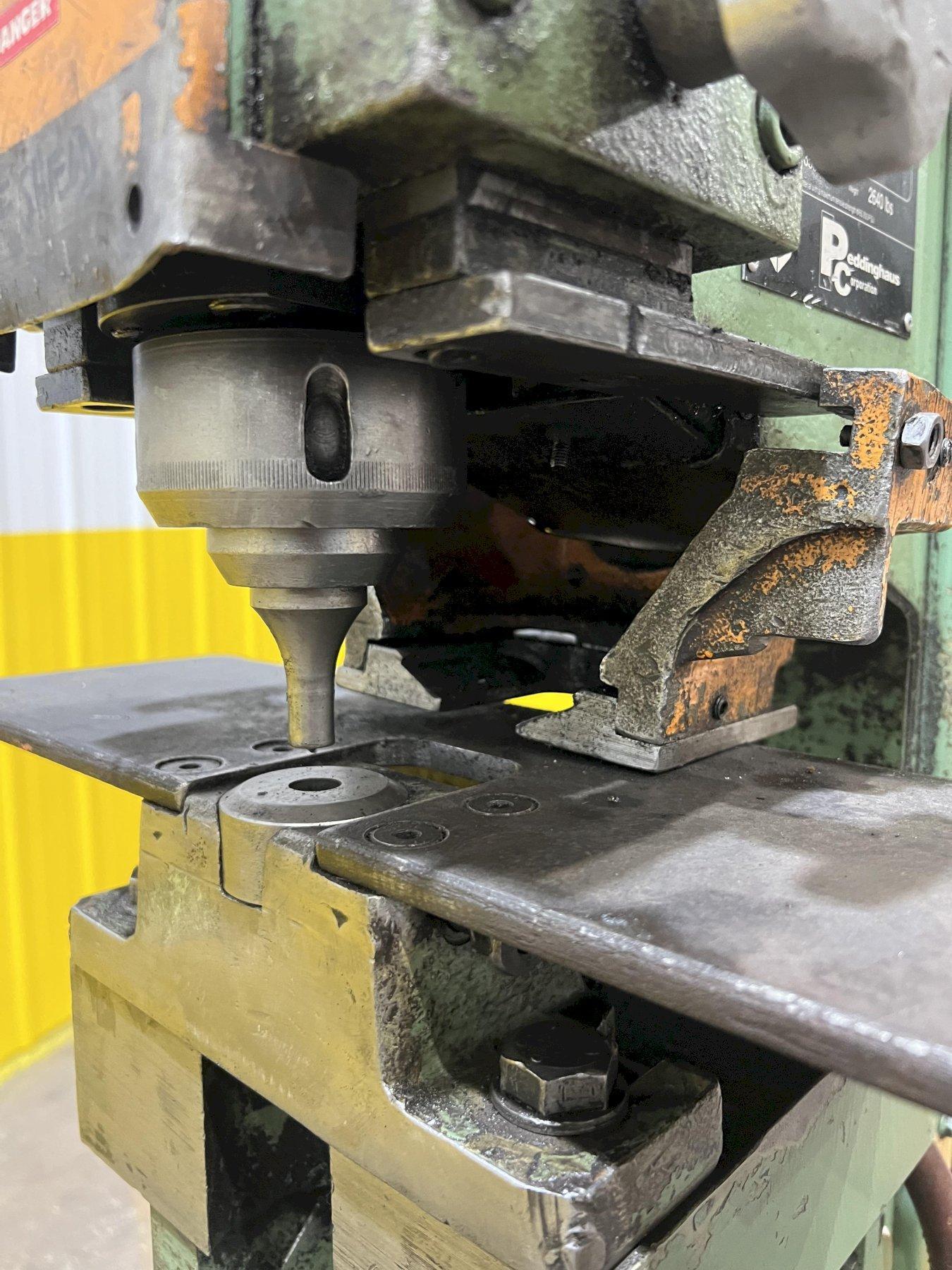

PUNCH UNIT SPECIFICATION:
CAPACITY ................. 105 TONS
PUNCH CAPACITY ........... 1-1/4" IN 3/4"
CHANNELS IN FLANGE ....... 4" TO 15"
CHANNELS IN WEB .......... 4" TO 15"

PUNCH WITH OVERSIZE PUNCHING ATTACHMENT:
UP TO 2-1/2" ............. 2-1/2" X 7/16"
UP TO 3-1/2" ............. 3-1/2" X 11/32"
THROAT DEPTH ............. 10"
WORKING HEIGHT ........... 44-3/4"
