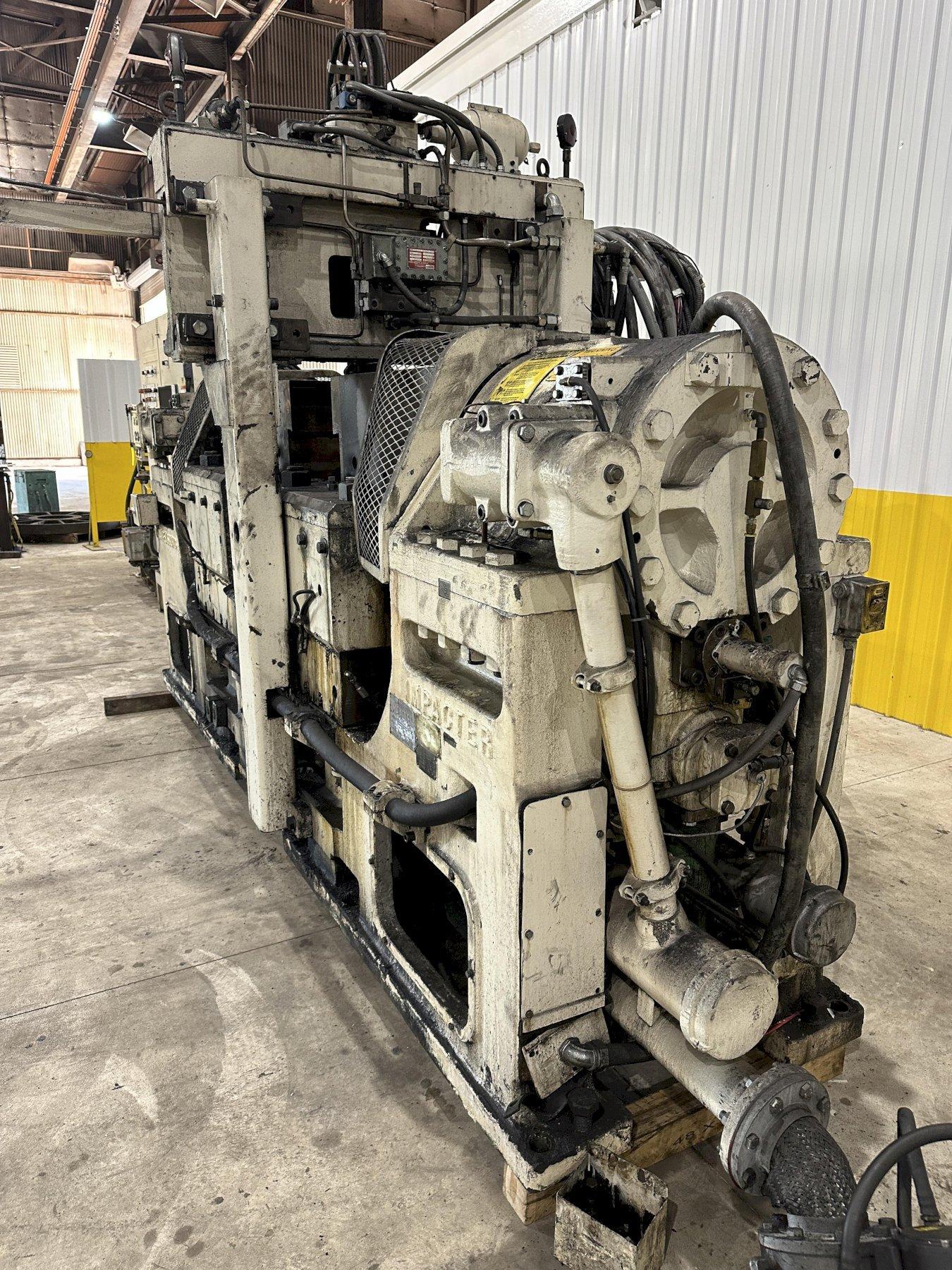

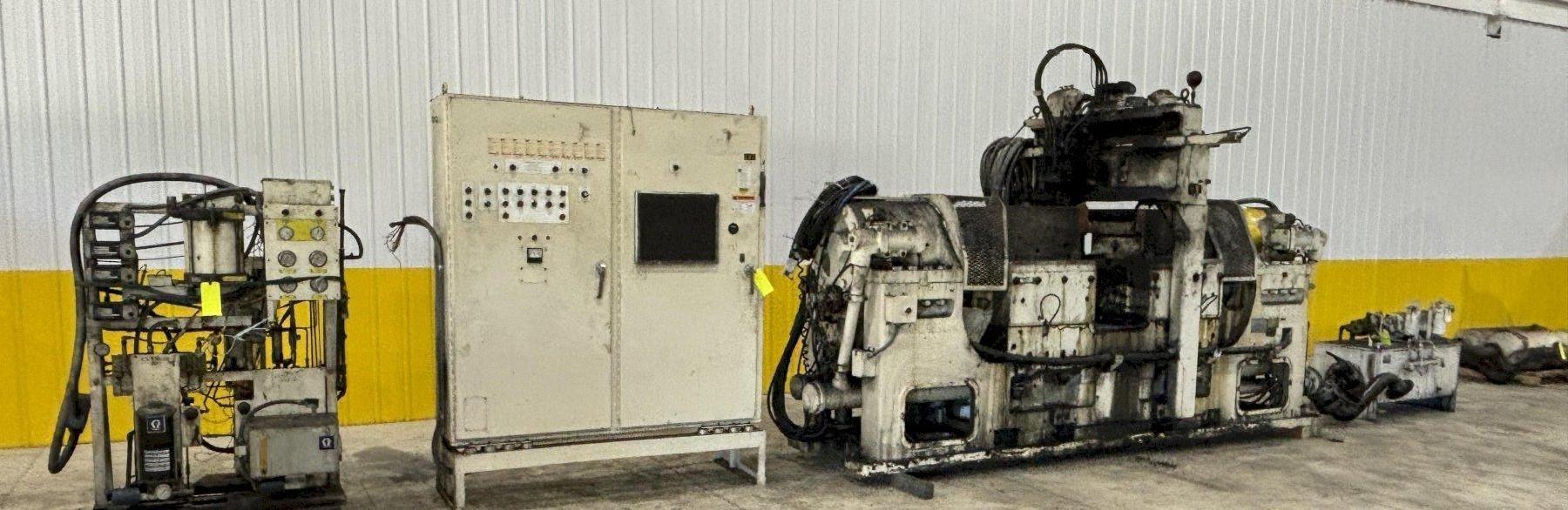

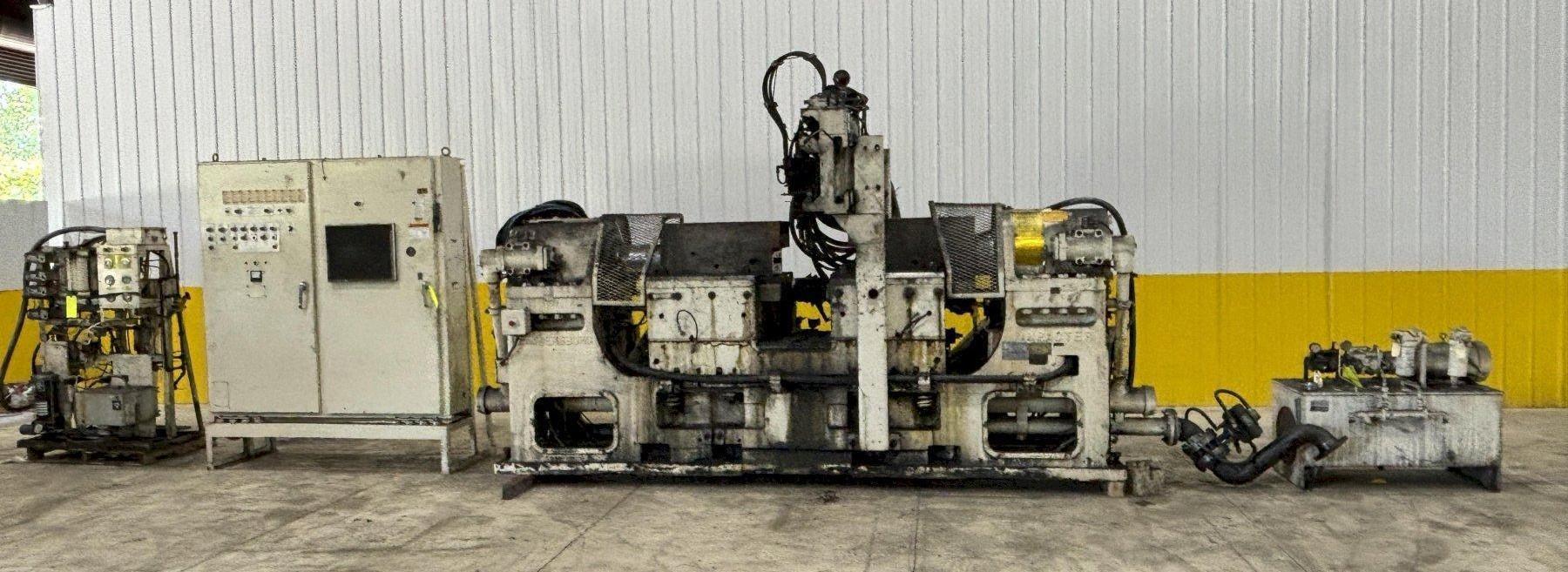

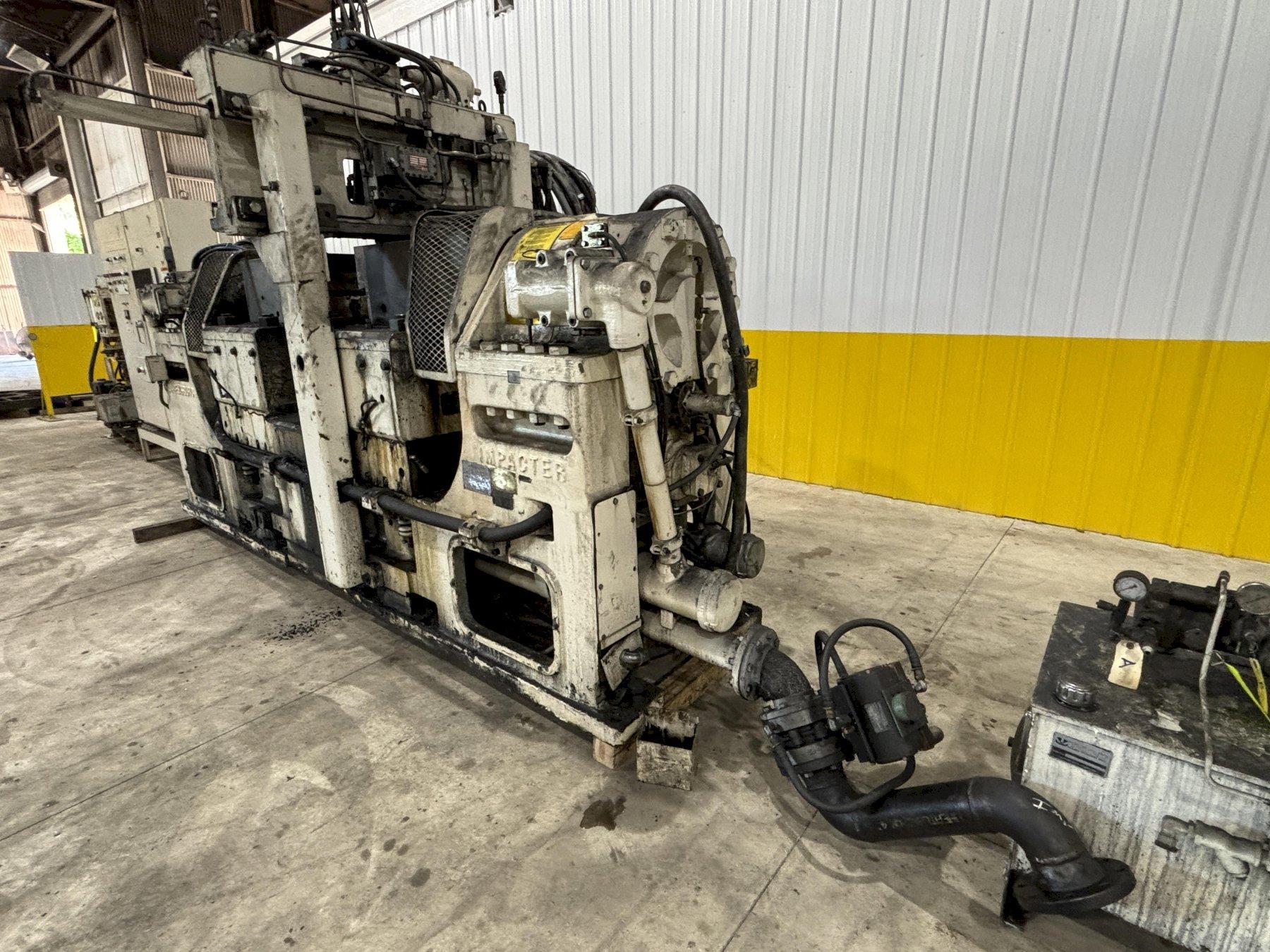

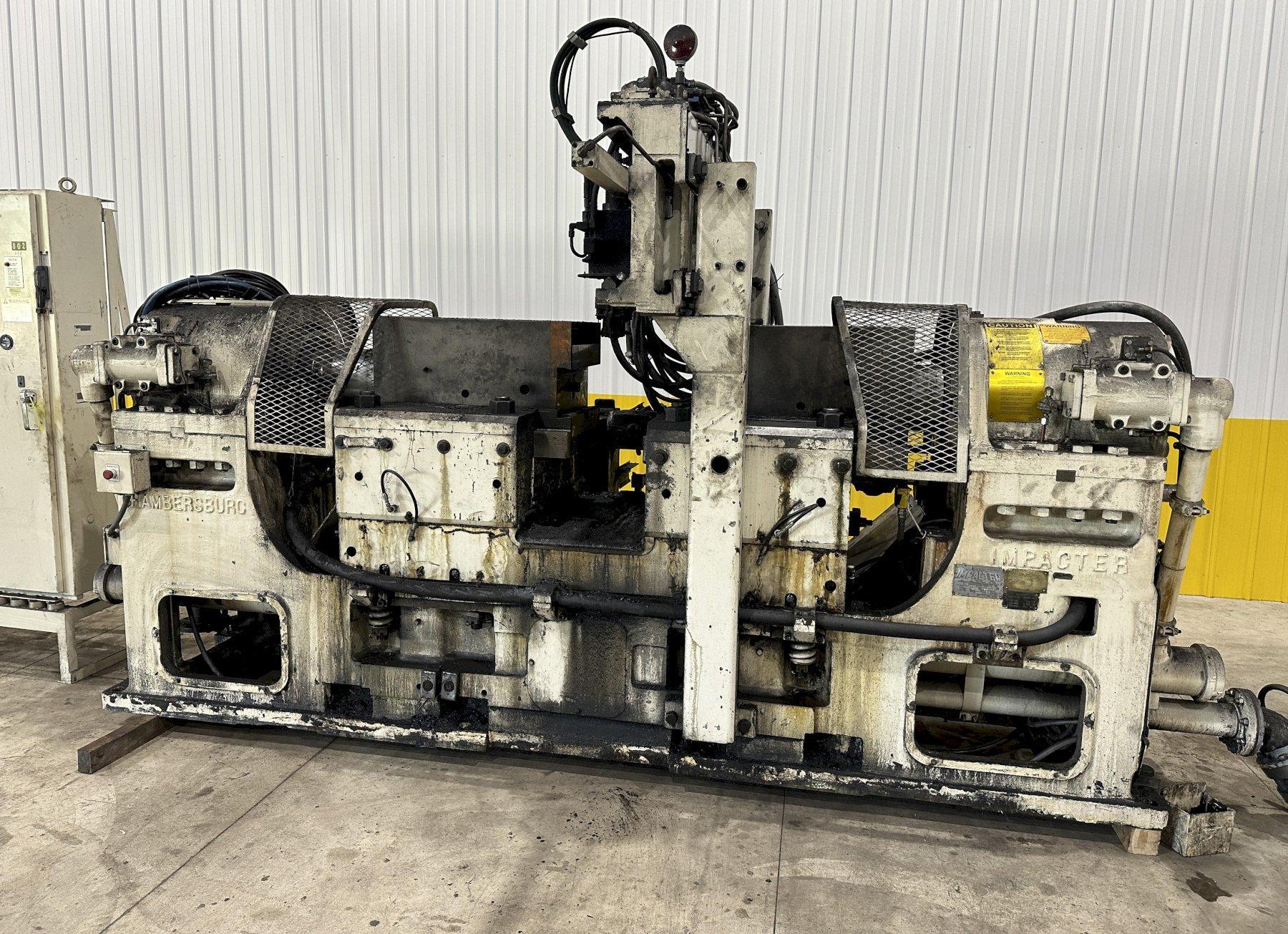

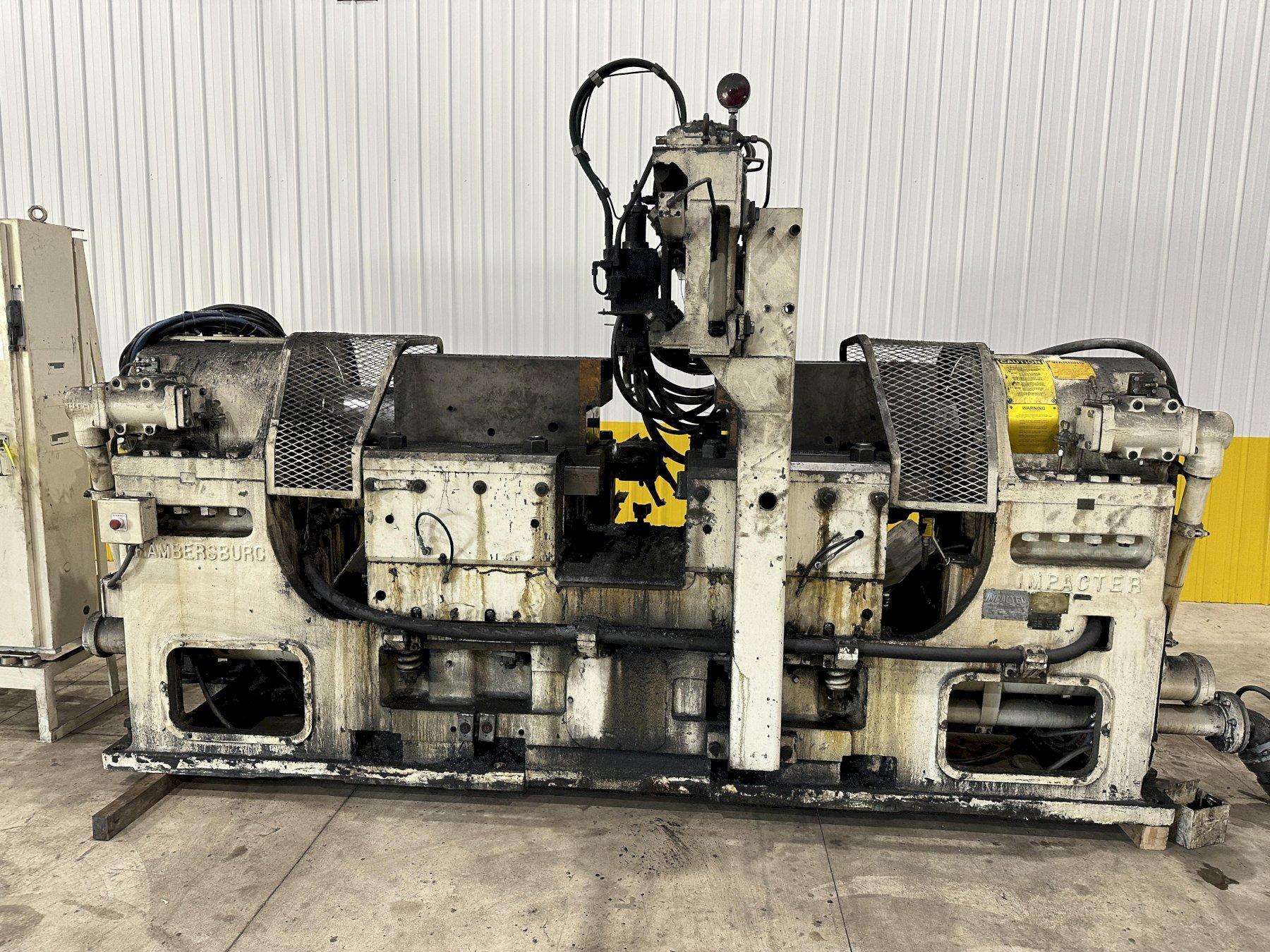

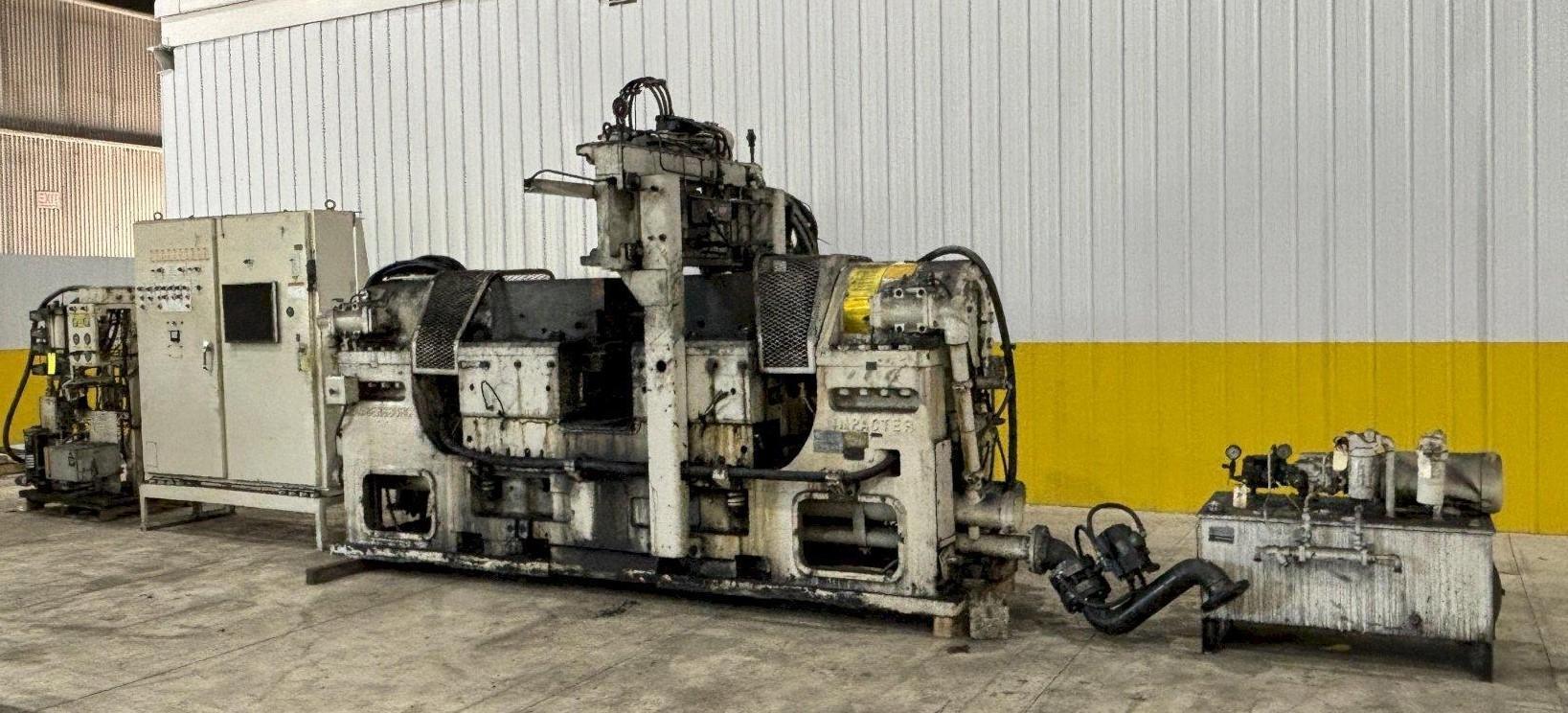

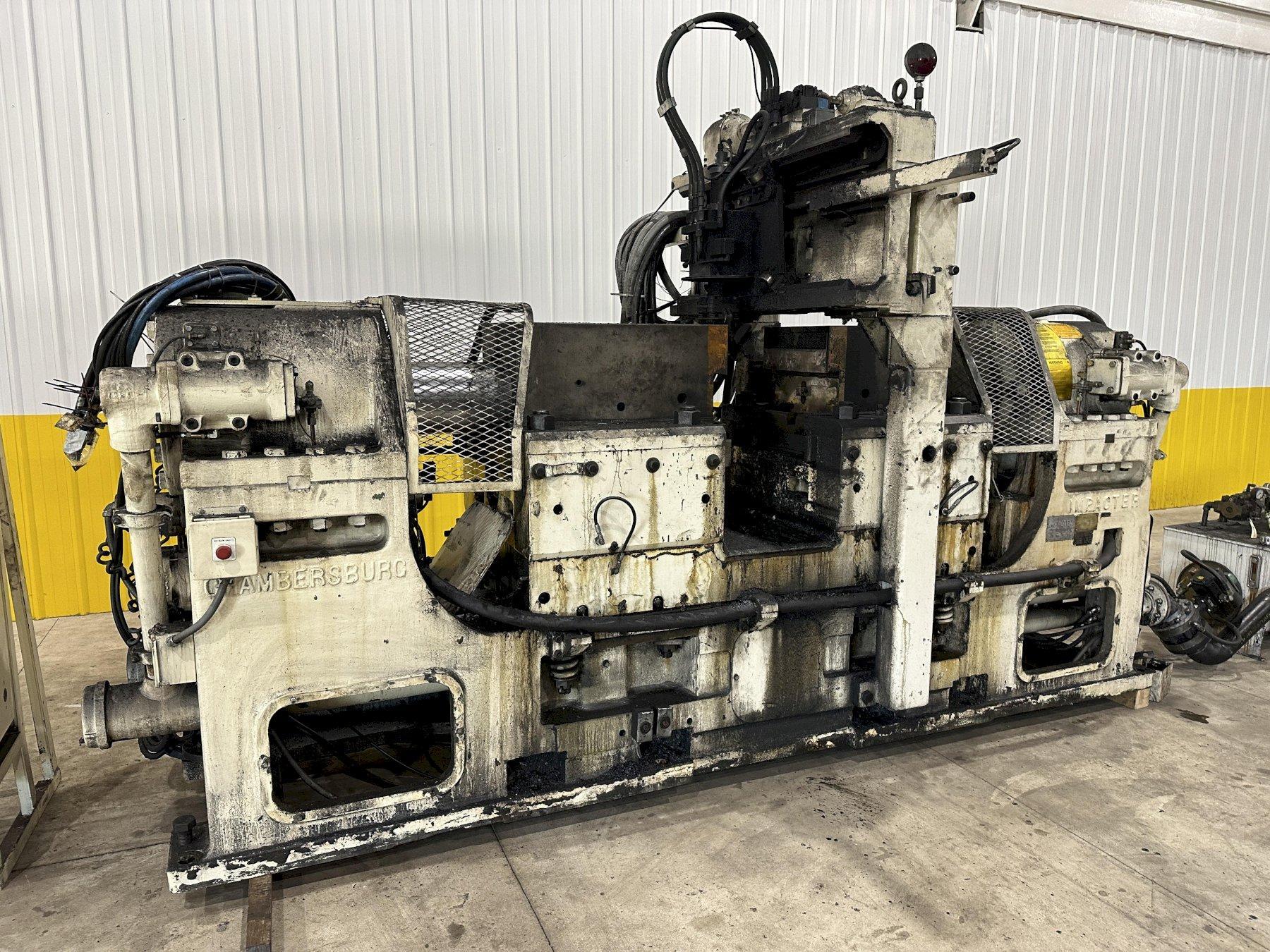

8,000 LBS FORCE CHAMBERSBURG (REBUILT 2016) MODEL #8 IMPACTER HORIZONTAL FORGING UPSETTER: STOCK

Manufacturer

CHAMBERSBURG

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

19946

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

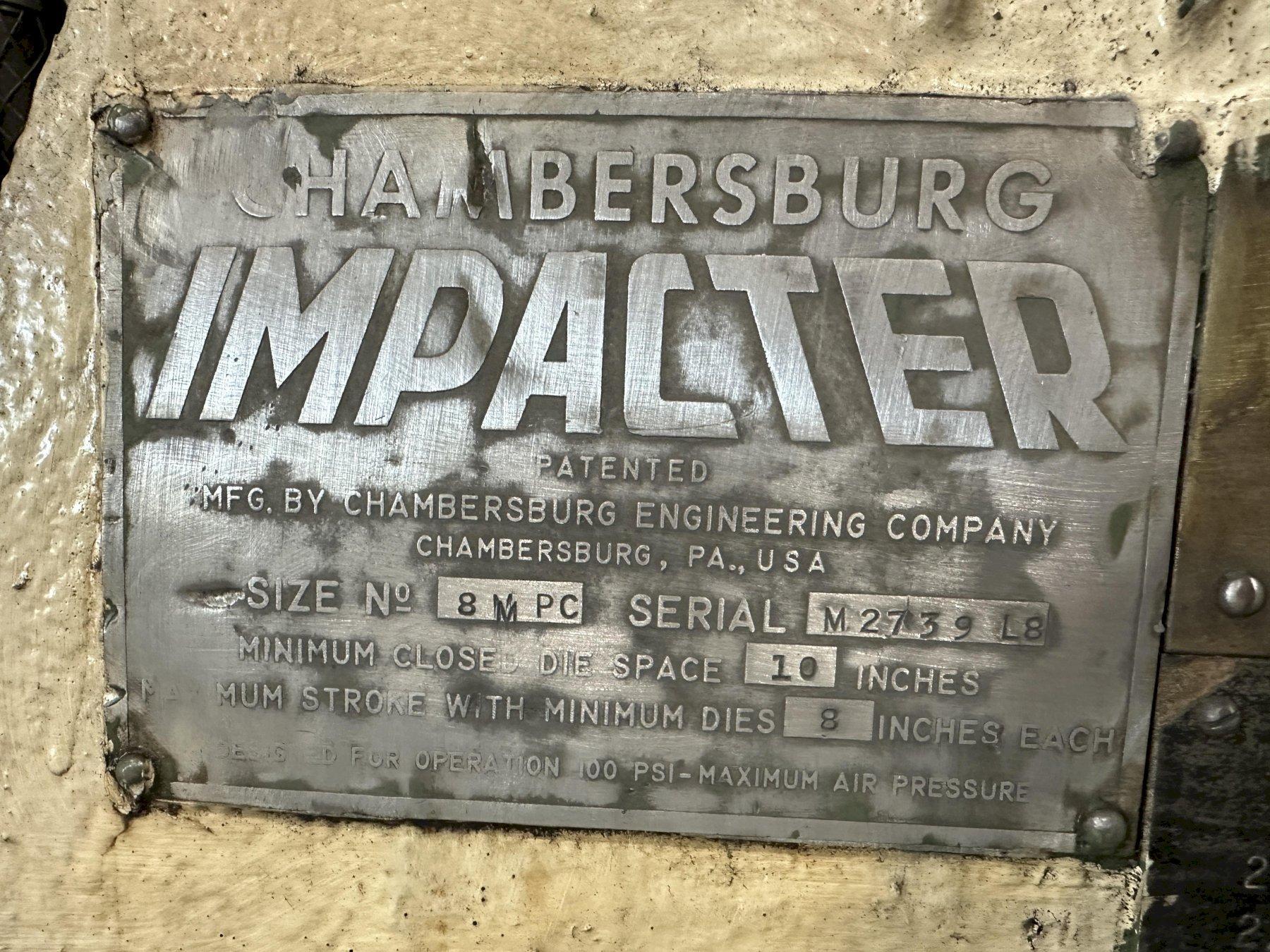

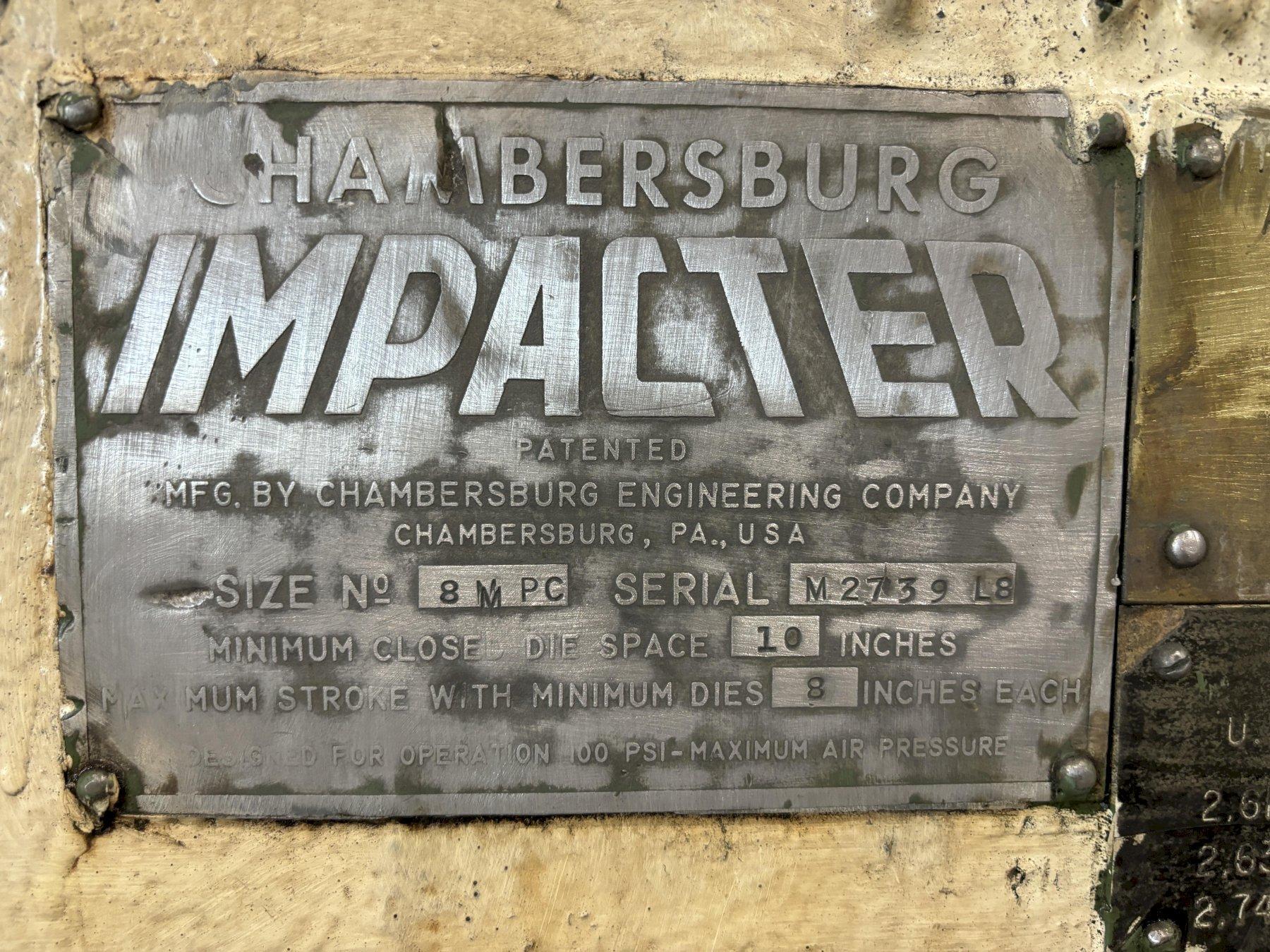

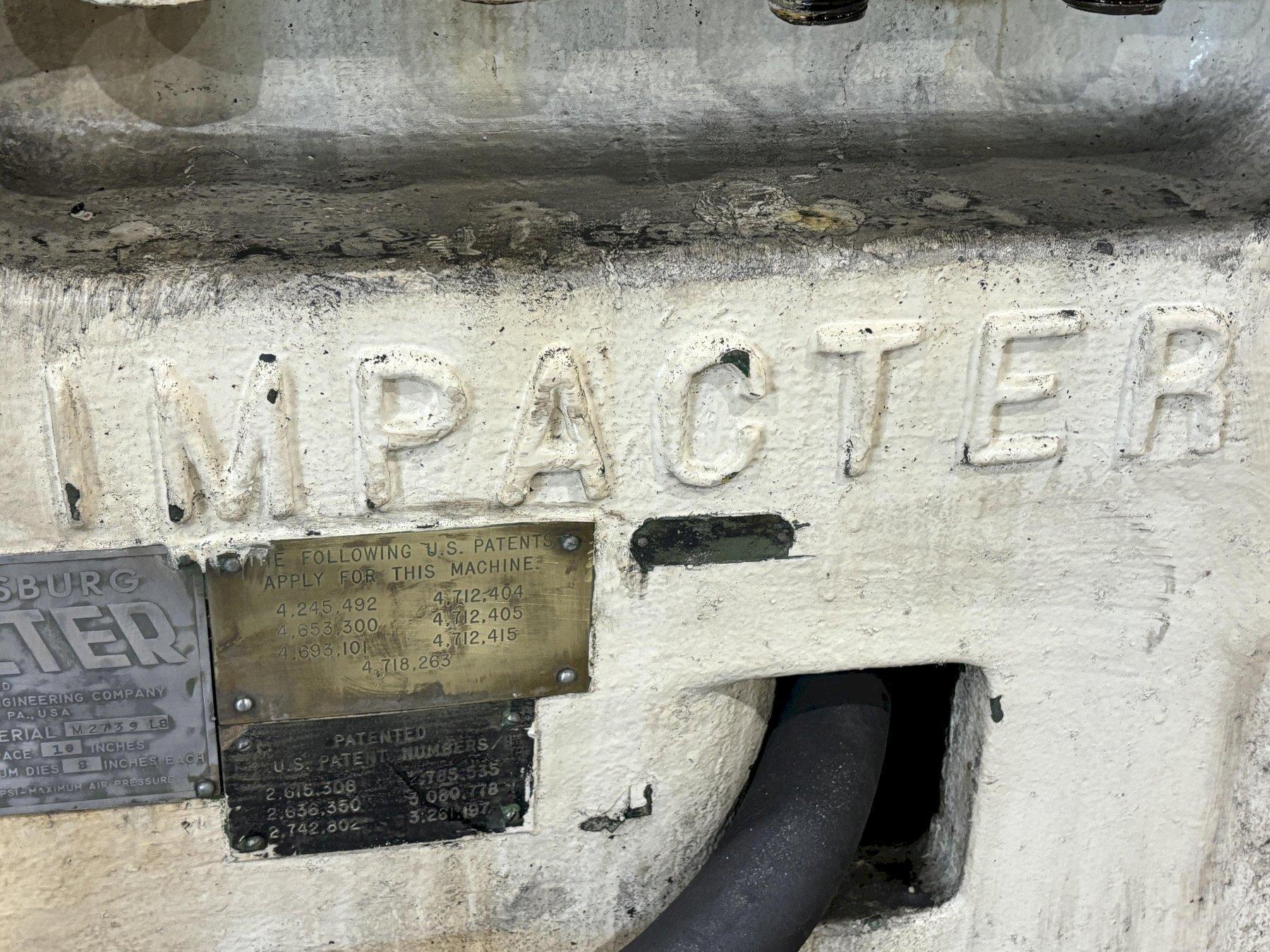

SERIAL ..................... 2739-L
YEAR REBUILT ............... 2016
UPDATED CONTROLS ........... 2016
MODEL ...................... #8MP"C"
BLOW FORCE ................. 8,000 LBS
BORE DIAMETER .............. 18"
STROKE ..................... 8"
DAYLIGHT BETWEEN DIES ...... 10" TO 15"

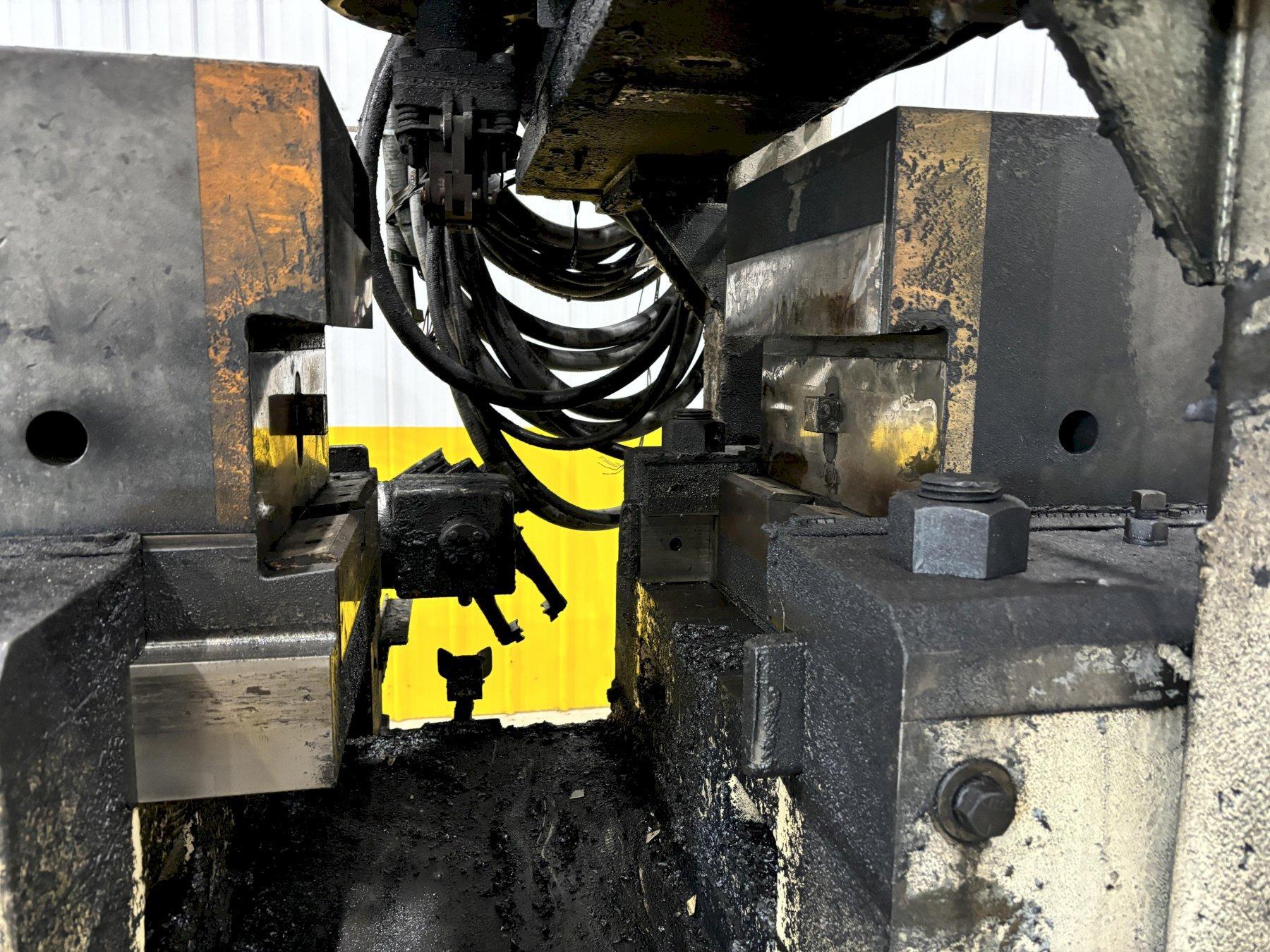

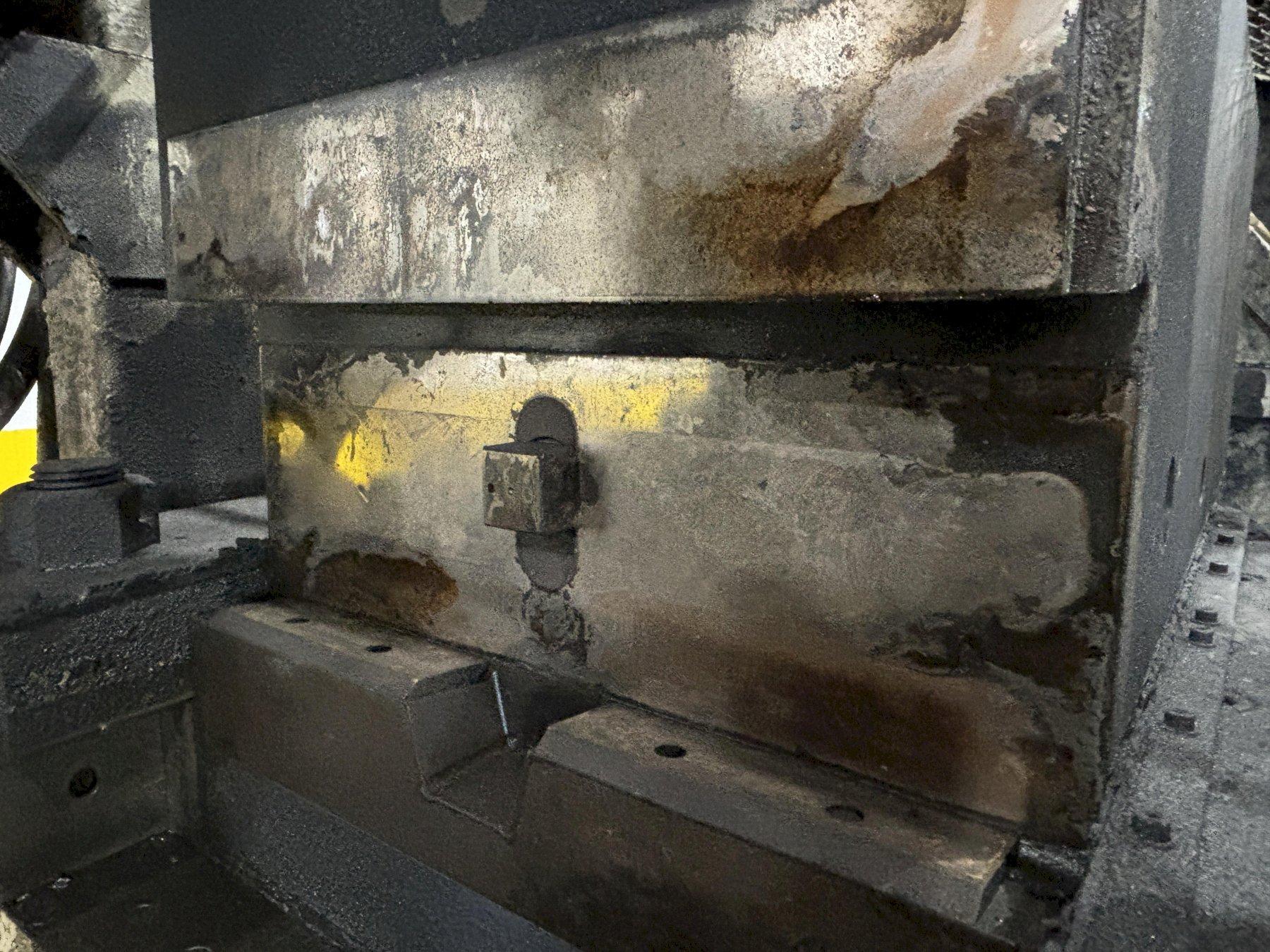

DIE AREA ................... 19" X 20"
BLOWS PER MINUTE ........... 140 MAX
INTAKE ..................... 4"
EXHAUST (EACH END) ......... 4"
GUIDE PLATE ................ YES

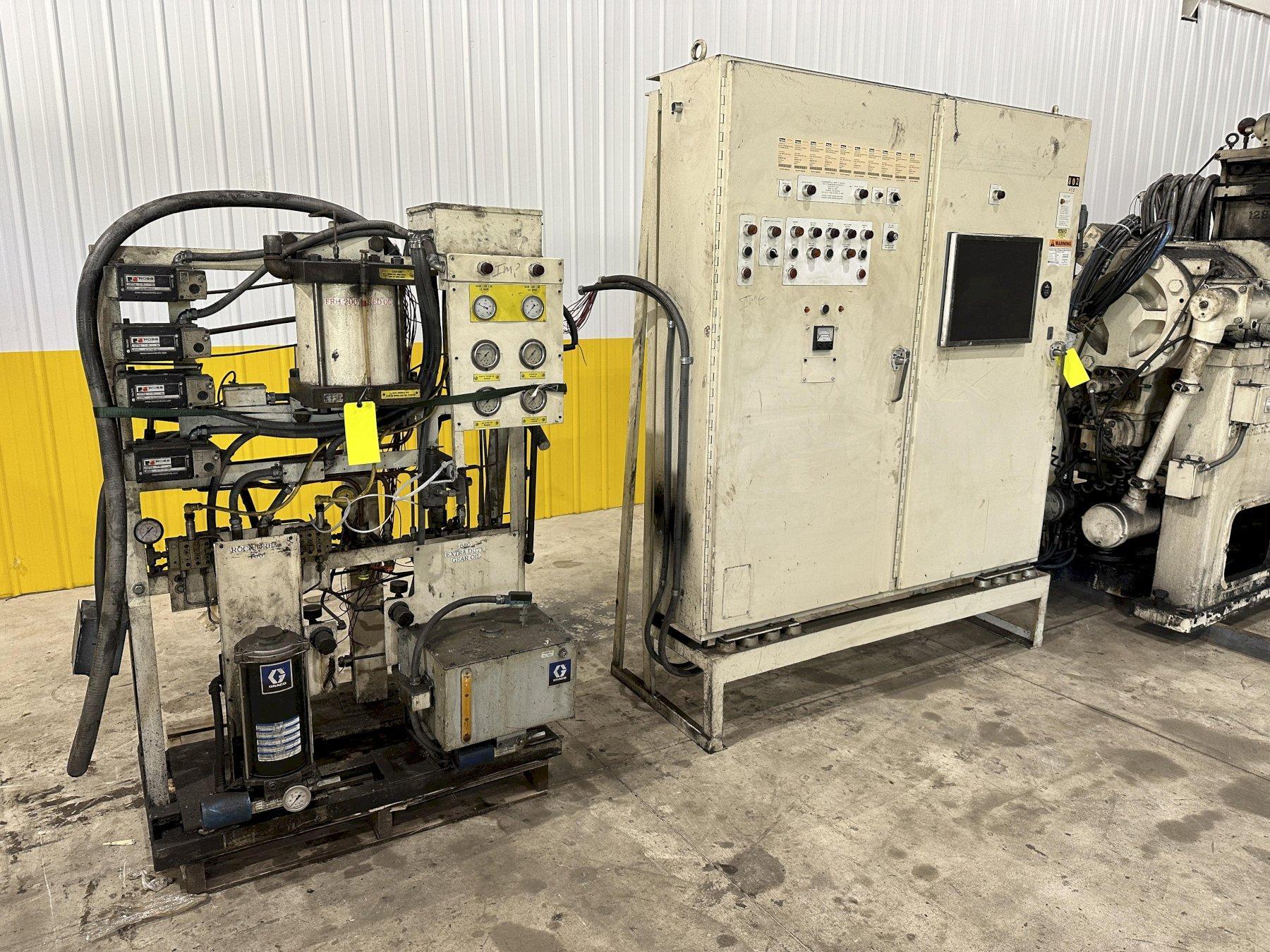

DIE LUBE SYSTEM ............ AUTOMATIC

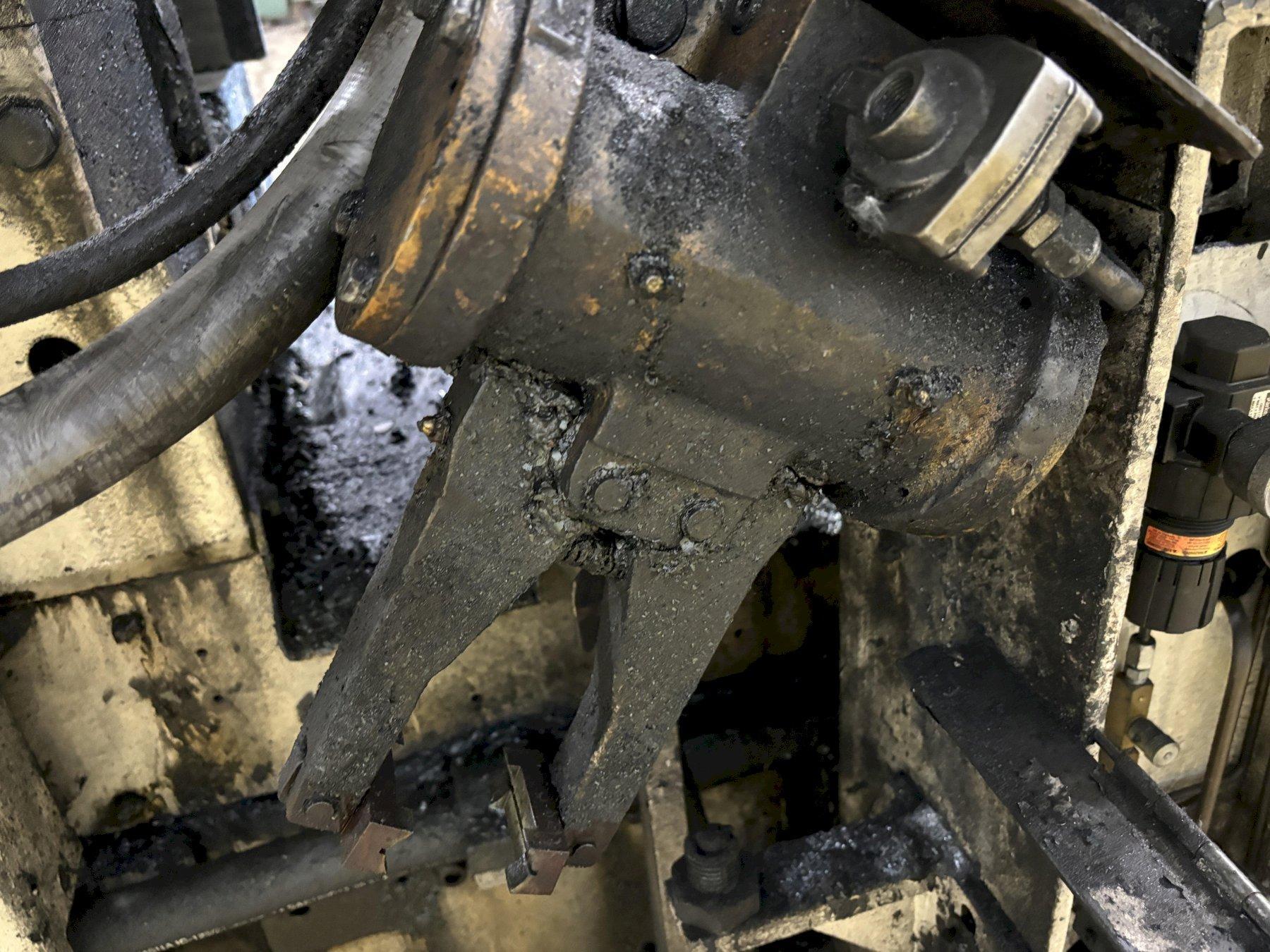

TRANSFER INDEX ARM ......... AUTOMATIC

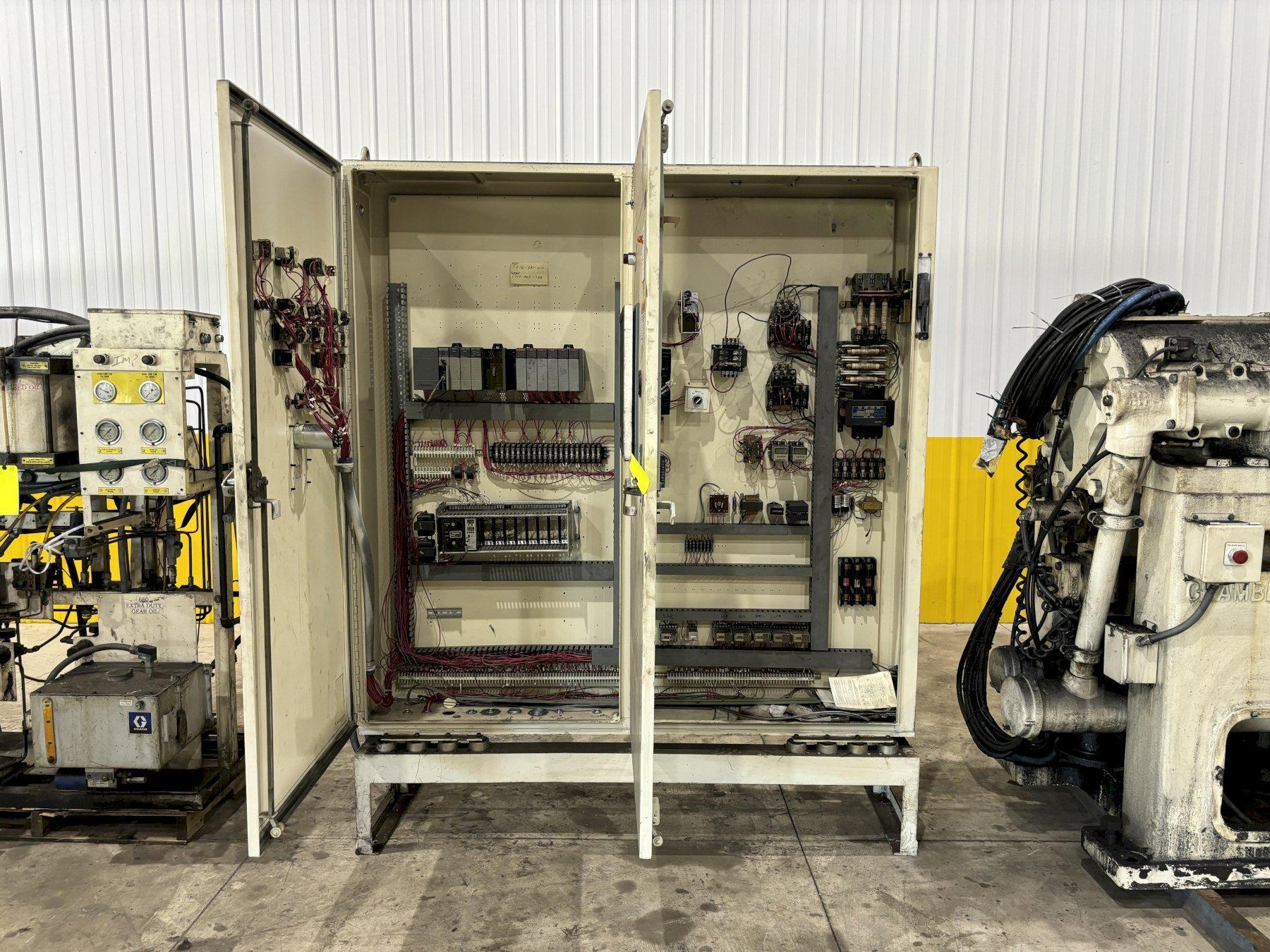

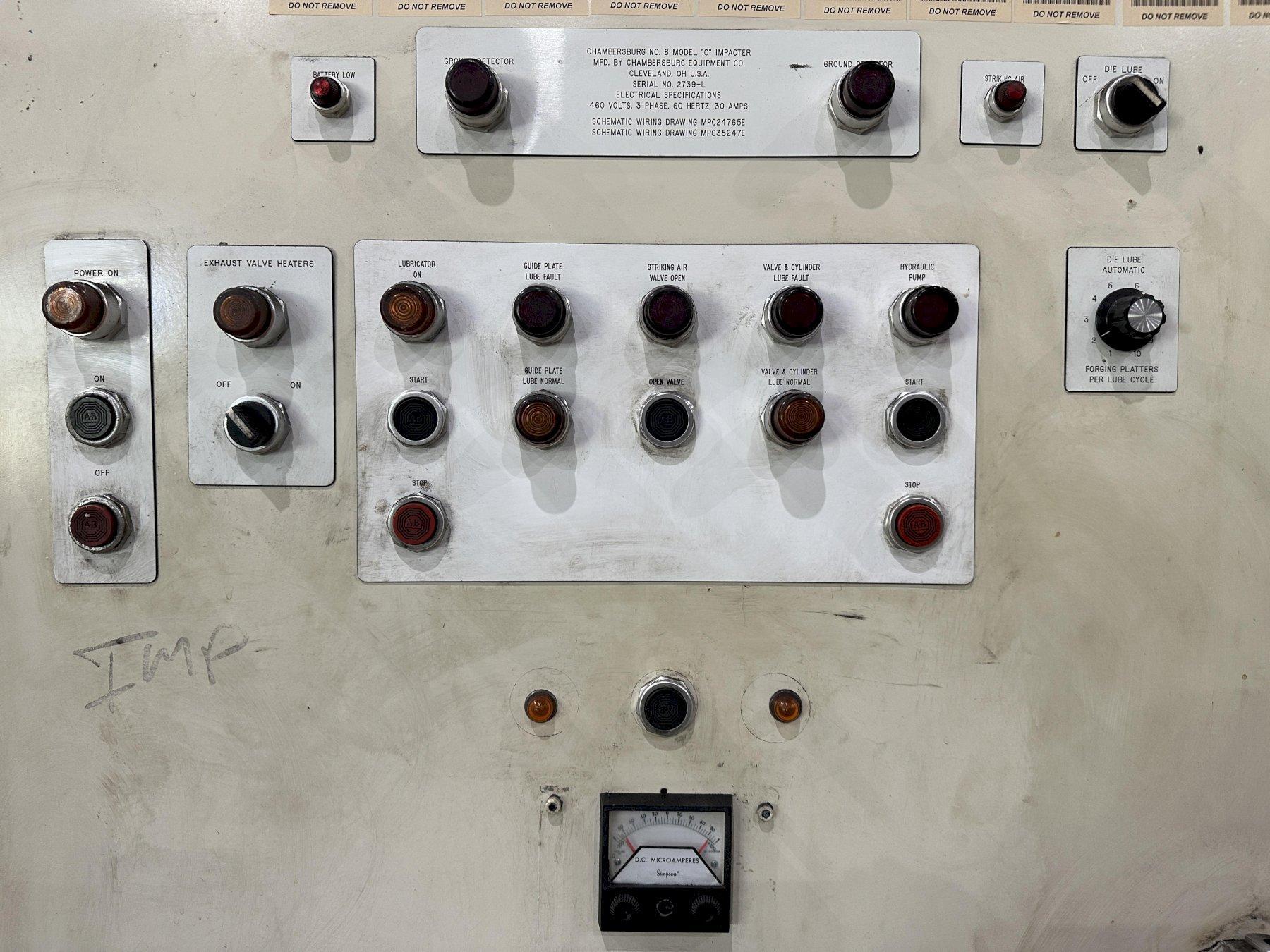

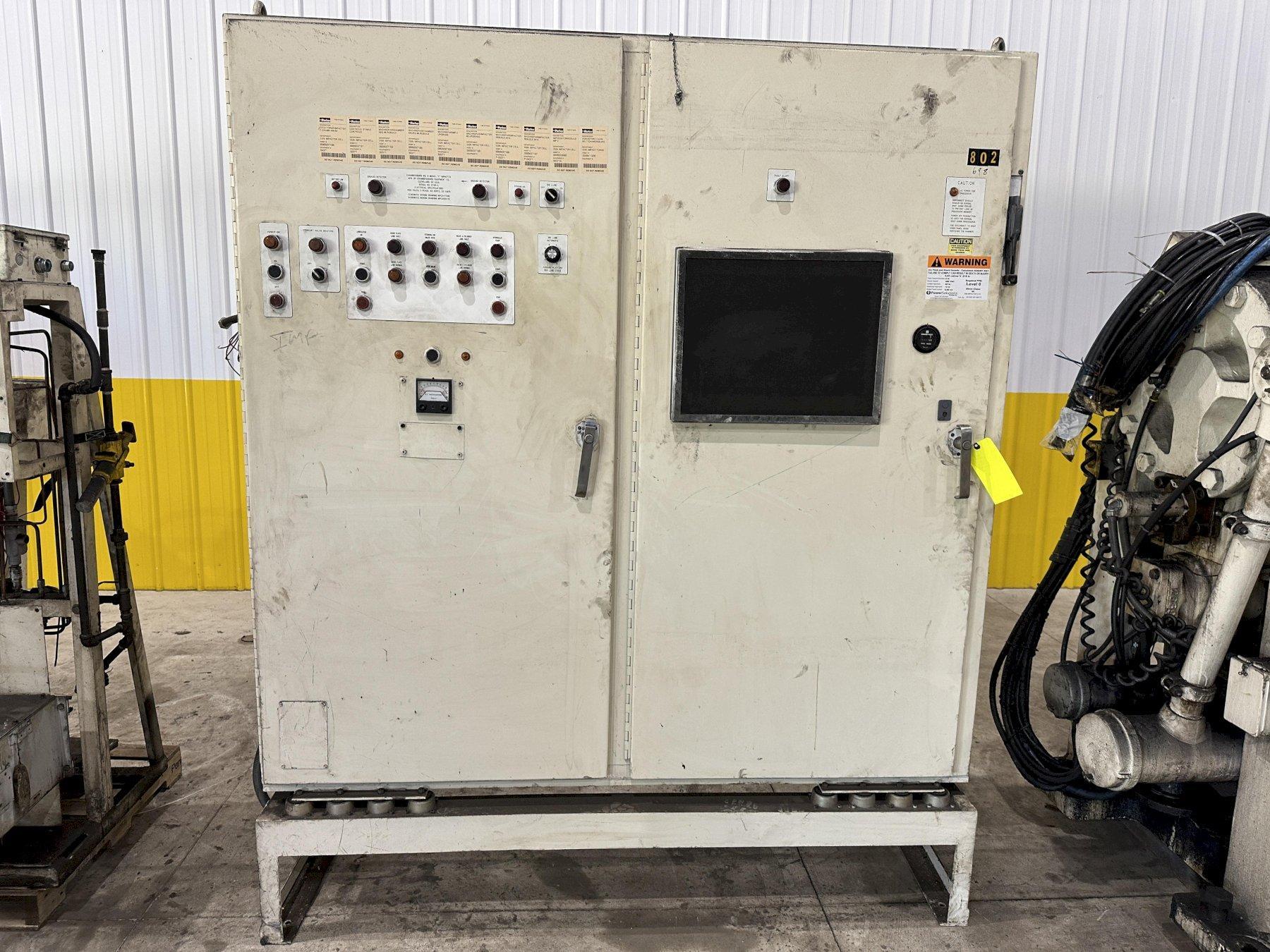

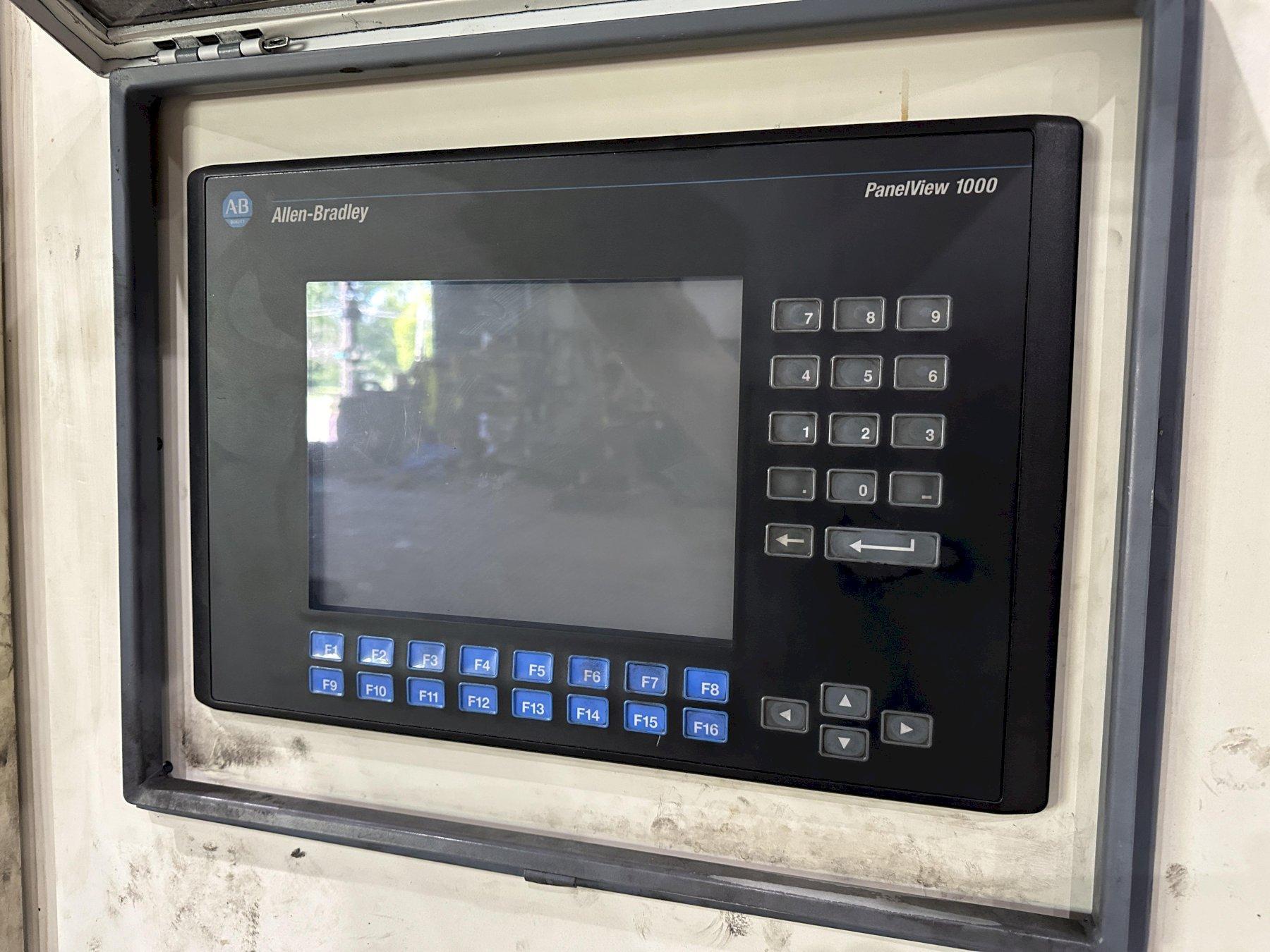

CONTROL PANEL .............. YES, ALLEN BRADLEY
OPERATOR CONTROL STATION ... YES

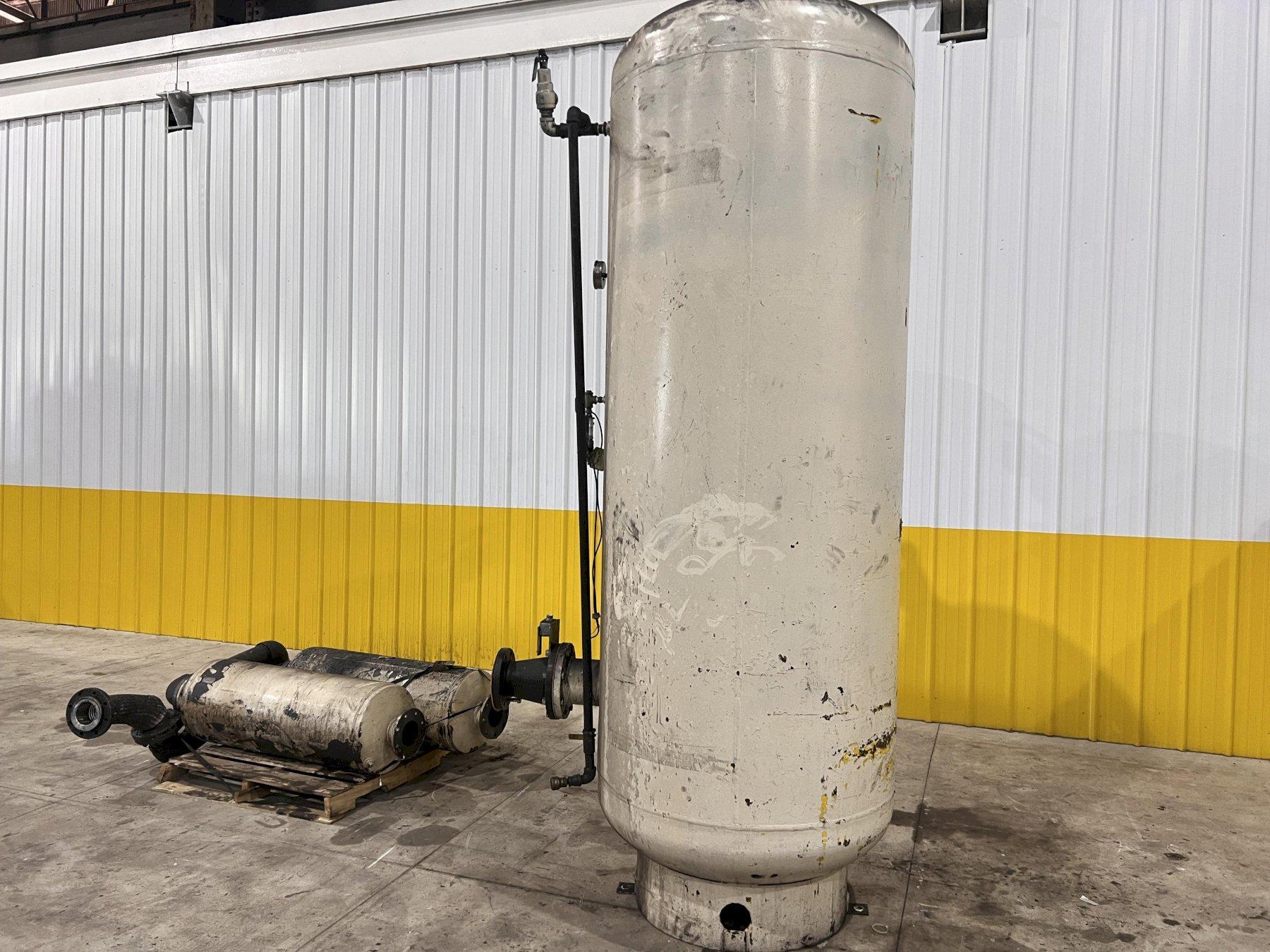

AIR SURGE TANKS ............ YES
DISCHARGE CONVEYOR ......... YES

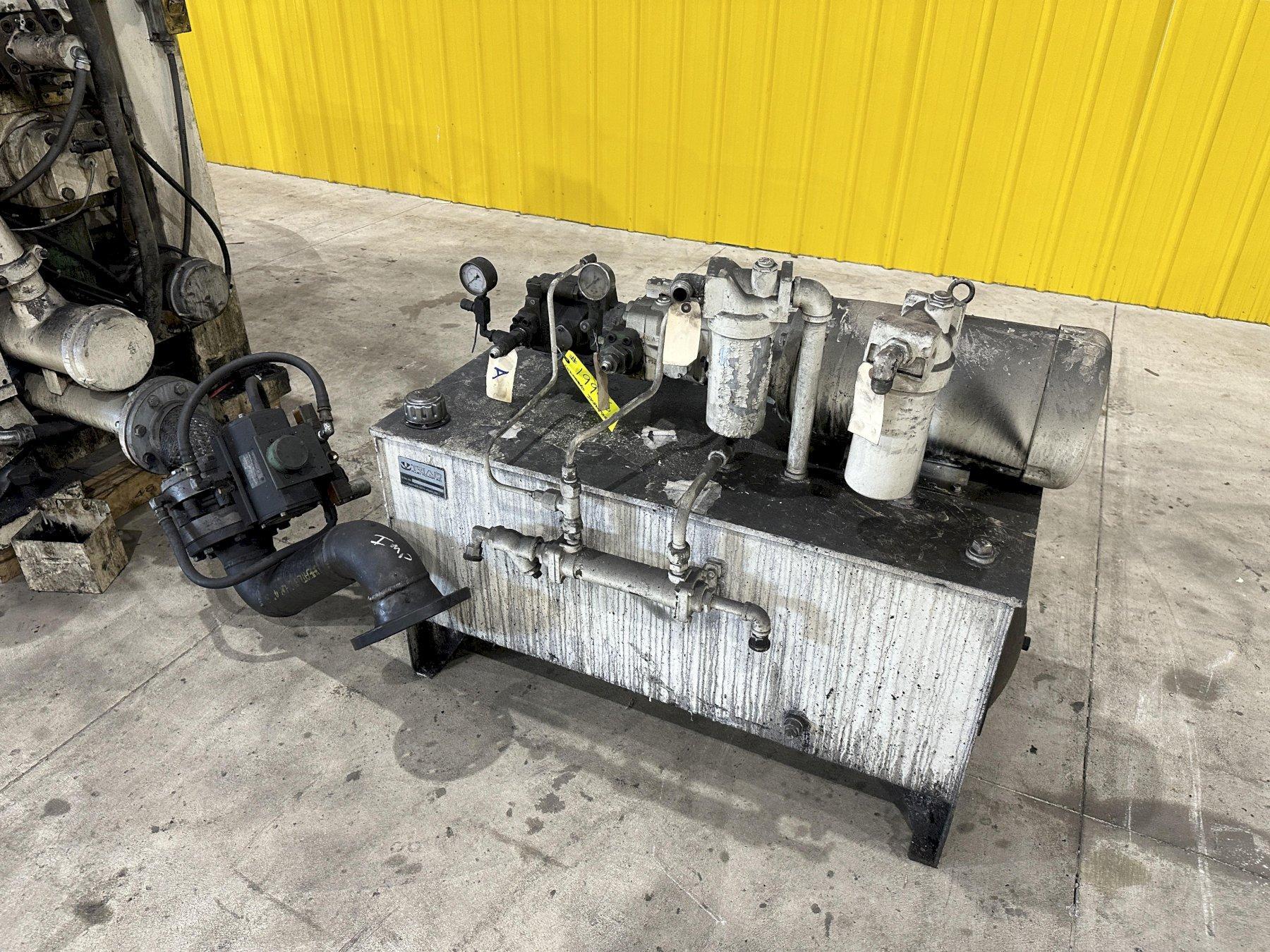

HYDRAULIC UNIT ............. 25 HP

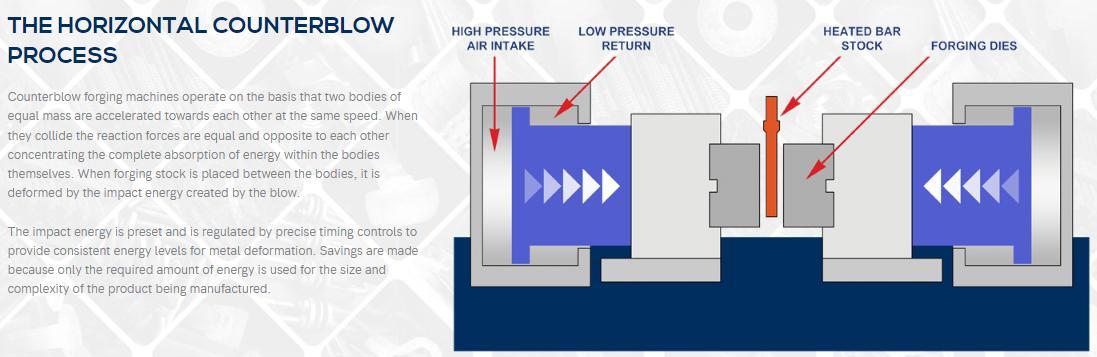

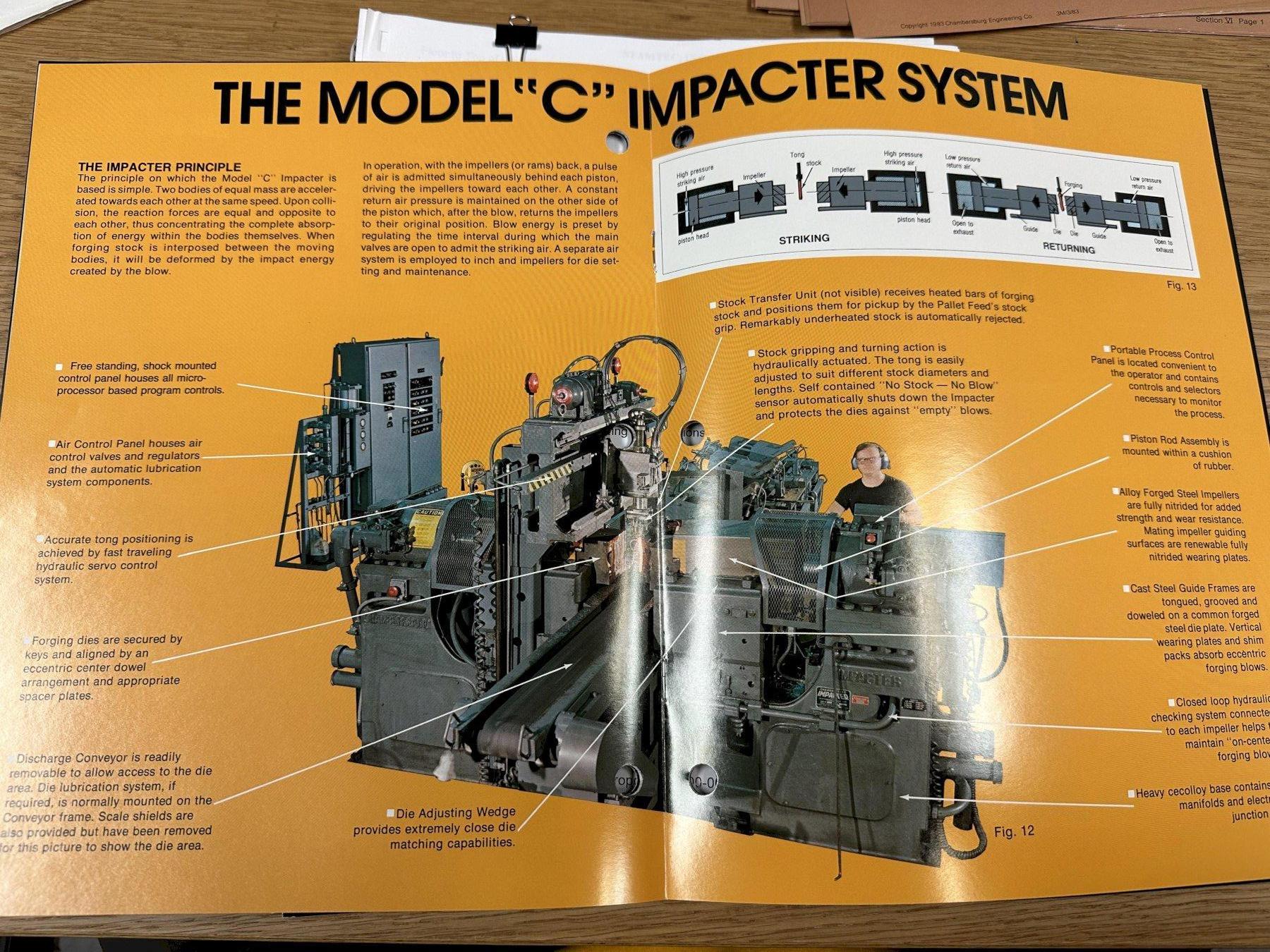

IMPACTOR FORGING WAS DEVELOPED WHERE THE FORCE(COUNTER-BLOW)
OF IMPACT IS ABSORBED BY THE IMPACT ELEMENTS, THEREBY
ELIMINATION THE NECESSITY FOR HEAVY FOUNDATIONS AND
ANVIL STRUCTURES ORDINARILY ASSOCIATED WITH SUCK APPARATUS.

FEATURES LIKE PROGRAMMABLE ENERY LEVELS, BLOW PATTERNS, AND
AUTOMATIC STOCK HANDLING PRODUCE A MORE UNIFORM AND
HIGHER VOLUME PRODUCTION.
