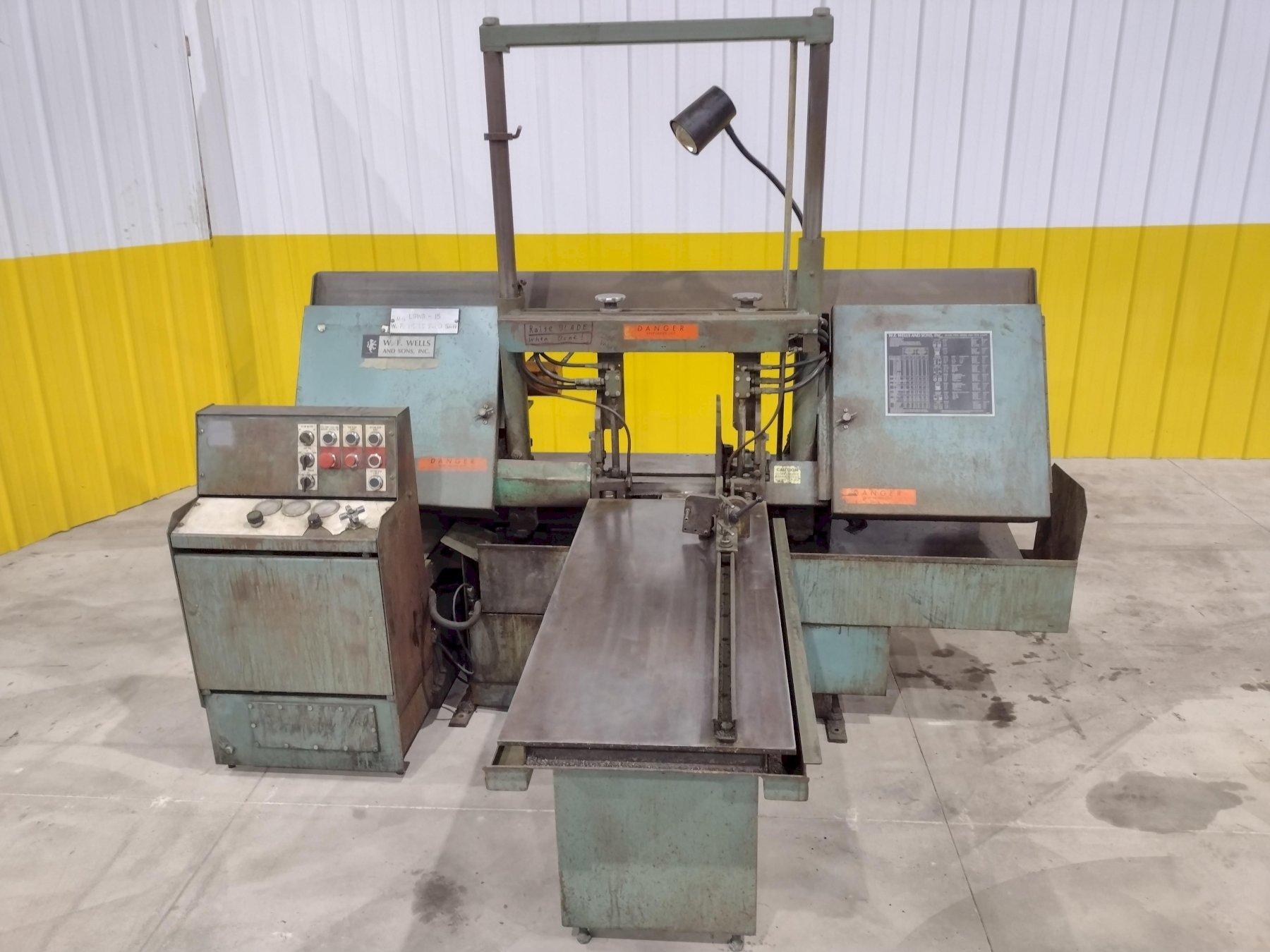

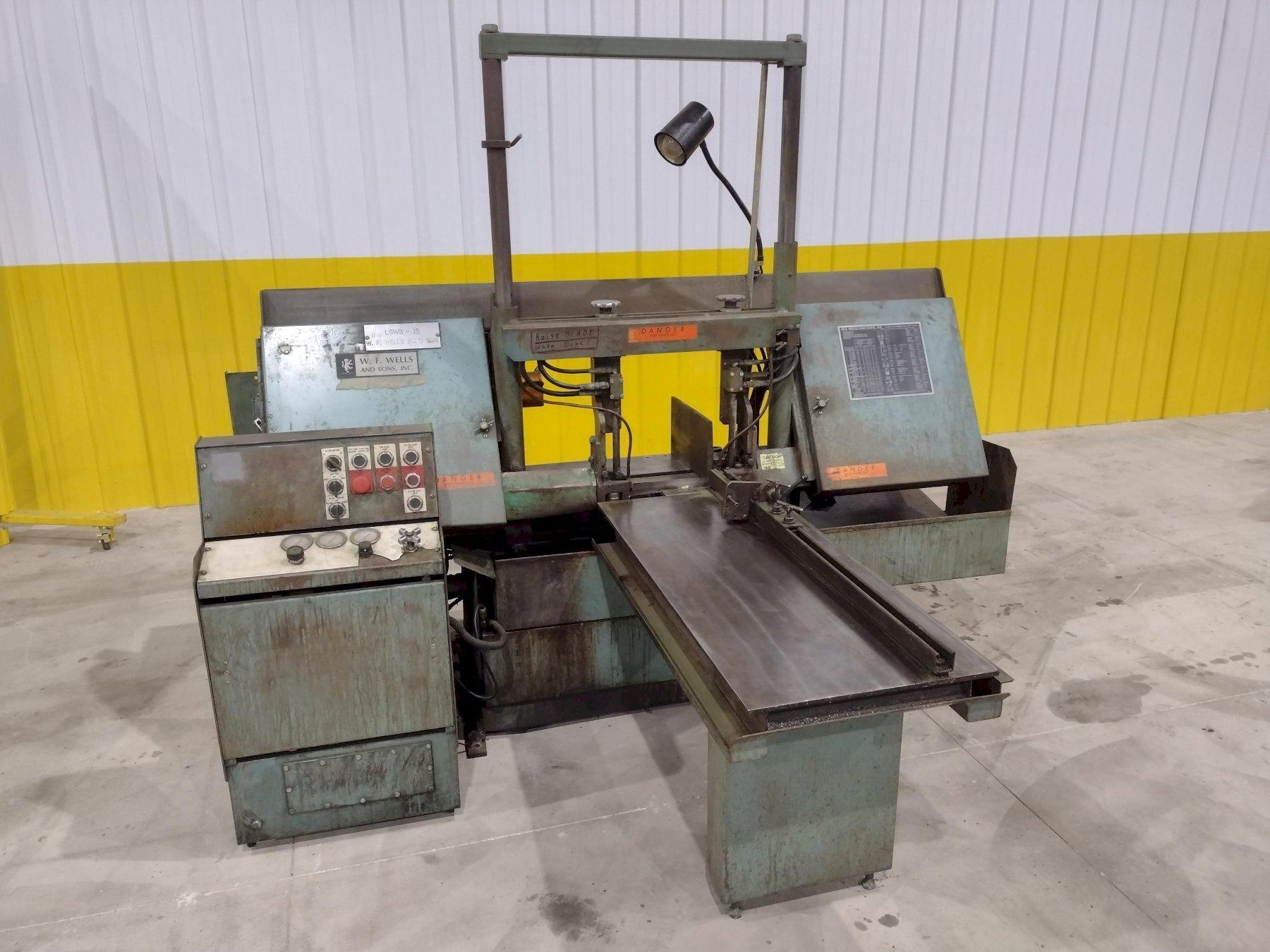

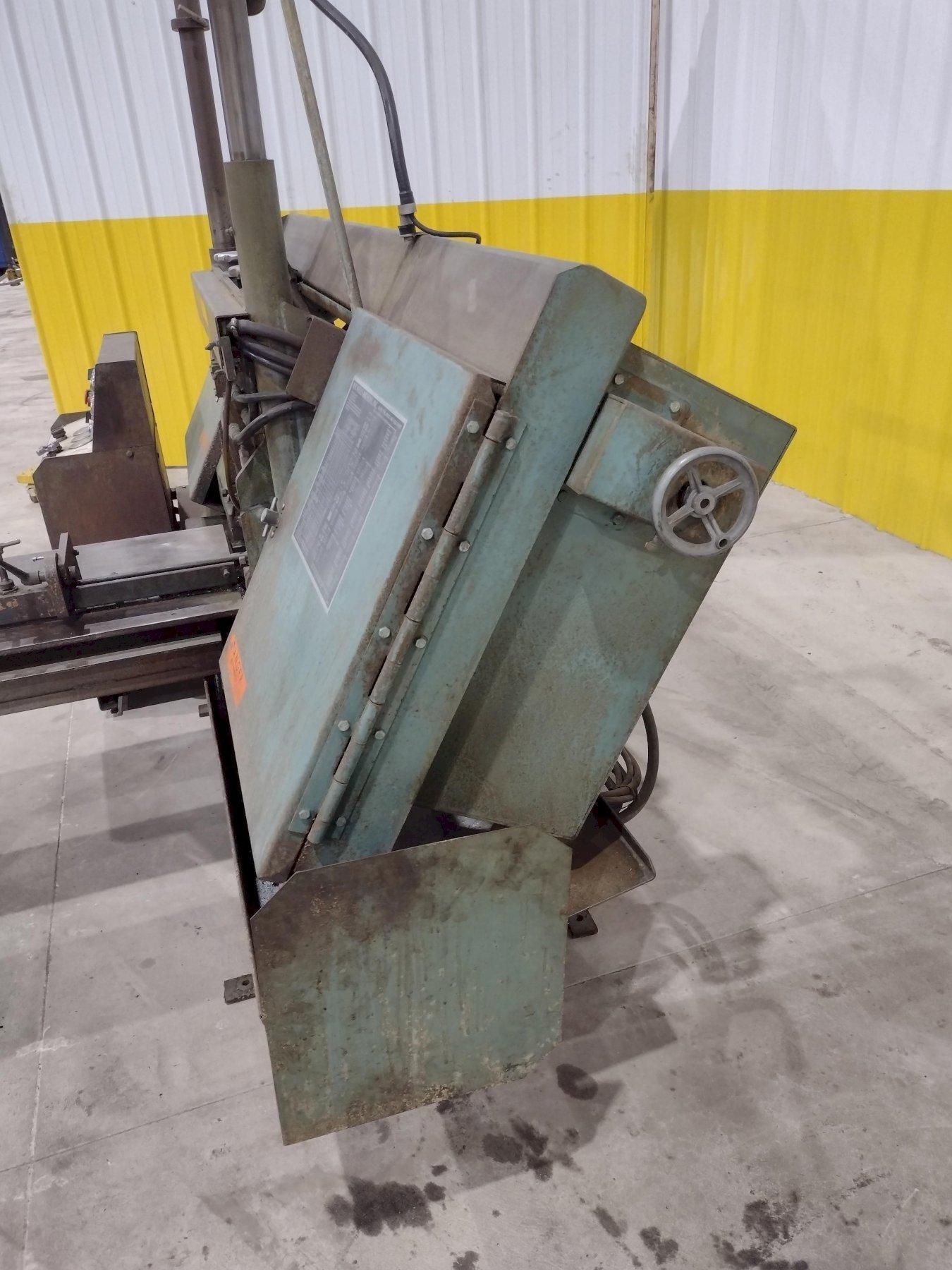

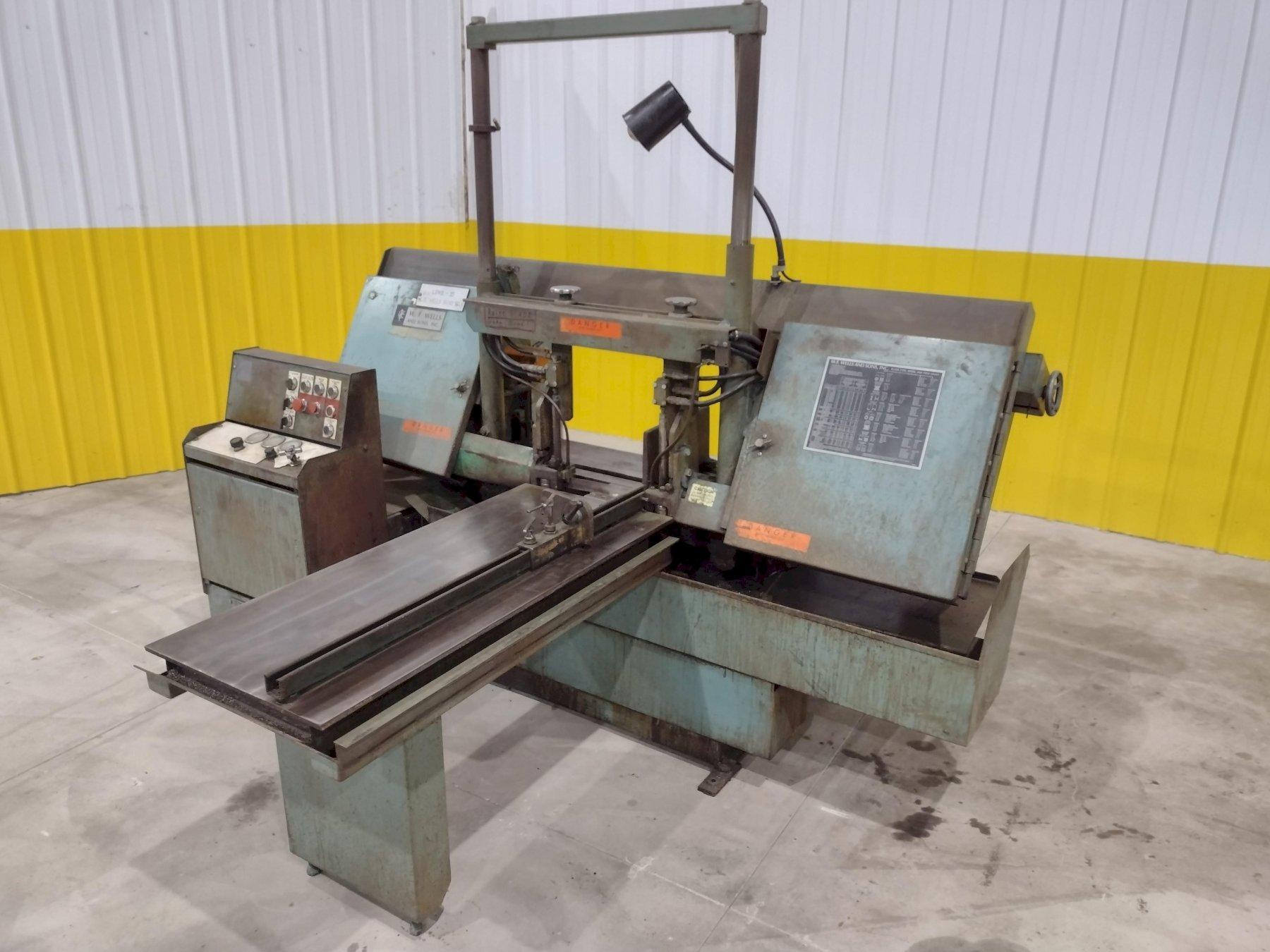

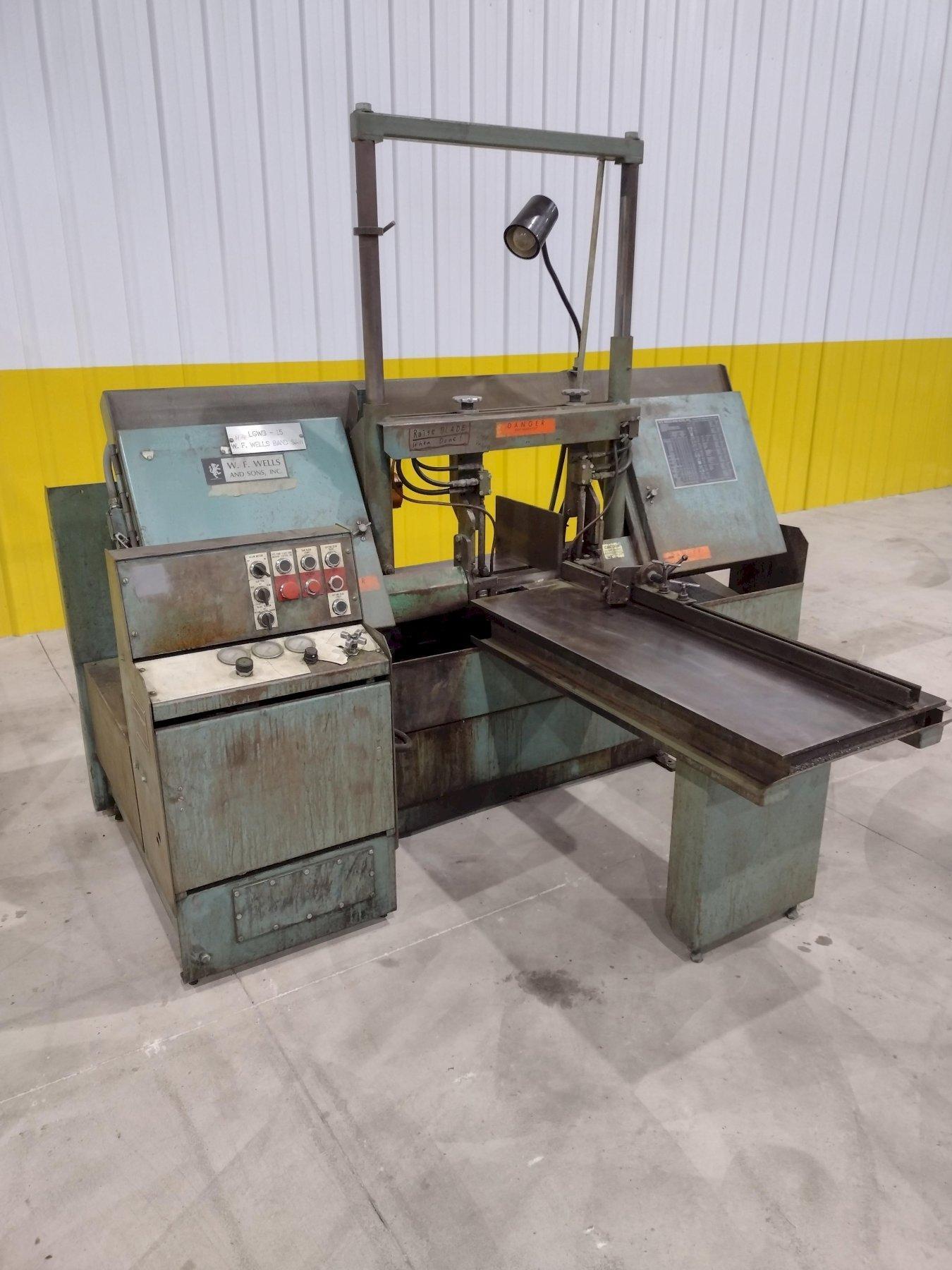

16" x 20" W.F. WELLS MODEL #F-16-2 HYDRAULIC TWIN POST HORIZONTAL BANDSAW: STOCK #20094

Manufacturer

W.F. WELLS

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

20094

Model

F-16-2

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 97″ x 49″ x 83″ H
Weight - 2450 pounds

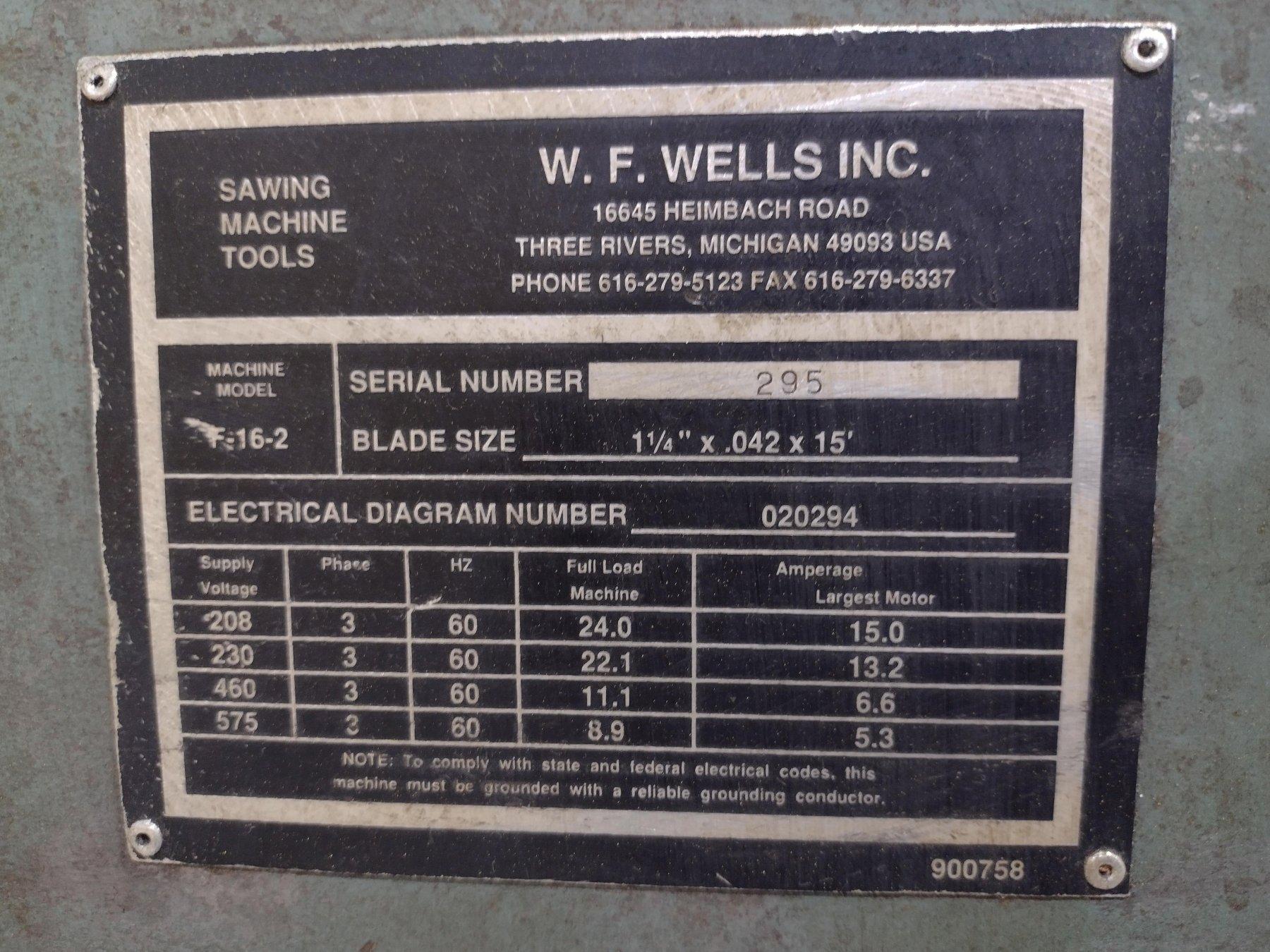

SERIAL .......................... 295
MODEL ........................... F-16-2A TWIN POST
CAPACITY (RECTANGULAR @ 90°) .... 16″H X 20″W
CAPACITY (ROUND @ 90°) .......... 16″ DIAMETER
WEIGHT CAPACITY ................. 5,000 LBS
BLADE SPEED ..................... 60 TO 425 SFPM
BLADE SIZE ...................... 1¼” X .042″ X 15′

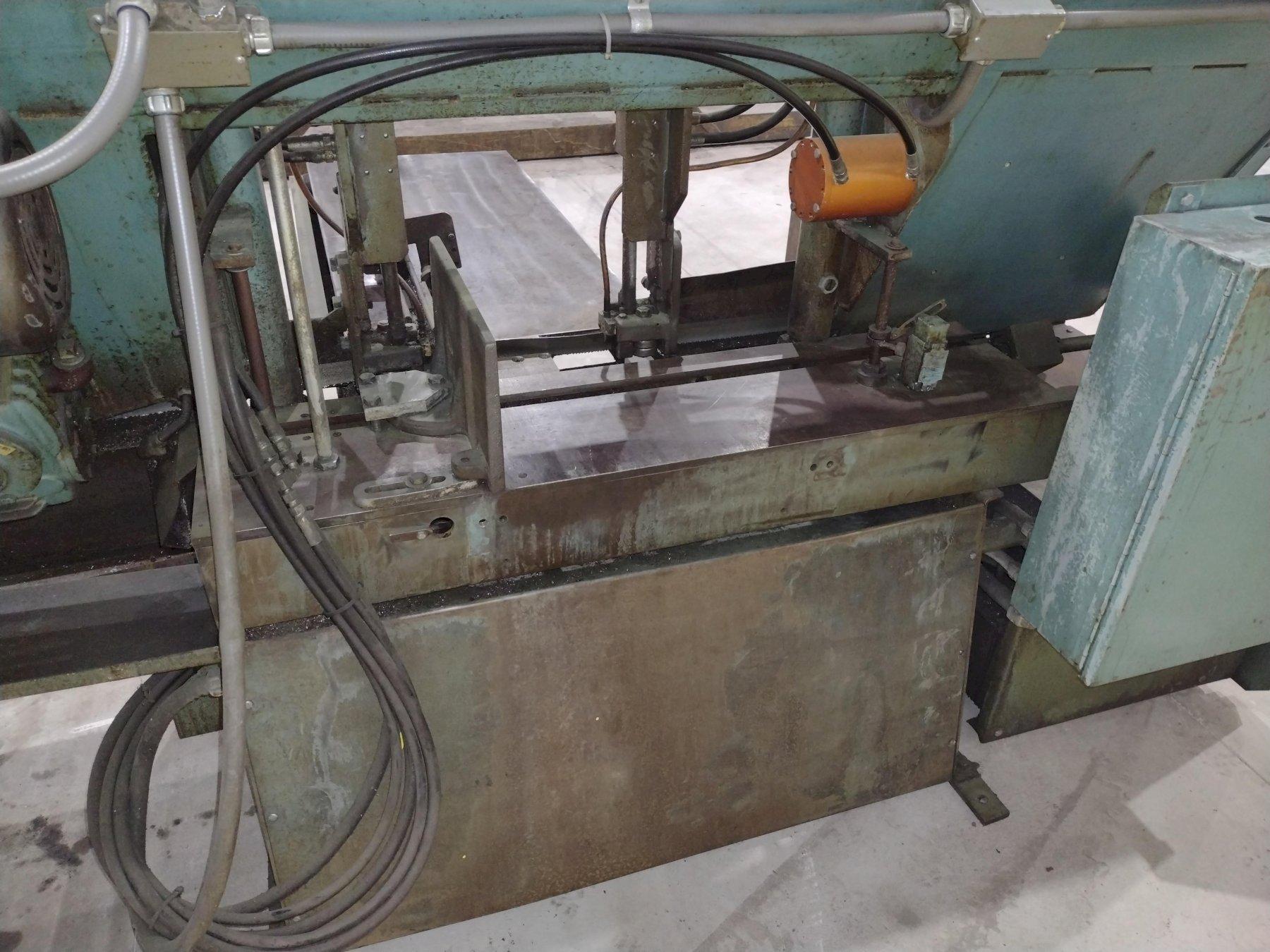

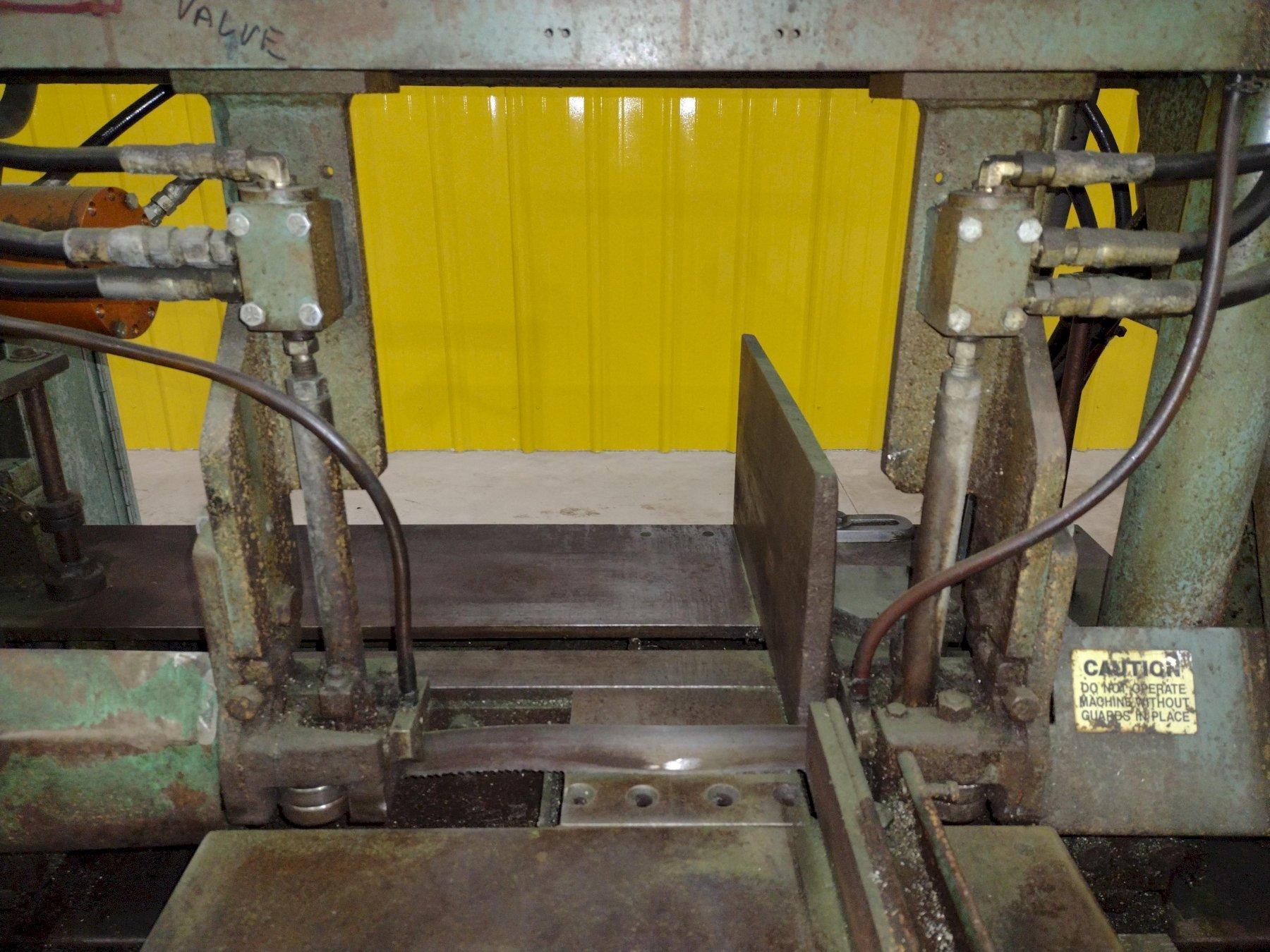

BLADE GUIDE ..................... ROLLERS & CARBIDE SIDE BLOCKS

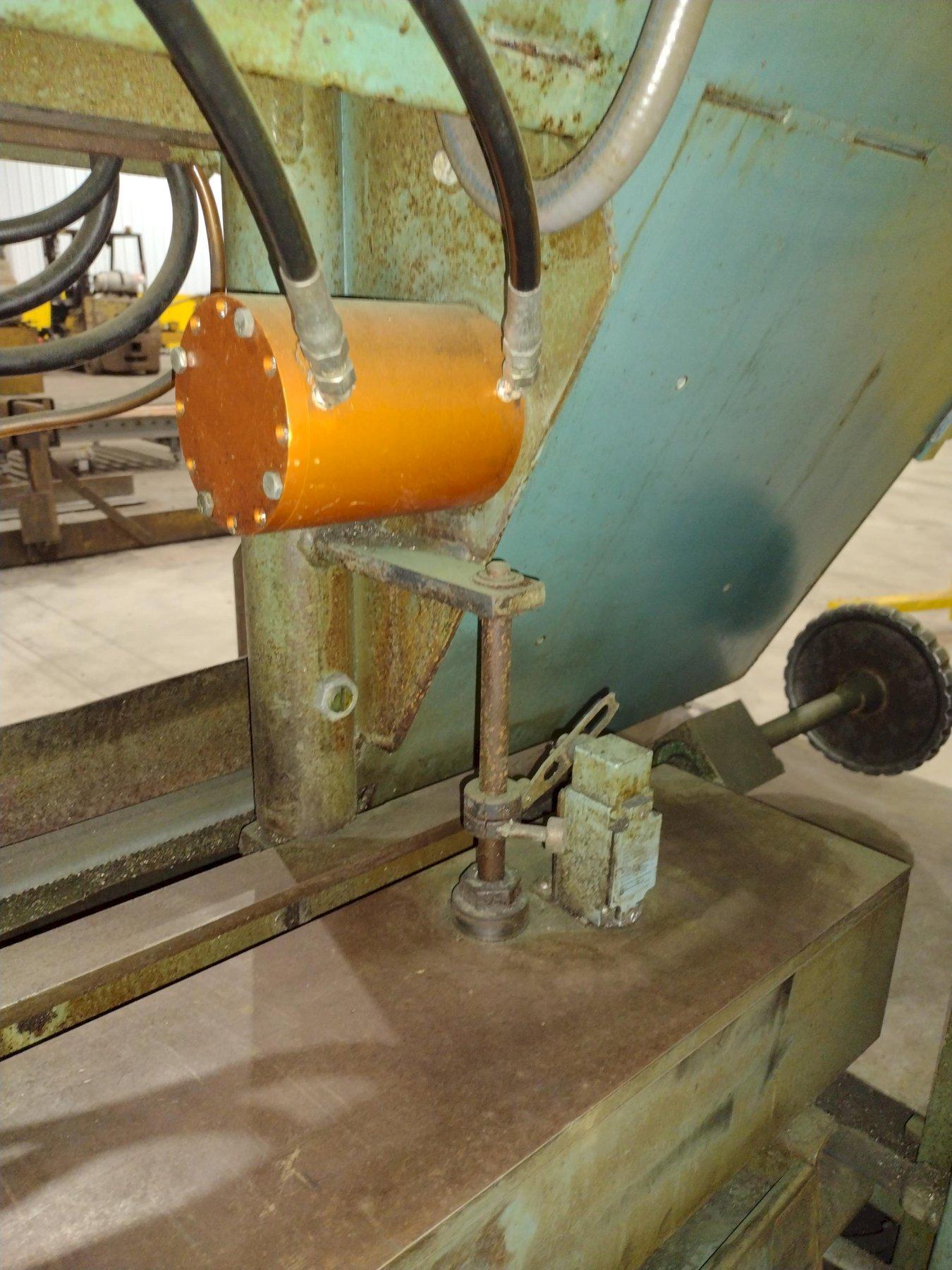

BLADE TENSION ................... HYDRAULIC

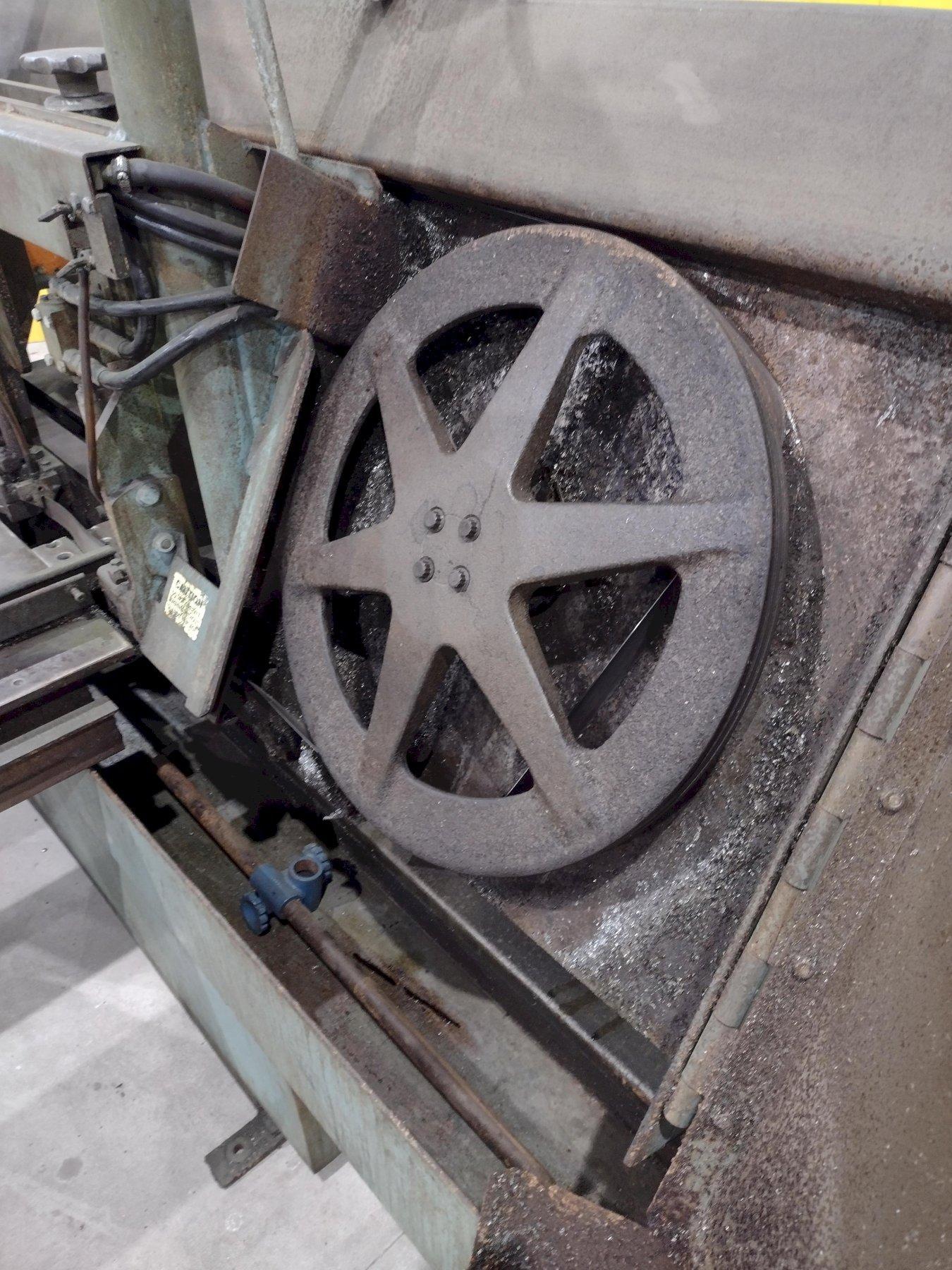

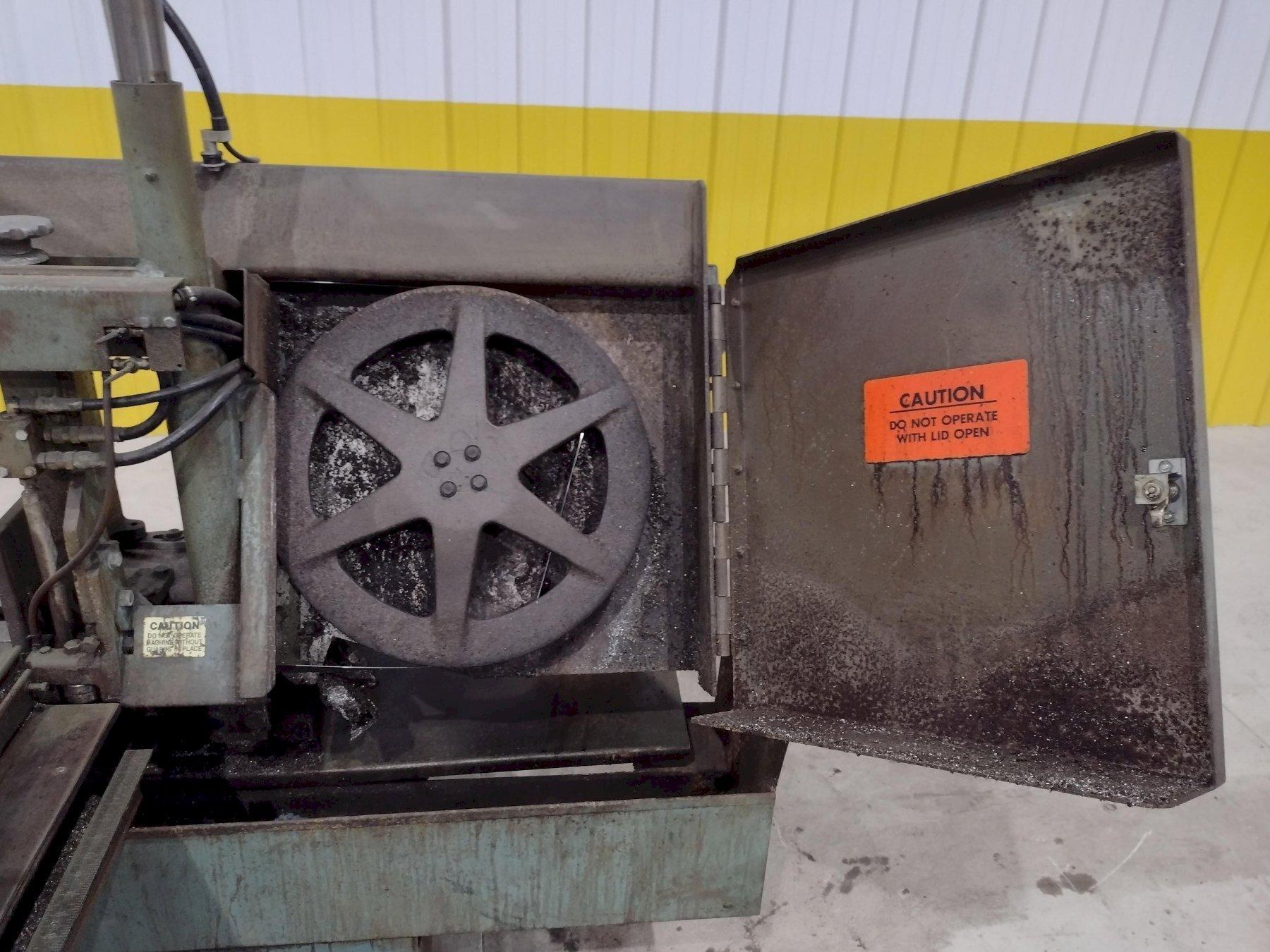

BAND WHEEL SIZE ................. 20″
VISE (FULL STROKE HYDRAULIC) .... 8-1/2”

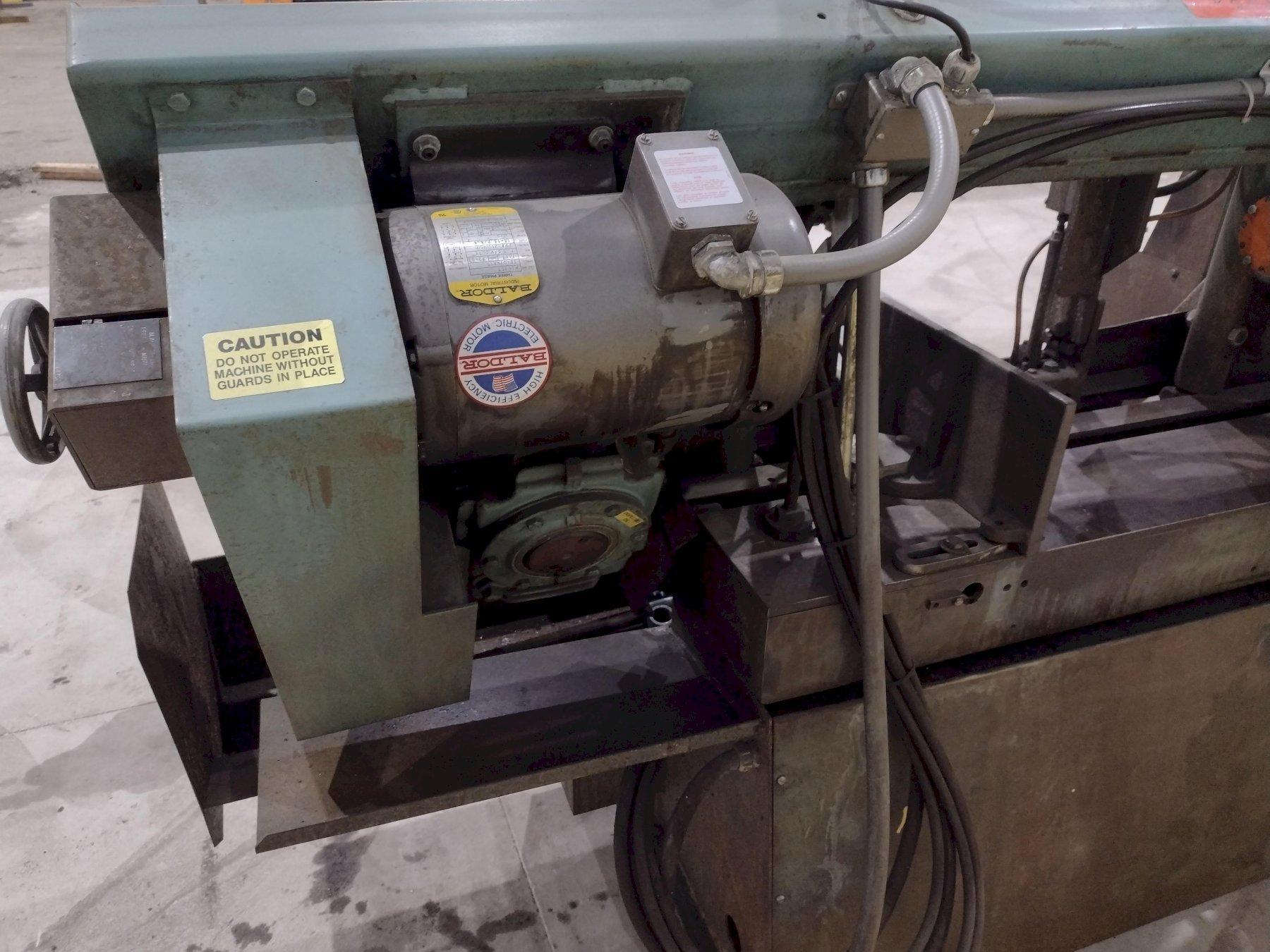

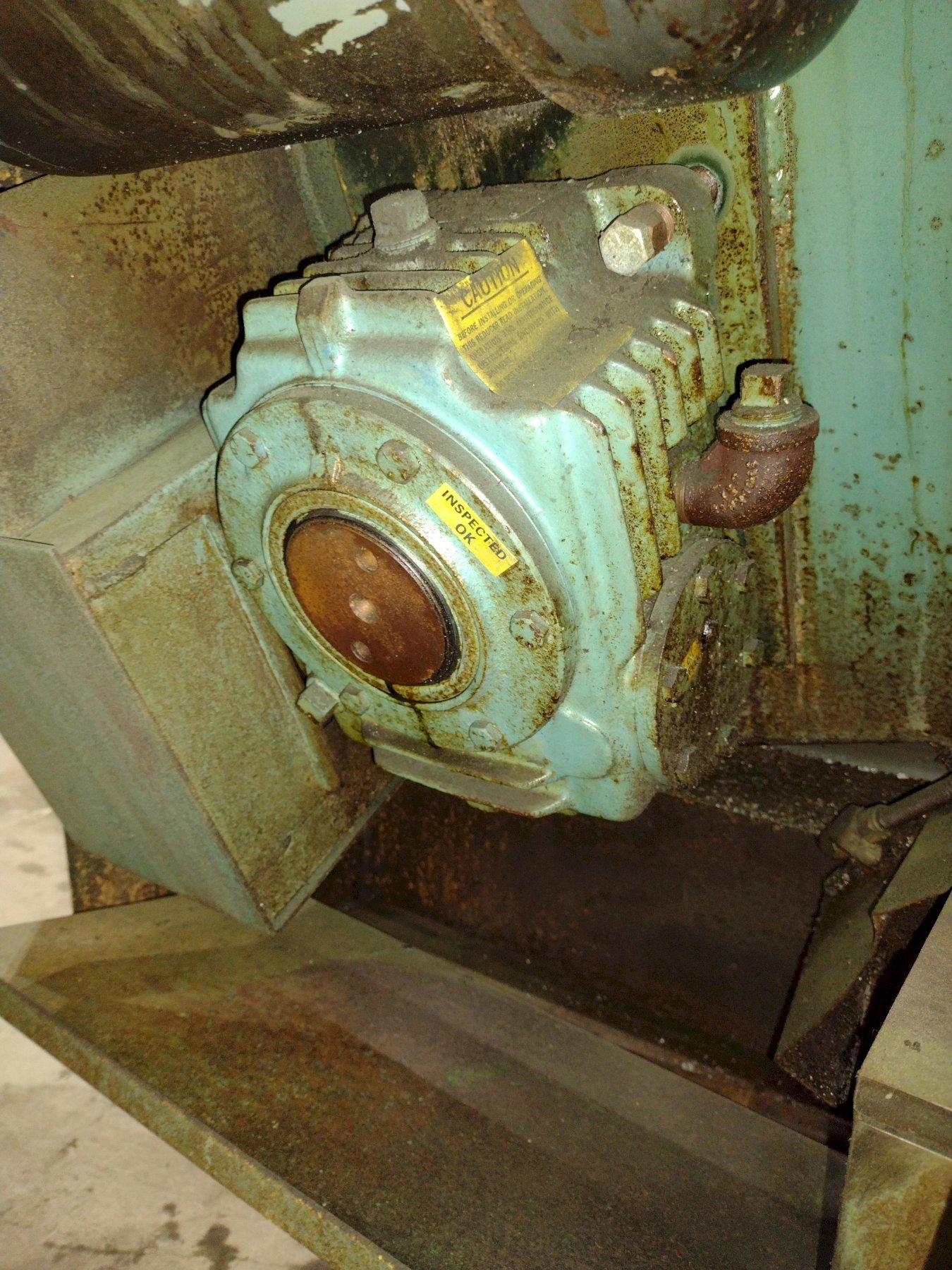

AC VECTOR BLADE DRIVE ........... 7½ HP
SAWING FORCE .................... 0 TO 750 LBS
COOLANT CAPACITY ................ 15 GALLONS

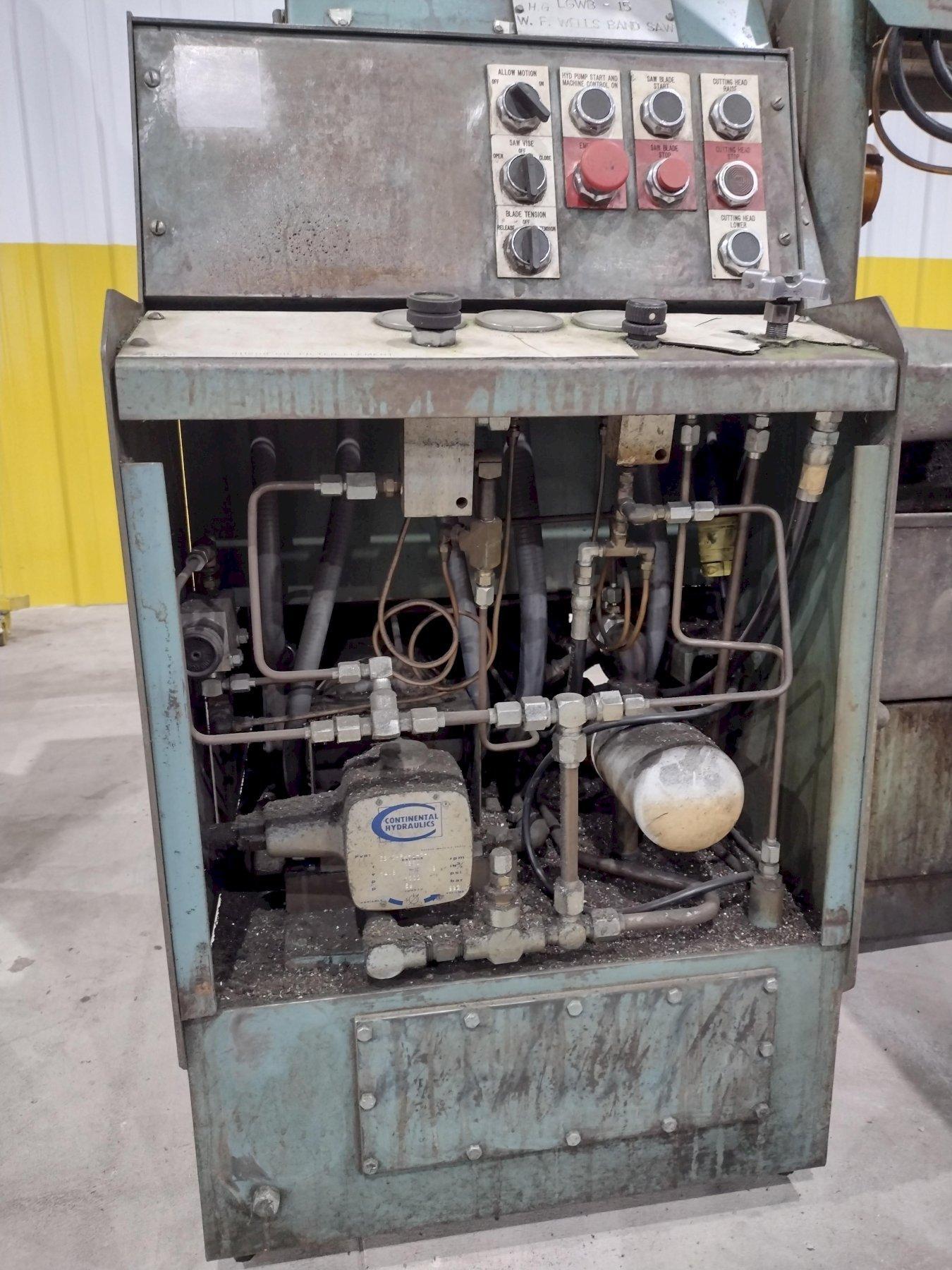

HYDRAULIC CAPACITY .............. 20 GALLONS
WORK HEIGHT ..................... 26″
CONVEYOR ........................ 18"W
HYDRAULIC DRIVE MOTOR ........... 2 HP
