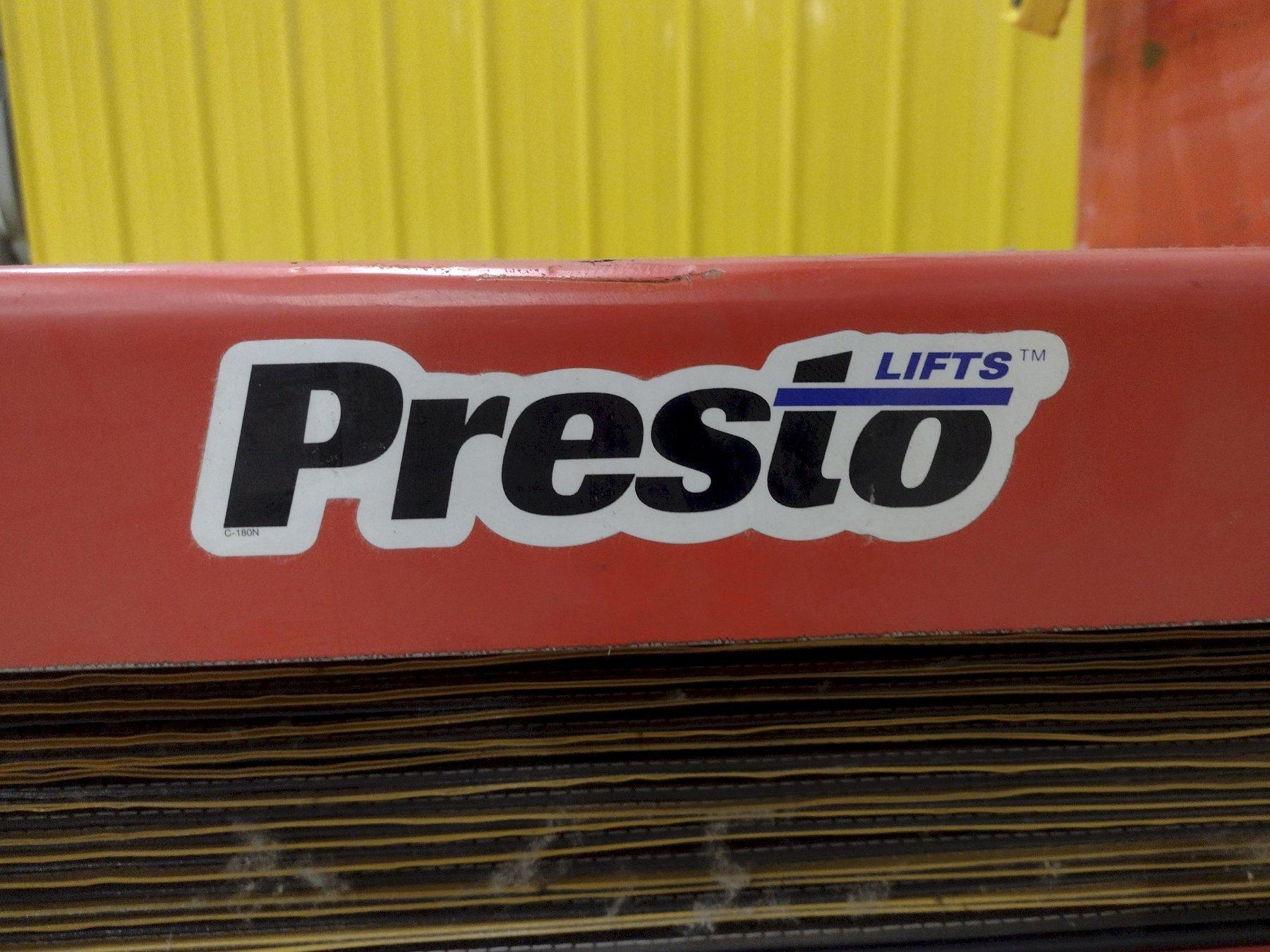

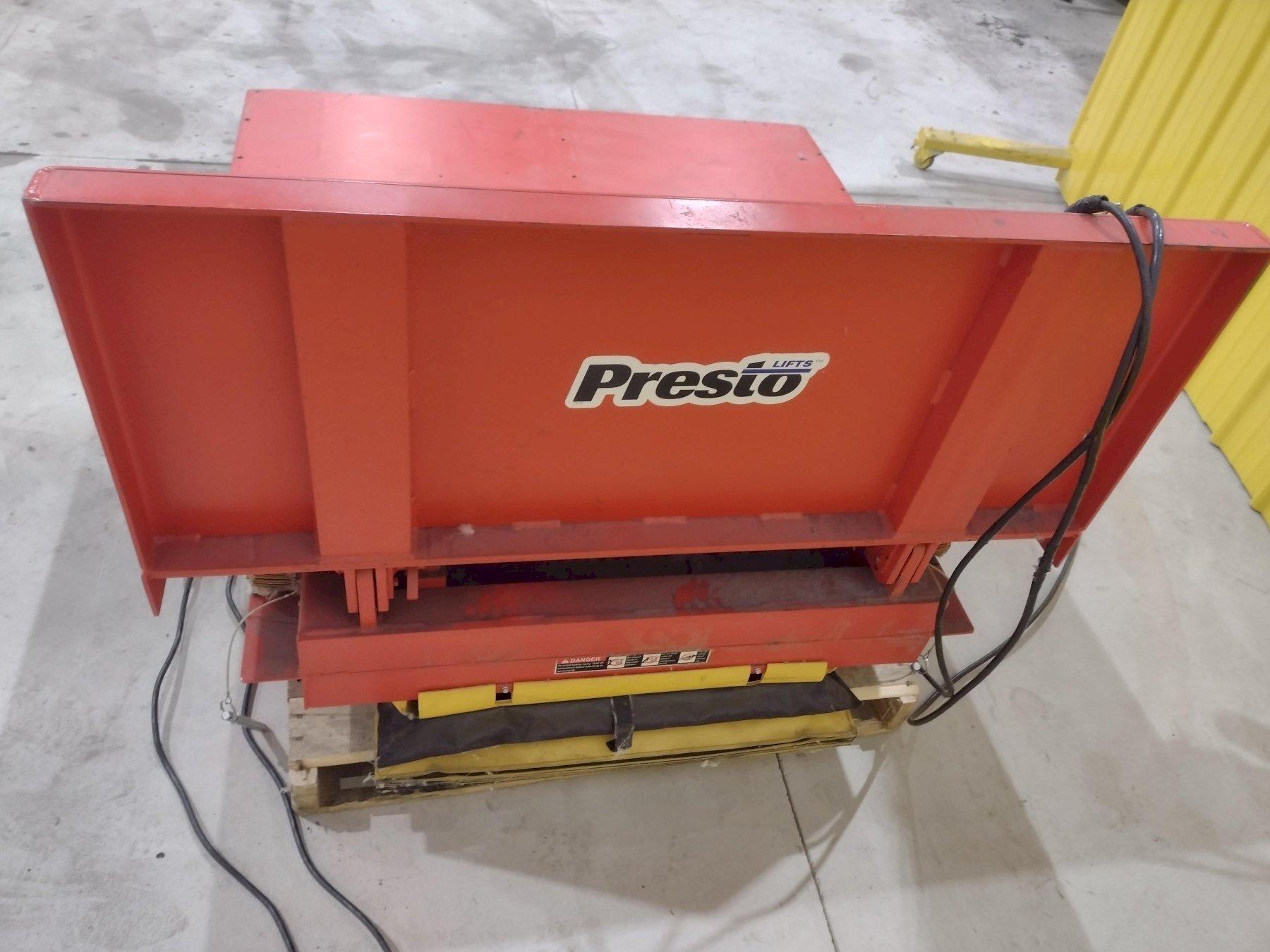

2,000 LB PRESTO PALLET MODEL #XL36-50 W/ TILT LIFT TABLE: STOCK #20162

Stock

20162

Model

None listed

Dealer Location

Ohio

Spec Sheet

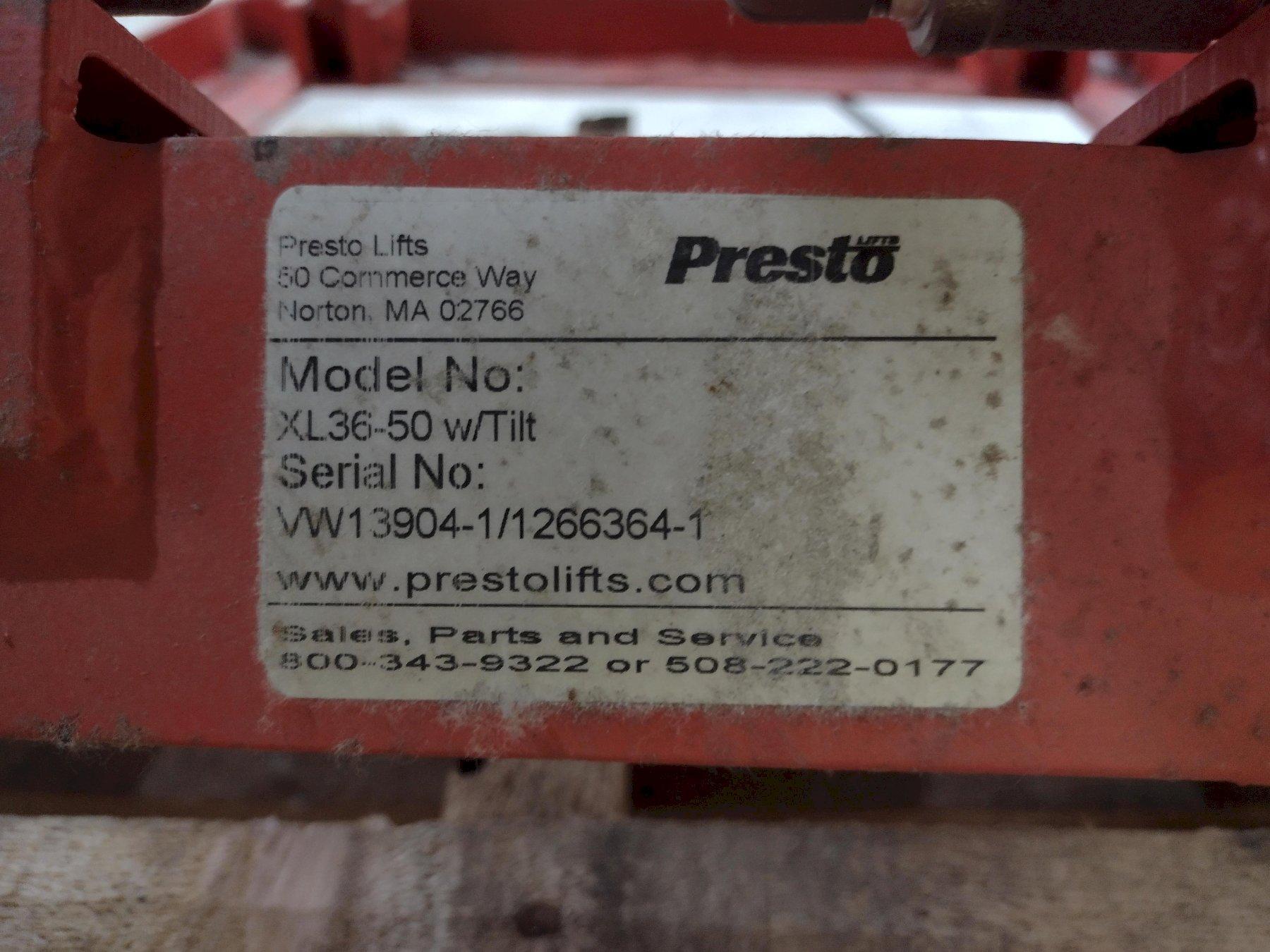

MODEL ........... XL36-50 W/TILT UT90-20
SERIAL .......... VW13904-1/1266364-1
DATE ............ 2015
CAPACITY ........ 2,000 LBS UNIFORM LOAD
LIFT RISE ....... 36 IN @ 48 SEC (APPROX.)
TILT RISE ....... 90° @76 SECONDS (APPROX.)

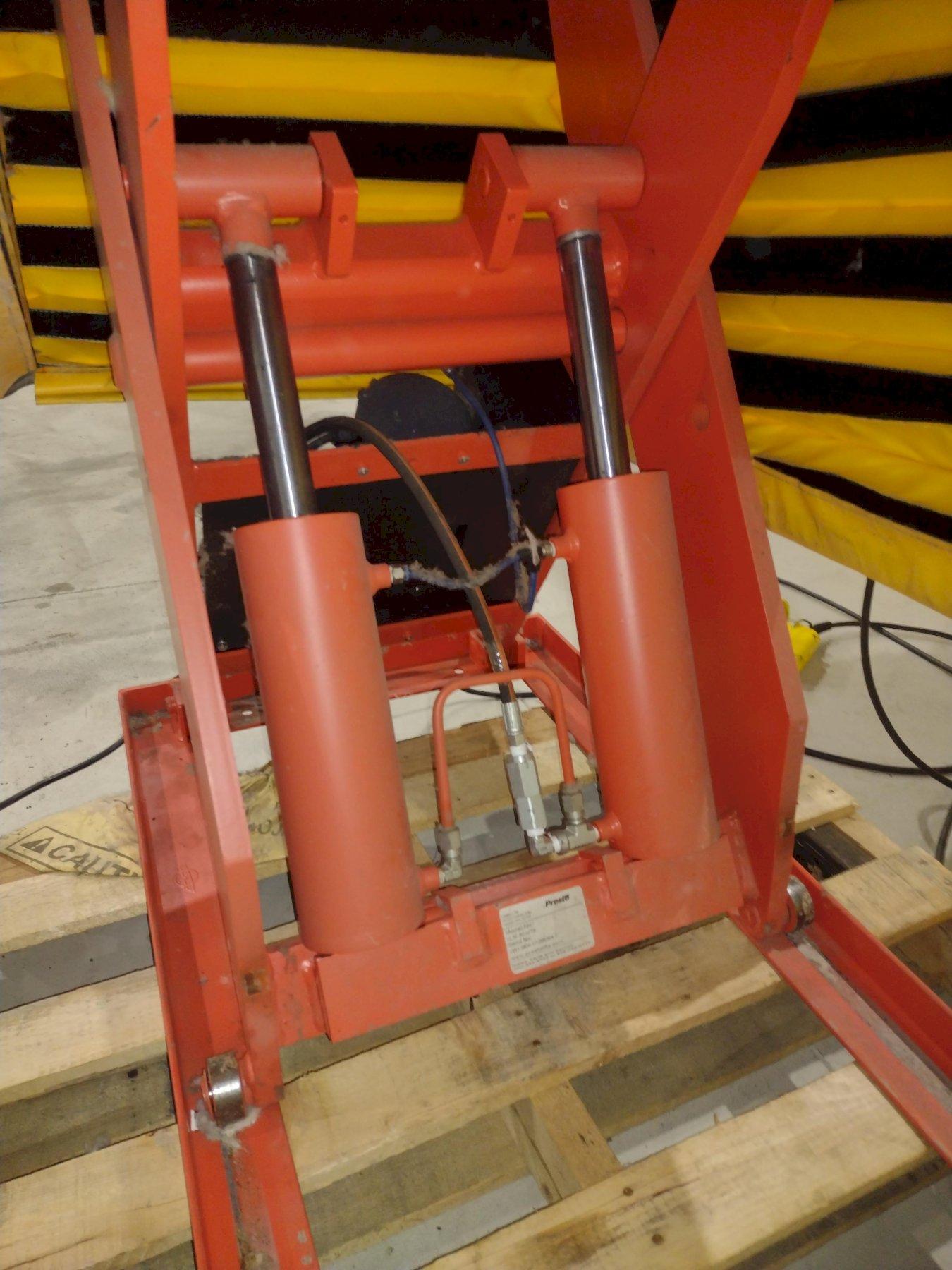

LIFT BELLOWS .... 30"

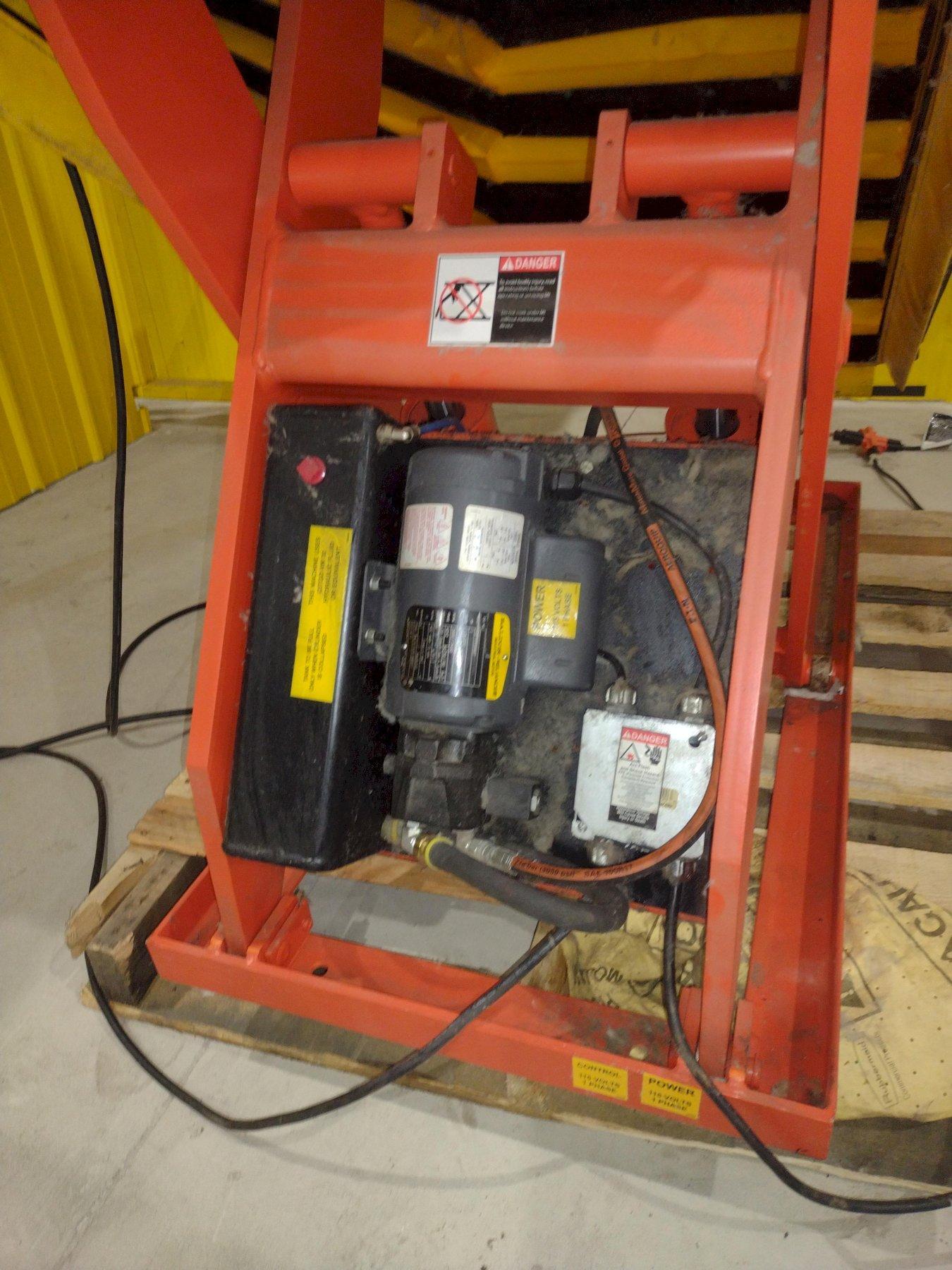

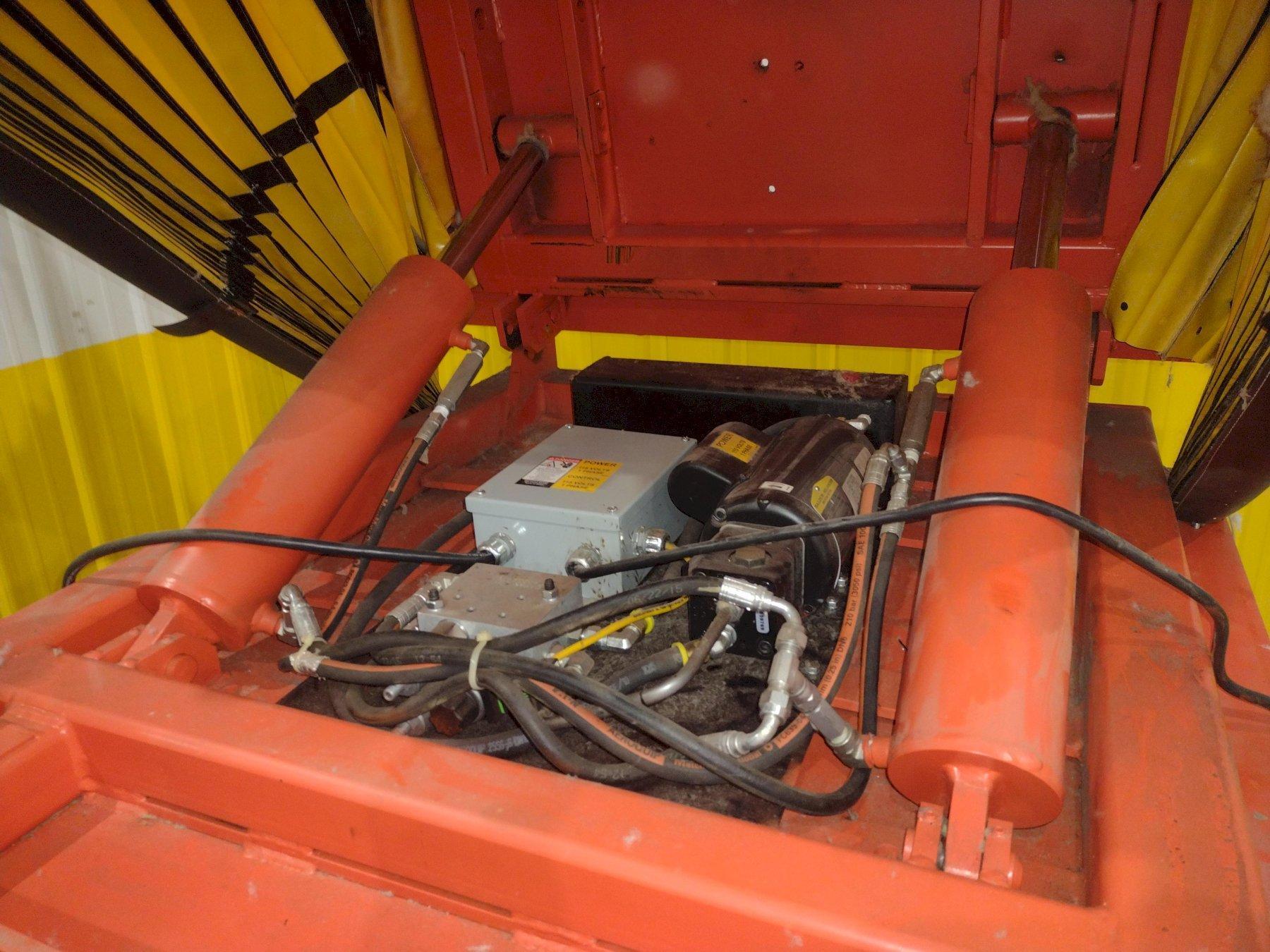

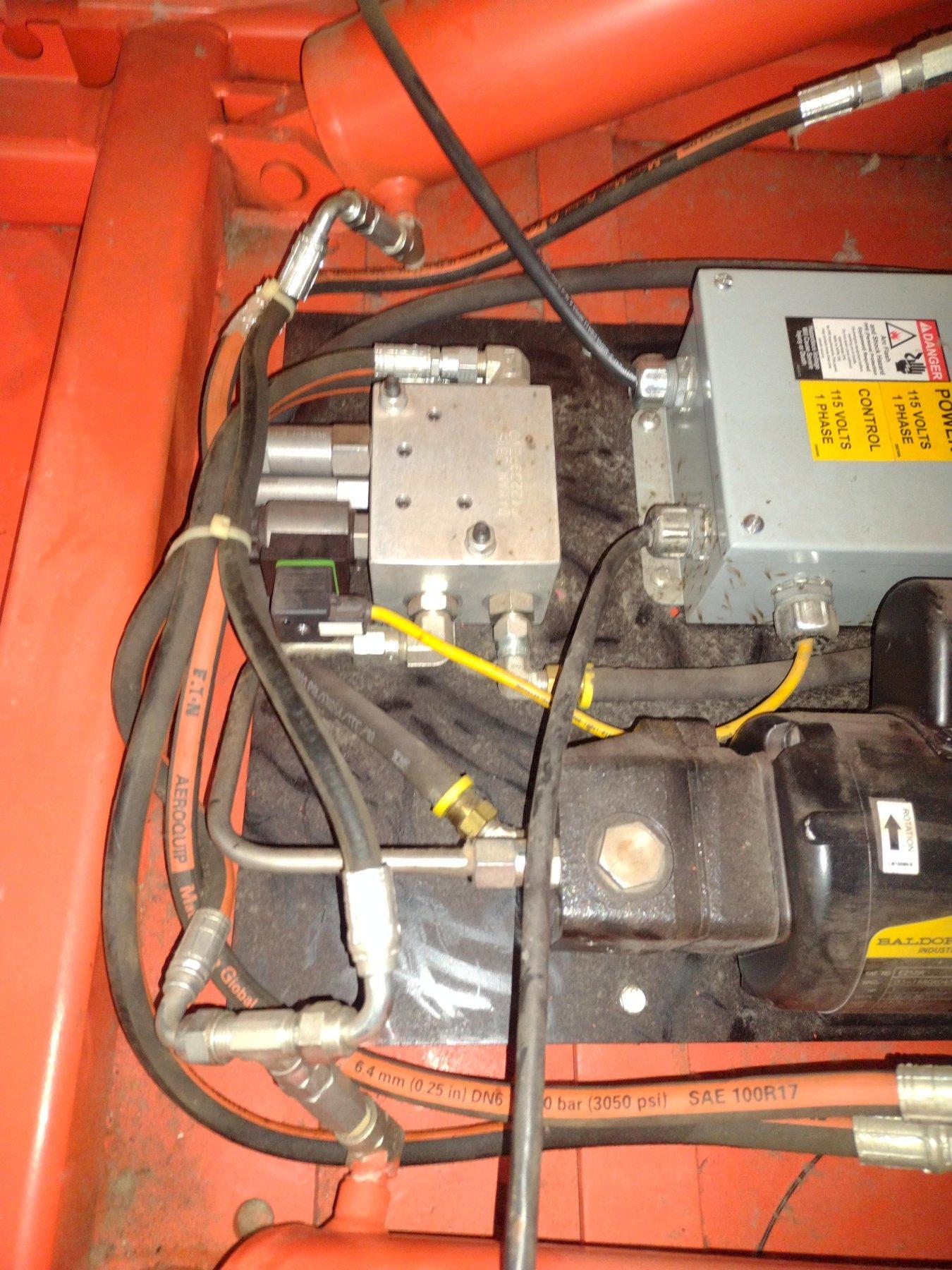

MOTOR ........... 1 HP

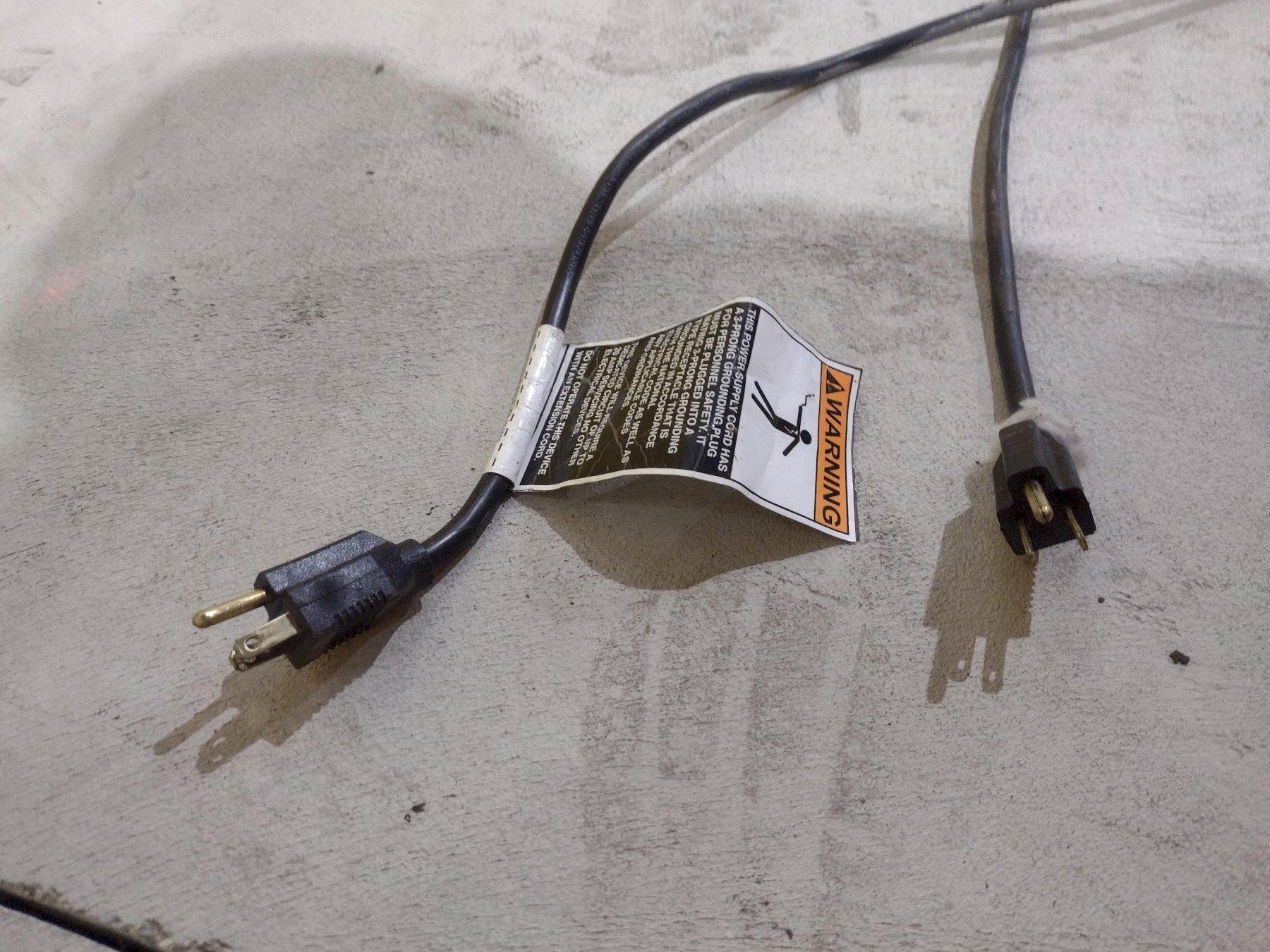

POWER ........... 115V, SINGLE PHASE

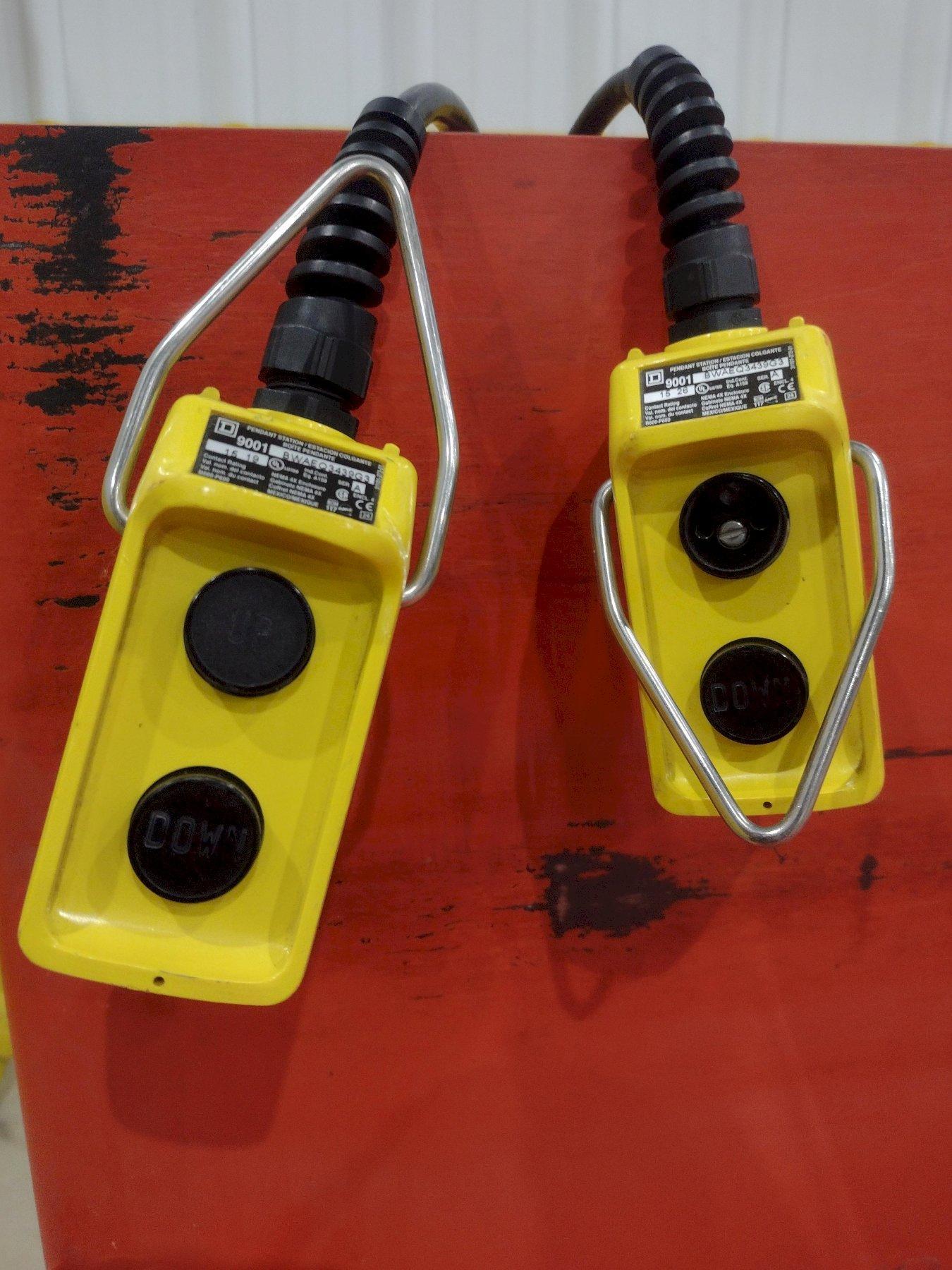

CONTROL ......... PUSH BUTTON X2

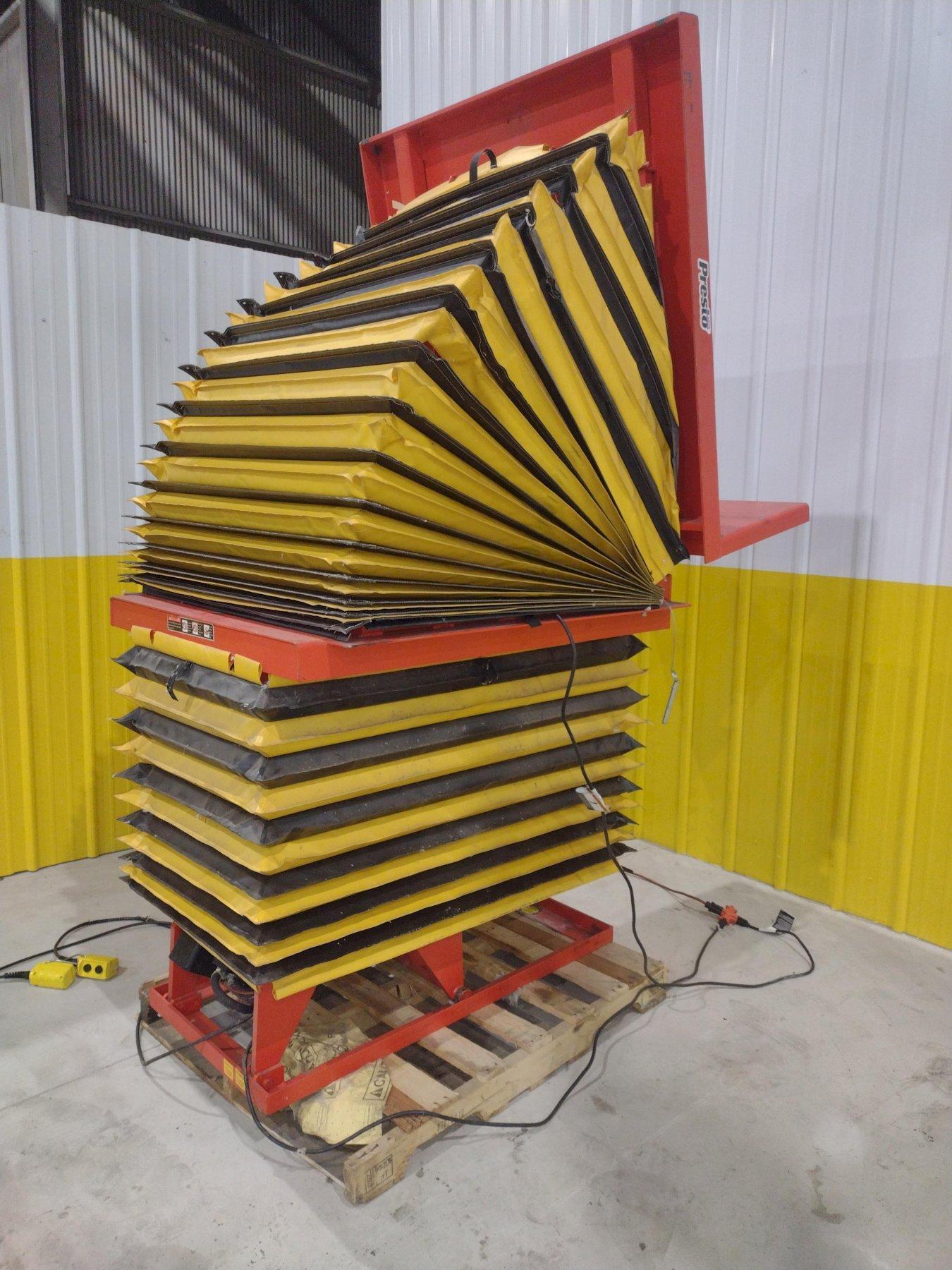

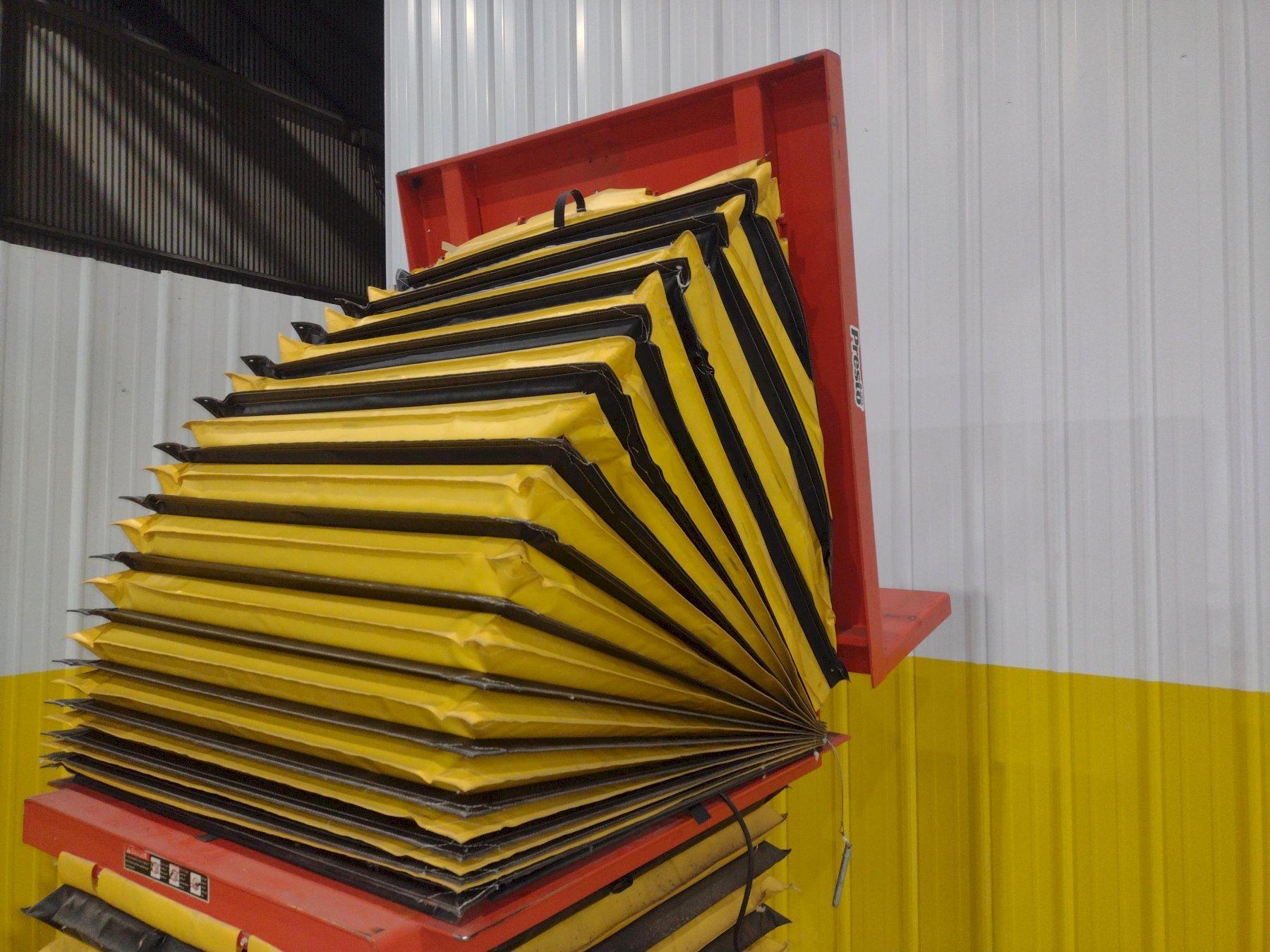

TILT PLATFORM
DIMENSIONS ...... 48" X 48"
LAGS ............ 44-5/8"
LIFT BASE ....... 48-3/8"
LIFT PLATFORM ... 48-1/2"

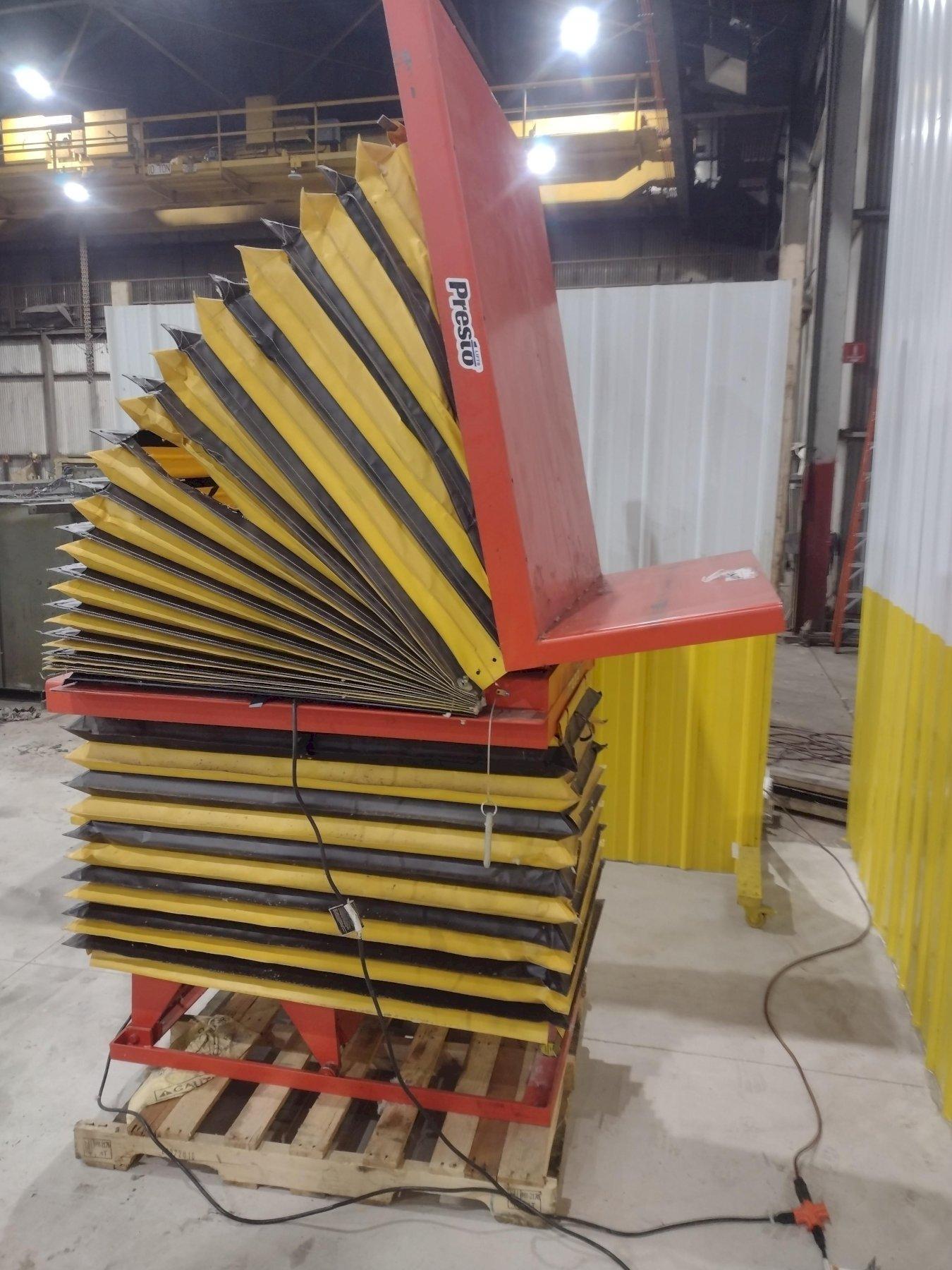

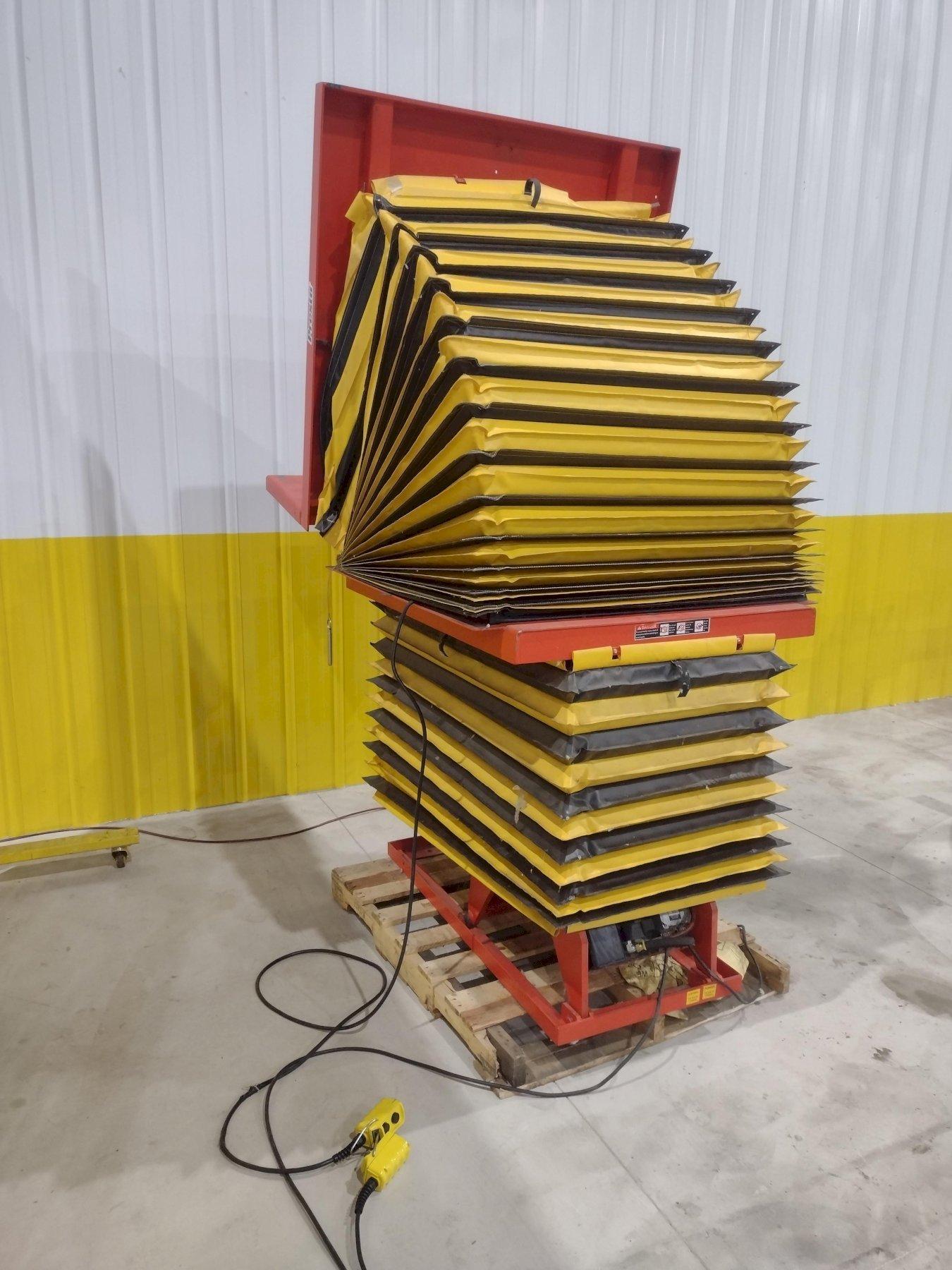

TILT ............ 75° WITH LIMIT SWITCH

DIMENSIONS
HEIGHT (FULLY RAISED) .......................... 98-3/4"
HEIGHT (LOWERED) ............................... 69-3/4"
PLATEN LEDGE FULL TILT HEIGHT (LIFT RAISED) .... 55-7/16"
PLATEN LEDGE FULL TILT HEIGHT (LIFT LOWERED) ... 19-7/16"
LOWERED ........................................ 19-1/2"
RAISED ......................................... 52"
VERTICAL TRAVEL ................................ 36"

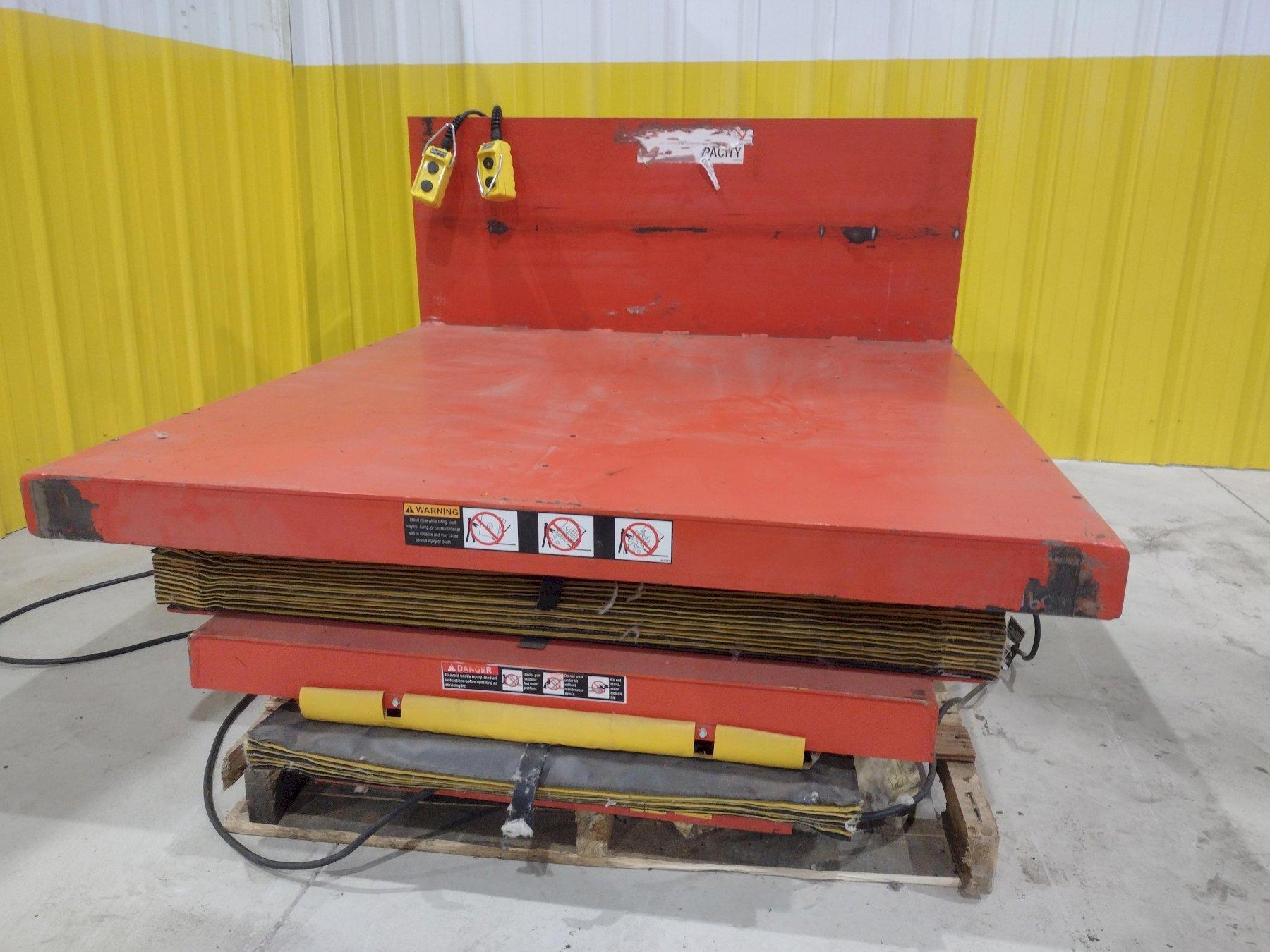

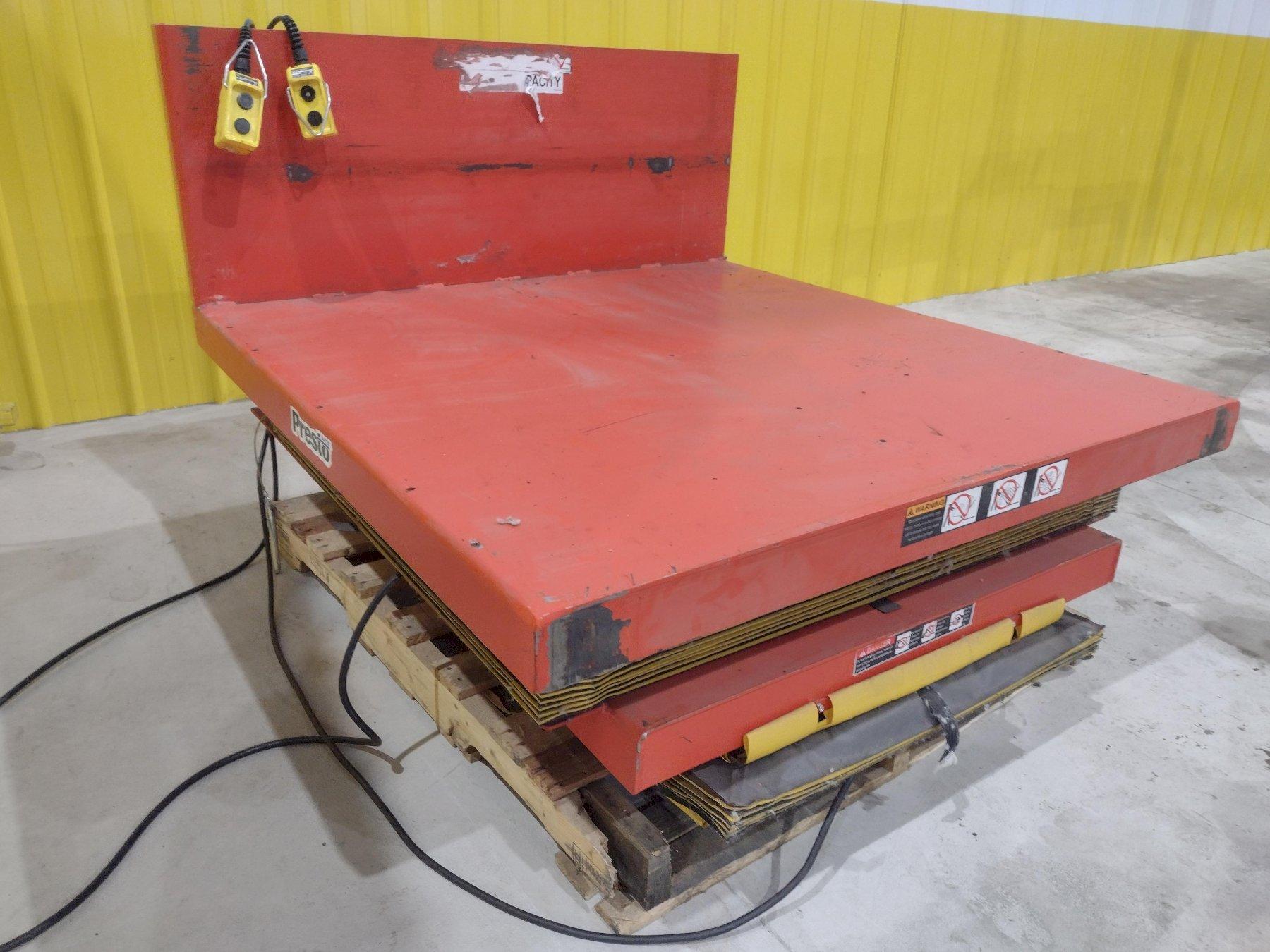

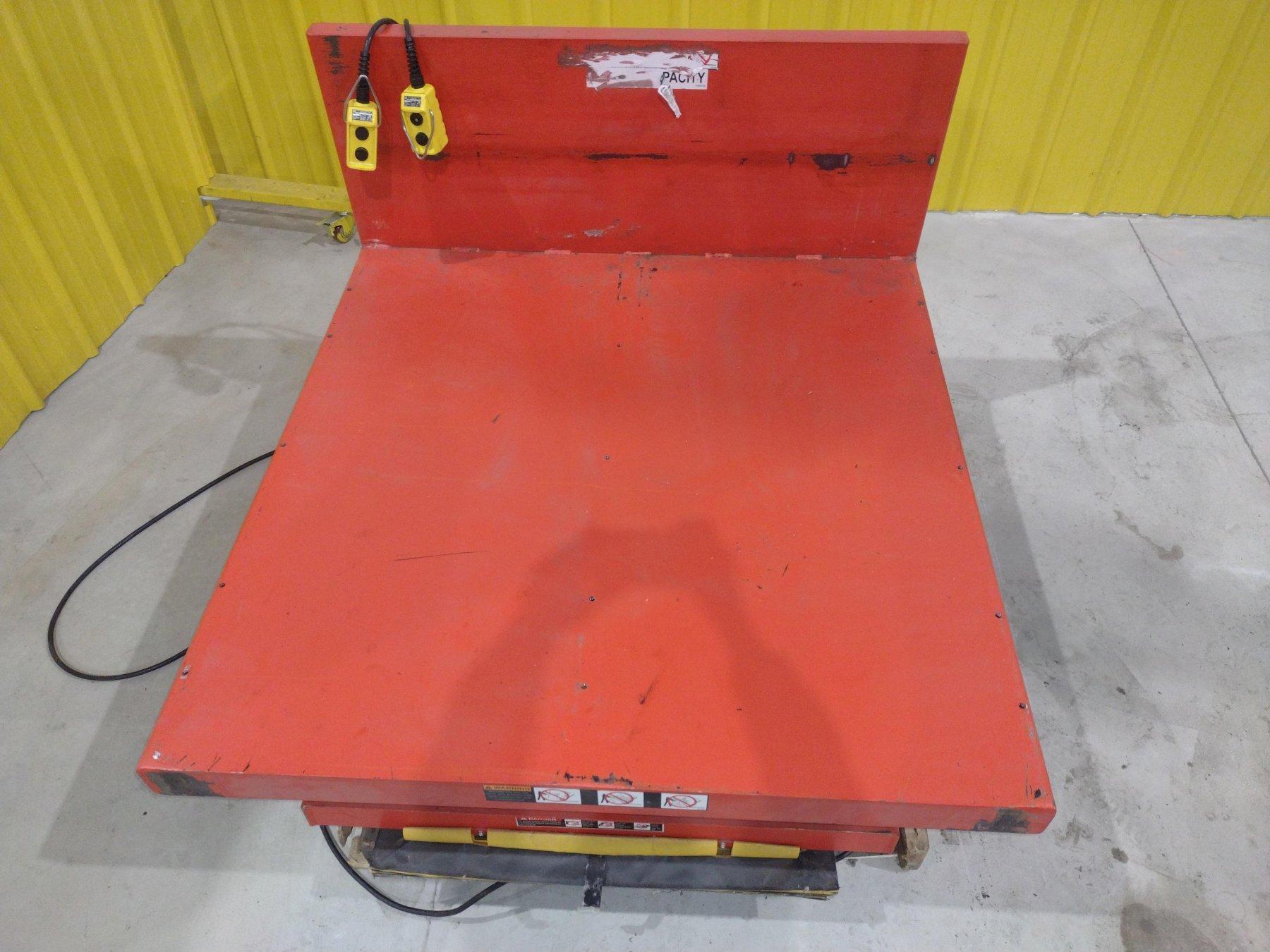

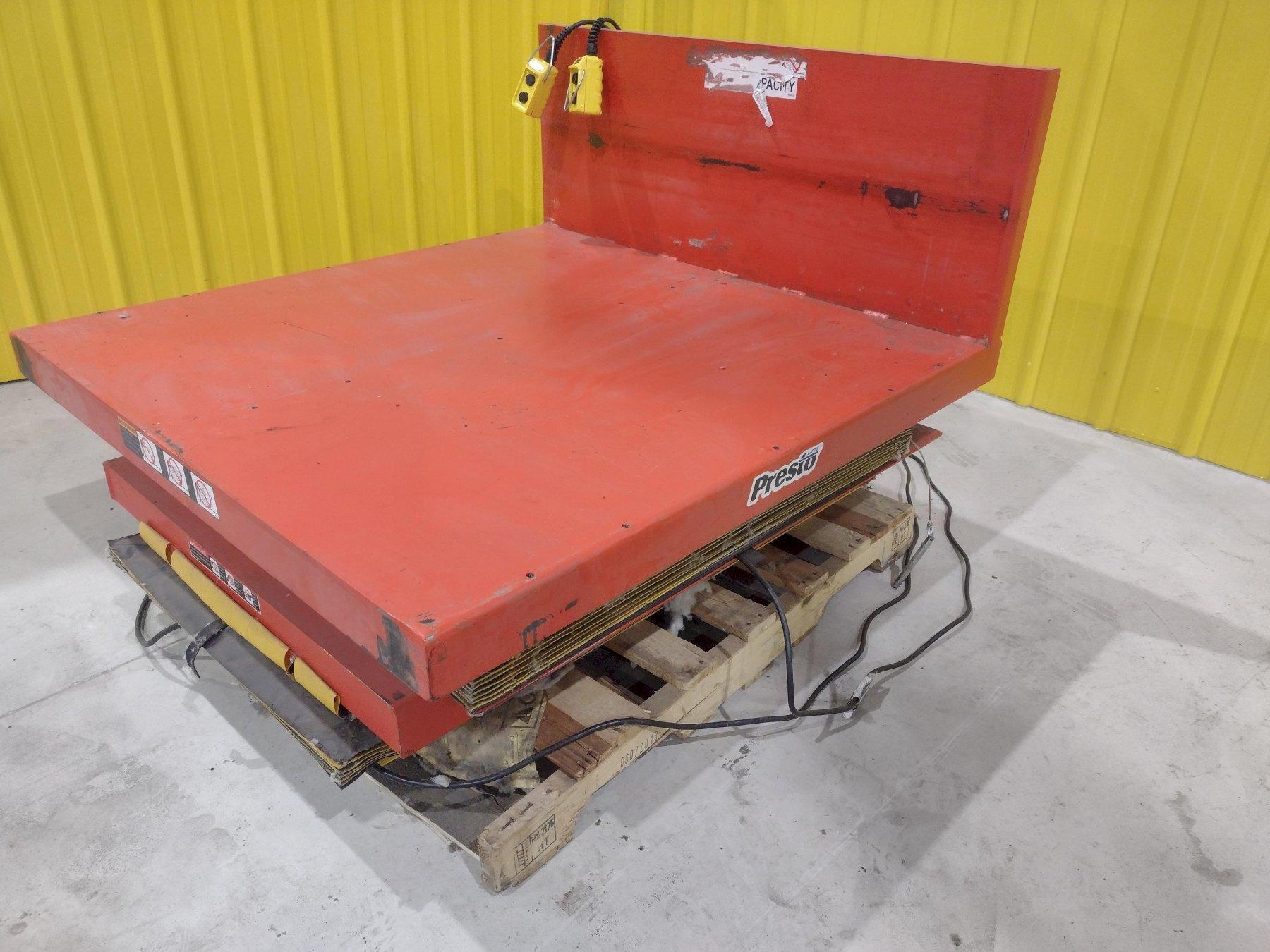

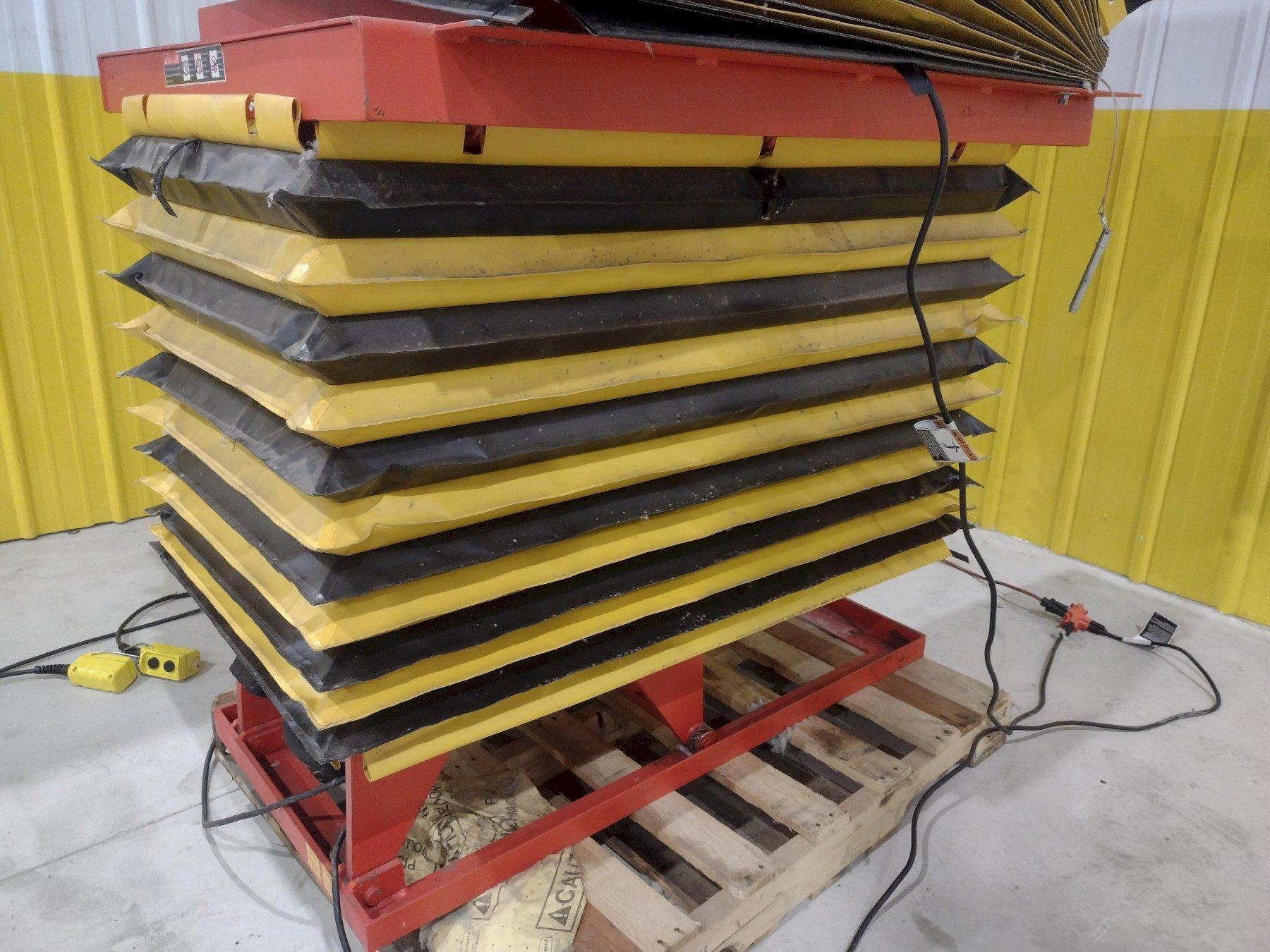

LIFT TABLE & TILT TABLE
DUST SKIRTS

MODIFICATION 1: OVERSIZE LIFT PLATFORM (36" X 48-1/2")
MODIFICATION 2" OVERSIZE TILT PLATFORM (48" X 48" WITH 48" X 18" PLATEN)
