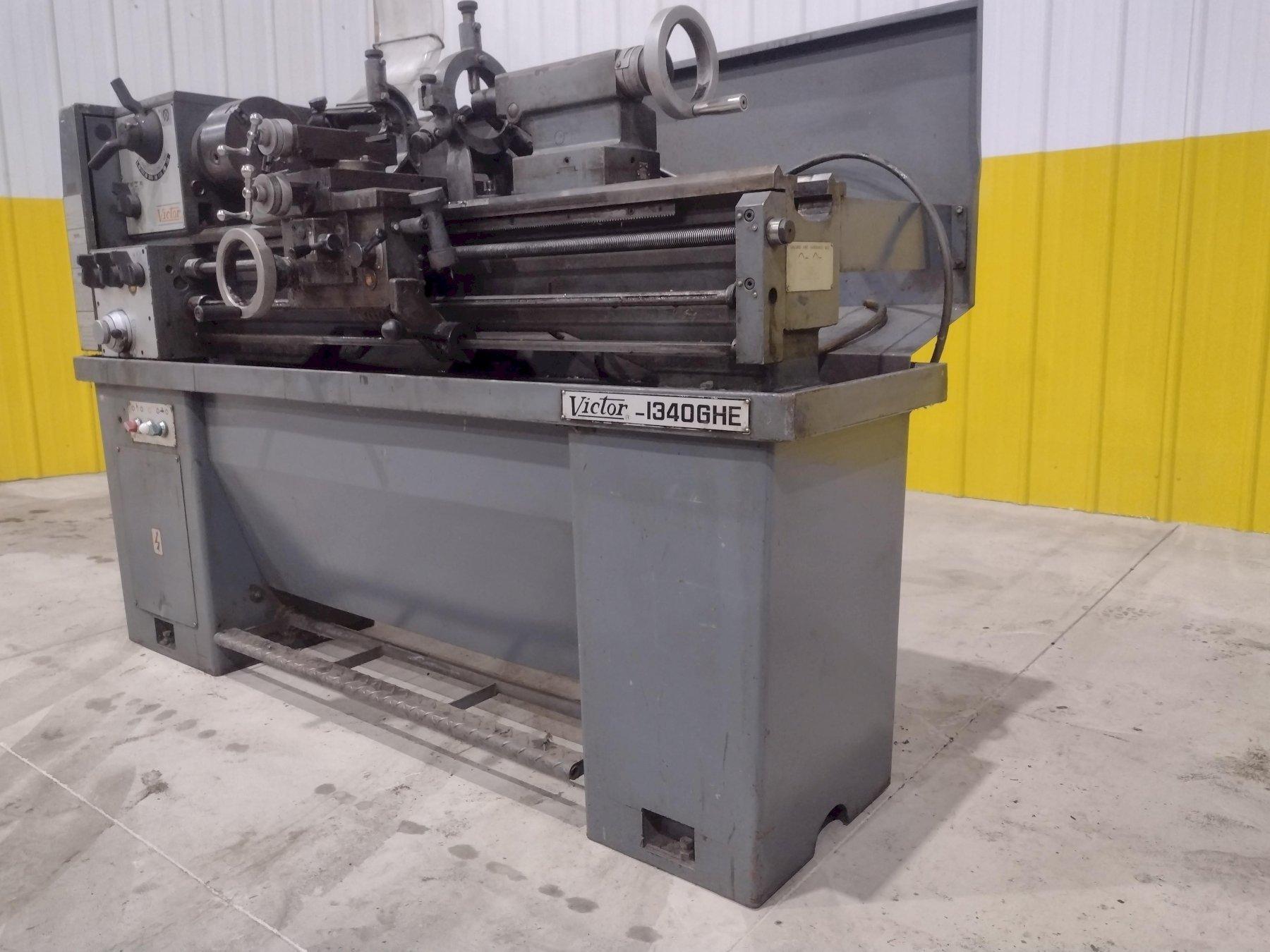

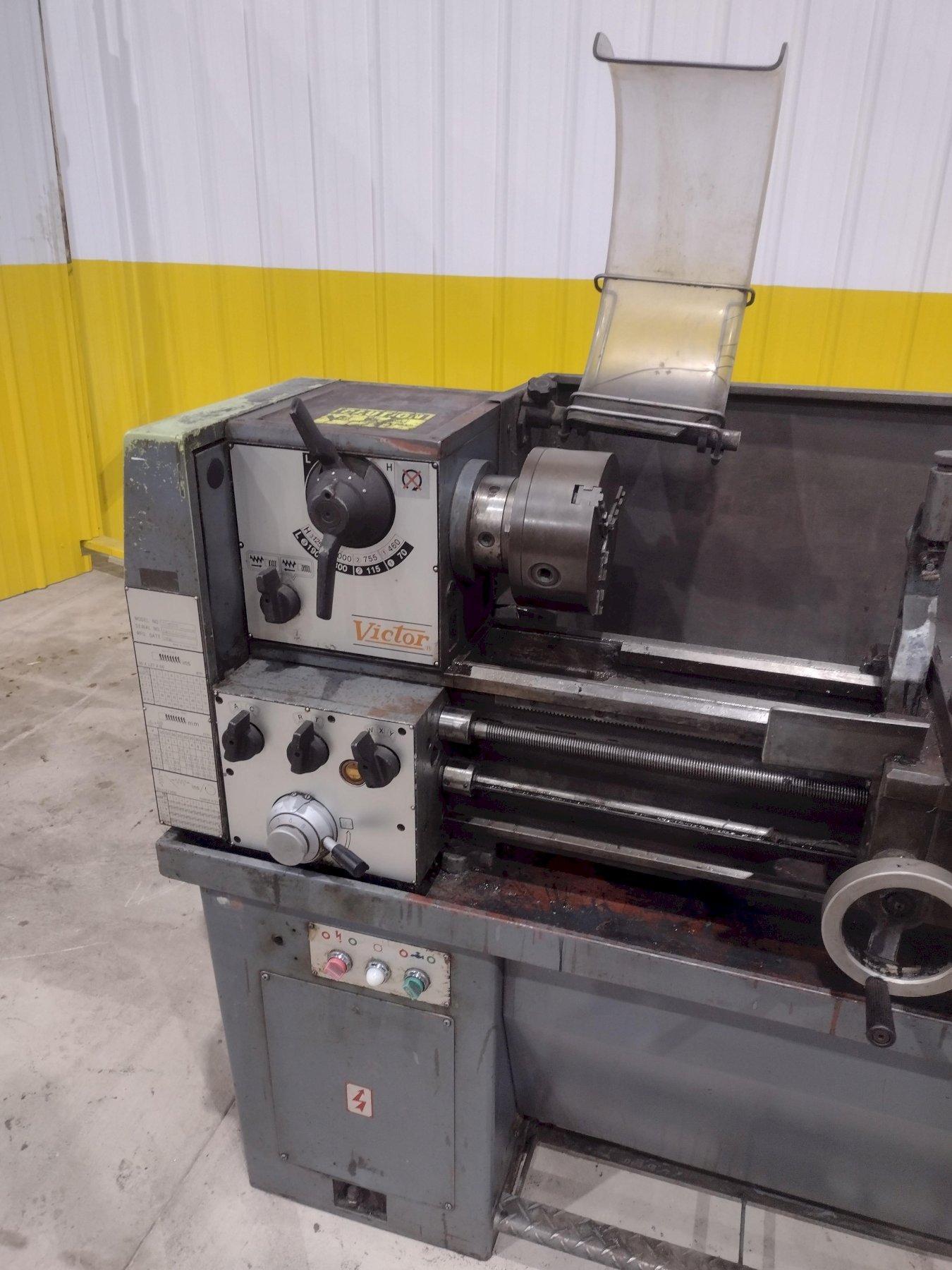

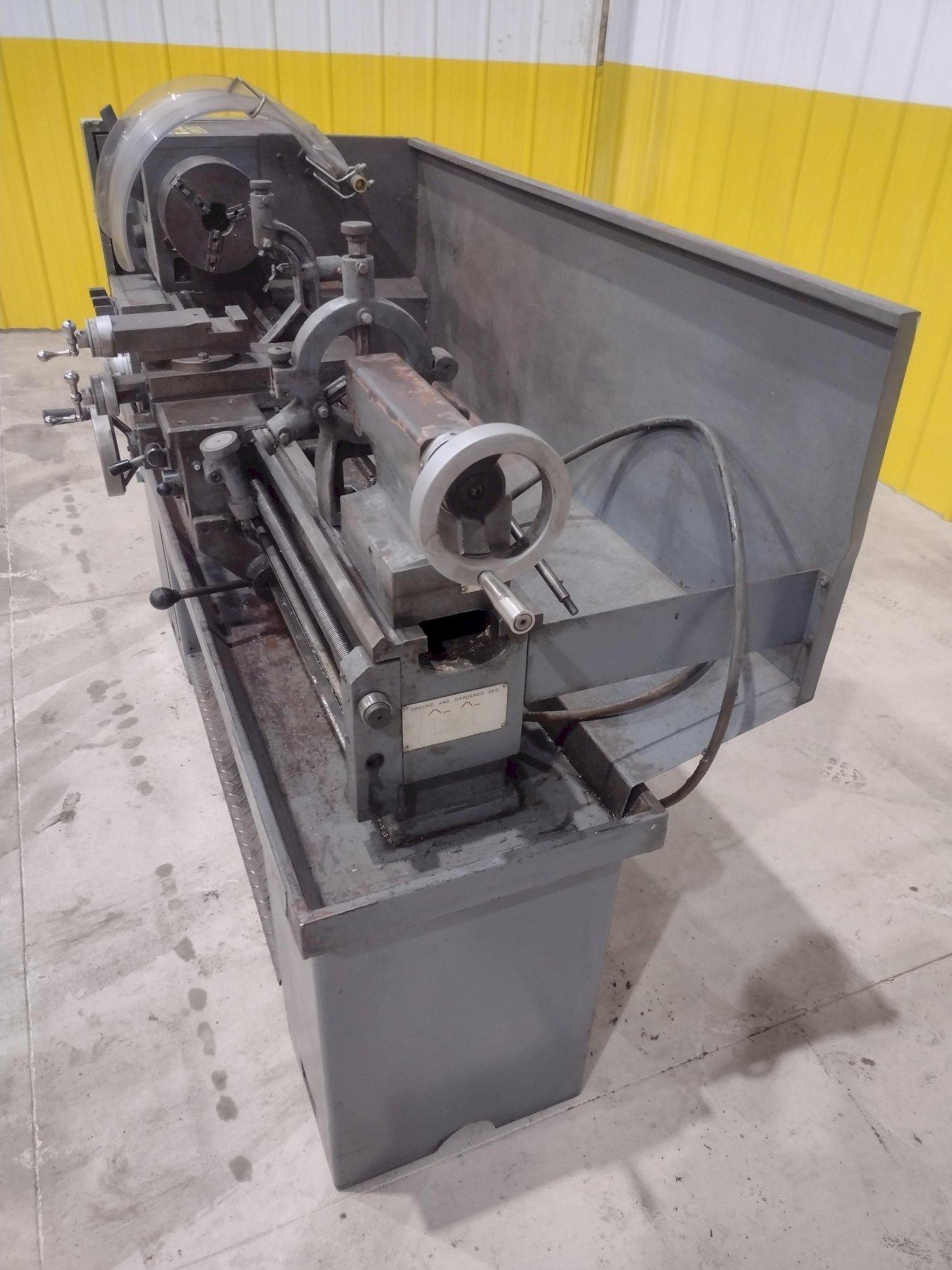

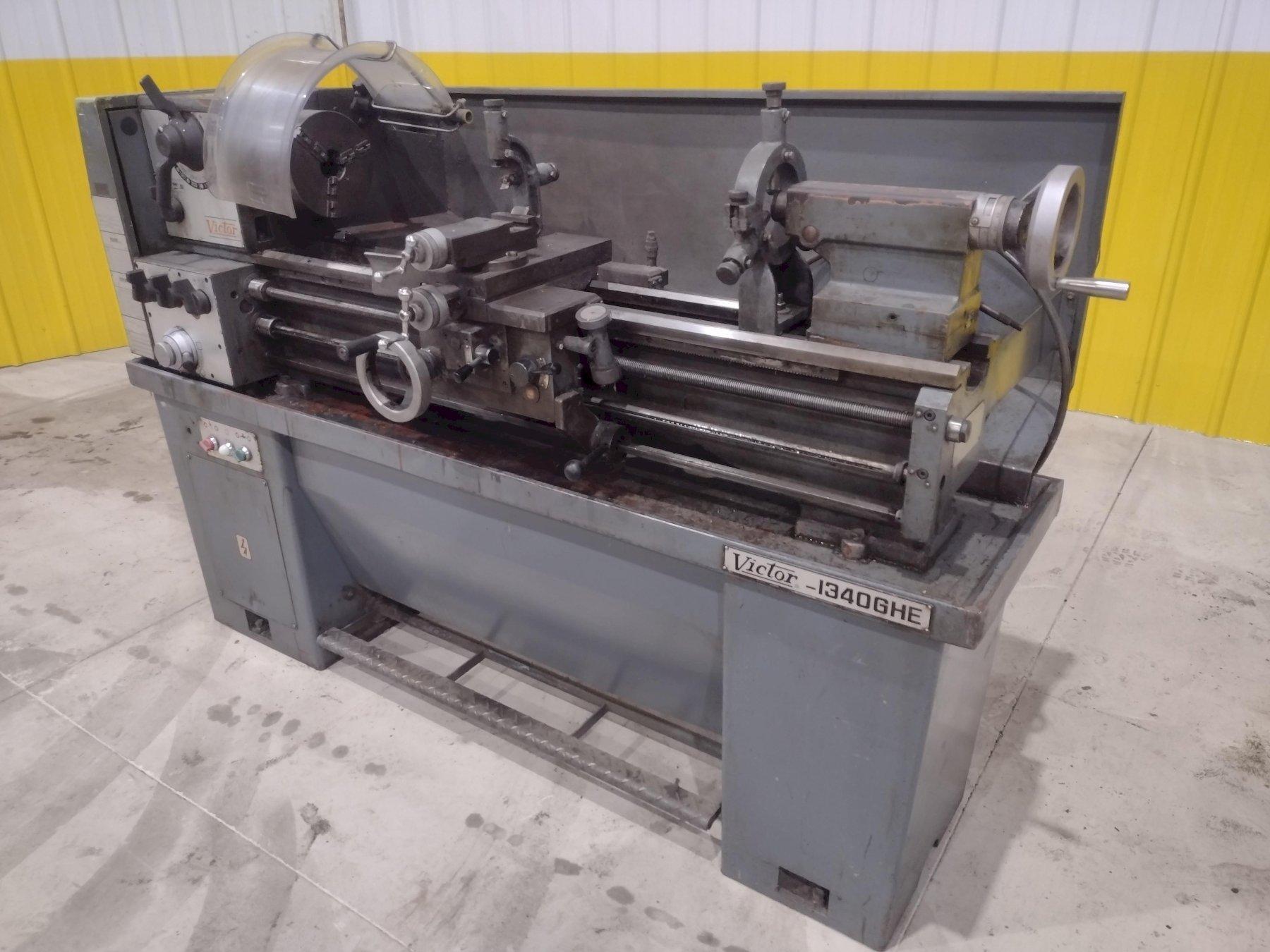

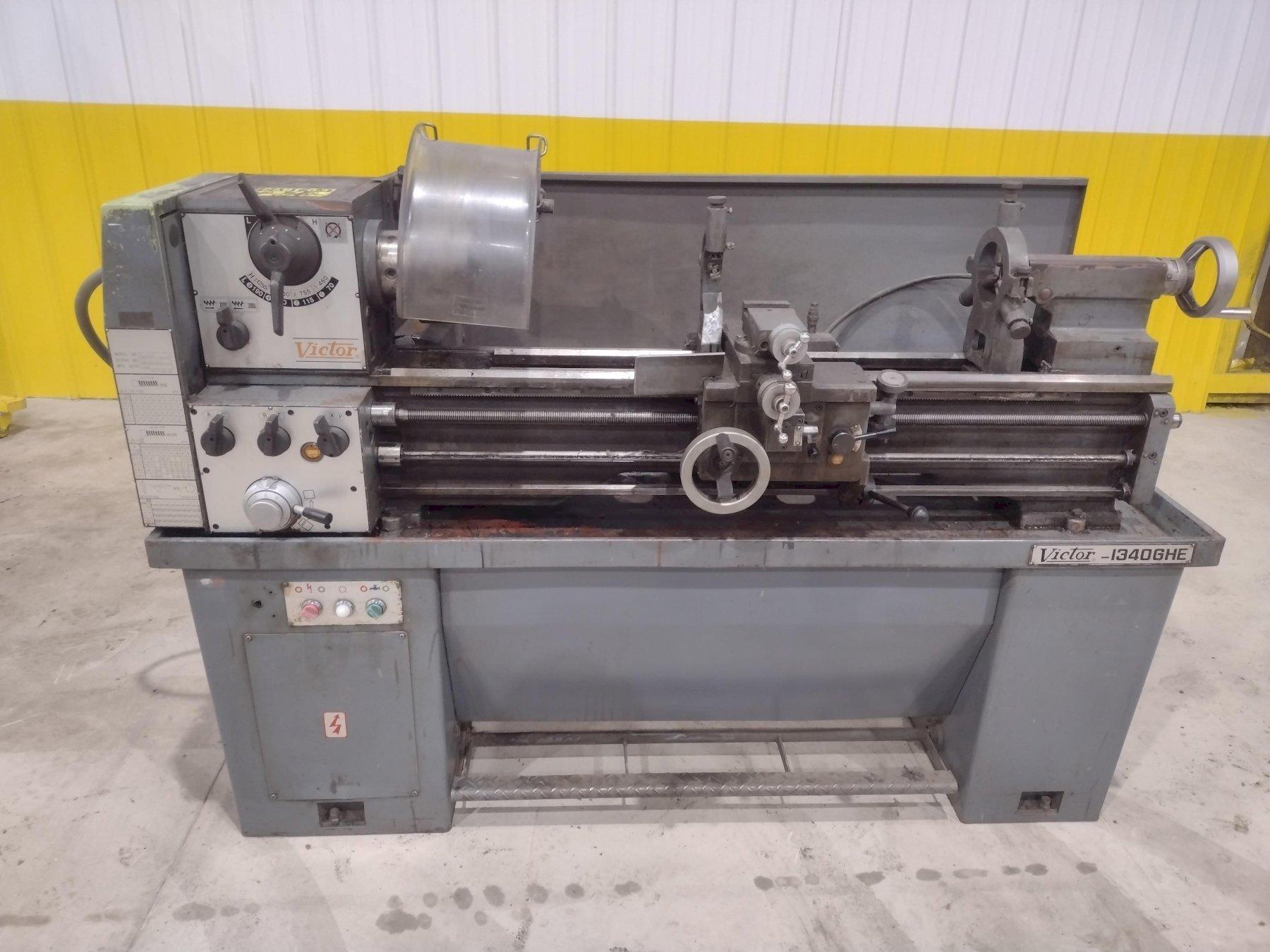

13" X 40" VICTOR MODEL #1340GHE ENGINE LATHE, 1.5" HOLE: STOCK #20342

Manufacturer

VICTOR

Category

Lathes

Type

LATHES, ENGINE

Stock

20342

Model

1340

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

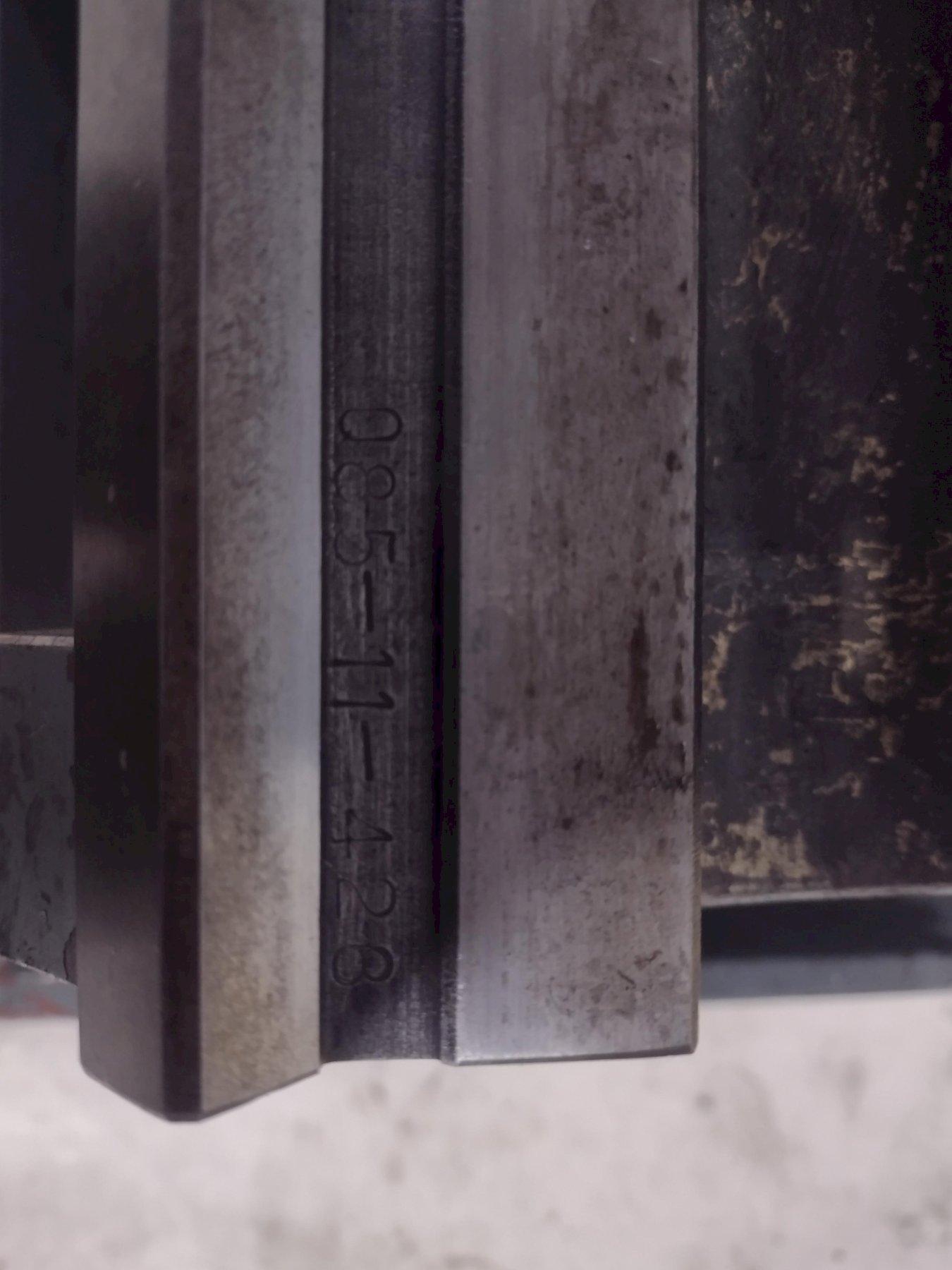

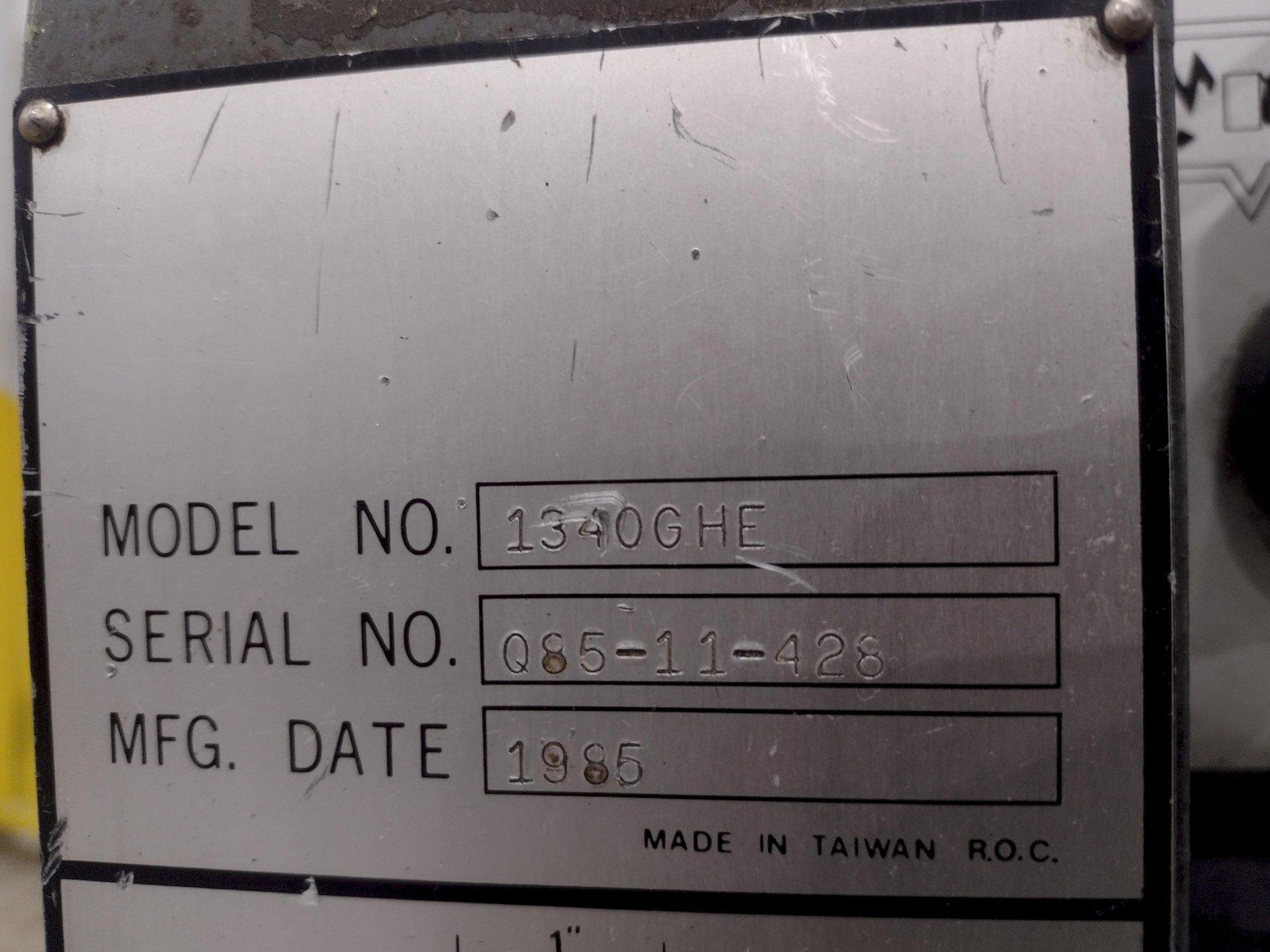

SERIAL ........................... 085-11-428
MODEL ............................ 1340 GHE
SWING OVER WAYS .................. 13"
SWING IN GAP ..................... 18-3/4"
DISTANCE BETWEEN CENTERS ......... 40"
SWING OVER CROSS SLIDE ........... 7-3/4"

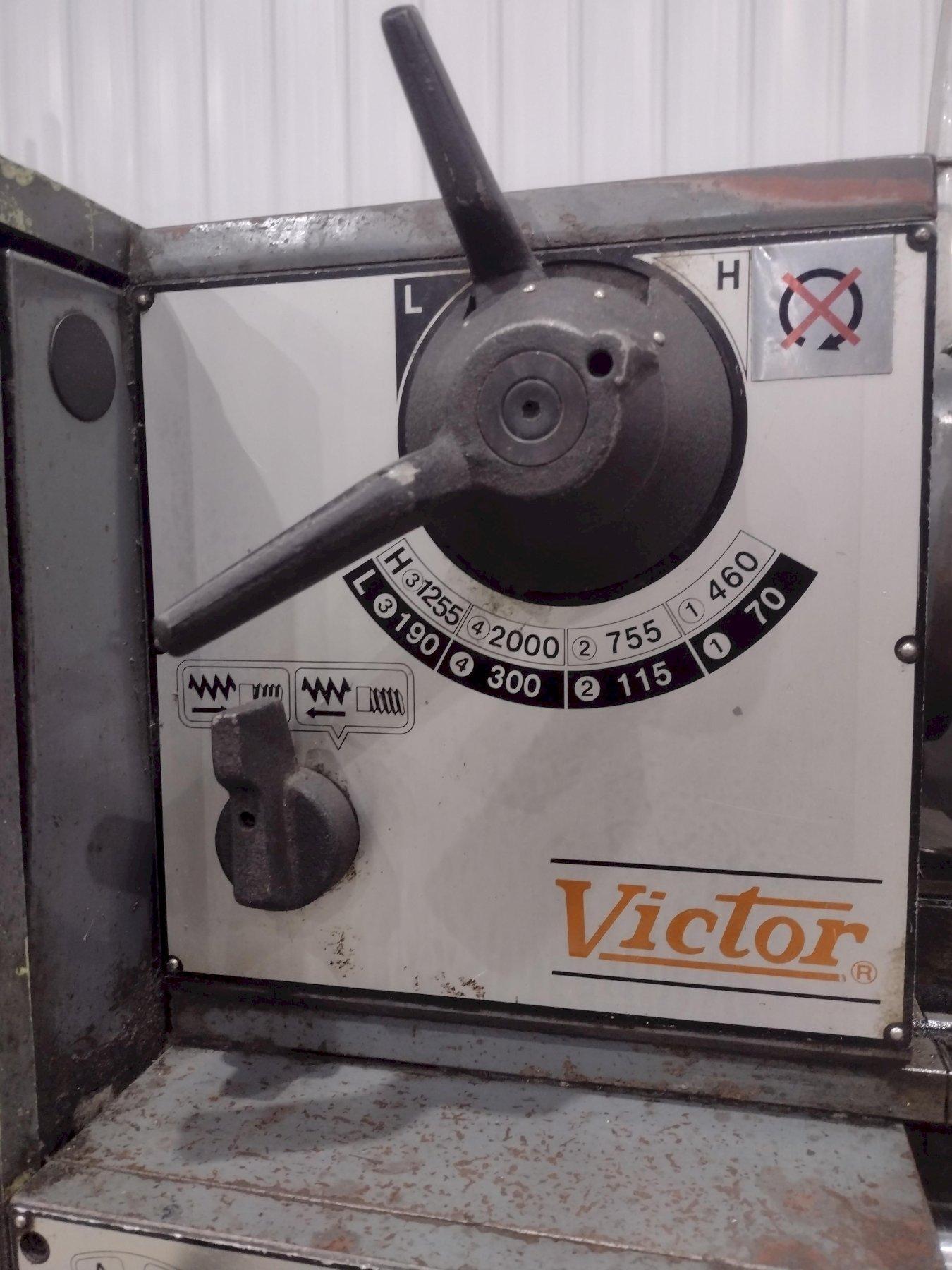

SPINDLE SPEEDS ................... (8) 70 TO 2000 RPM

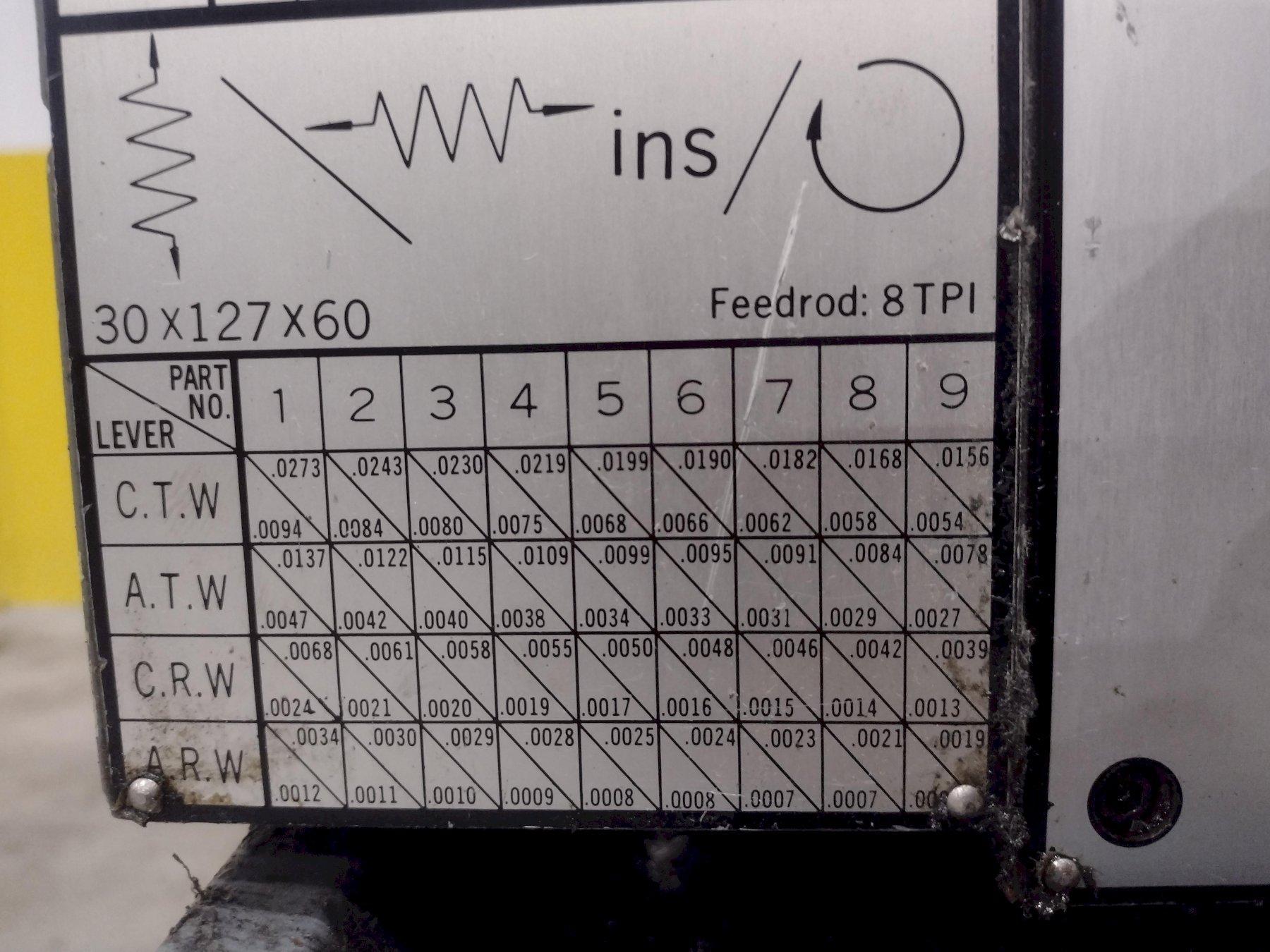

LONGITUDINAL FEEDS ............... (32) .0019 TO.0273 IPR
CROSS FEEDS ...................... (32) .0007 TO .0094 IPR

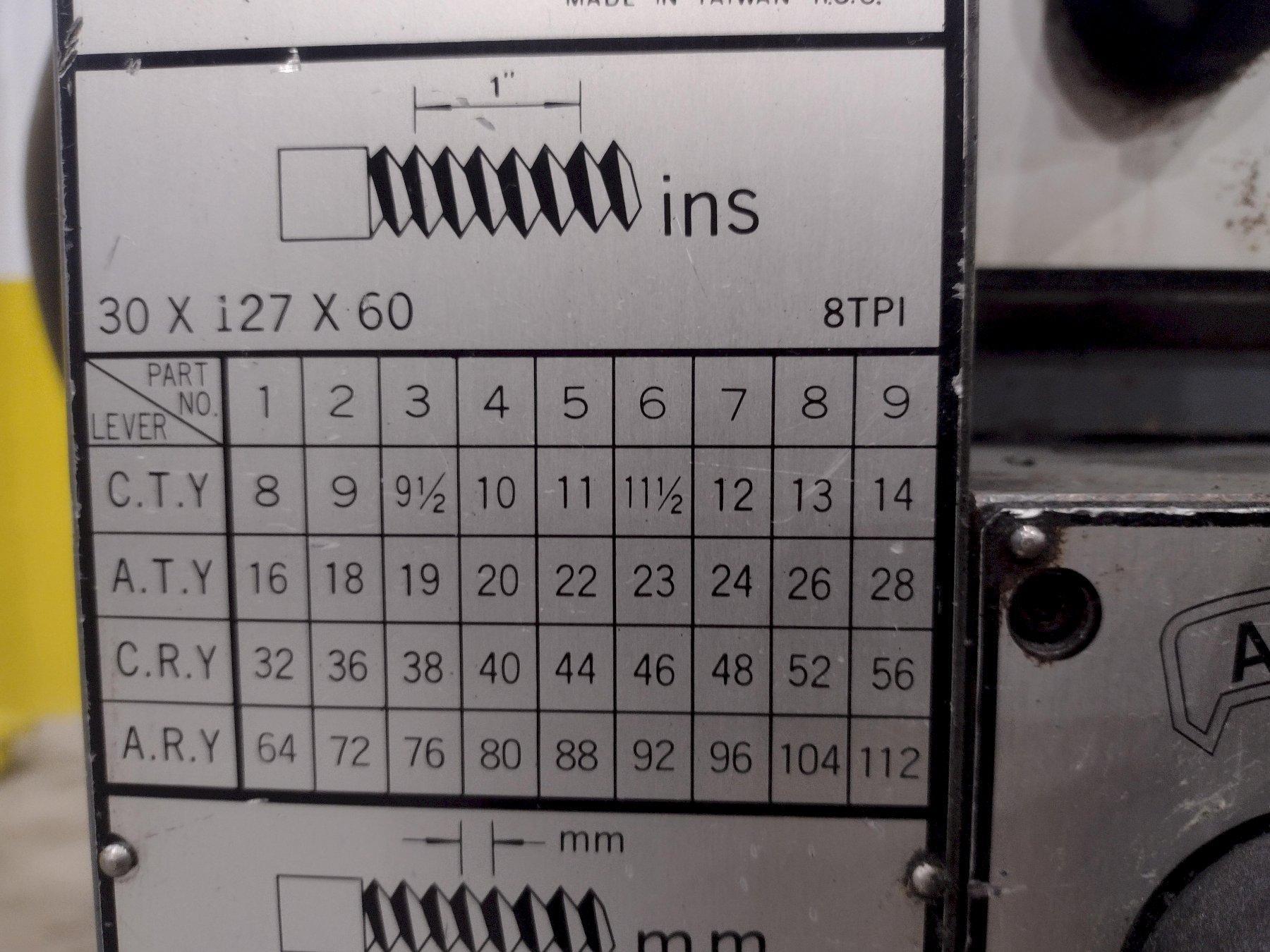

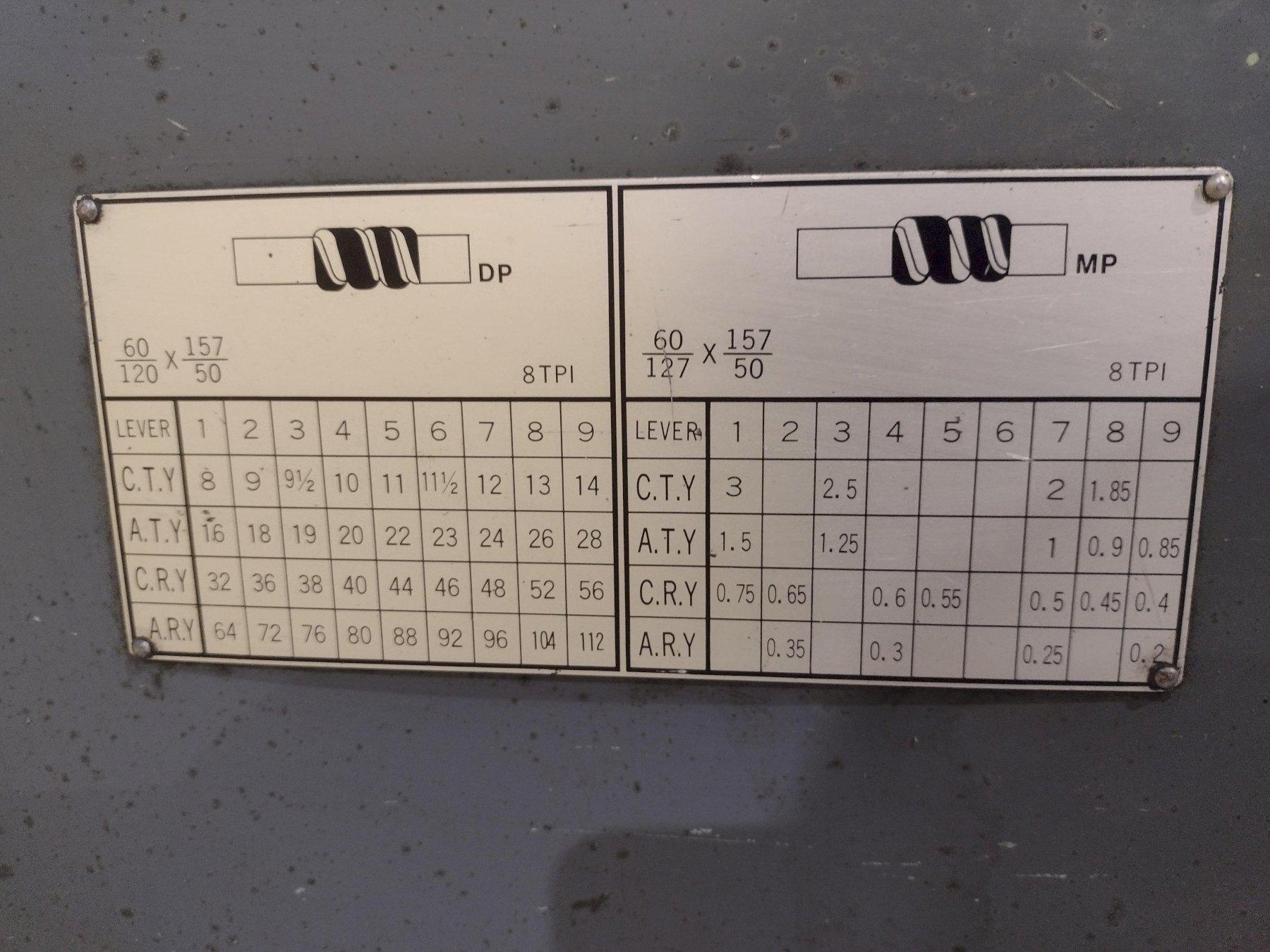

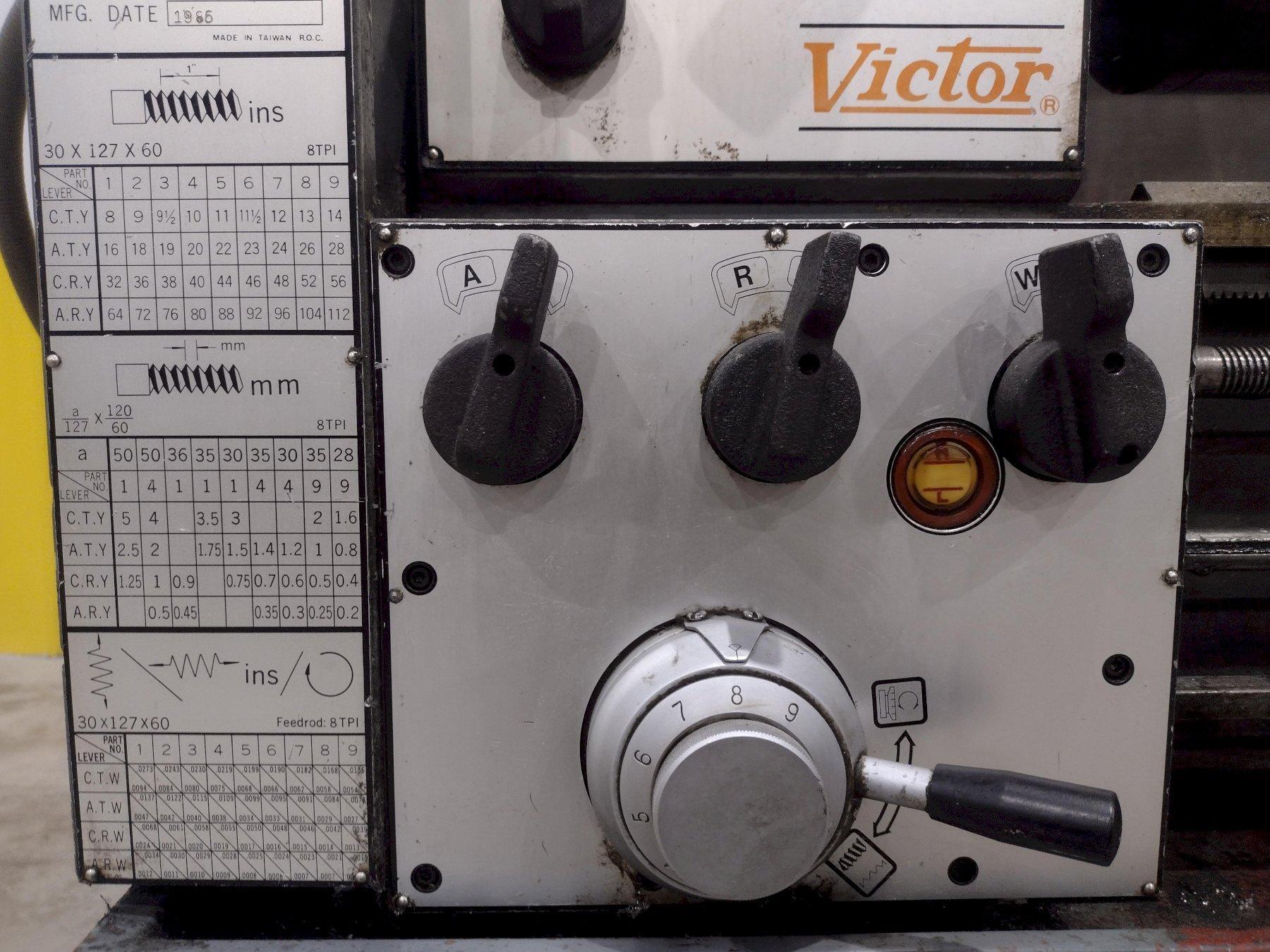

THREADS .......................... 8 TO 112 TPI
METRIC THREADS ................... .02 TO 5 MM PITCH
DIAMETER OF SPINDLE HOLE ......... 1-1/2"

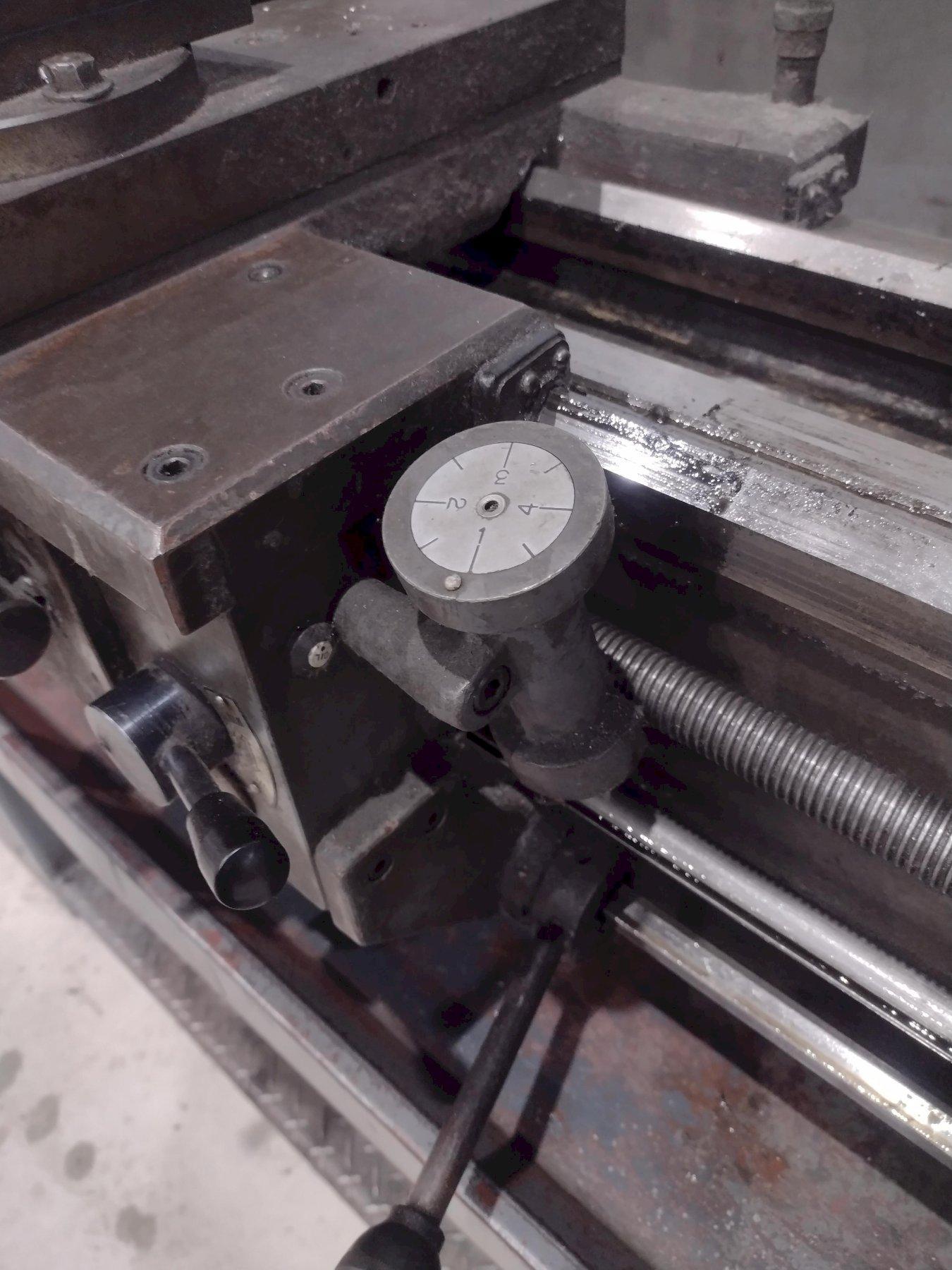

THREAD DIAL ...................... YES
REMOVABLE GAP .................... YES
HARD WAYS ........................ YES

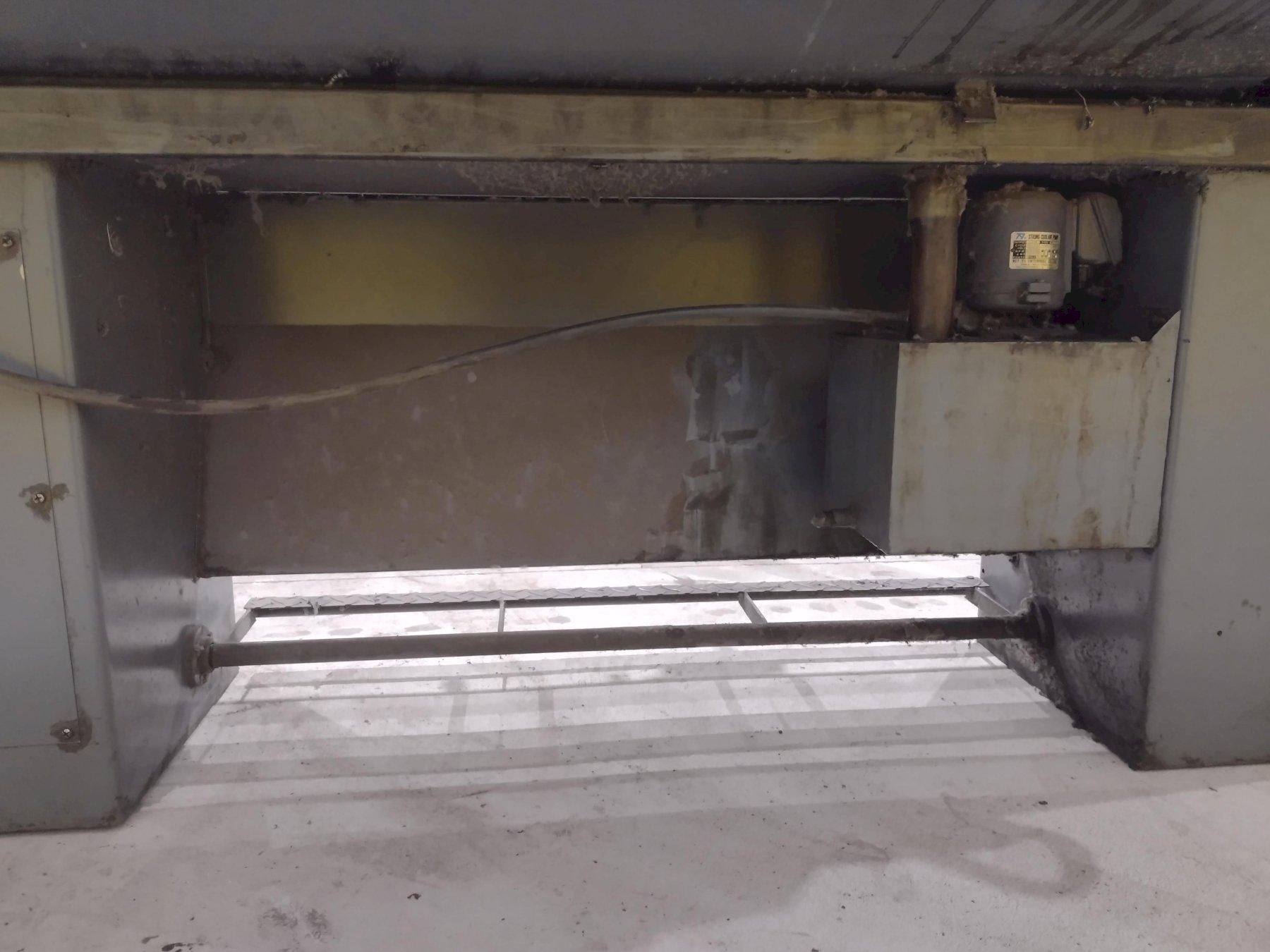

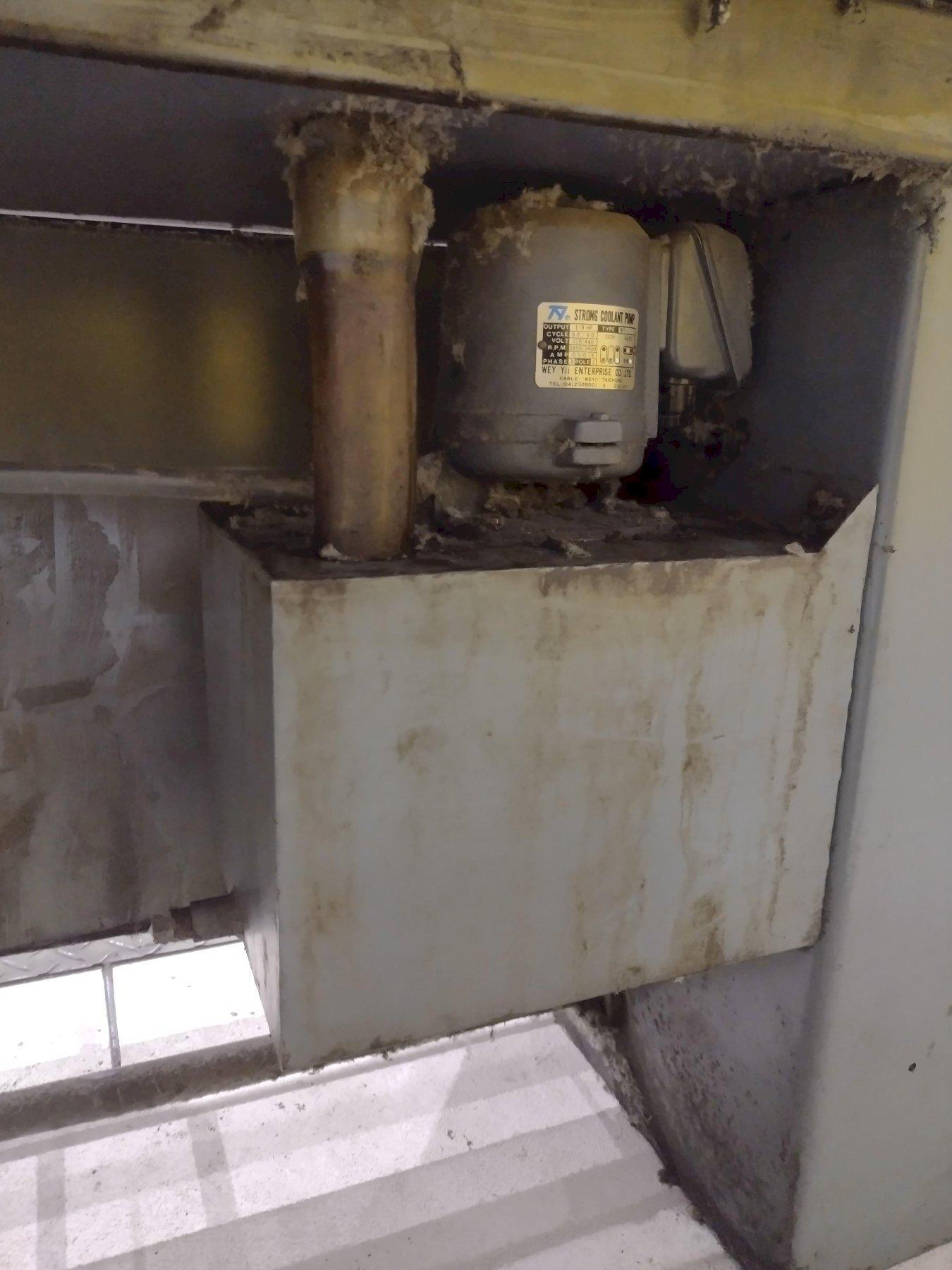

COOLANT .......................... YES

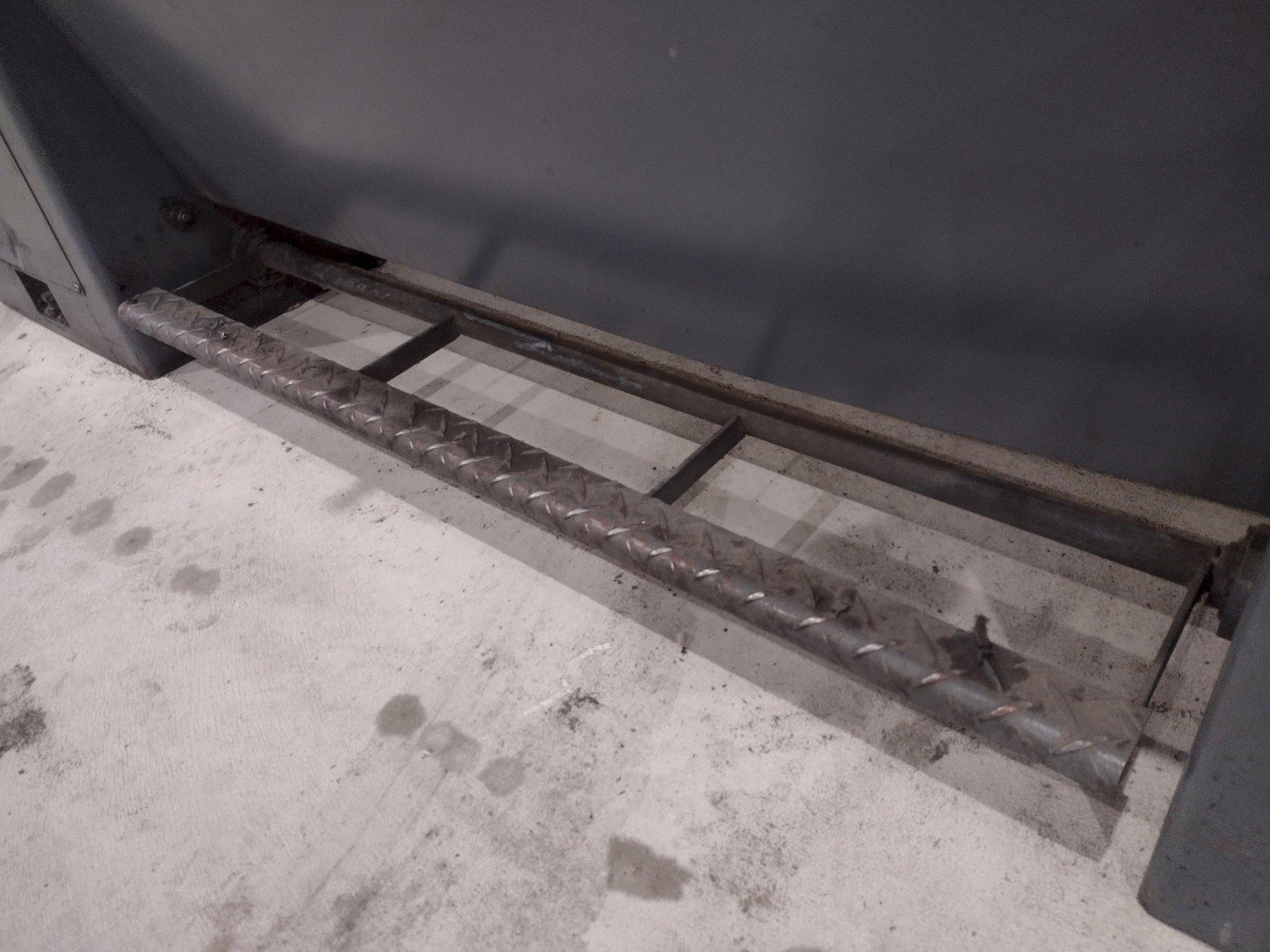

FOOT BRAKE ....................... YES

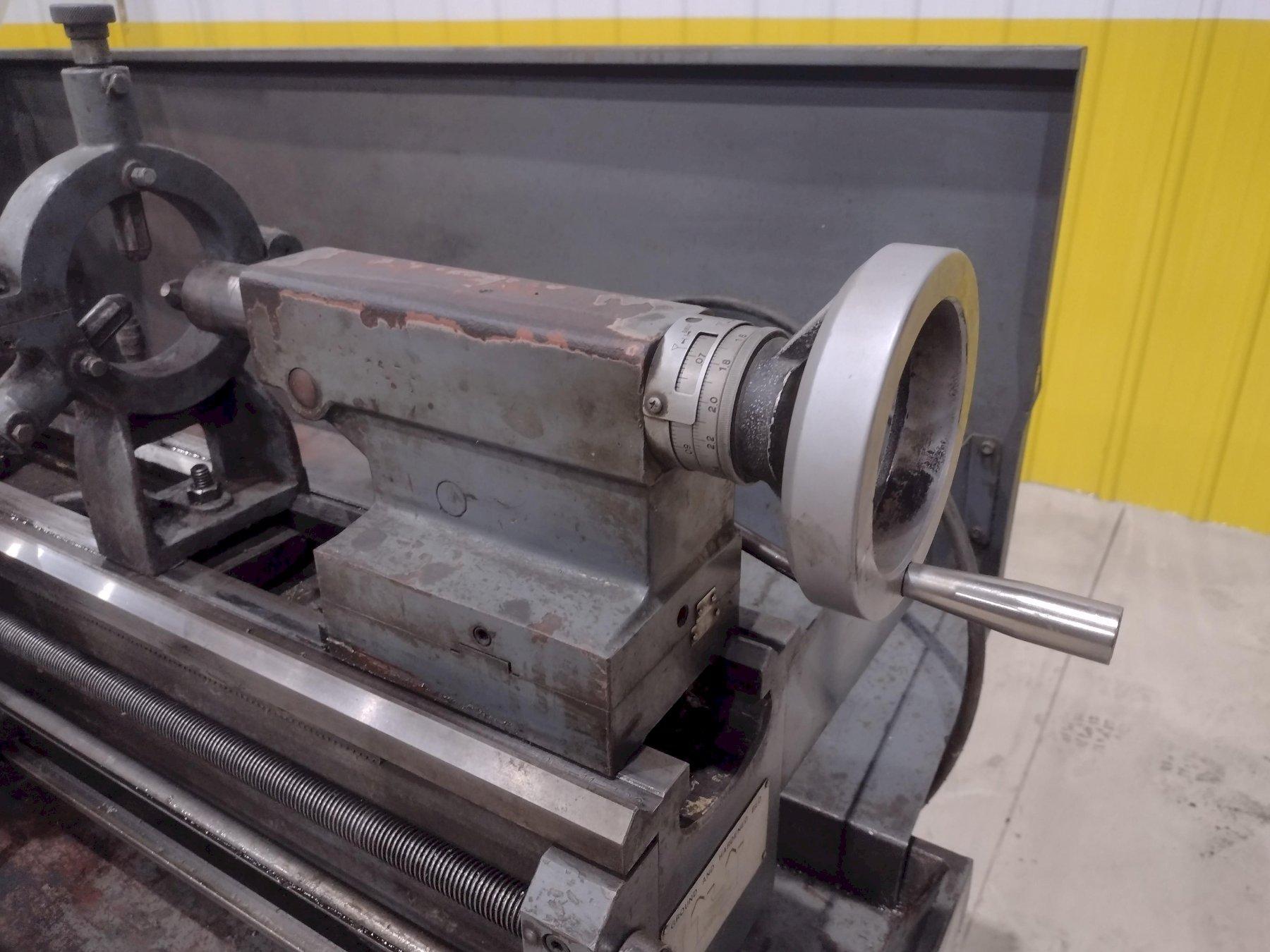

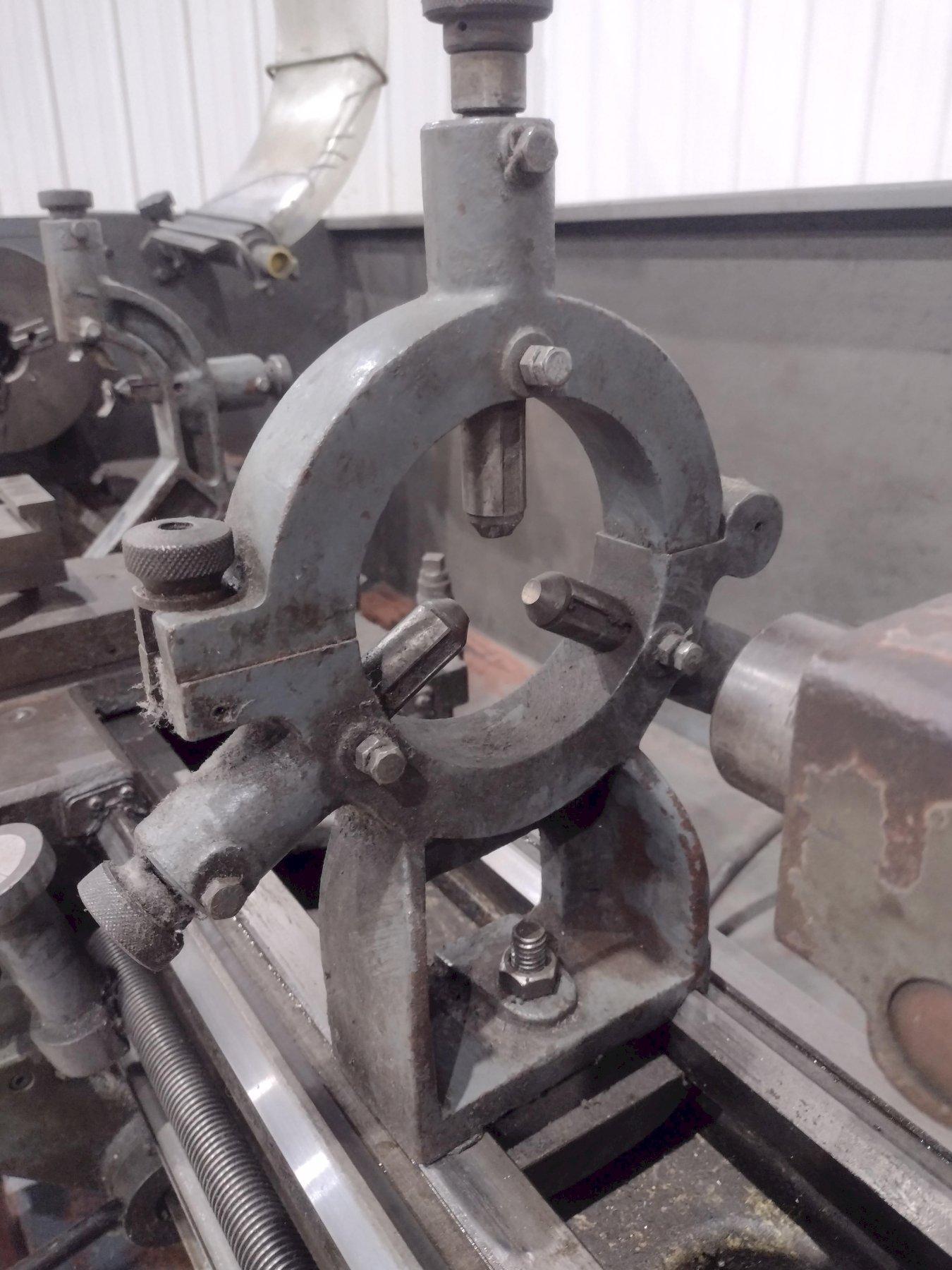

STEADY REST ...................... 4.25"

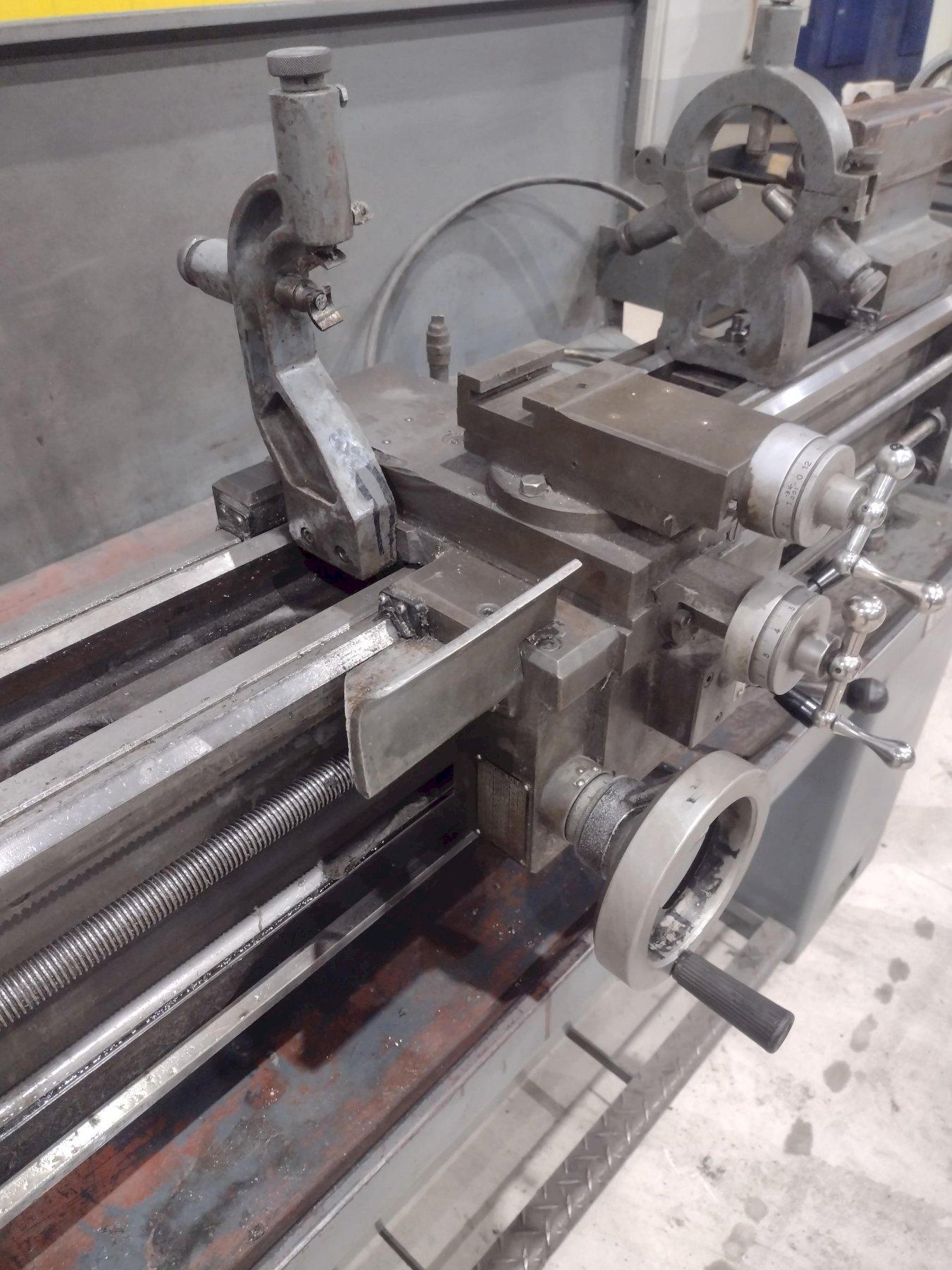

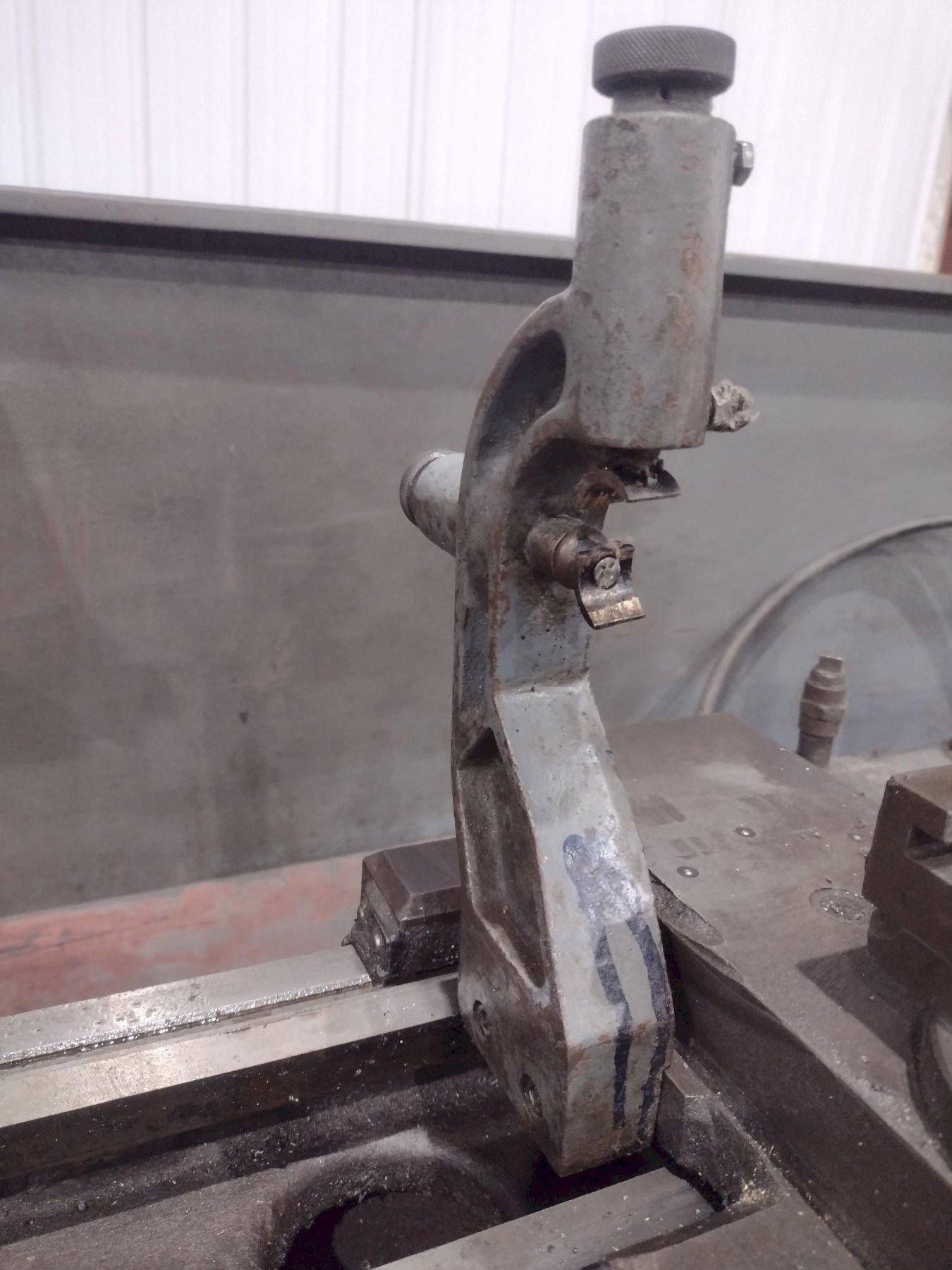

FOLLOW REST ...................... YES

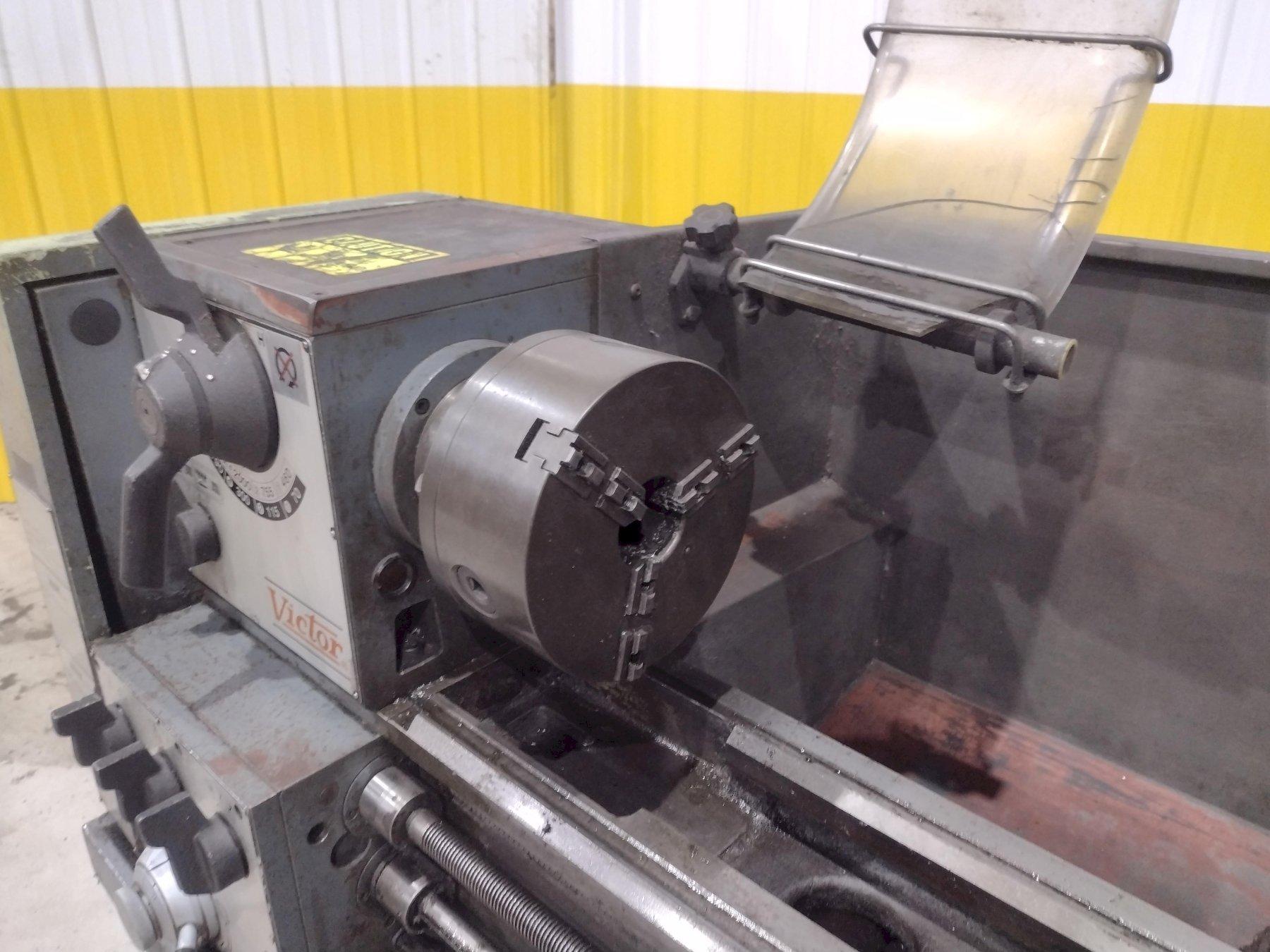

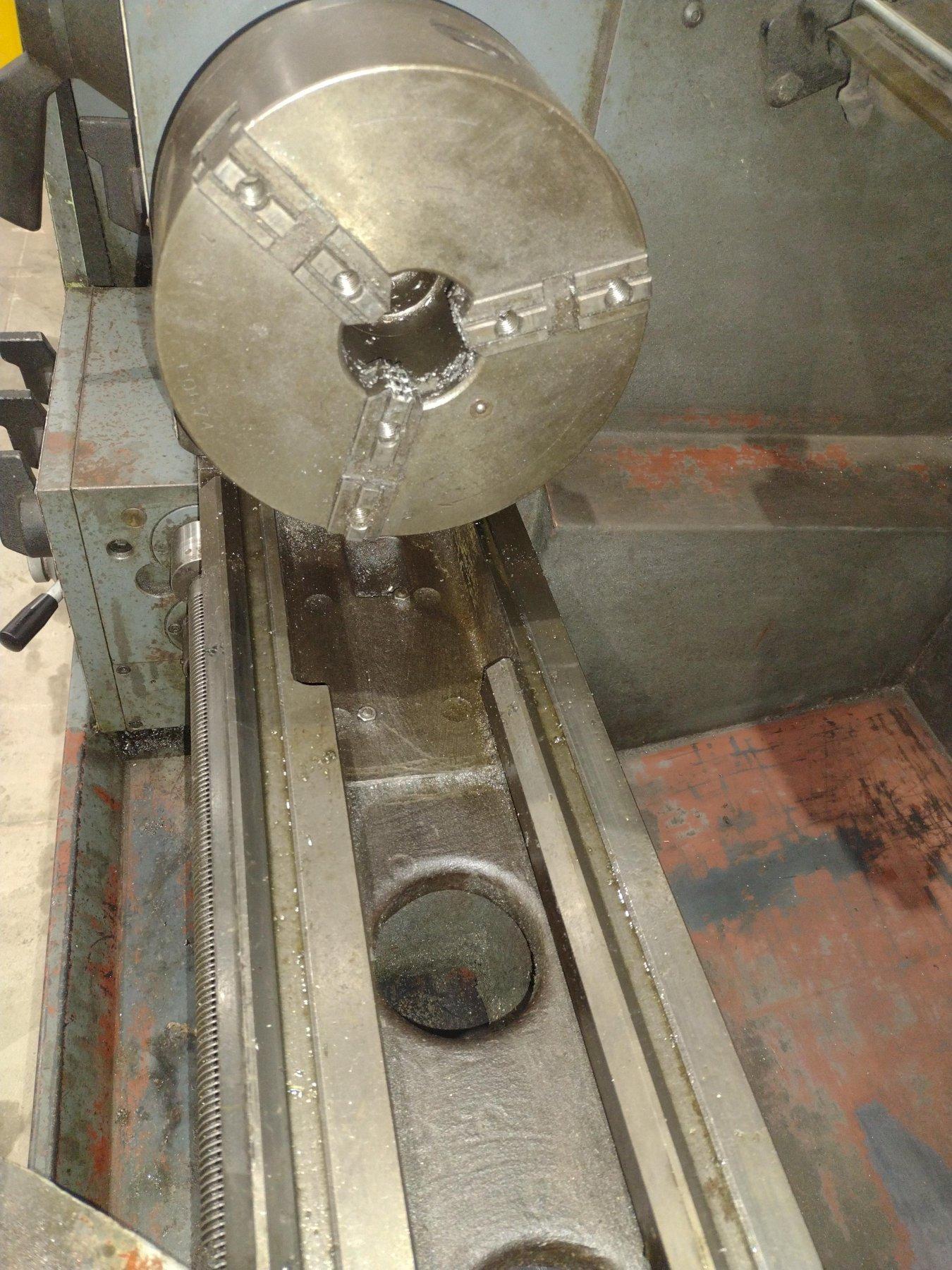

CHUCK ............................ 7.5" 3 JAW

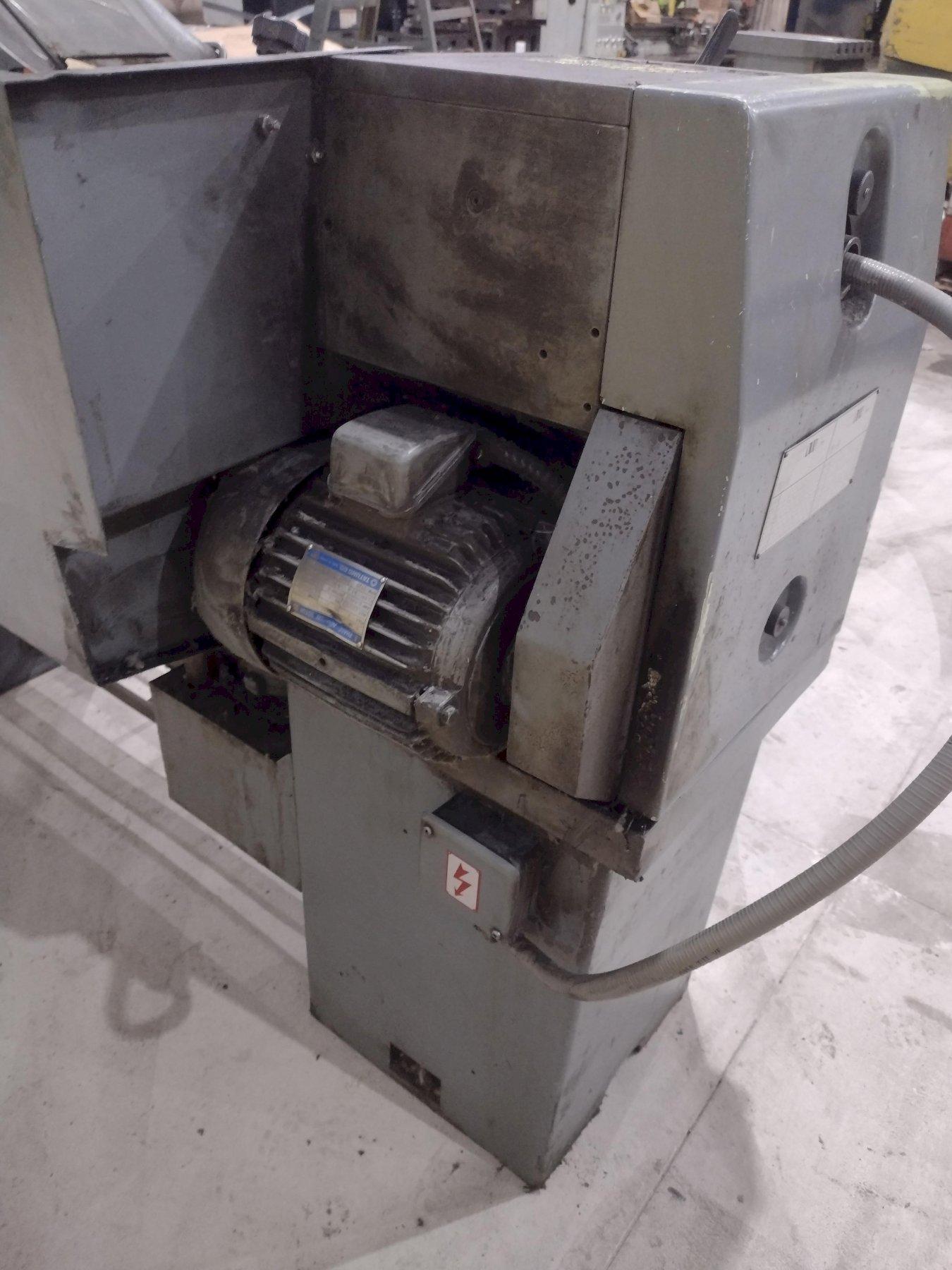

SPINDLE MOTOR, HORSEPOWER ........ 3
