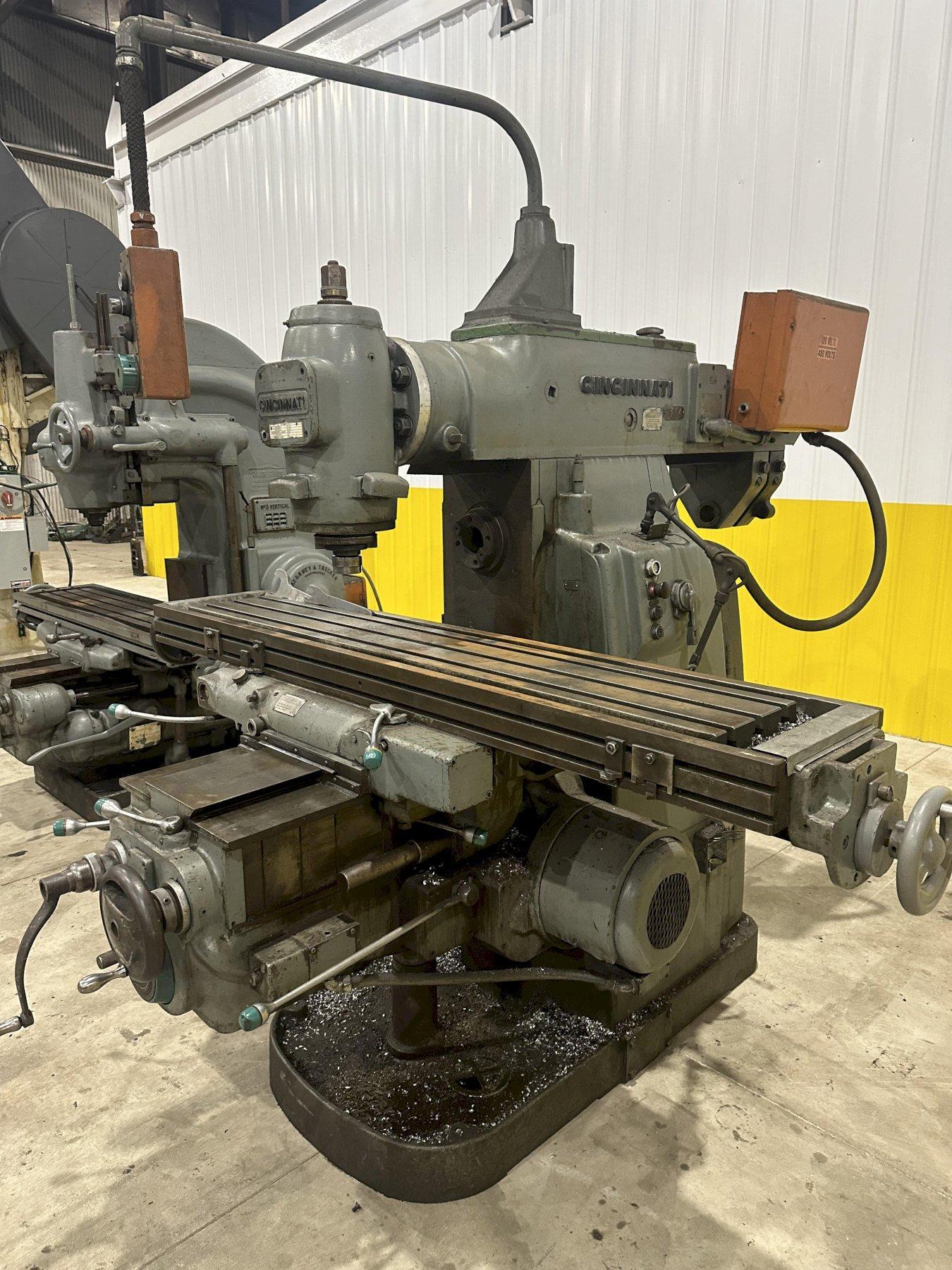

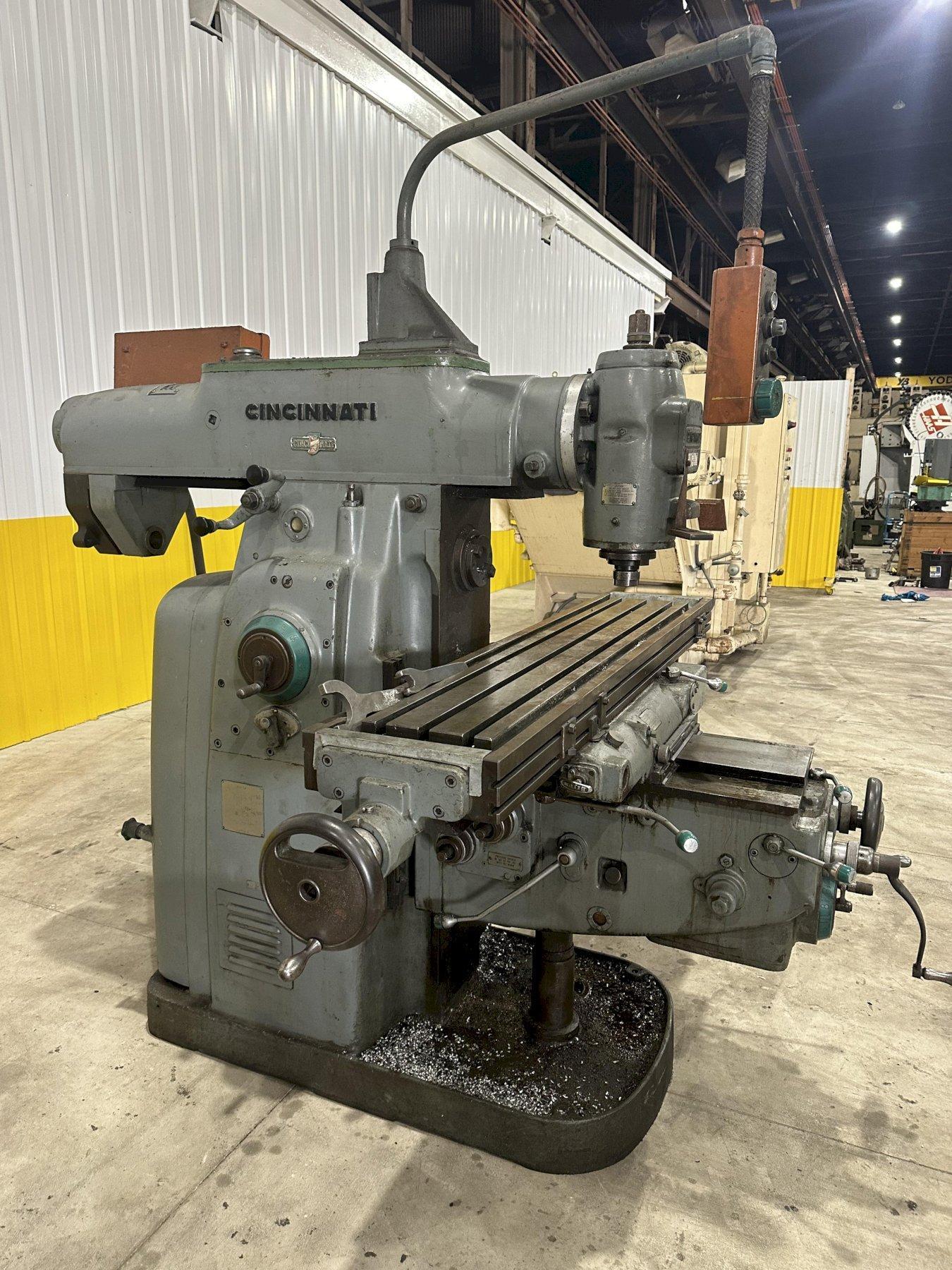

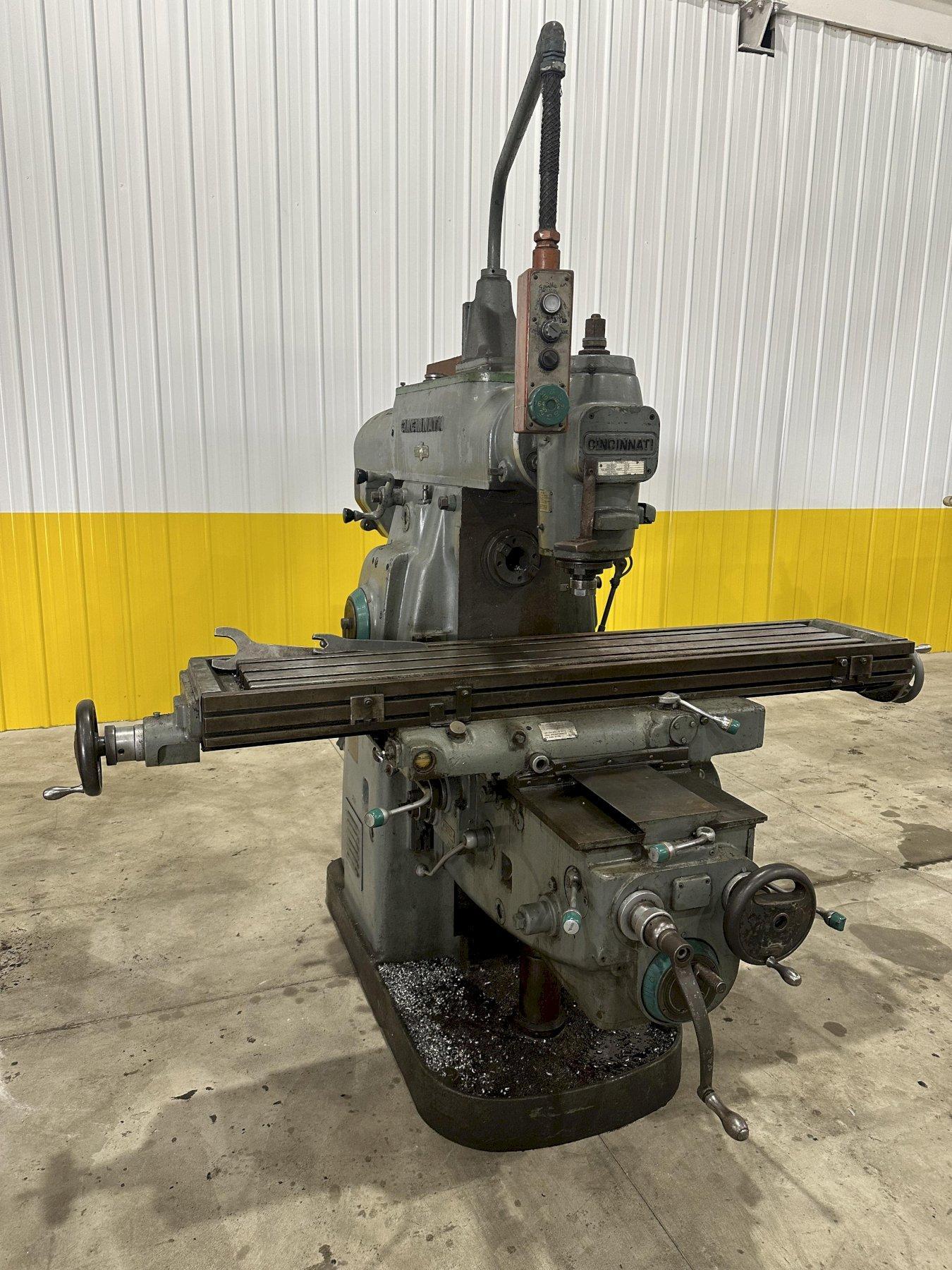

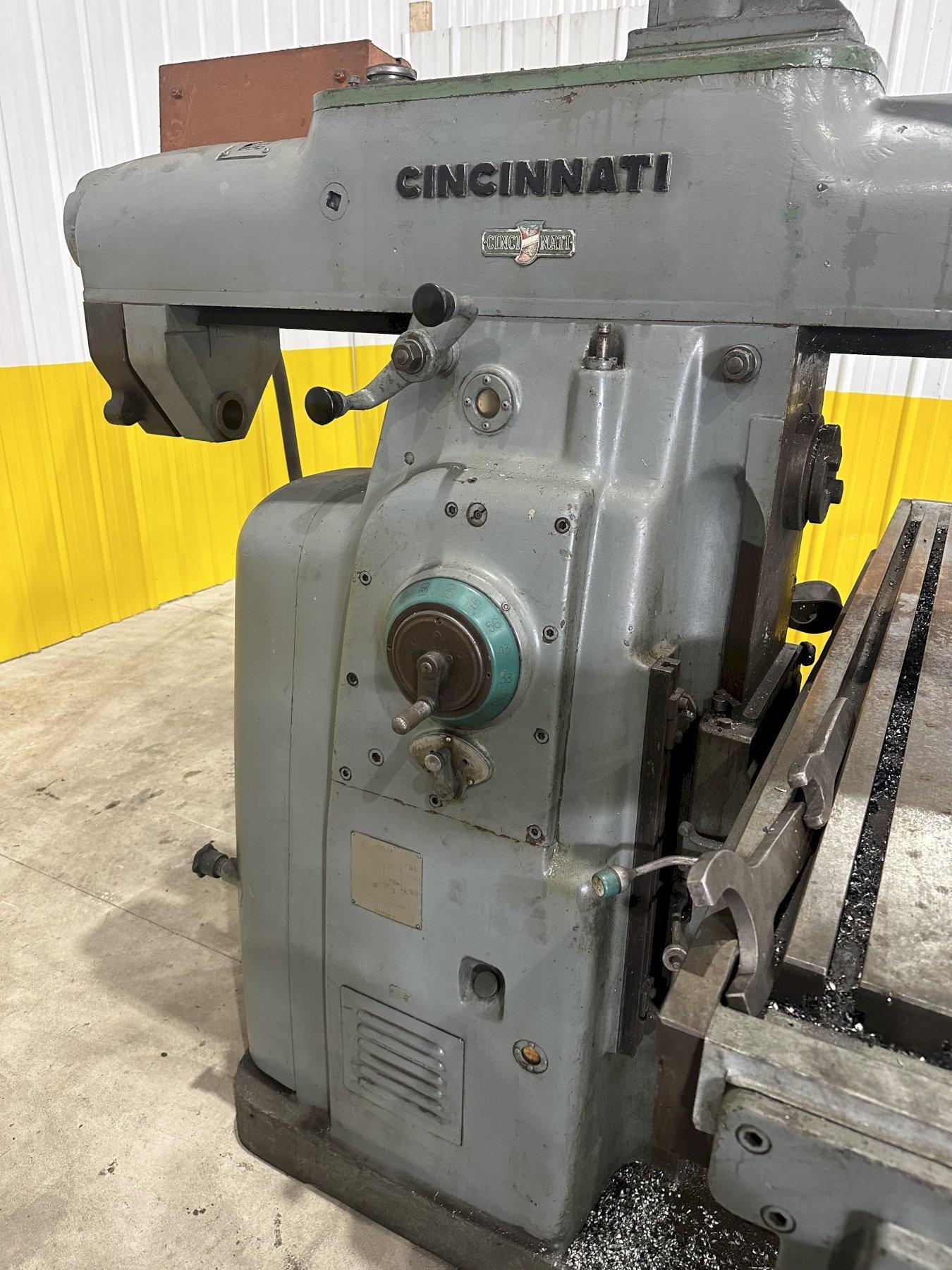

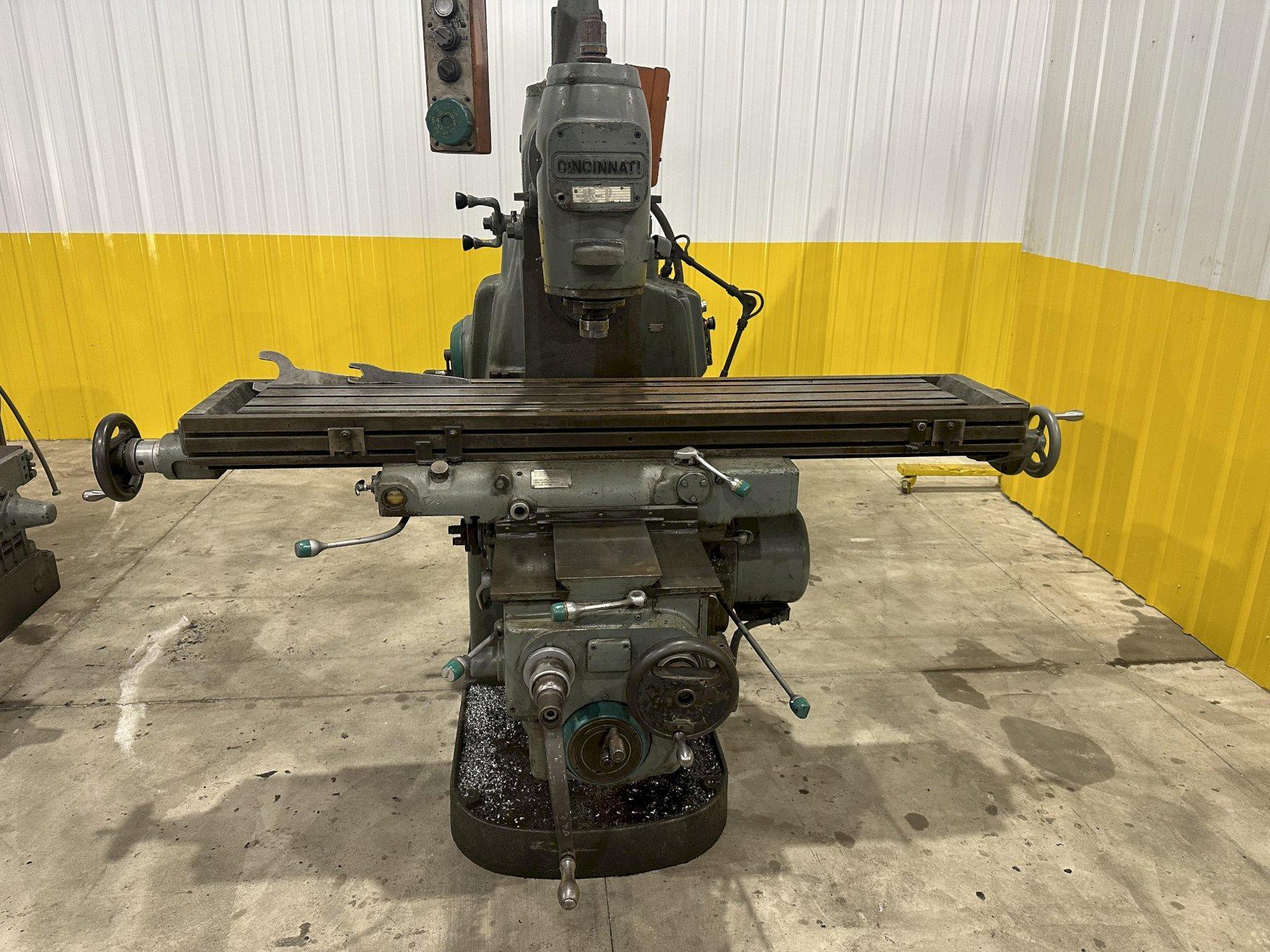

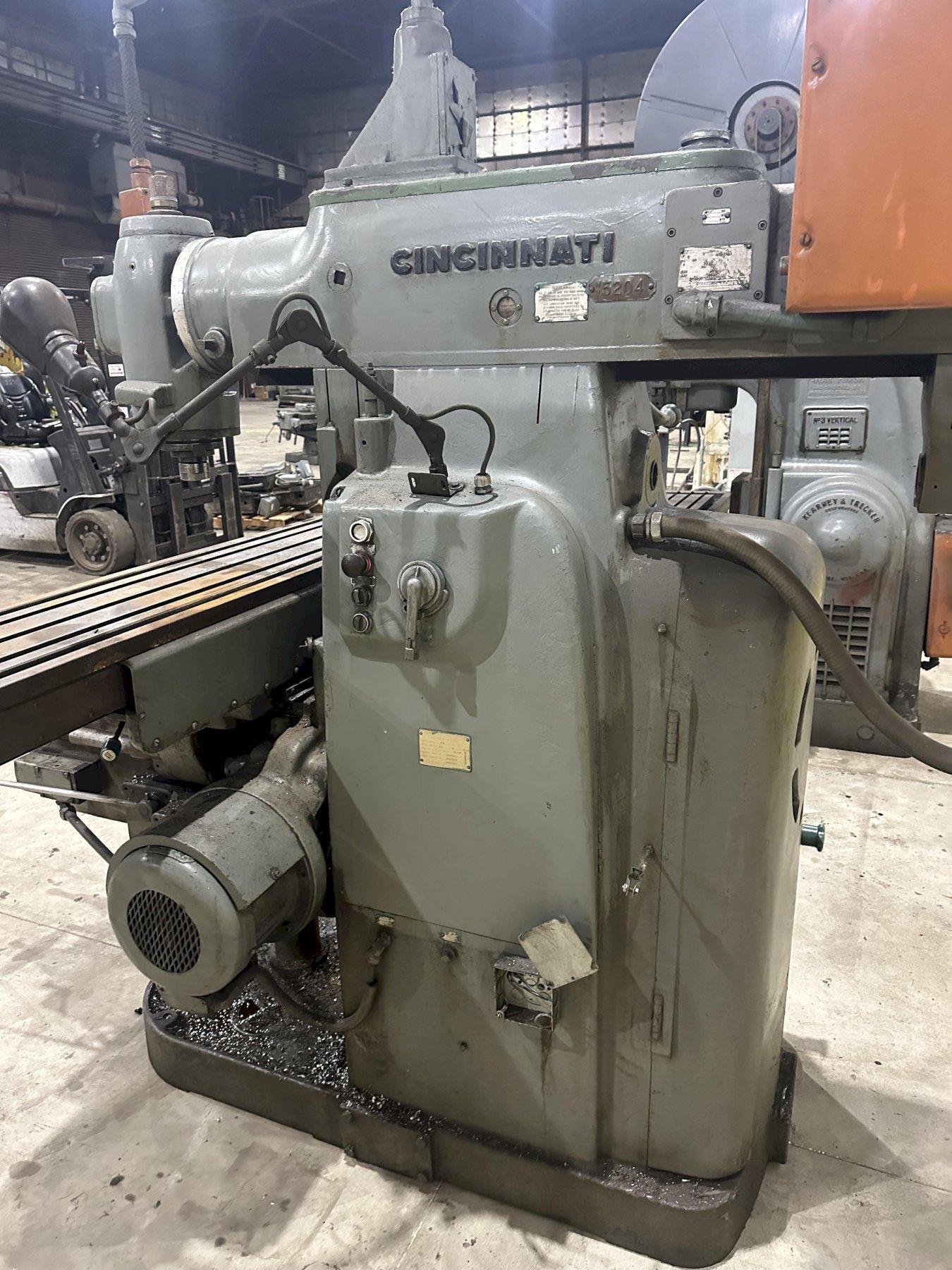

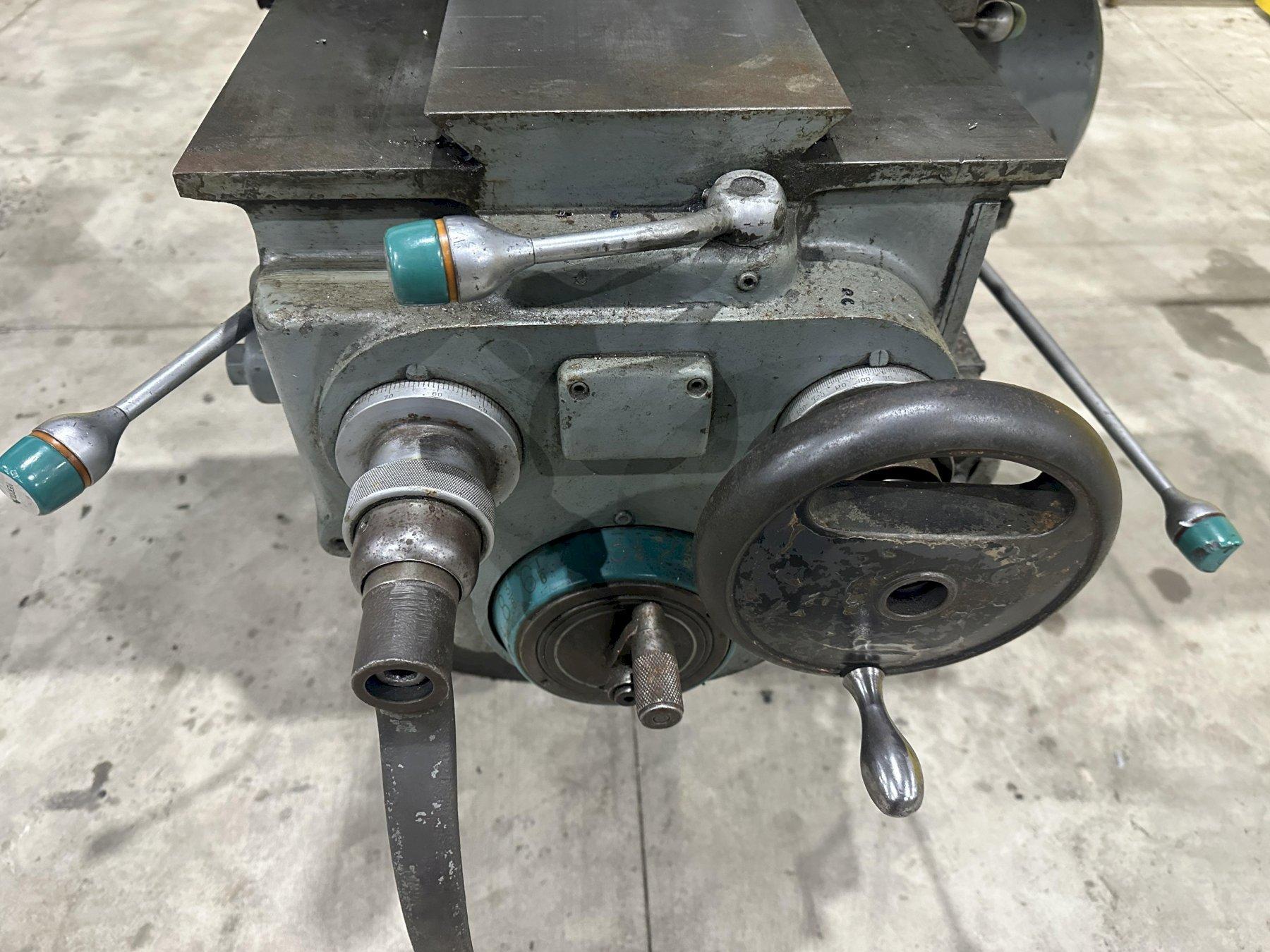

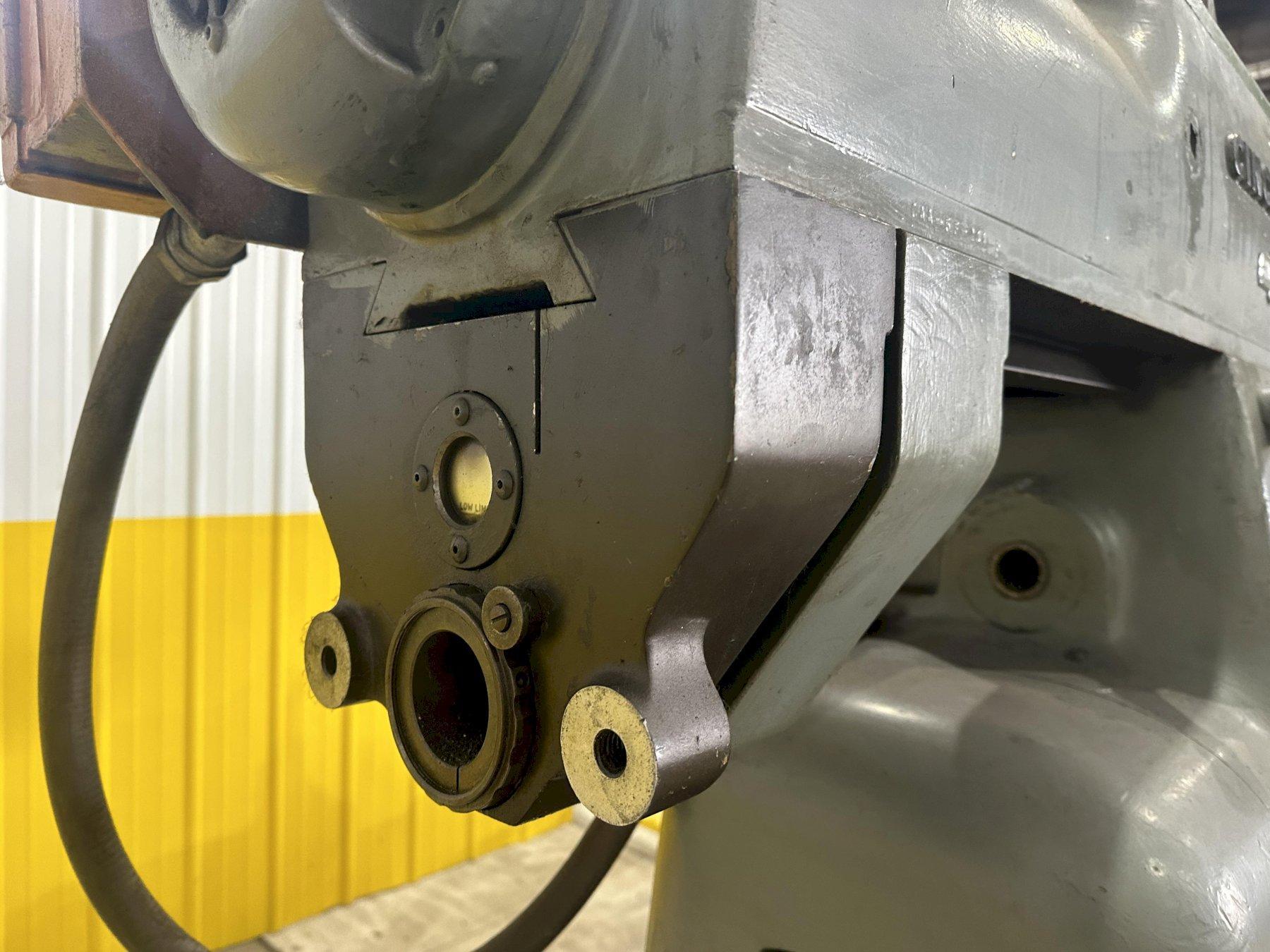

#4 CINCINNATI MODEL #410-14 HORIZONTAL MILL WITH TOOLKMAKERS VERTICAL HEAD: STOCK #20605

Manufacturer

Cincinnati

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

20605

Model

410-14

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



#4 CINCINNATI MODEL #410-14 HORIZONTAL MILL WITH TOOLKMAKERS VERTICAL HEAD: STOCK #20605

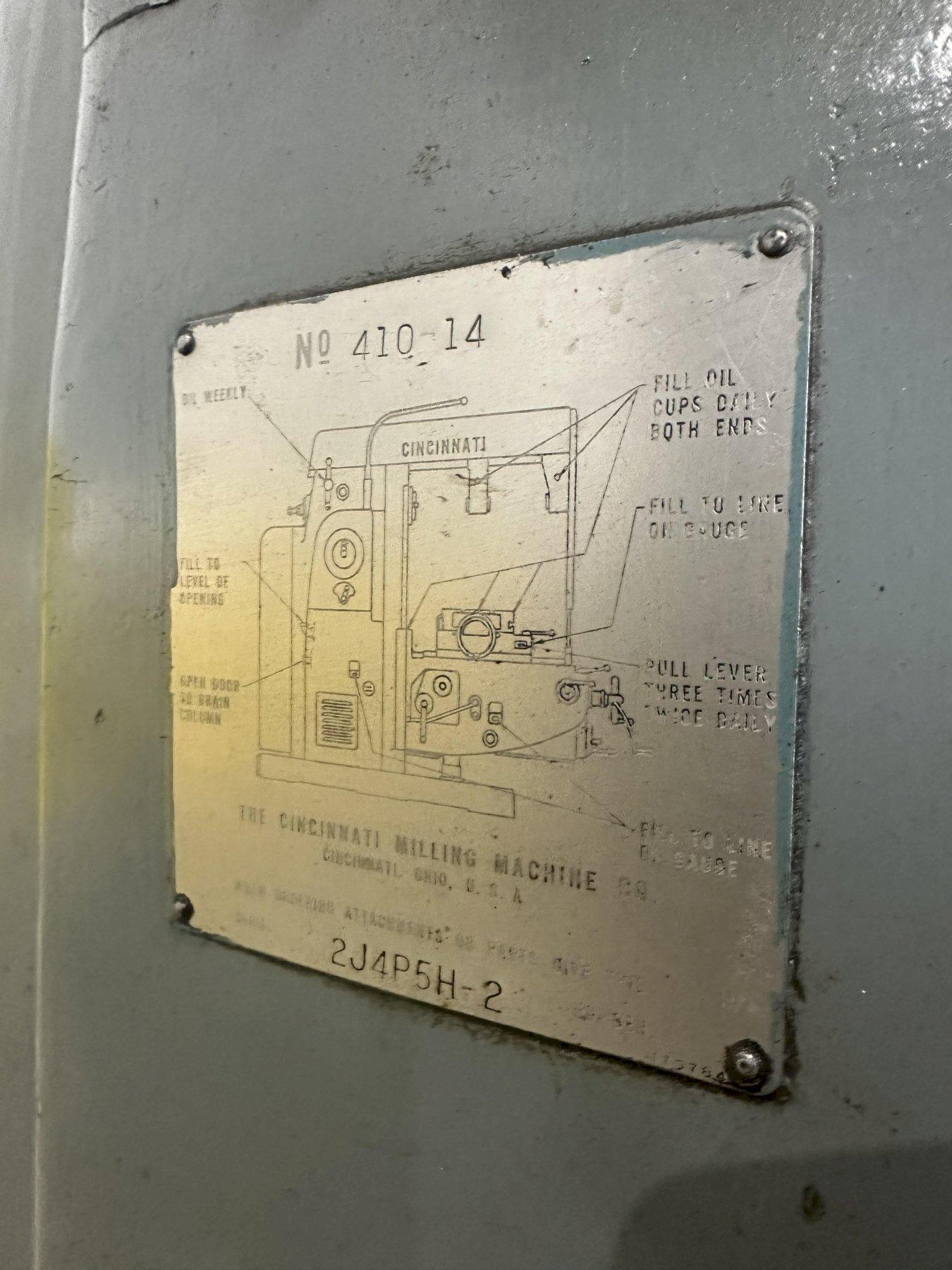

SERIAL .......................... 2J4P5H-2
MODEL ........................... 410-14

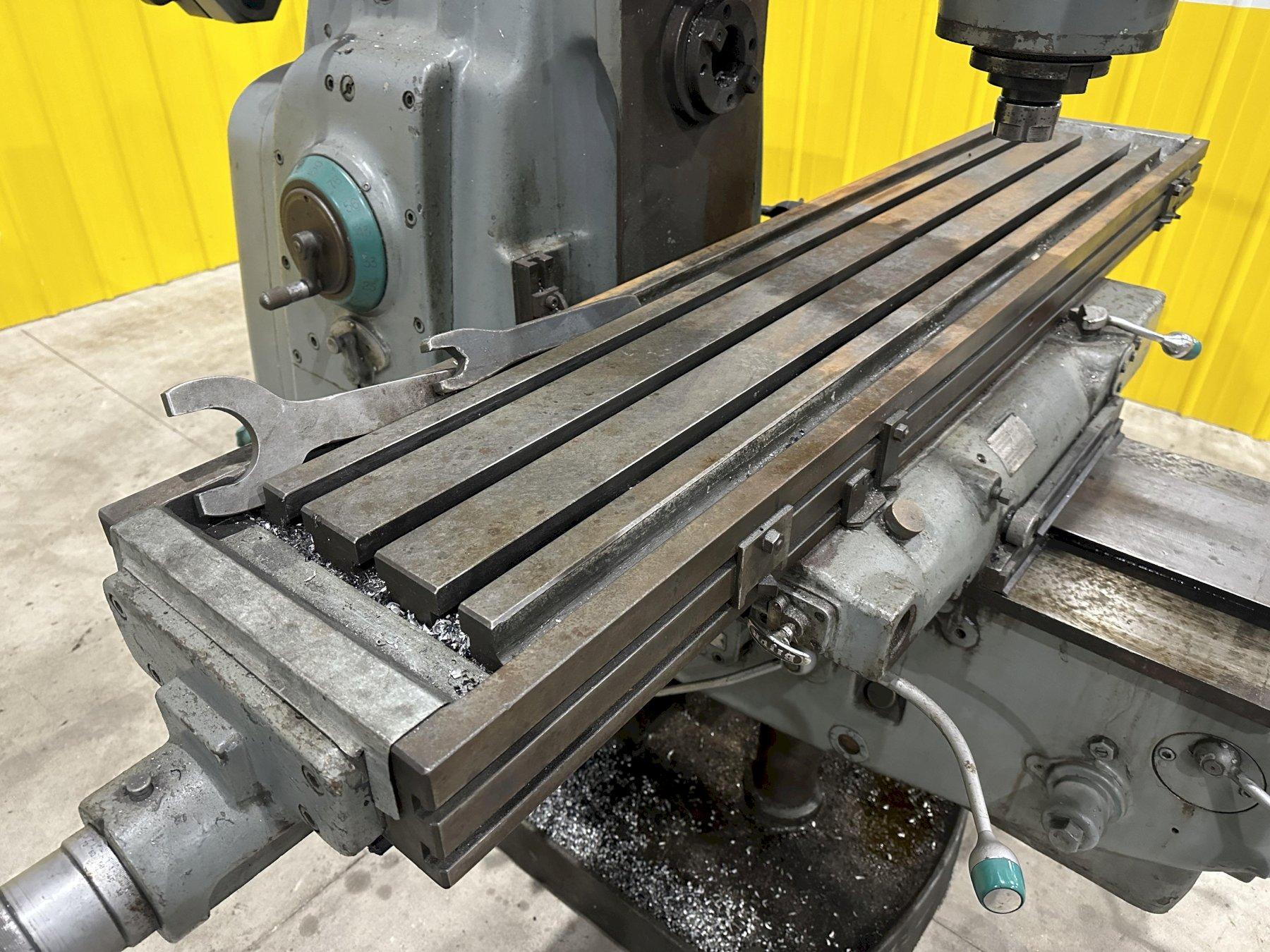

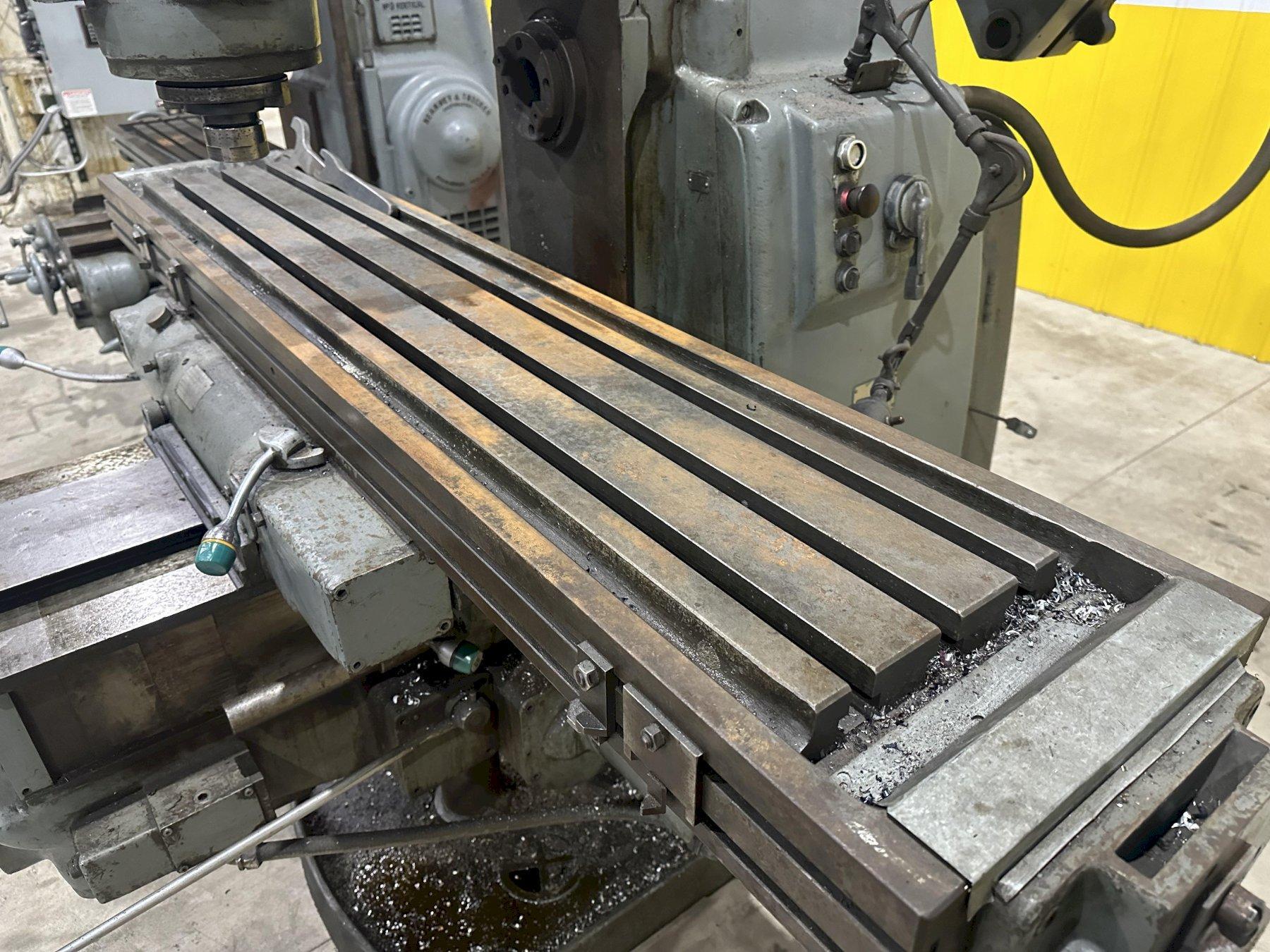

AREA OF TABLE ................... 70-1/2" X 14"

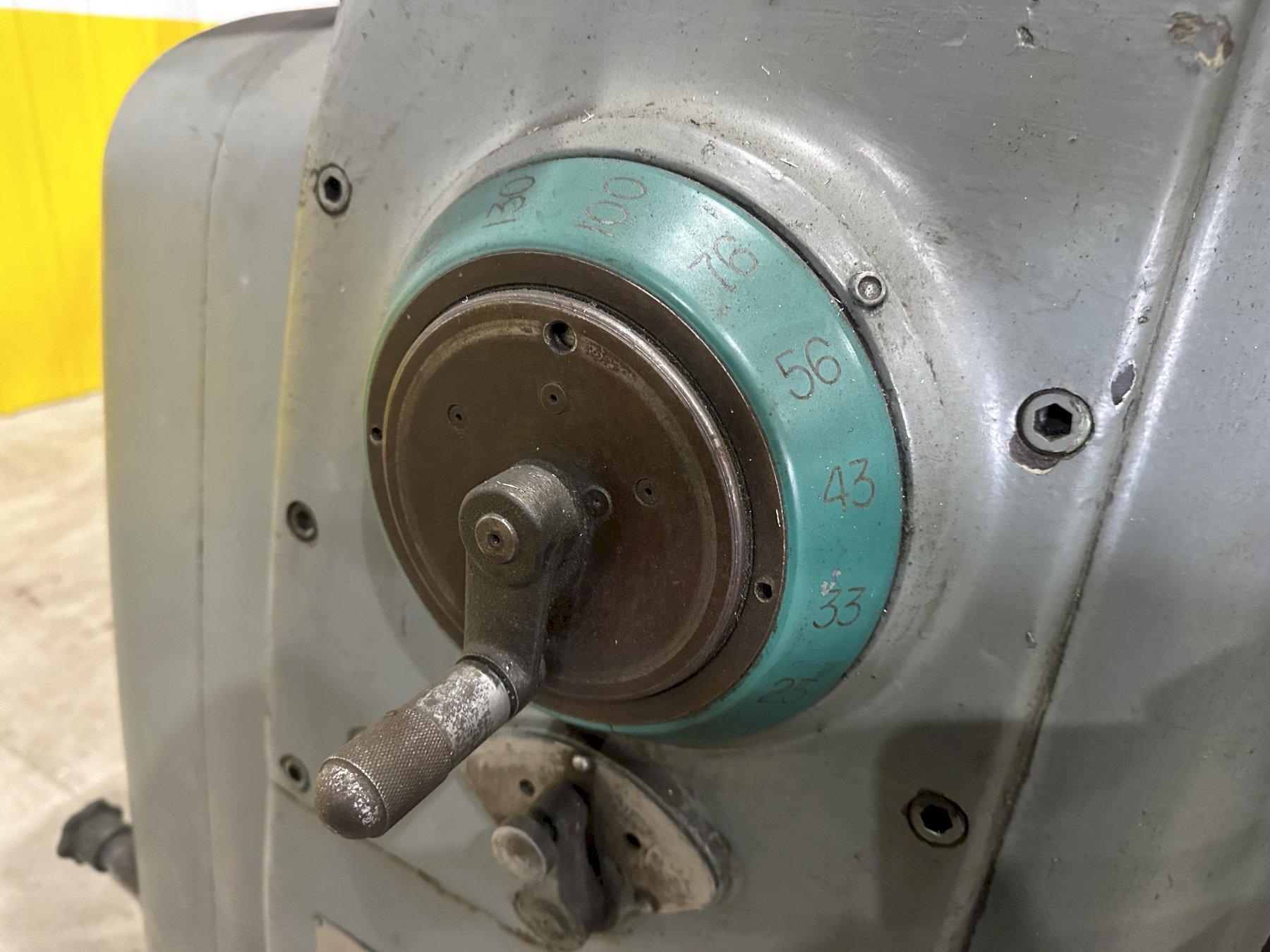

SPINDLE SPEEDS .................. (16) 33 TO 2000 RPM
LONGITUDINAL & CROSS FEEDS ...... (16) 1/4 TO 30 IPM (3 TO 380 MMPM)
VERTICAL FEEDS .................. (16) 1/8 TO 15 IPM (1.5 TO 190 MMPM)
LONGITUDINAL TRAVEL ............. 42"
CROSS TRAVEL .................... 12"
VERTICAL TRAVEL OF KNEE ......... 19"
CENTER LINE OF SPINDLE TO TABLE . 0" MINIMUM, 19" MAXIMUM
TABLE SWIVELS, LEFT OR RIGHT .... 46 DEGREE
TAPER IN SPINDLE ................ #50 NS
RAPID TRAVERSE .................. 150 IPM (75 IPM VERTICAL)

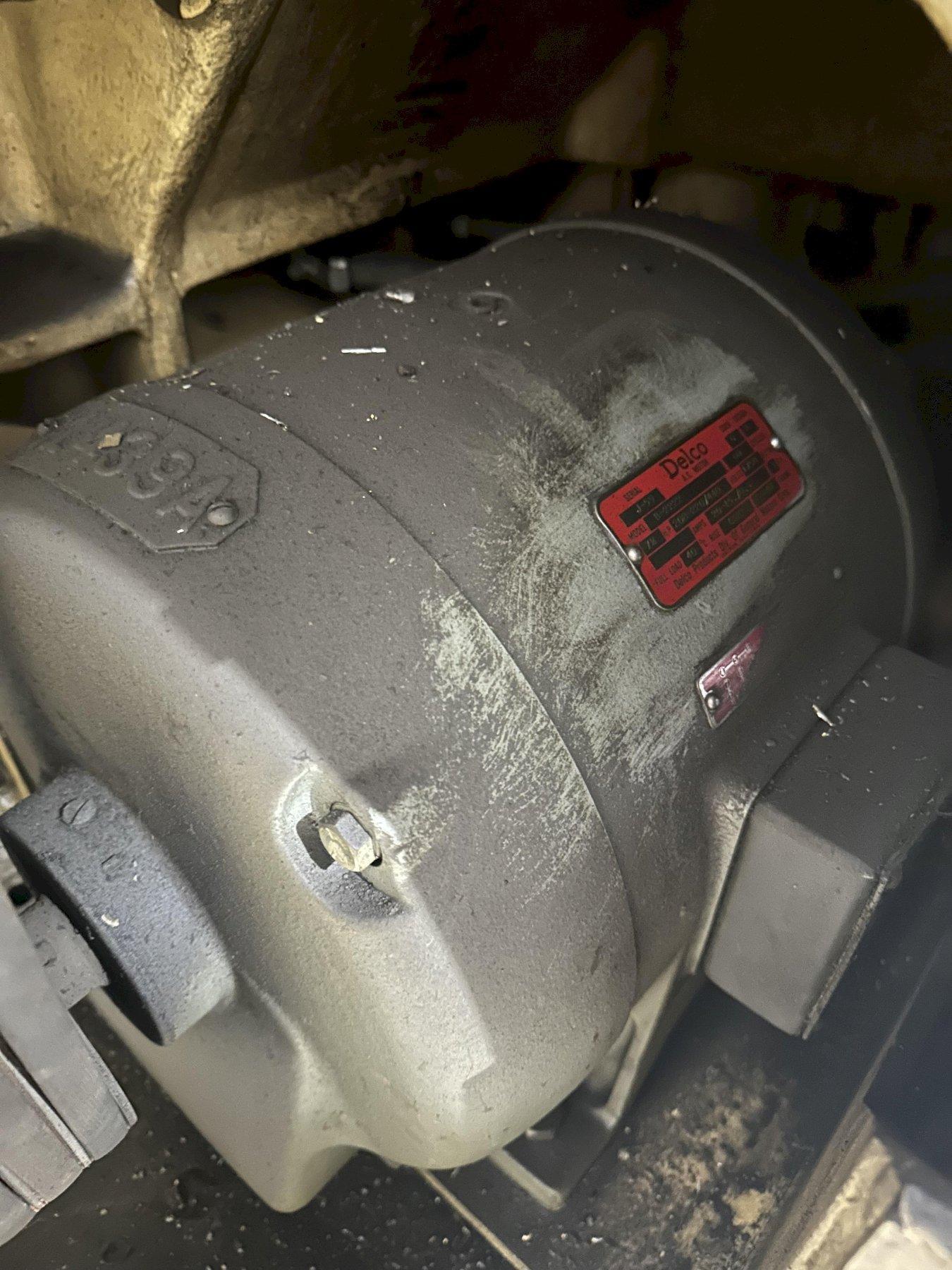

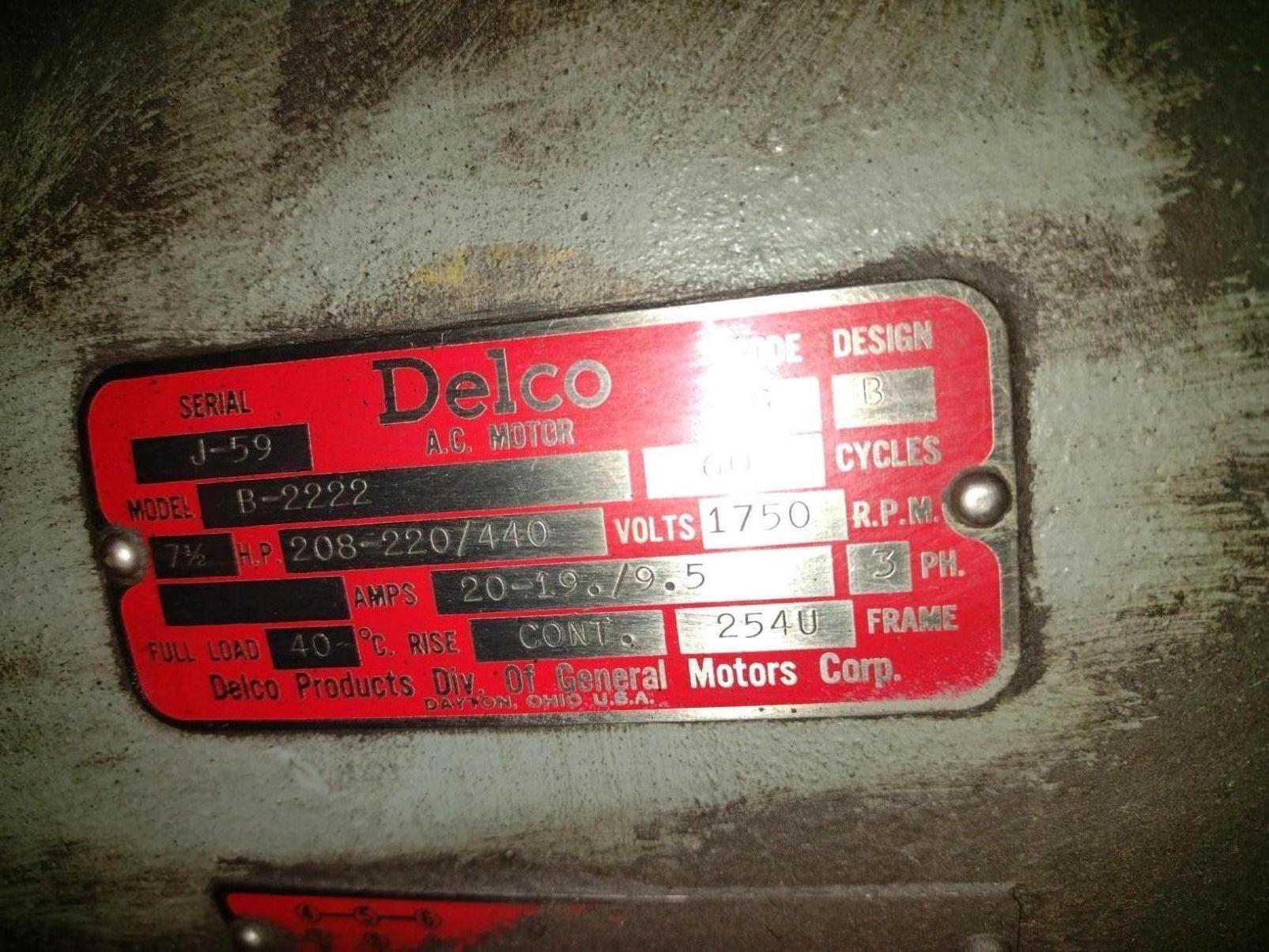

MAIN MOTOR ...................... 7.5 HORSEPOWER

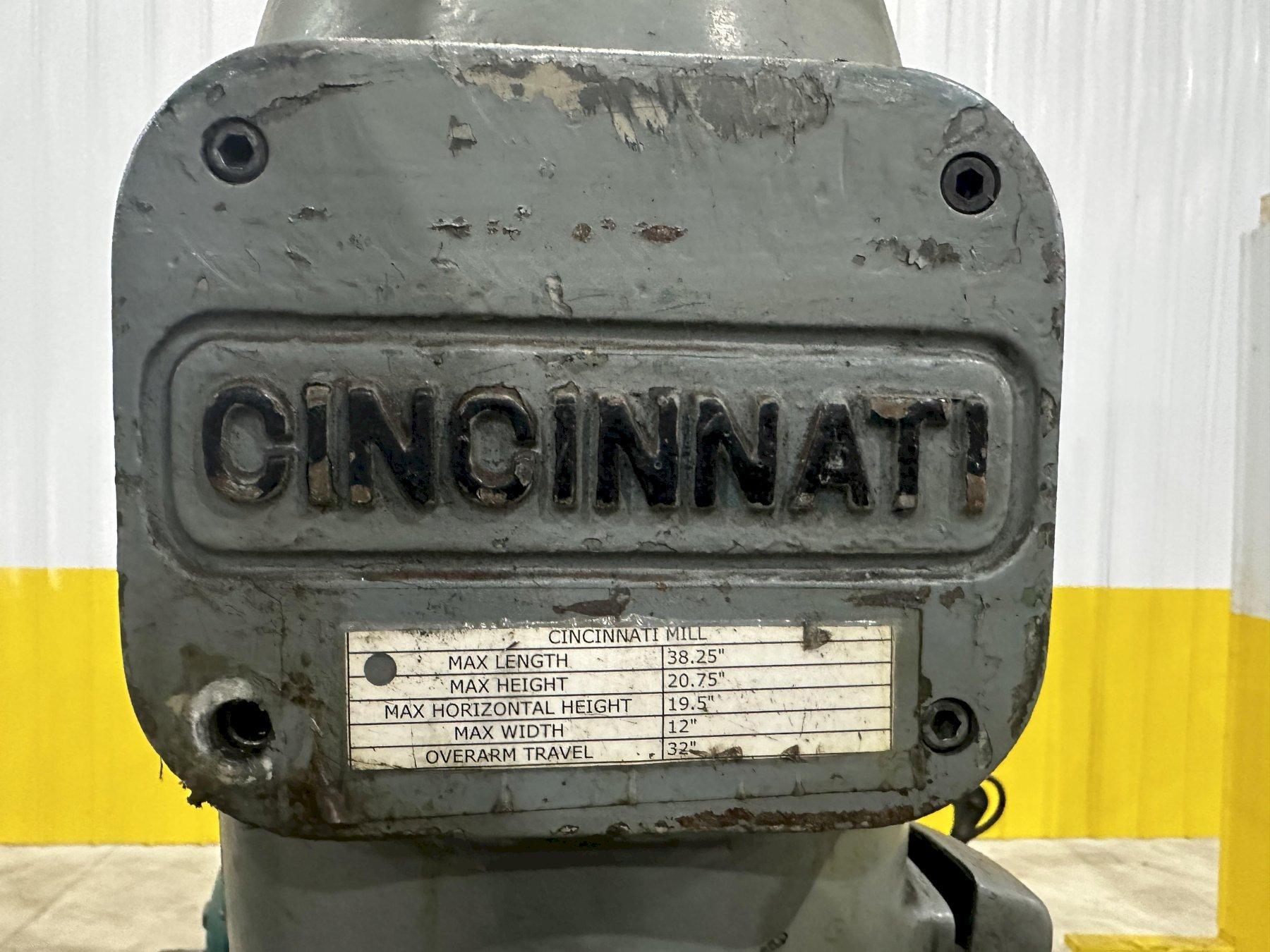

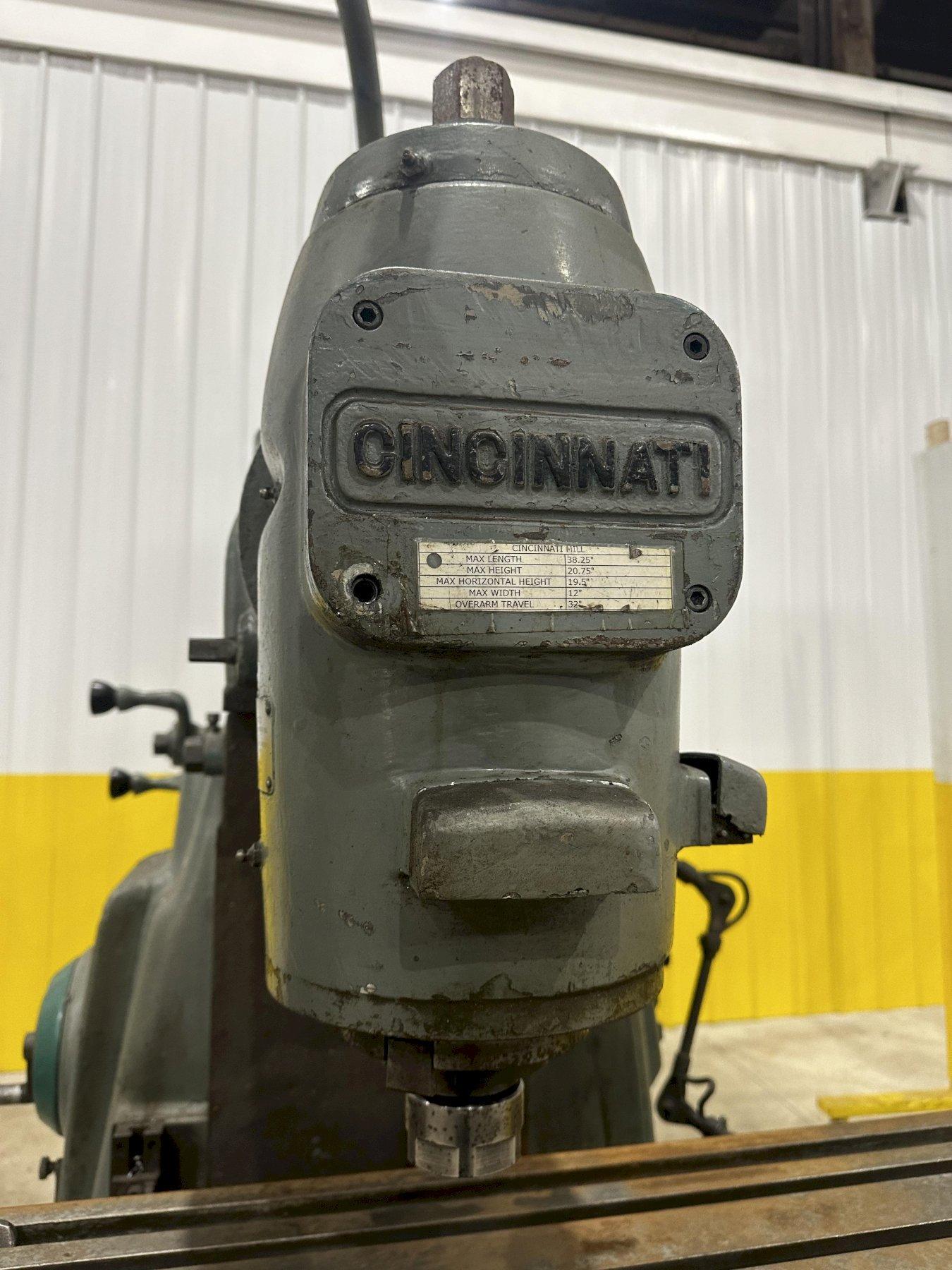

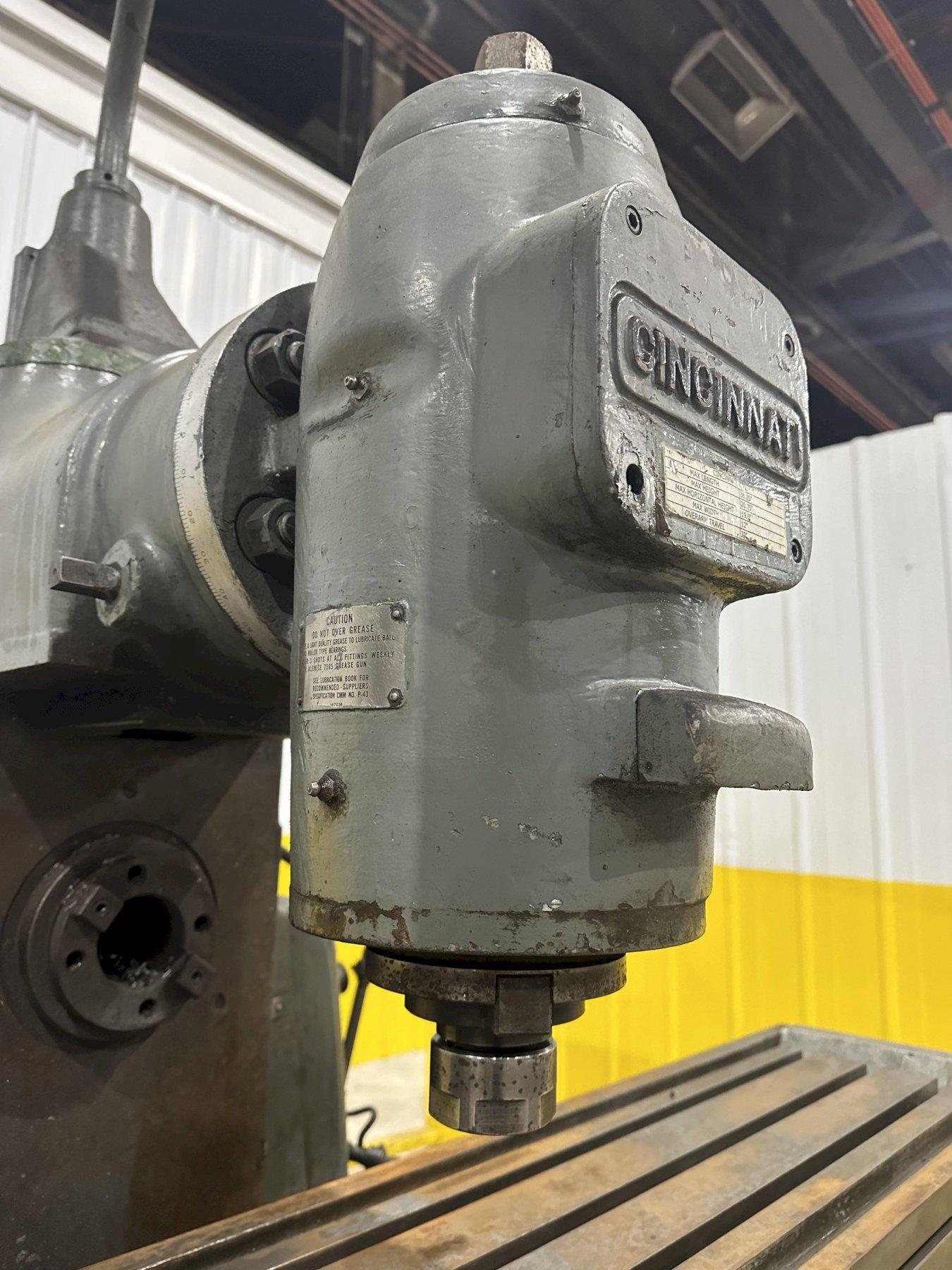

VERTICAL HEAD ................... YES TOOLMAKERS OVERARM

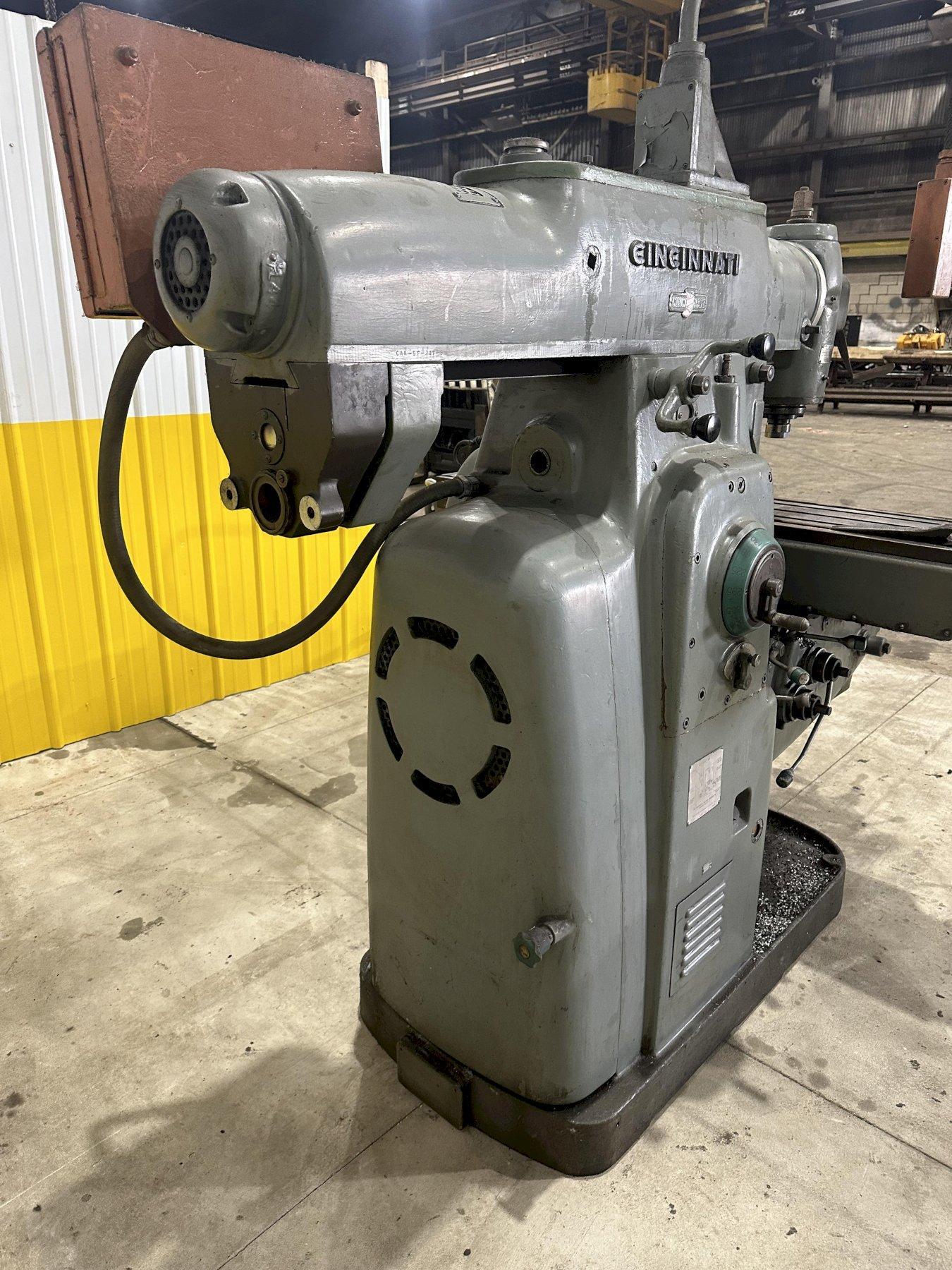

OVERARM TRAVEL .................. 32"
VERTICAL HEAD MOTOR ............. 3 HORSEPOWER
