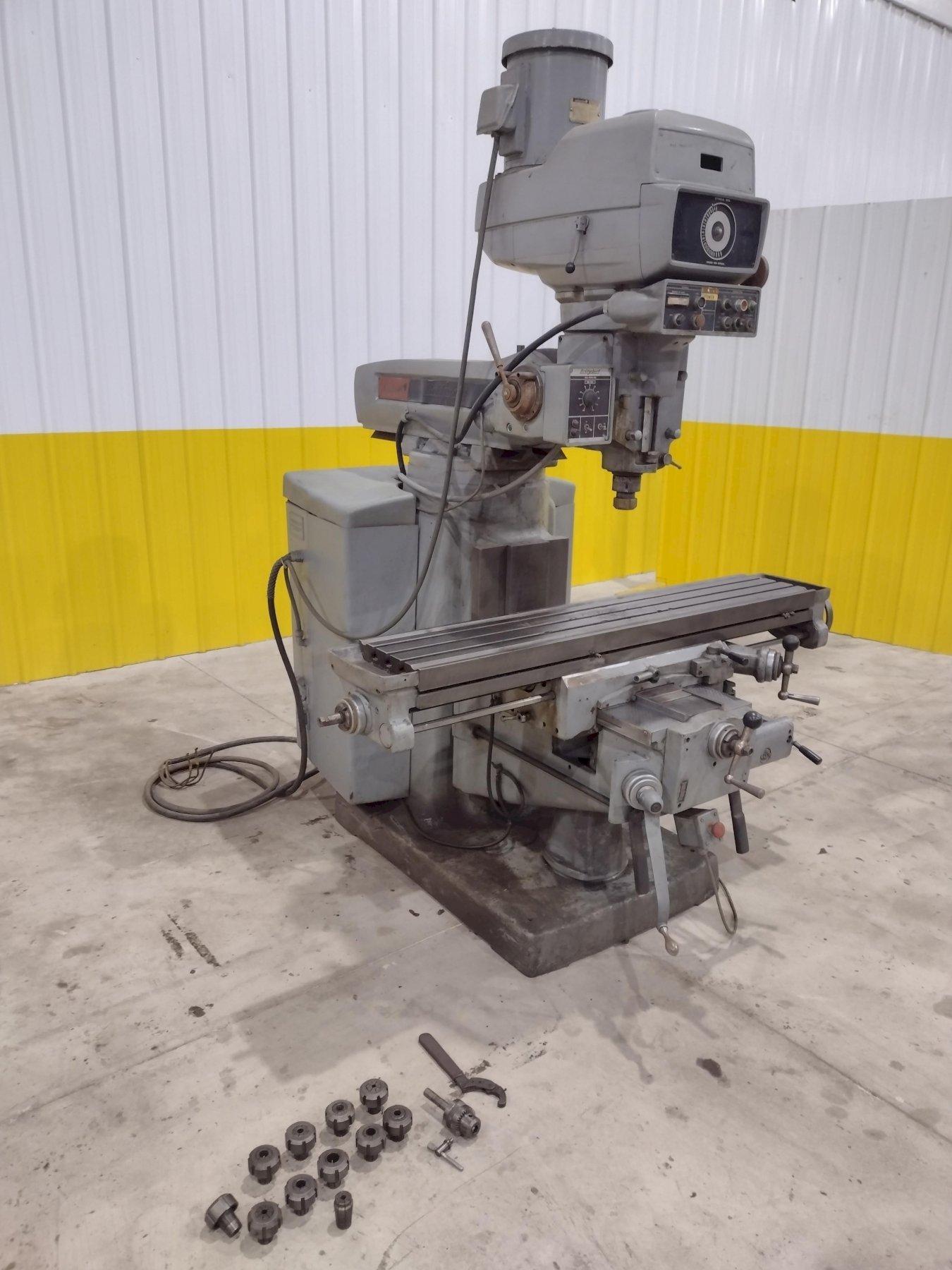

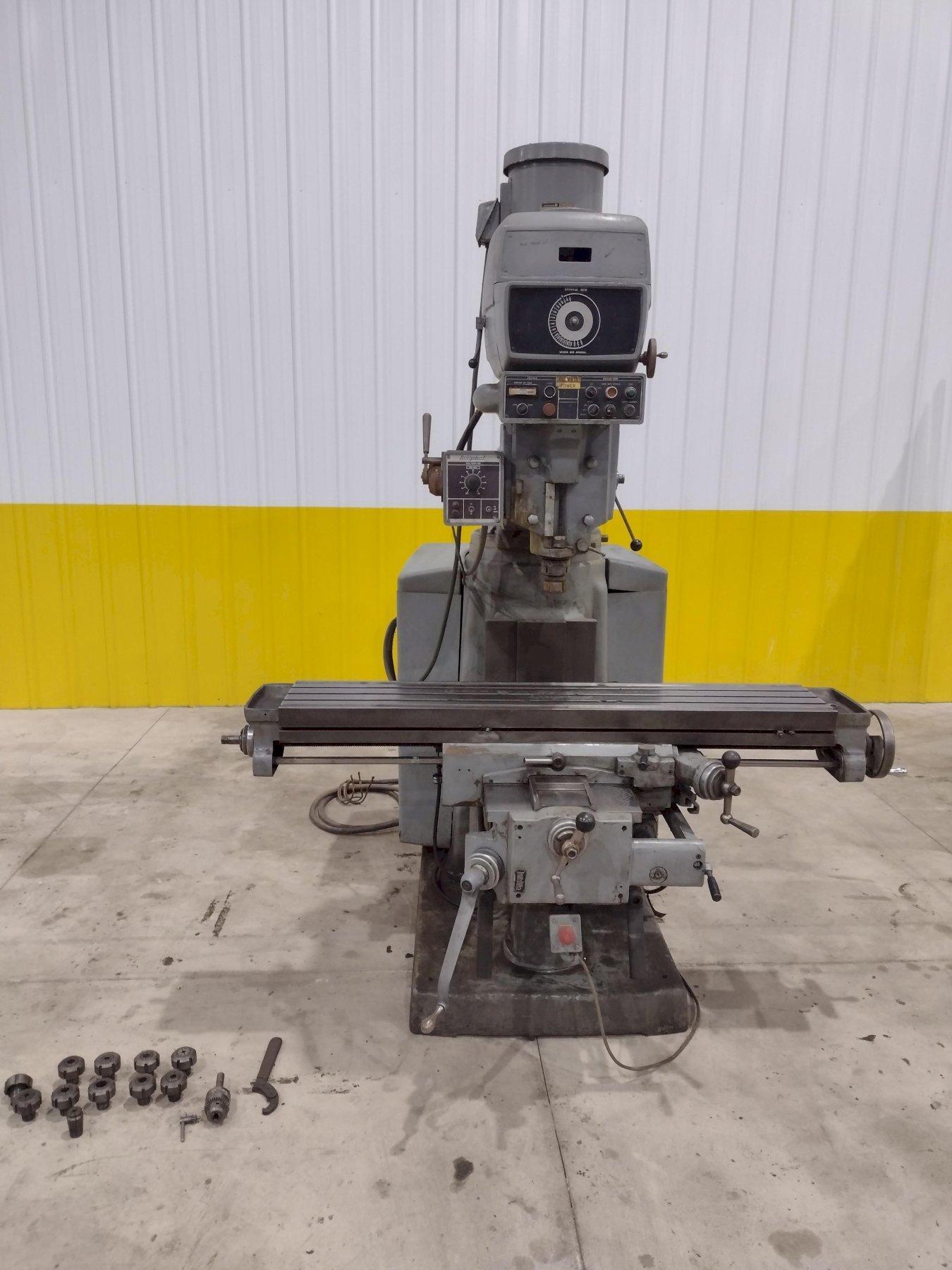

4 HP BRIDGEPORT SERIES II VERTICAL MILLING MACHINE: STOCK #20606

Manufacturer

BRIDGEPORT

Category

Milling Machines

Stock

20606

Model

SERIES II

Dealer Location

Ohio

Spec Sheet



SERIAL ............................. 2694
SERIES ............................. II
AREA OF TABLE ...................... 58" X 11"
SPINDLE SPEEDS ..................... 50 TO 3500 RPM (VARIABLE)
POWER LONGITUDINAL FEED ............ 3/4 TO 24 IPM
POWER CROSS FEED ................... 3/4 TO 24 IPM
LONGITUDINAL TRAVEL ................ 30"
CROSS TRAVEL ....................... 15"
VERTICAL TRAVEL OF KNEE ............ 16"
QUILL TRAVEL ....................... 5"

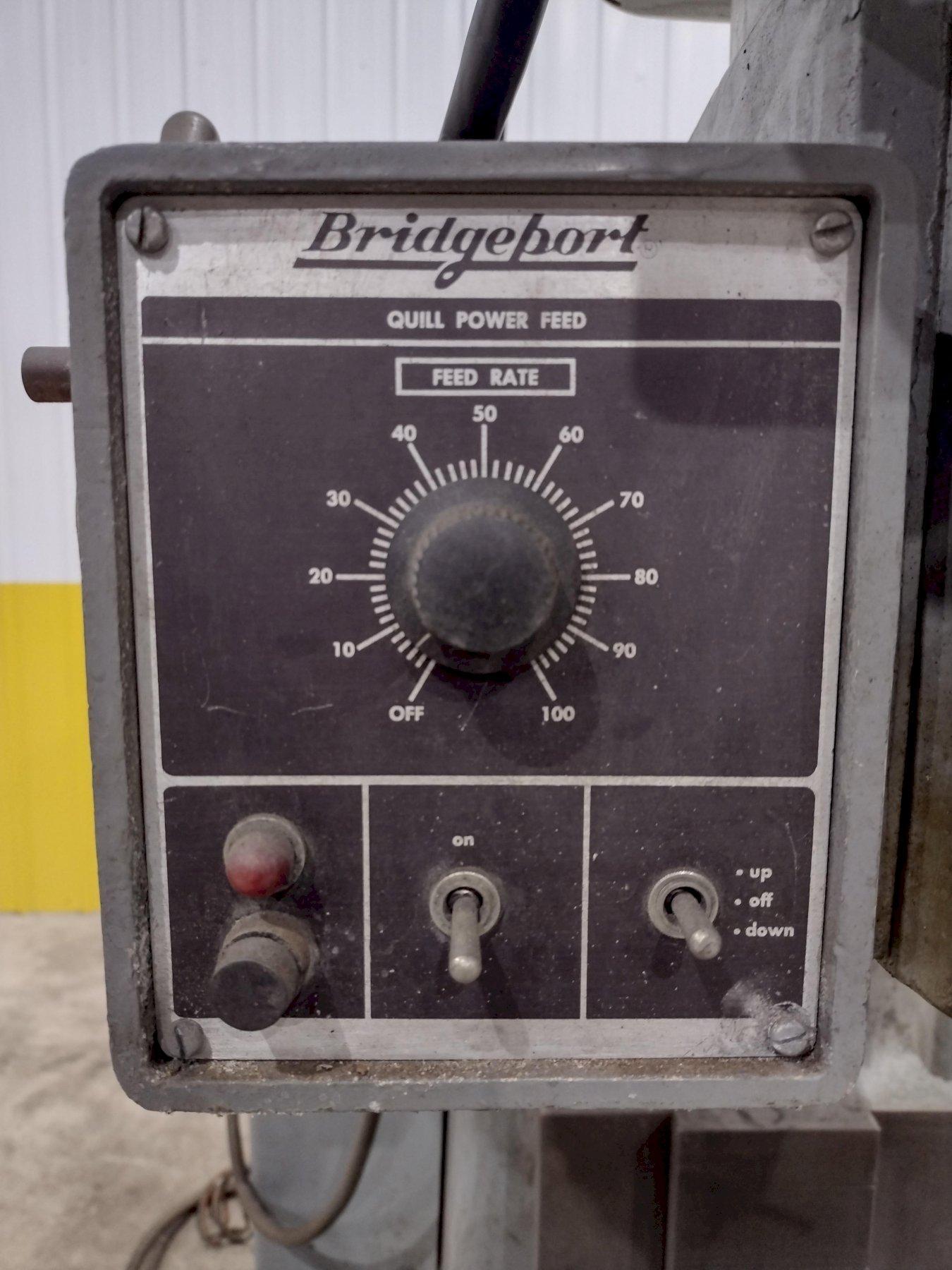

POWER QUILL TRAVEL ................. YES
HORIZONTAL TRAVEL OF RAM ON BASE ... 16"
DEPTH OF THROAT .................... 2" MINIMUM / 25" MAXIMUM
SPINDLE TO TOP OF TABLE ............ 10" MINIMUM / 24" MAXIMUM
TAPER IN SPINDLE ................... #40 QUICK CHANGE
SPINDLE MOTOR ...................... 4 HORSEPOWER
