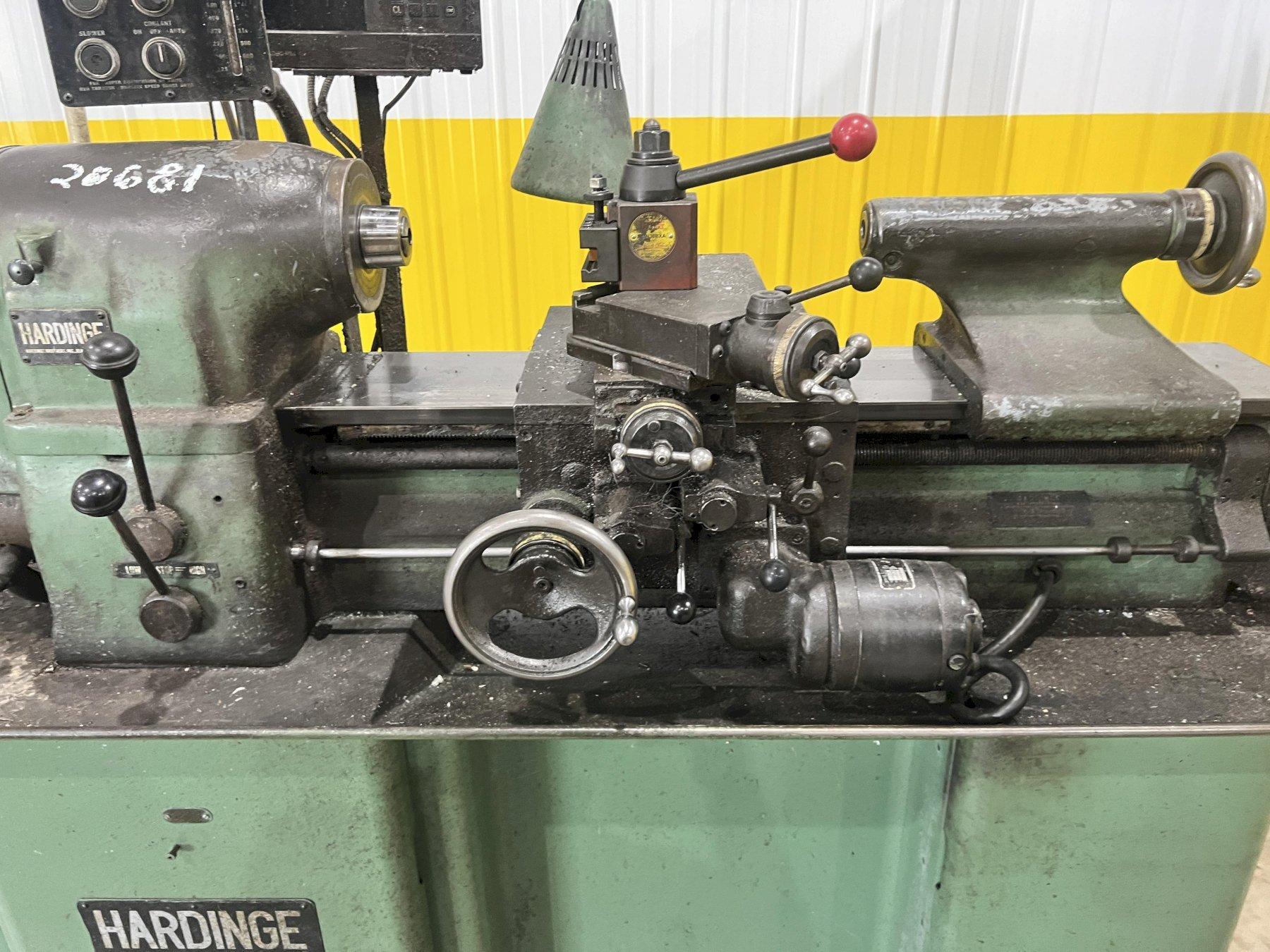

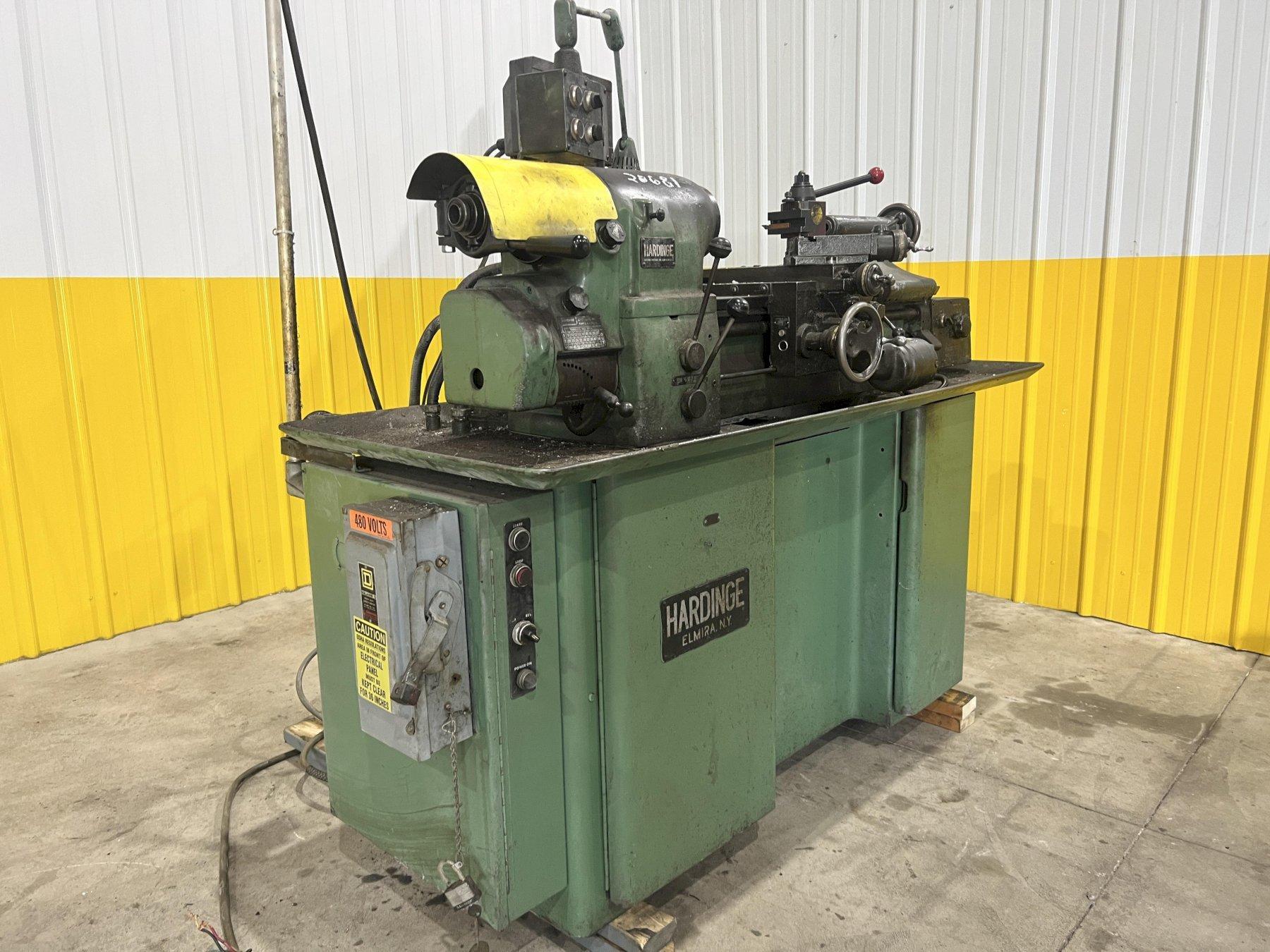

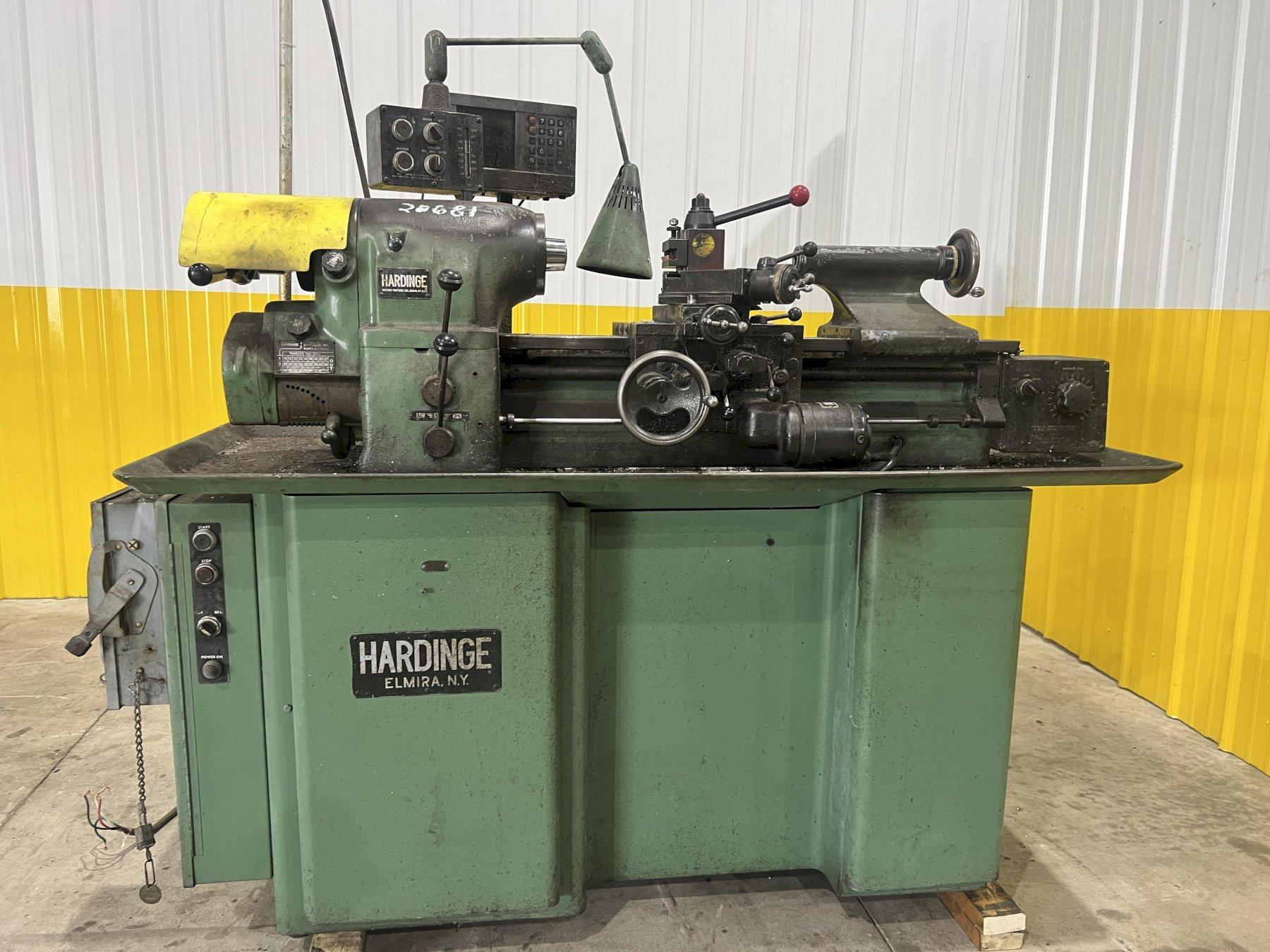

11" x 18" HARDINGE MODEL HLV-H HIGH PRECISION TOOLROOM LATHE: STOCK #20681

Manufacturer

HARDINGE

Category

Lathes

Type

LATHES, TOOLROOM

Stock

20681

Model

HLV-H

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



11" x 18" HARDINGE MODEL HLV-H HIGH PRECISION TOOLROOM LATHE: STOCK #20681
SERIAL ........................... HLV-H-4822
MODEL ............................ HLV-H
MAXIMUM SWING OVER BED ........... 11"
MAXIMUM SWING OVER CARRIAGE ...... 9"
MAXIMUM SWING OVER CROSS SLIDE ... 5-3/4"
DISTANCE BETWEEN CENTERS ......... 18"

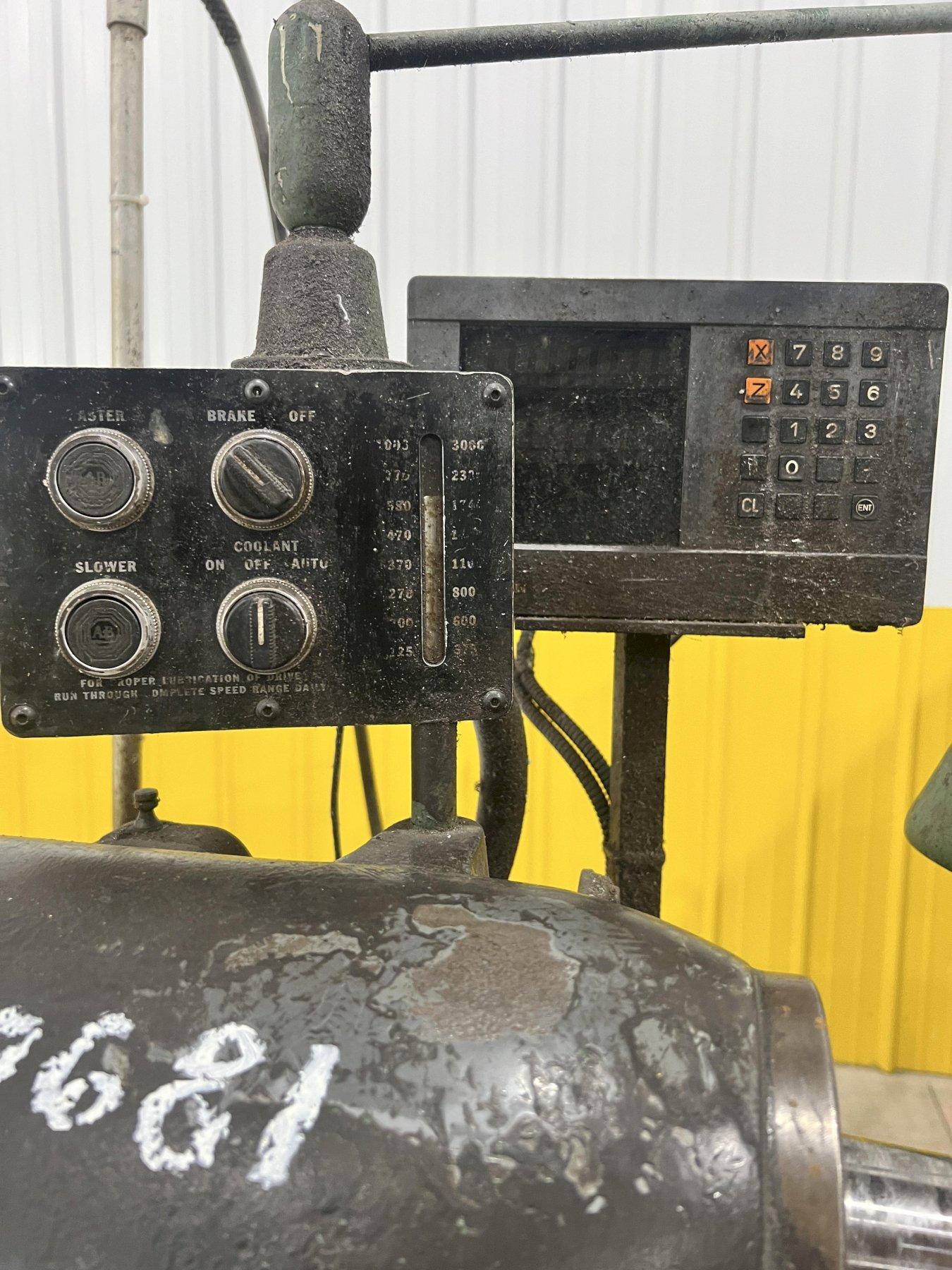

SPINDLE SPEEDS - VARIABLE ........ 125 TO 3000 RPM
HOLE THRU SPINDLE ................ 1-1/4"
COLLET CAPACITY .................. 5C HARDINGE 1-1/16" ROUND
SPINDLE NOSE ..................... HARDINGE TAPERED
CHUCK ............................ 6" 4 JAW
COMPOUND SLIDE TRAVEL ............ 3"
POWER FEED RANGE ................. 1/4" TO 7" PER MIN
TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... NO. 2 MT
THREAD RANGE ..................... (27) 11 TO 108 TPI
MOTOR ............................ 1-1/2 HORSEPOWER
