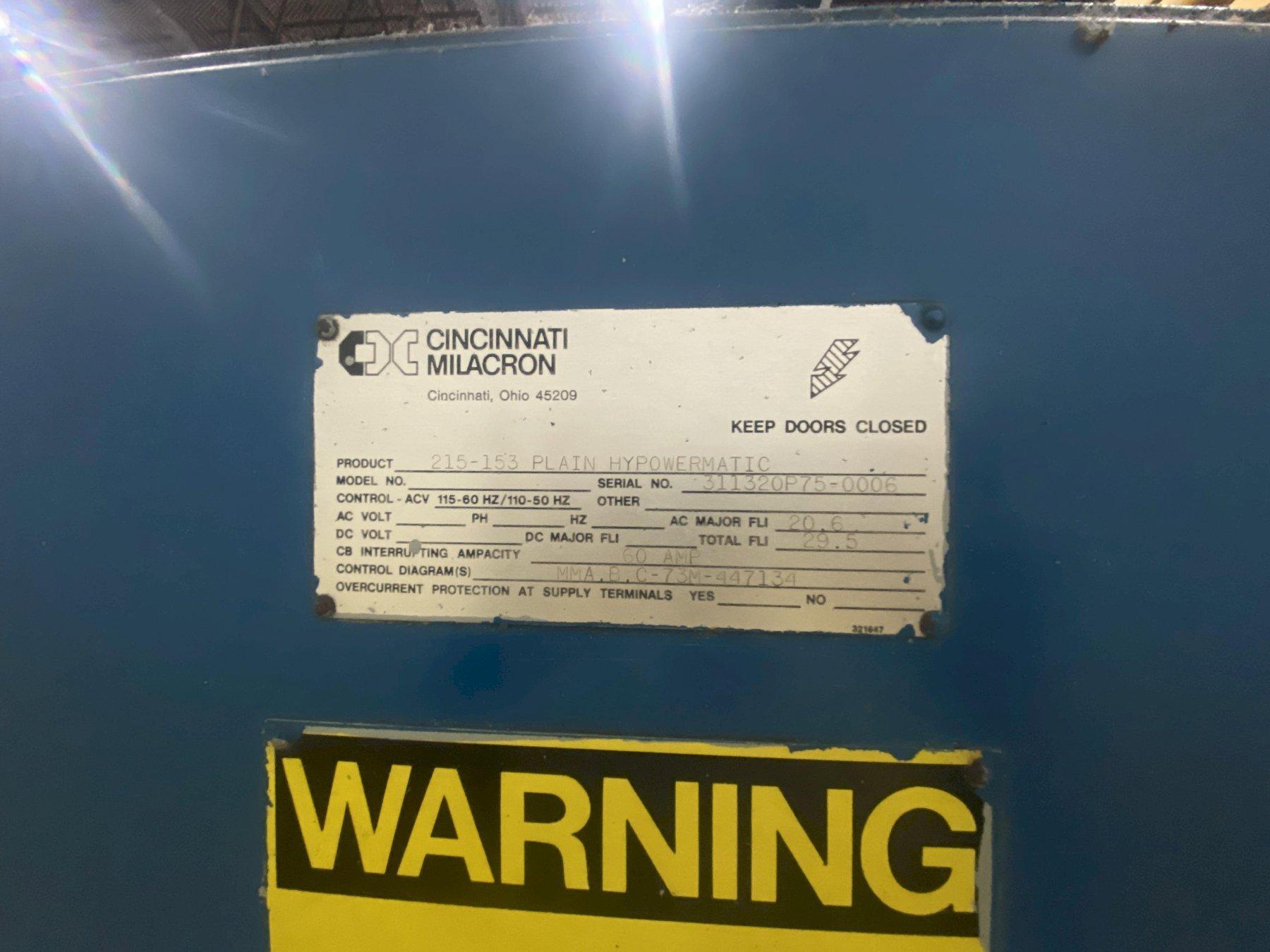

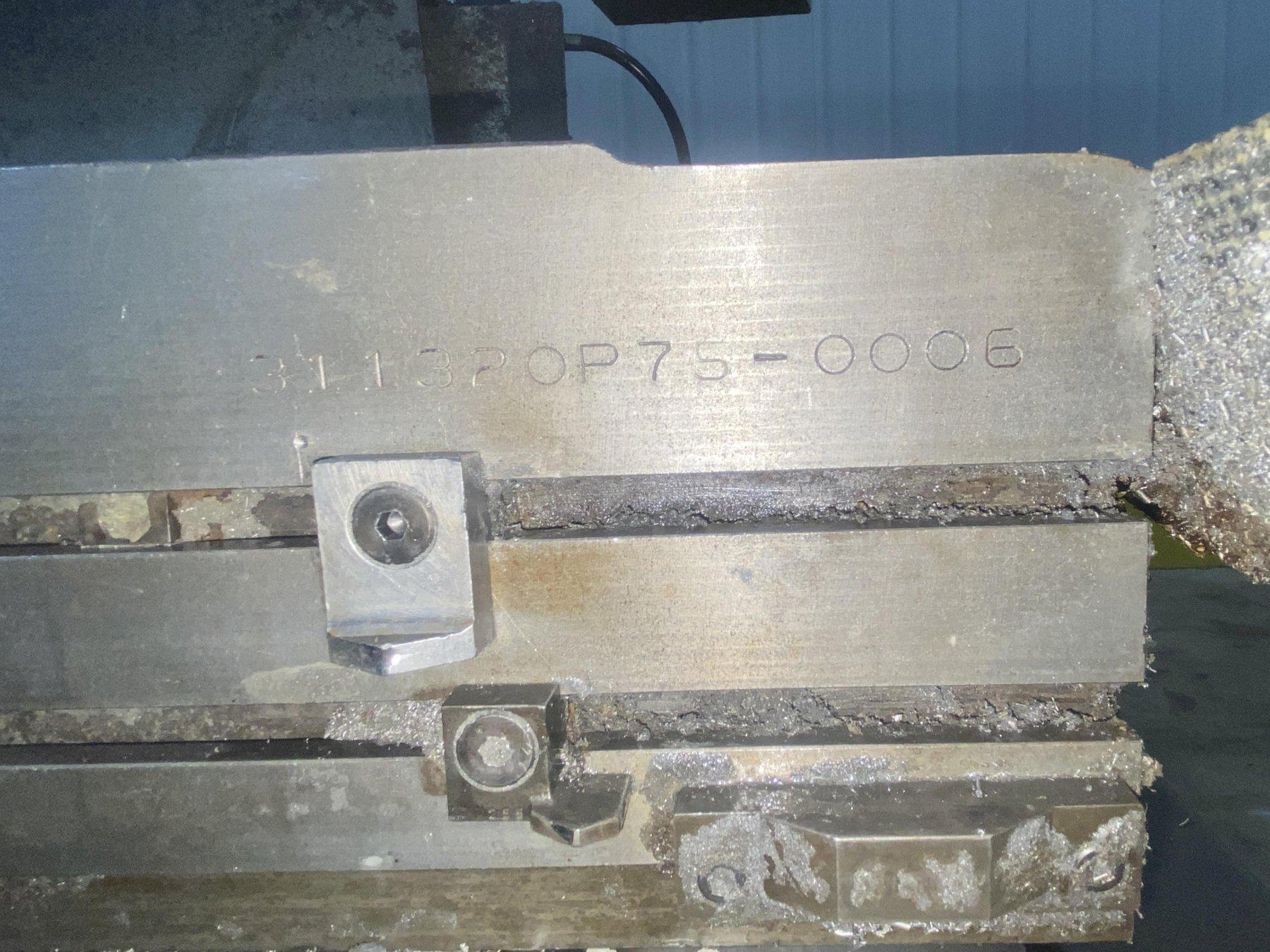

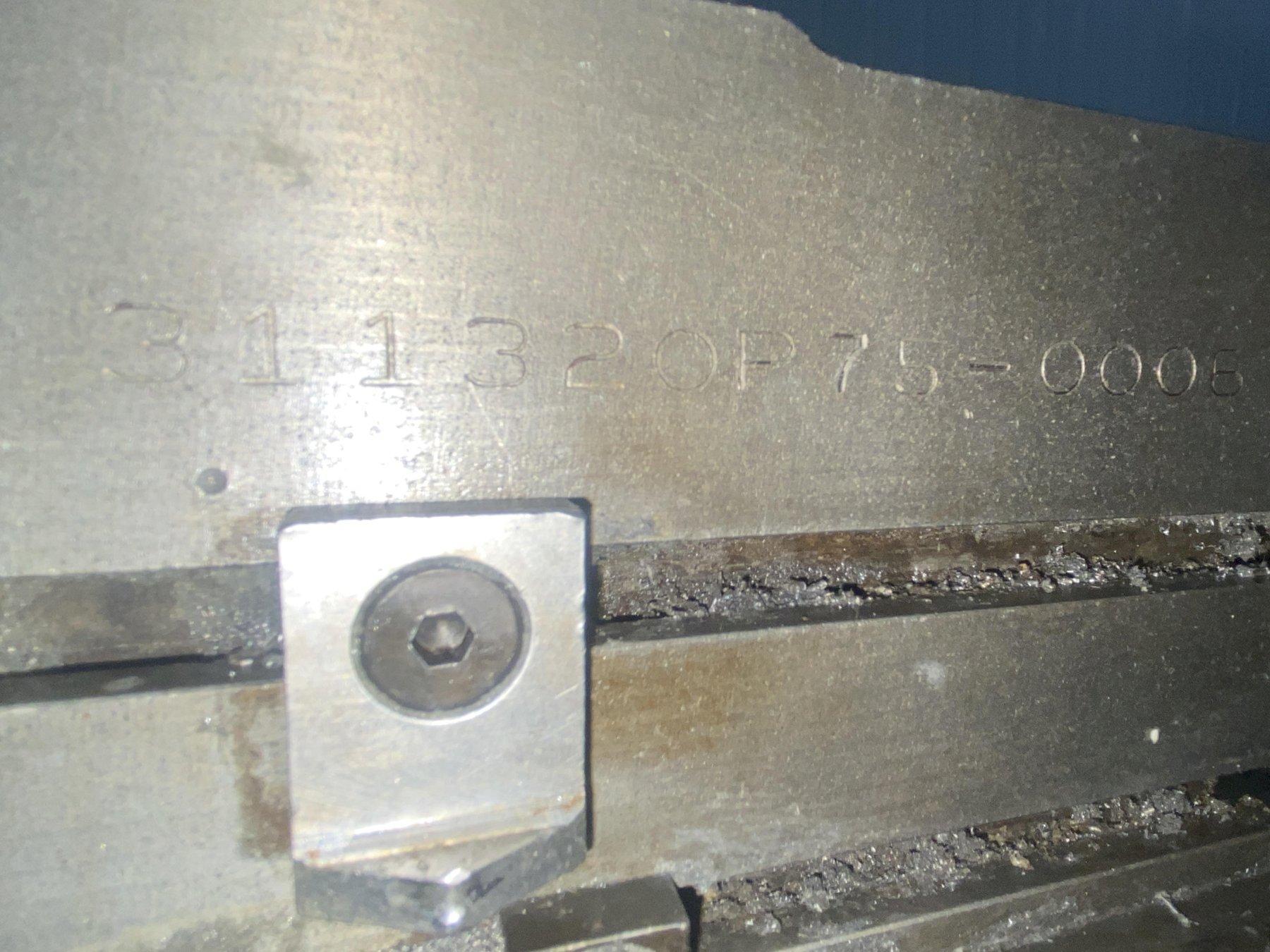

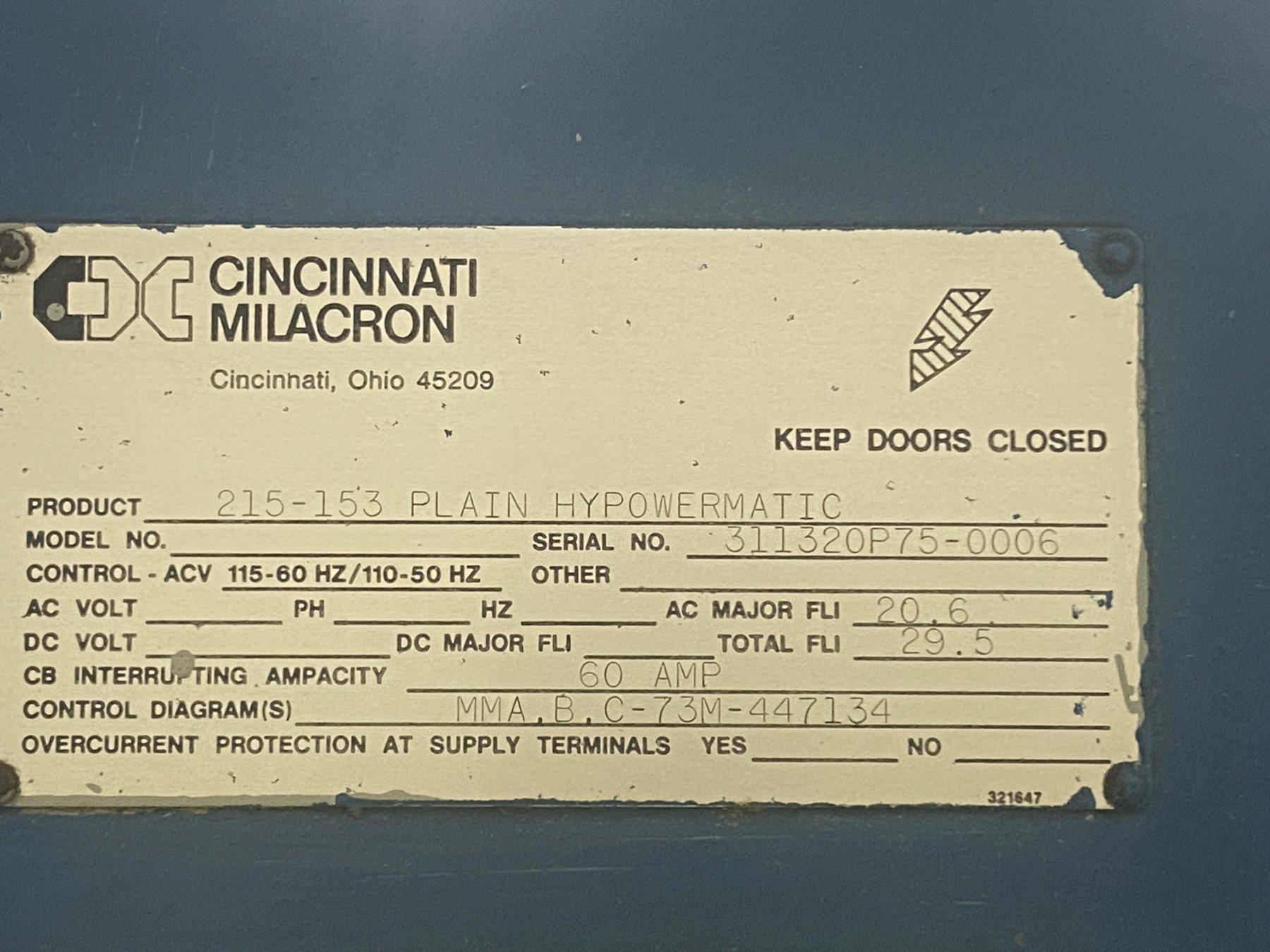

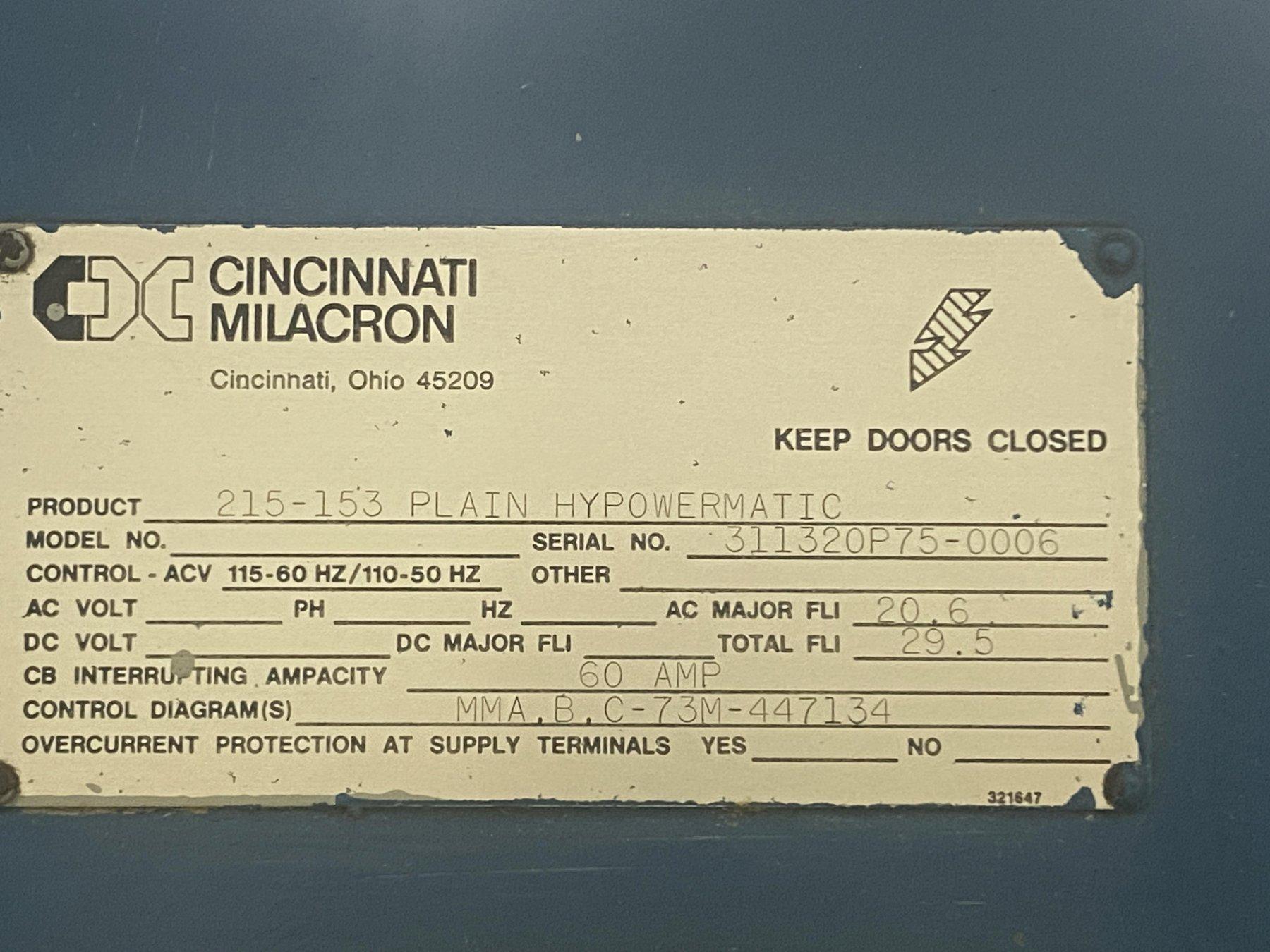

SERIAL ........................... 311320P75-0006

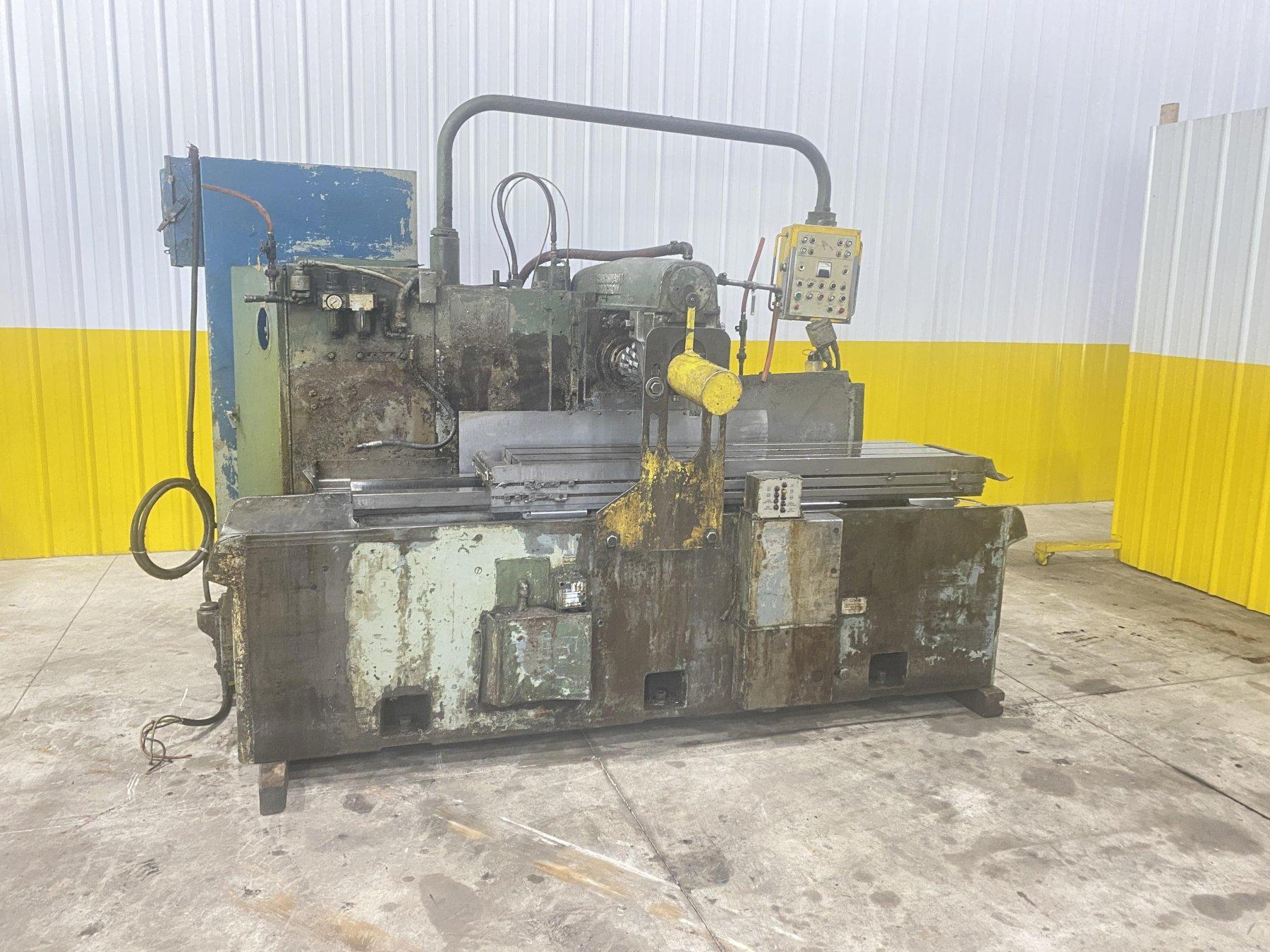

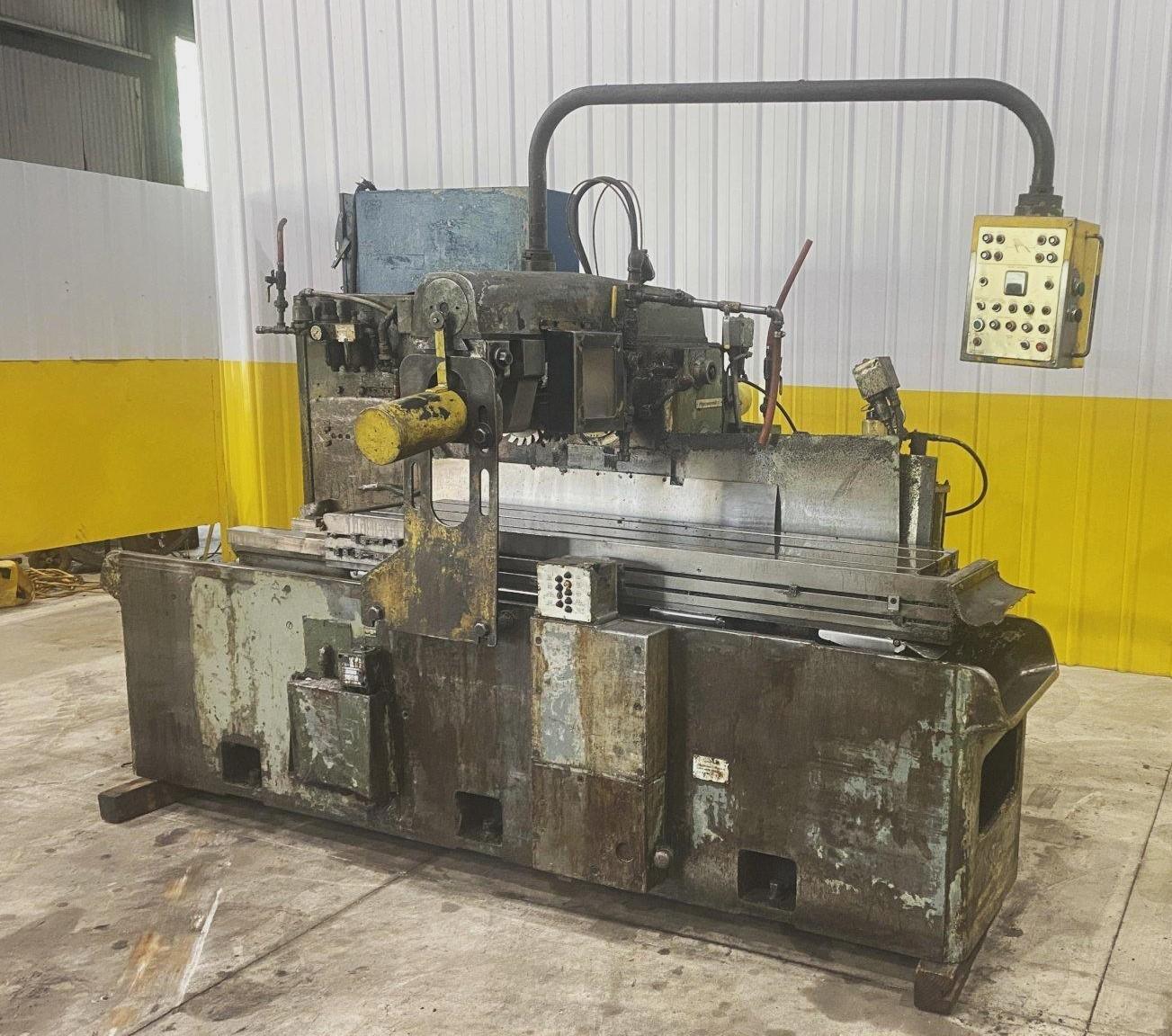

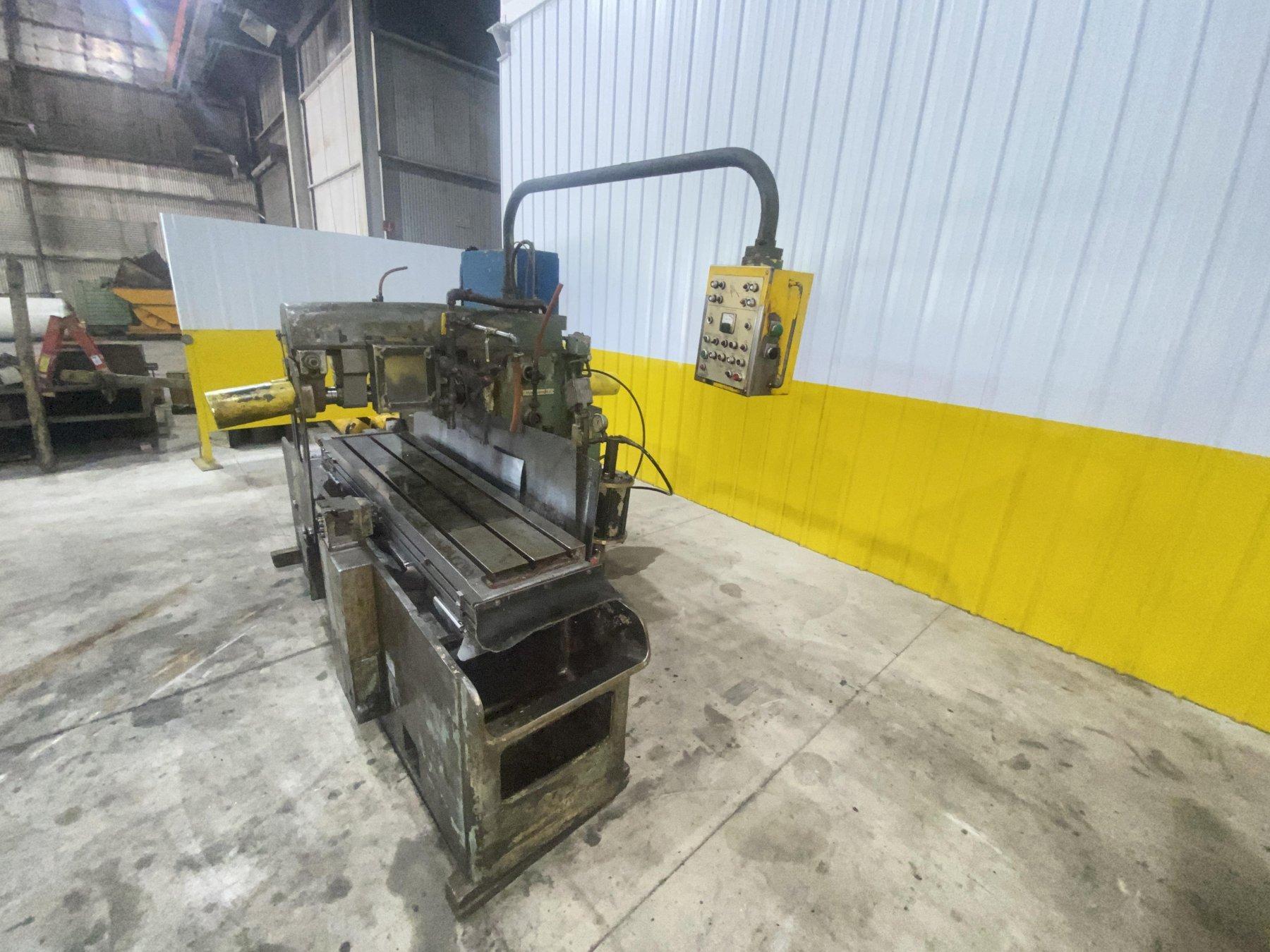

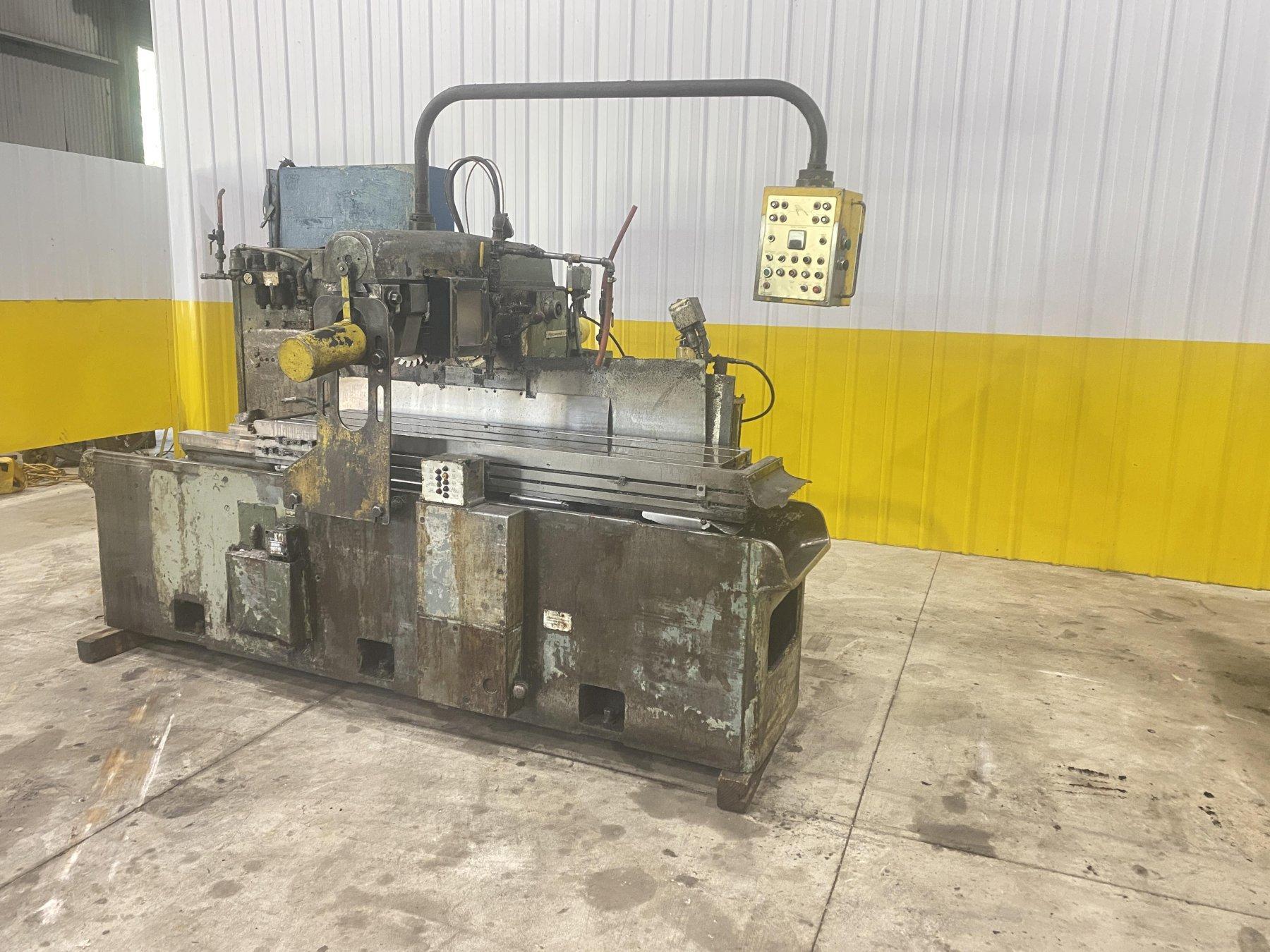

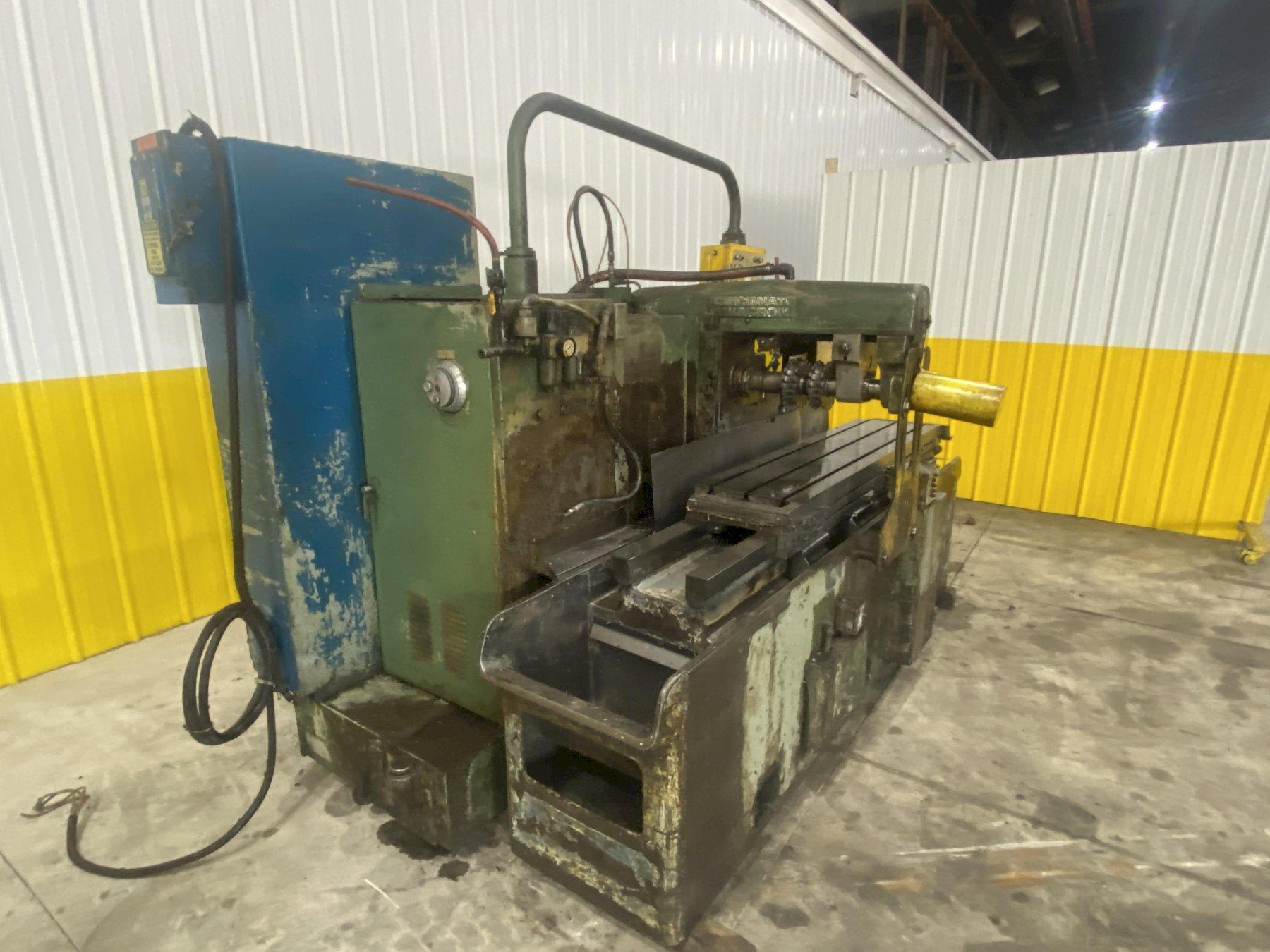

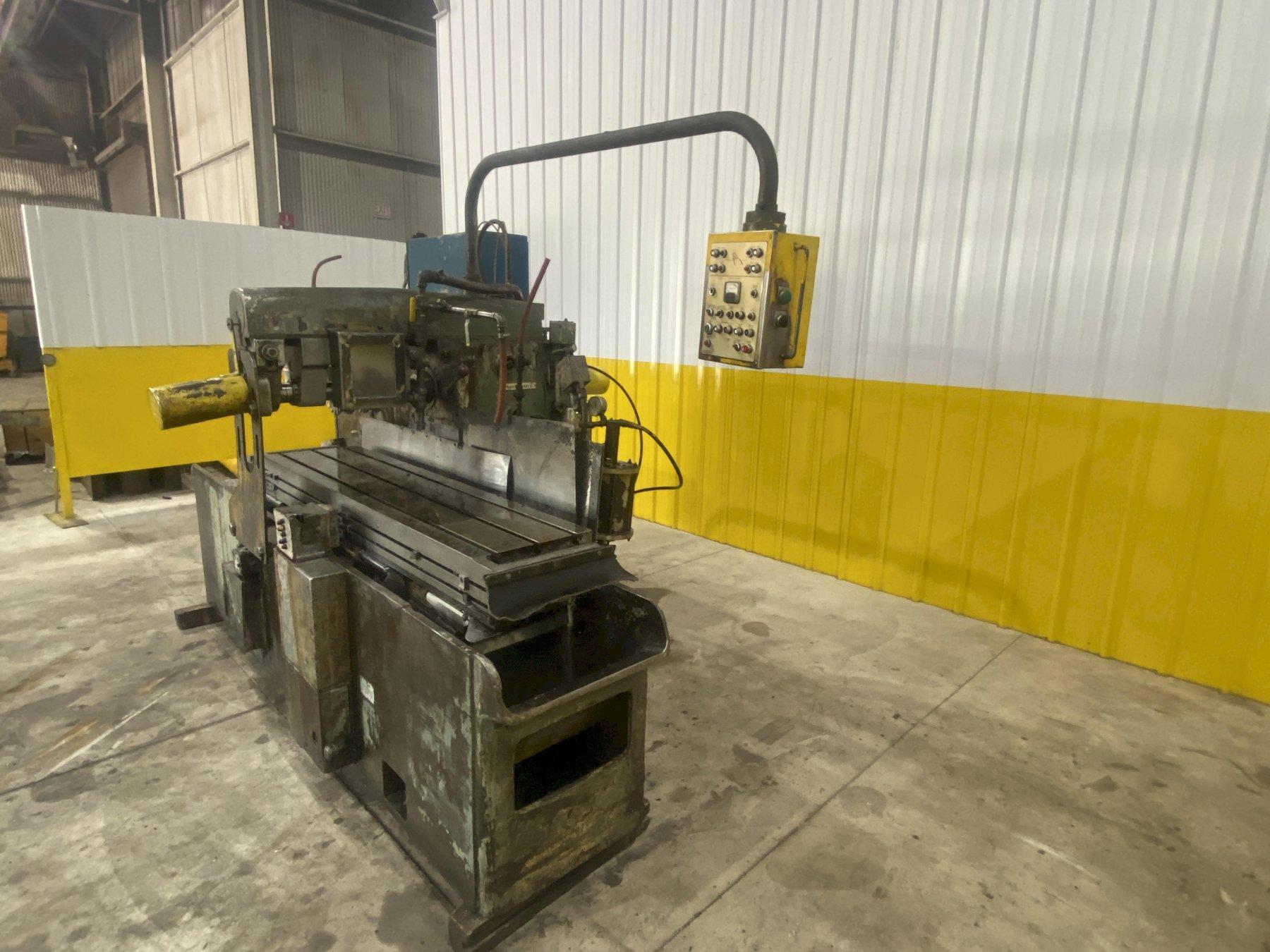

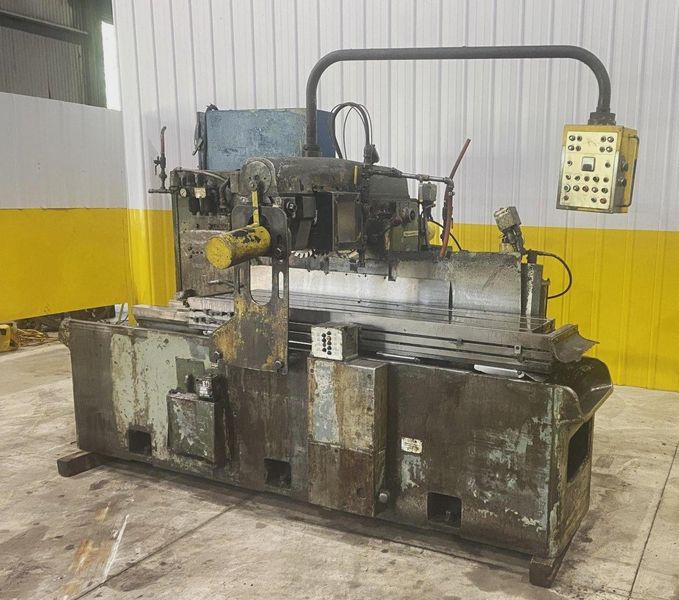

MODEL ............................ 215-153 HYDROMATIC

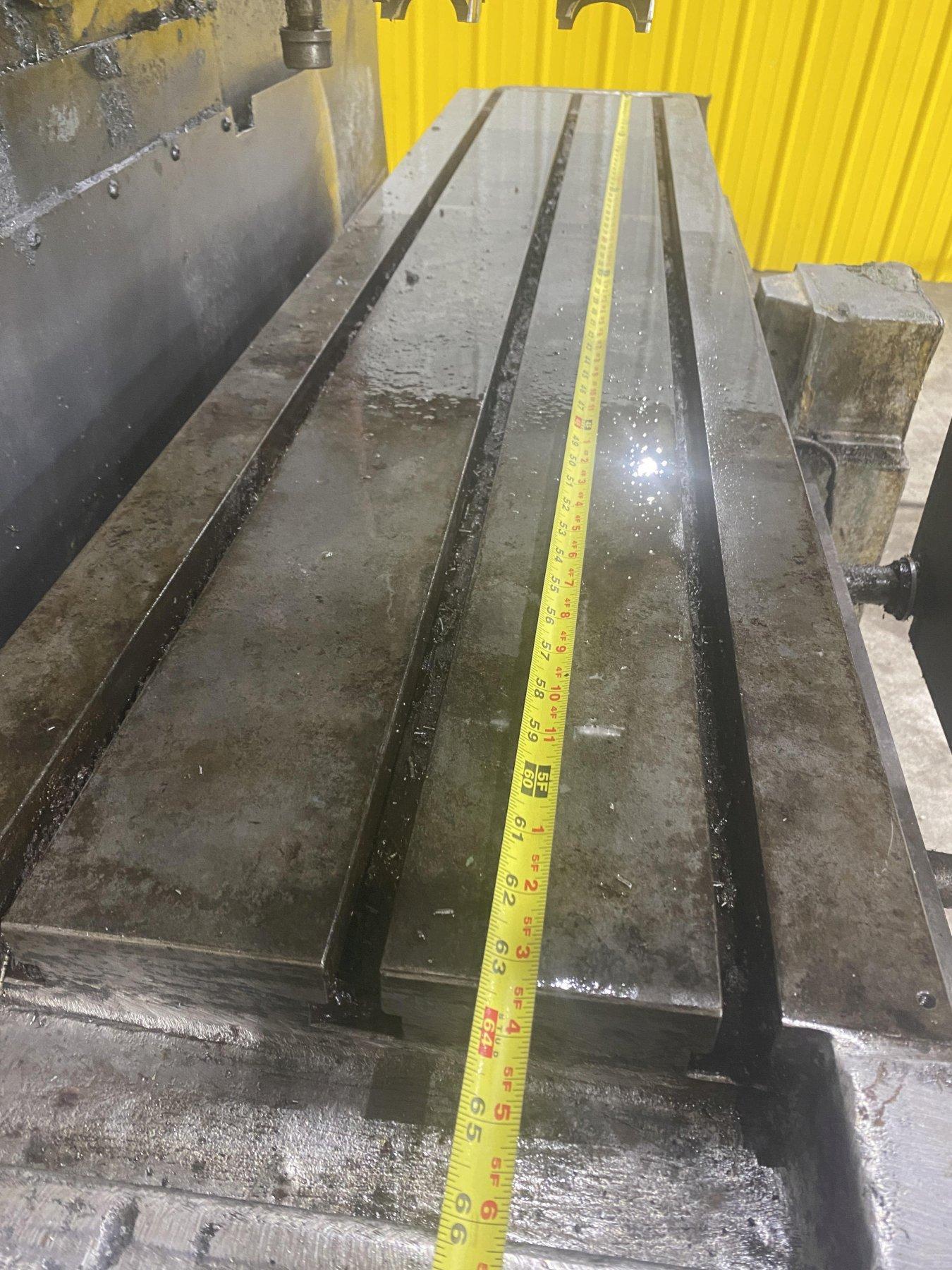

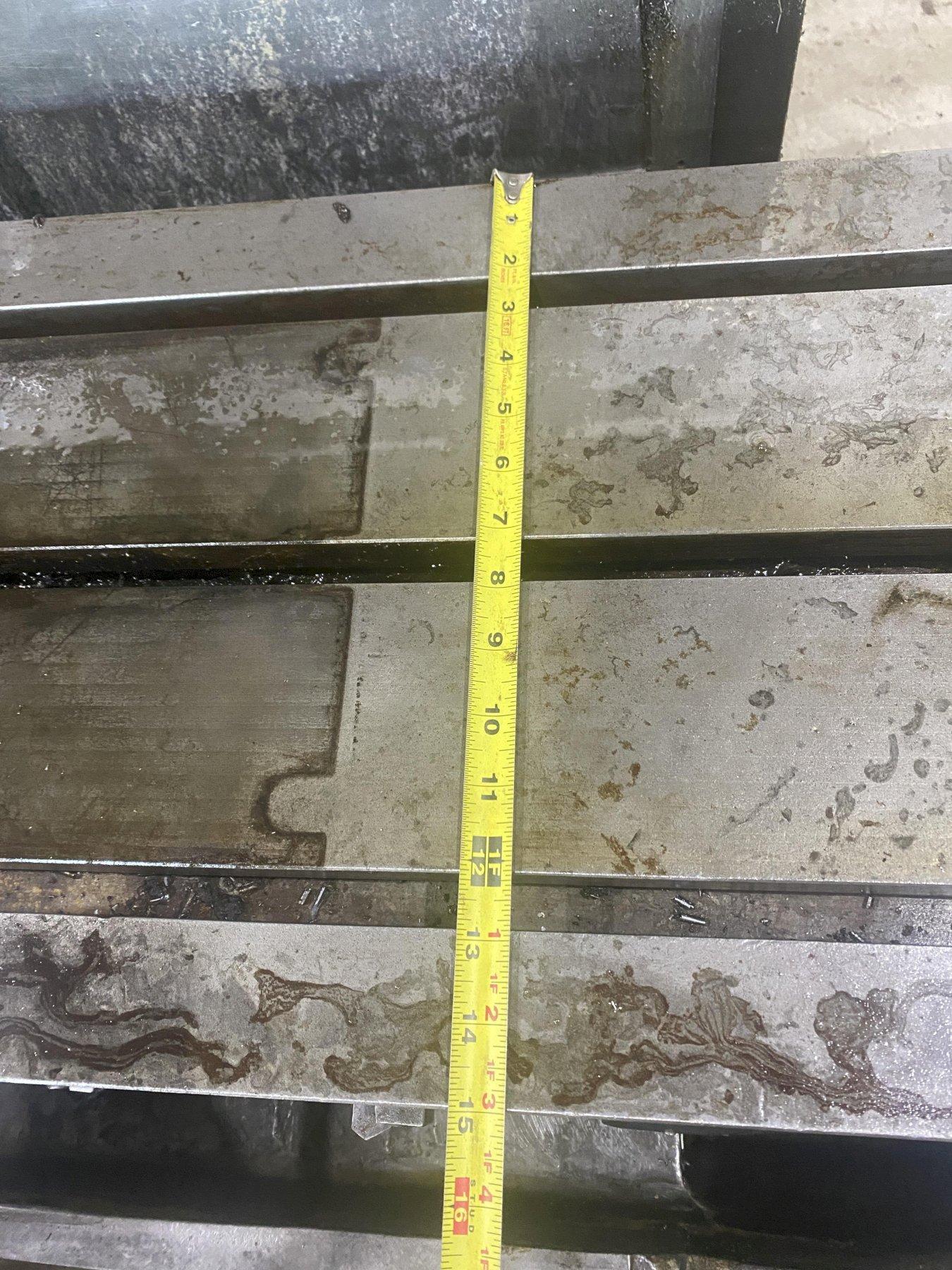

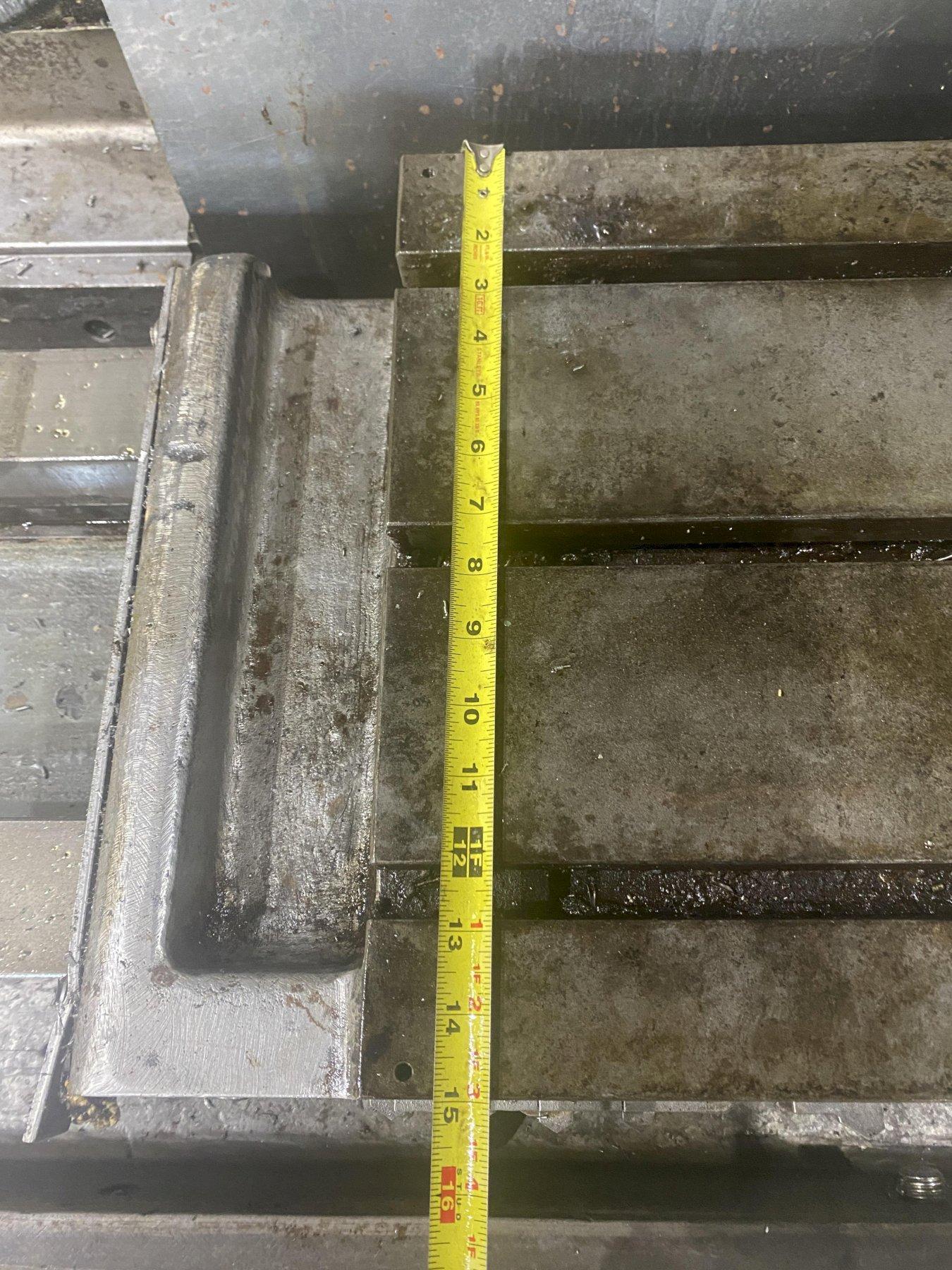

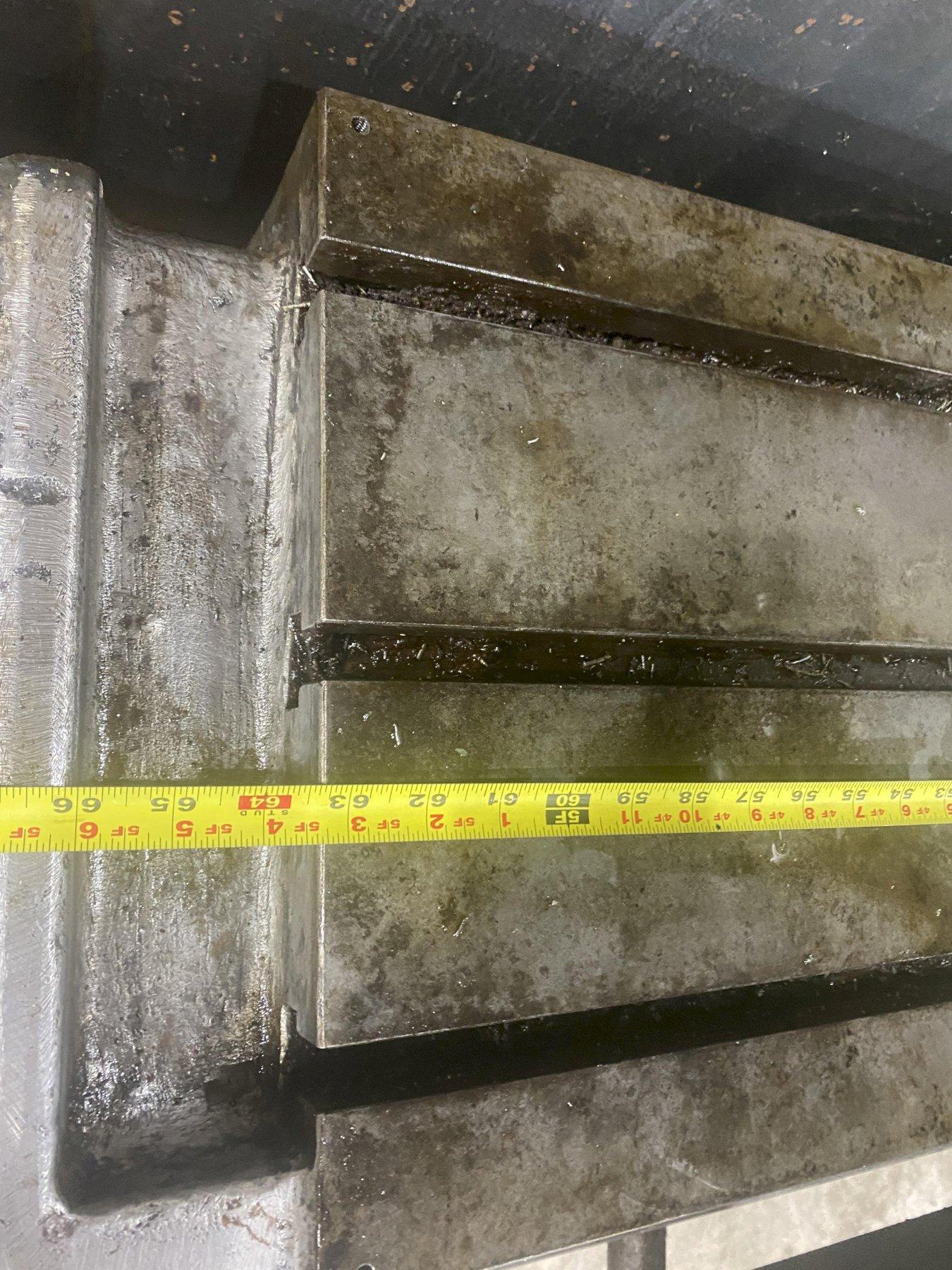

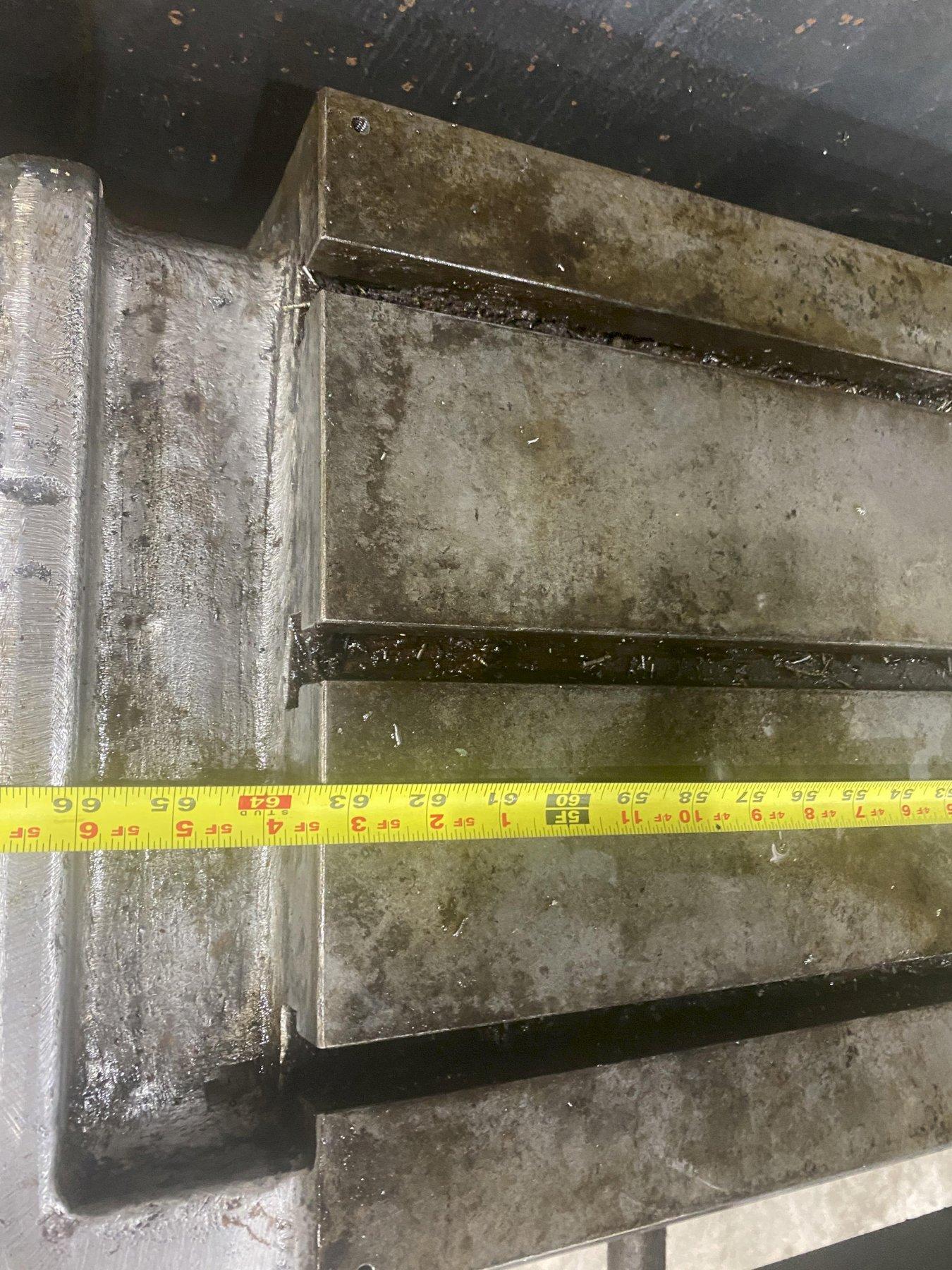

AREA OF TABLE .................... 63" X 15"

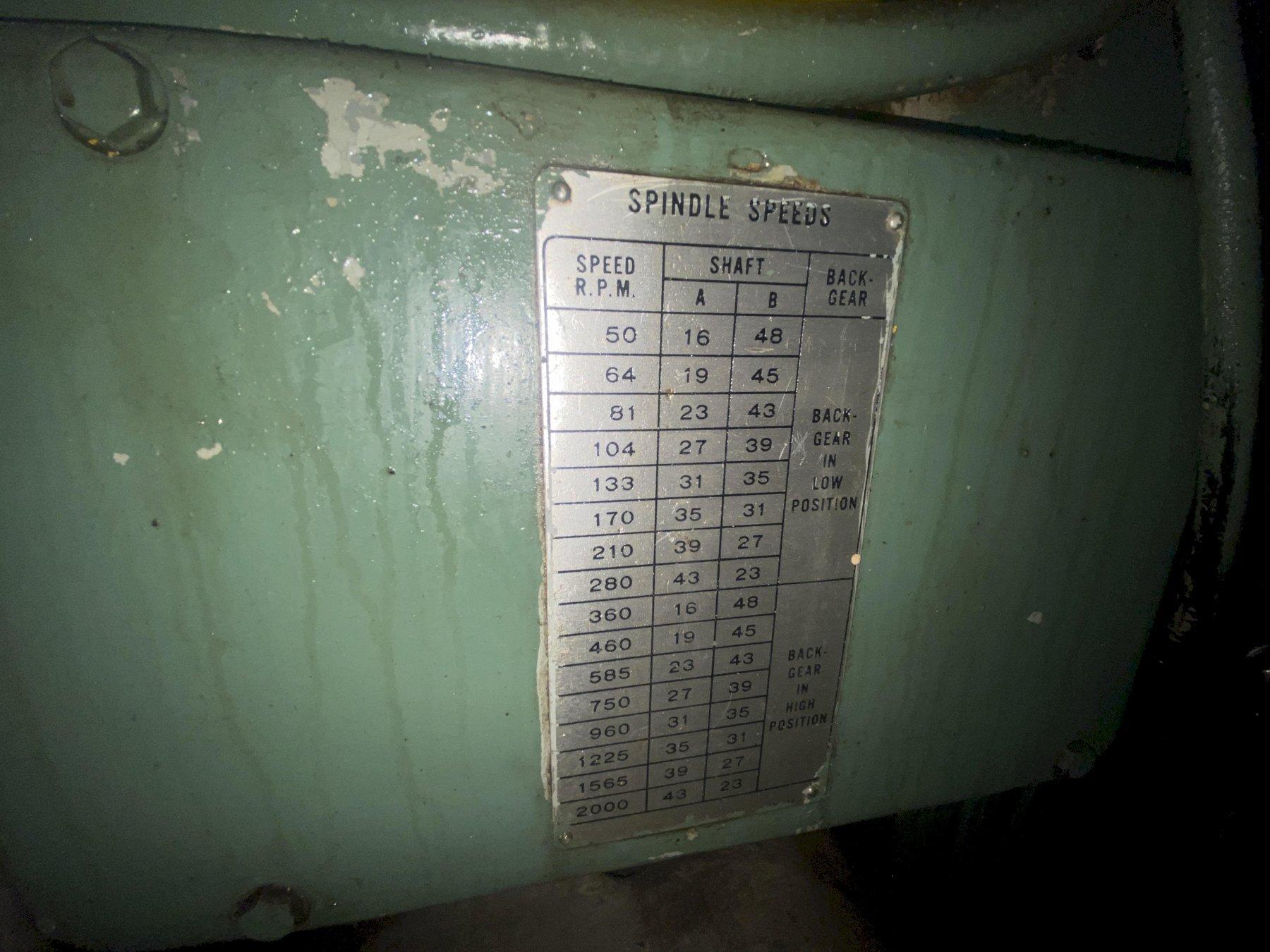

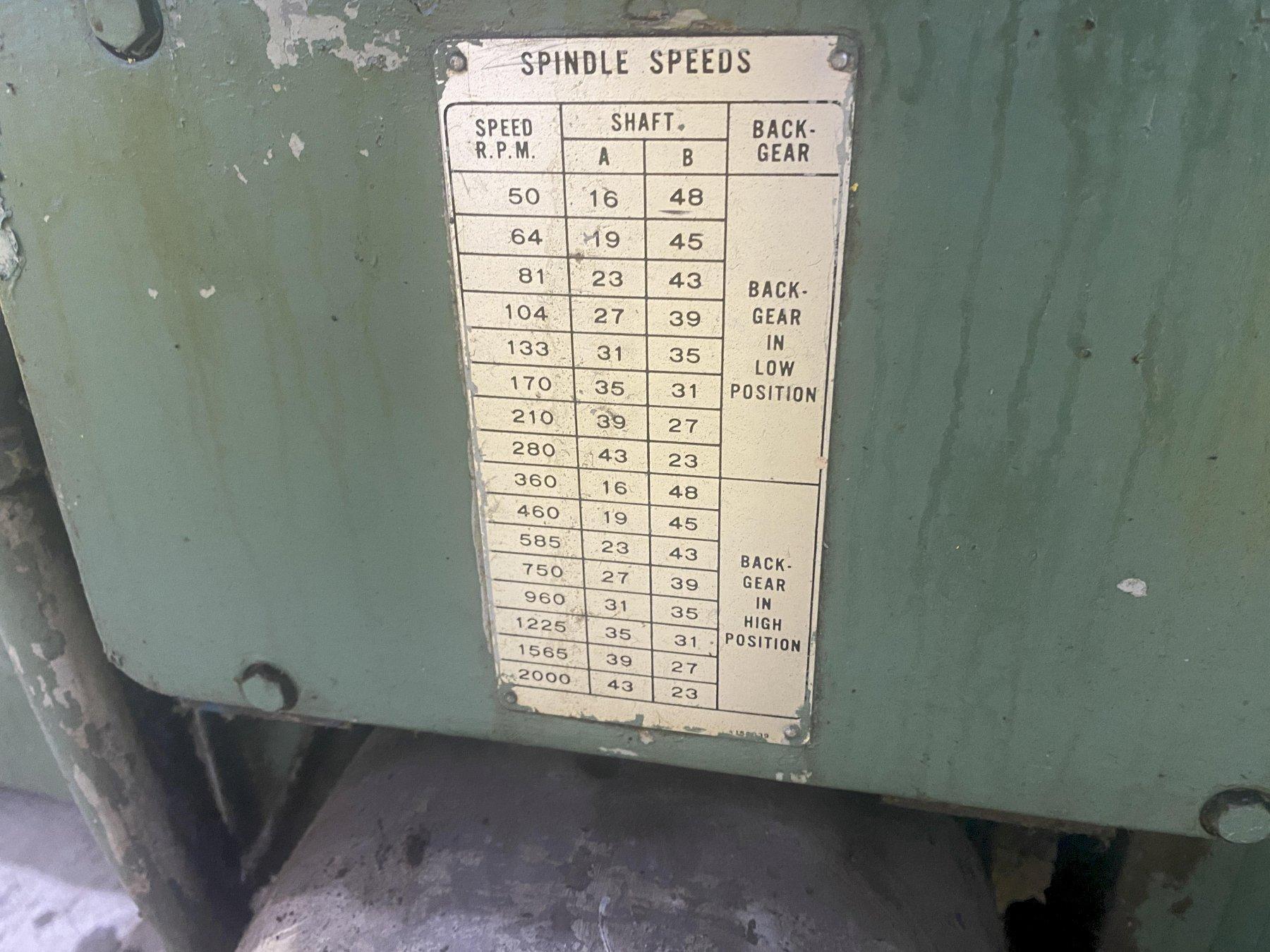

SPINDLE SPEEDS ................... (16) 50 TO 2000 RPM

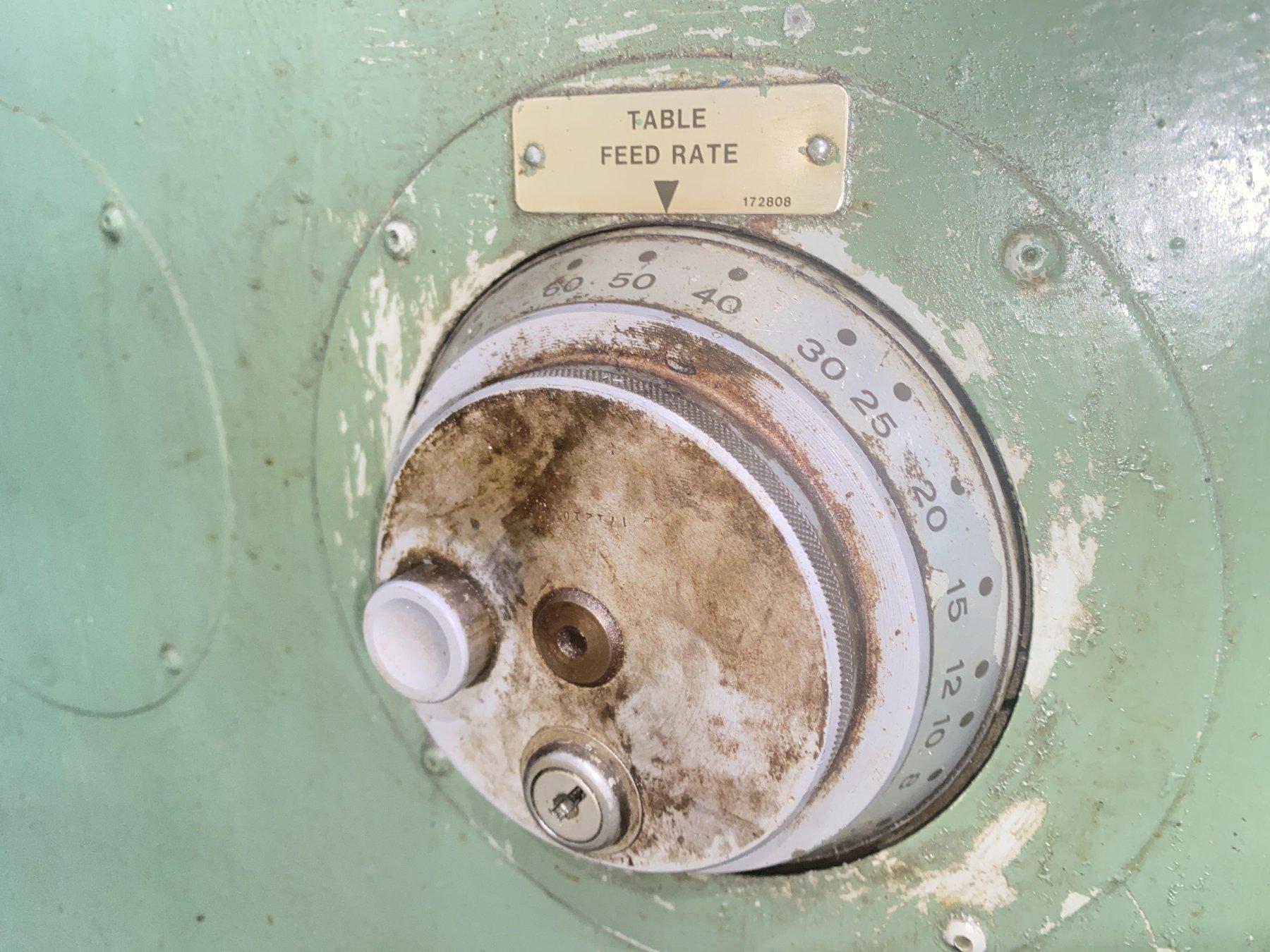

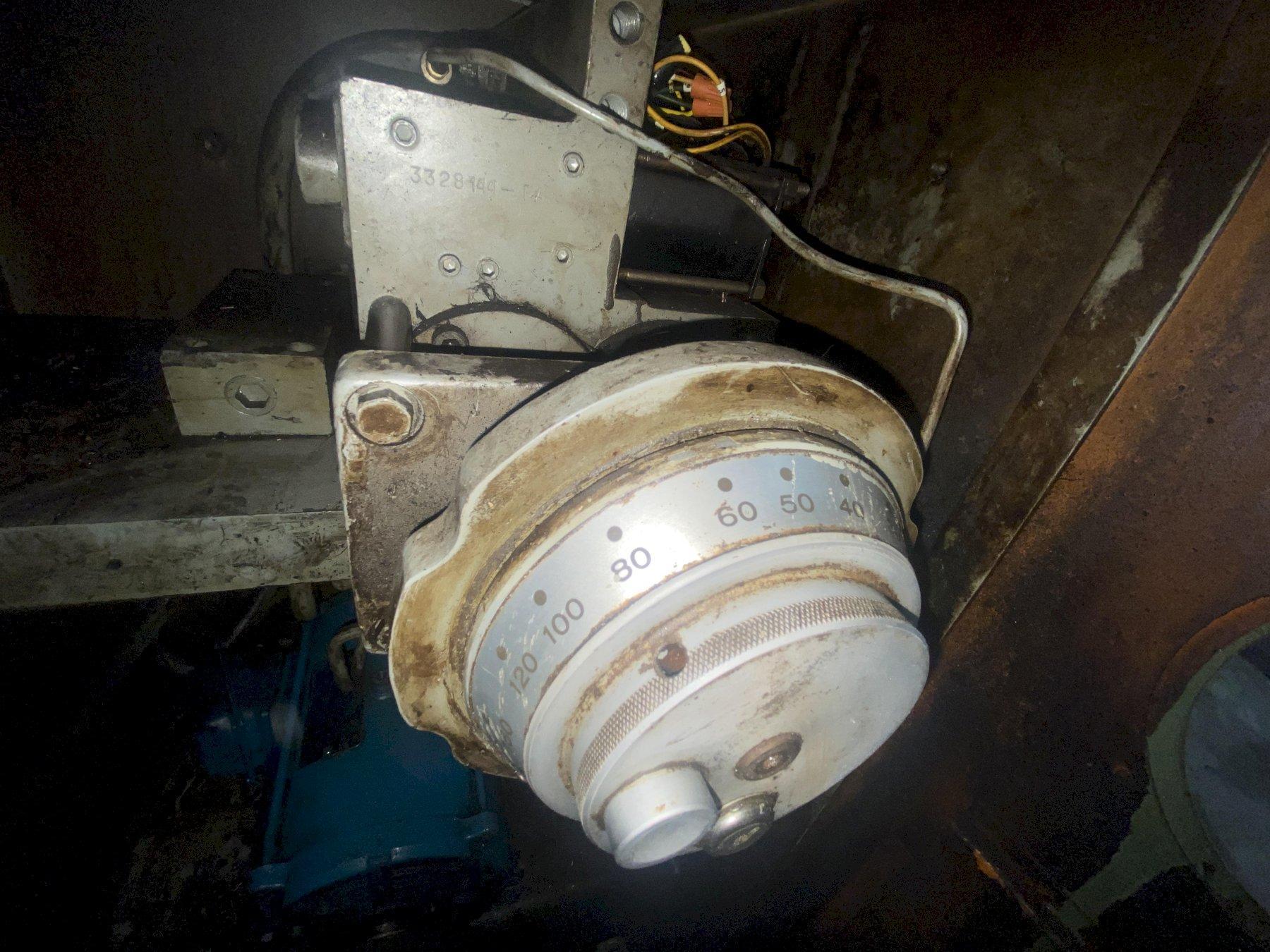

TABLE FEEDS ..................... 1 TO 150 IPM (VARIABLE)
TABLE TRAVEL ..................... 36"
VERTICAL ADJUSTMENT OF SPINDLE ... 10"
TRAVEL OF QUILL .................. 3"
DIAMETER OF QUILL ................ 7"
TAPER IN SPINDLE ................. #50 NS
TOP OF TABLE TO SPINDLE CENTER ... 4" MIN. / 14" MAX.
CENTER OF TABLE TO SPINDLE FACE .. 7" MIN. / 10" MAX.
RAPID TRAVERSE ................... 300 IPM

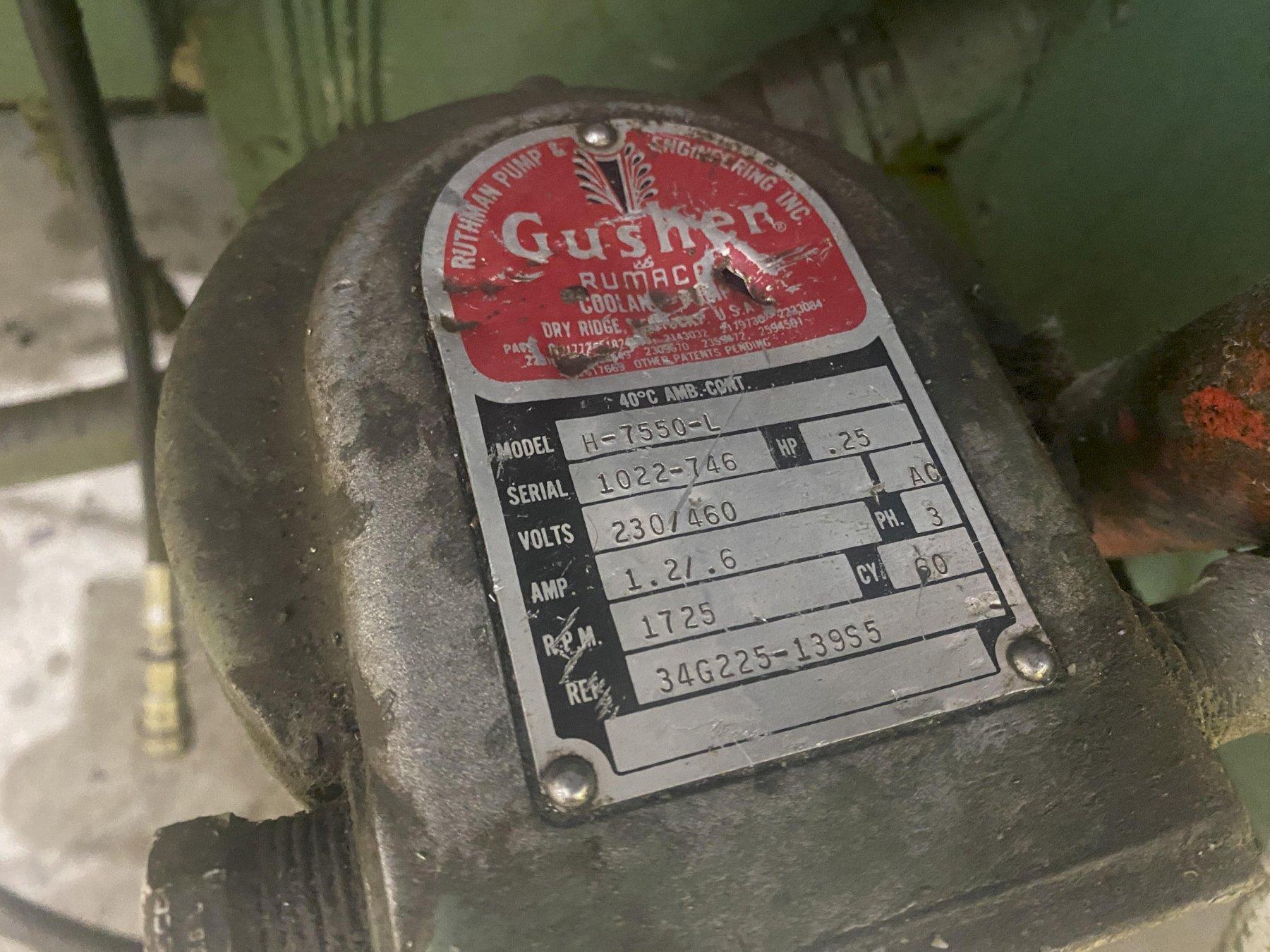

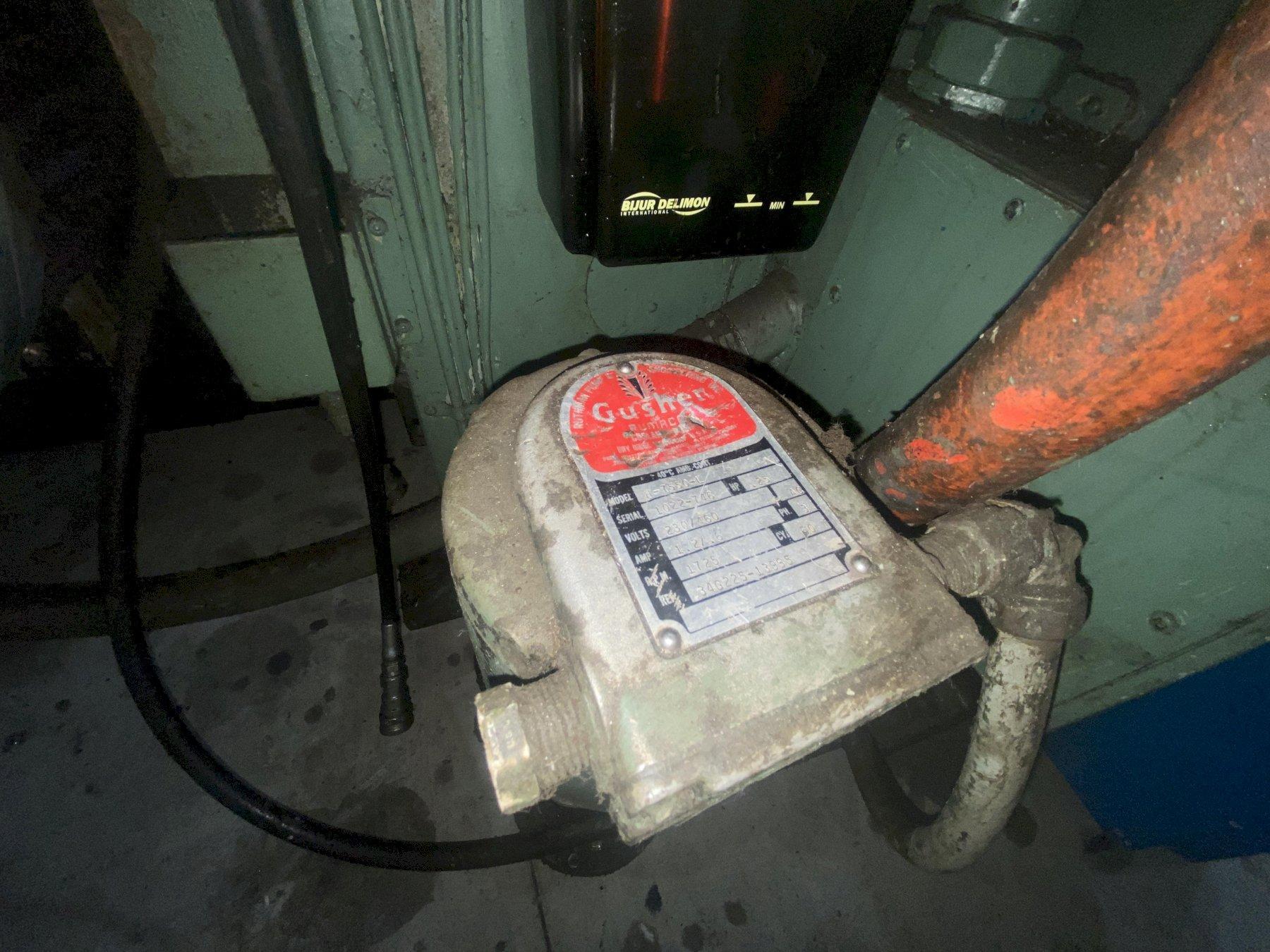

COOLANT .......................... YES

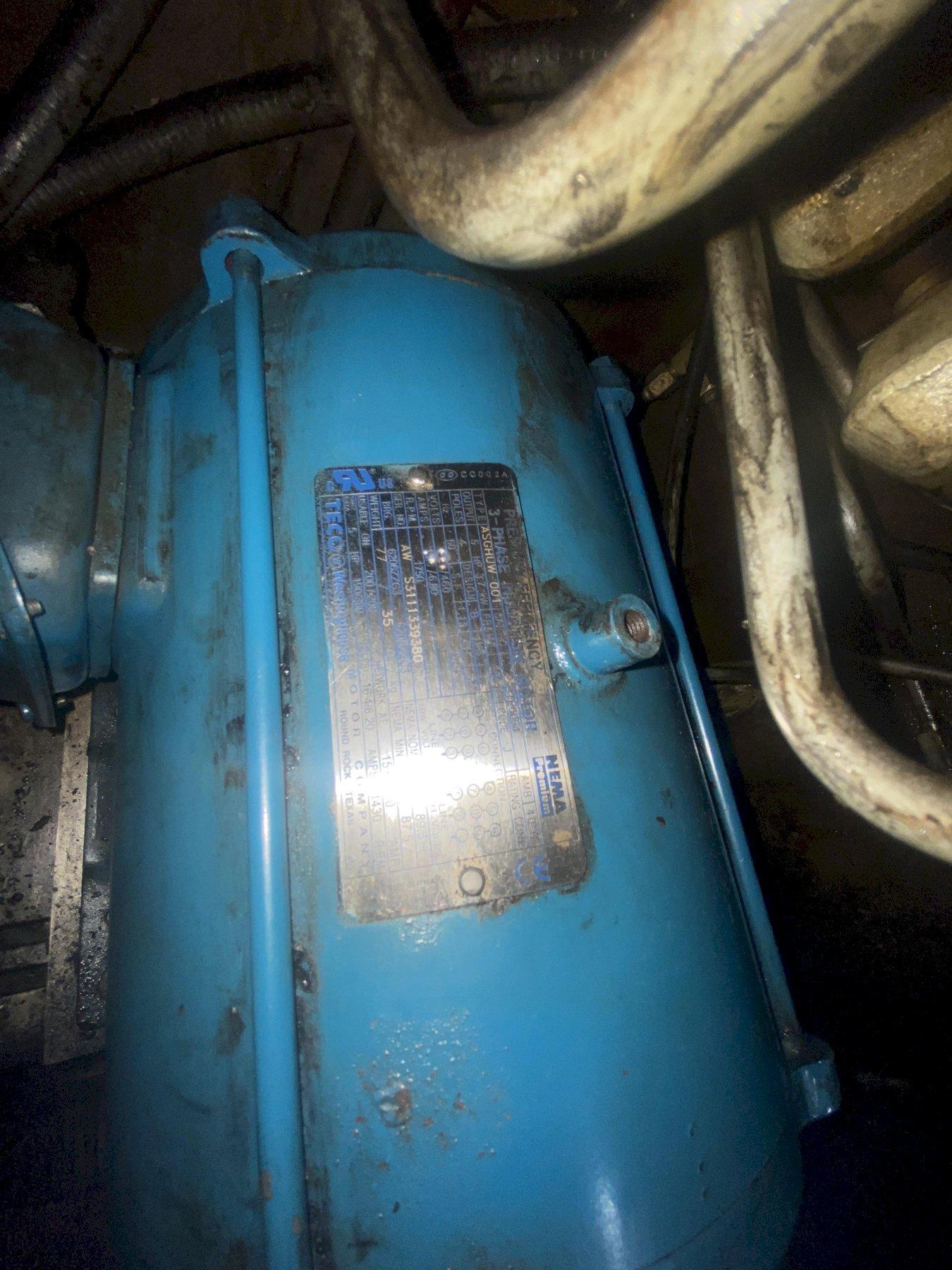

MAIN MOTOR ....................... 15 HORSEPOWER

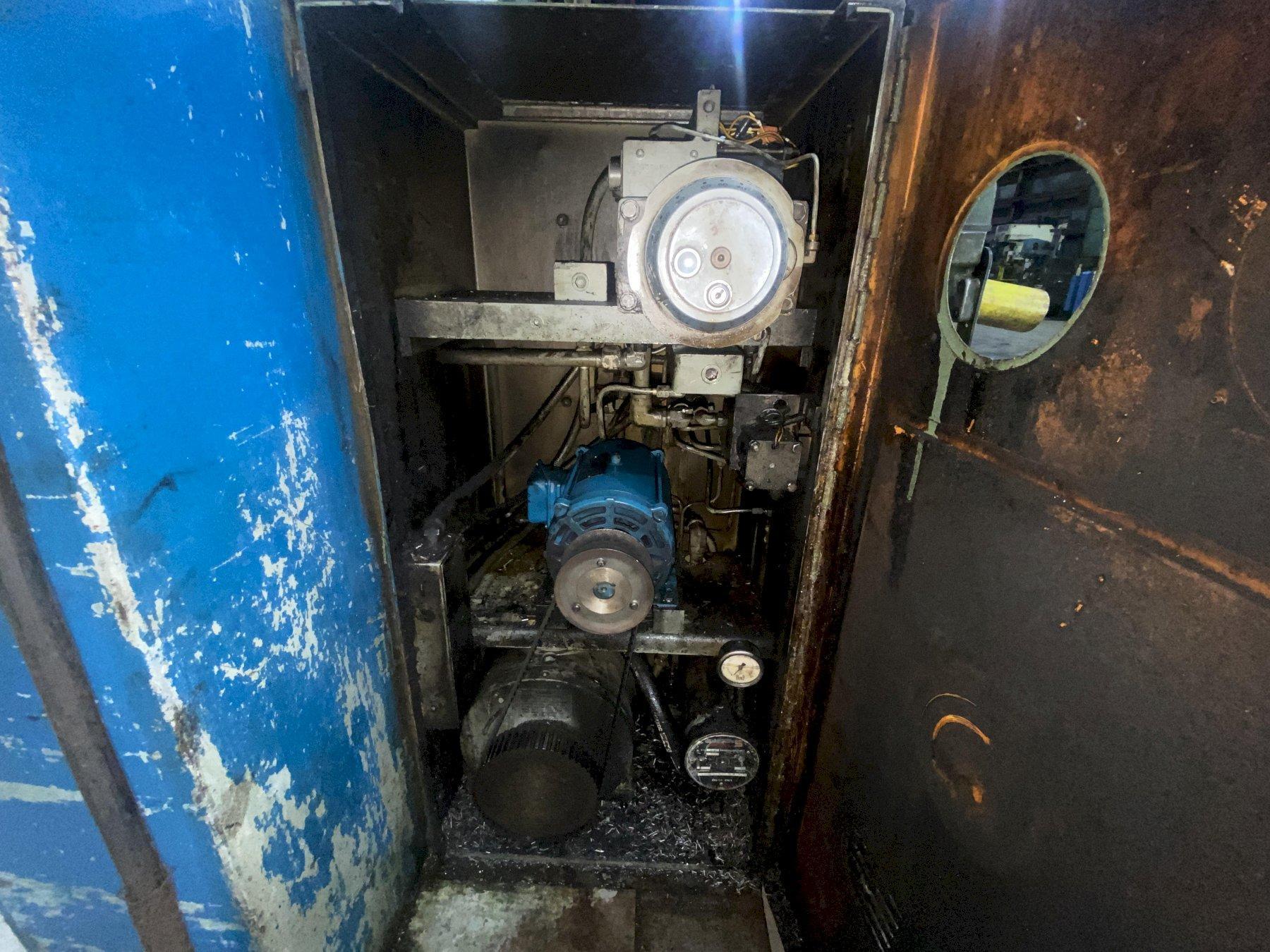

HYDRAULIC MOTOR .................. 5 HORSEPOWER
