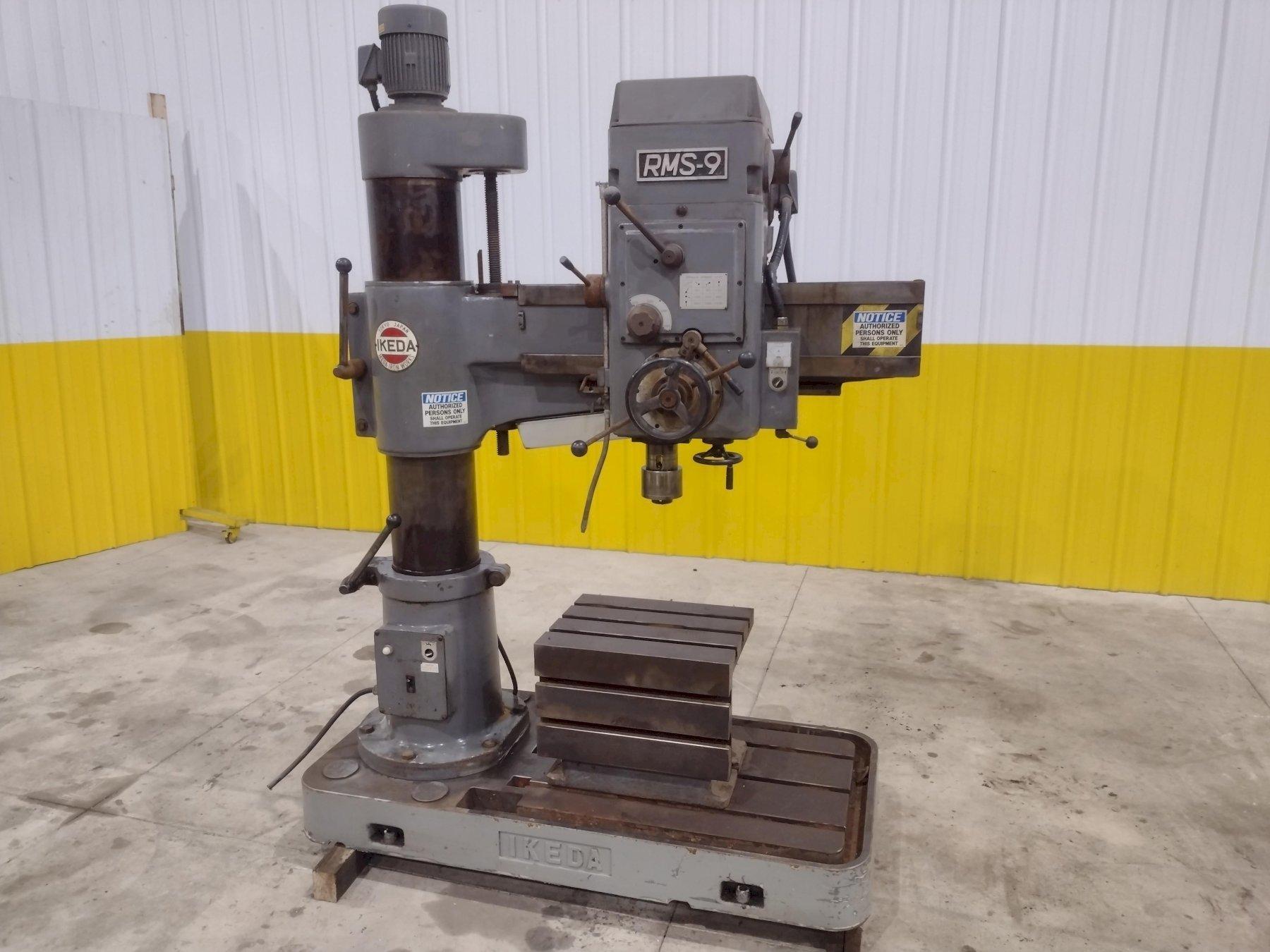

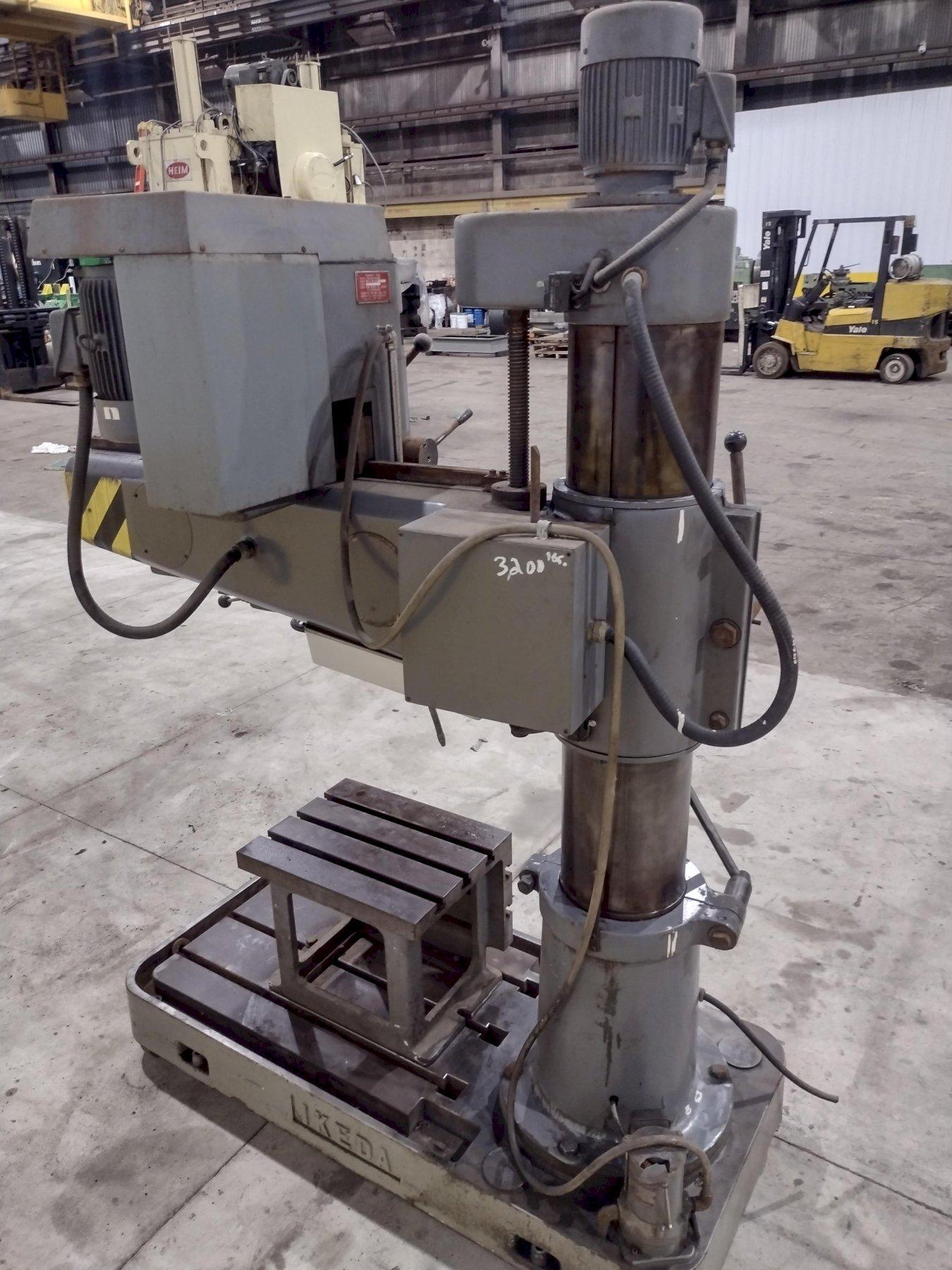

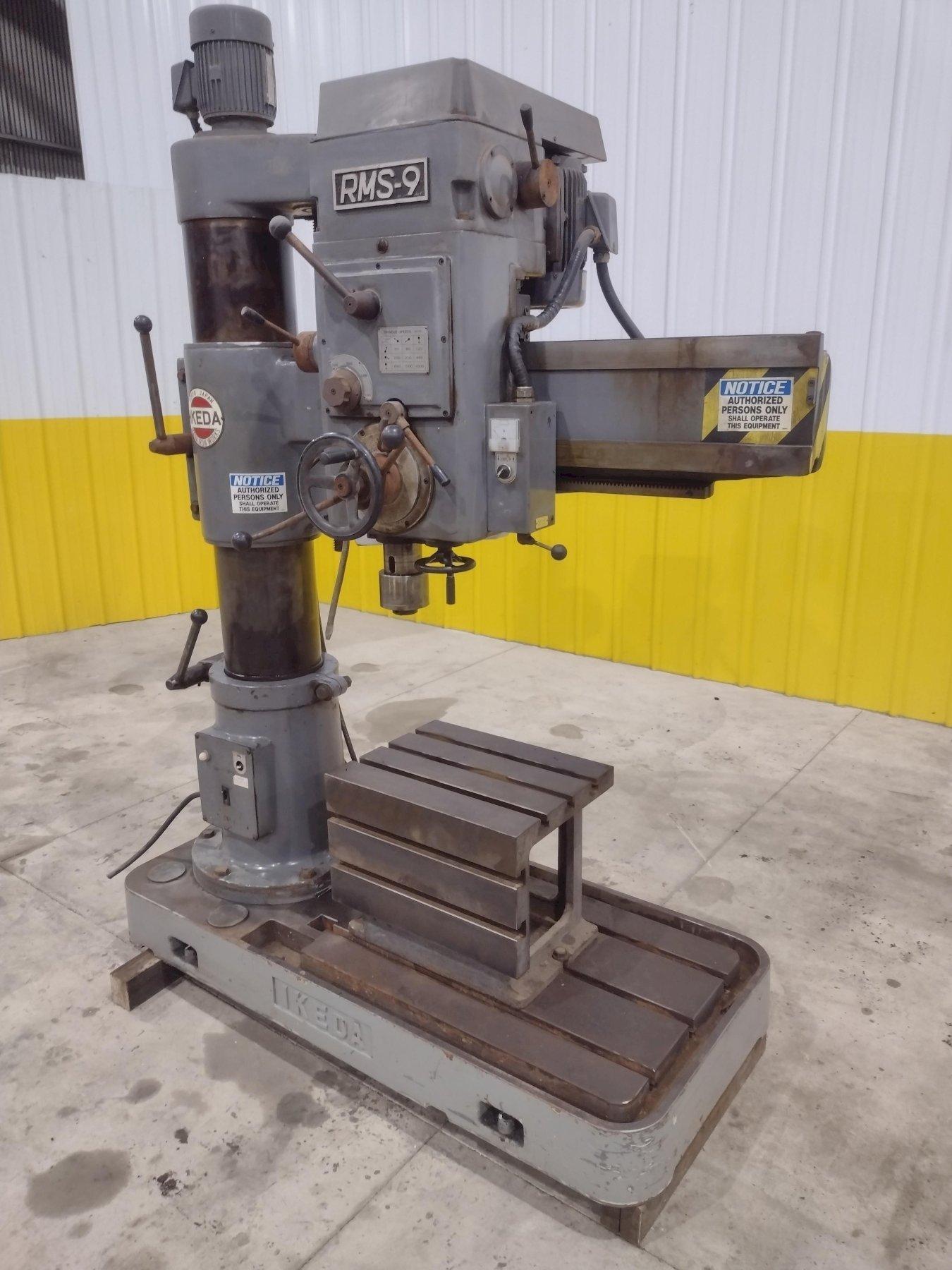

3' x 9" IKEDA MODEL #RMS9 RADIAL DRILL: STOCK #20768

Manufacturer

IKEDA

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

20768

Model

RMS9

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 61" x 28"
Weight - 3750 pounds

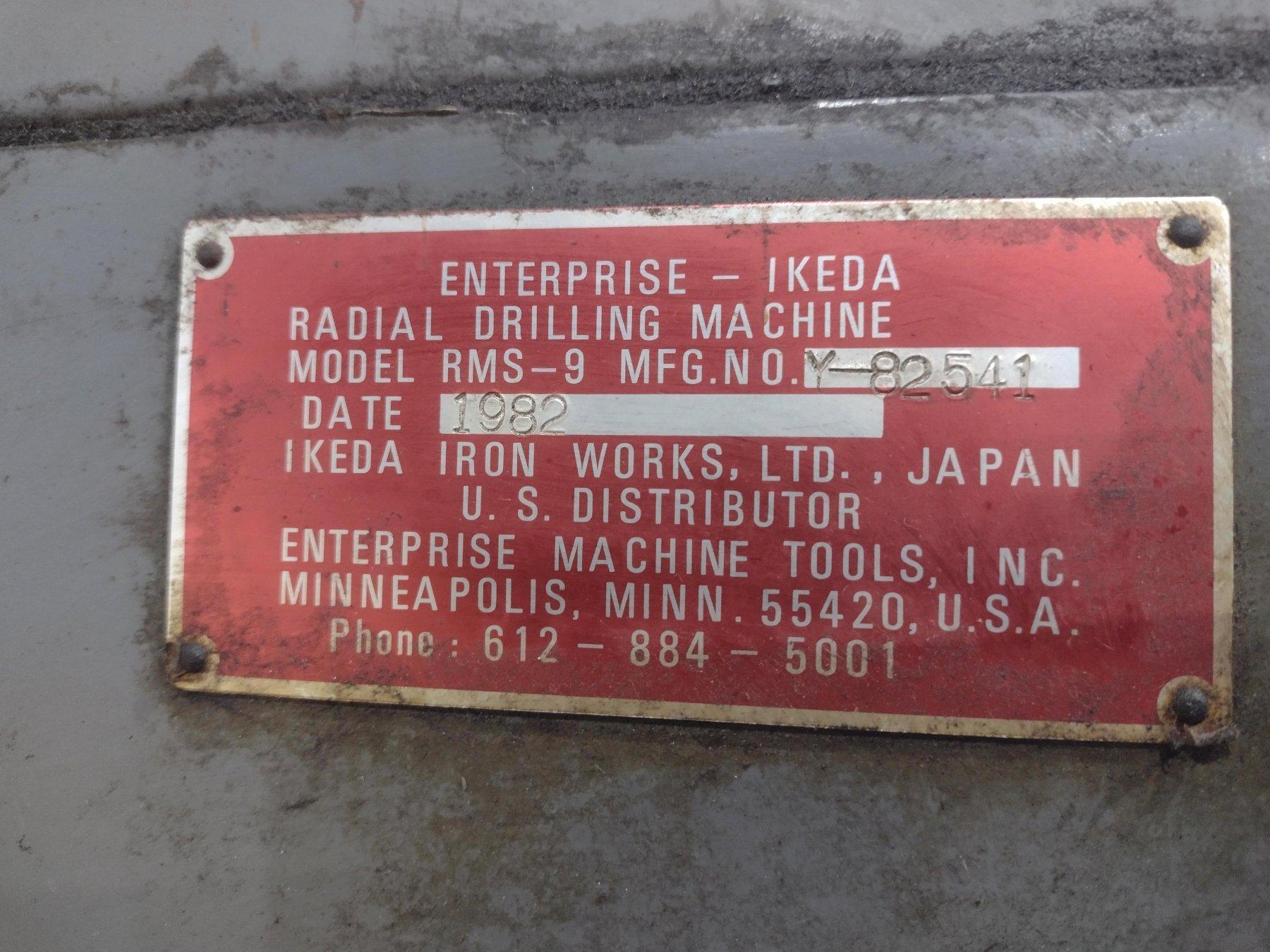

MODEL ...... RMS-9
SERIAL ..... Y 82541
YEAR ....... 1982
Arm Length 3'

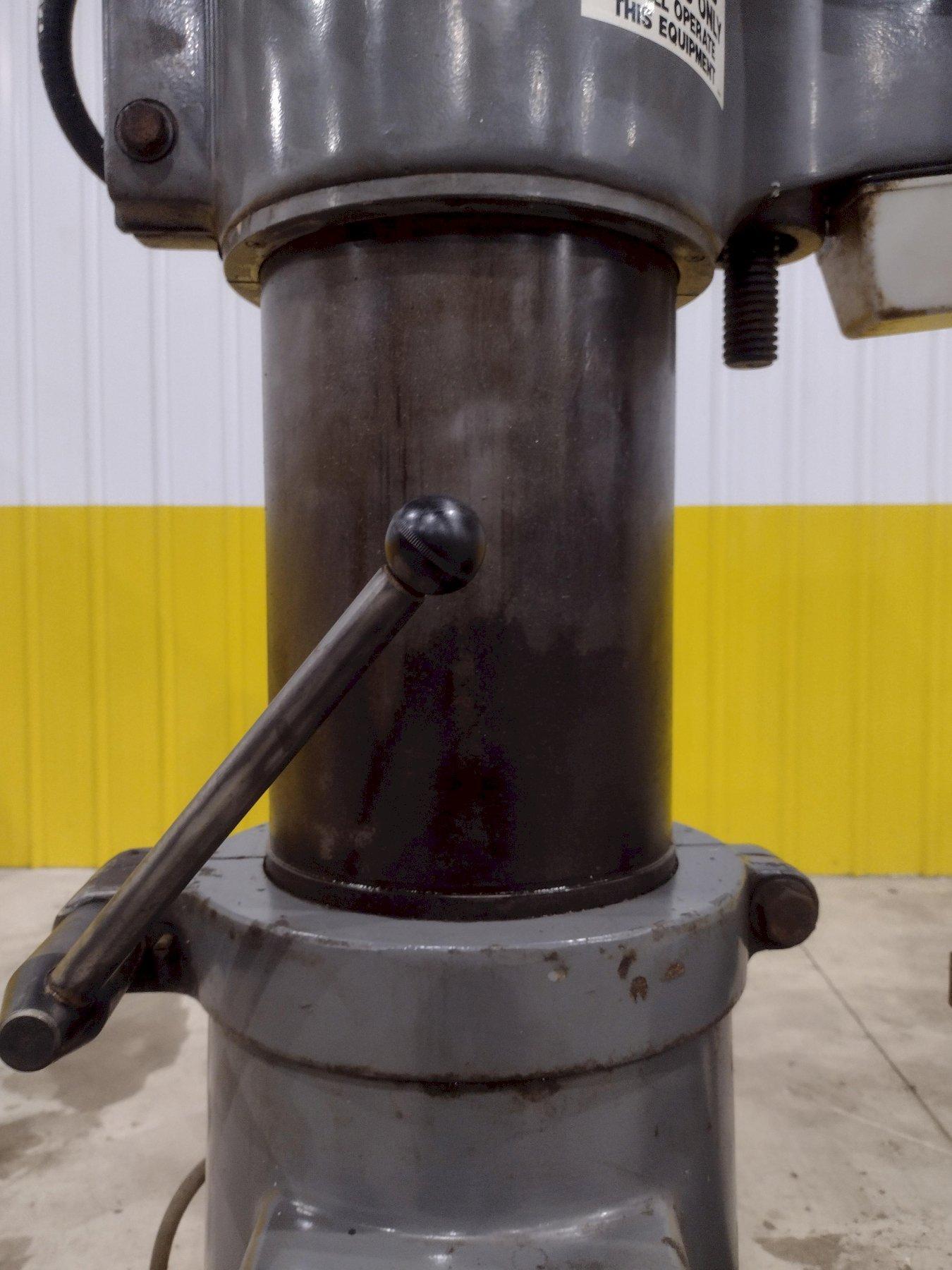

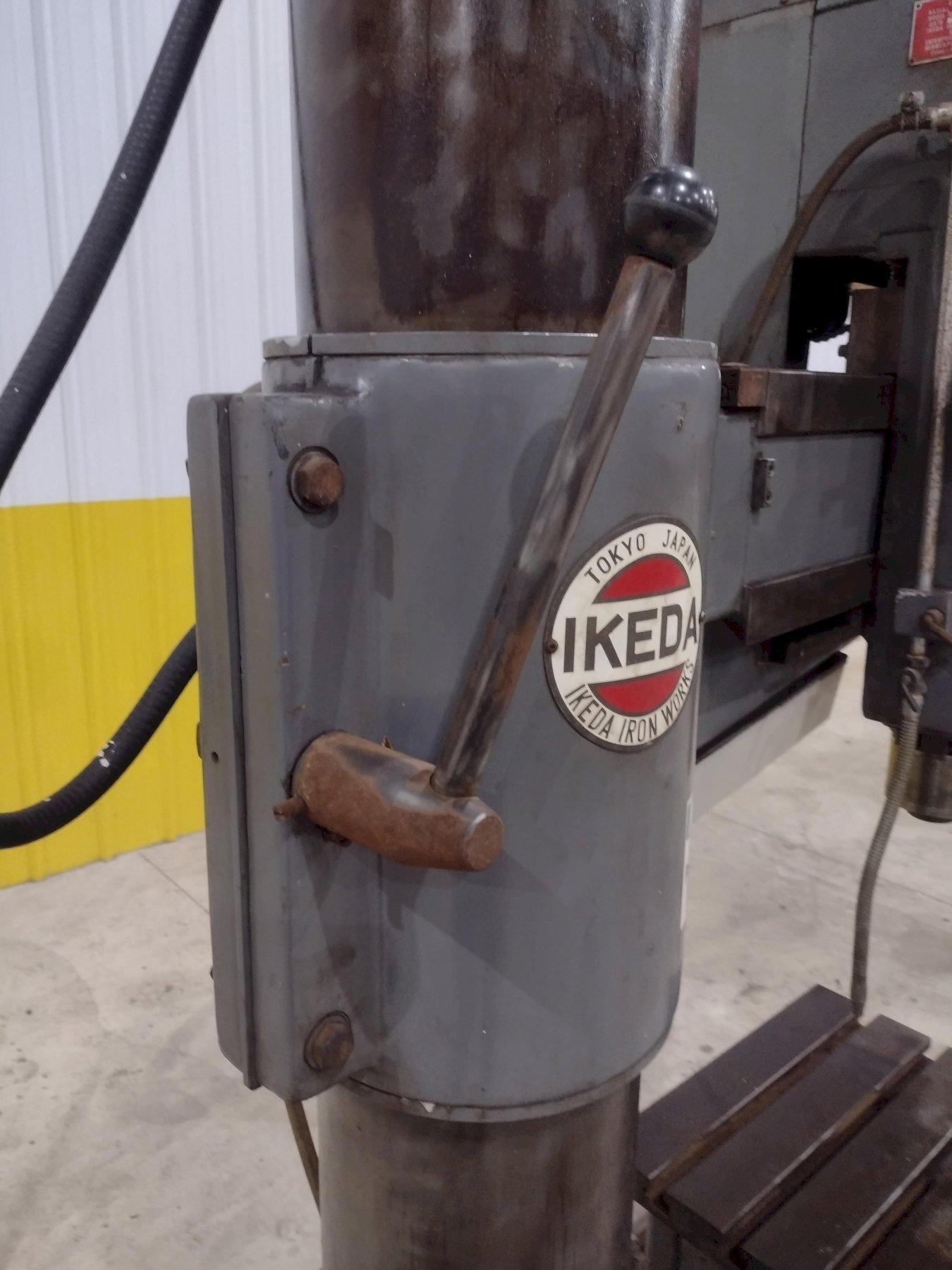

Column Diameter 9"
Vertical Spindle Stroke 9"
Spindle-Nose to Base, Minimum 11.5"
Spindle-Nose to Base, Maximum 43"
Column-Face to Spindle, Minimum 11.75"
Column-Face to Spindle, Maximum 3'
Base Working Surface, W x L 23" x 37"
Base Height 6.25"

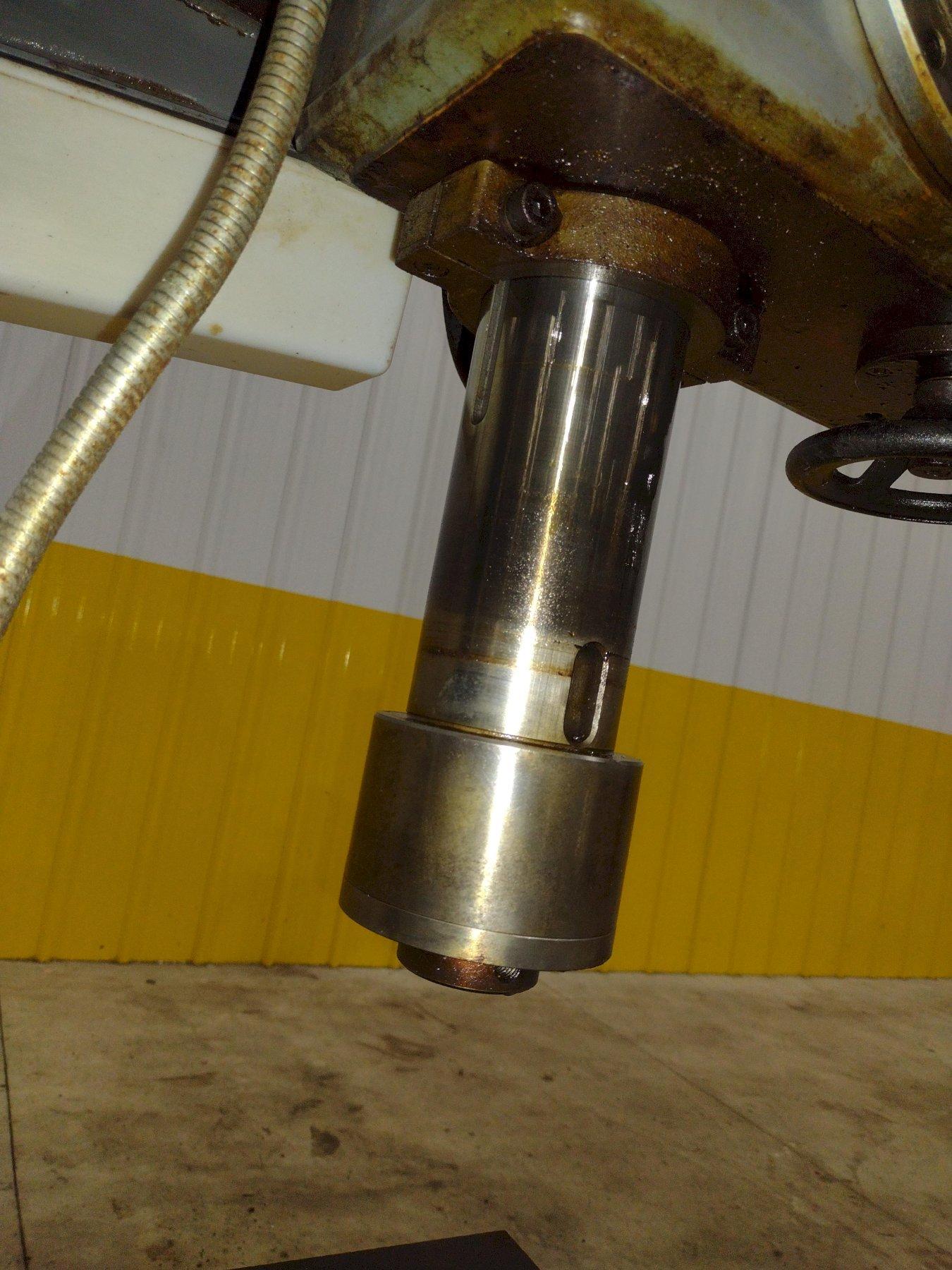

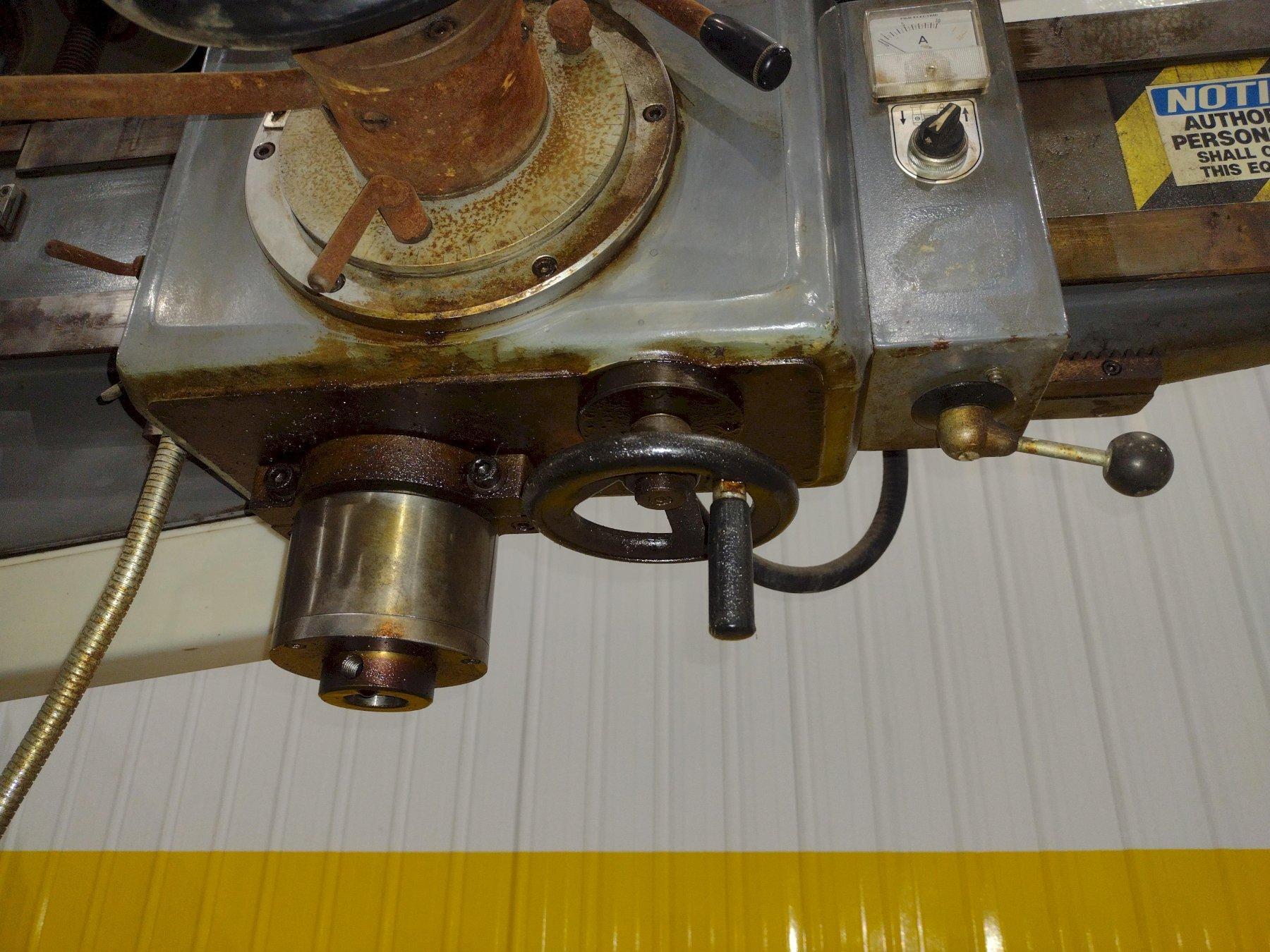

Spindle Quill Diameter  3.31"
Spindle Nose Diameter 2.25"
Spindle Taper #4 MT

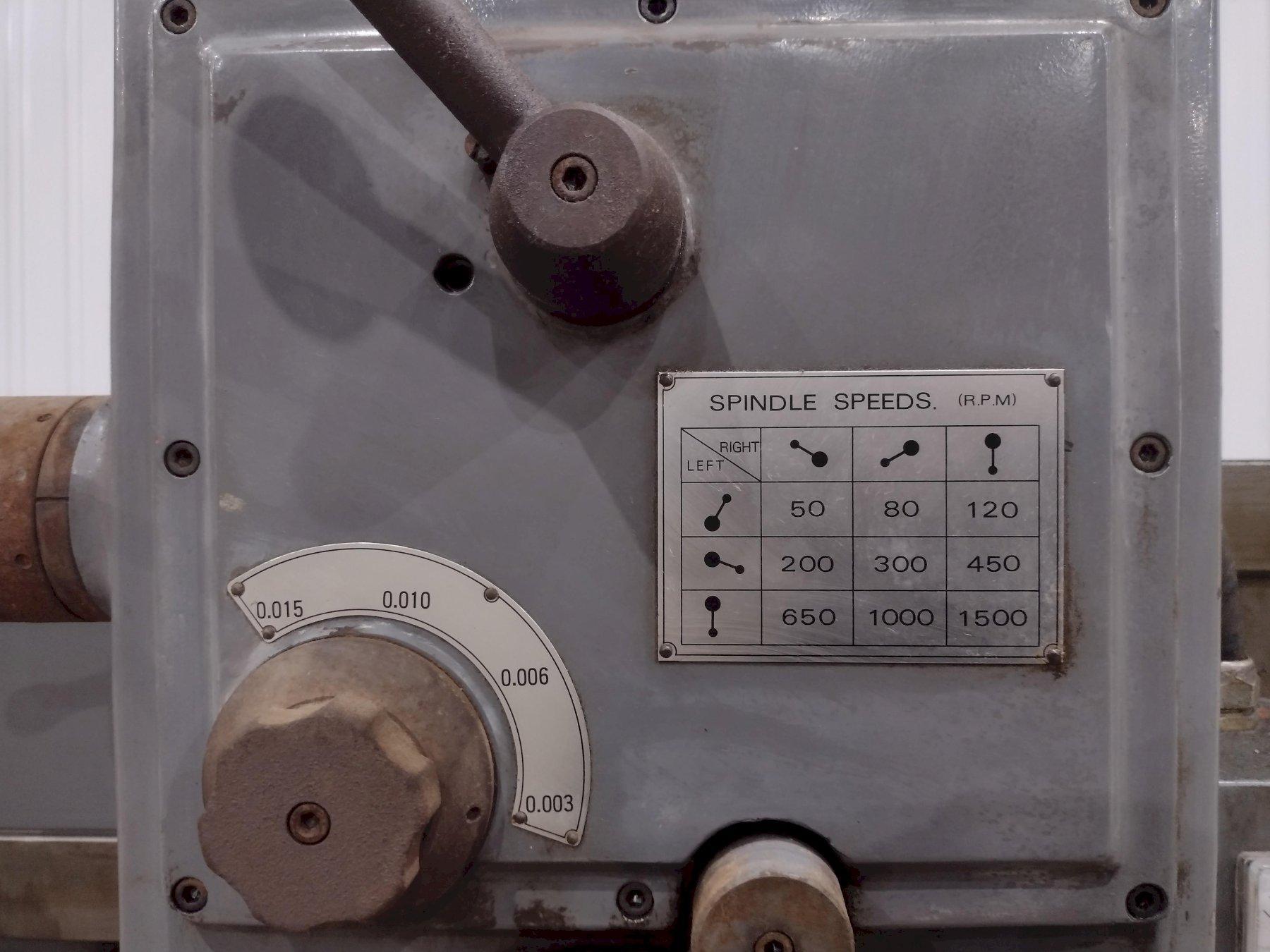

(9) Spindle Speeds, Range 50 to 1500 RPM
(4) Spindle Feeds, Range .003 to .015 IPR

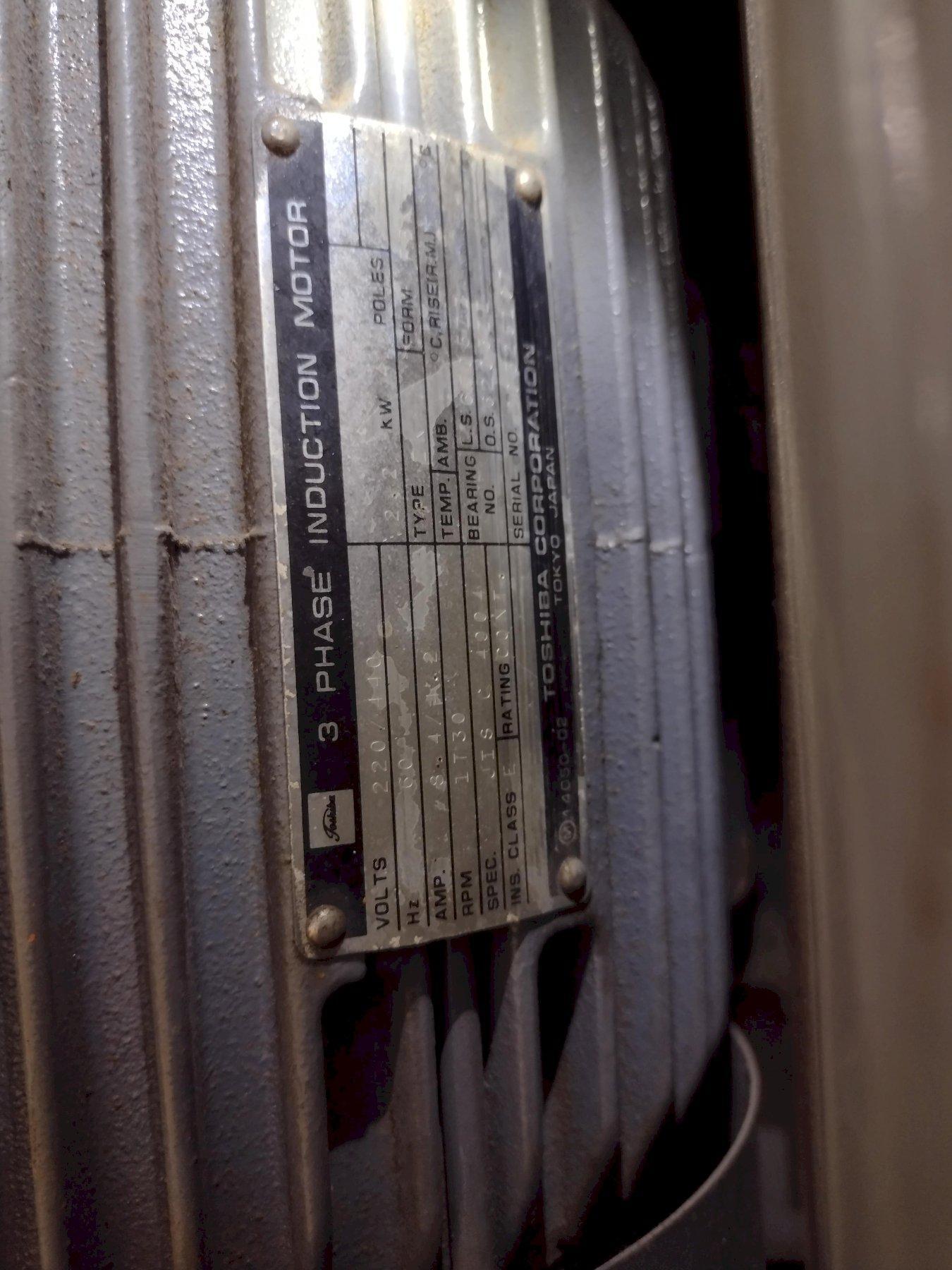

Motor, Horsepower 3 HP

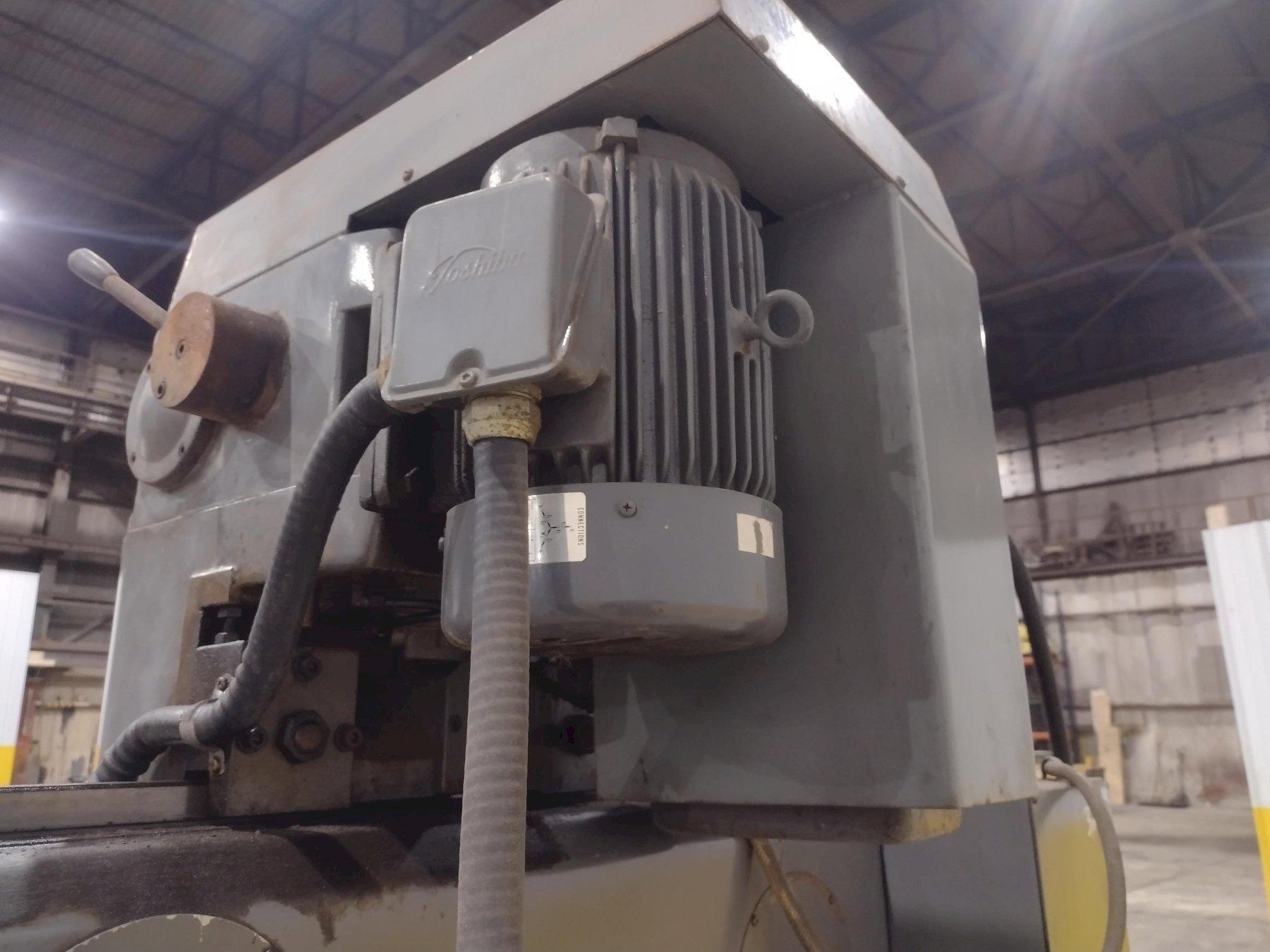

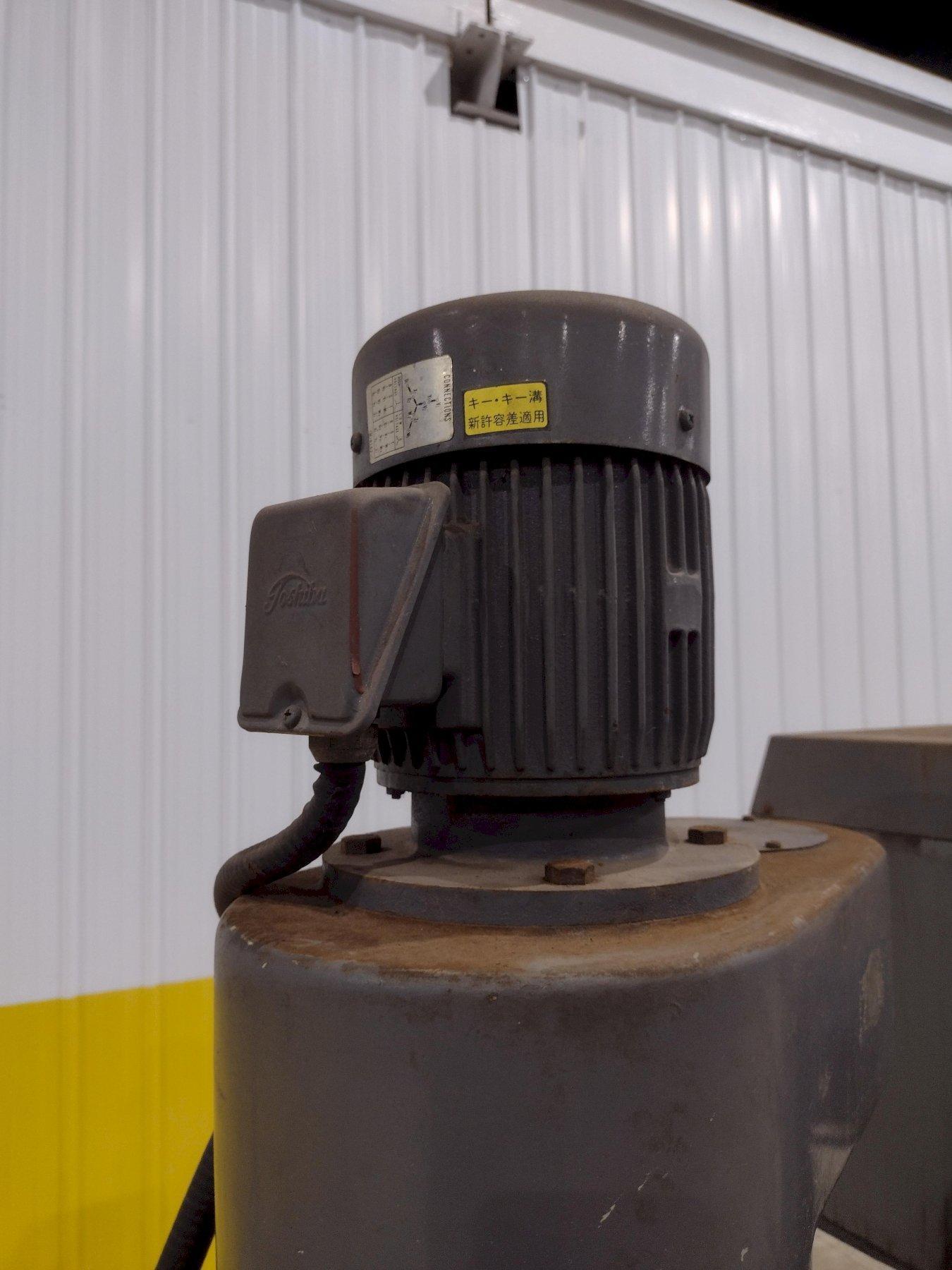

Arm Elevating Motor  1 HP

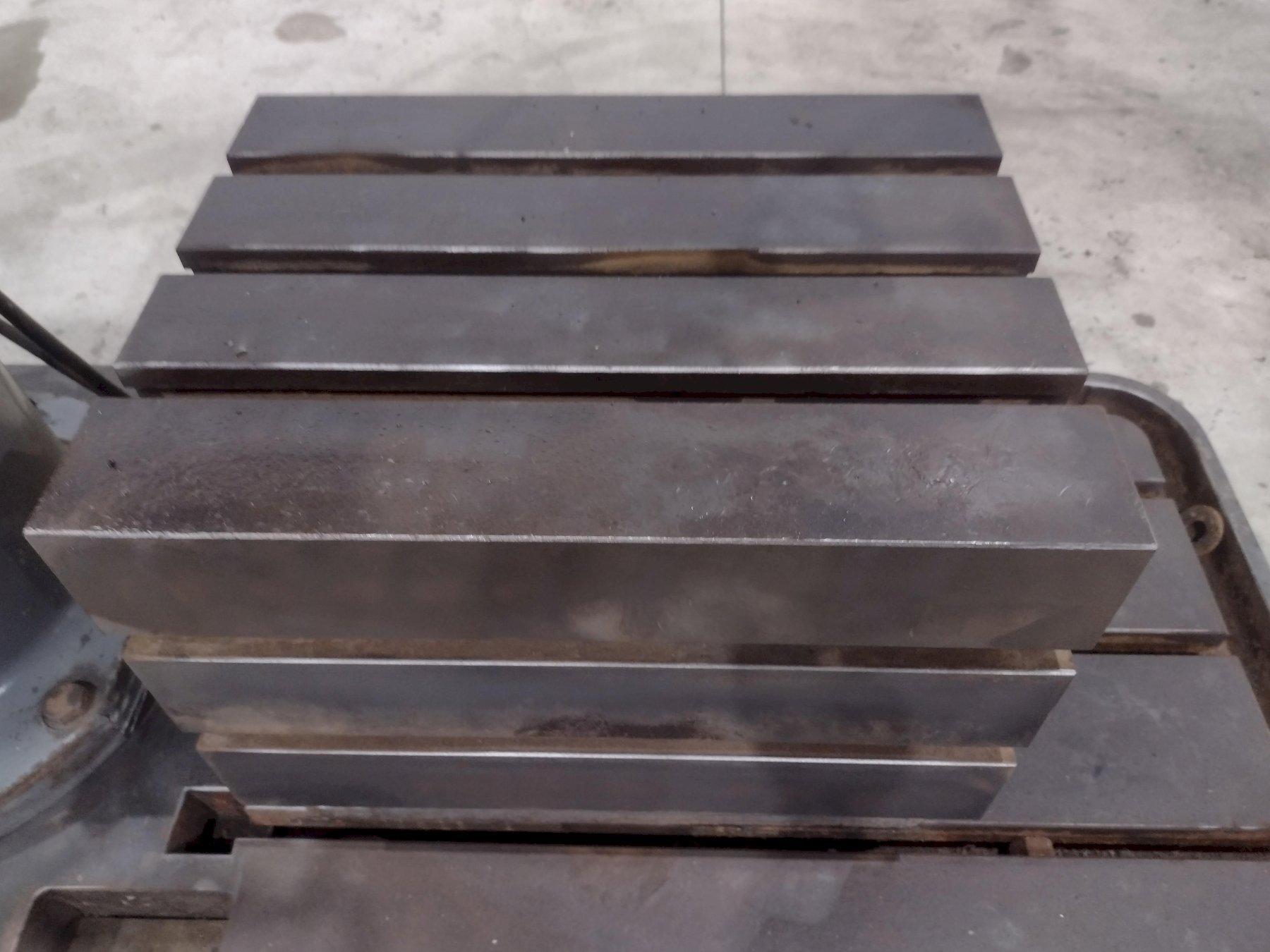

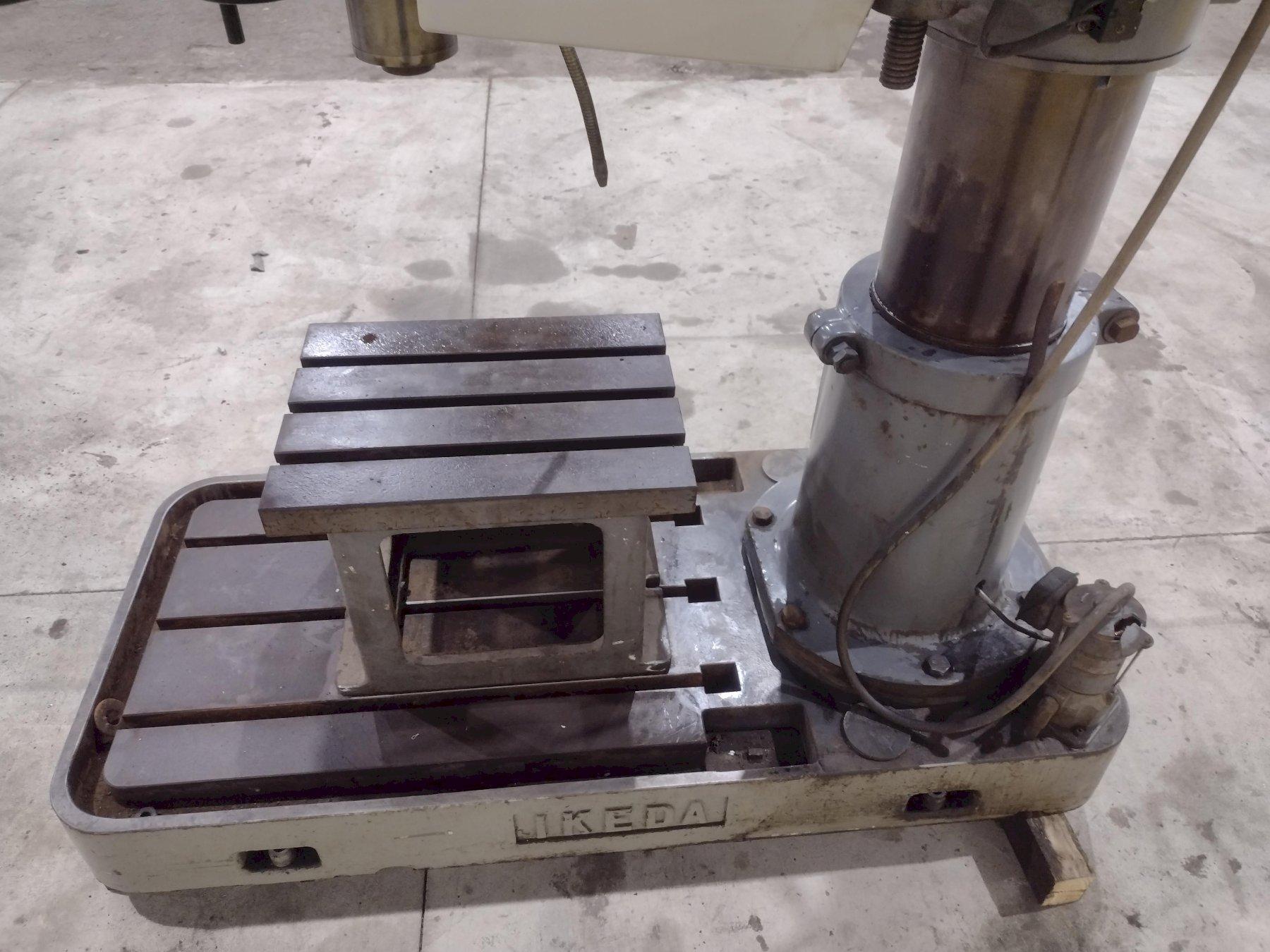

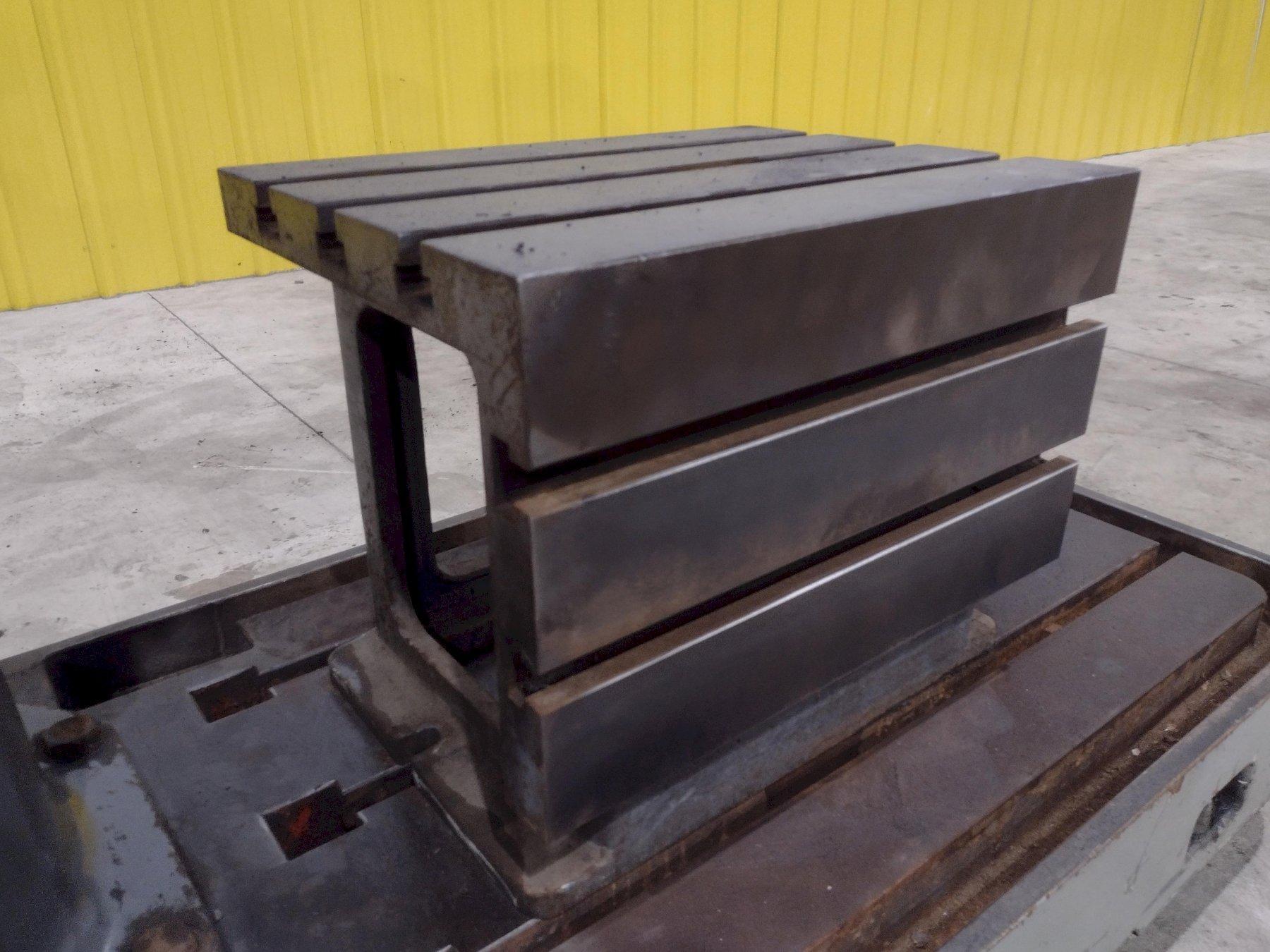

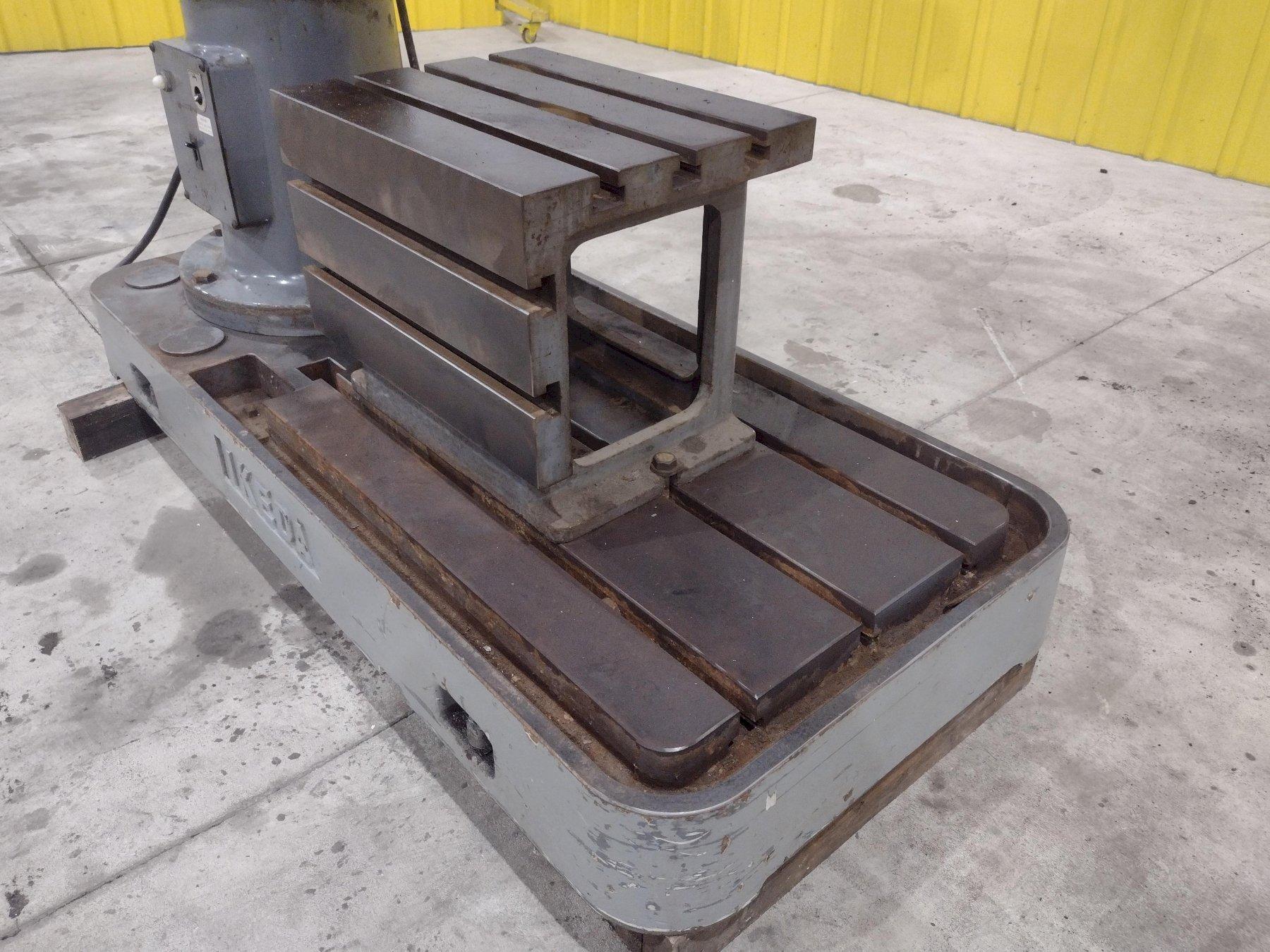

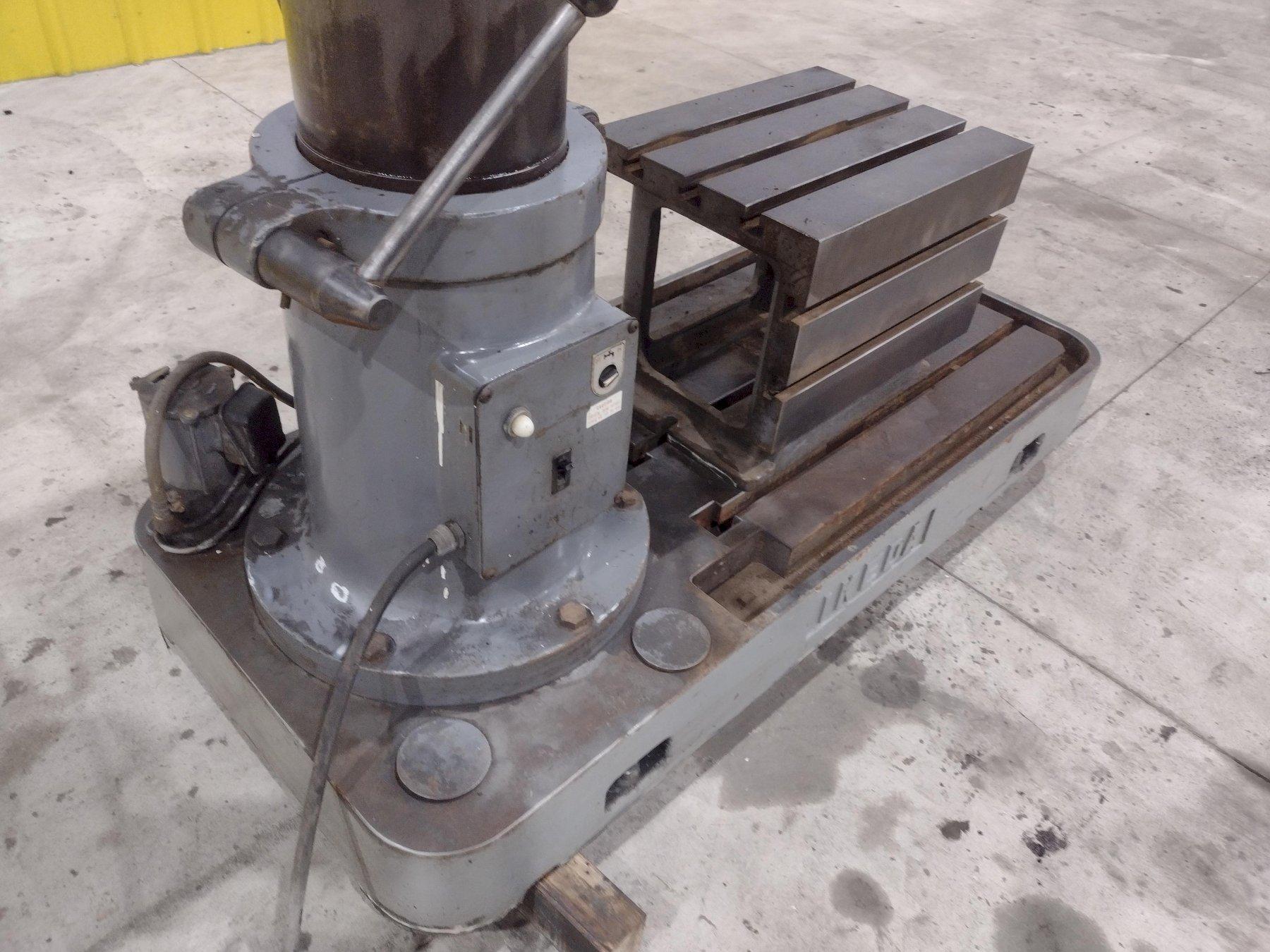

Plain Box Table
Tapping Capabilities
Plain Type Base

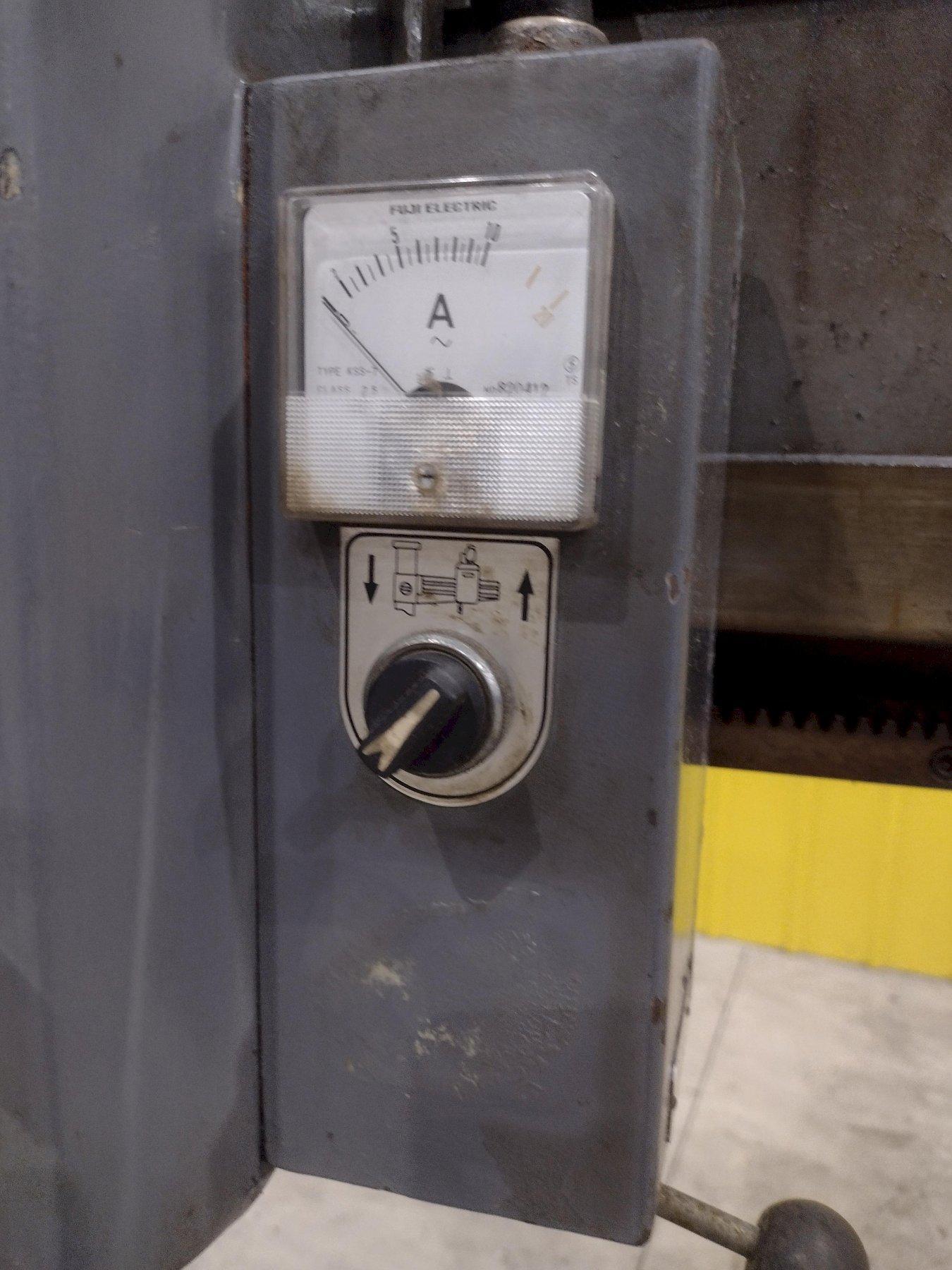

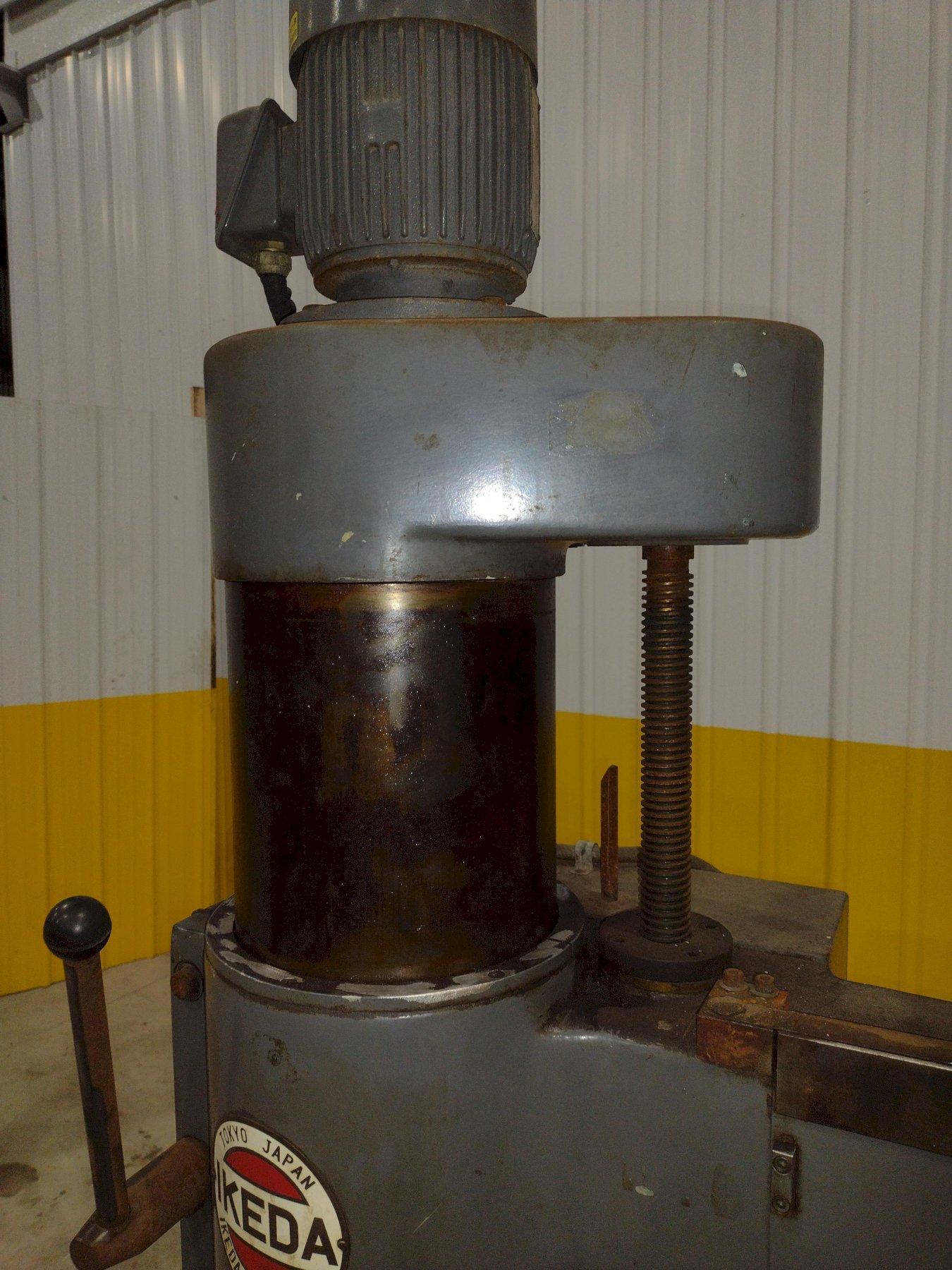

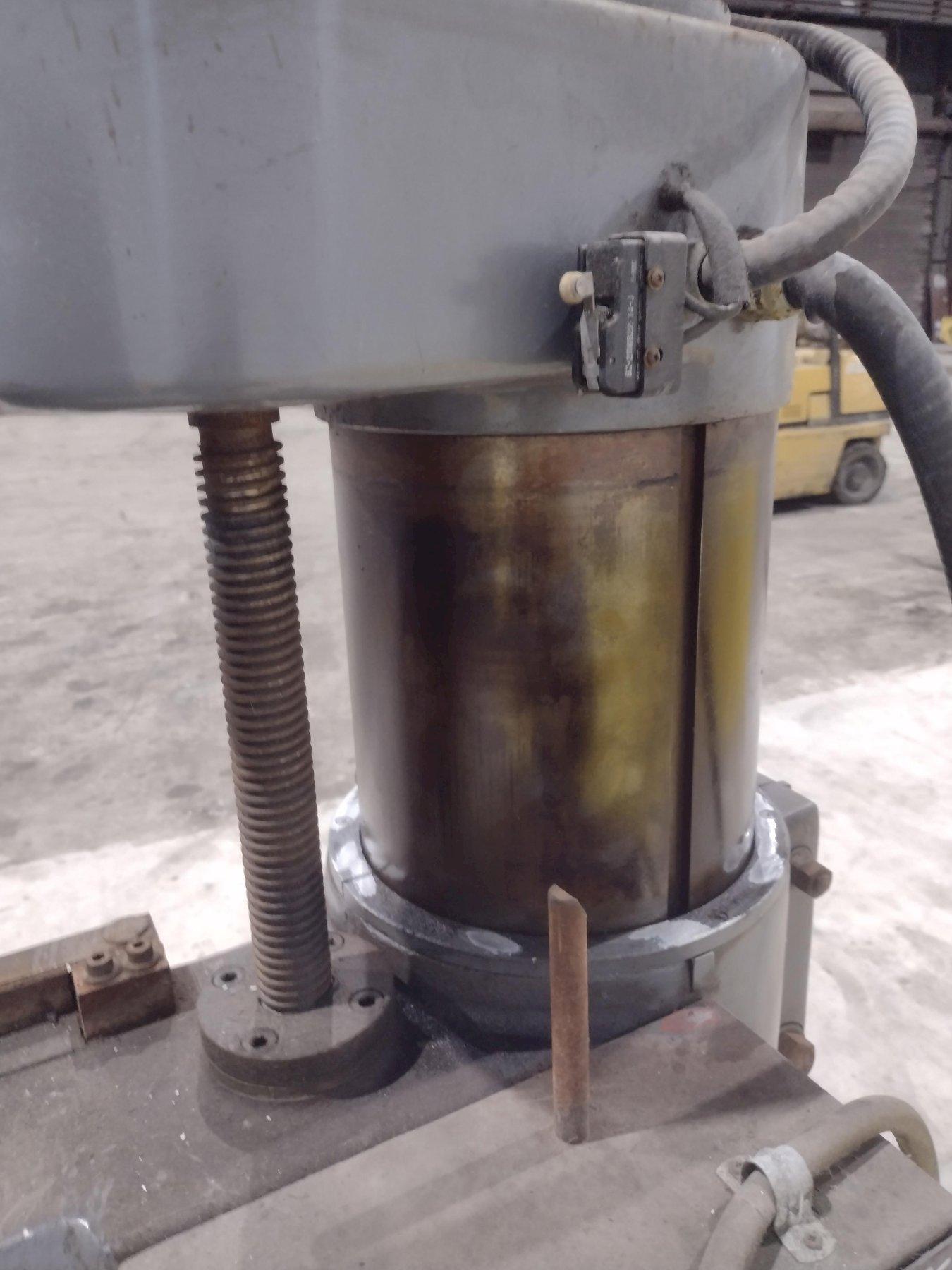

Power Arm Elevation

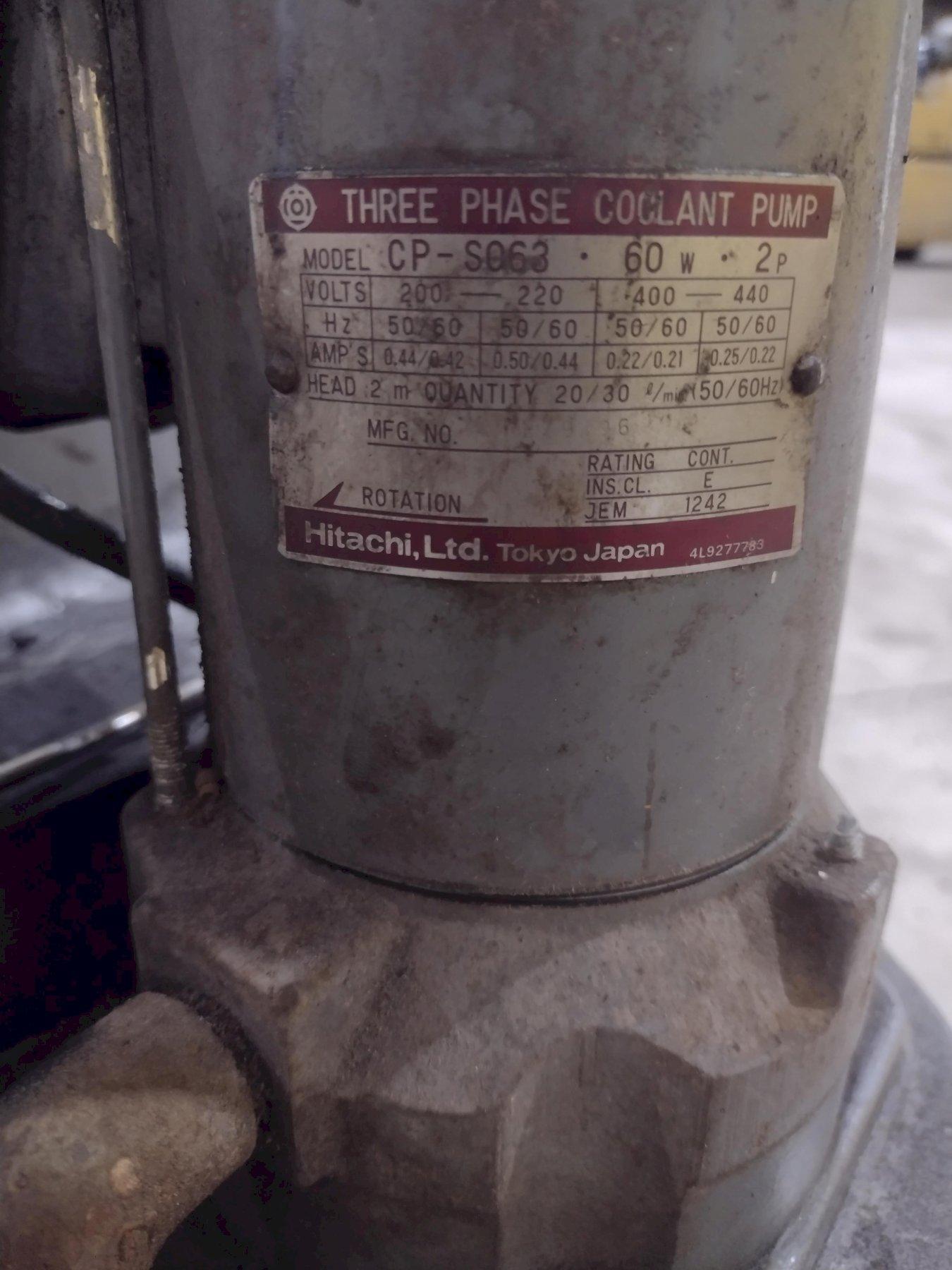

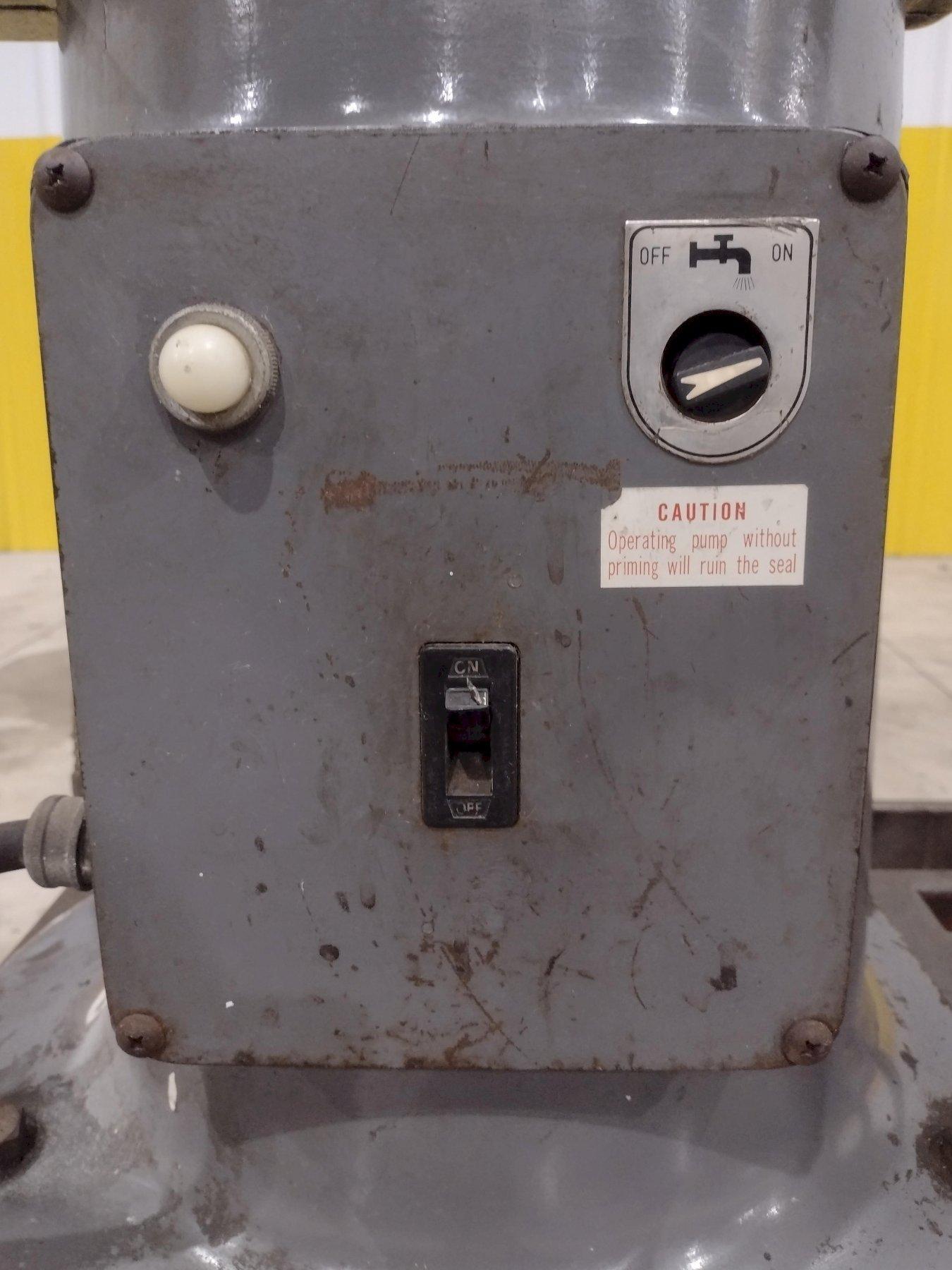

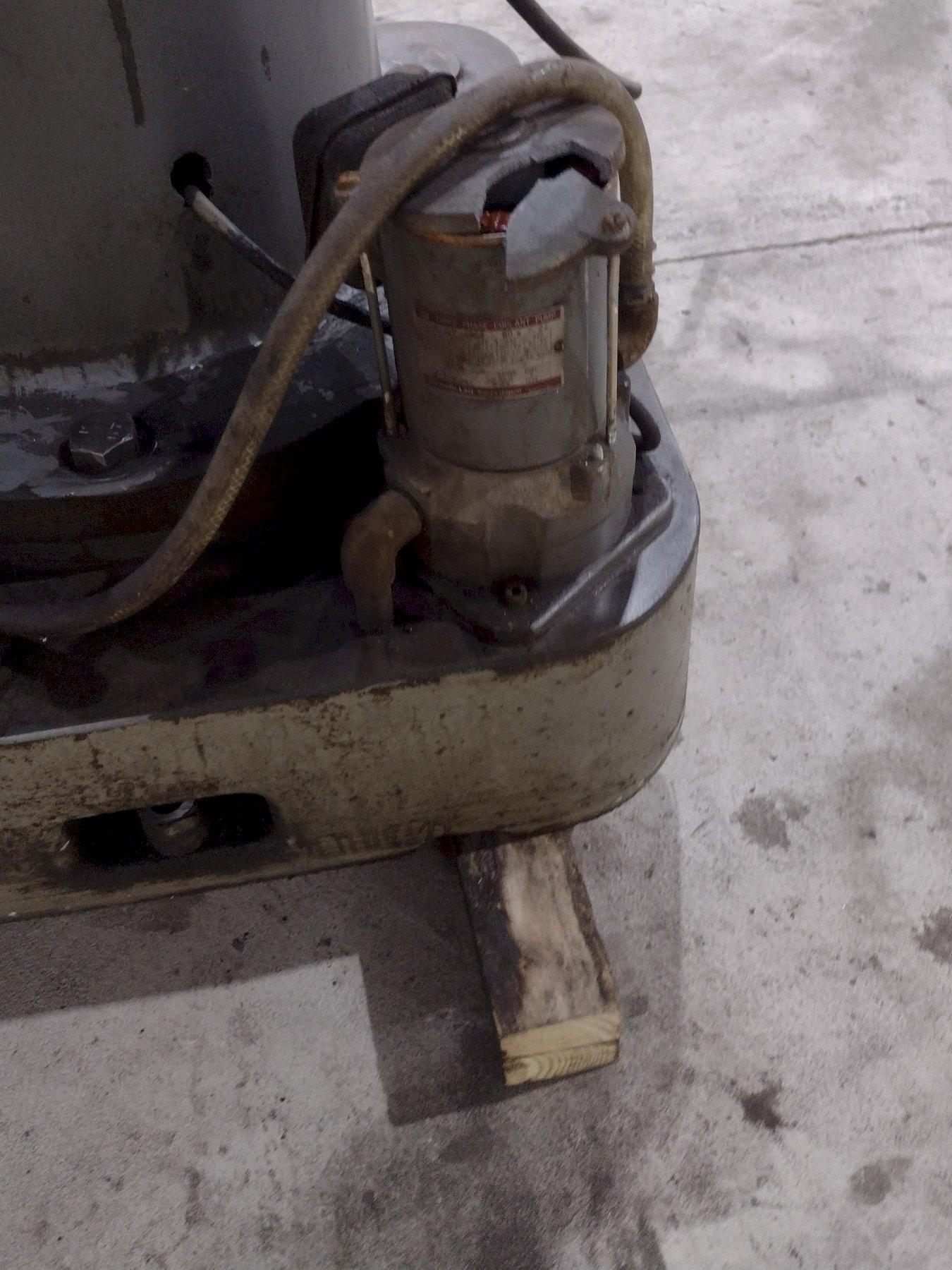

Coolant System (Built-In Base)
