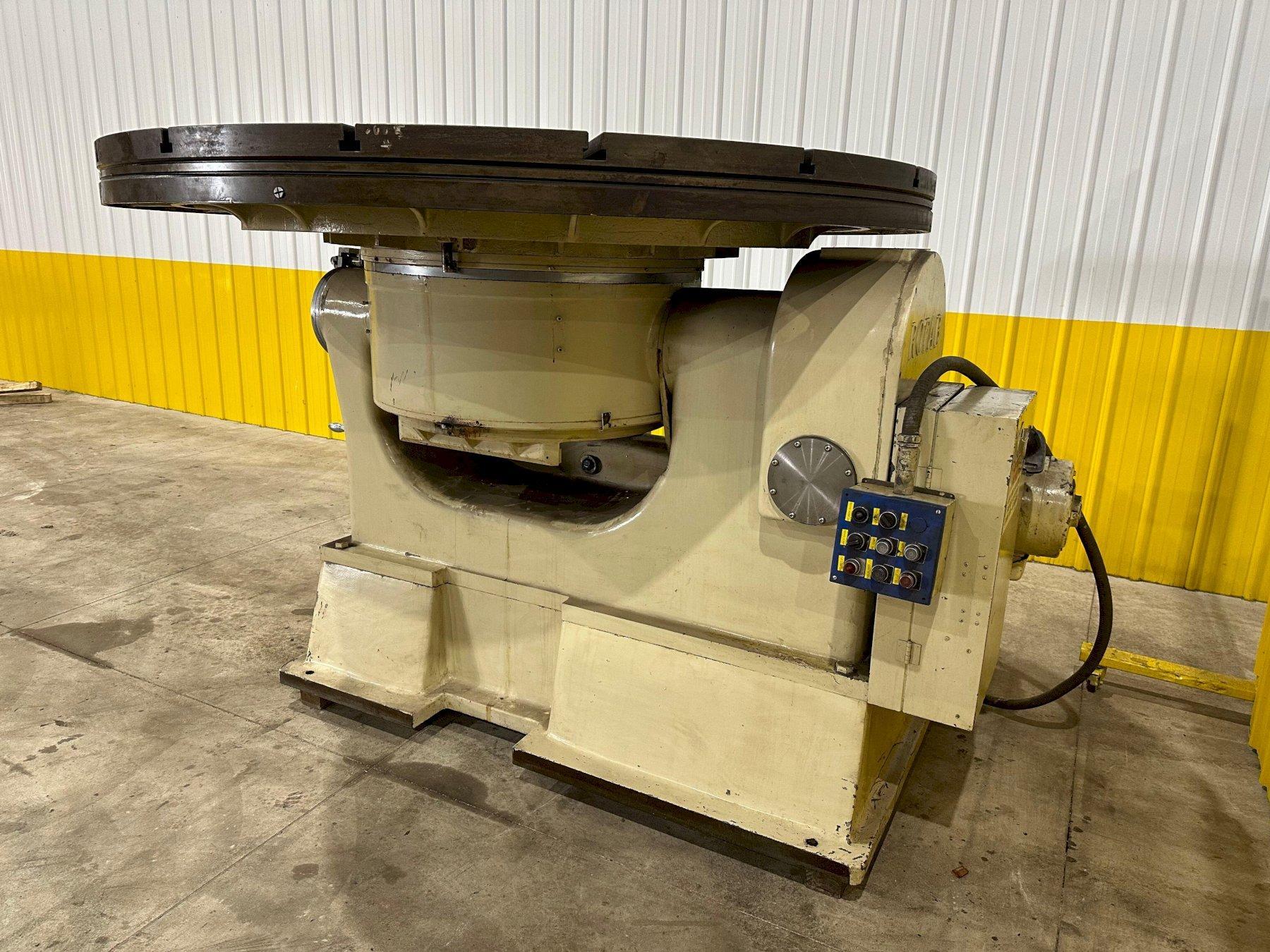

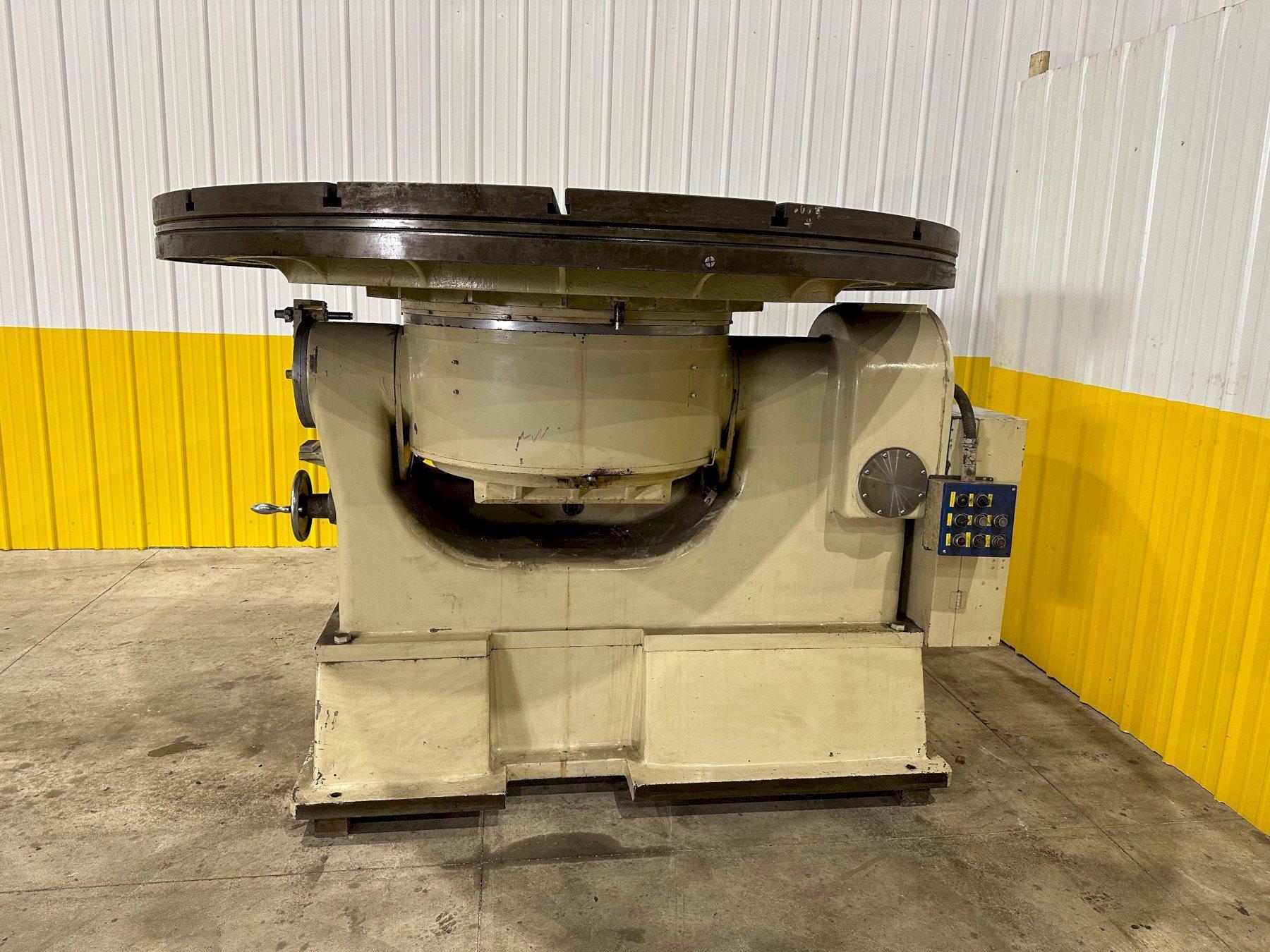

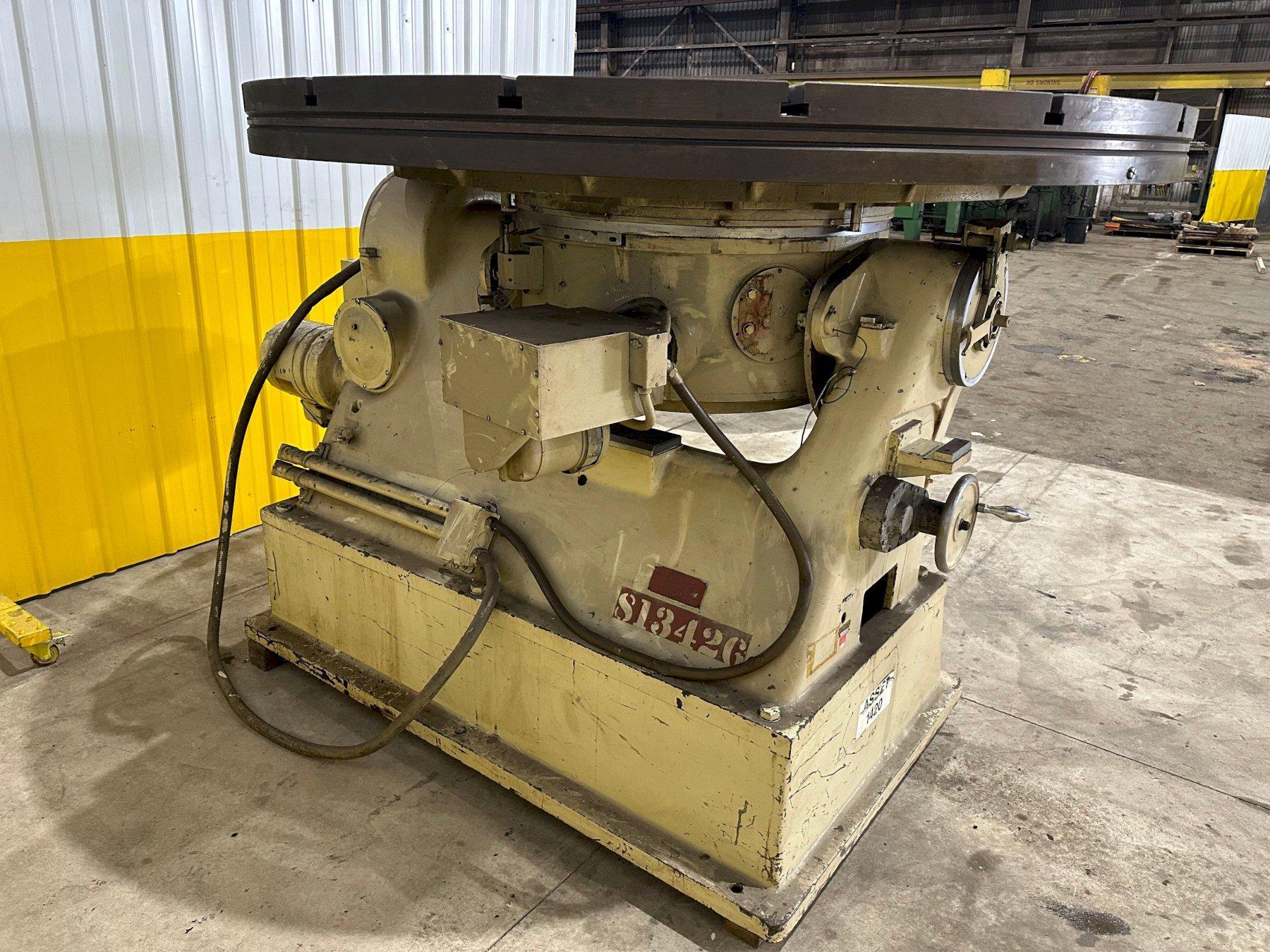

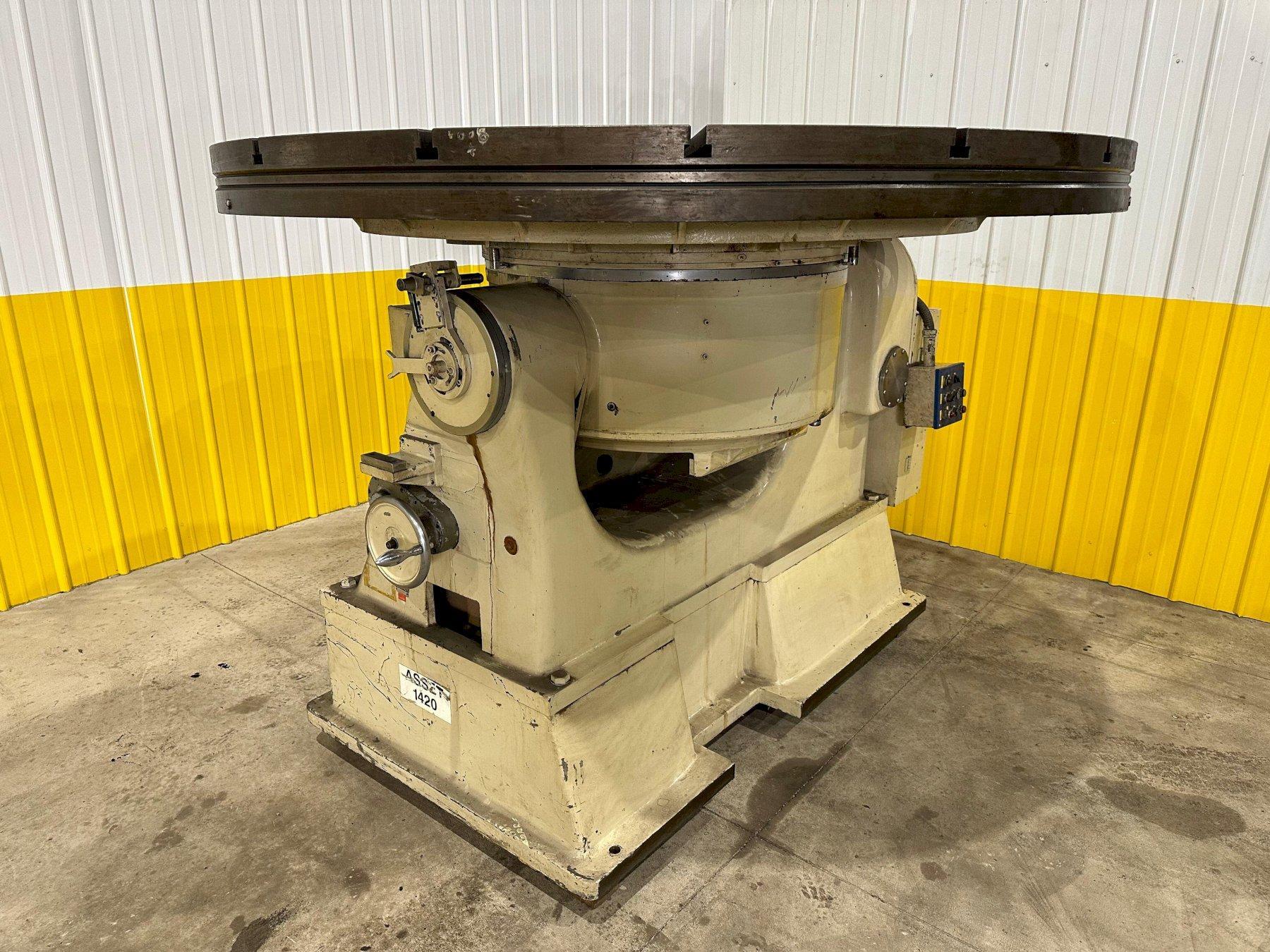

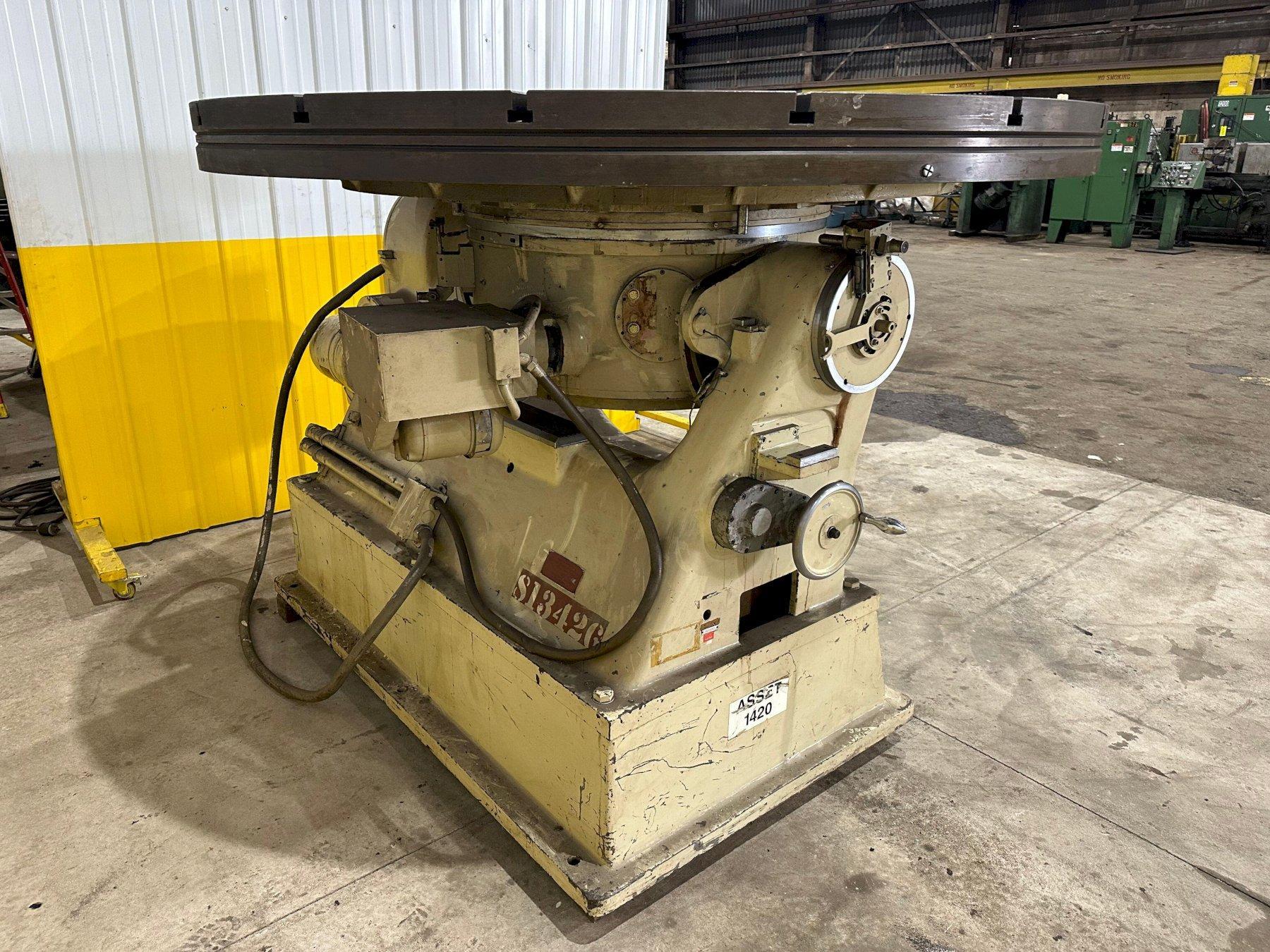

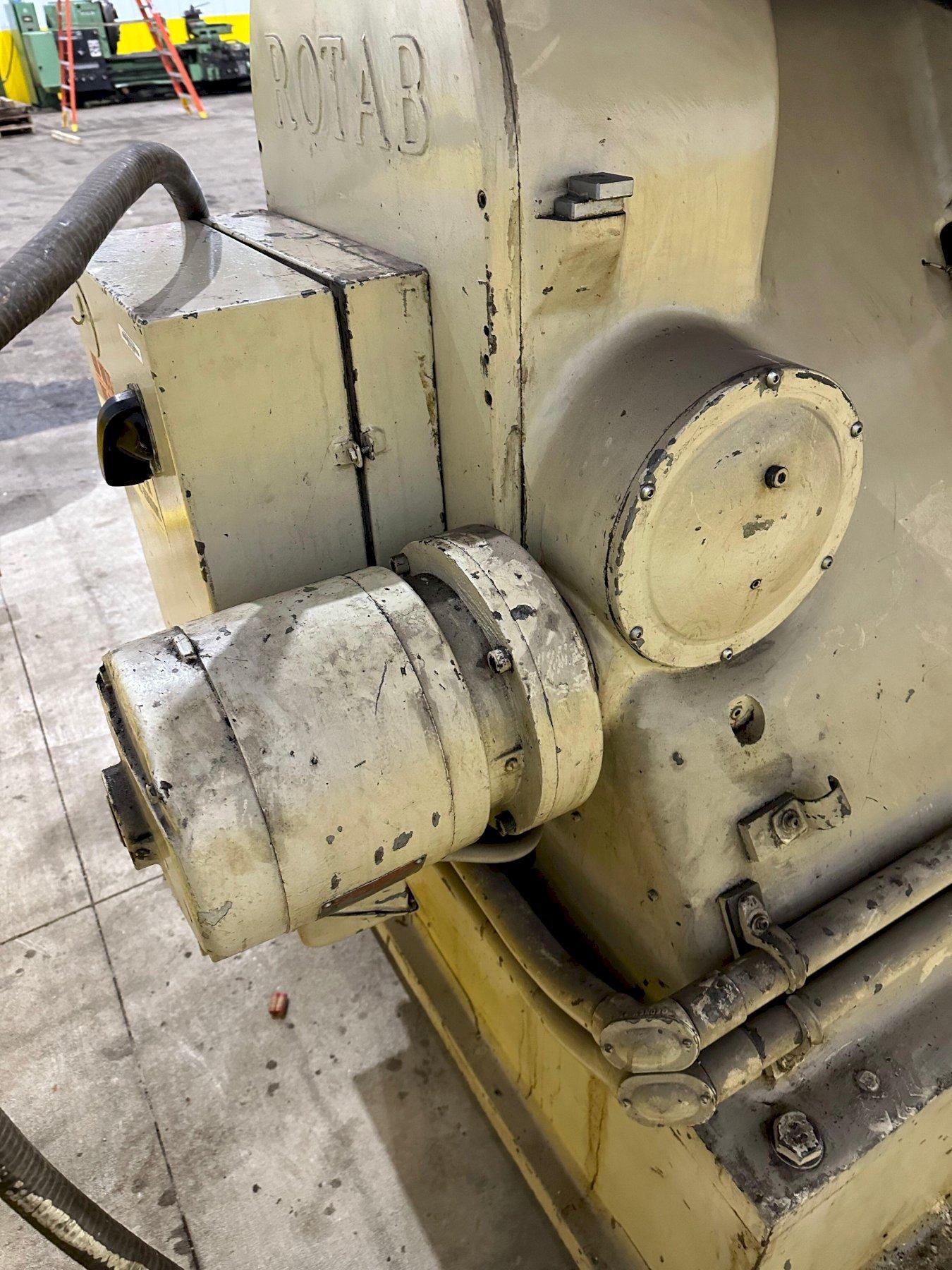

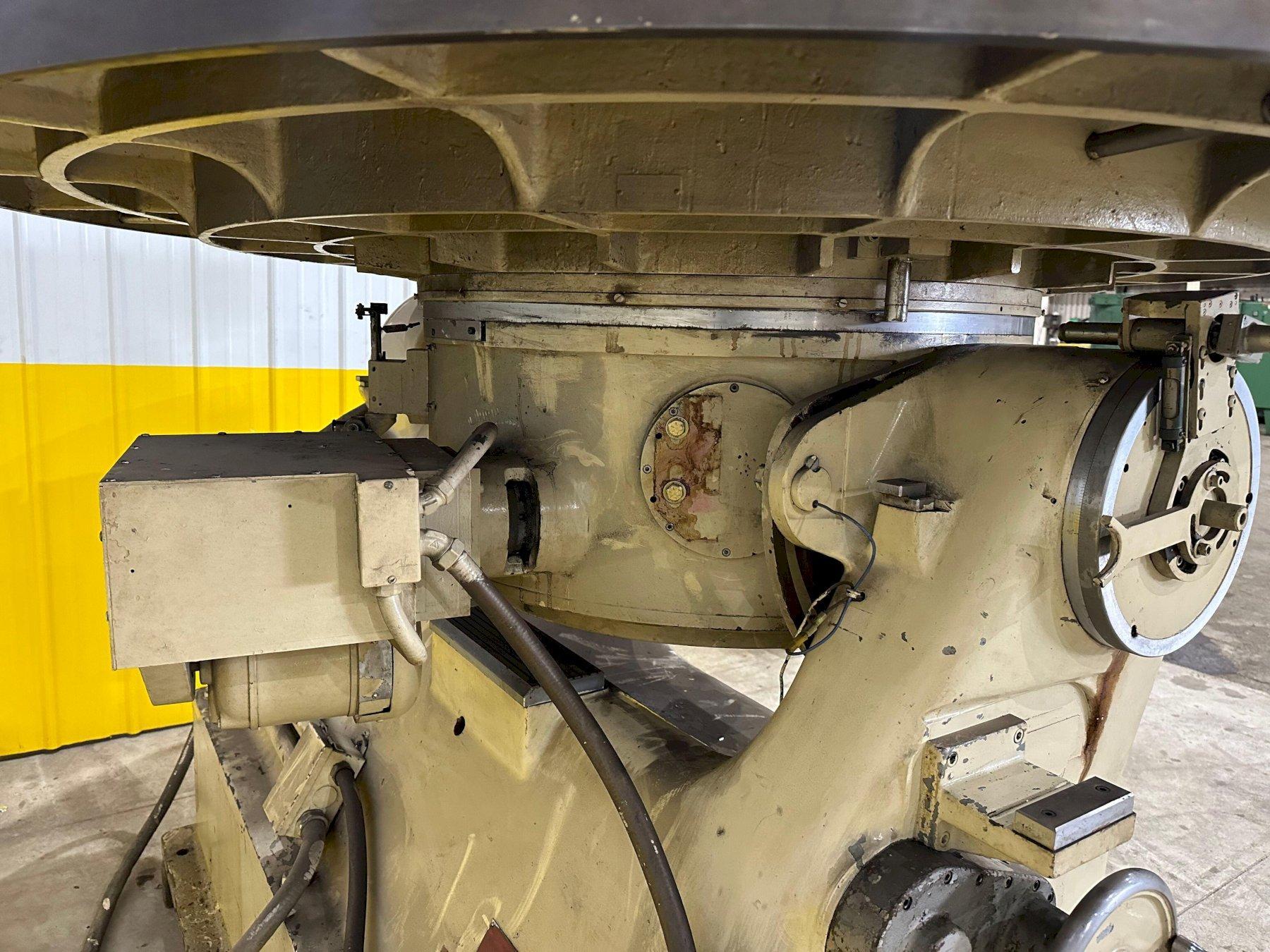

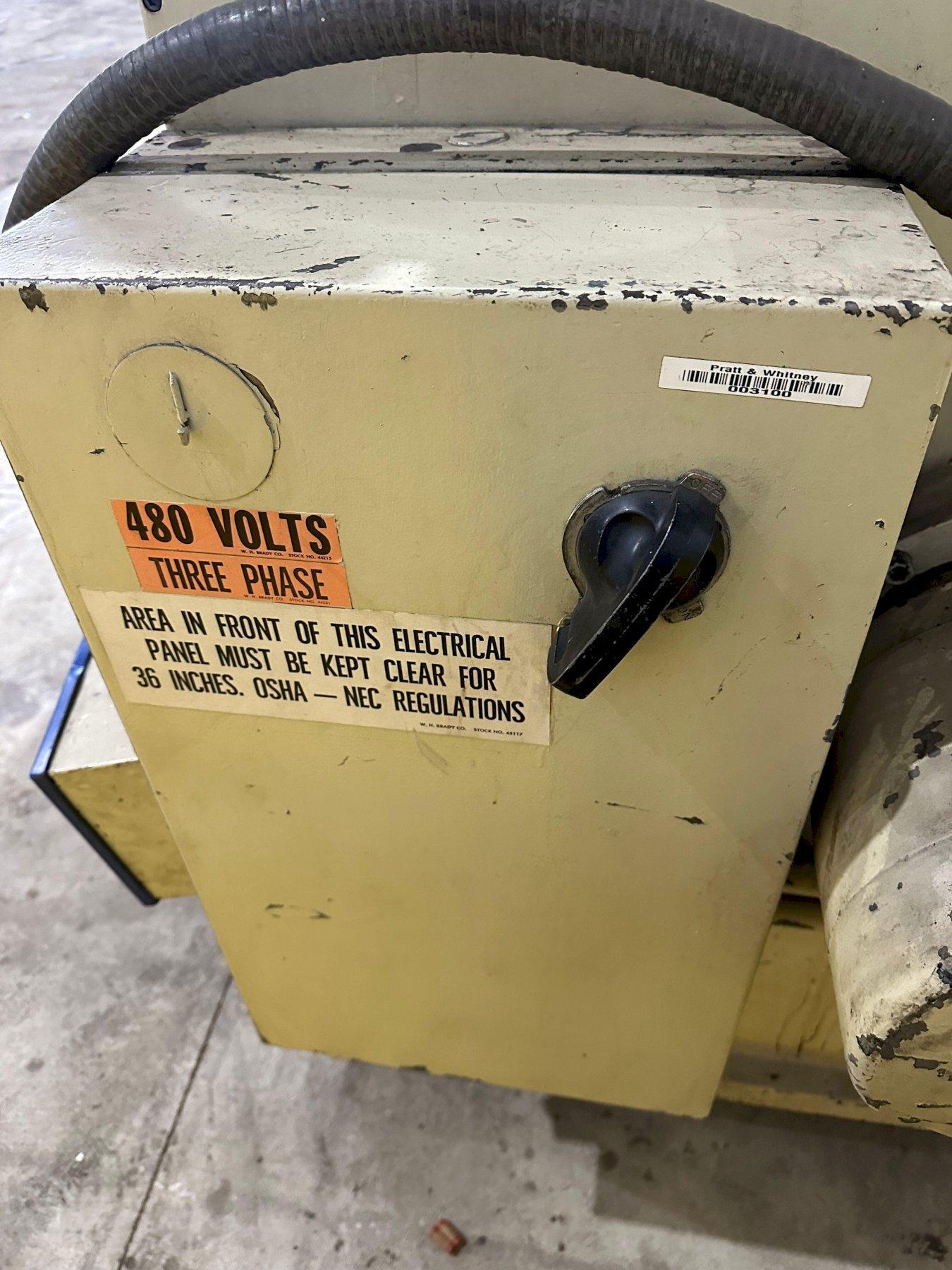

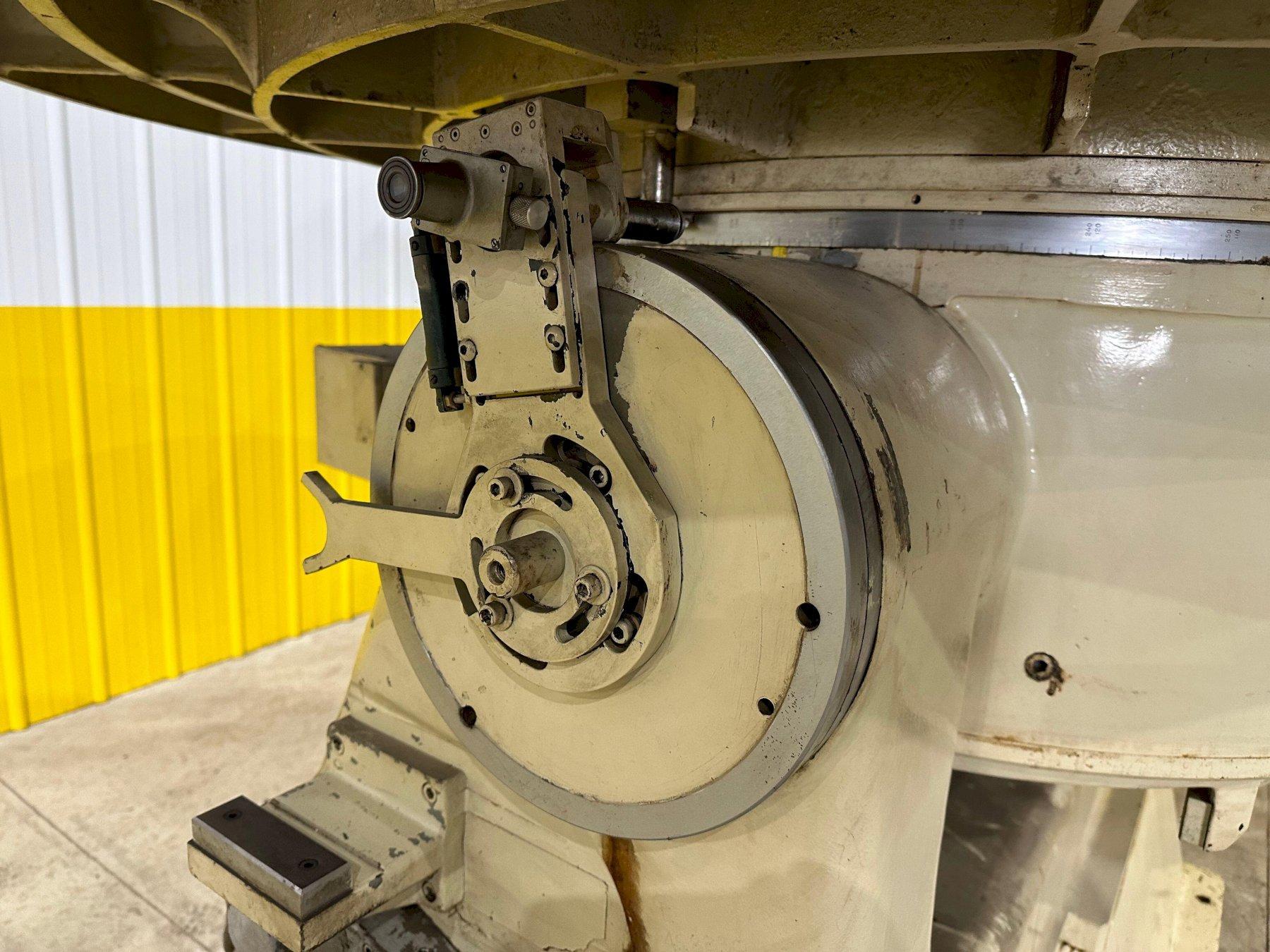

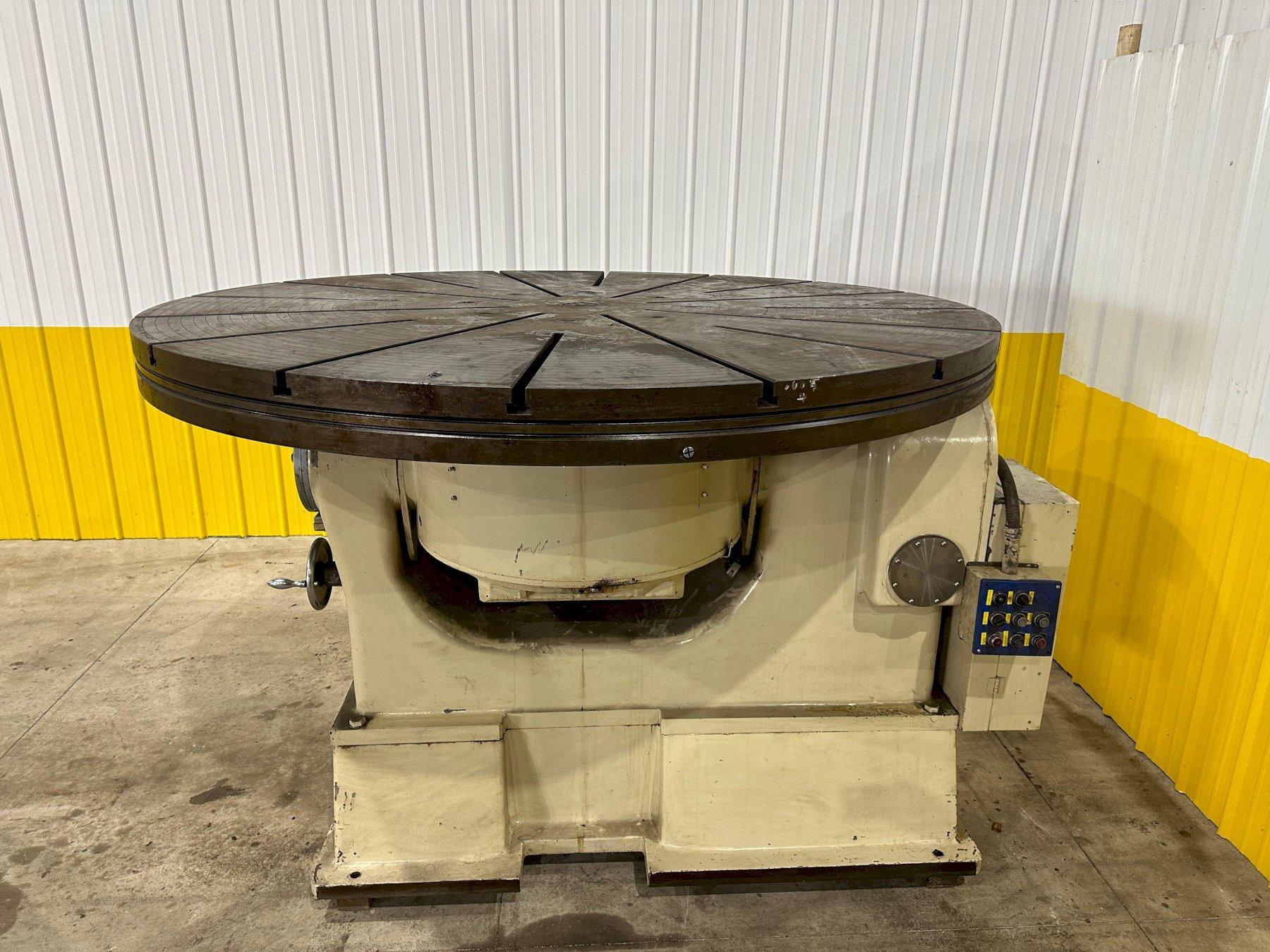

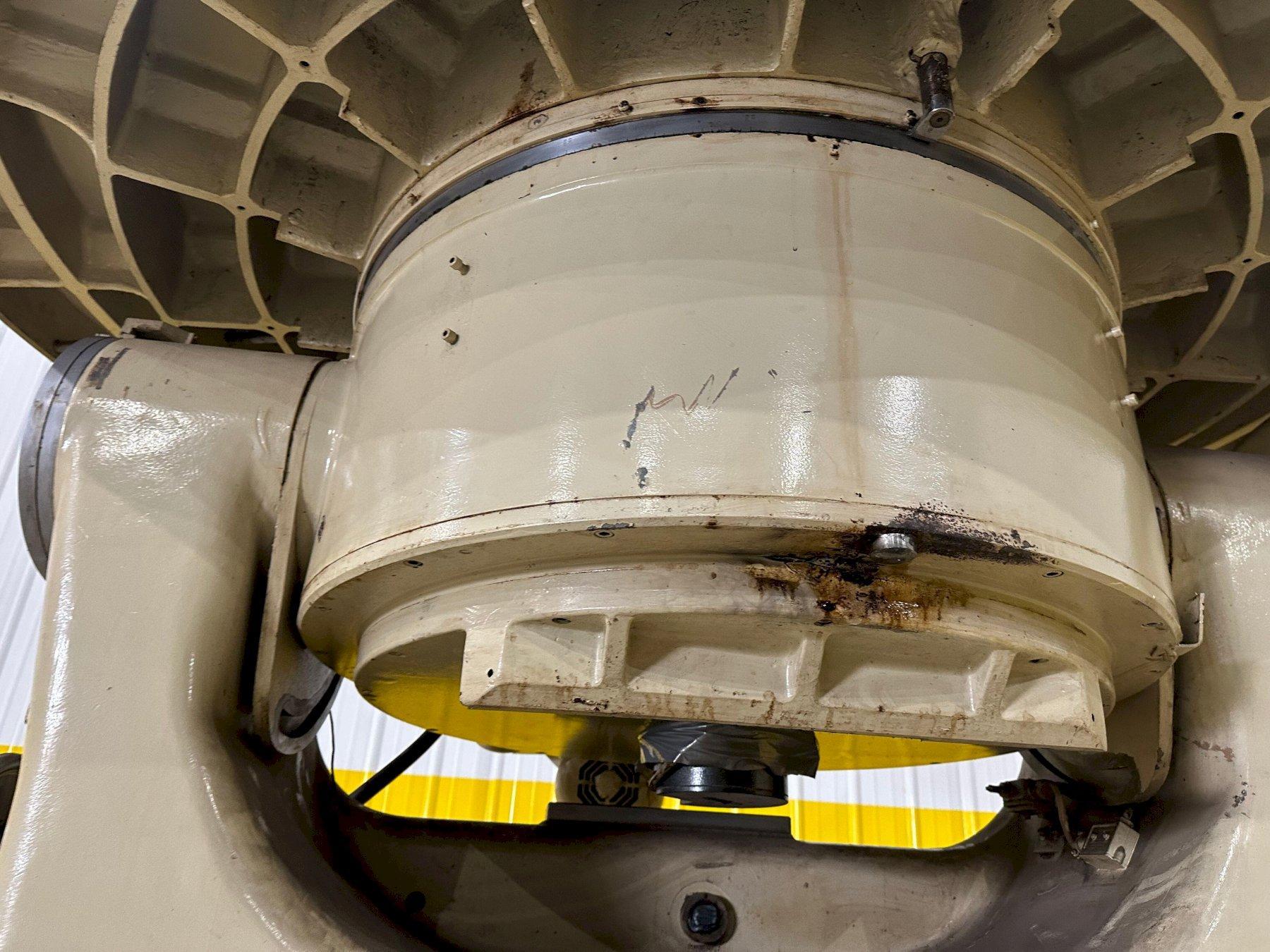

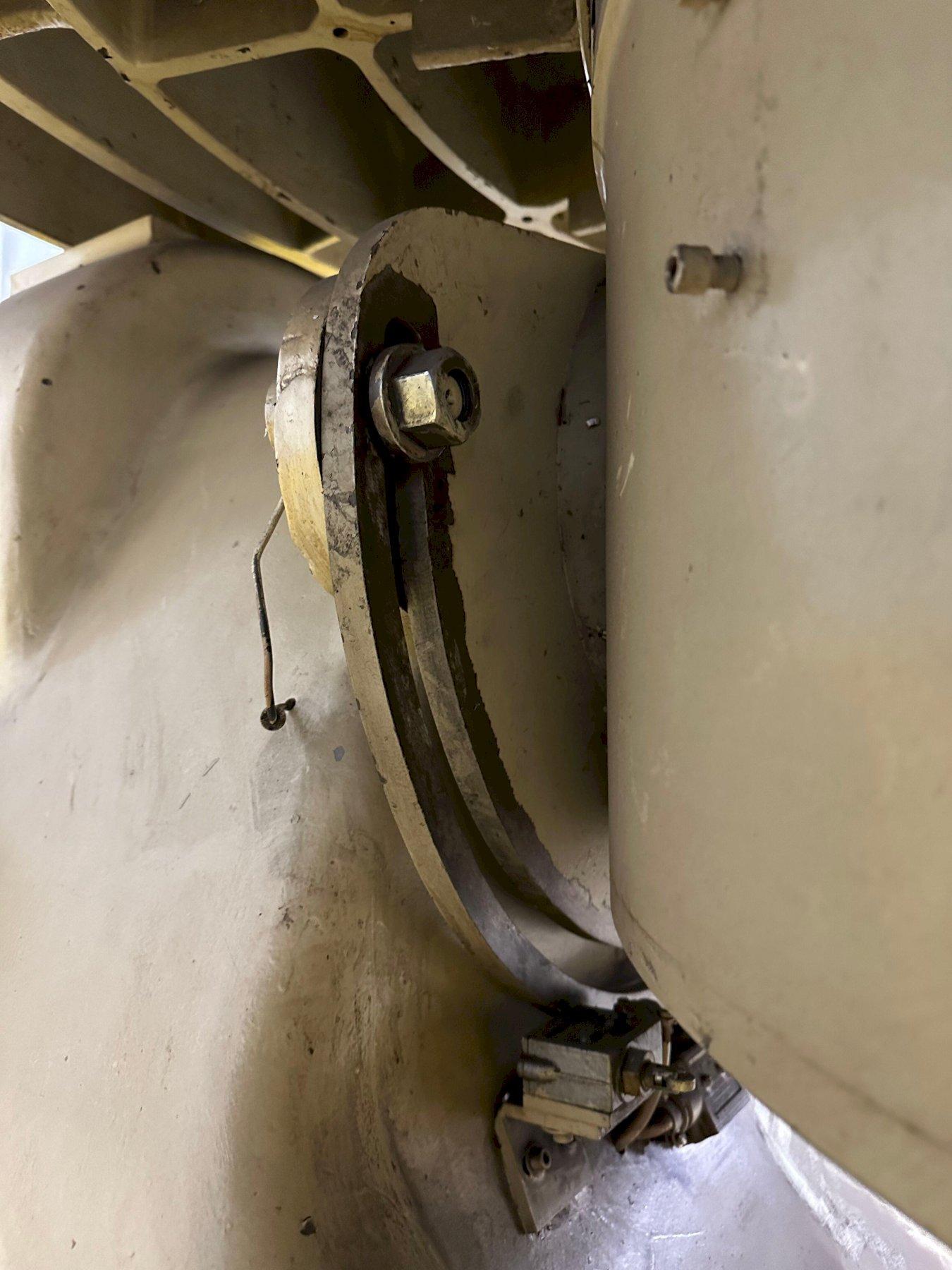

84" ROTAB MODEL #84-2 2-AXIS TILTING ROTARY TABLE: STOCK #20780

Manufacturer

ROTAB

Category

Tables

Stock

20780

Model

84-2

Dealer Location

Ohio

Spec Sheet

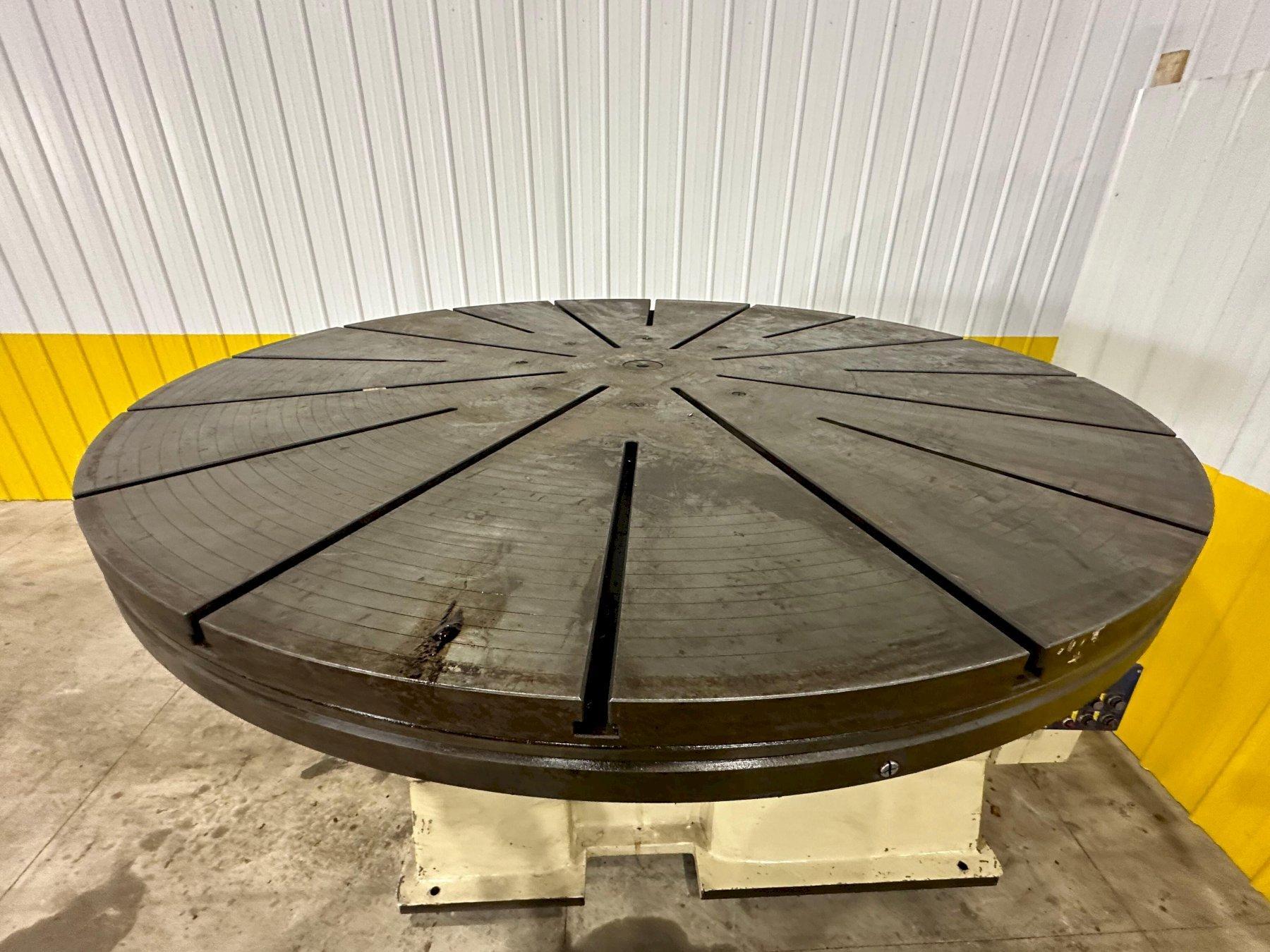

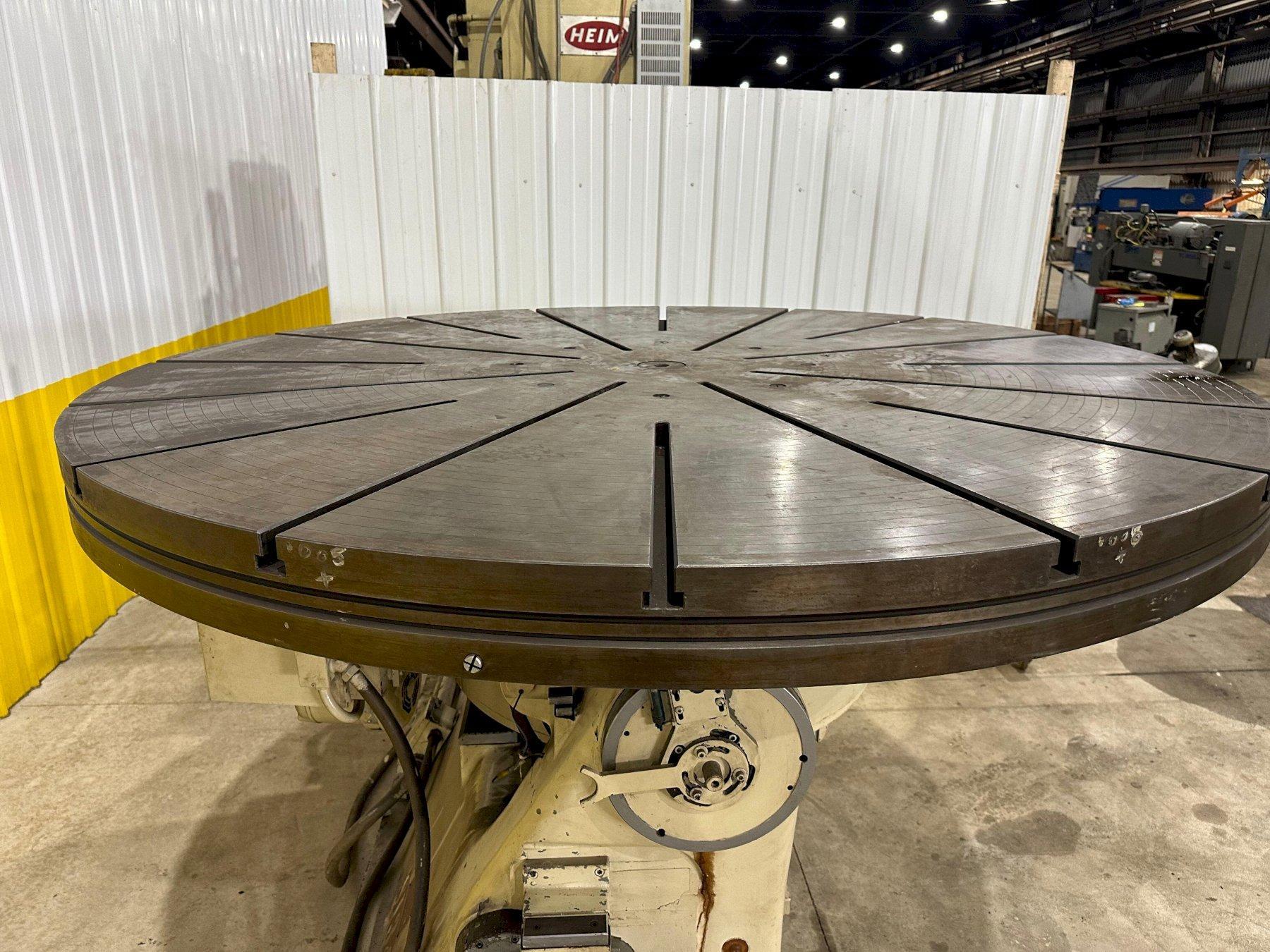

FACE PLATE DIAMETER .................. 84"
LOAD CAPACITY ........................ 6,500 LBS
NUMBER OF T-SLOTS .................... 16
CENTER LINE - FLOOR, VERTICAL ........ 46"
DISTANCE FLOOR TO TABLE TOP, HORIZ ... 62"
FACE PLATE FLATNESS .................. 0.001"
PARALLELISM .......................... 0.0005"
AXIAL/RADIAL RUN OUT ................. 0.0003"
TABLE WEIGHT ......................... 14,100 LBS

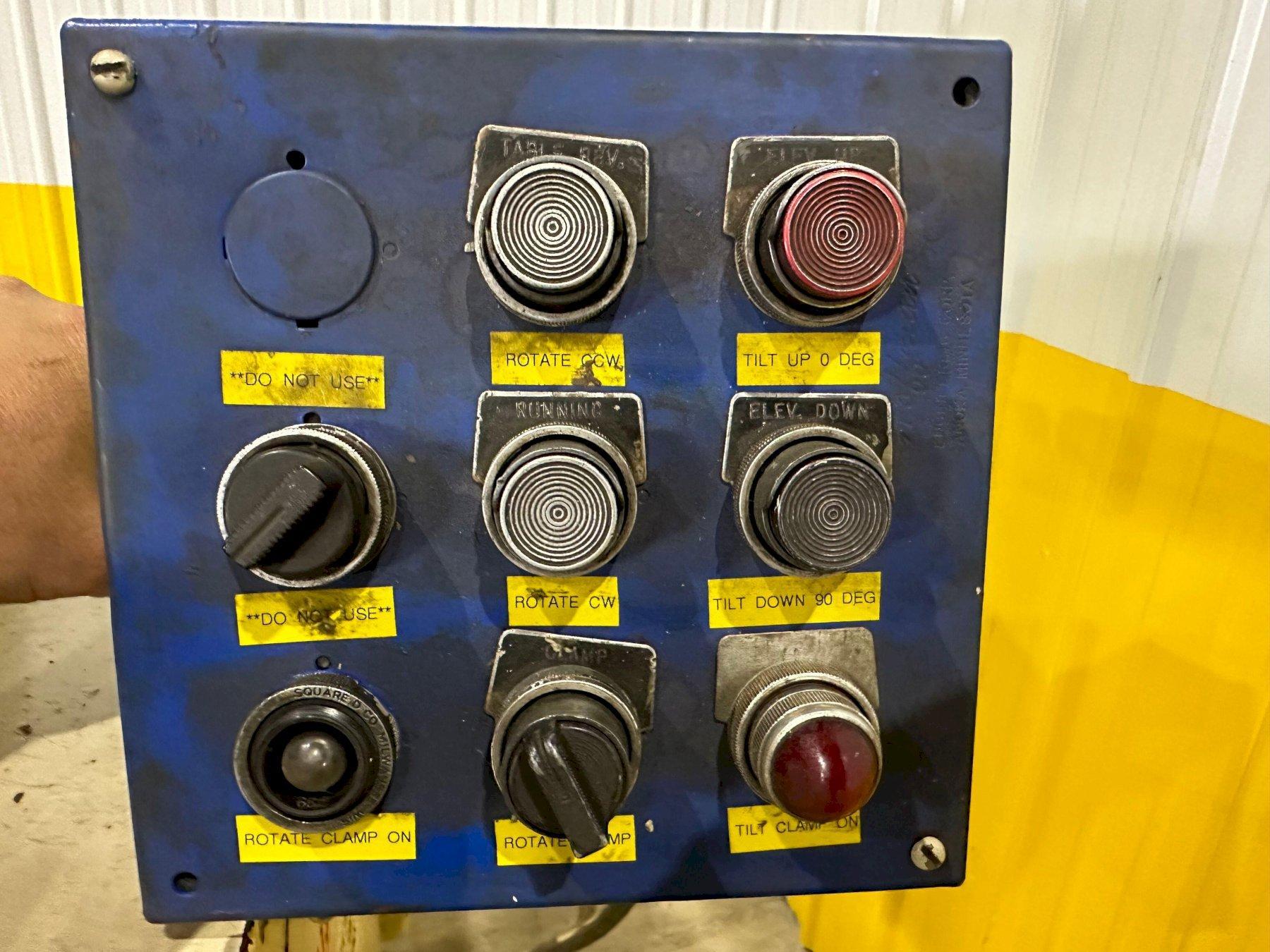

PENDANT CONTROL ...................... YES
HEIDENHAIN ROTARY ENCODER ............ YES
