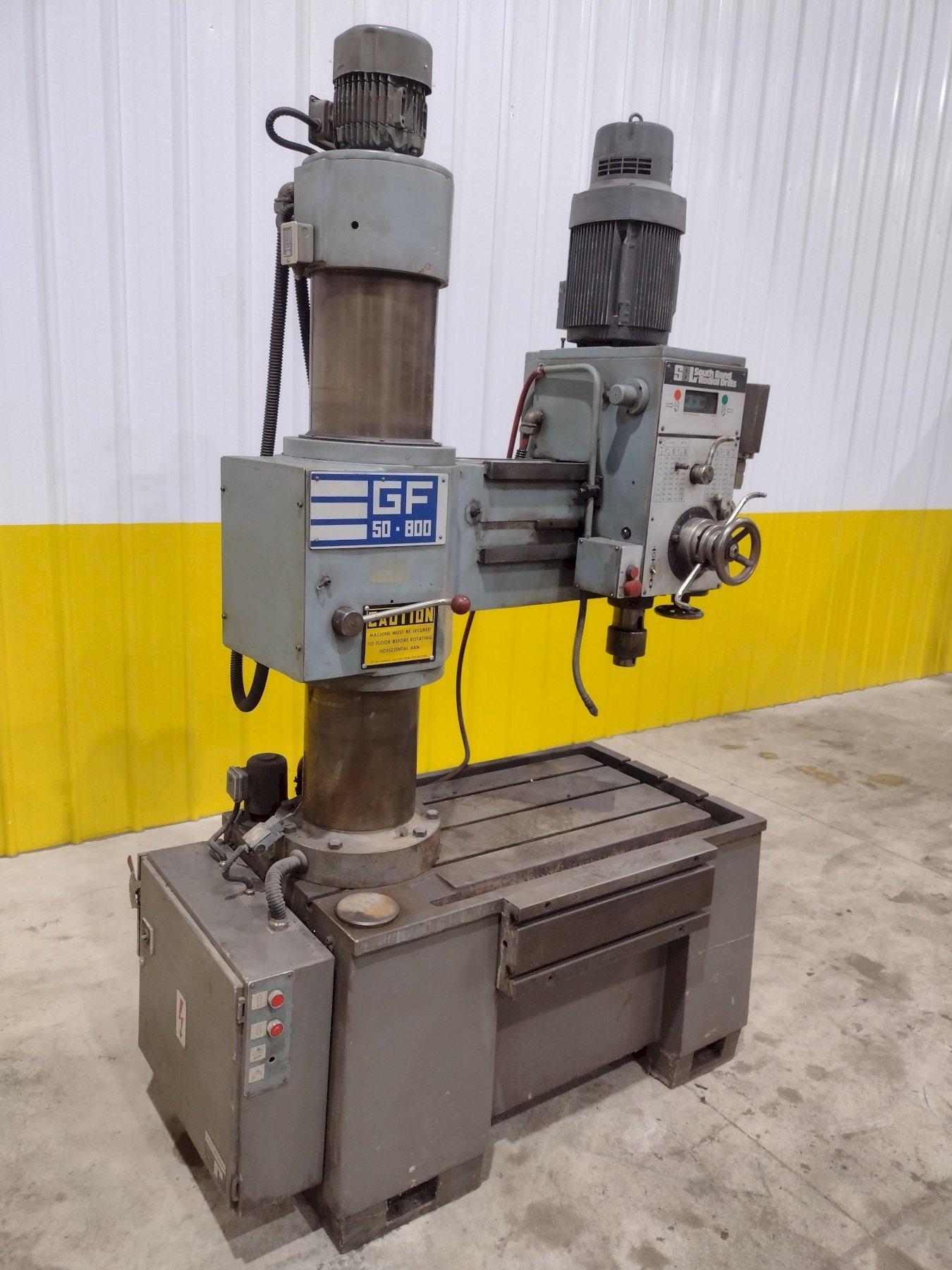

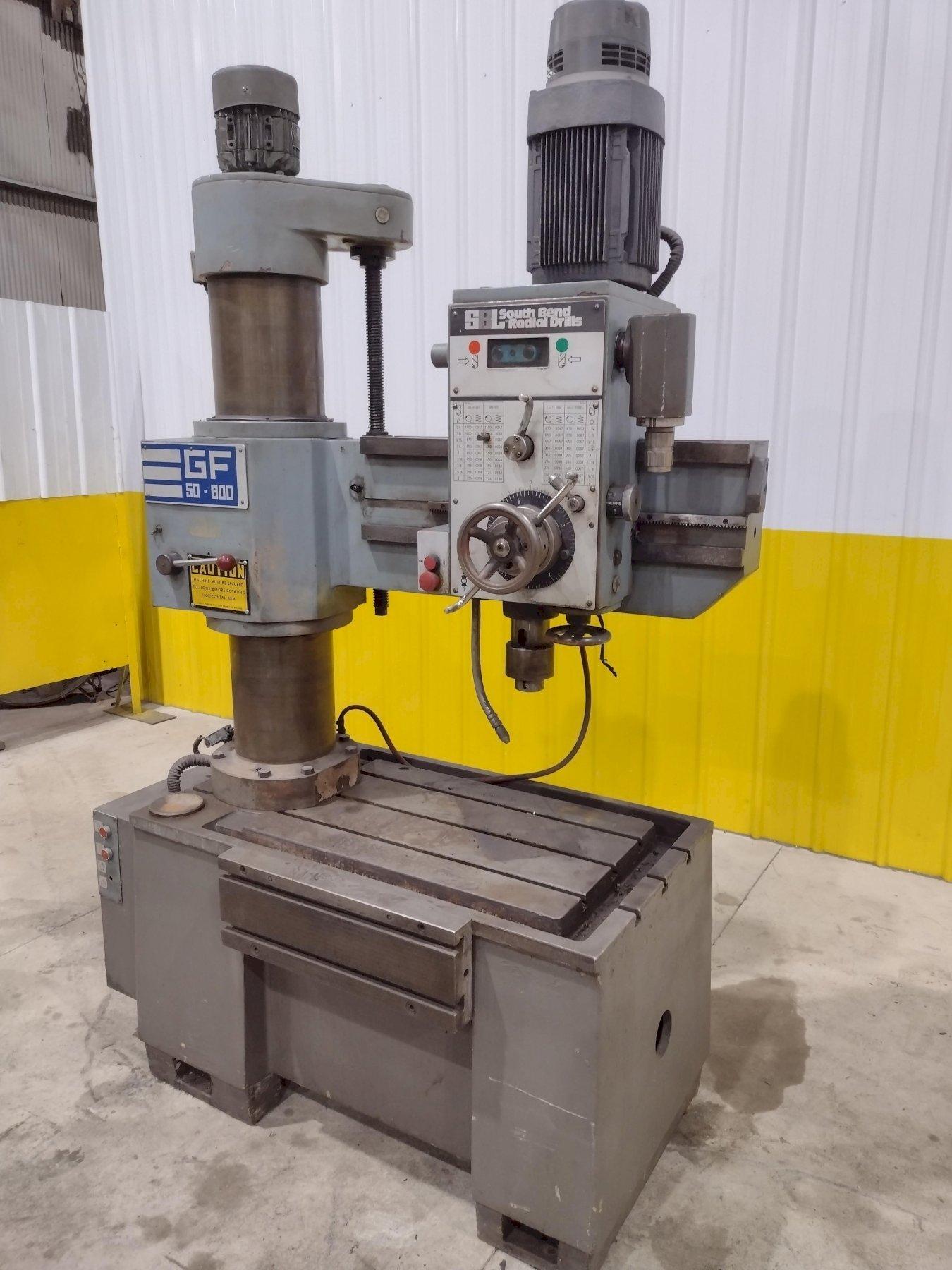

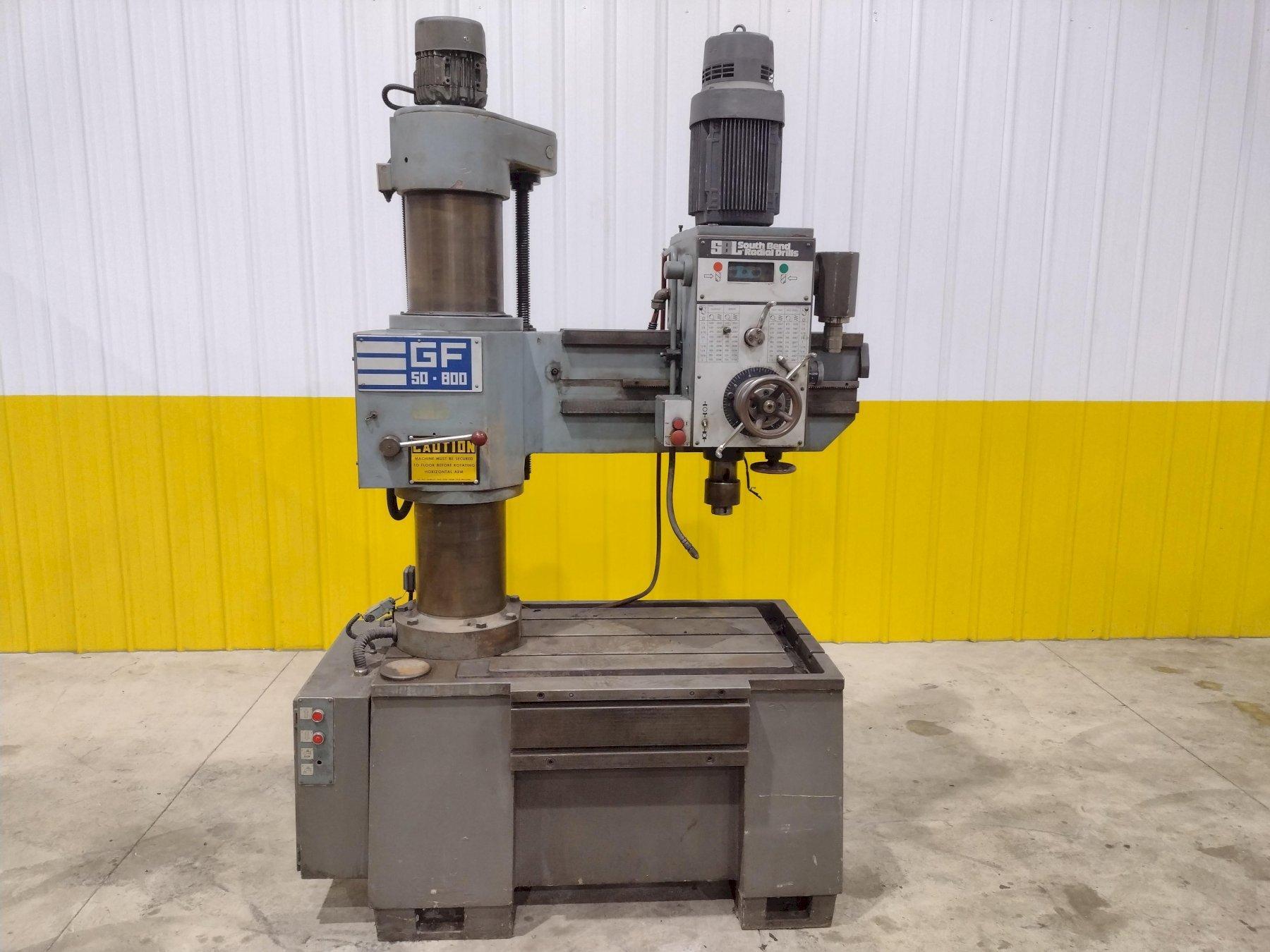

3' X 10" SOUTHBEND MODEL #GF 50-800 RADIAL DRILL: STOCK #20847

Manufacturer

SOUTH BEND

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

20847

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



3' X 10" SOUTHBEND MODEL #GF 50-800 RADIAL DRILL: STOCK #20847
SERIAL .................................... 4250
MODEL ..................................... GF 50-800, NEW 198OS
DRILLING CAPACITY, MILD STEEL ............. 2"
DRILLING CAPACITY, CAST IRON .............. 2-3/8"
TAPPING CAPACITY, MILD STEEL .............. 1-9/16"
TAPPING CAPACITY, CAST IRON ............... 2"
COLUMN DIAMETER ........................... 10"
ARM LENGTH ................................ 27-1/2"
MIN/MAX DISTANCE, SPINDLE TO BASE ......... 3-7/16" / 27-7/16"
WORKING SURFACE OF BASE, WIDTH X LENGTH ... 25" X 33"
SPINDLE TAPER ............................. #4 MORSE
SPINDLE STROKE ............................ 9-1/2"
TRAVERSE OF ARM ON COLUMN ................. 21-1/2"
TRAVERSE OF HEAD ON ARM ................... 21-3/4"
DRILLS TO CENTER OF CIRCLE, MIN/MAX ....... 14.75"/36.5"
FEEDS (6) ................................. .0019 TO .0138 IPR
SPINDLE SPEEDS (12) ....................... 40 TO 1,750 RPM
BASE DIMENSIONS ........................... 25"W x 47"L
APPROXIMATE WEIGHT ........................ 4,000 LBS.

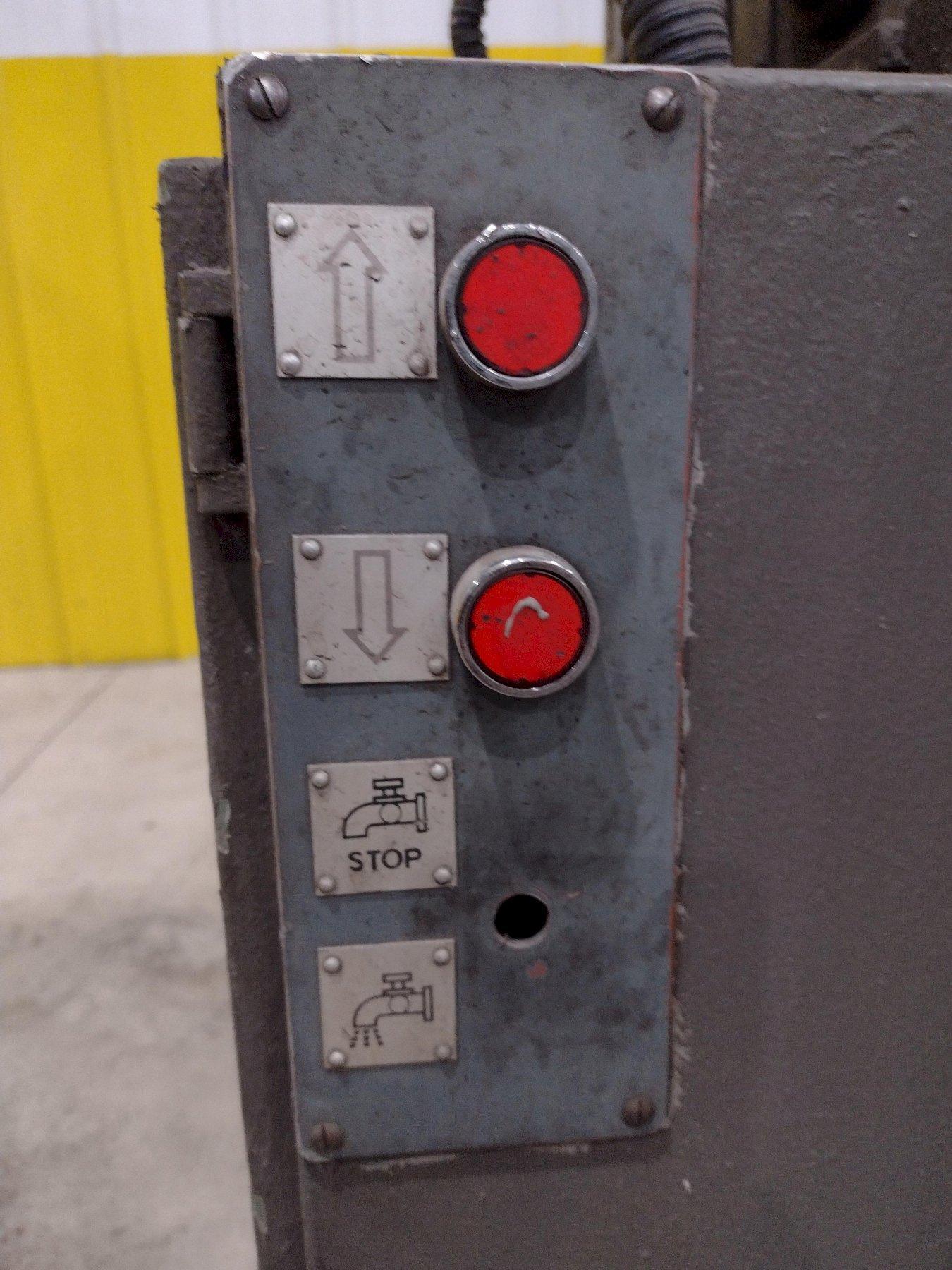

- POWER ELEVATION OF ARM ON COLUMN

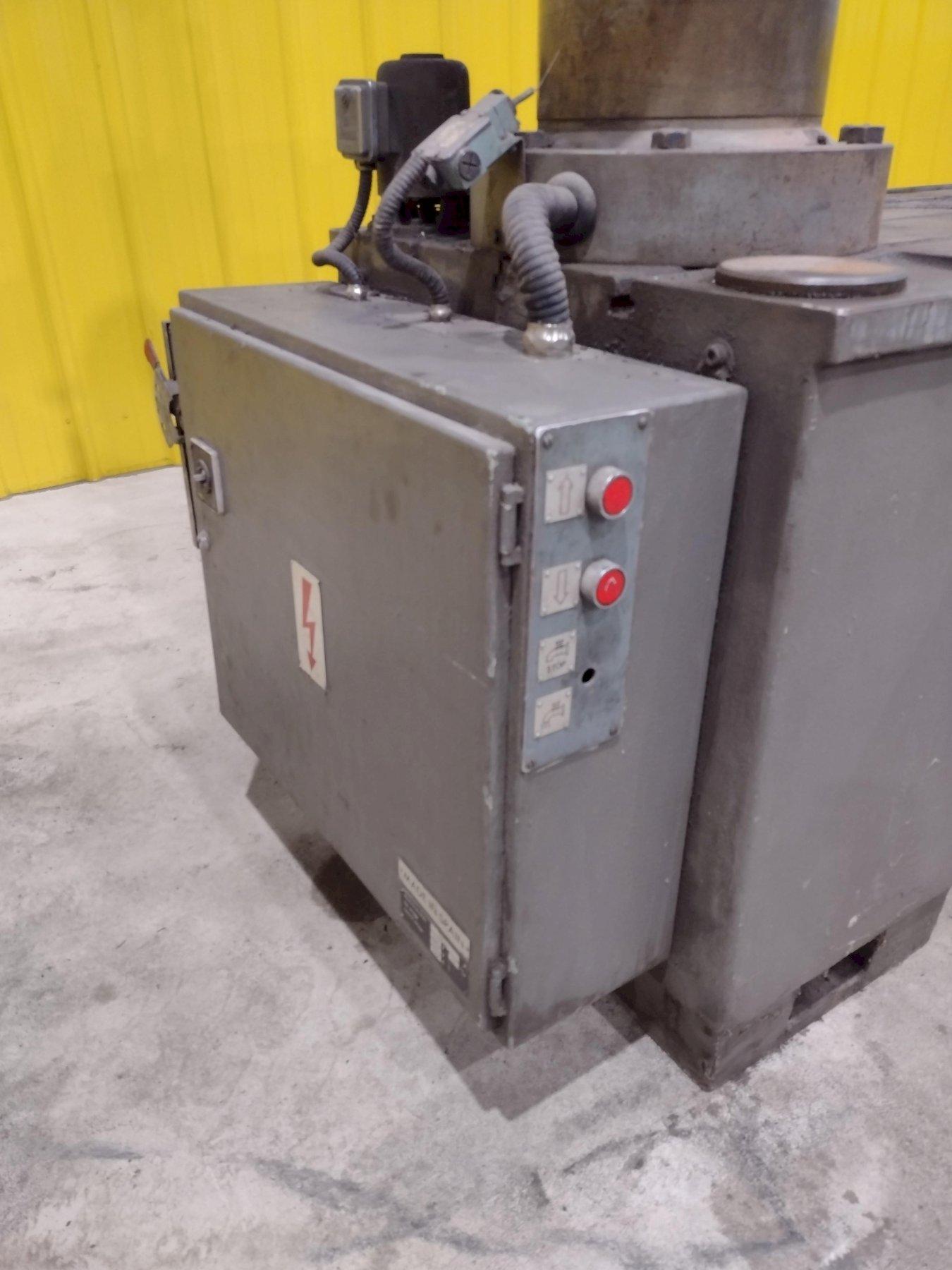

- BUILT-IN COOLANT SYSTEM
- REVERSING SPINDLE FOR TAPPING
- 1.5 H.P. ARM ELEVATION MOTOR

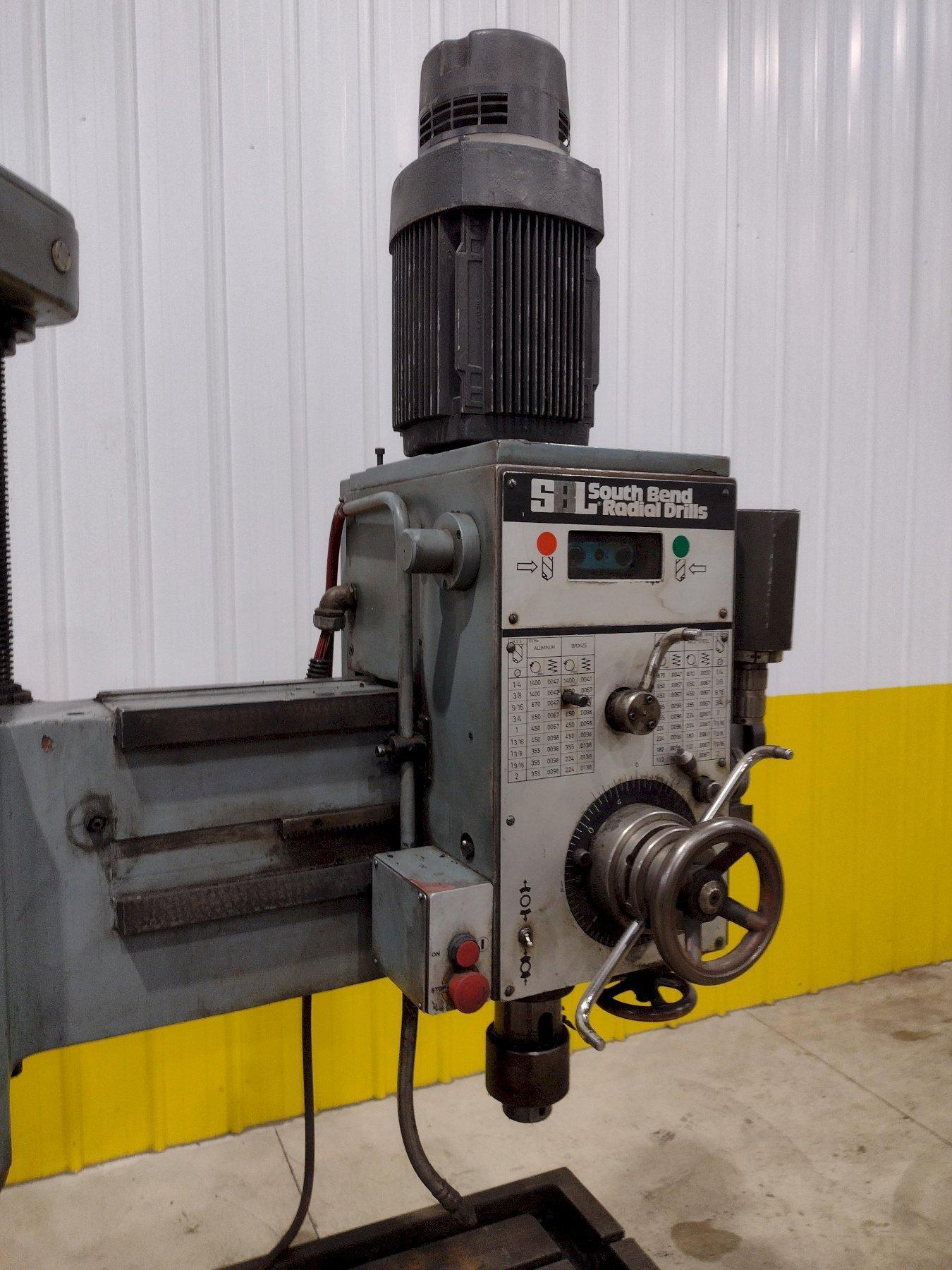

- 3.5 - 2.2 H.P. 3/60/230 - 460 VOLT SPINDLE DRIVE MOTOR
