Trumpf V85SX, 95 Ton, 100" OA, 89" BH, Delem DA69 8-Axis CNC, 6-Axis B.G., Ext. Stroke, Clamping/Crowning, #43304

Manufacturer

TRUMPF

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43304

Model

V85SX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43304

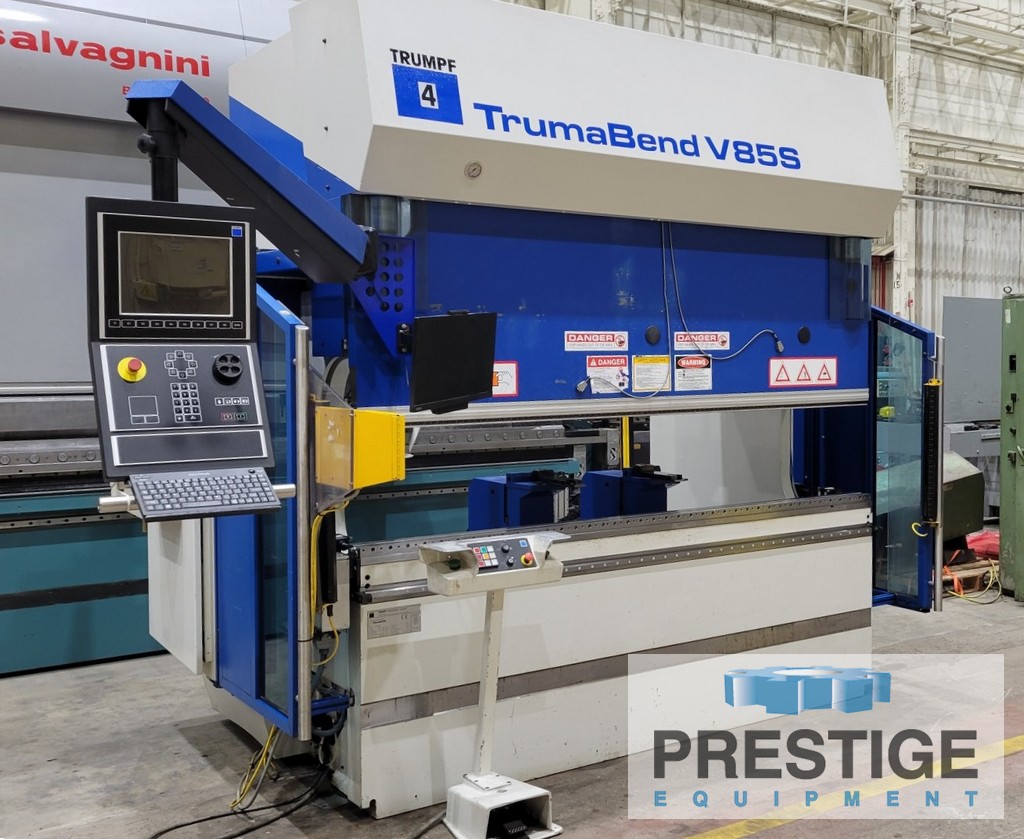

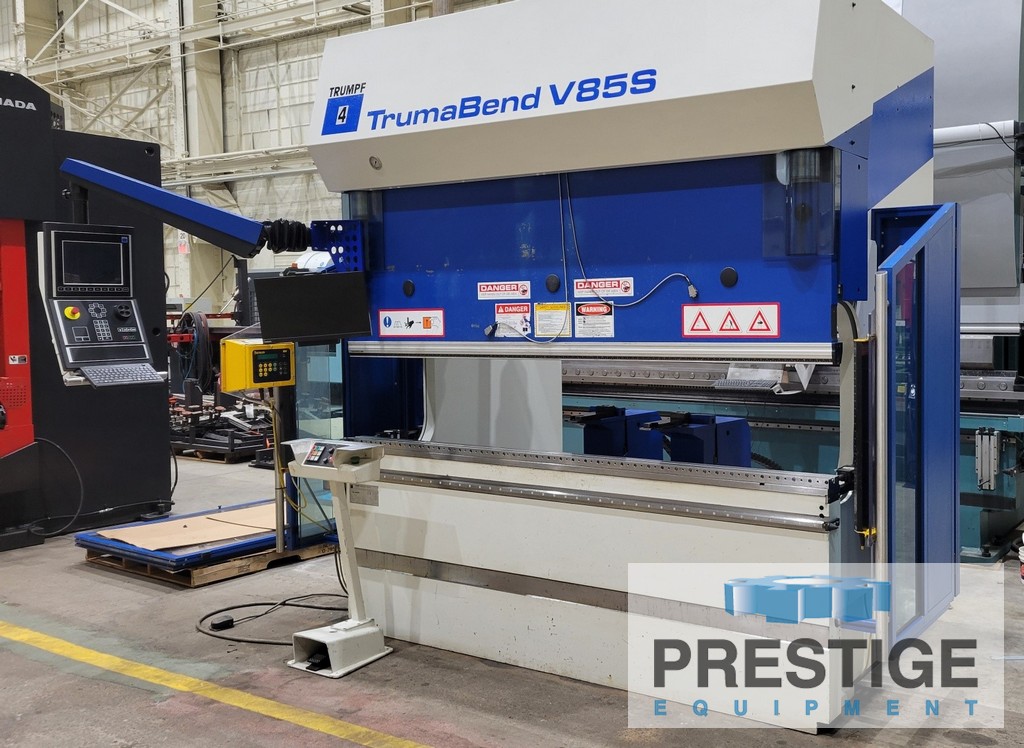

Trumpf V85SX 95 Ton 8-Axis CNC Hydraulic Press Brake

CAPACITY:
Tonnage Capacity ...................... 95 Tons
Maximum Bending Length ................ 100"
Distance Between Housings ............. 89"
Stroke Length (Y-Axis) ................ 14.37"
Bending Capacity ...................... 1/4" x 6'
Throat Depth .......................... 16"
Travel In X-Axis (Back Gauge In/Out) .. 24"
Travel In R-Axis (Back Gauge Up/Down) . 9.8"
Y-Axis Operating Speed ................ 2-24 IPM
X-Axis Operating Speed ................ 1200 IPM
R-Axis Operating Speed ................ 710 IPM
Drive Motor ........................... 12 H.P.
Approximate Weight .................... 21,939 Lbs.

EQUIPPED WITH:
Delem DA69 8-Axis CNC Control

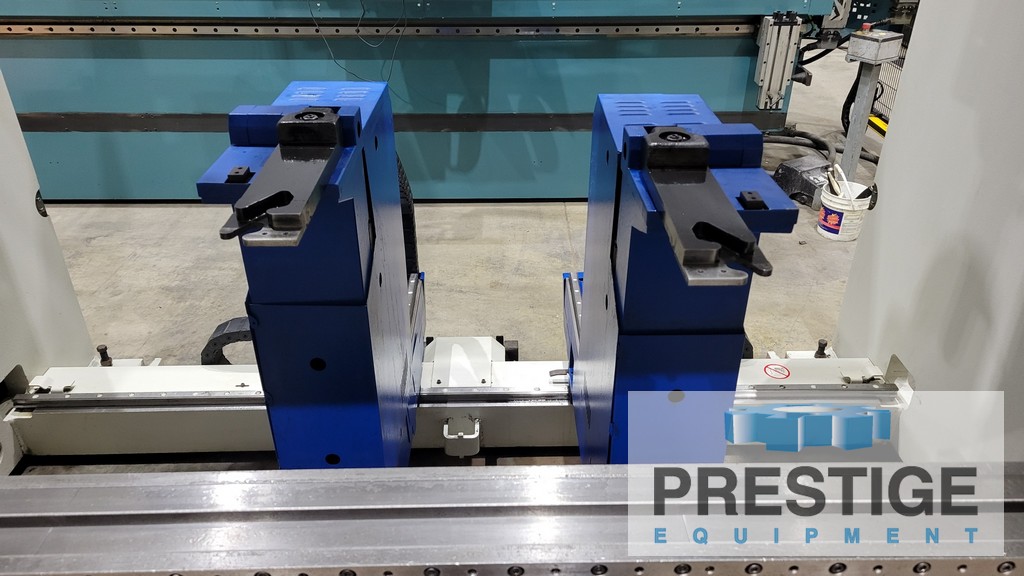

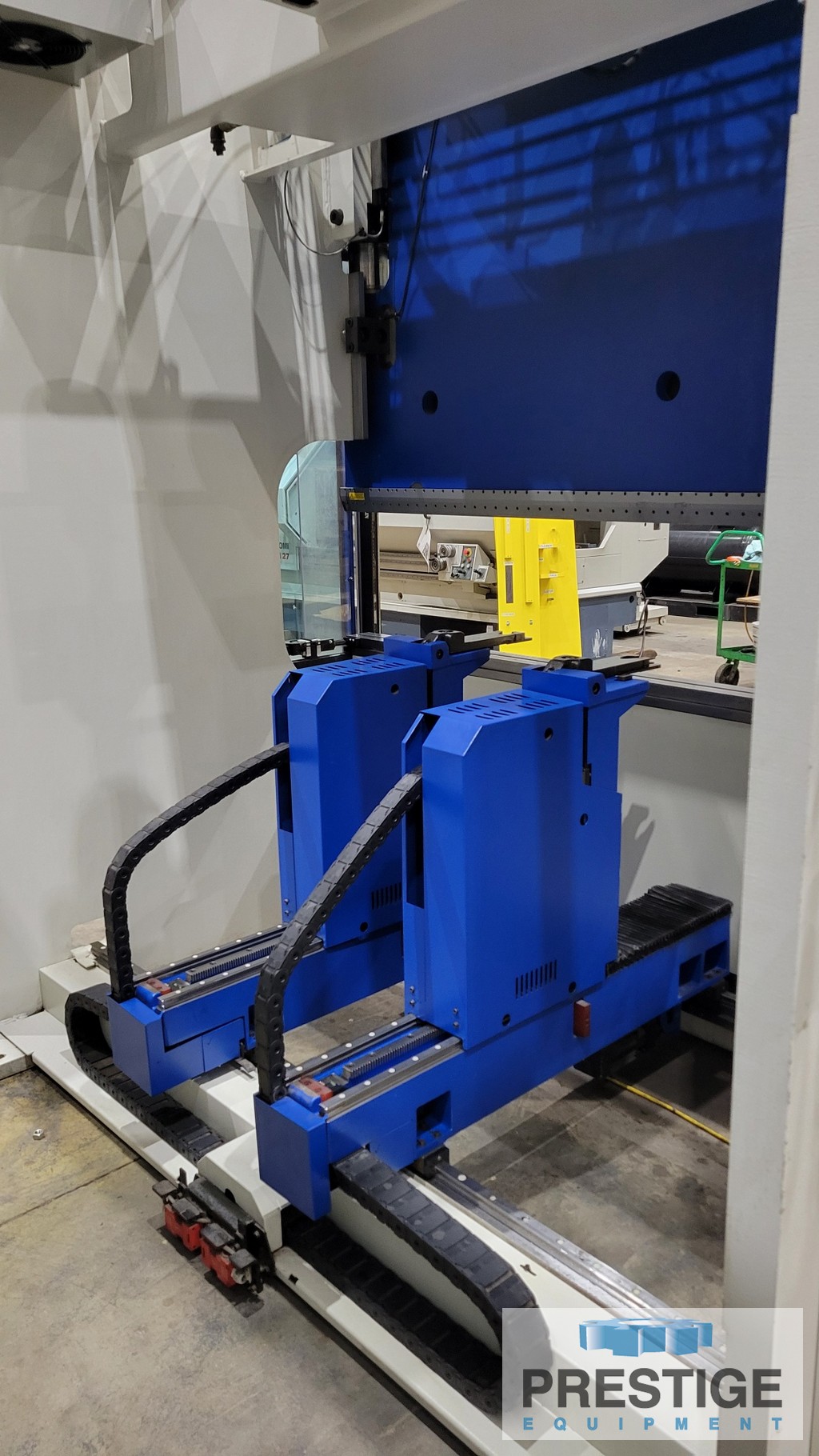

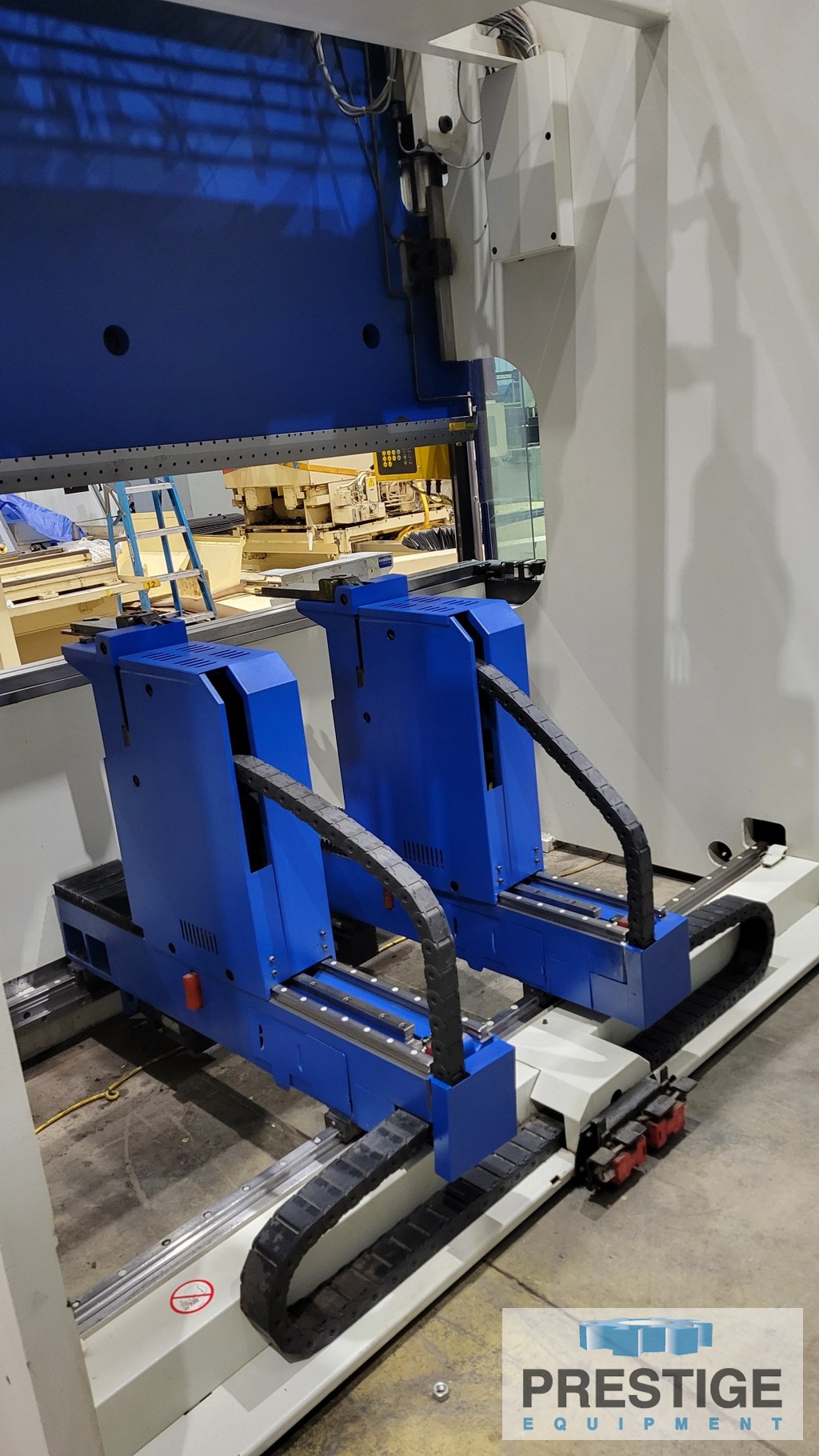

6-Axis Back Gauge (X,R,Z1,Z2)
Extended Stroke (Option)
CNC Programmable Crowning
CNC Programmable Die Shift
Power Punch And Die Clamping

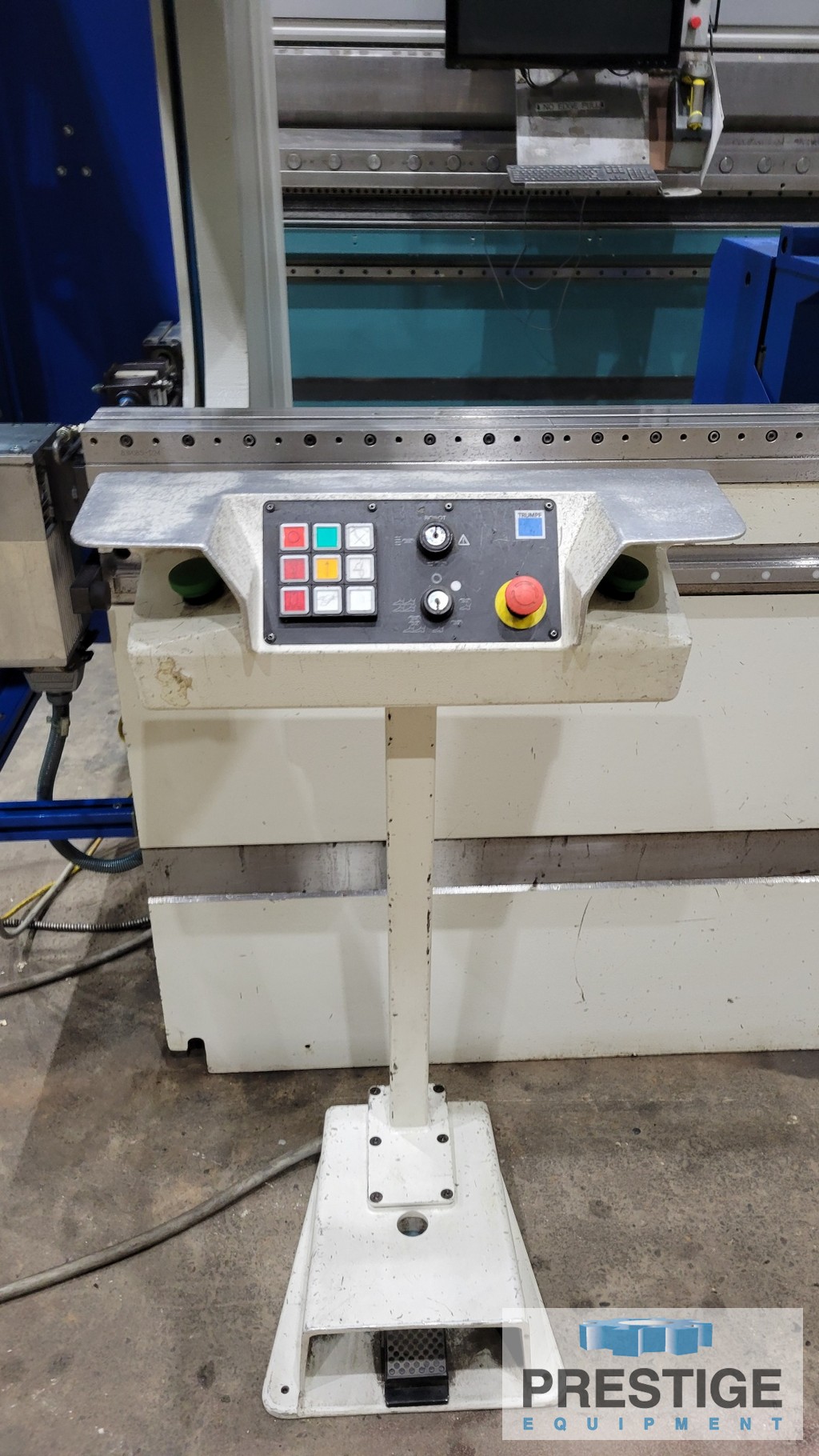

Electric Foot & Palm Button Controls

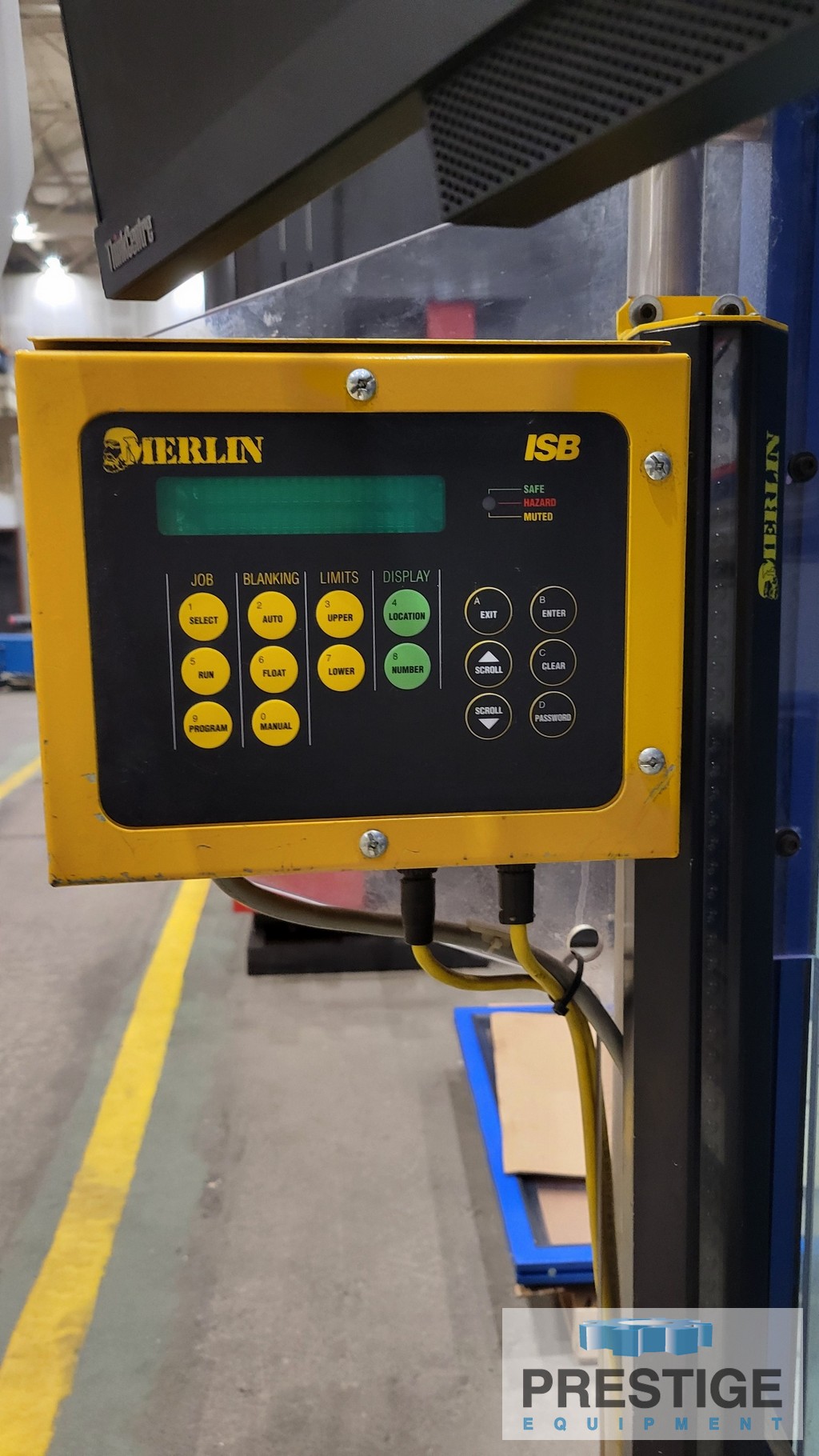

Merlin ISB Light Curtain System
