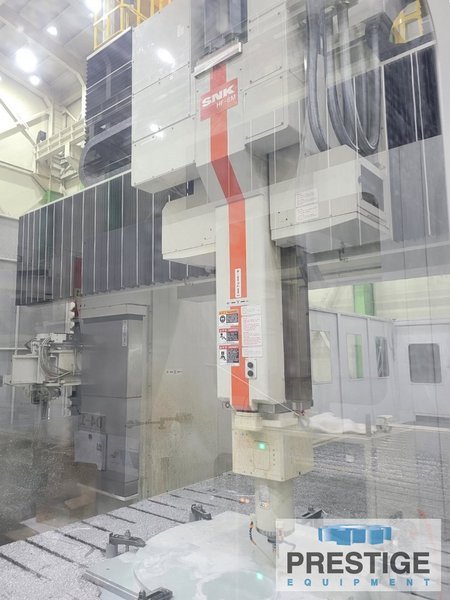

SNK HF-6M, X-364", Y-157", Z-39", 118" x 314" Tbl, 129" B.C, 60-ATC, T.S.C, 50 Taper, 90° Head, Fanuc 31i, 2017,#43362

Manufacturer

SNK

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43362

Model

HF-6M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43362

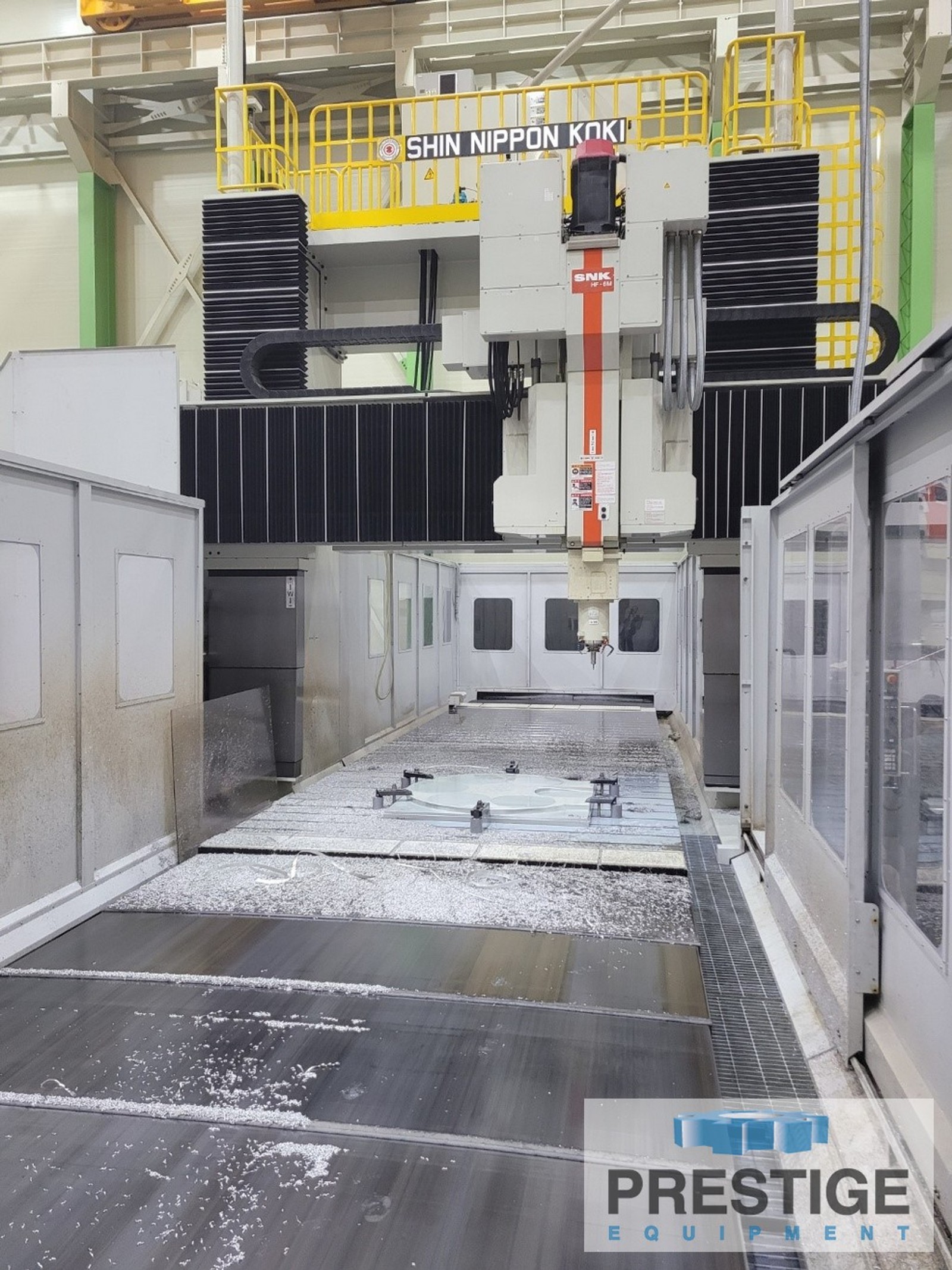

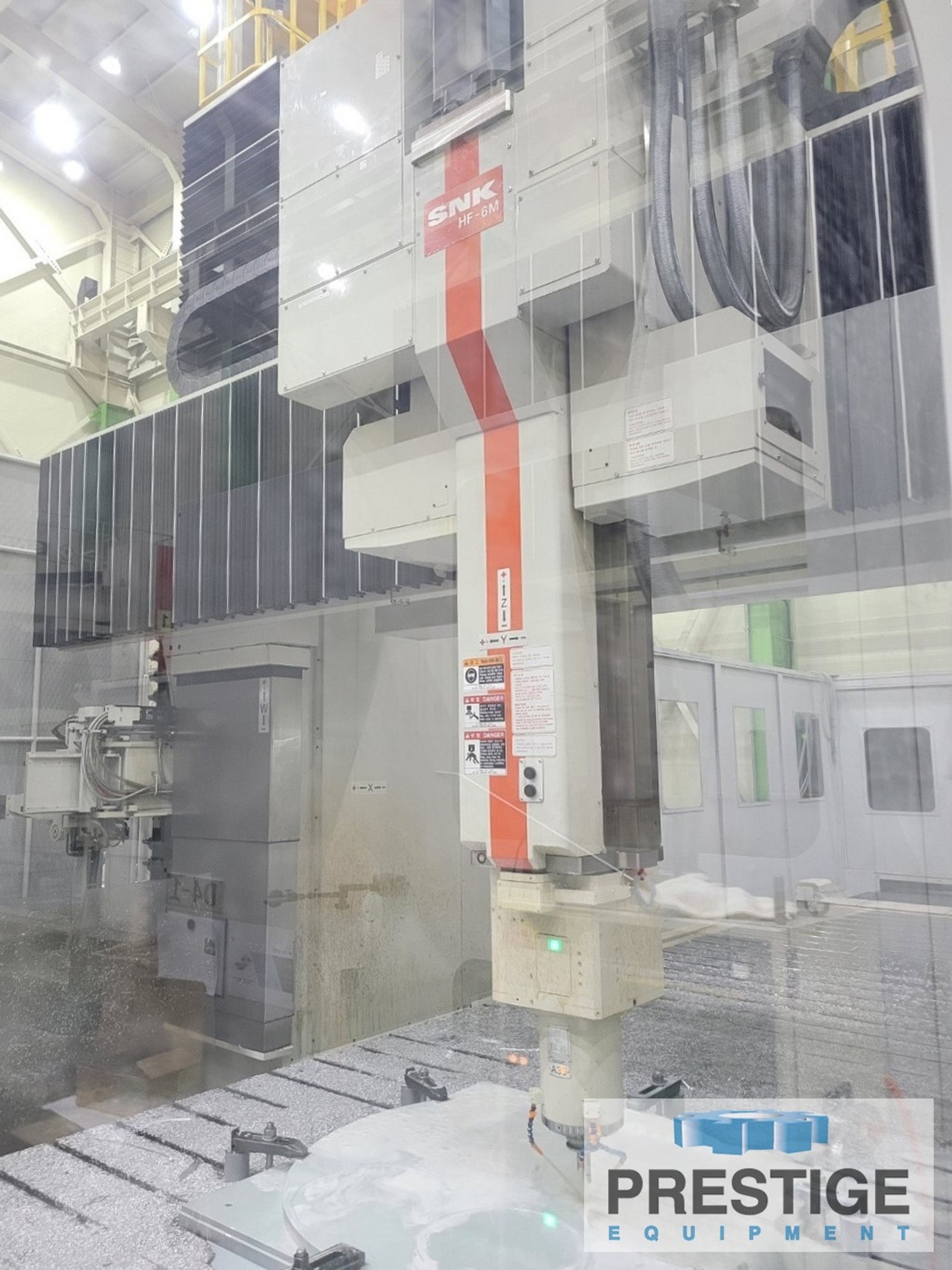

SNK HF-6M CNC Gantry Mill

FEATURES:

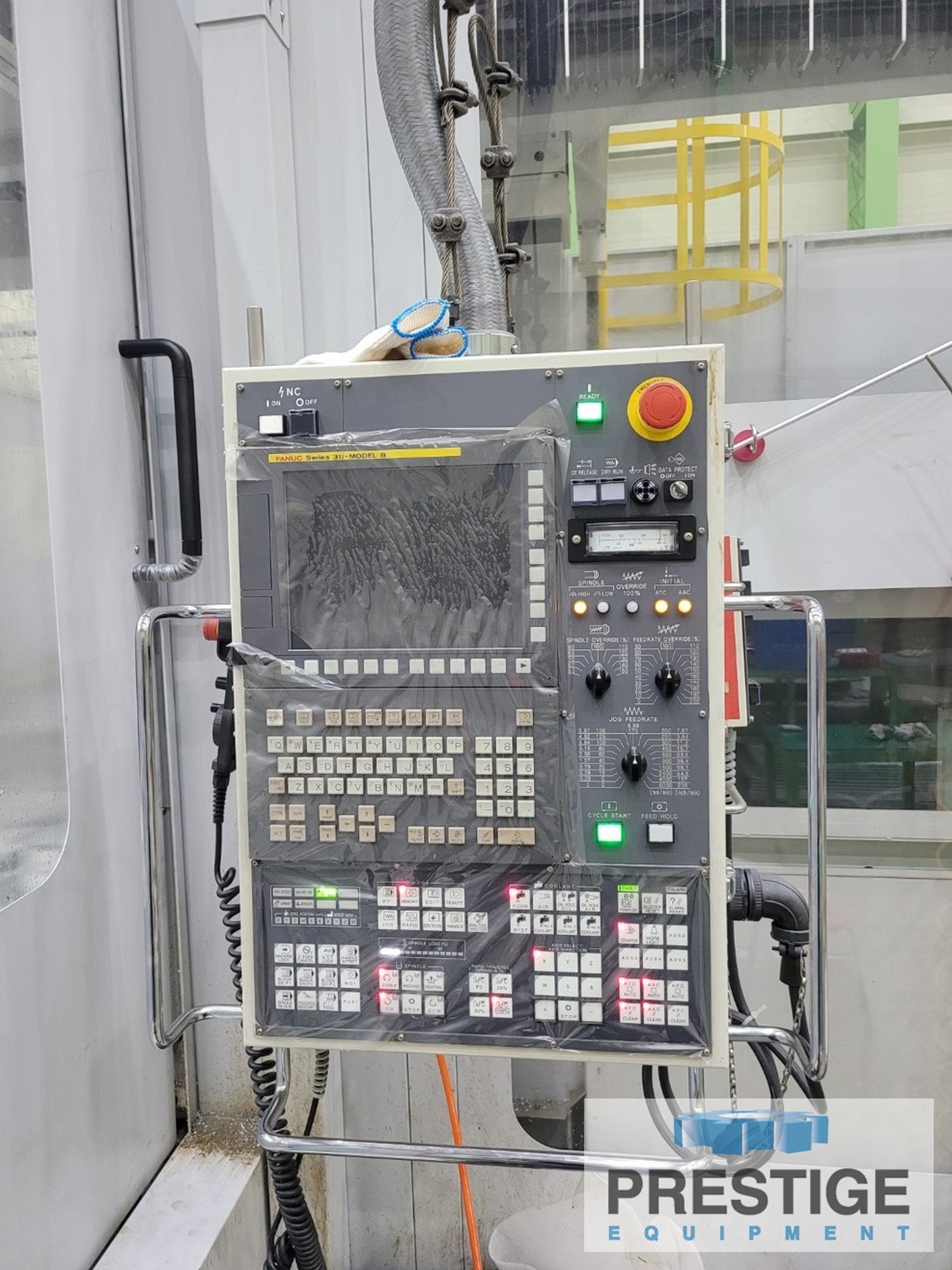

Fanuc 31i CNC Control
60-Station Automatic Tool Changer
90° Milling Head
Spindle Extension
Automatic Attachment Changer
Thru Spindle Coolant

SPECIFICATION:
Table Dimensions ...................... 118.11" x 314.96"
X-Axis Travel ......................... 364.17"
Y-Axis Travel ......................... 157.48"
Z-Axis Travel ......................... 39.34"
W-Axis Travel ......................... 86.61"
Distance Between Columns .............. 129.92"
Maximum Height Under Rail ............. 137.79"
Spindle Speed ......................... 3,000 RPM
Spindle Taper ......................... ISO 50
Table Weight Capacity ................. 40 Ton

EQUIPPED WITH:
Fanuc 31i CNC Control
60-Station Automatic Tool Changer
90° Milling Head
Spindle Extension
Automatic Attachment Changer
Thru Spindle Coolant
Chip Conveyor
