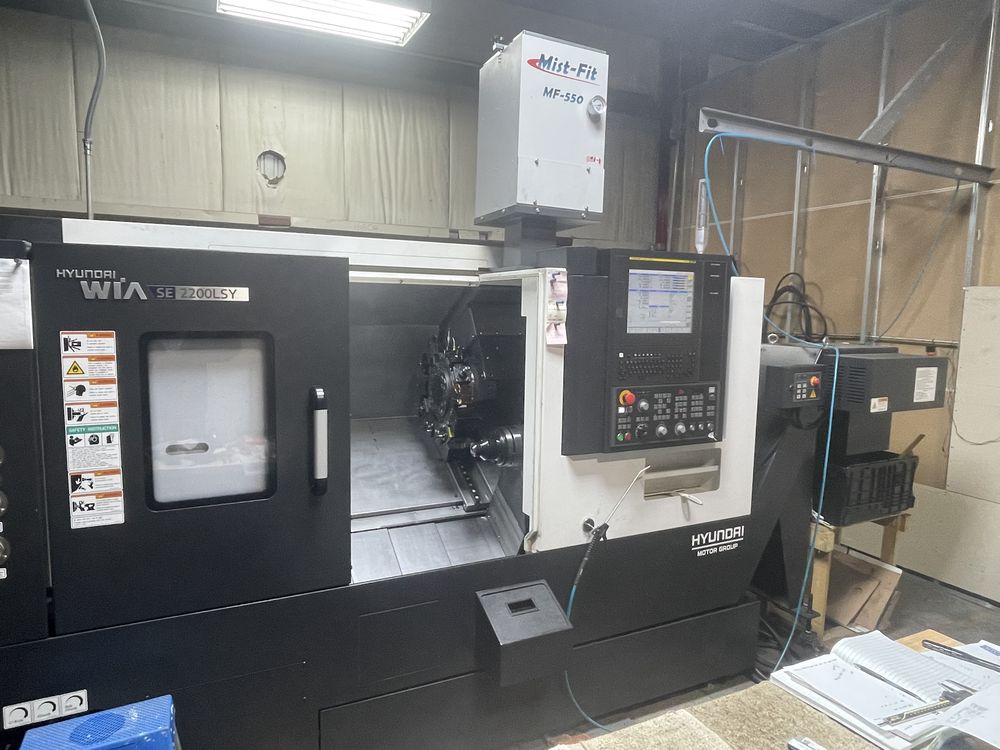

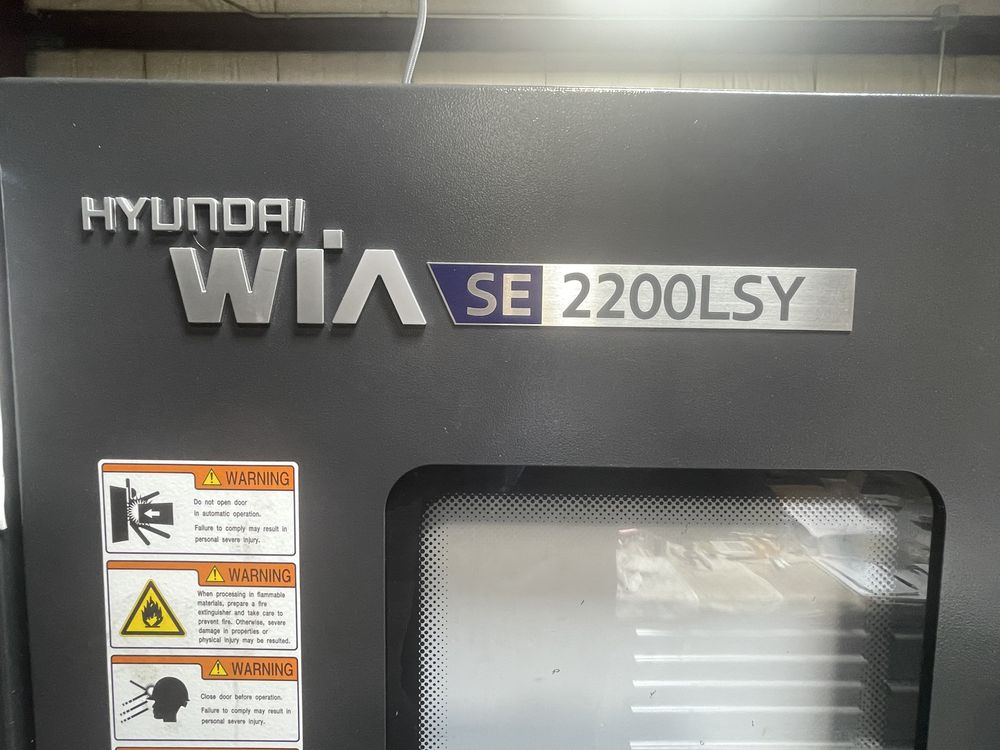

Hyundai-Wia SE2200LSY CNC Lathe w/Sub / Y Axis / Barfeed (2020)

Manufacturer

Hyundai-Wia

Category

Lathes

Type

LATHES, CNC

Stock

121240002

Model

SE2200LSY

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 121240002
  • Location: OH
  • Brand: Hyundai-Wia
  • Model: SE2200LSY
  • Year: 2020
  • Loading Fee: Rigging REquired

Specifications

  • Main Chuck Size: 8″
  • Sub Chuck Size: 5″
  • Swing Over Bed: 23.62″
  • Swing Over Carriage: 23.62″
  • Max Turning Diameter: 11.811″
  • Max Turning Length: 20.078″
  • Y Axis Travel: 4.33″(+-) 2.16″
  • Spindle Bore – Main / Sub: 2.36″ / 1.65″
  • Bar Capacity – Main / Sub: 2.55″ / 1.25″
  • Spindle Power – Main: 15hp/11hp
  • Spindle Power – Sub: 7.5hp / 3.7hp
  • Spindle Speed – Main / Sub: 4,500rpm / 6,000rpm
  • C-Axis Indexing: 0.001 degree
  • Rapid Traverse Rates – X/Y/Z: 30/10/36

Equipped With

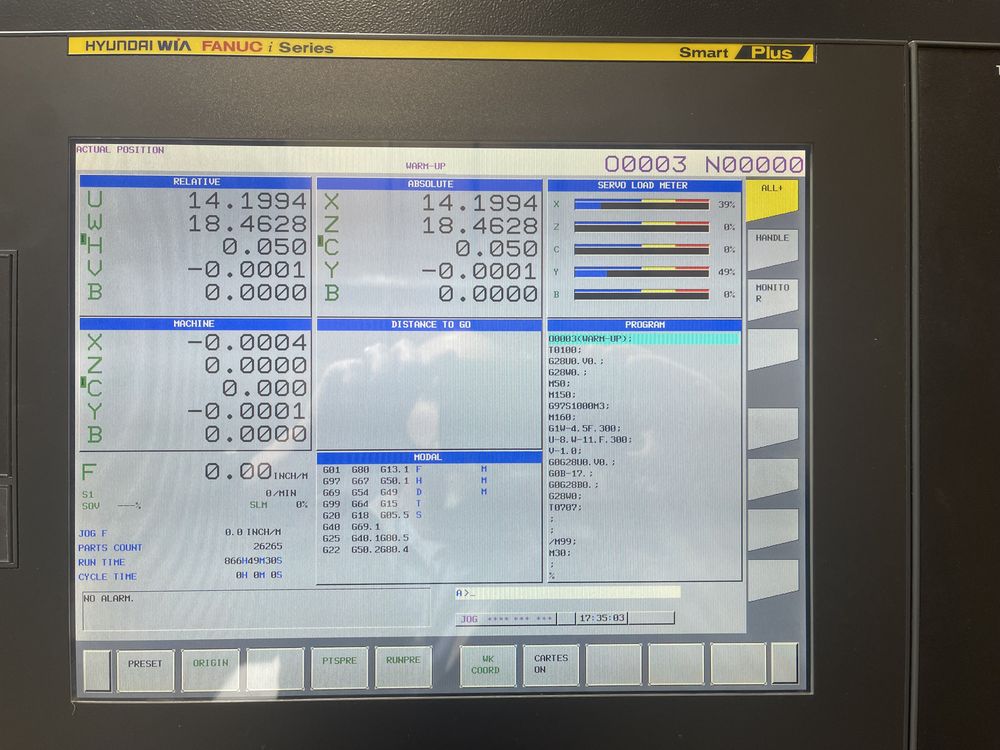

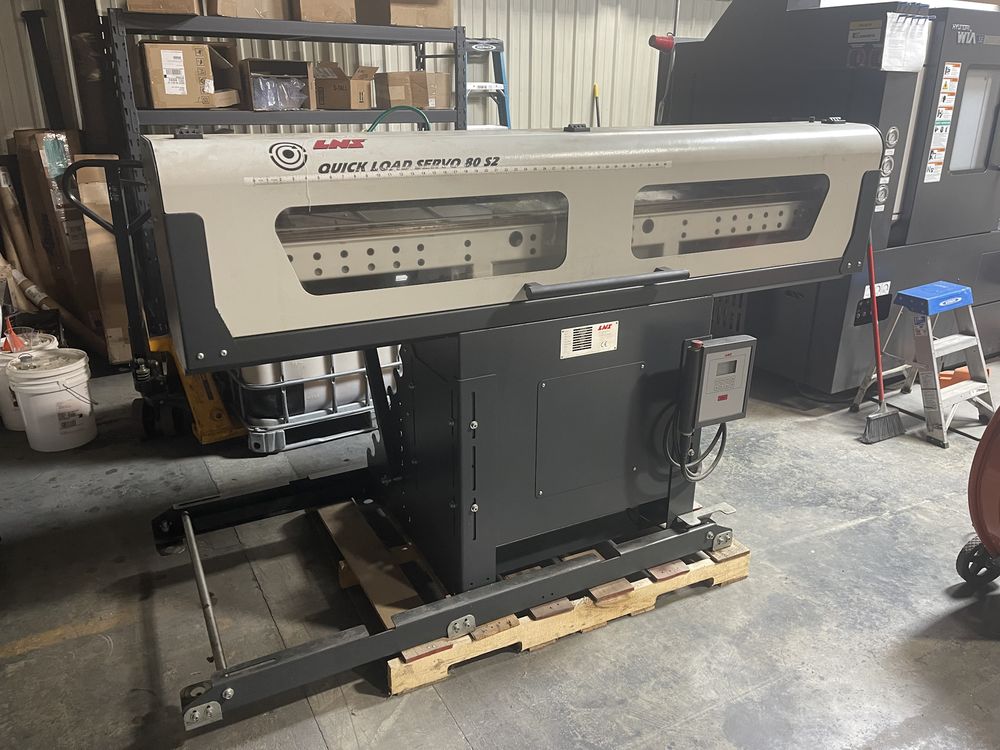

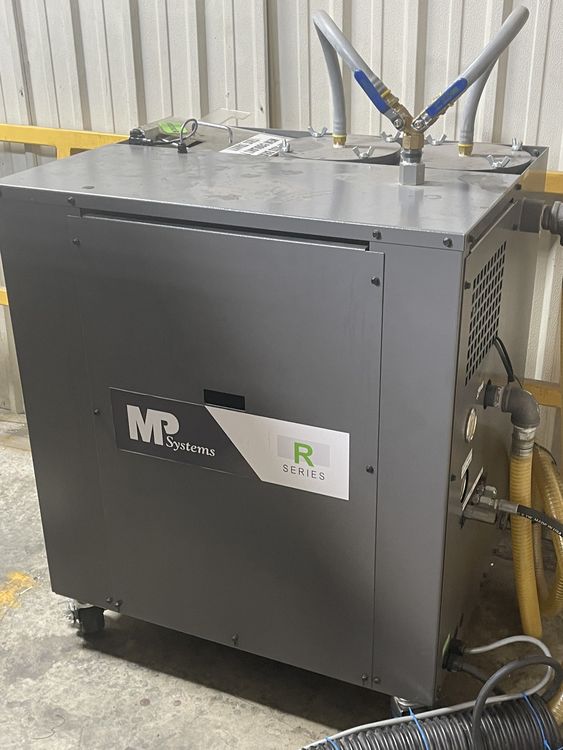

Fanuc Oi-TF+ Control w/ Helical Interpolation, Composite Control (enables C & A to move together in milling mode), Chip Conveyor, MP Systems High Pressure Coolant, Mist Collector, Wash Down Gun, LNS Quick Load Servo 80 S2 Barfeed.

Additional Info

Can be inspected upon request.

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
