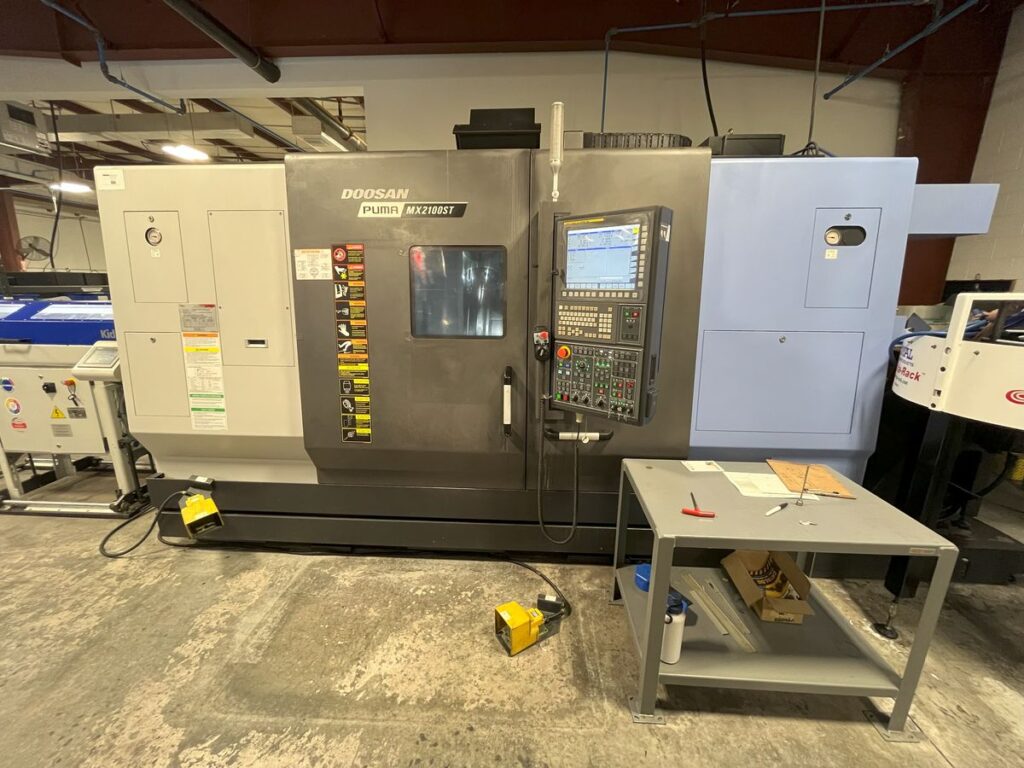

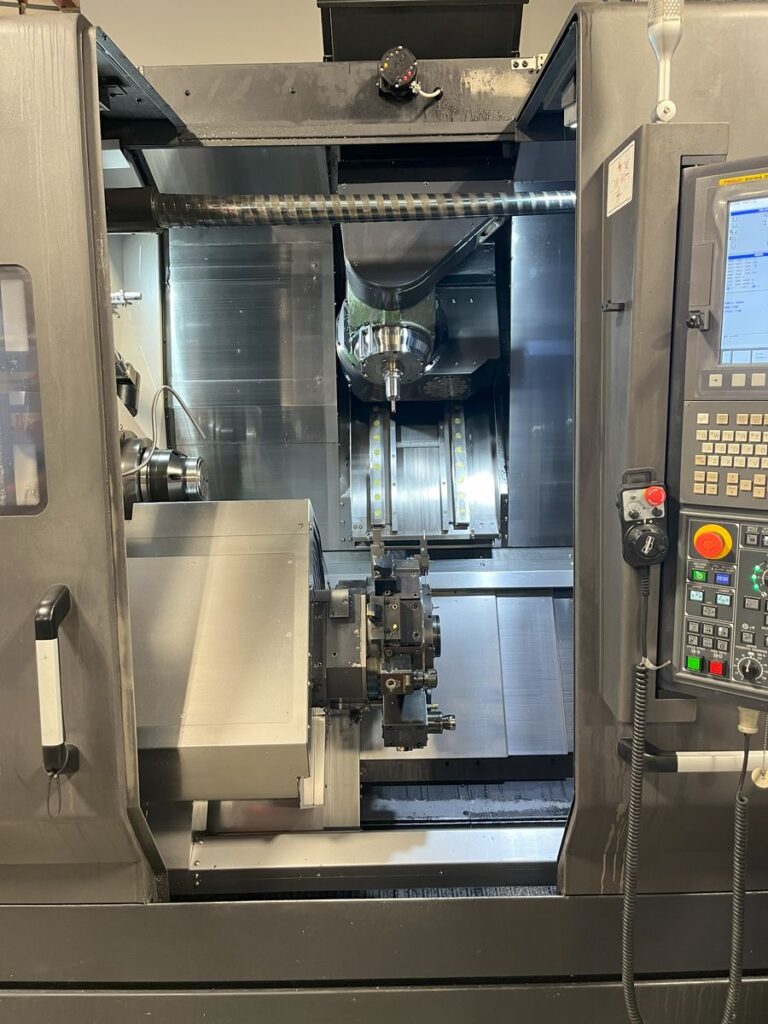

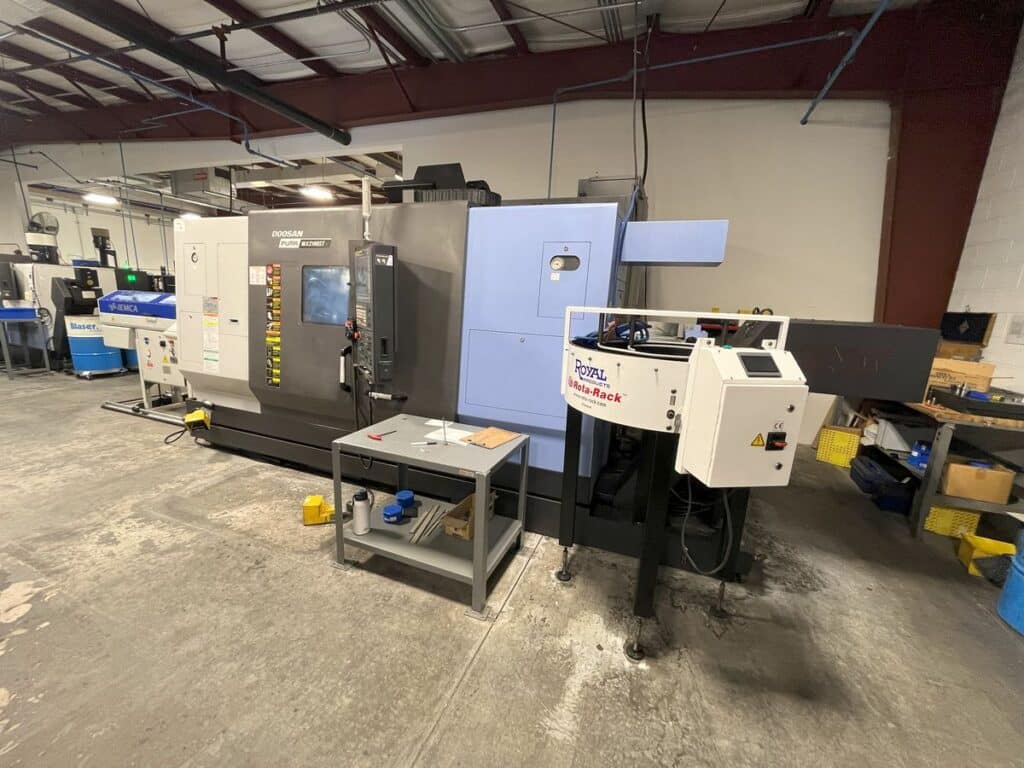

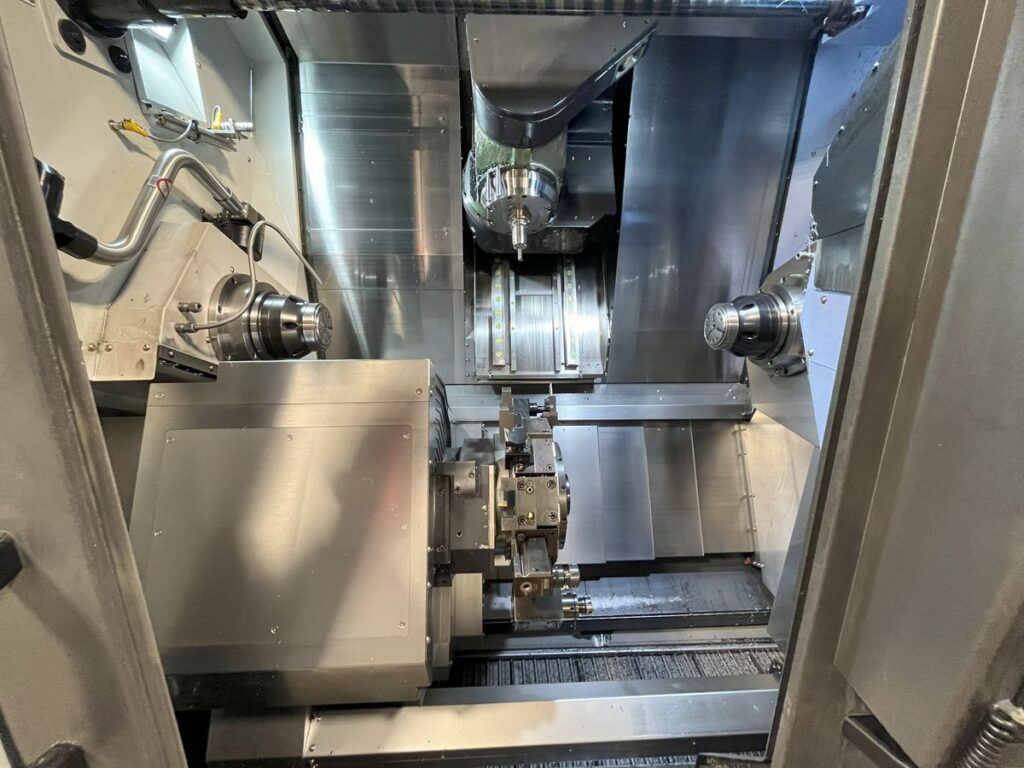

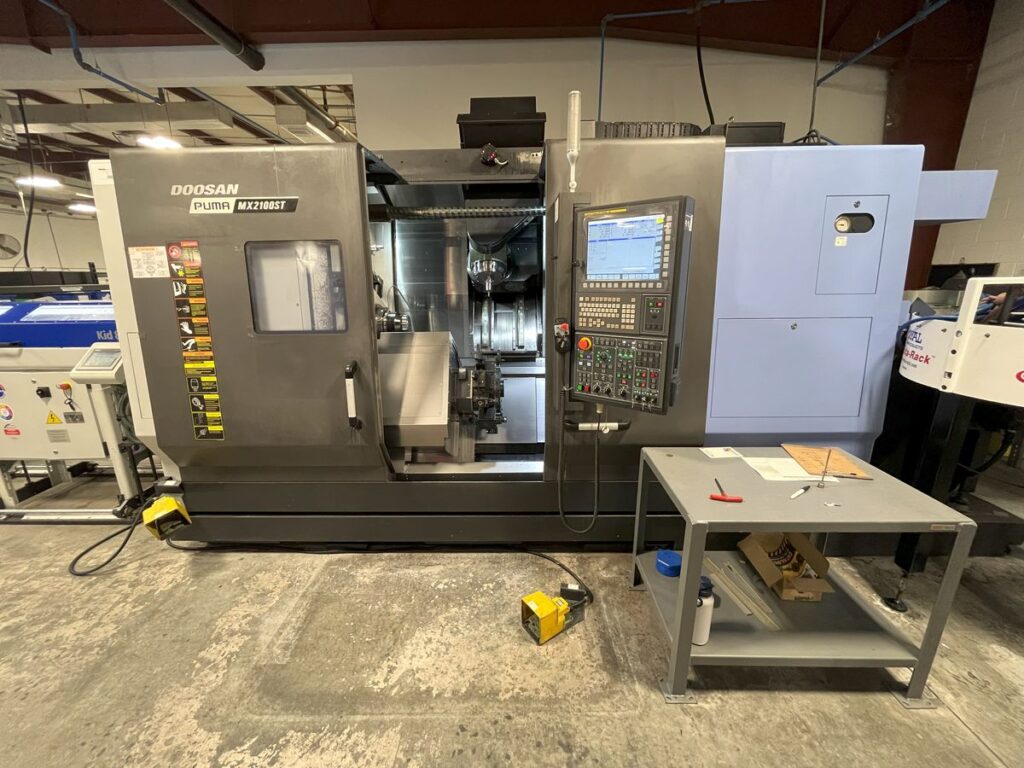

Doosan PUMA MX2100ST Live Tool Mill Turn CNC Lathe (2020)

Manufacturer

Doosan

Category

Lathes

Type

LATHES, CNC

Stock

131240021

Model

PUMA MX2100ST

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 131240021
  • Location: FL
  • Brand: Doosan
  • Model: PUMA MX2100ST
  • Year: 2020
  • Approx. Shipping Weight: 30,000 Lbs.
  • Loading Fee: Rigging Required

Specifications

  • Travel Distance X1-Axis: 565mm
  • Travel Distance Z1-Axis: 1050mm
  • Travel Distance X2-Axis: 187mm
  • Travel Distance Z2-Axis: 1050mm
  • Travel Distance Y-Axis: 170±85mm
  • Travel Distance B-Axis: 240°±120°
  • Rapid Traverse X1-Axis: 36 m/min
  • Rapid Traverse Z1-Axis: 36 m/min
  • Rapid Traverse Y-Axis: 26 m/min
  • Max Turning Diameter (Main Spindle): ?540mm
  • Max Turning Length: 1020mm
  • Through Hole Diameter (Left Spindle): ?68mm
  • Through Hole Diameter (Right Spindle): ?65mm

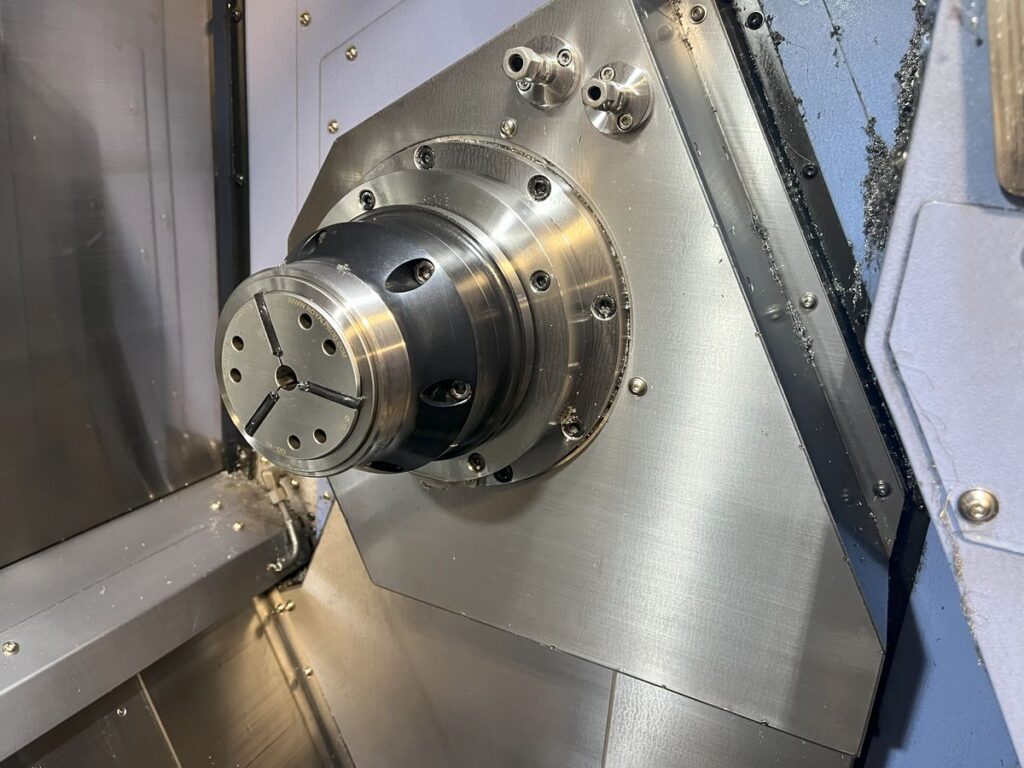

  • Spindle Chuck Size: 8″
  • Spindle Speed: 5,000 rpm
  • Spindle Power: 30 HP

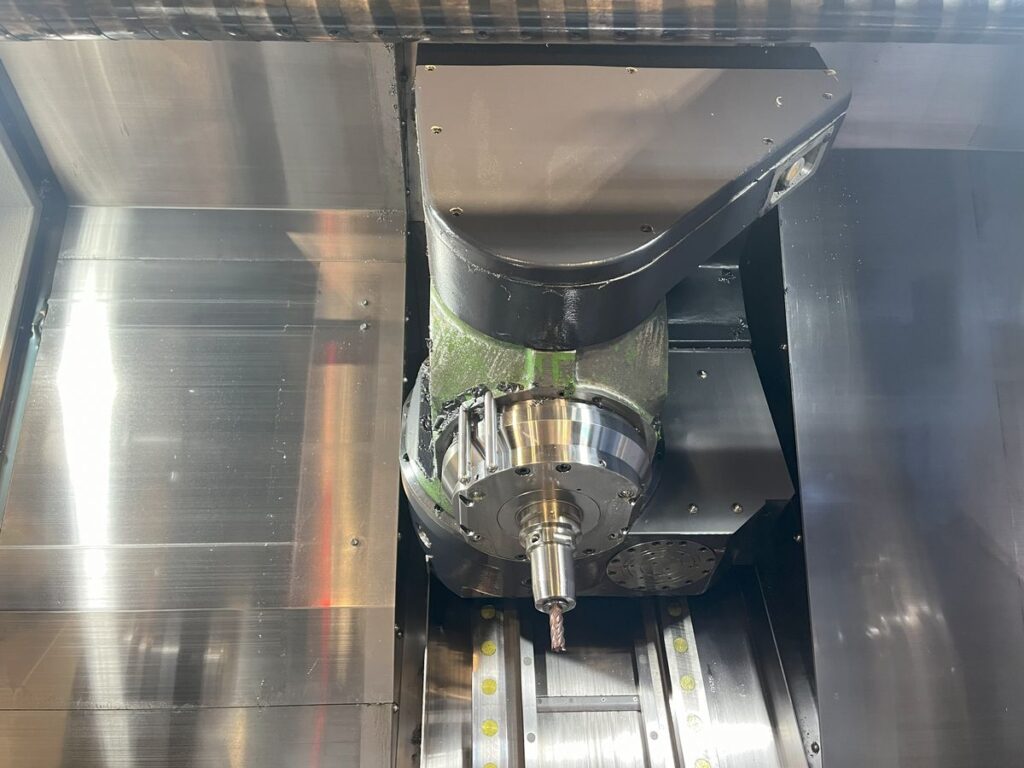

  • Milling Spindle: 12,000 rpm
  • Milling Spindle Power: 25 HP
  • Tool Changer: 40 Position ATC

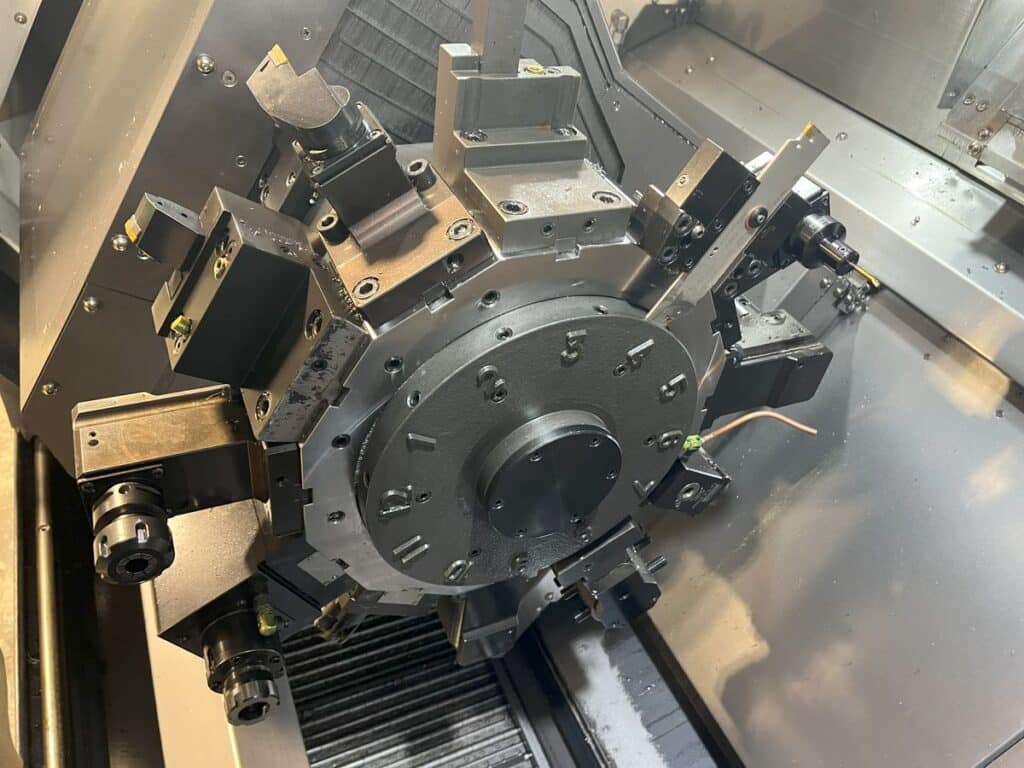

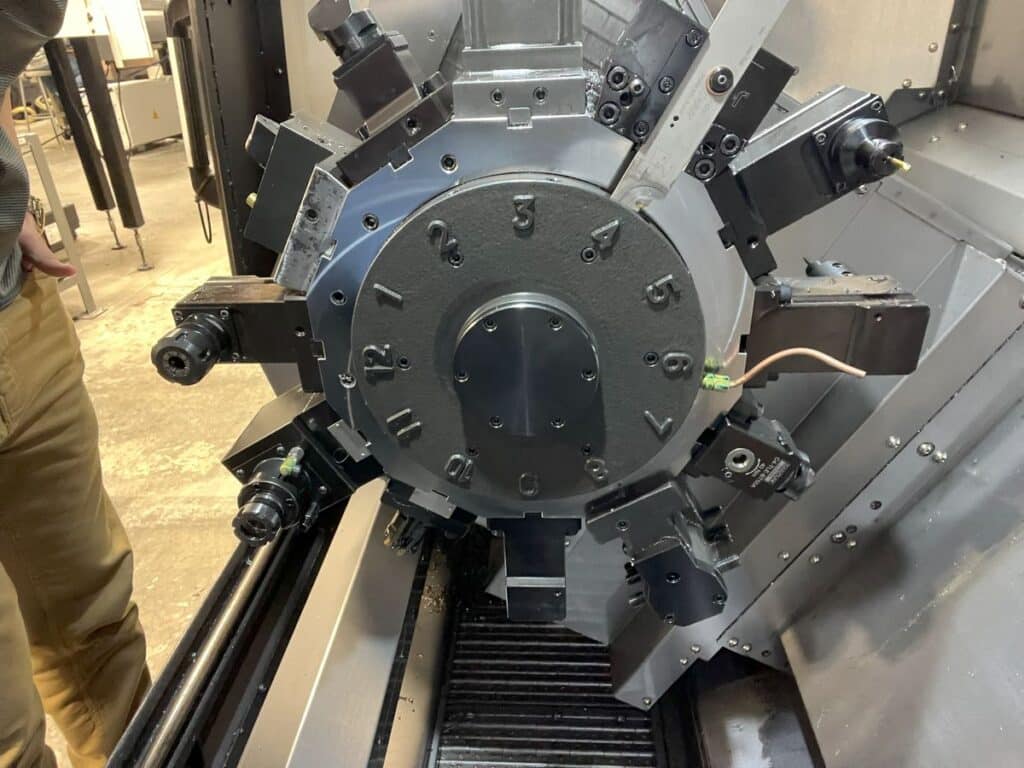

  • Turret Stations: 12
  • Turret Tooling Shank: BMT-55
  • Turret Boring Bar Diameter: 40mm
  • Turret Rotary Tool Speed: 5,000 rpm
  • Turret Rotary Tool Power: 7.5 HP

Equipped With

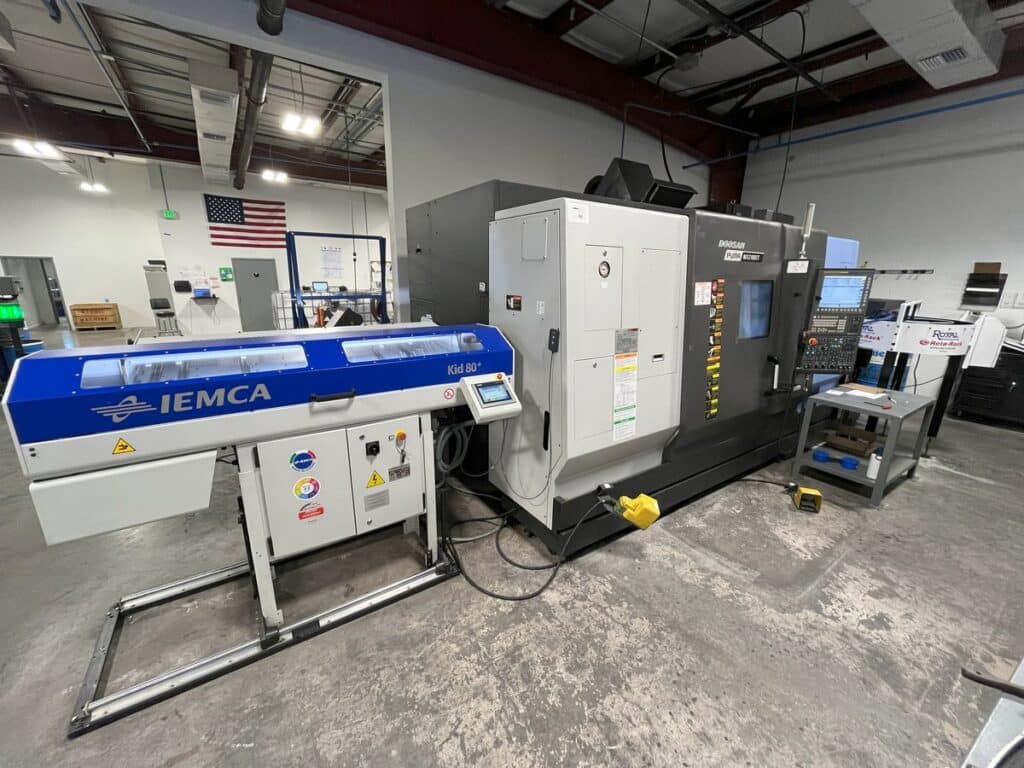

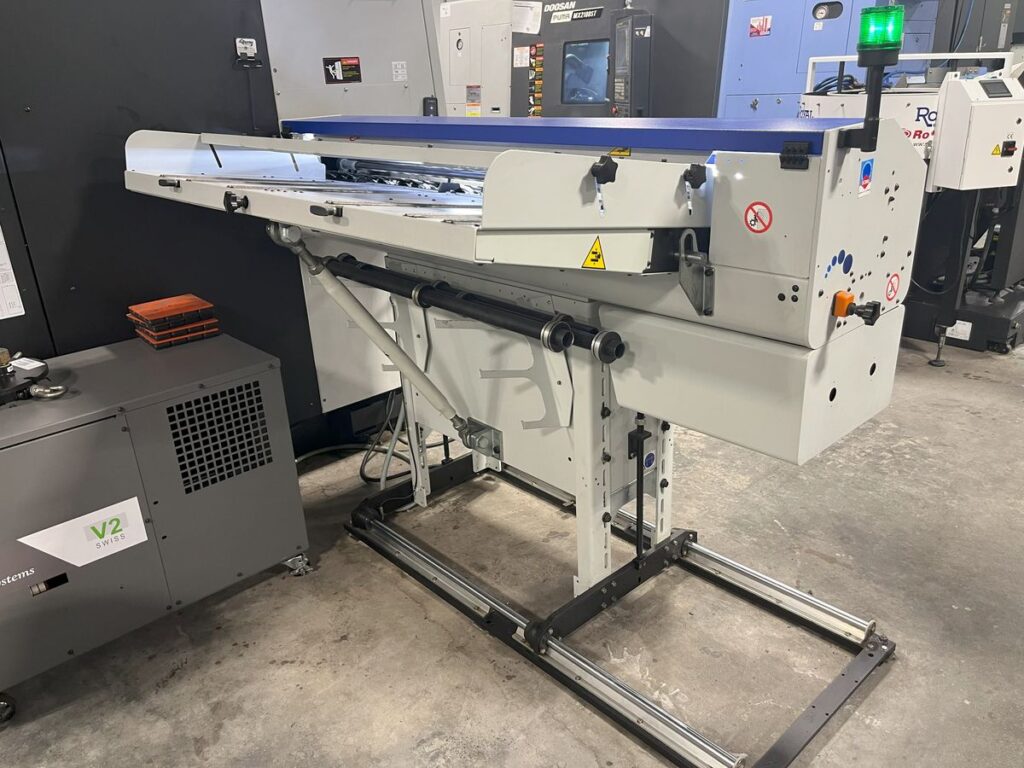

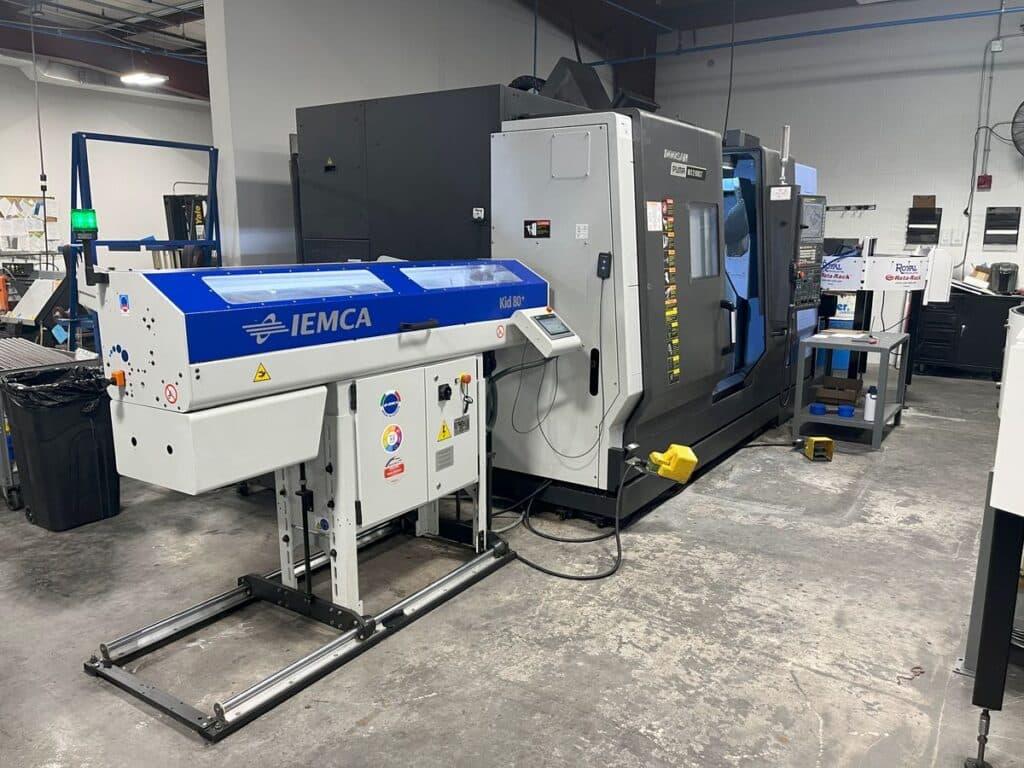

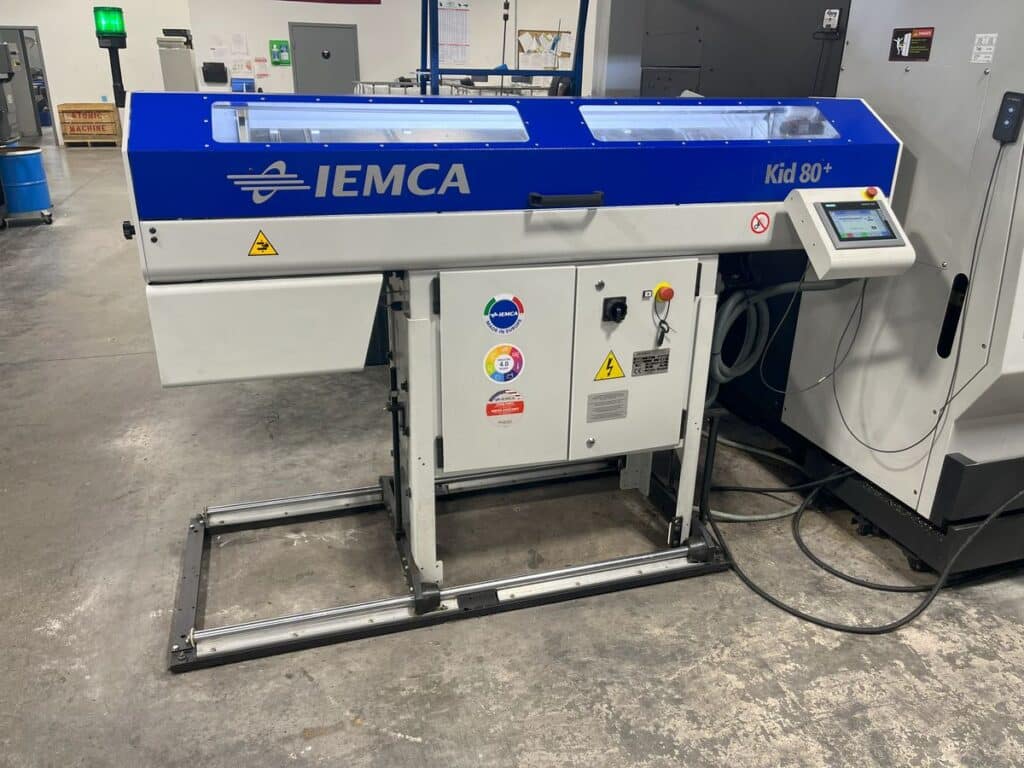

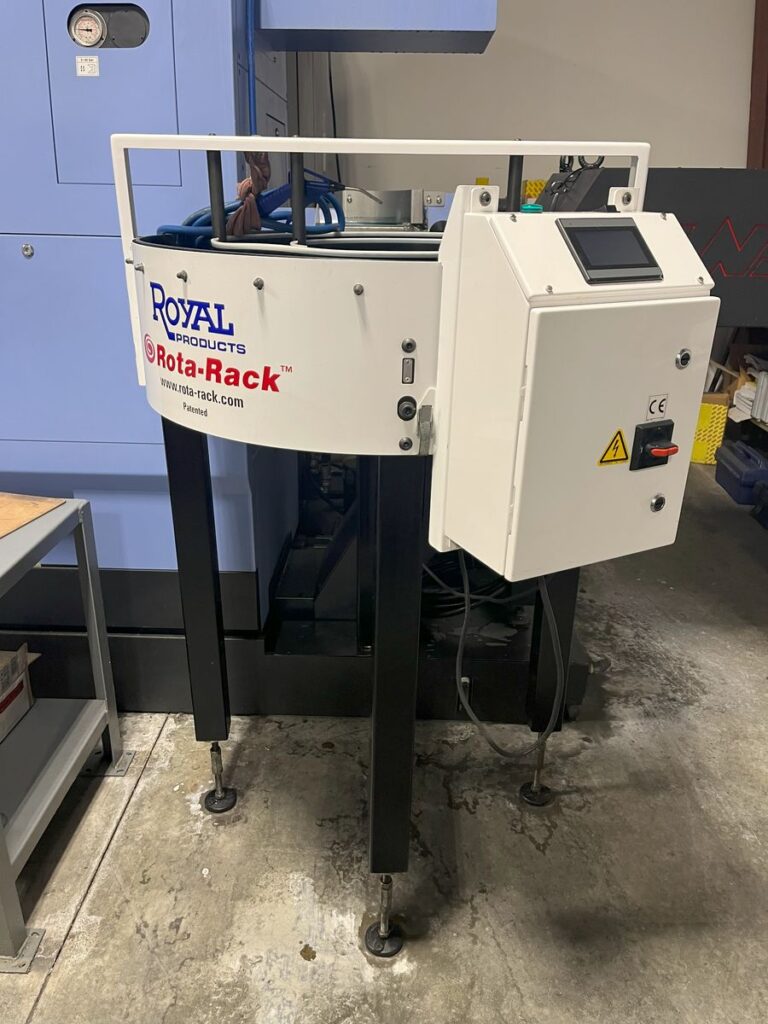

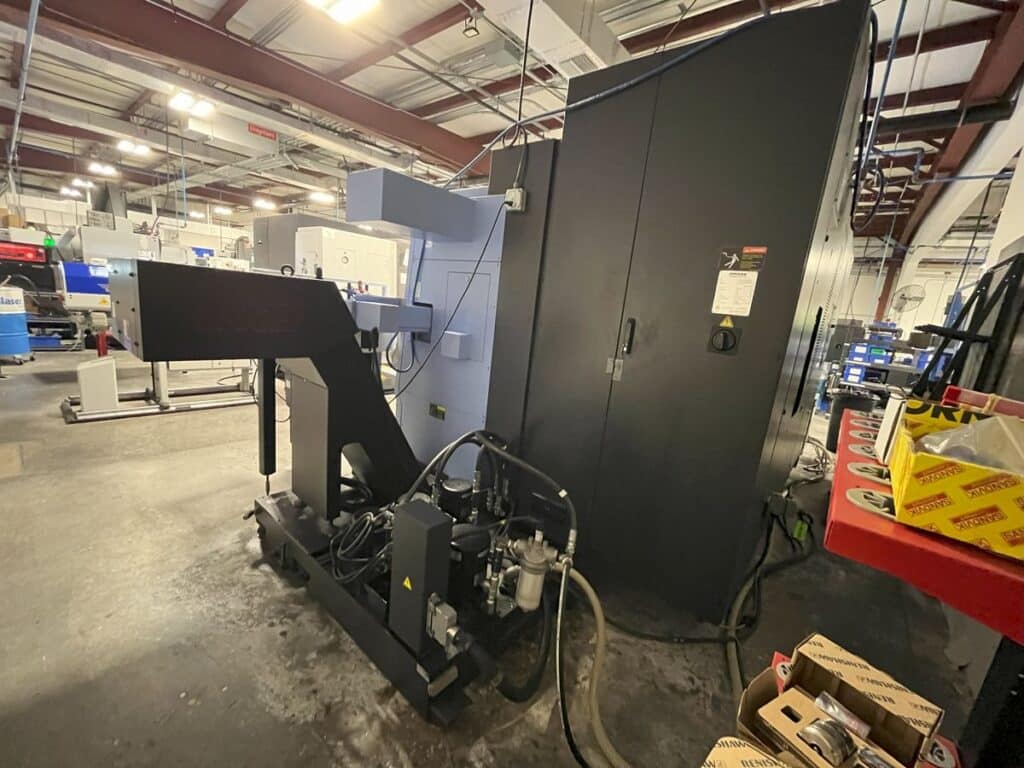

Turbo Chip Conveyor, Renishaw Part Probe, Renishaw Radio Receiver, Iemca Kid 80 Bar Feeder, Royal Collet Chuck, Royal Roto Rack Delux Control with Long Conveyor, Tool Holders, Collet Inserts

Additional Info

Machine can be demonstrated upon request.

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
