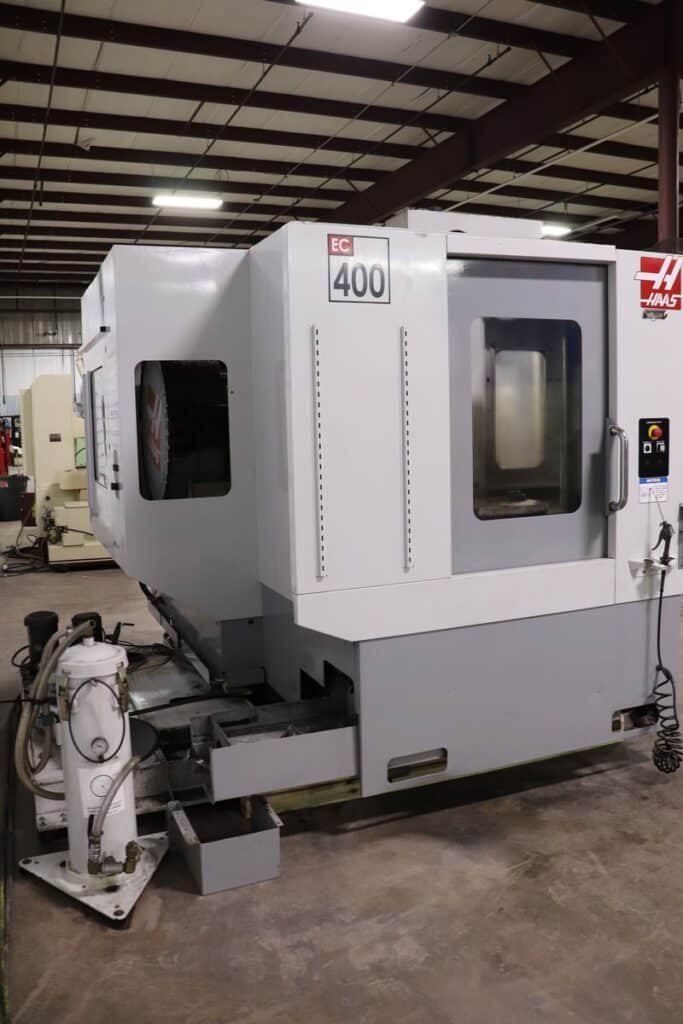

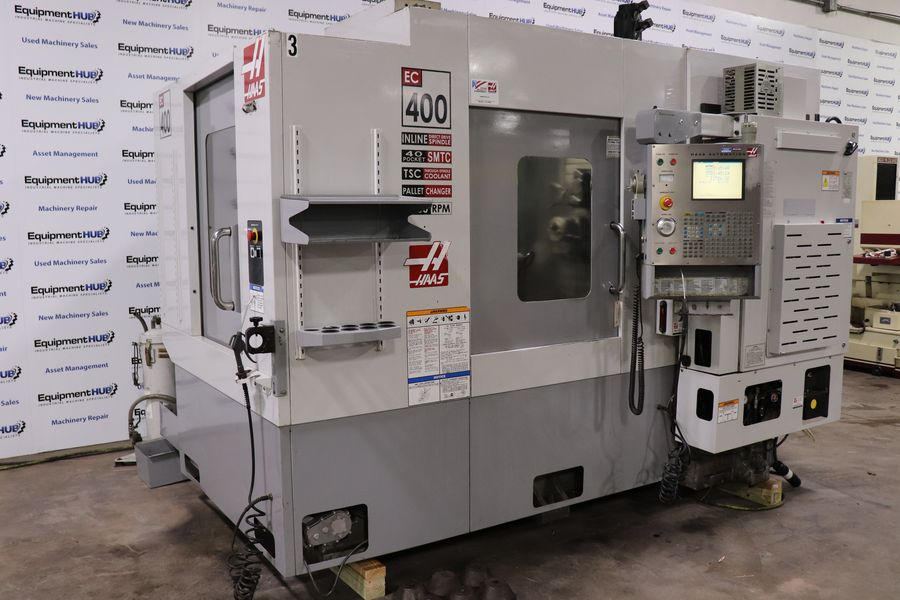

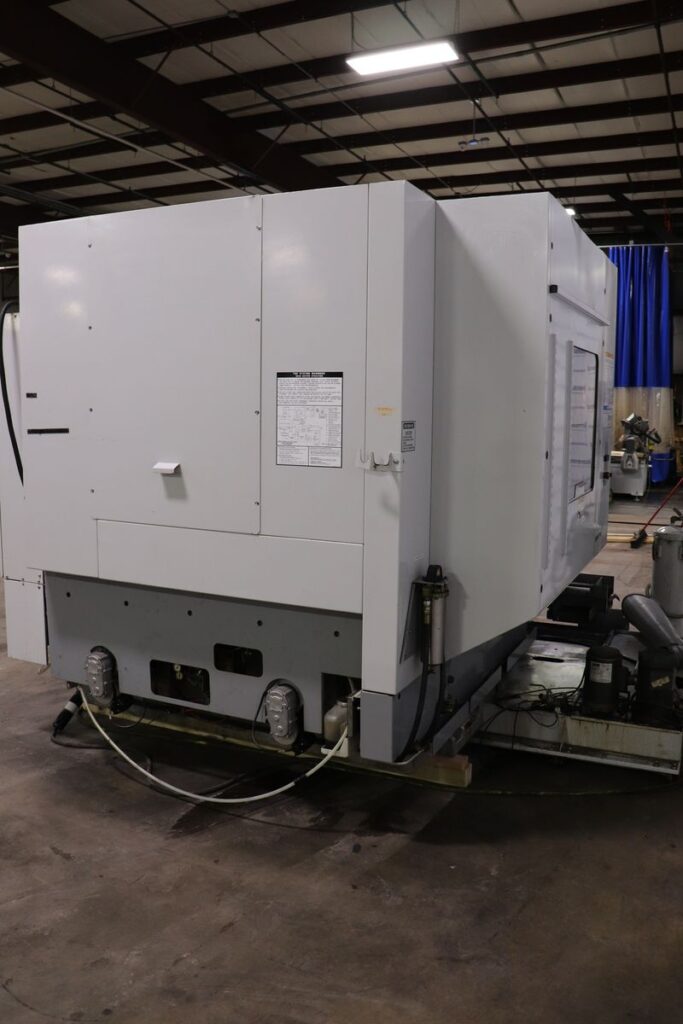

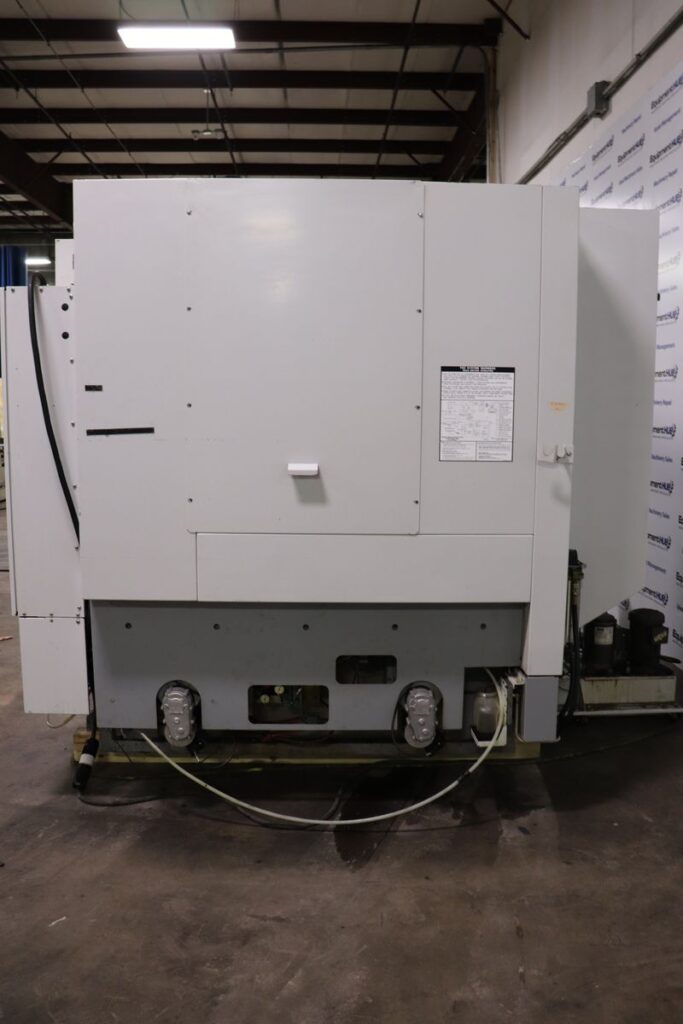

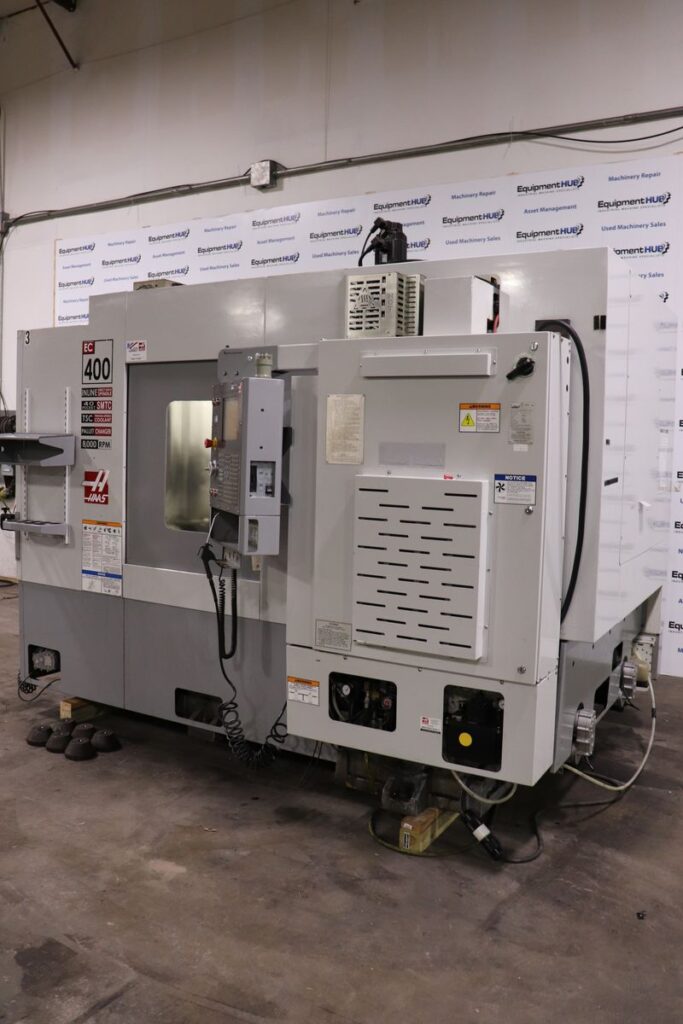

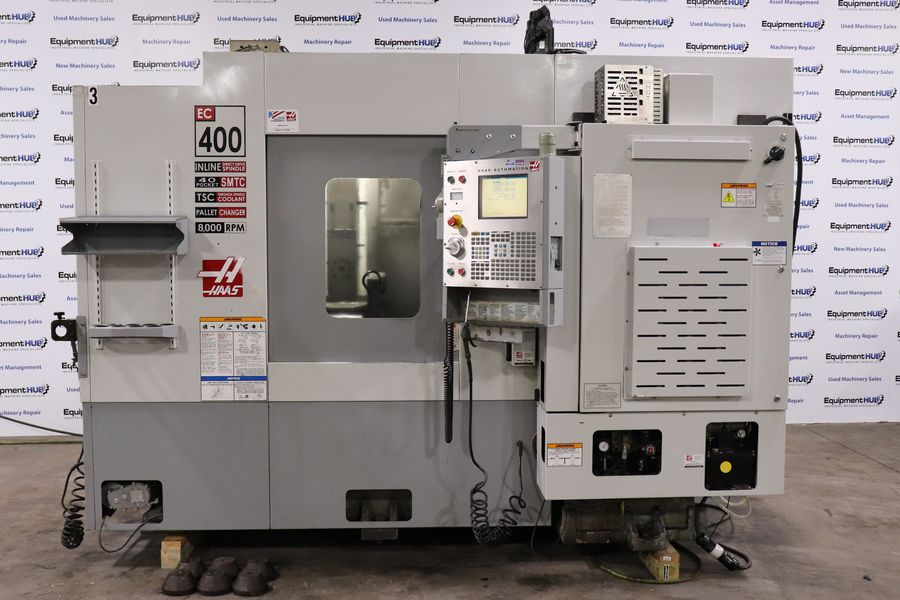

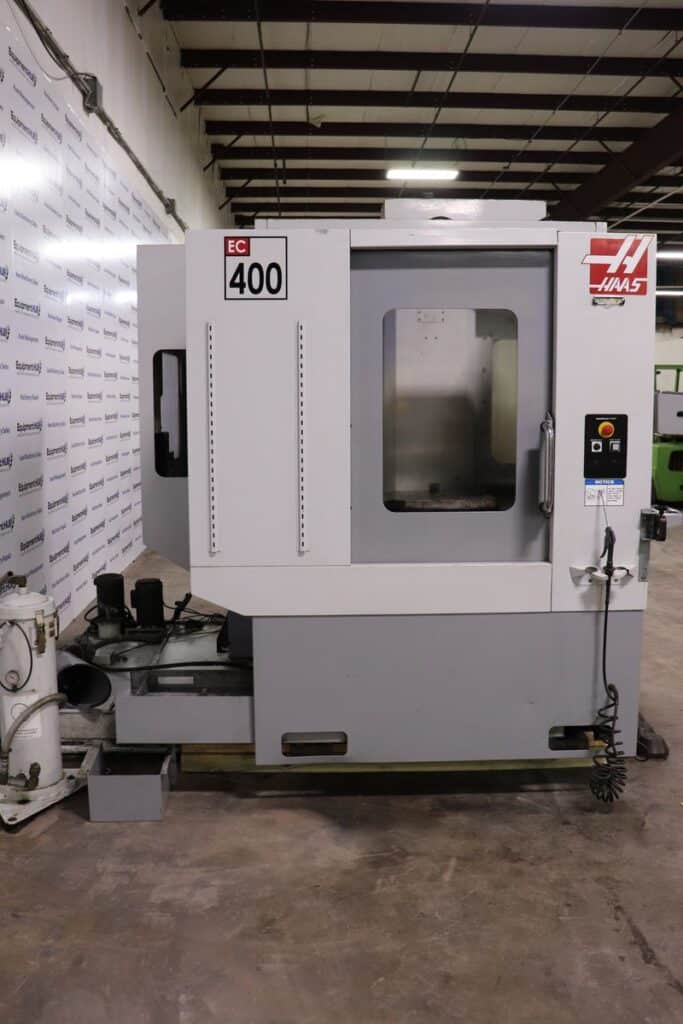

Haas EC-400-4AX 4-Axis CNC Horizontal Machining Center

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

120230087

Model

EC-400-4AX

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 120230087
  • Location: Stone Mountain, GA
  • Brand: Haas
  • Model: EC-400-4AX

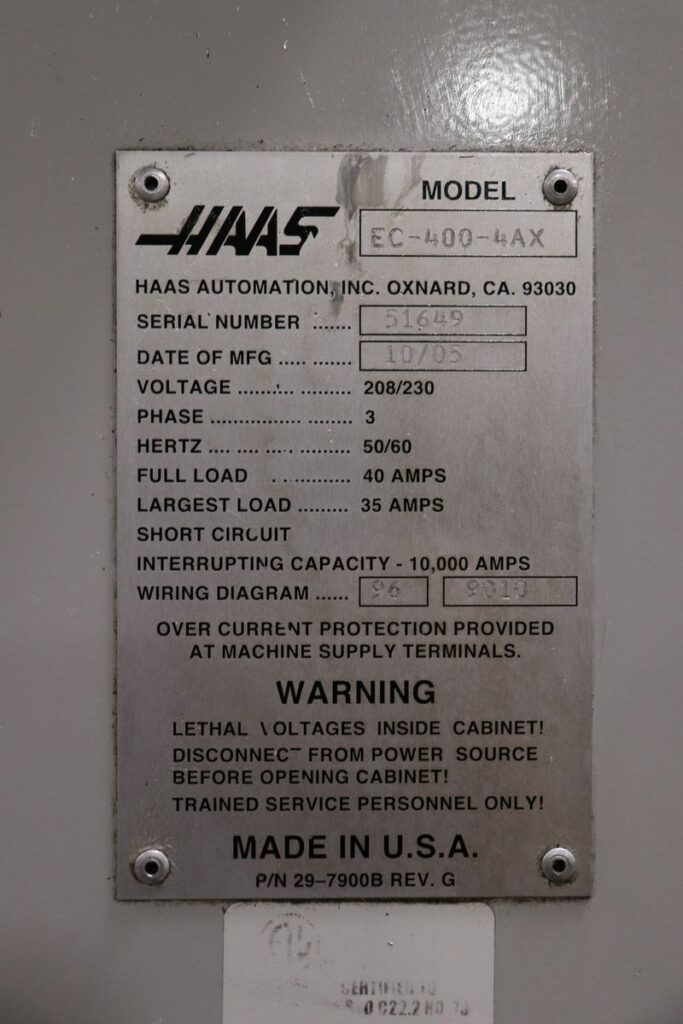

  • Serial #: 51649
  • Year: 2005
  • Approx. Shipping Weight: 20,000 Lbs.
  • Approx. Shipping Dimensions: 16′ L x 8′ W x 9′ H

Specifications

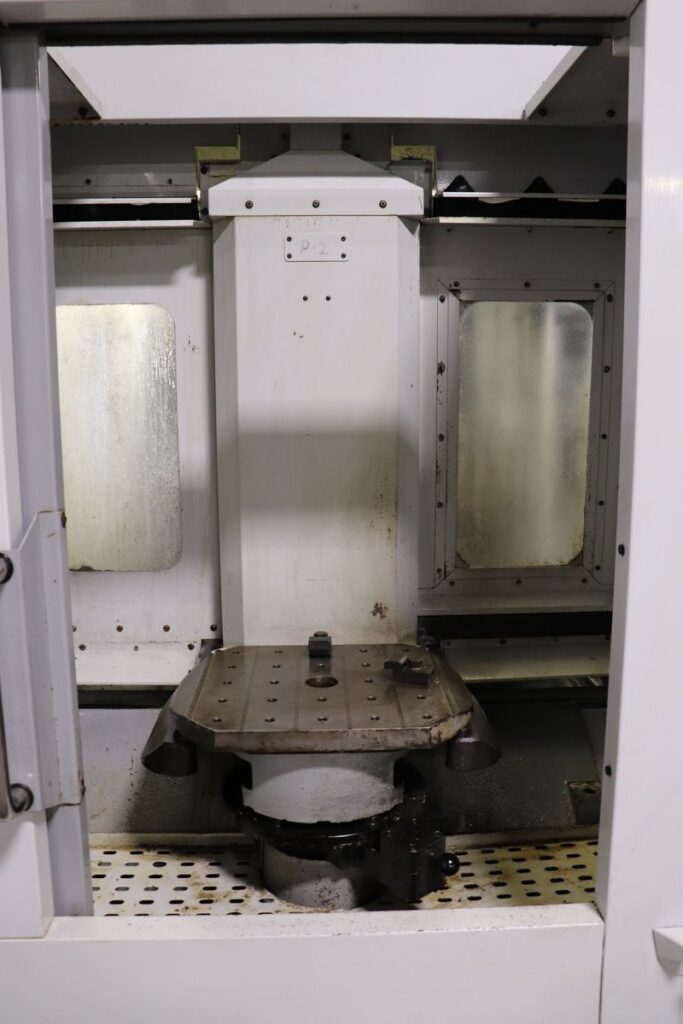

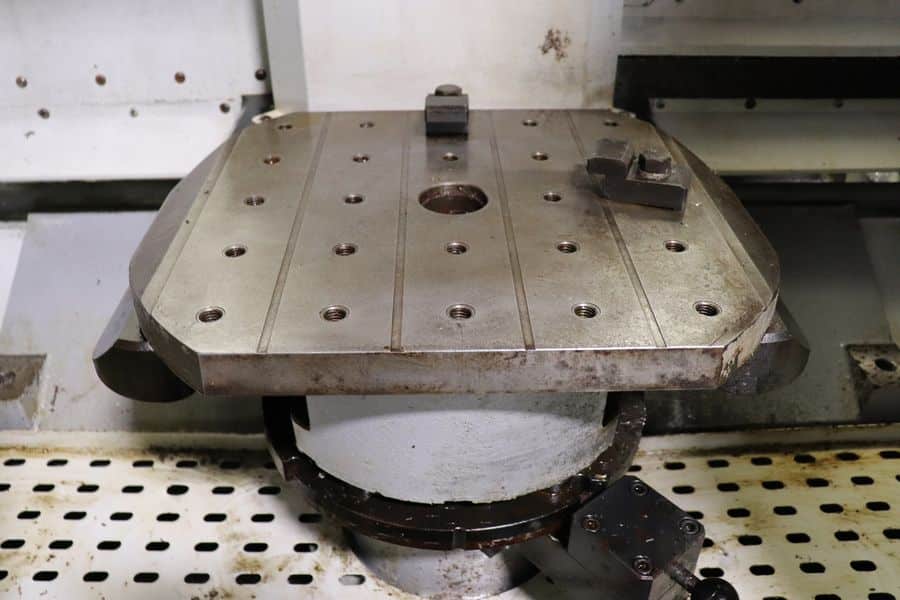

  • Pallet Size: 15.75″ x 15.75″
  • Machine Travels (X/Y/Z): 20″ x 20″ x 20″

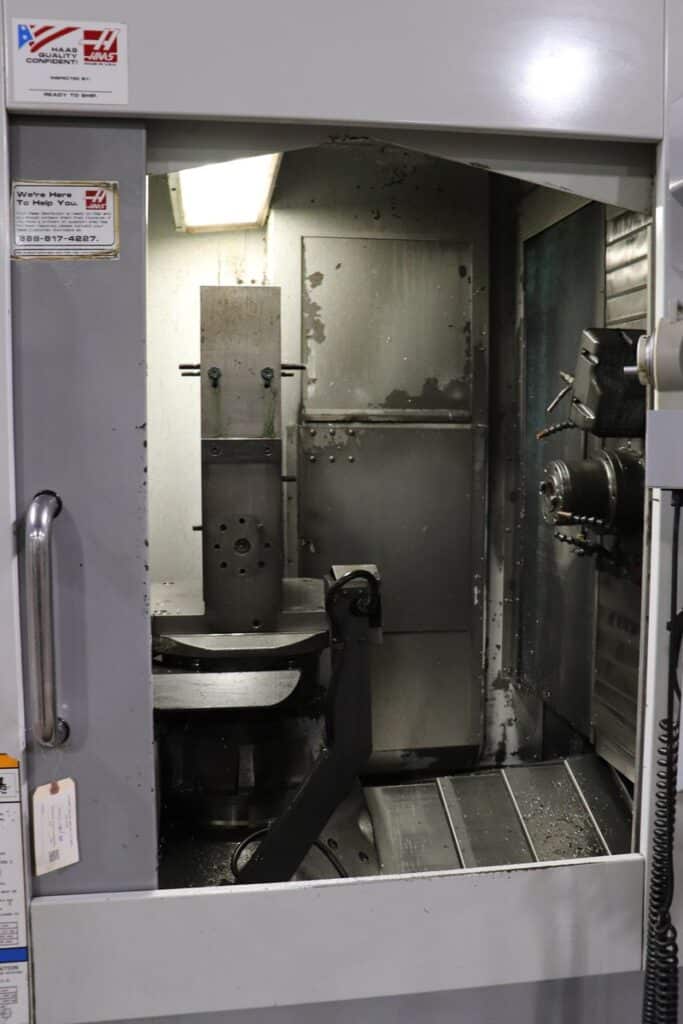

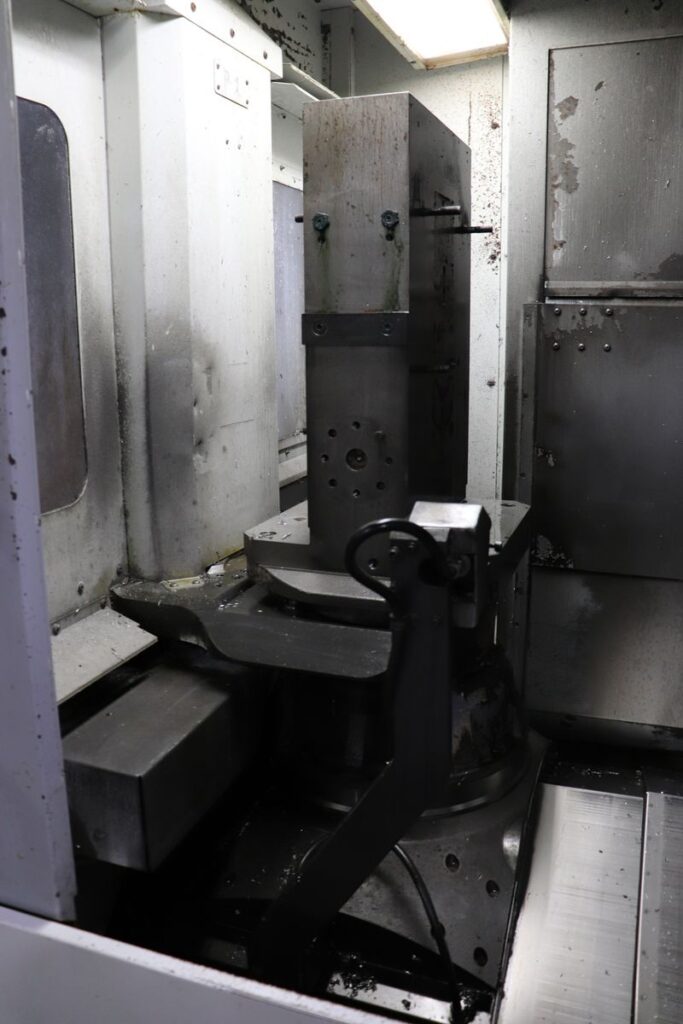

  • Pallet Indexing: Full 4th Axis (.001 Degree) Programmable
  • Max Pallet Load: 660 Lb.
  • Pallet Change Time: 8 Second
  • Rapid Traverse Rate (X/Y/Z): 1000 IPM
  • Max Cutting Feed Rate: 500 IPM
  • Spindle Taper: CAT 40
  • Spindle Speeds: 0 – 8000 RPM

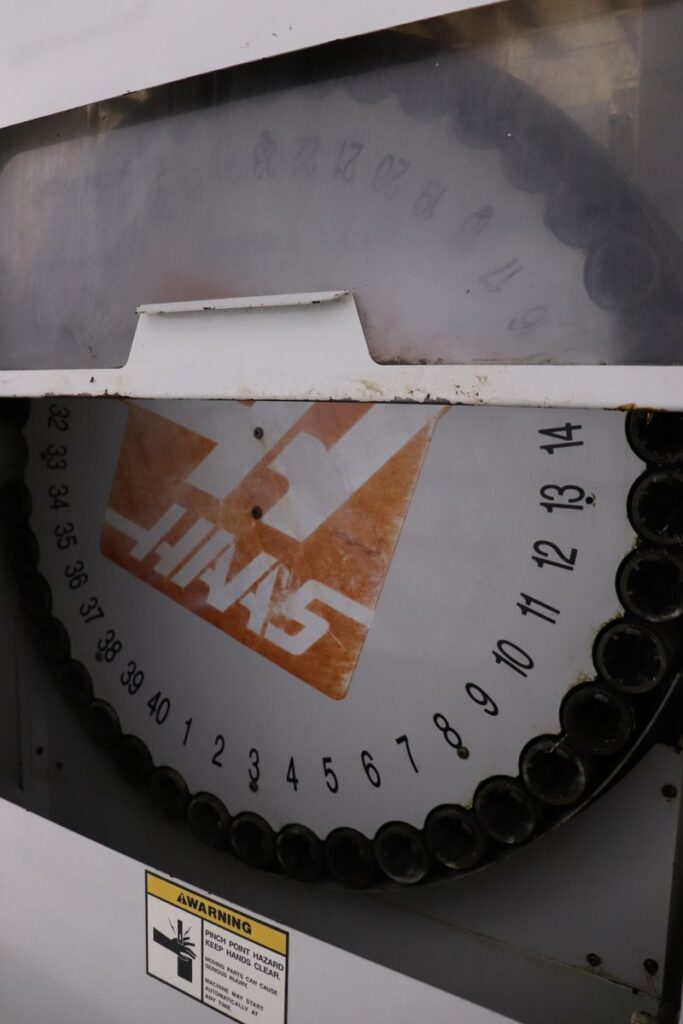

  • Toolchanger Capacity: 40
  • Max Tool Weight: 12 LB.
  • Tool to Tool Time: 2.8 Second
  • Spindle Drive: 20 HP
  • Tabletop to Spindle Center: 2.1″ – 22.1″
  • Number of Pallets: 2
  • Electrical: 230V/3PH

Equipped With

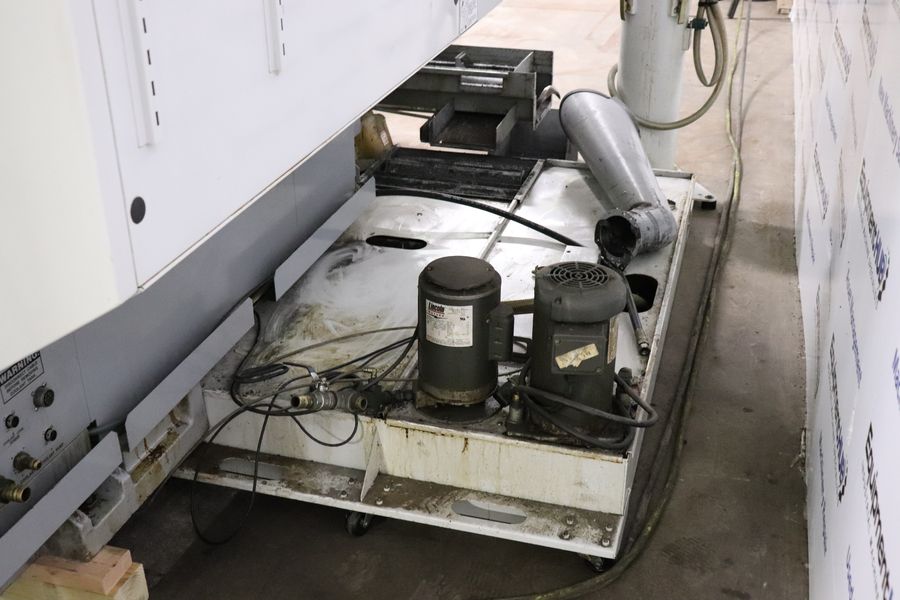

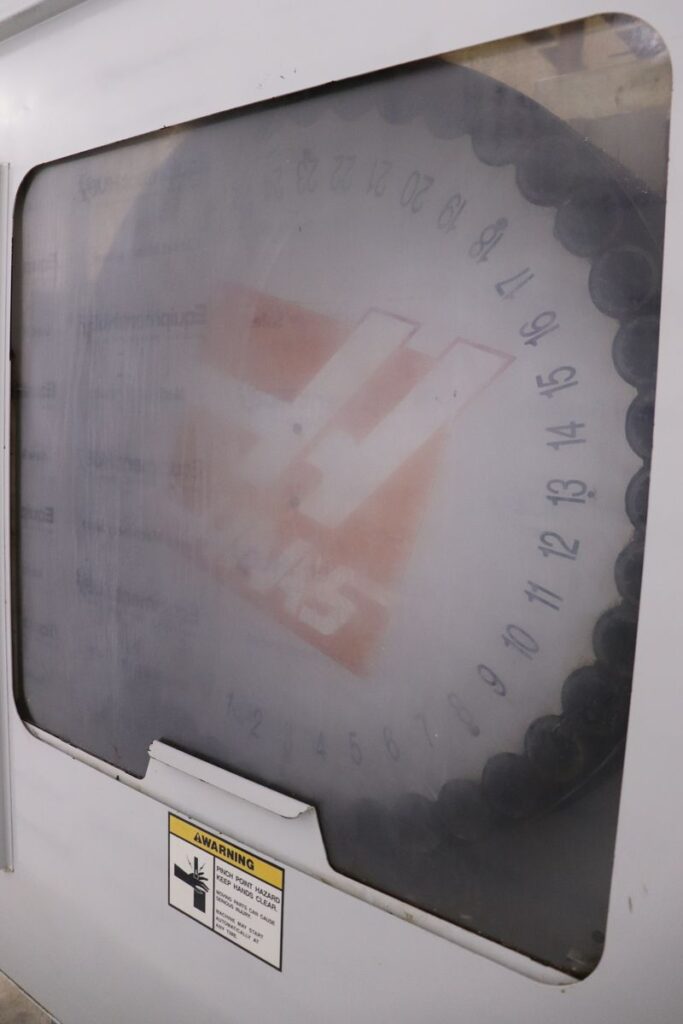

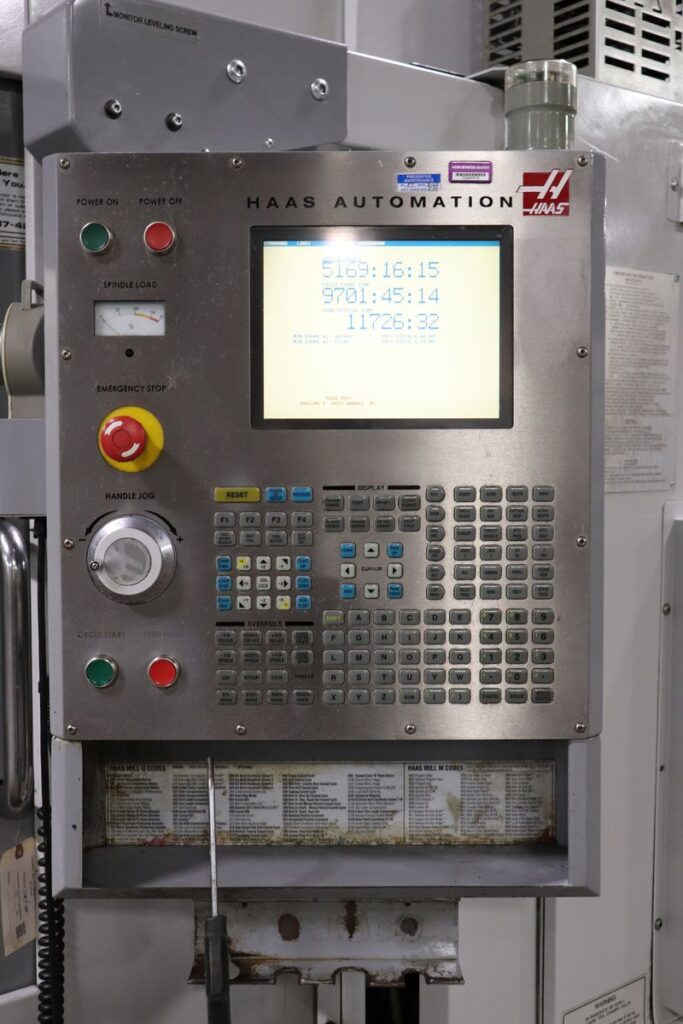

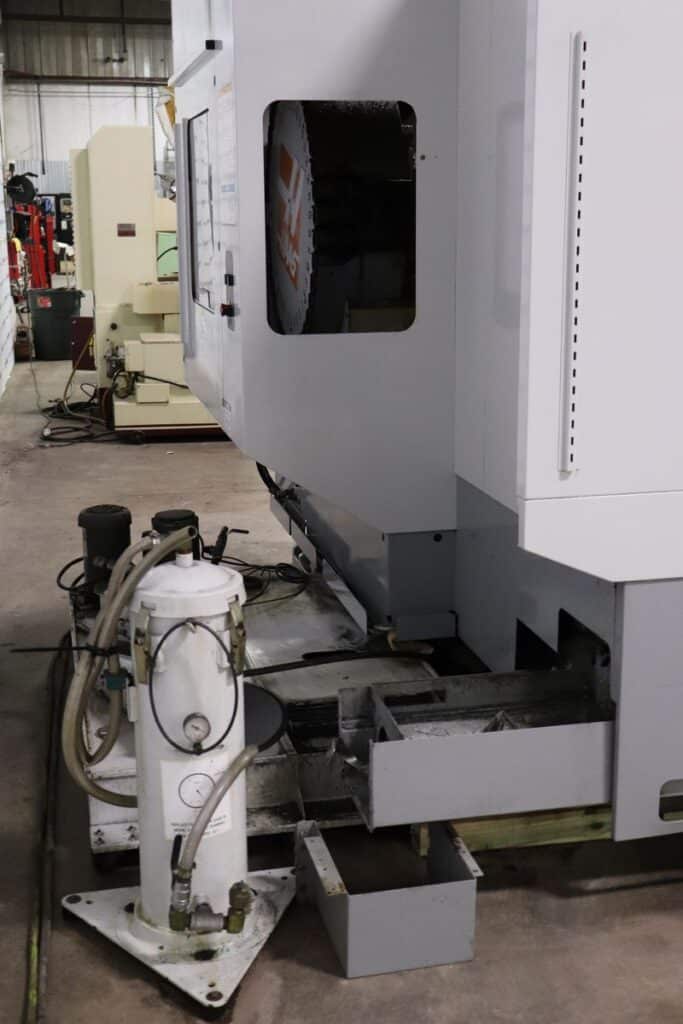

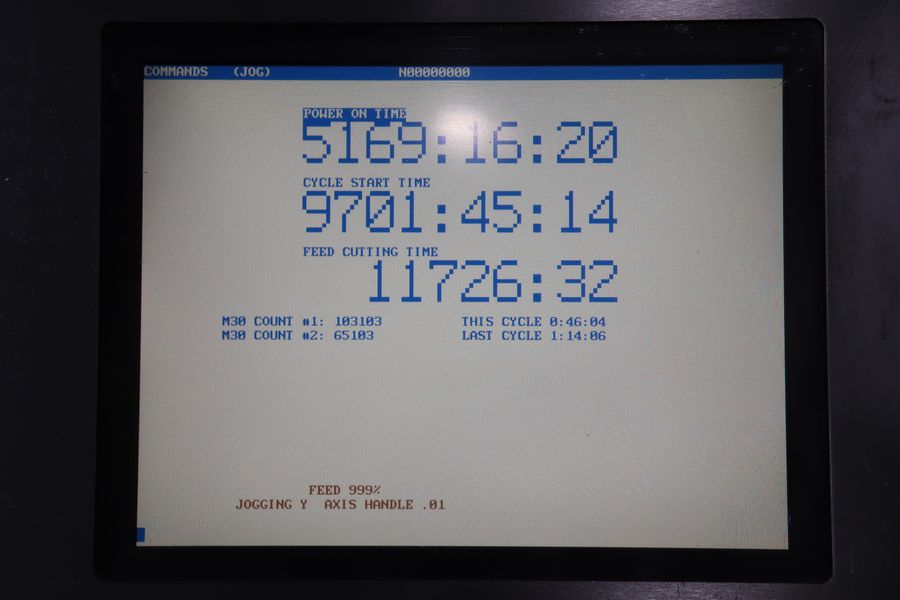

Haas CNC Control, Full 4th Axis Programmable, Automatic Pallet Changer, (2) Pallets, 300 PSI Thru-Spindle Coolant, 40-Station Side Mount Tool Changer, Floppy Drive, Renishaw Tool Presetter, Chip Auger, Remote Jog Handle, Coolant System

Additional Info

The Haas EC-400-4AX Horizontal Machining Center can be demoed upon request. Check out the video on the listing to see it in operation.
