Schiess 16DS-125, 49.21" Table, 73" Swing, 67.5" U/R, Fanuc OiTD CNC, Ram with 12 Station ATC, 75 HP, #43333

Manufacturer

SCHIESS

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43333

Model

16DS-125

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43333

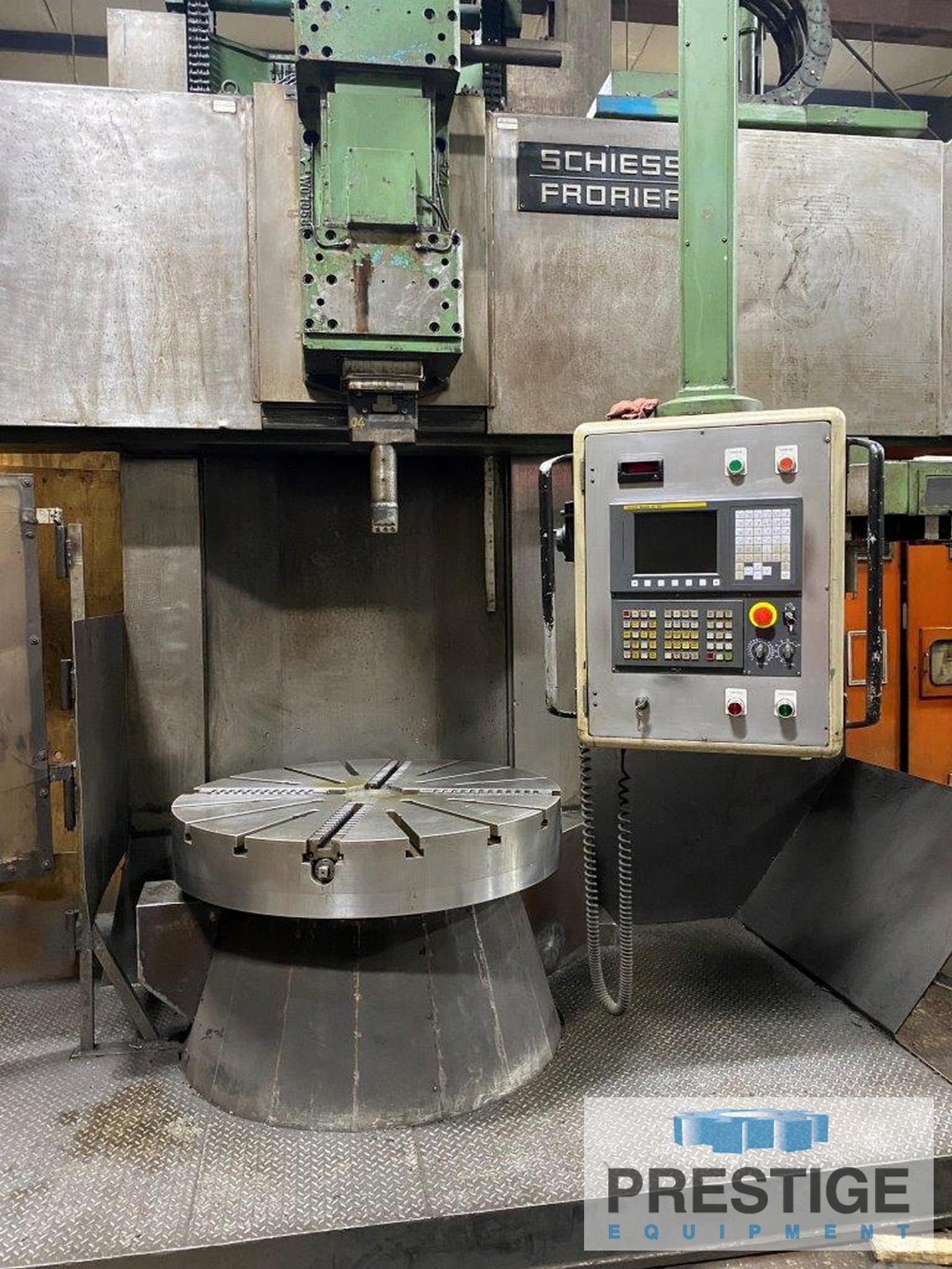

Schiess 49.21" CNC Vertical Boring Mill

CAPACITY:
Table Diameter ........................ 49.21"
Maximum Swing.......................... 73"
Maximum Height Under Rail ............. 67.5"
Maximum Height Under Tool ............. 66.5"
Ram Stroke............................. 56"
Table Load Capacity ................... 16,000 LBS
Table Speeds .......................... 3.15-315 RPM
Approximate Dimensions ................ 169" x 149" x 156"
Approximate Weight .................... 54,780

EQUIPPED WITH:
Fanuc OiTD CNC Control
12-Station Automatic Tool Changer
49.21" 4-Jaw Chuck
Hardened Cross Rail Ways
Ball Screws And DC Servo Drives
Chip Conveyor
75 HP Main Motor
