Cincinnati 90 Ton FM II, 8' OA, 6'6" BH, Hyd. Clamping, 2-Axis Ctrl, 8' Lower Die Holder, #43340

Manufacturer

CINCINNATI

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43340

Model

90 FMII x 6

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43340

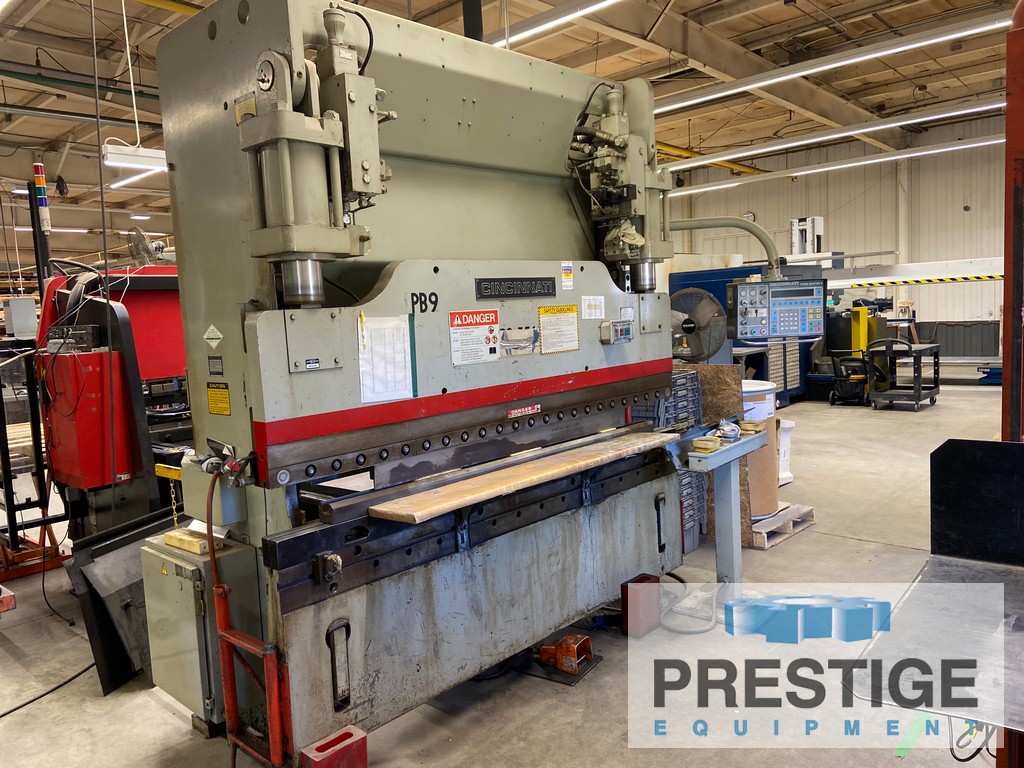

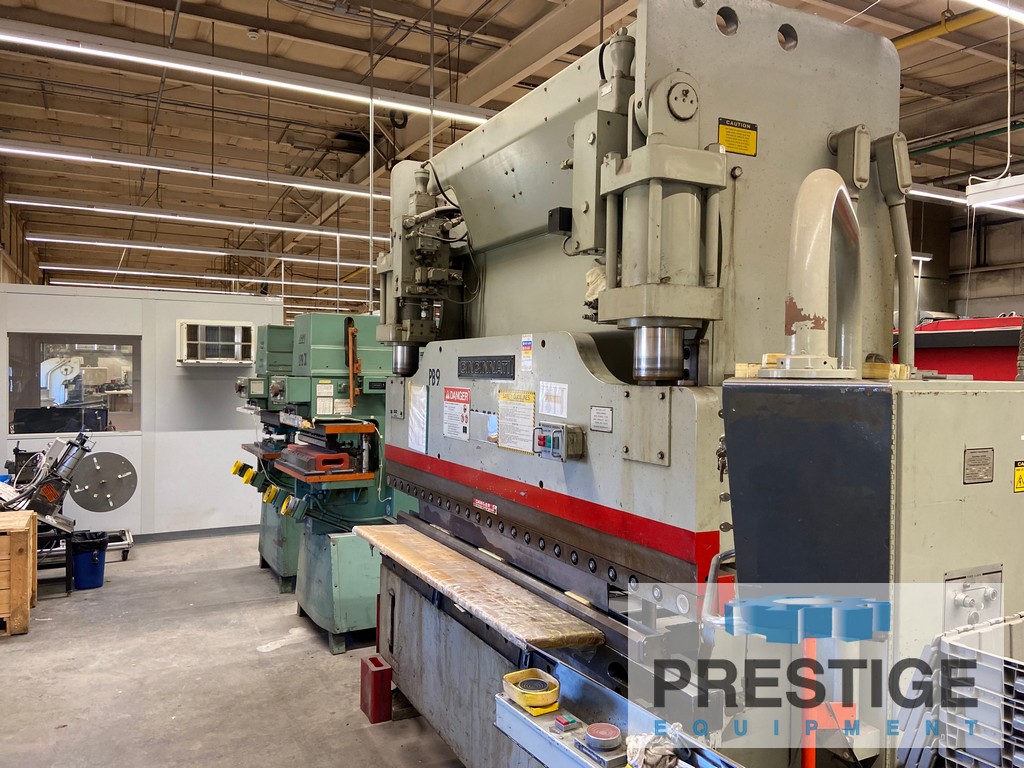

Cincinnati 90 Ton x 8' FM II 2-Axis CNC Hydraulic Press Brake

FEATURES:

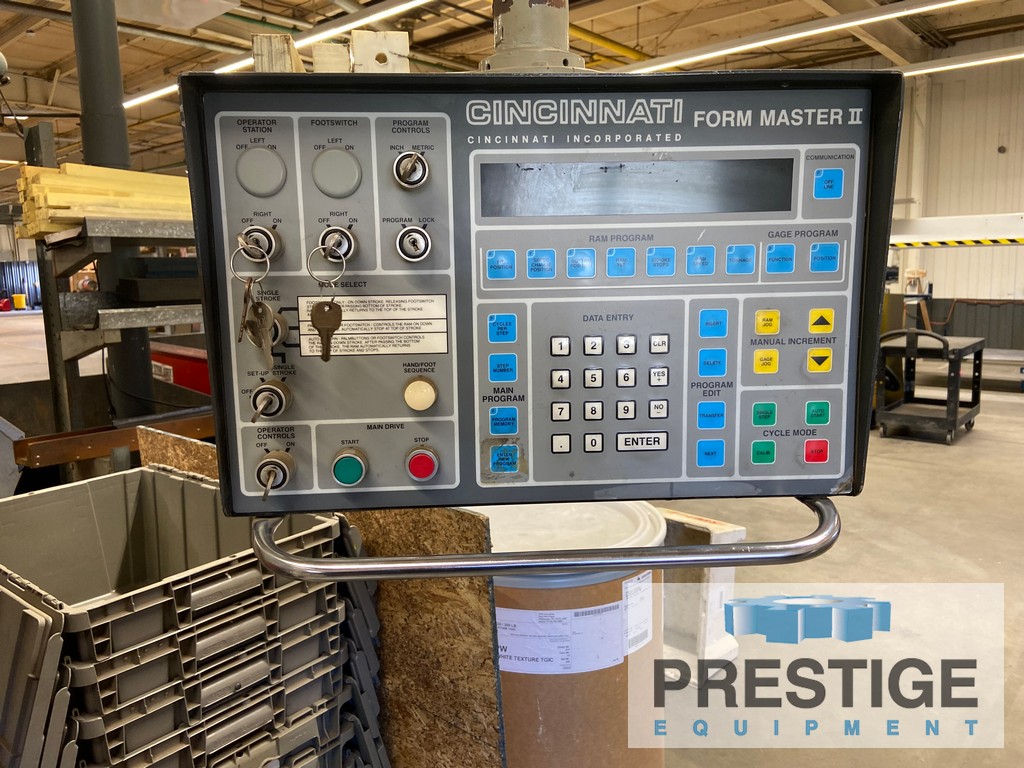

Form Master II 2-Axis CNC Control
Upper Hydraulic Power Clamping
Programmable Ram Travel (Y-Axis)

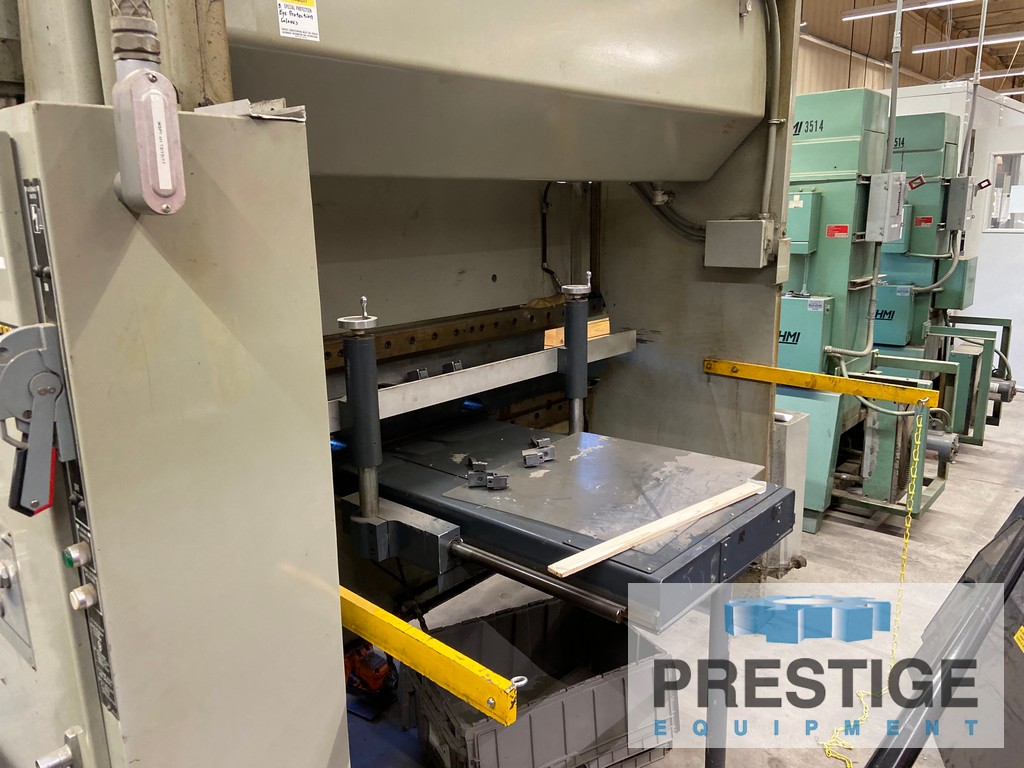

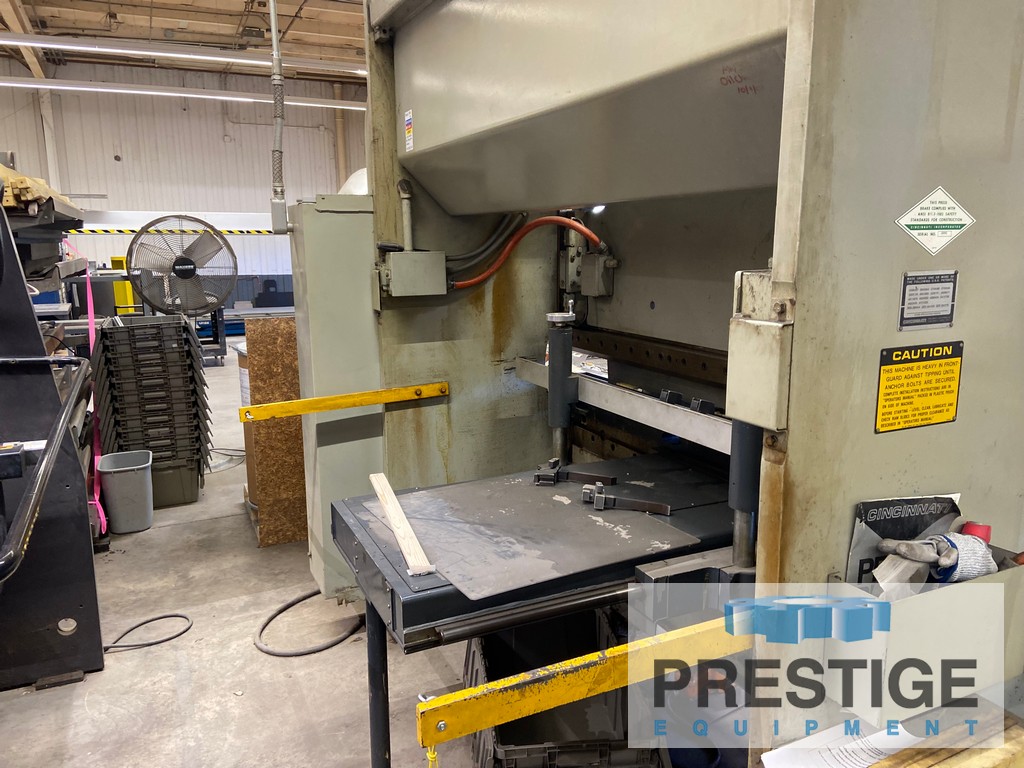

Single Axis Programmable Back Gauge, 24" Range
8' Lower Die Holder

CAPACITY:
Tonnage Capacity ...................... 90 Tons
Overall Length Of Bed And Ram ......... 8'
Distance Between Housings ............. 6'6"
Bending Capacity ...................... 1/4" x 5'
Back Gauge Range ...................... 24"
Stroke Length ......................... 8"
Shut Height ........................... 7"
Open Height ........................... 15"
Throat Depth .......................... 12"
Ram Speed, Advance Down ............... 380" IPM Max.
Forming Speed, Variable Up To ......... 120" IPM
Return Speed .......................... 405" IPM
Drive Motor ........................... 25 H.P.
Approximate Shipping Weight ........... 13,500 Lbs.

EQUIPPED WITH:
Form Master II 2-Axis CNC Control
Upper Hydraulic Power Clamping
Programmable Ram Travel (Y-Axis)
Single Axis Programmable Back Gauge, 24" Range
Manual R-Axis 8" Range
8' Lower Die Holder
Electric Foot Switch
Palm Button Controls

NOTE:
Inspect In Plant Under Power
