Peddinghaus Ocean Avenger II 1000/B, 40" Max. Beam, 50' Table, Siemens CNC, 2008 #43372

Stock

43372

Model

1000/1B

Dealer Location

New York

Spec Sheet

Reference #43372
Peddinghaus Ocean Avenger II 1000-1B CNC Beam Drill

FEATURES:

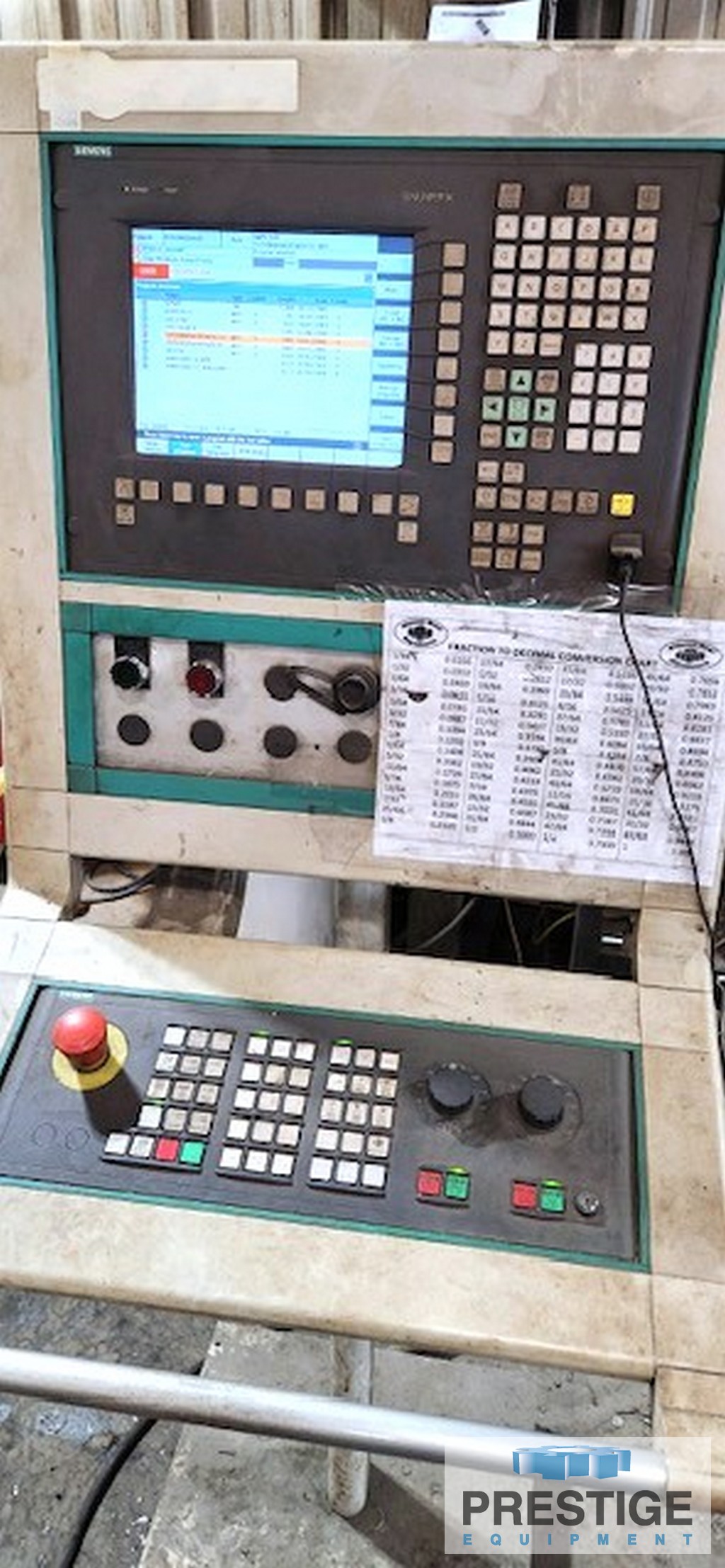

Siemens CNC Control
50' Fixed Beam Table

CAPACITY:
Maximum Beam Size (Up To 730 lbs/ft) .. 50' x 40"
Min. Drill Diameter ................... 1/4"
Max. Drill Diameter ................... 2"
Max. Plate Thickness .................. 10"
Max. Speed X-Axis ..................... 120 FPM
Max. Speed Y-Axis ..................... 120 FPM
Spindle Motor ......................... 13.5 H.P.
Drilling Feed Rate .................... 2" - 10 IPM
Spindle Stroke ........................ 13"
Spindle Speeds ........................ 200 - 850 RPM

EQUIPPED WITH:
Siemens CNC Control
Coolant
50' Fixed Beam Table

NOTE:
Inspect In Plant Under Power

No Video Available
