HURCO VERTICAL MACHINING CENTER MODEL: VMX-64/40T, NEW: 2006

Manufacturer

HURCO

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

69017

Model

VMX64/40T

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

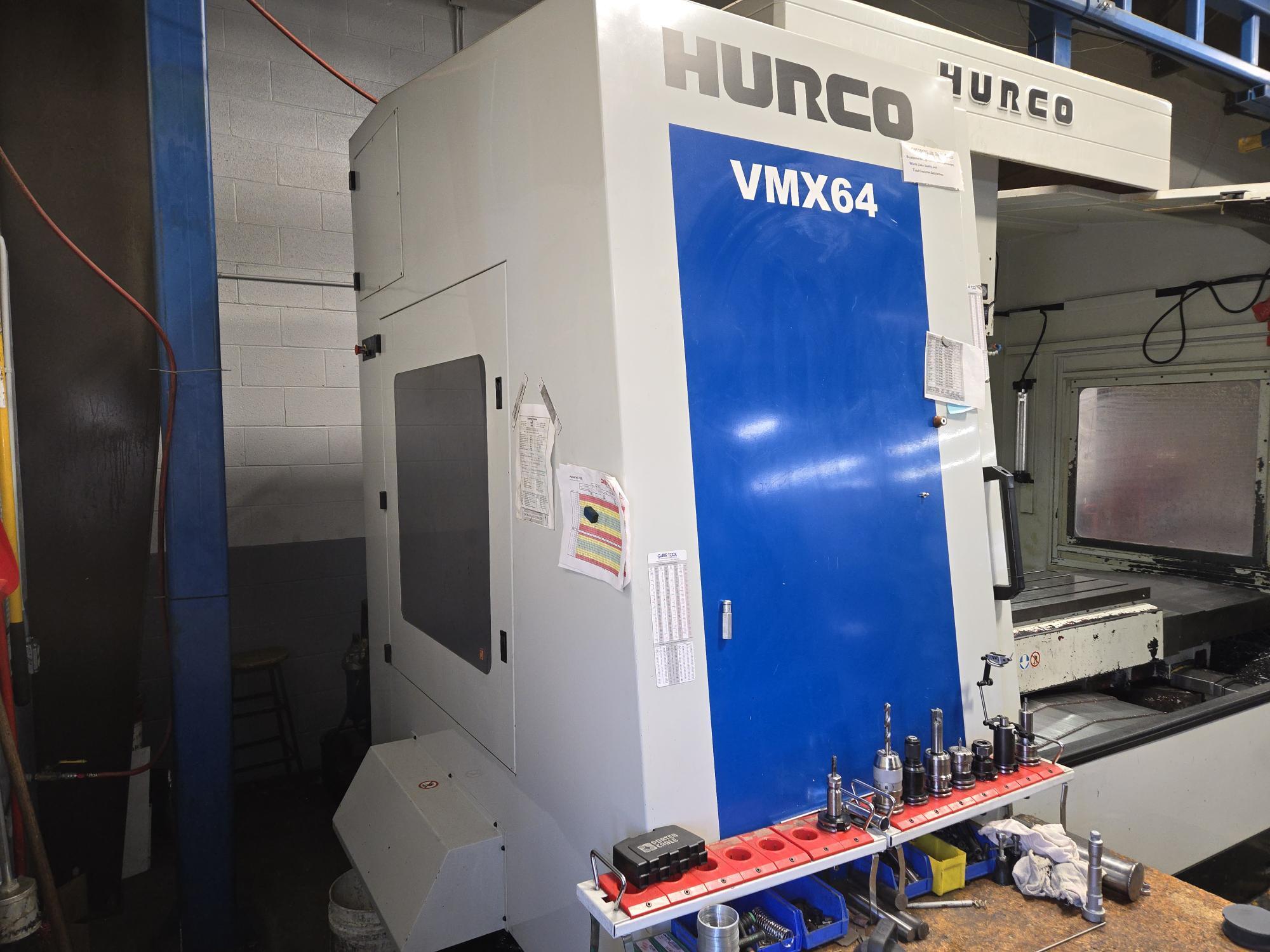

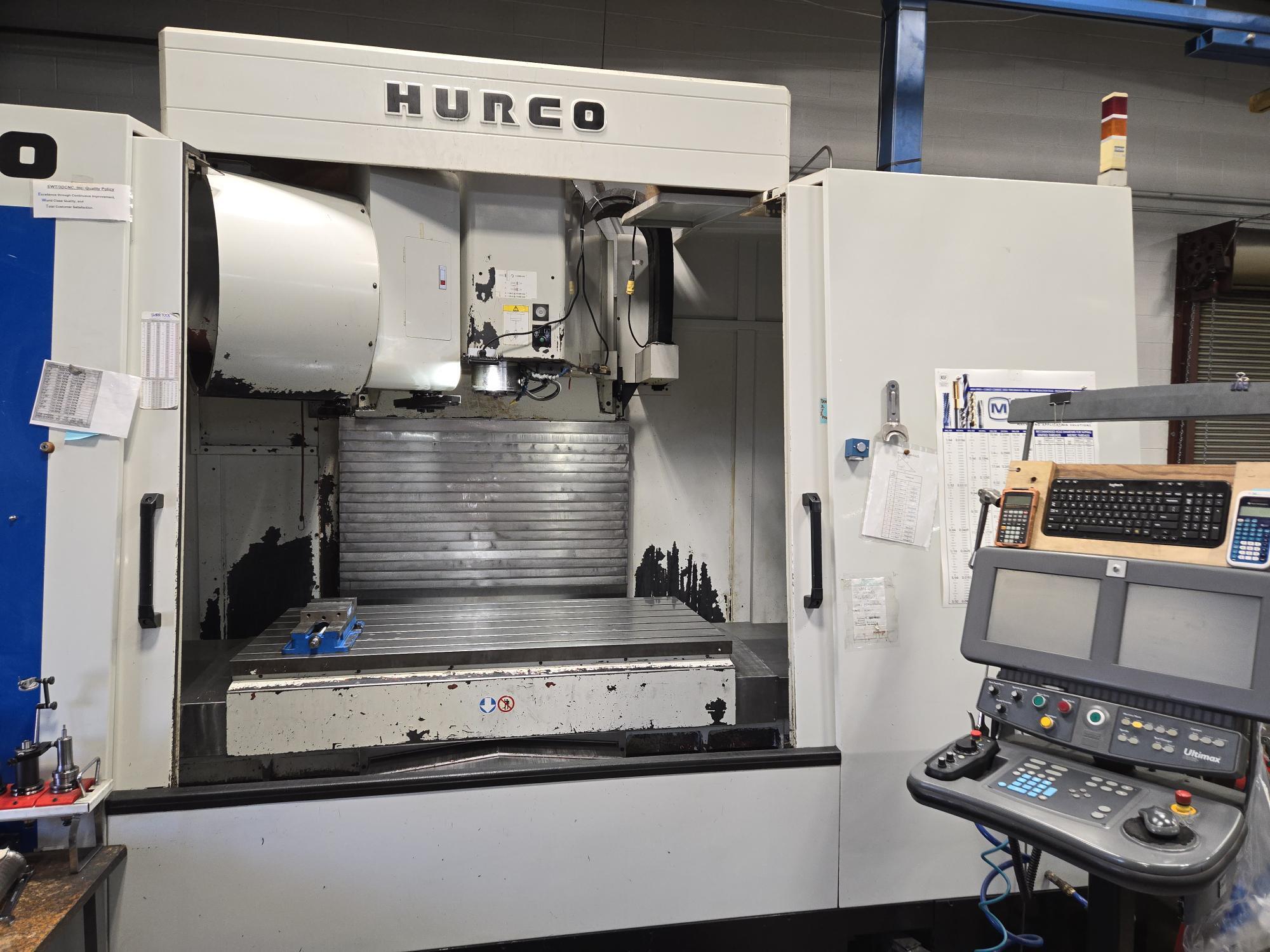

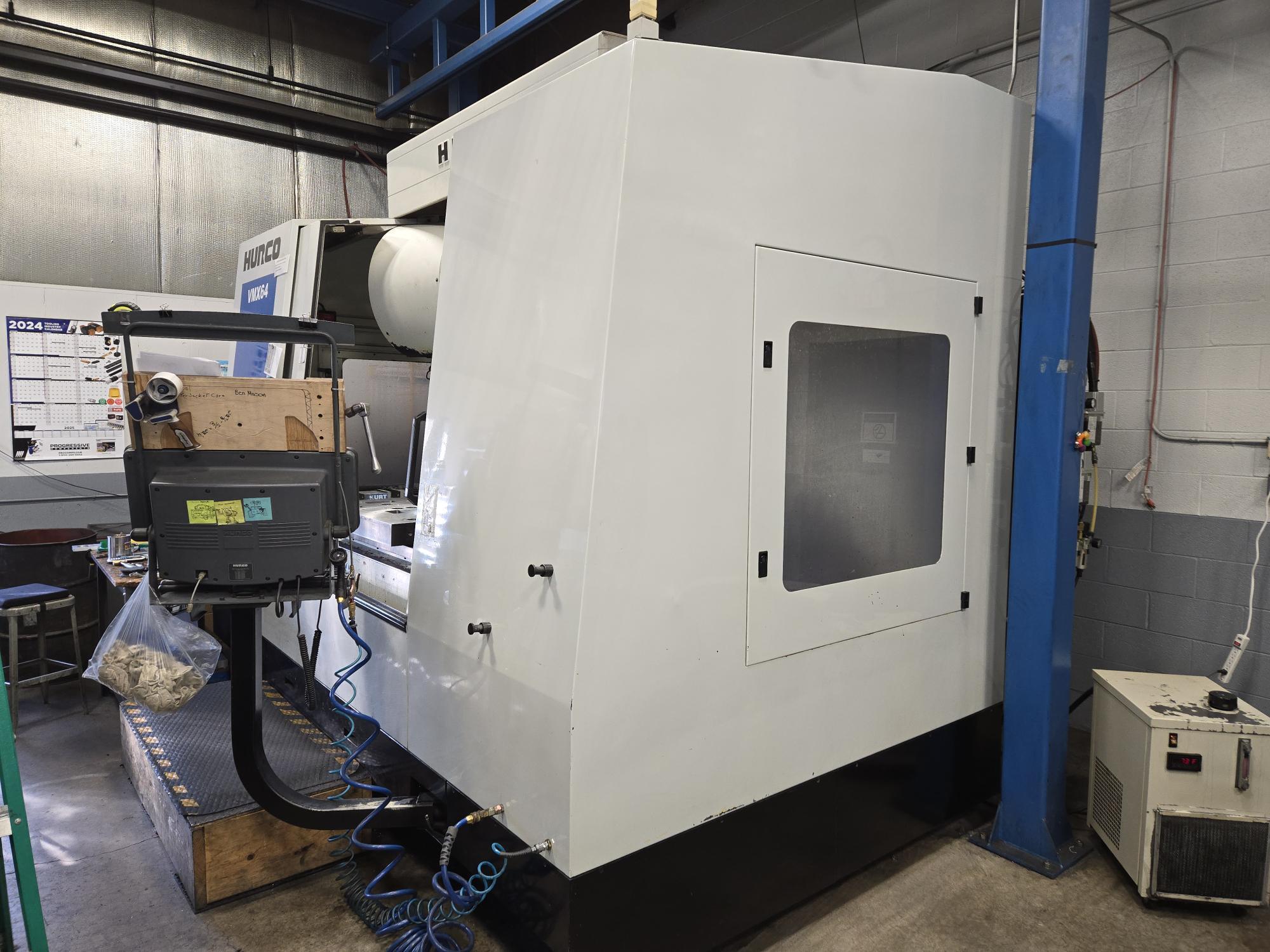

HURCO VERTICAL MACHINING CENTER
MODEL: VMX-64/40T, NEW: 2006

SPECIFICATIONS:
TABLE WORKING SURFACE ................. 35" x 66" / 1,676 x 889mm
MAXIMUM WEIGHT ON TABLE ............... 6,000 LBS.
TABLE TRAVEL, X-AXIS (LONGITUDINAL) ... 64" / 1,625mm
TABLE TRAVEL, Y-AXIS (CROSS) .......... 34" / 864mm
VERTICAL COLUMN TRAVEL (Z-AXIS) ....... 30" / 762mm
SPINDLE NOSE TO TABLE ................. 6" TO 36"
SPINDLE CENTER TO COLUMN .............. 38"
SPINDLE TAPER ......................... CAT 40
NUMBER OF TOOLS ....................... 24
SPINDLE SPEEDS, TWO RANGES ............ UP TO 10,000 R.P.M.
CUTTING FEED RATES, (X,Y, & Z AXES) ... 0.01 TO 530 I.P.M.
RAPID FEED RATE, (X & Y AXES) ......... 709 I.P.M.
RAPID FEED RATE (Z-AXIS) .............. 530 I.P.M.
APPROX SHIPPING DIMS .................. 175" x 114" x 131.9"
APPROX WEIGHT ......................... 30,000 Lbs.

EQUIPPED WITH:
- HURCO MODEL: ULTIMAX CONVERSATIONAL CONTROL
- DUAL ARM SIDE MOUNTED TOOL CHANGER (24) STATIONS
- AC SERVO MOTORS ON ALL AXES
- COOLANT THROUGH SPINDLE

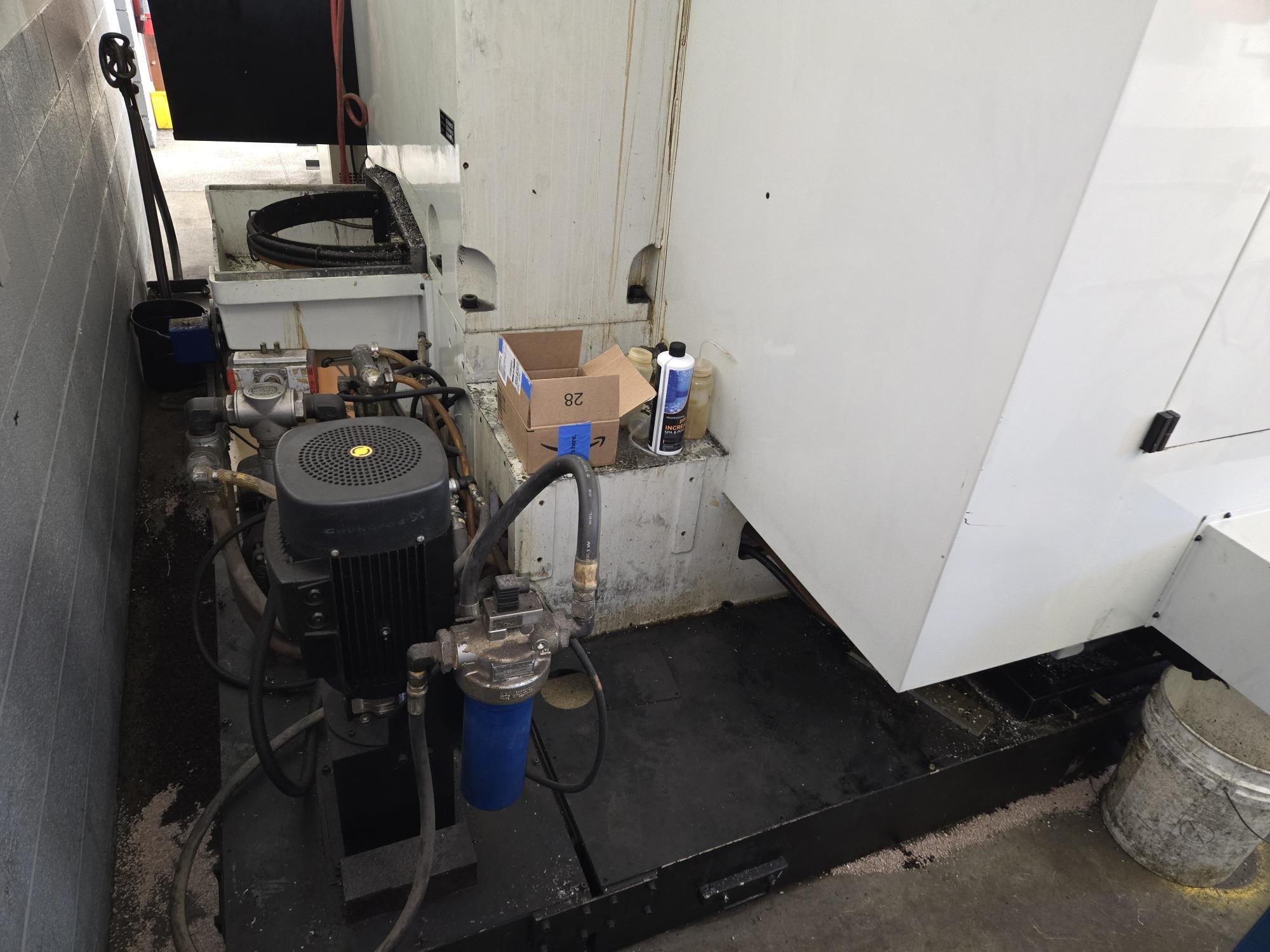

- COOLANT SYSTEM
- 24 HORSE POWER AC DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
