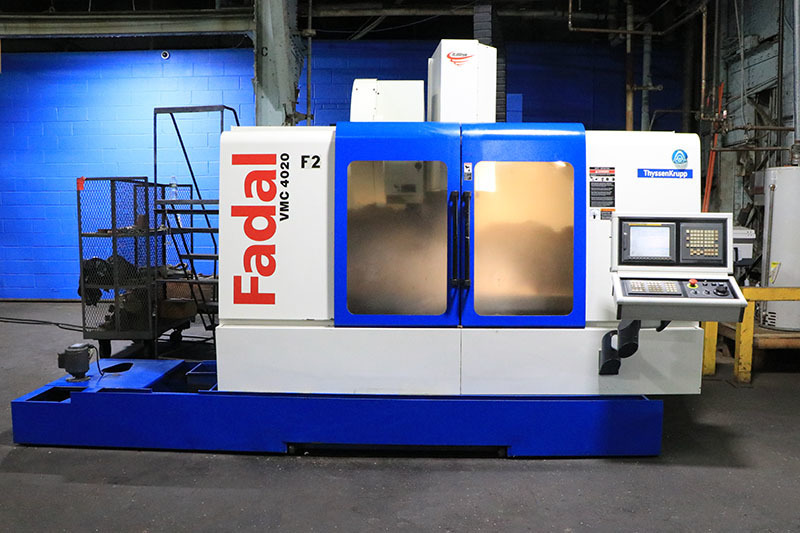

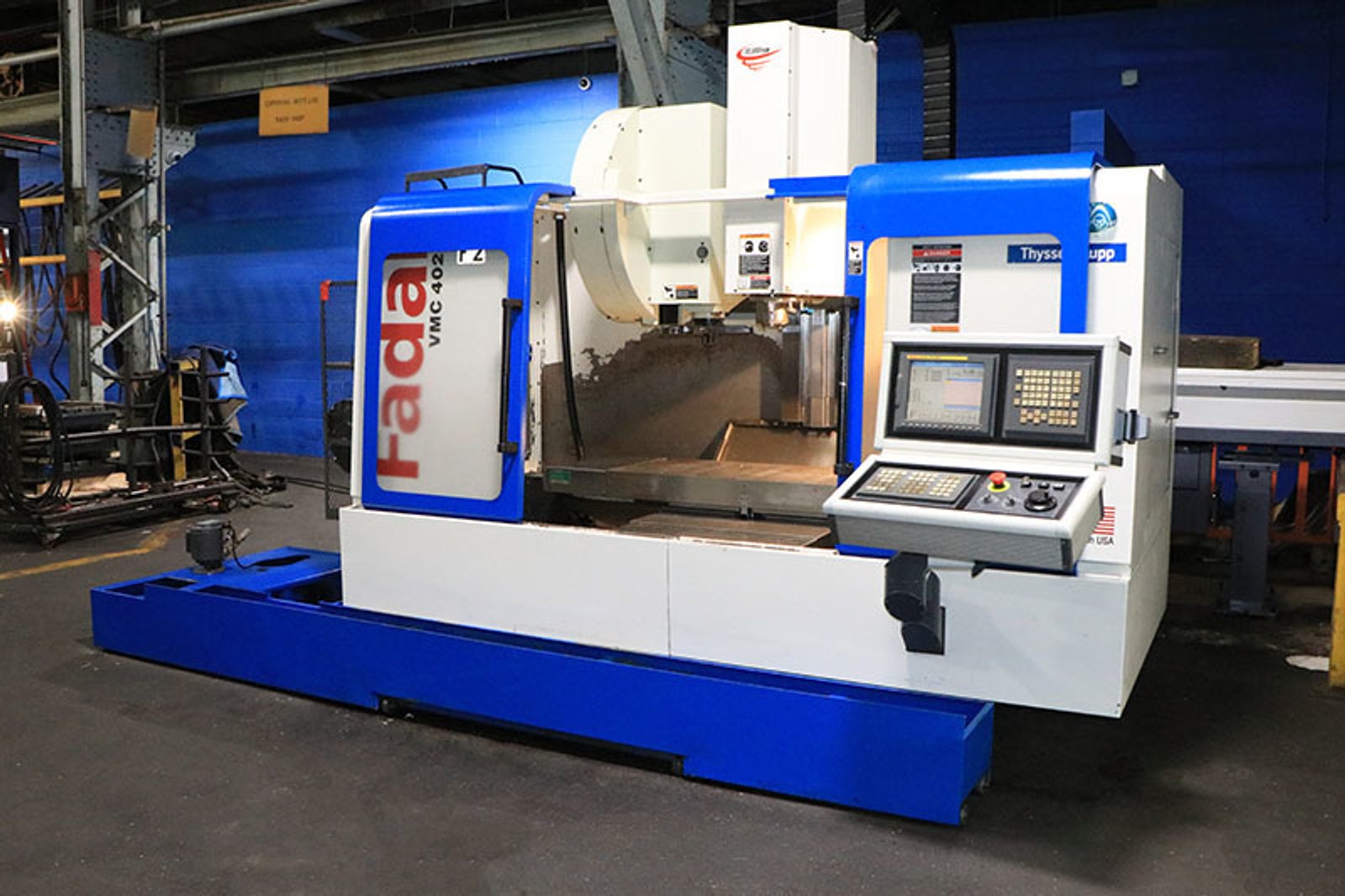

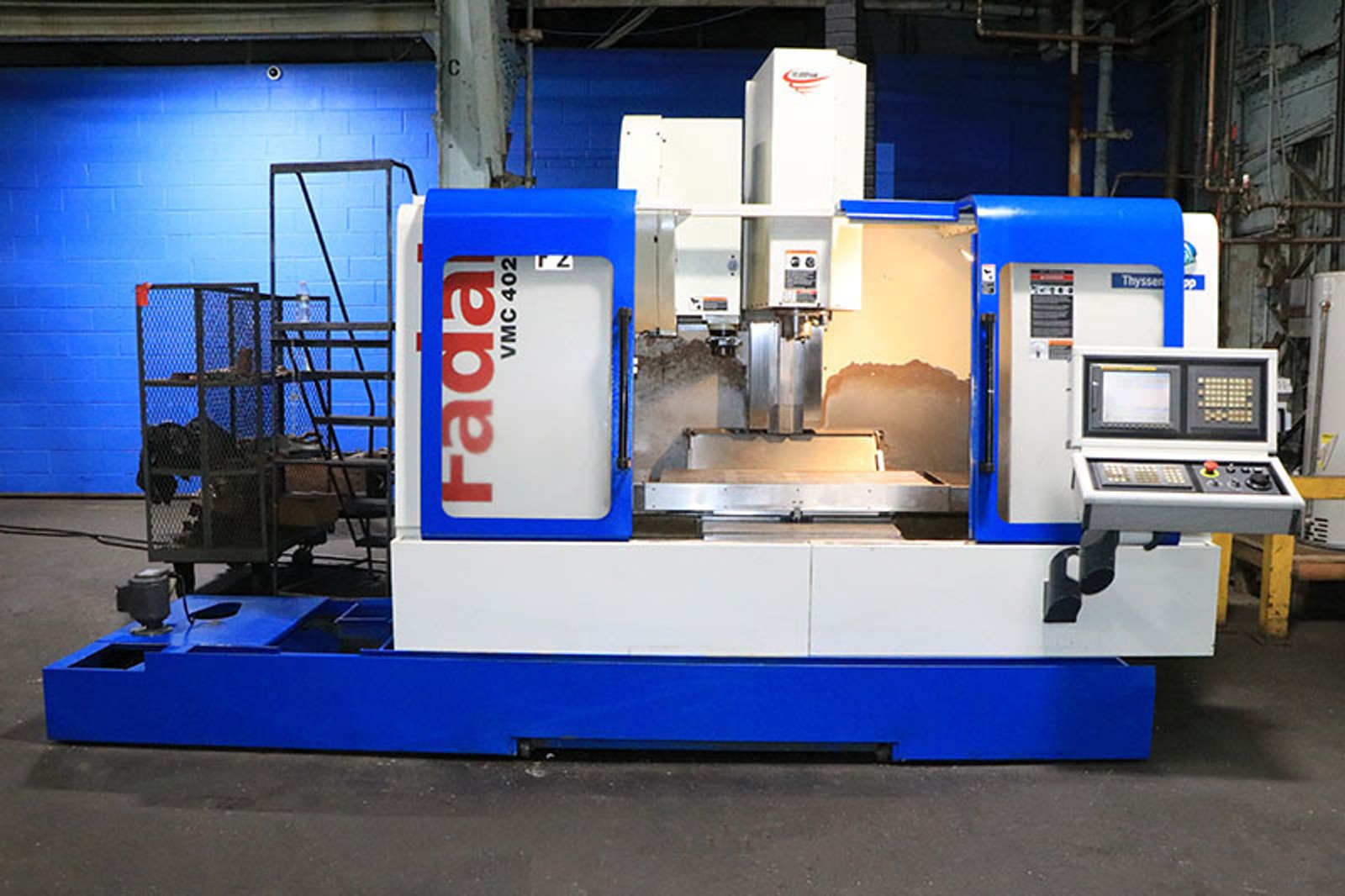

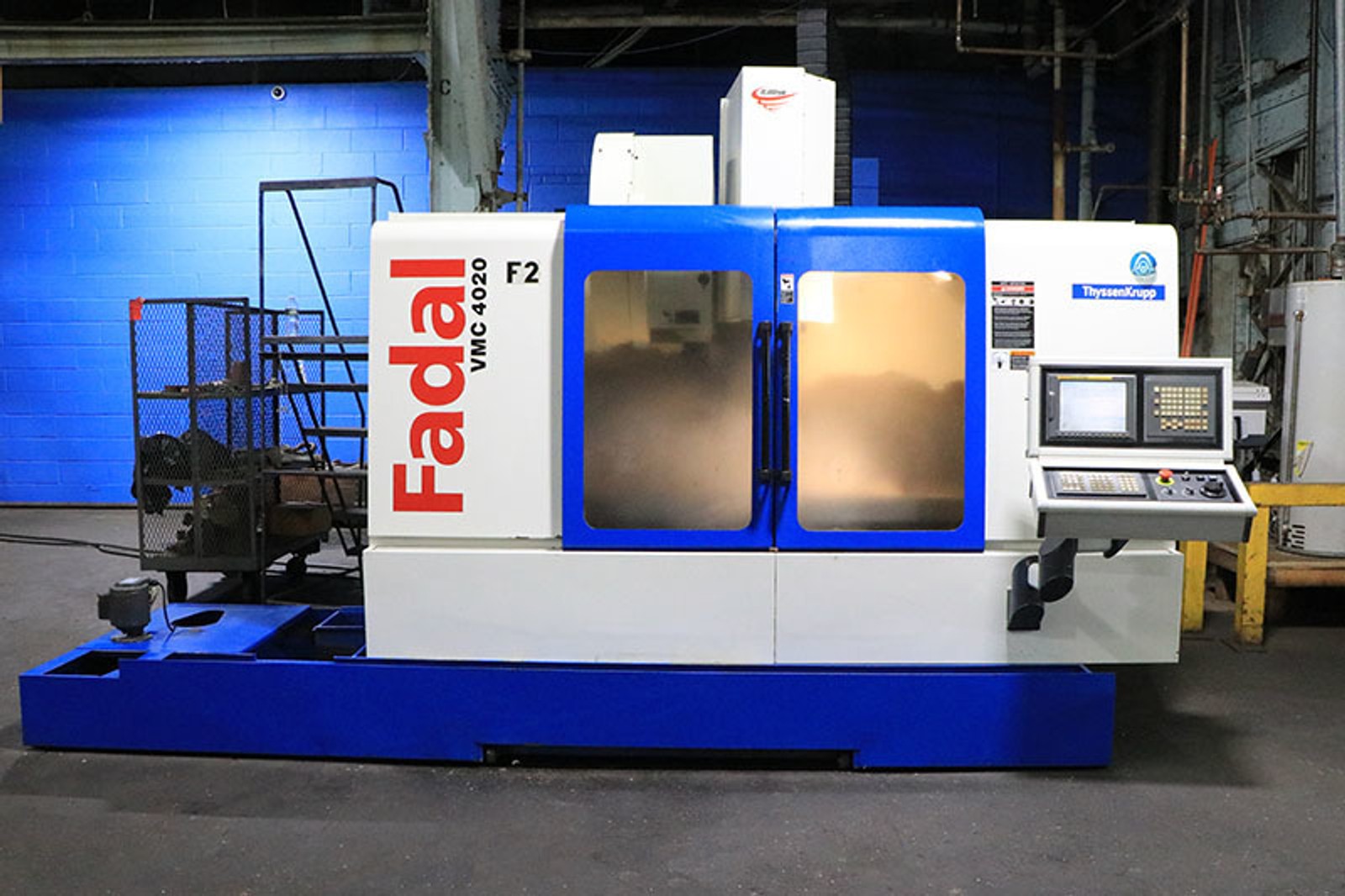

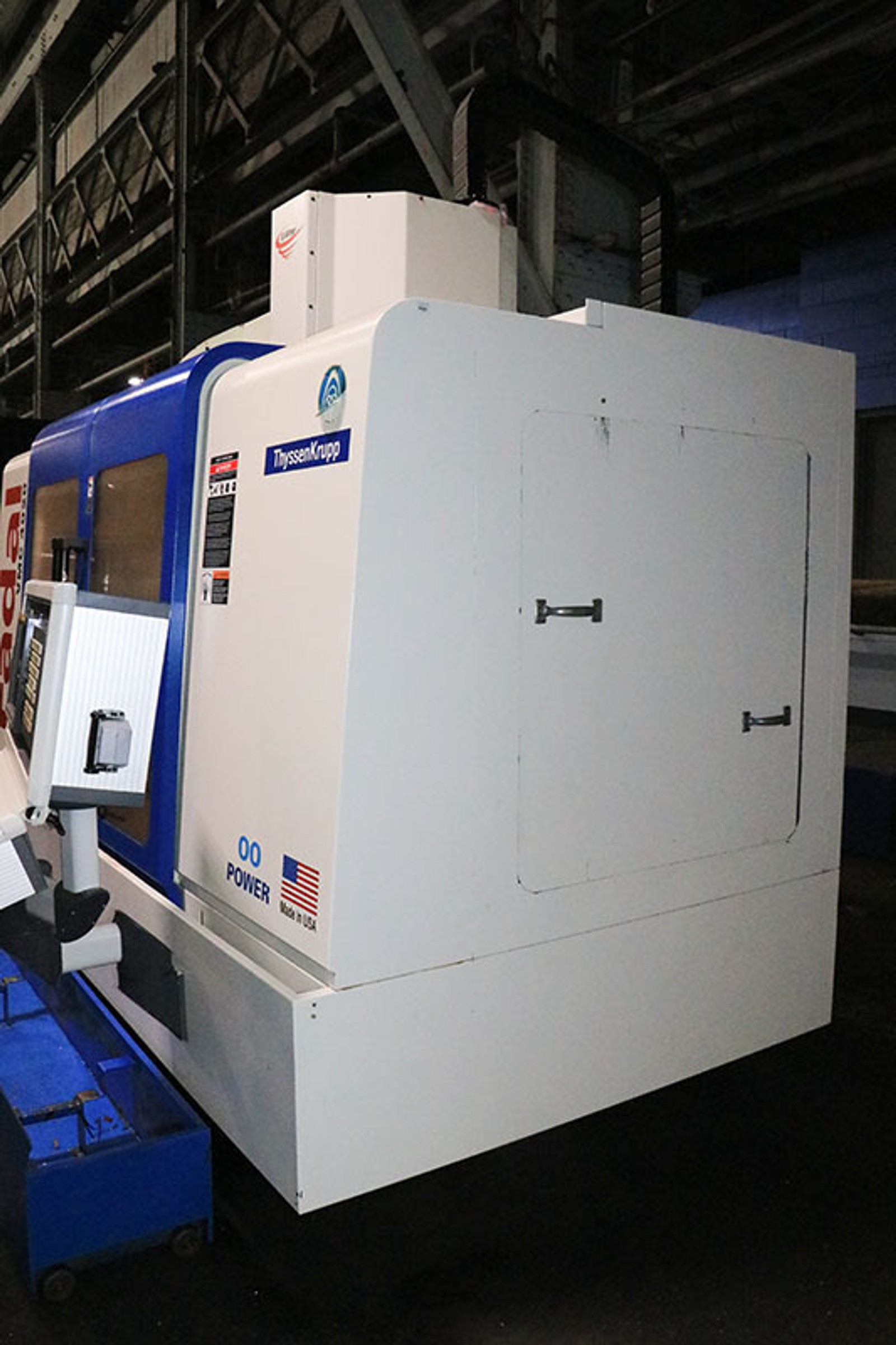

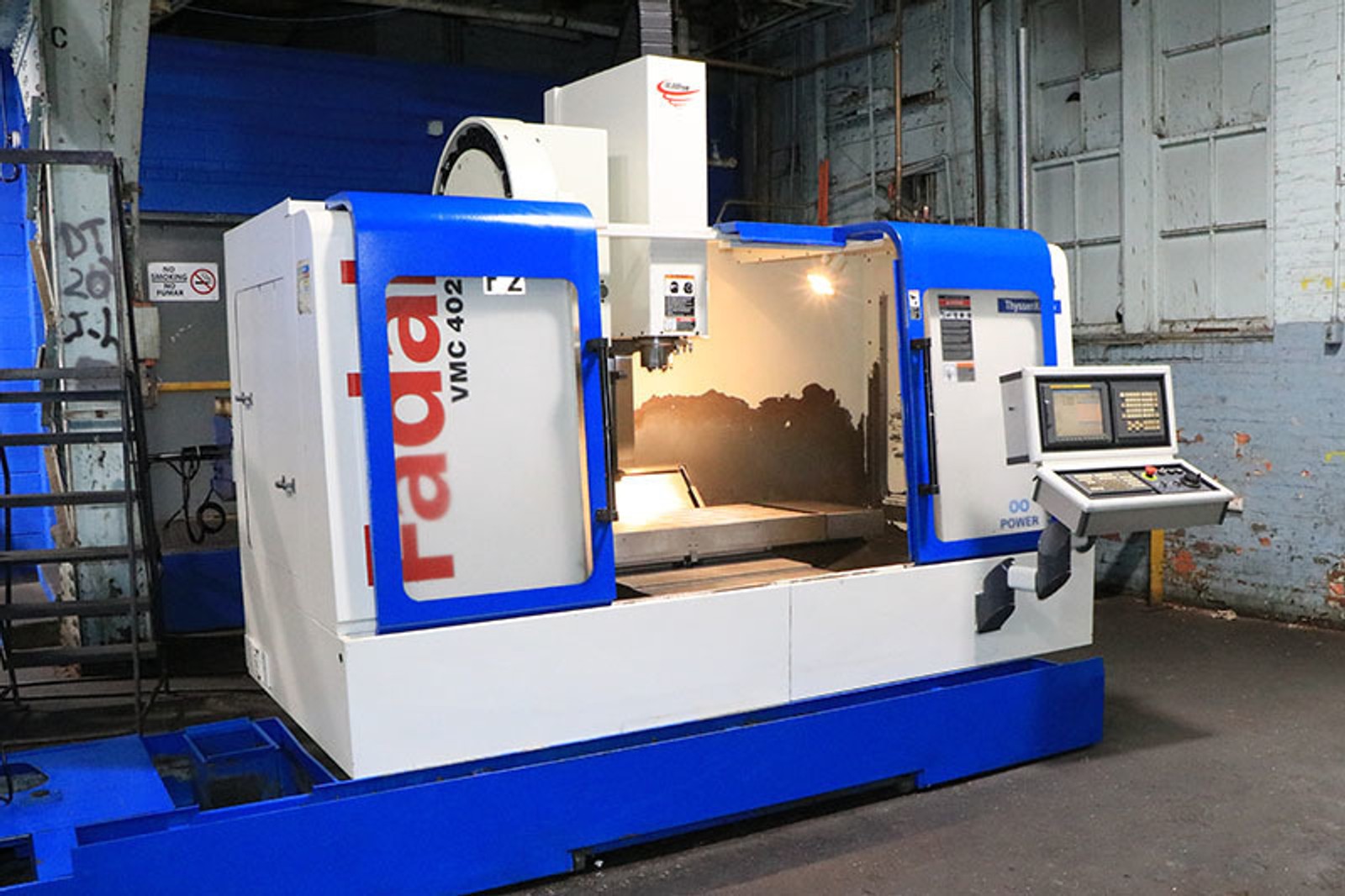

Fadal VMC 4020 HT CNC Vertical Machining Center, Fanuc control, 10,000 RPM - New: 2004

Manufacturer

FADAL

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

68945

Model

VMC-4020HT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Specifications

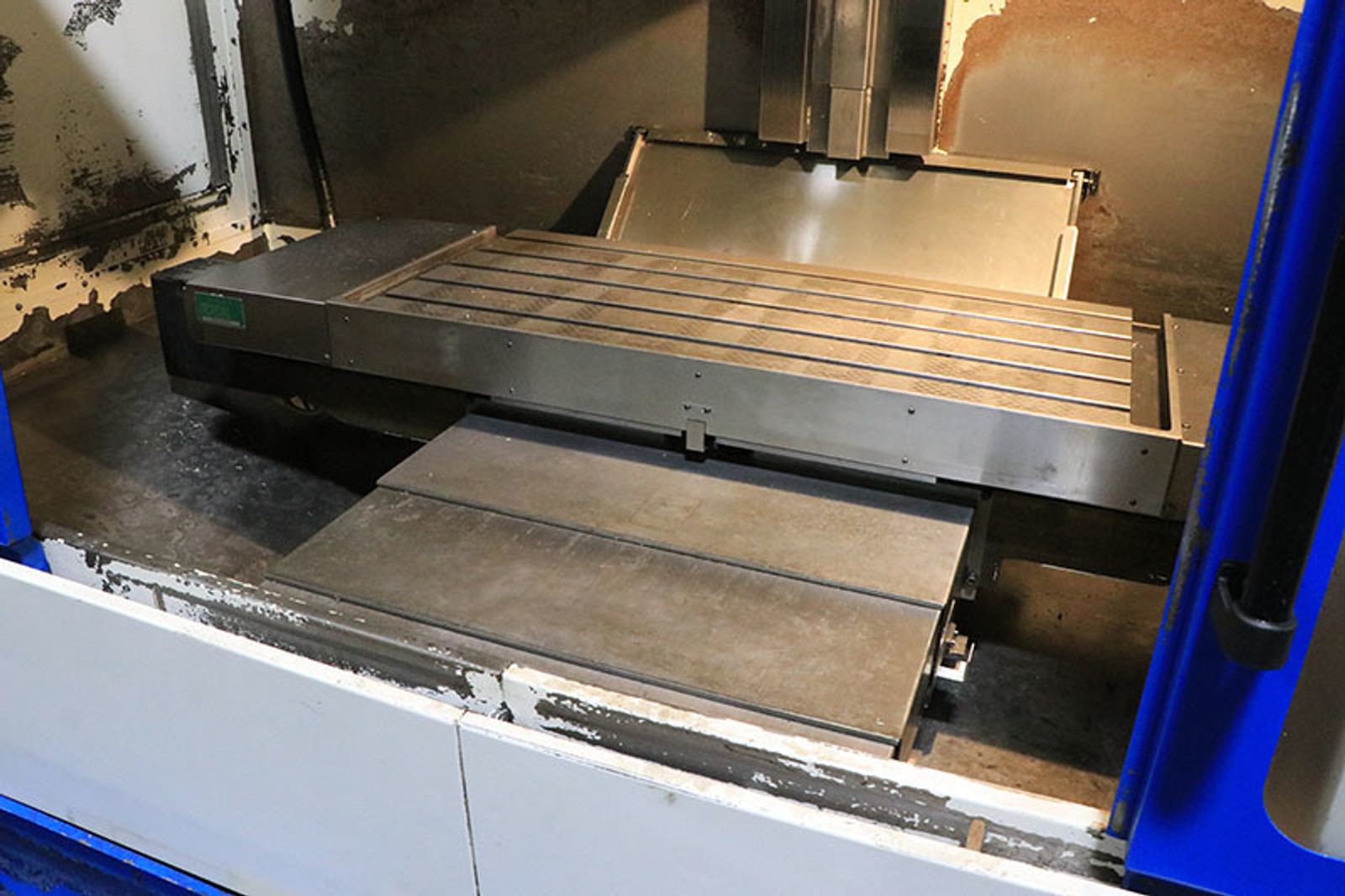

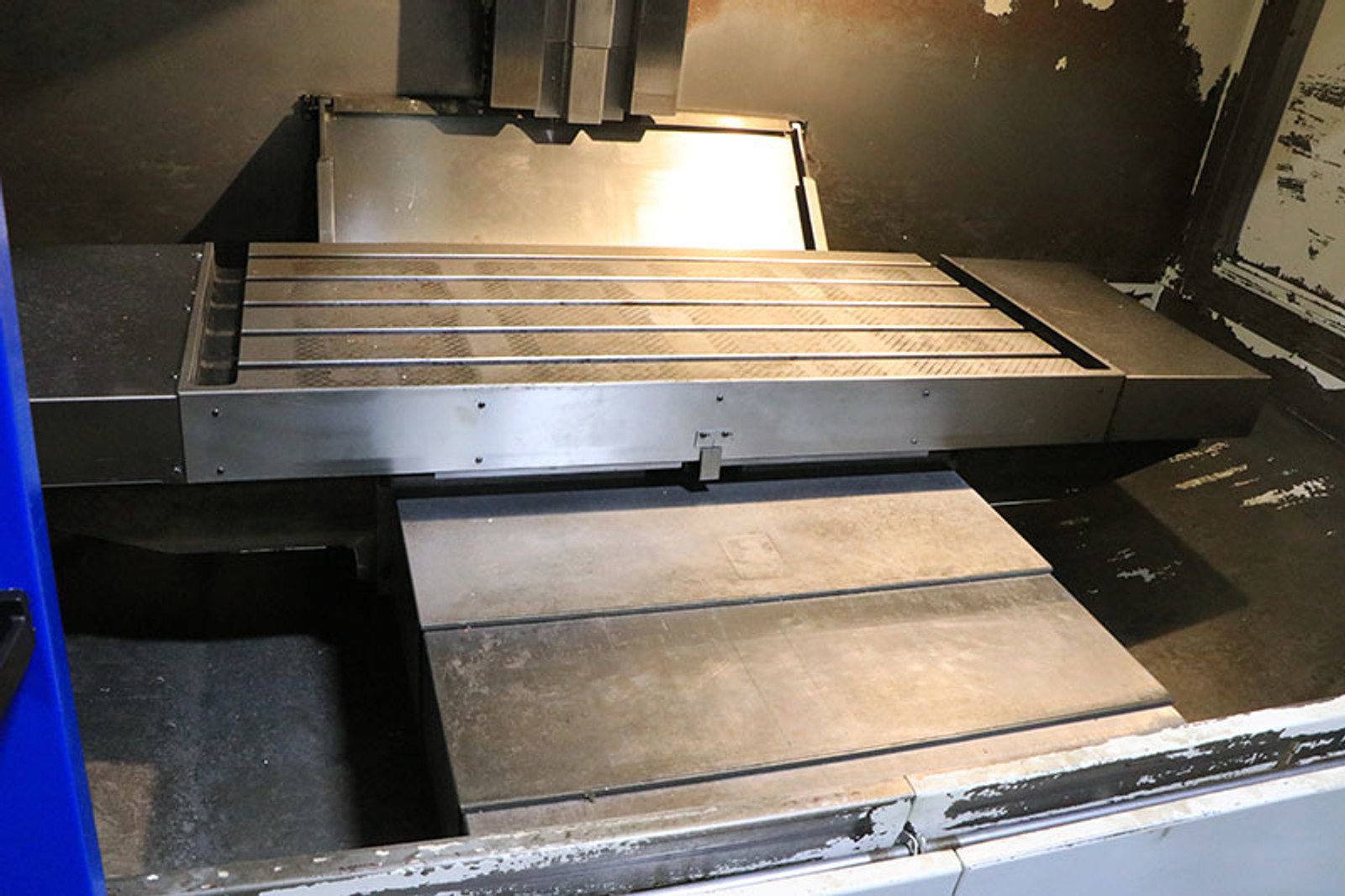

TABLE WORKING SURFACE ................. 20" X 48"
FLOOR TO TABLE SURFACE ................ 32"
T-SLOTS (# X WIDTH X SPAN) ............ 5 X .709" X 3.75"
MAXIMUM WEIGHT ON TABLE ............... 3,641 LBS.
TABLE TRAVEL, X-AXIS (LONGITUDINAL) ... 40"
TABLE TRAVEL, Y-AXIS (CROSS) .......... 20"
VERTICAL COLUMN TRAVEL (Z-AXIS) ....... 20"
MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 4"/24"

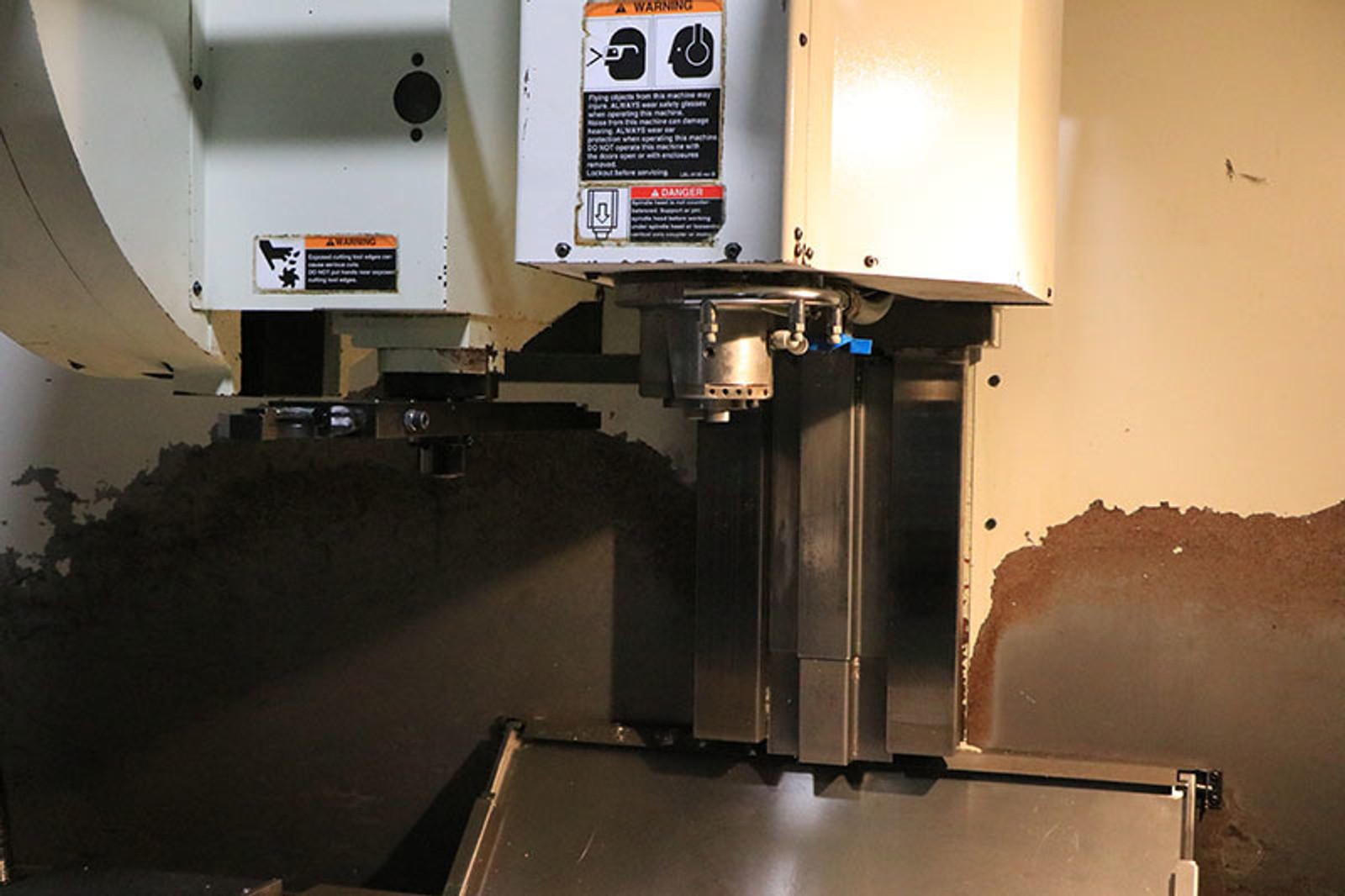

SPINDLE TAPER ......................... CAT 40
NUMBER OF TOOLS ....................... 30
SPINDLE SPEEDS, TWO GEARED RANGES ..... 10 TO 10,000 R.P.M.
SPINDLE CENTER TO COLUMN WAYS ......... 20"
SPINDLE TORQUE ........................ 169 FT./LBS.
CUTTING FEED RATES, (X,Y, & Z AXES) ... 0.01 TO 400 I.P.M.
RAPID FEED RATE, (X & Y AXES) ......... 900 I.P.M.
RAPID FEED RATE (Z-AXIS) .............. 600 I.P.M.
MAXIMUM TOOL DIAMETER ................. 3"
...W/O ADJACENT TOOLS ................. 6"
MAXIMUM TOOL LENGTH ................... 15"
MAXIMUM TOOL WEIGHT ................... 15 LBS.
APPROX DIMS ........................... 117" x 94" x 100"
APPROX WEIGHT ......................... 11,000 Lbs.

Equipped With
EQUIPPED WITH:

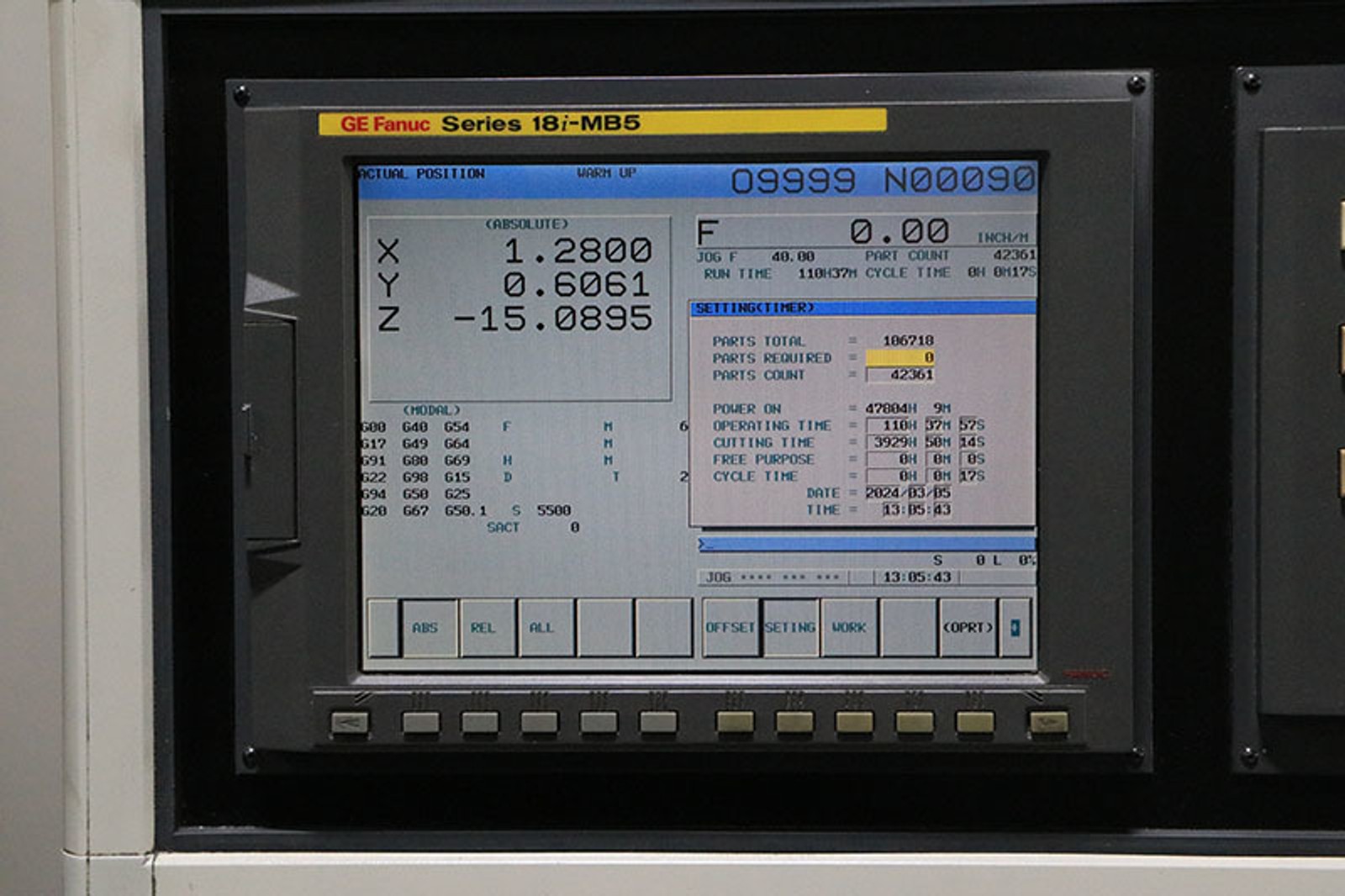

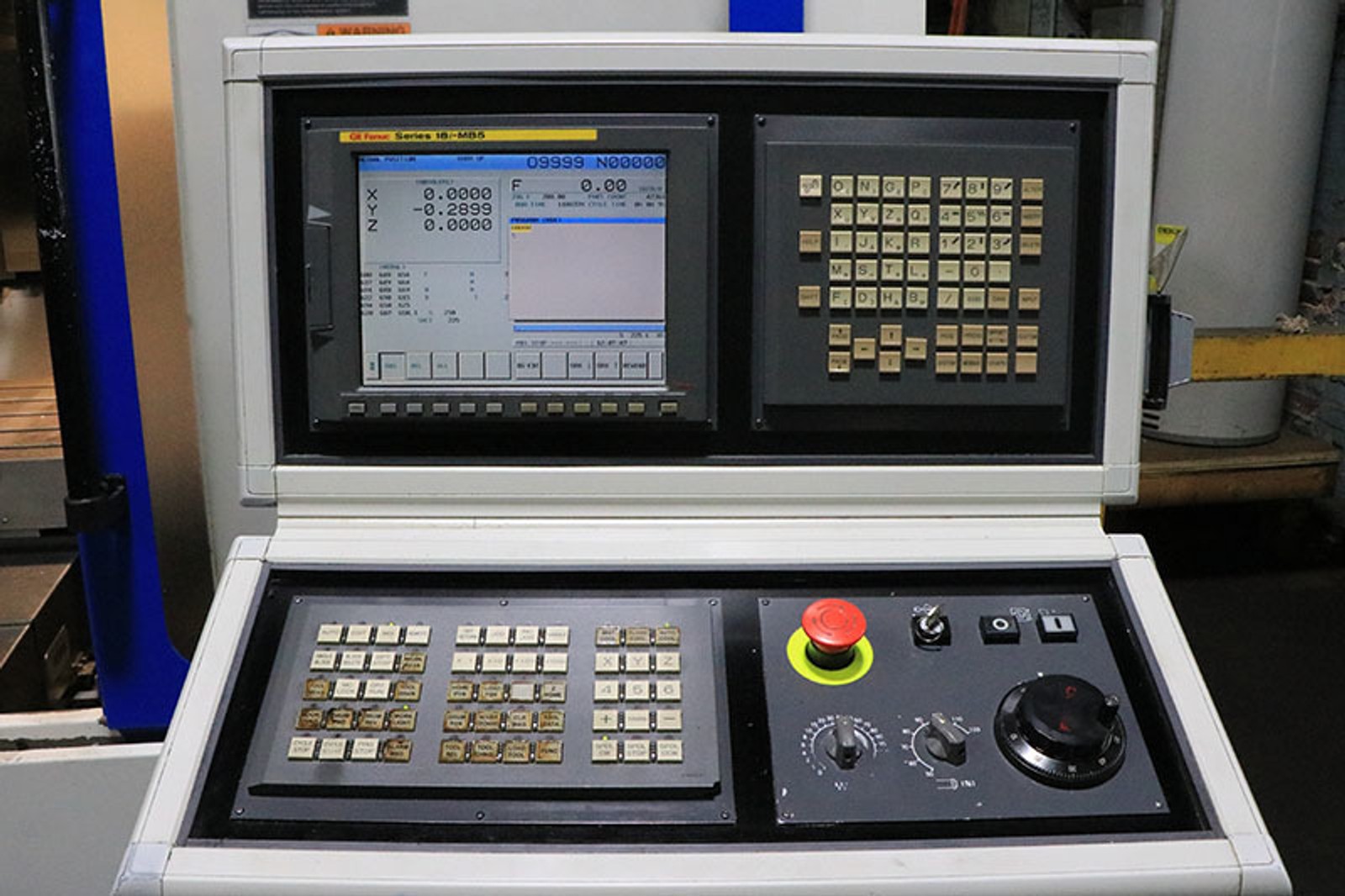

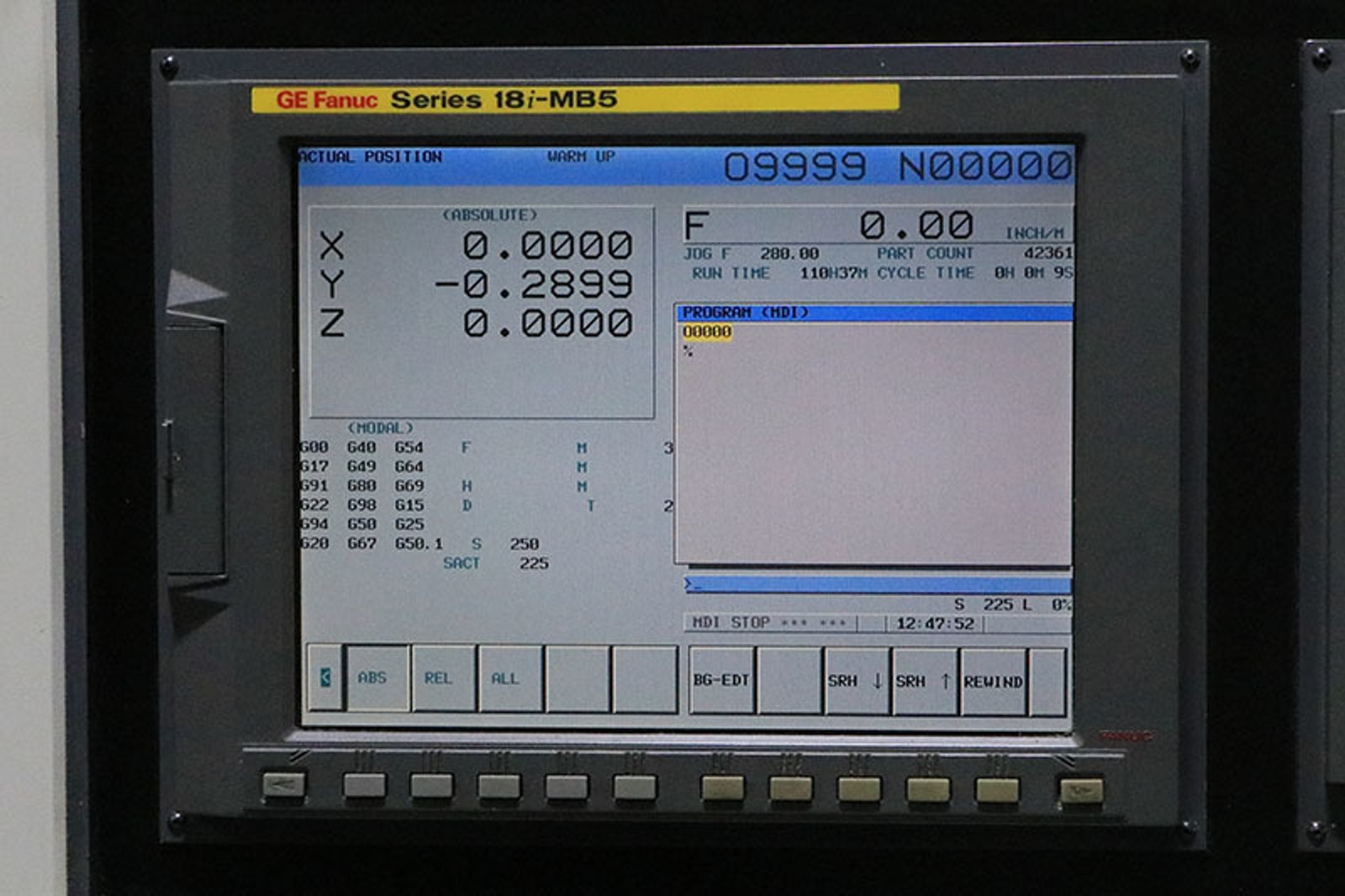

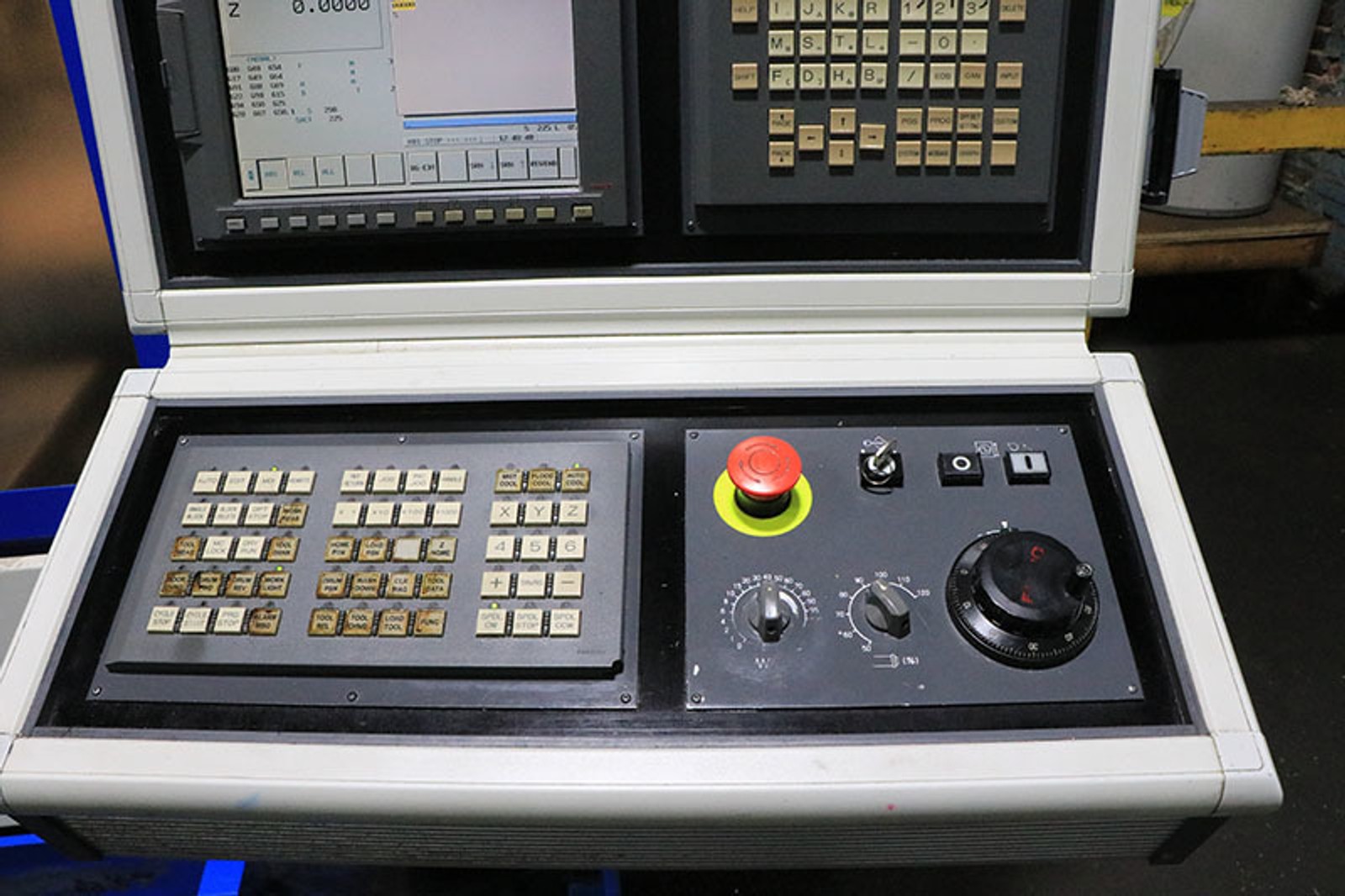

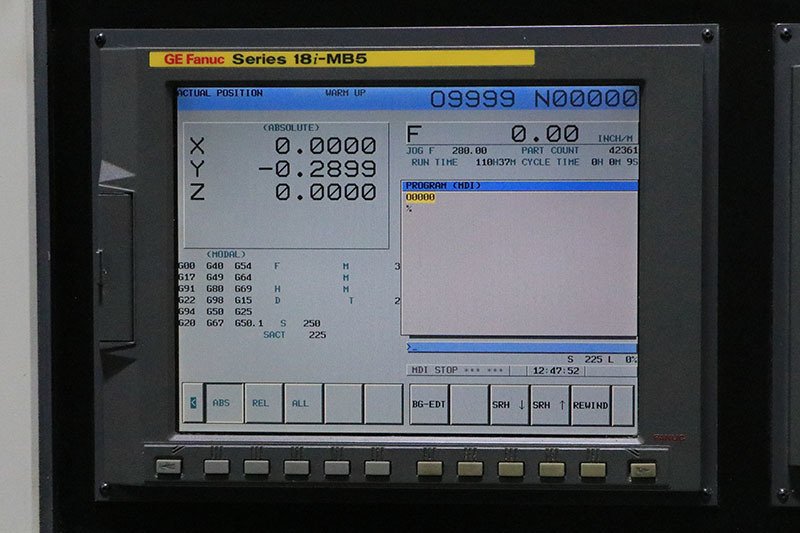

- FANUC MODEL: 18i-MB5 CNC CONTROL
HIGH SPEED CPU
- 10,000 R.P.M. HIGH TORQUE SPINDLE OPTION

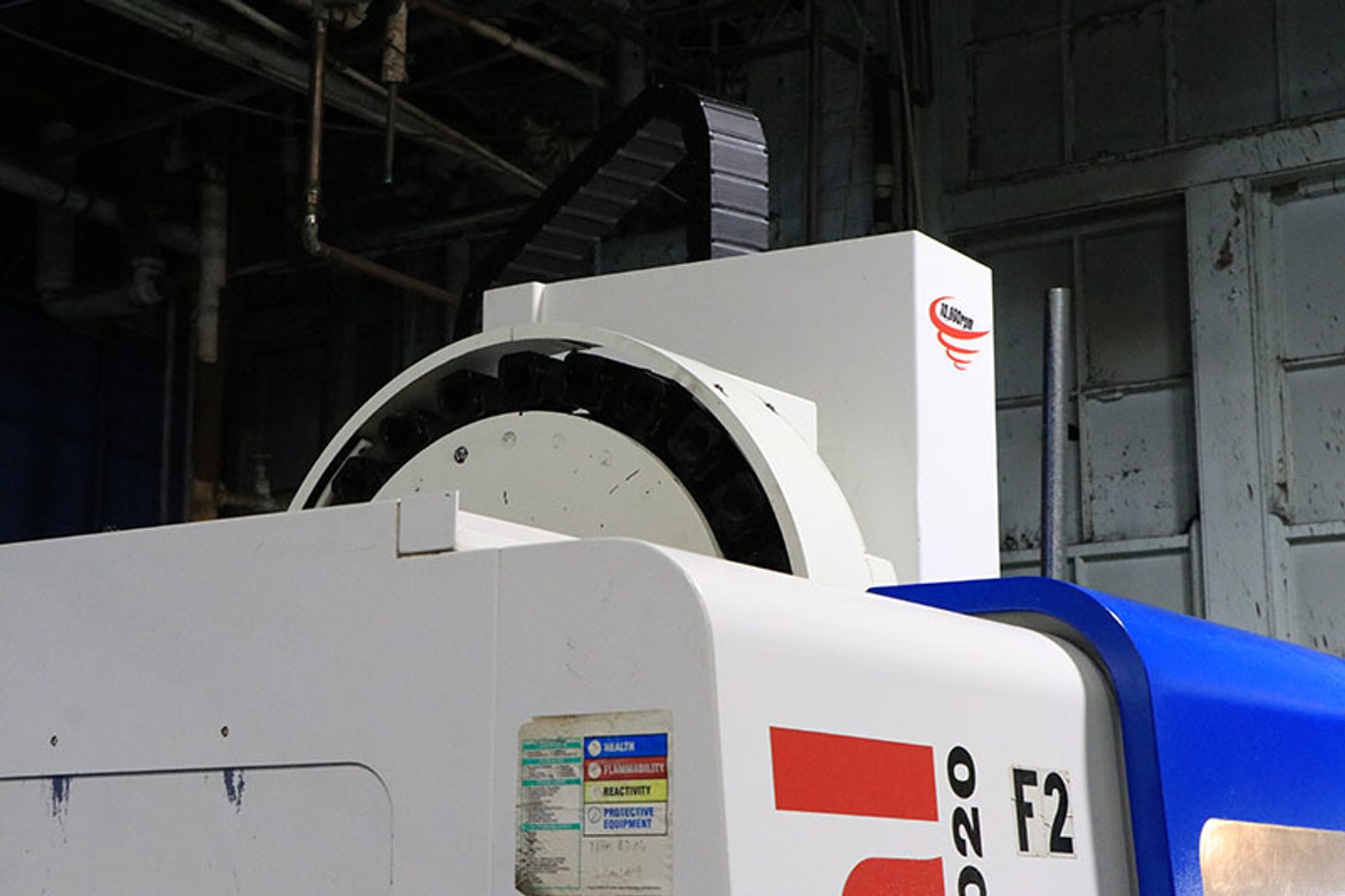

- AUTOMATIC TOOL CHANGER (24) STATIONS
- RIGID TAPPING
- BOX WAYS ON ALL AXES
- AC SERVO MOTORS ON ALL AXES

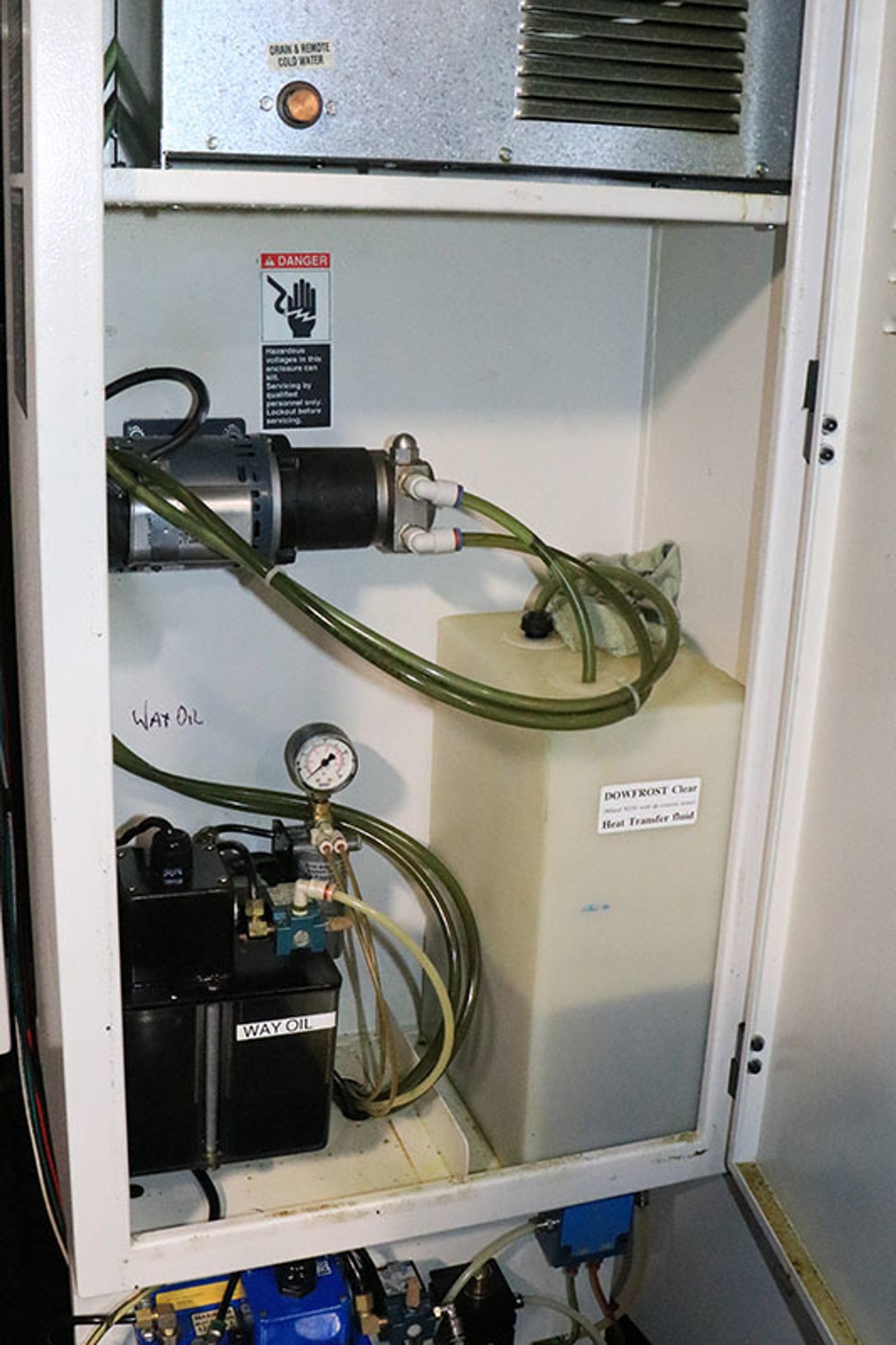

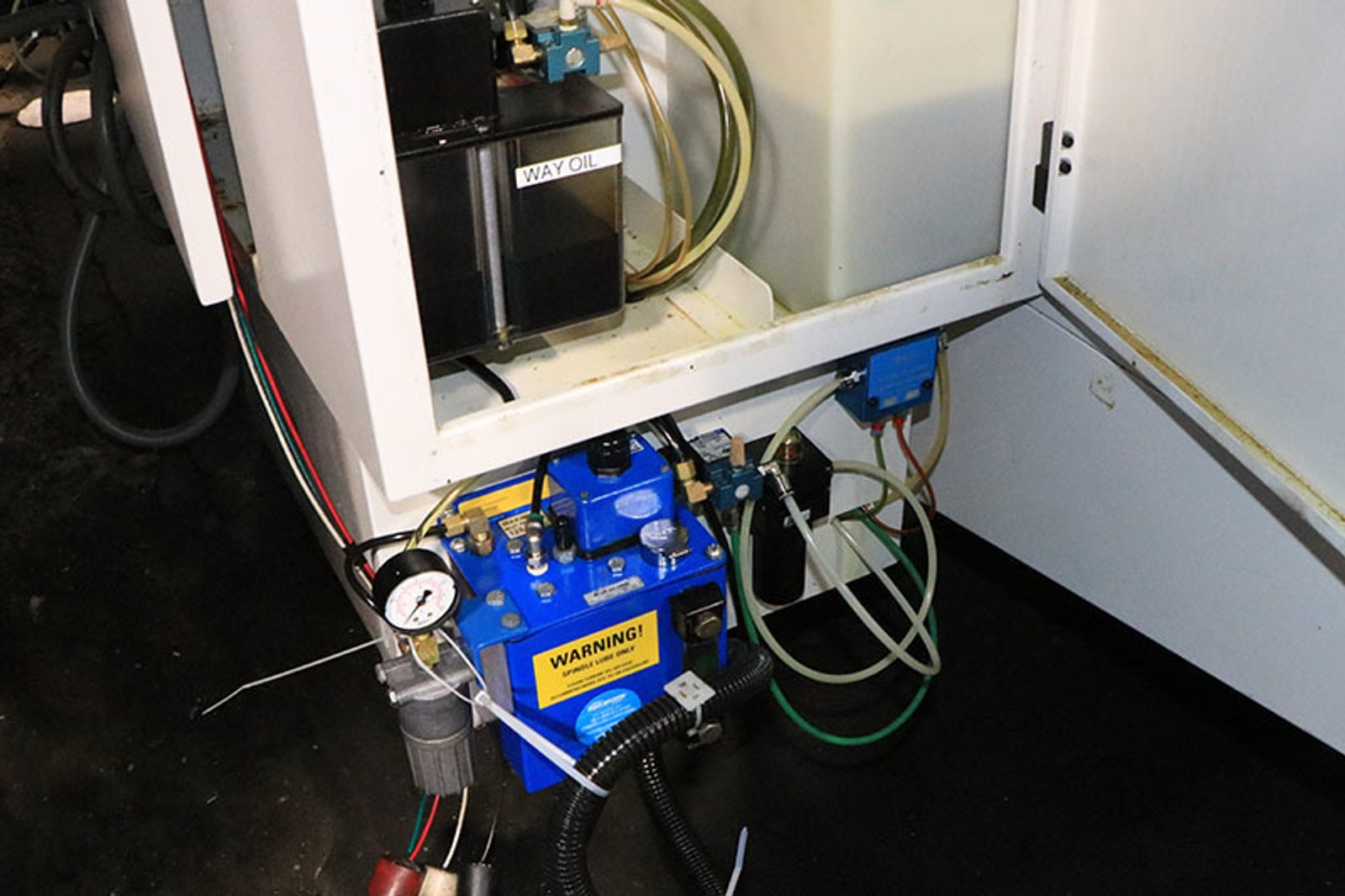

- BIJUR AUTOMATIC LUBRICATION SYSTEM

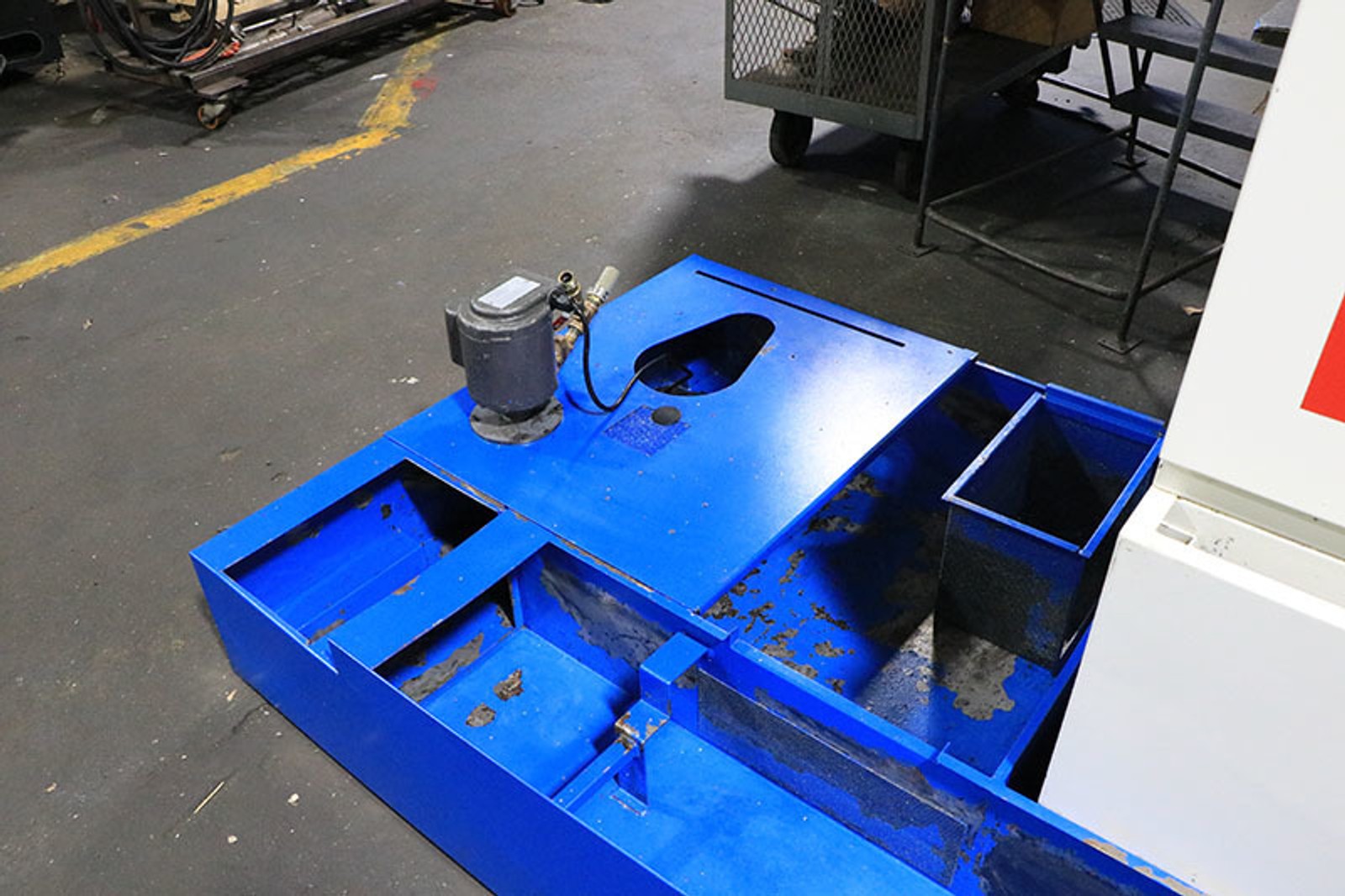

- EXTERNAL COOLANT PUMP AND TANK
- 24 HORSE POWER AC DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
