HARDINGE SUPER-PRECISON TOOLROOM LATHE MODEL: HLV-H, S/N: HLV-H-11102-T, NEW: 1985

Manufacturer

HARDINGE

Category

Lathes

Type

LATHES, PRECISION, JEWELERS, TOOLROOM, (Etc.)

Stock

69001

Model

HLV-H

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

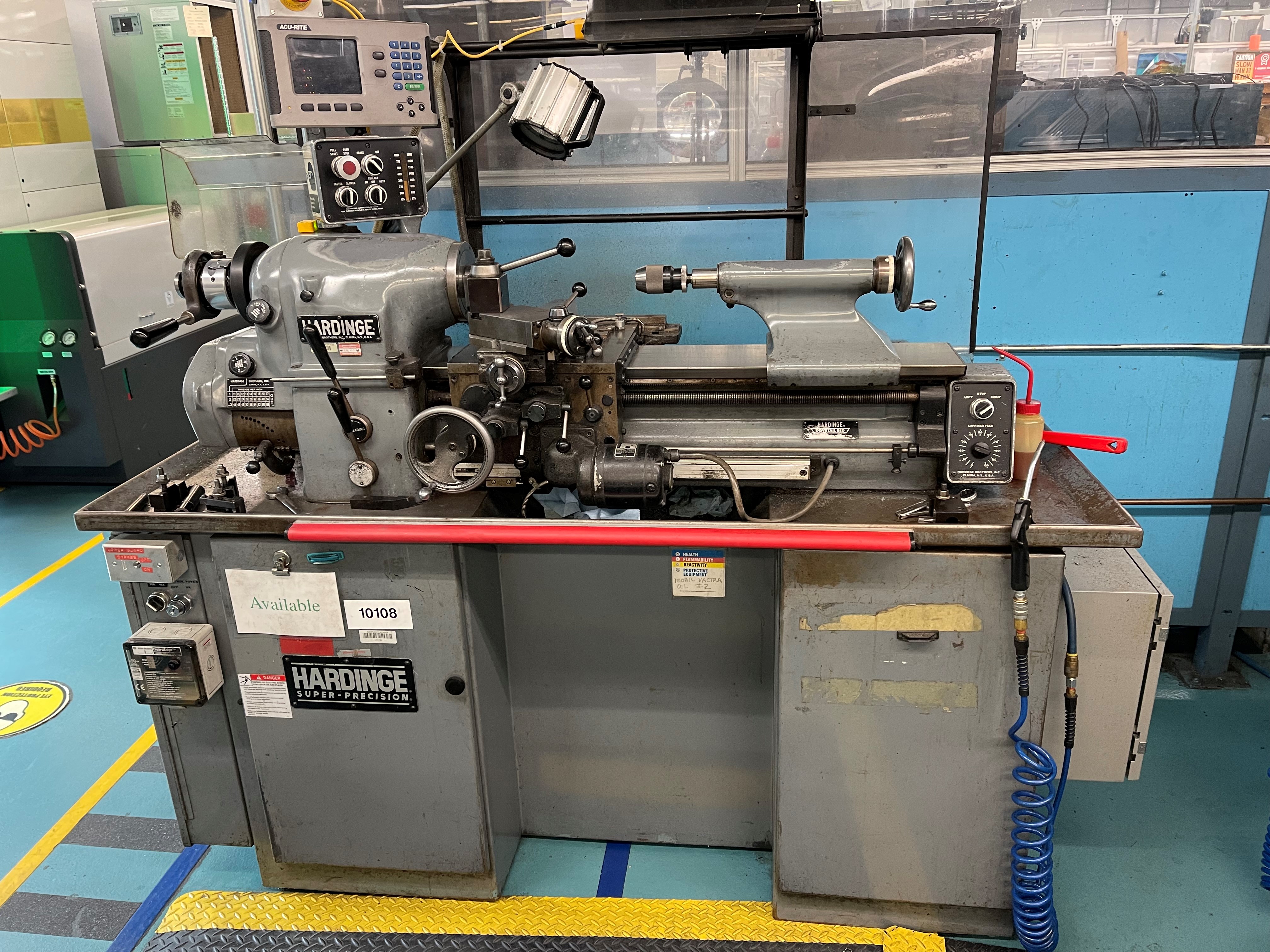

HARDINGE SUPER-PRECISON TOOLROOM LATHE

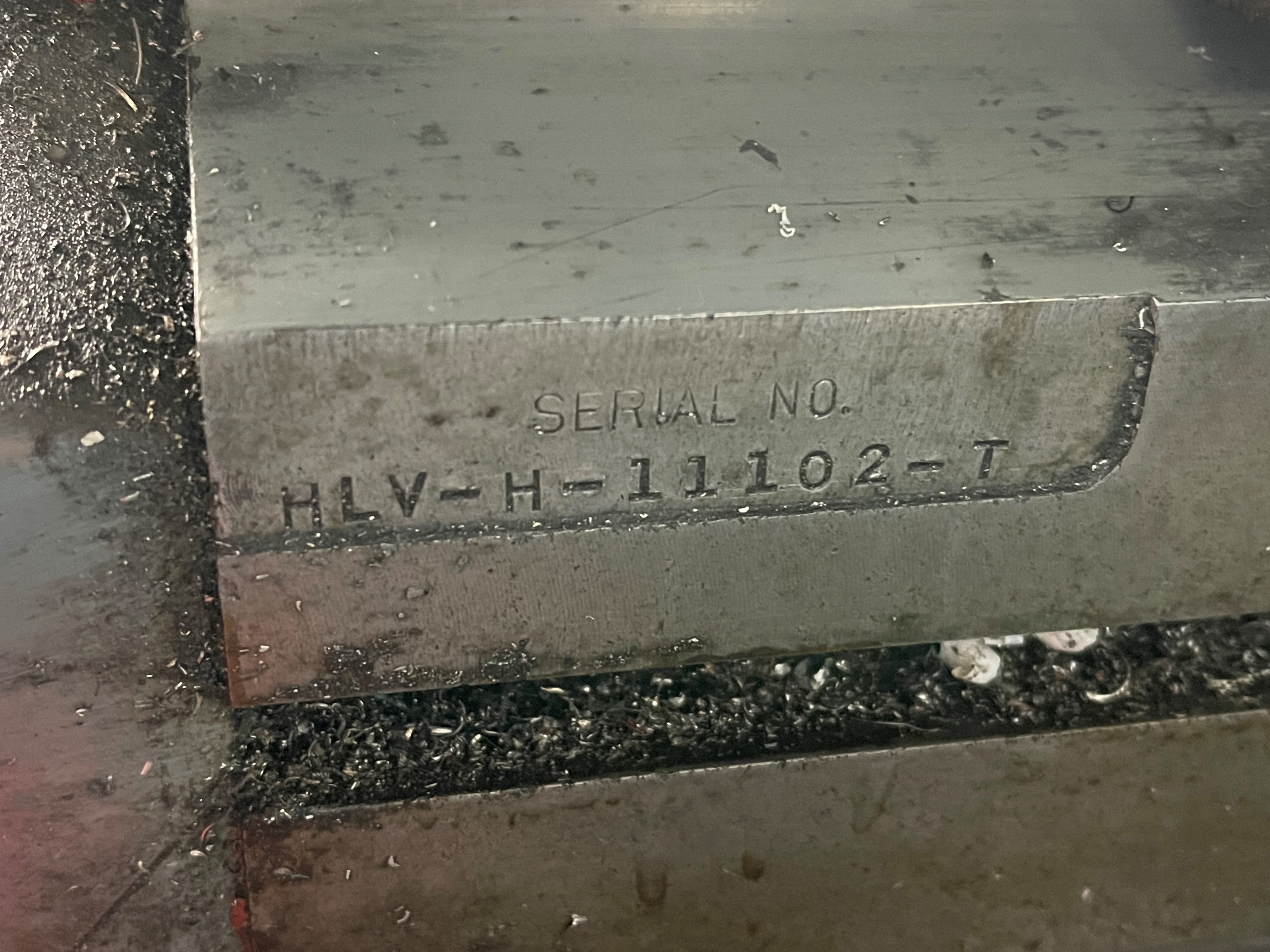

MODEL: HLV-H, S/N: HLV-H-11102-T, NEW: 1985

SPECIFICATIONS:
SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION
PRELOADED BALL BEARING
SPINDLE NOSE ..................... HARDINGE TAPERED
INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"
SPINDLE CAPACITY:
w/ROUND 5C COLLETS ........... 1-1/6
w/HEXAGON 5C COLLETS ......... 7/8"
w/SQUARE 5C COLLETS .......... 3/4"
w/STEP CHUCKS ................ 1-1/16" TO 6"
w/JAW CHUCKS ................. 5"
w/EXPANDING COLLETS .......... 3"
SWING OVER BED ................... 11"
SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"
COMPOUND SLIDE TRAVEL ............ 3"
CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM
TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE .................. 11" TO 108" TPI
APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"
APPROX. WEIGHT ................... 1,700 LBS.

EQUIPPED WITH:
- ACU-RITE TWO AXIS DIGITAL READOUT
- HARDINGE LEVER TYPE 5C-COLLET CLOSER
- TAPER TURNING ATTACHMENT
- 5" 3-JAW HARDINGE CHUCK
- QUICK CHANGE TOOLPOST
- ALBRECHT DRILL CHUCK FOR TAILSTOCK
- HALOGEN WORKLIGHT
- COOLANT SYSTEM
- MISCELLENEOUS 5C COLLETS
- 1.5 HORSE POWER TWO SPEED MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
