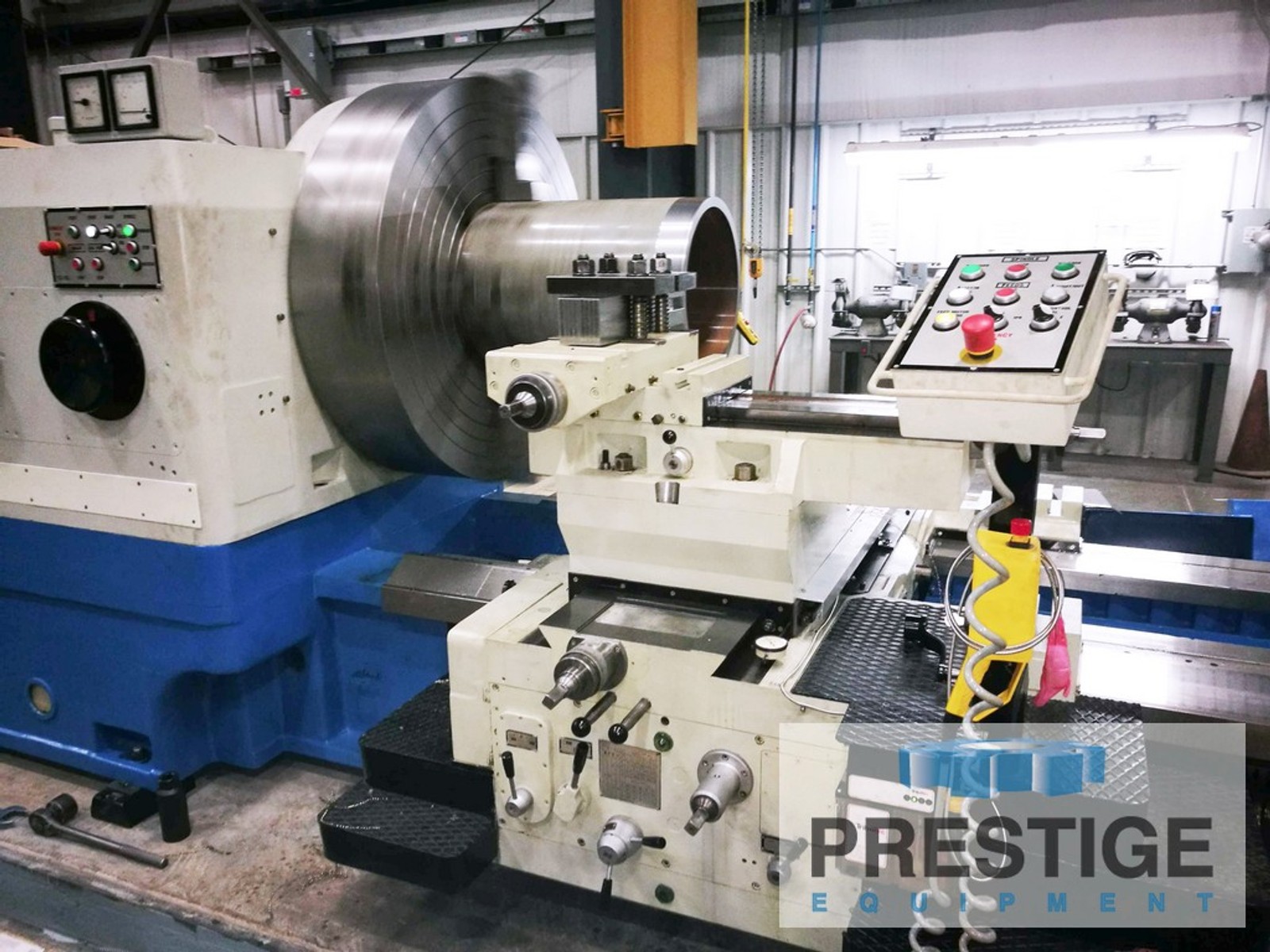

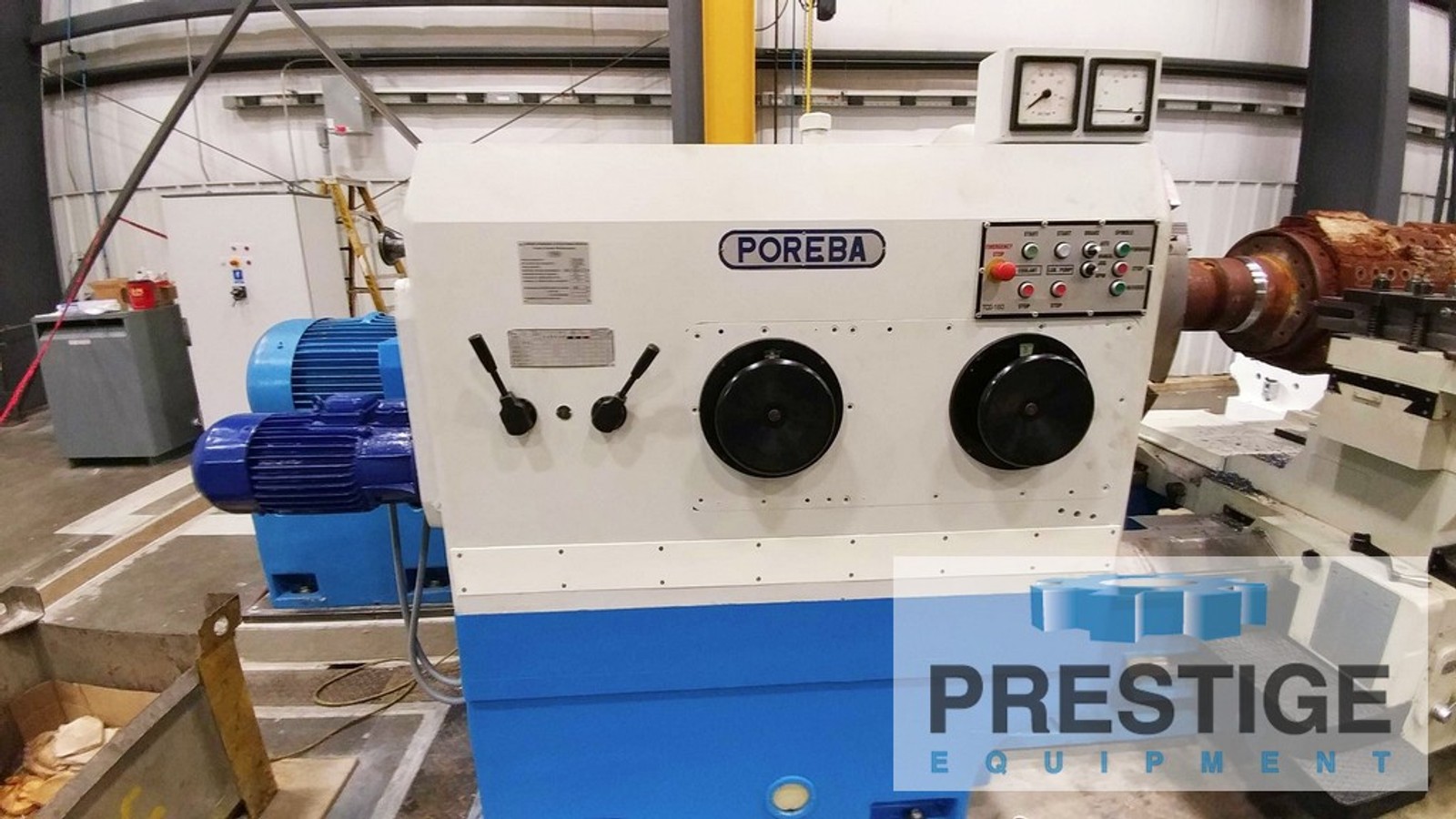

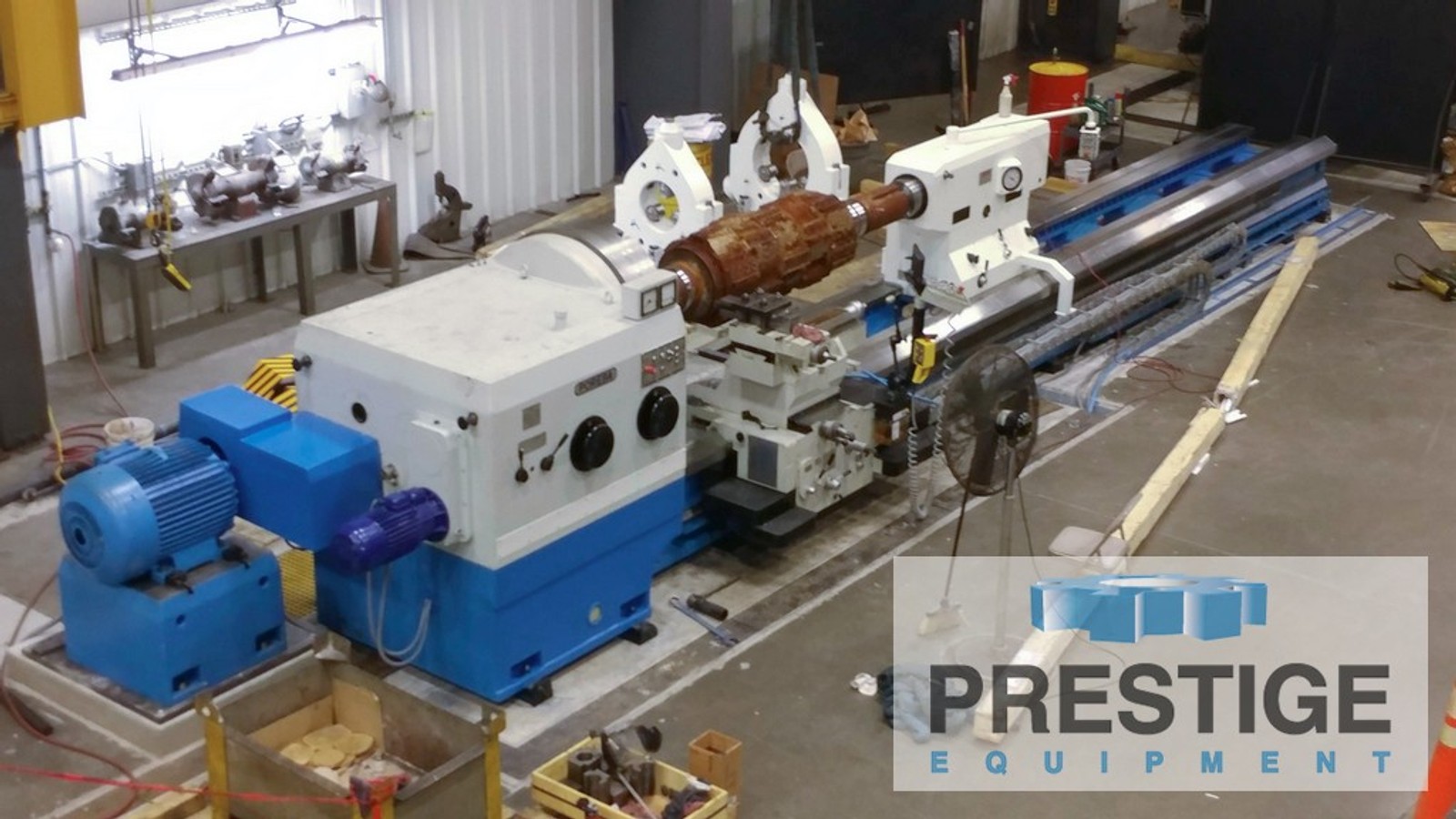

63" x 236" Poreba TCG 160/6M Heavy Duty Lathe, 40 Ton Wt Capacity, 100 HP, Remanufactured 2019 #43148

Manufacturer

POREBA

Category

Lathes

Type

LATHES, ENGINE

Stock

43148

Model

TCG-160 x 6M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43148
Poreba TCG160 63" x 236" Heavy Duty Manual Lathe, Remanufactured 2019

FEATURES:
Factory Rebuilt 2019
63" 4-Jaw Chuck
100 HP Main Motor
Inch/Metric Threading
66,000 Lbs Unsupported Weight Capacity

CAPACITY:
Maximum Swing Over Bedways ............ 62.99"
Maximum Swing Over Carriage ........... 51.18"
Distance Between Centers .............. 236.22"
Spindle Speeds ........................ 1-200 RPM
Spindle Speeds, Number ................ 24
Spindle Speed Ranges .................. 3
Spindle Bore .......................... 4.13"
Spindle Torque, Maximum ............... 63,000 Nm
Width of Bed .......................... 59.05"
Longitudinal Feed Rates ............... 0.007-6.29 IPR
Overall Feed Rates .................... 0.44-12.59 IPM
Rapid Traverse ........................ 157.48 IPM
Threading, Metric ..................... 1-192 MM
Threading, Inch ....................... .125-30 TPI
Front Bearing Diameter ................ 12.59"
Tailstock Diameter .................... 11.02"
Tailstock Quill Travel ................ 7.87"
Tailstock Quill Rapid Traverse ........ 11.81 IPM
Tailstock Rapid Traverse On Bed ....... 59.05 IPM
Weight Capacity Between Centers ....... 66,000 Lbs
Weight Capacity with One Steady Rest .. 77,000 Lbs
Weight Capacity with Two Steady Rest .. 88,000 Lbs

EQUIPPED WITH:
63" 4-Jaw Chuck
Operator Controls On Carriage
Inch/Metric Threading
6-Way Power Rapid Traverse
2-Heavy Duty Roller Type Steady Rests
Power Compound
Power Tailstock and Quill
Hardened & Ground Replaceable Bedways
Hardened and Ground Gears & Spline Shafts
Heavy Duty Meehanite Casting
100 HP Main Drive 440 Volt

NOTE:
Inspect Under Power
