Comet MB-1130A, 5.12" Spindle, X-78", Y-55", #50, 3400 RPM, Pendant Control, Facing Head, Tailstock, 3-Axis DRO, #43342

Manufacturer

COMET

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

43342

Model

MB-1130A

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43342

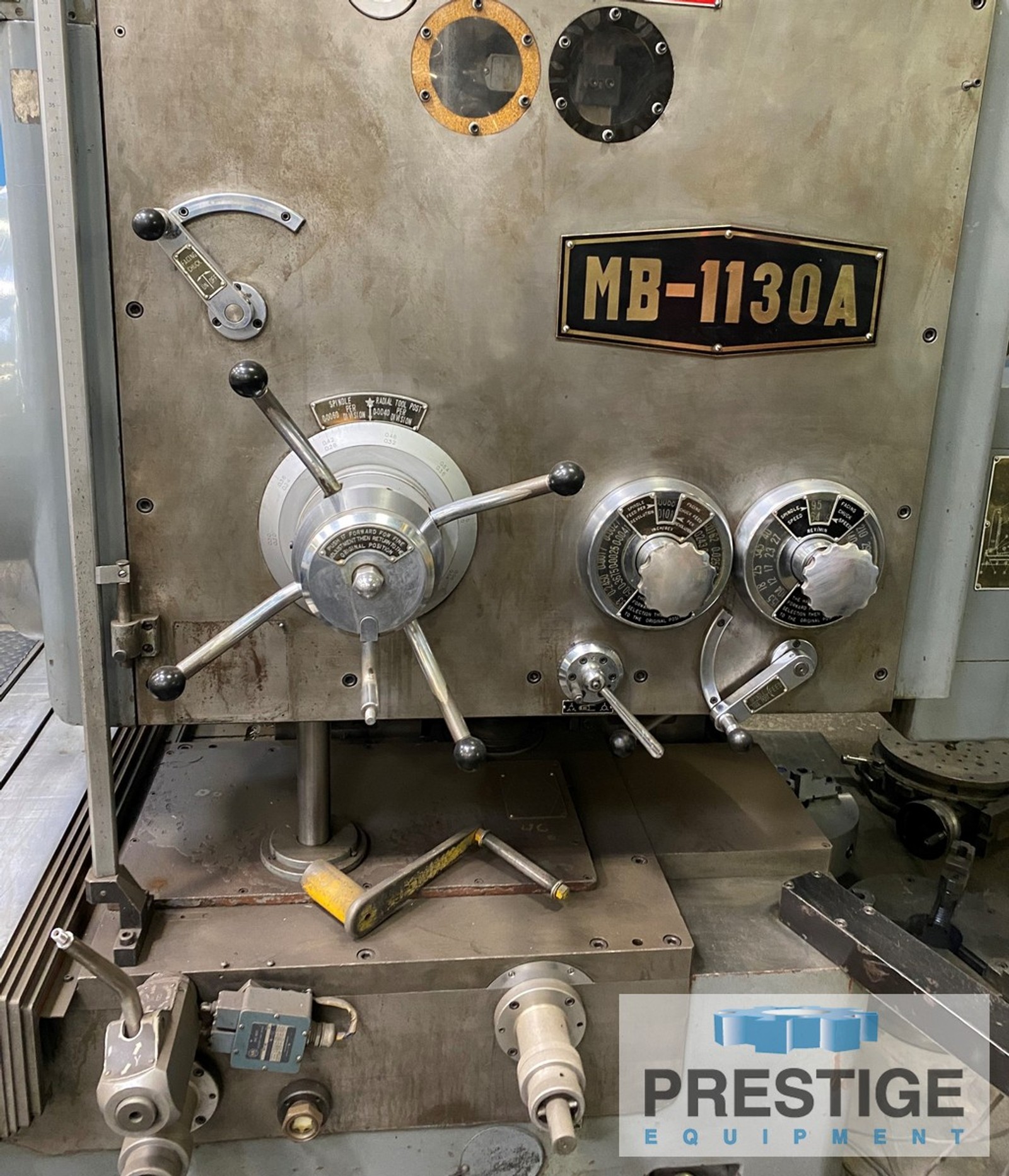

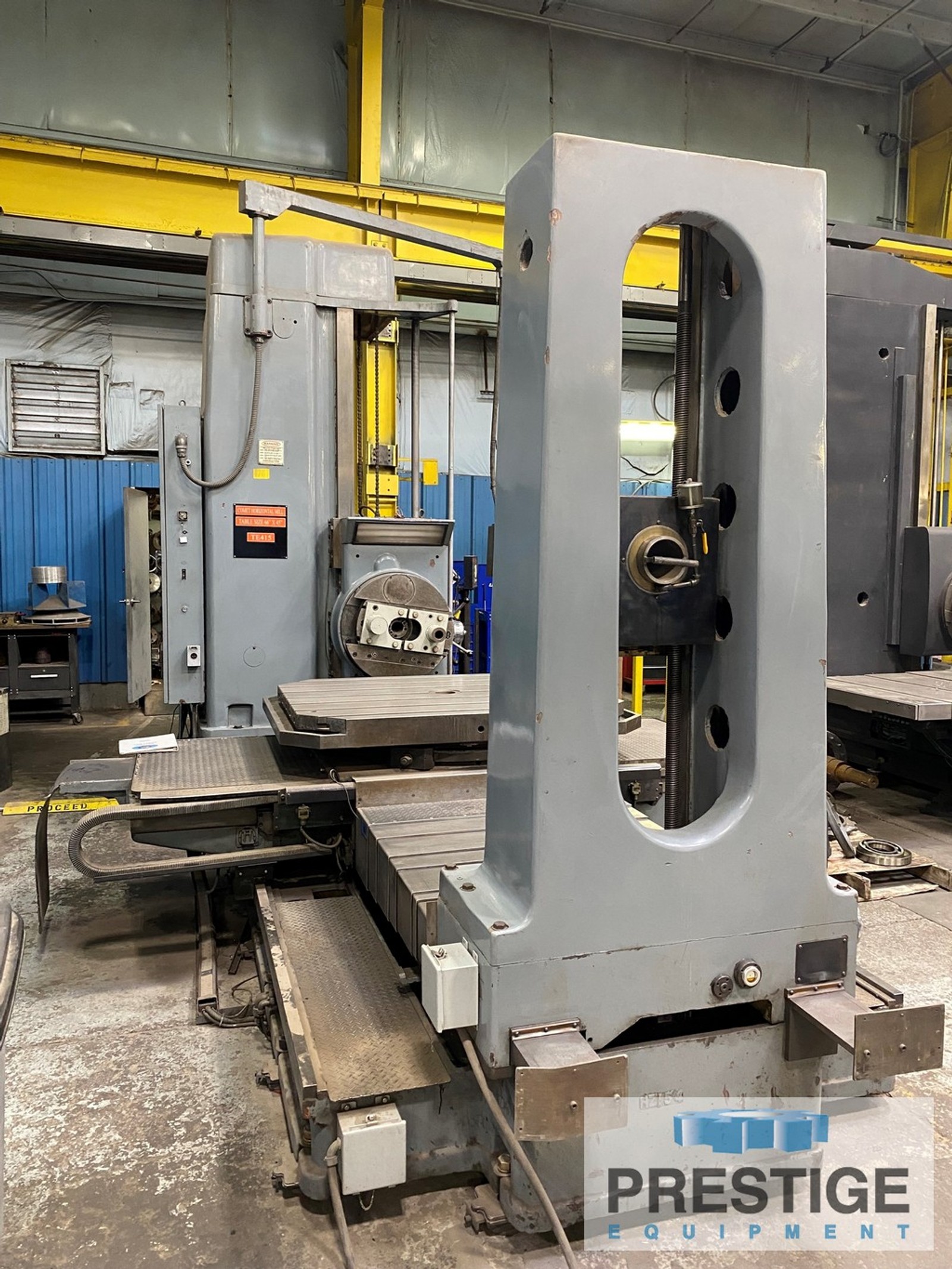

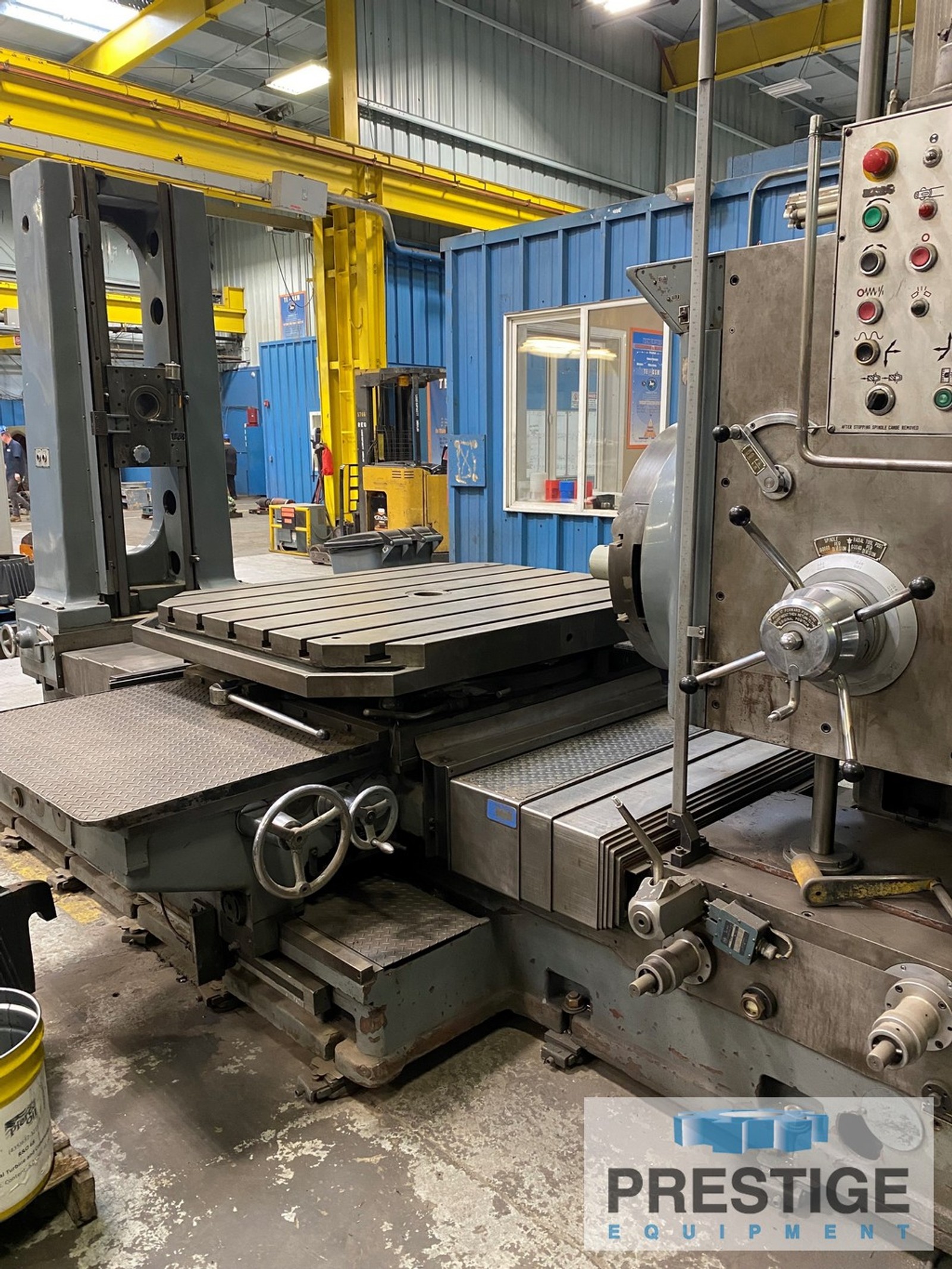

Comet 5" MB-1130A Horizontal Boring Mill

FEATURES:
Full Pendant Controls
Power Draw Bar
Facing Head
Tailstock

CAPACITY:
Spindle Diameter ...................... 5.12"
Taper In Spindle ...................... #50
Vertical Head Travel, Y-Axis .......... 55.11
Table Cross Travel, X-Axis ............ 78.74"
Saddle Travel, W-Axis ................. 50"
Spindle Travel, Z-Axis ................ 29.92"
Spindle Speeds ........................ 8-3400 RPM
Main Motor ............................ 15 HP
Table Size ............................ 49.21" X 59.05"
Table Load Capacity ................... 8,800 Lbs
Approximate Floor Space ............... 236" x 122" x 134"
Approximate Machine Weight ............ 48,400 Lbs

EQUIPPED WITH:

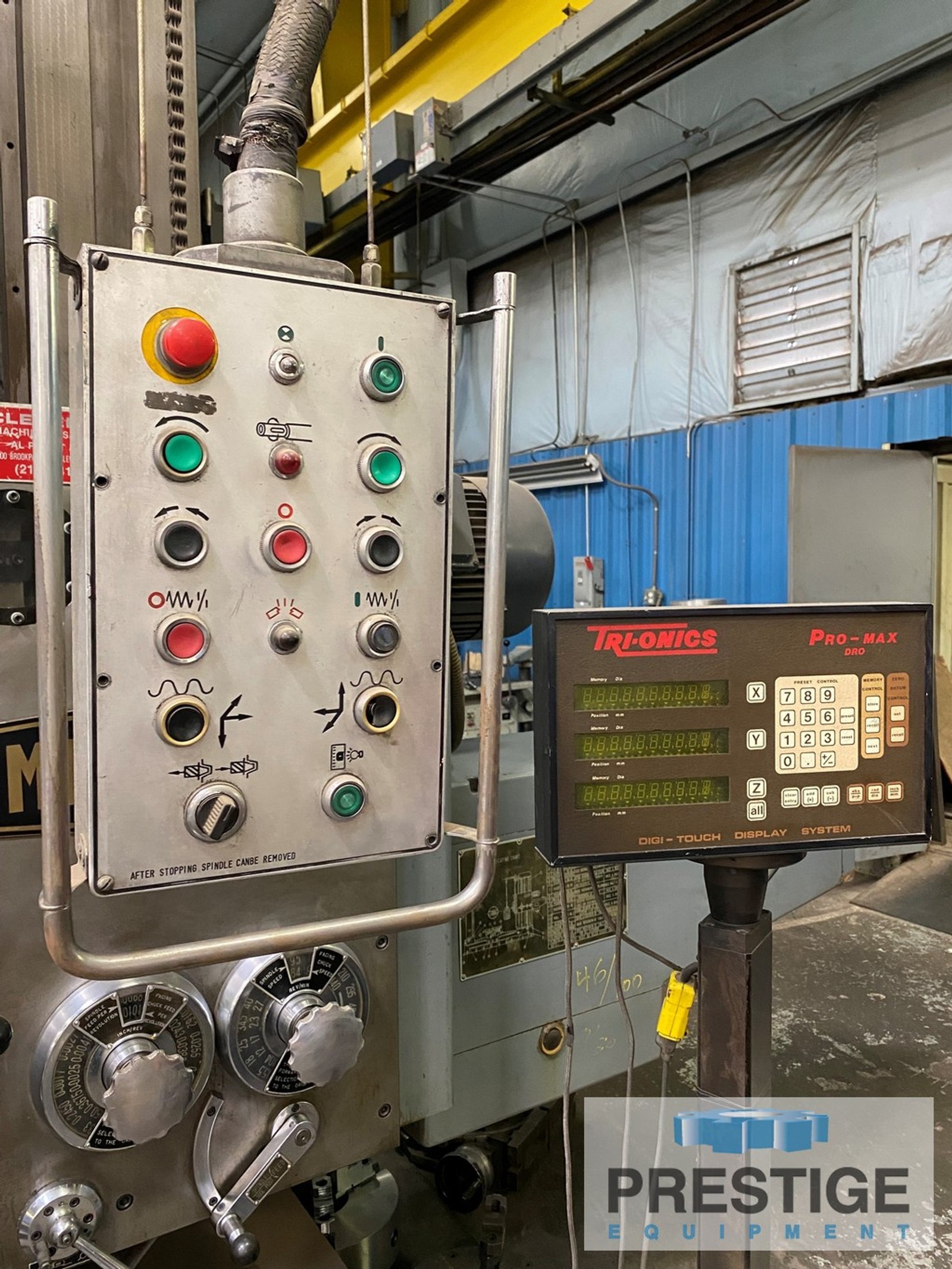

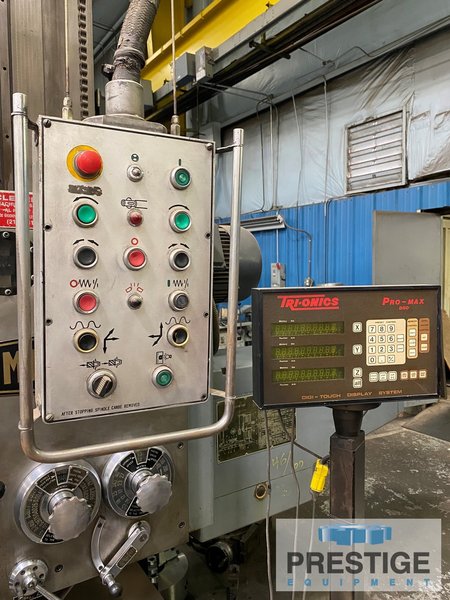

Full Pendant Controls
3-Axis Trionics Digital Readouts
Power Draw Bar
Facing Head
Tailstock
