Trumpf 25 Ton TC-5000/1600, X-120", Y-65", Siemens 840D, #43327

Manufacturer

TRUMPF

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

43327

Model

TC5000-1600

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43327

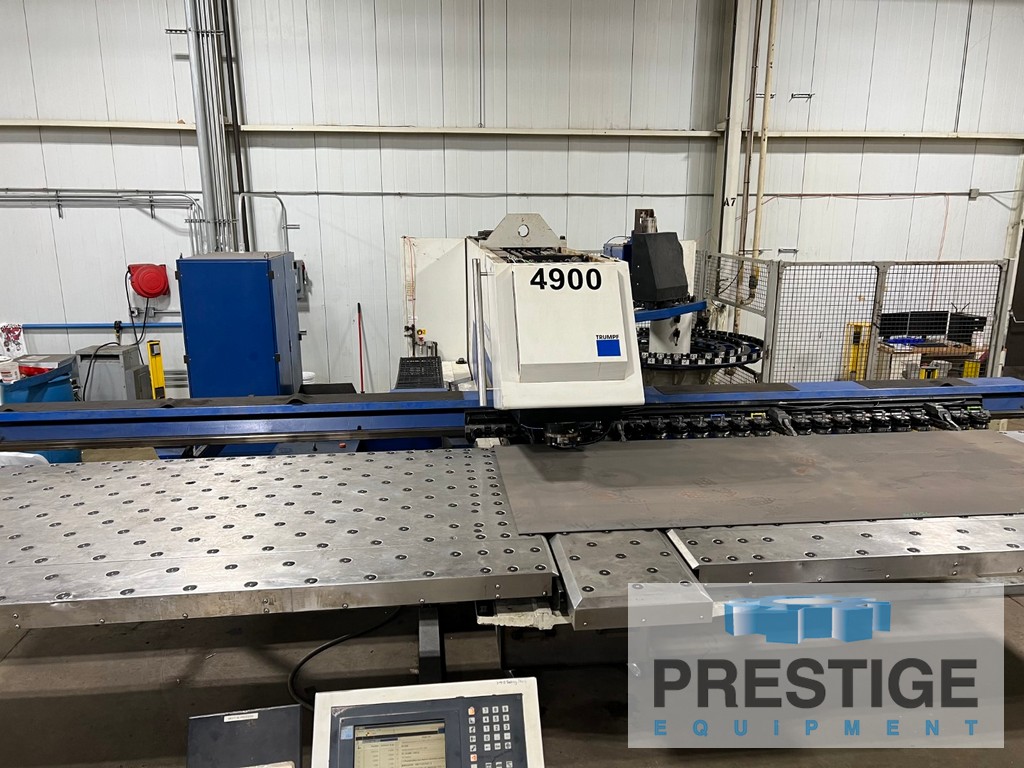

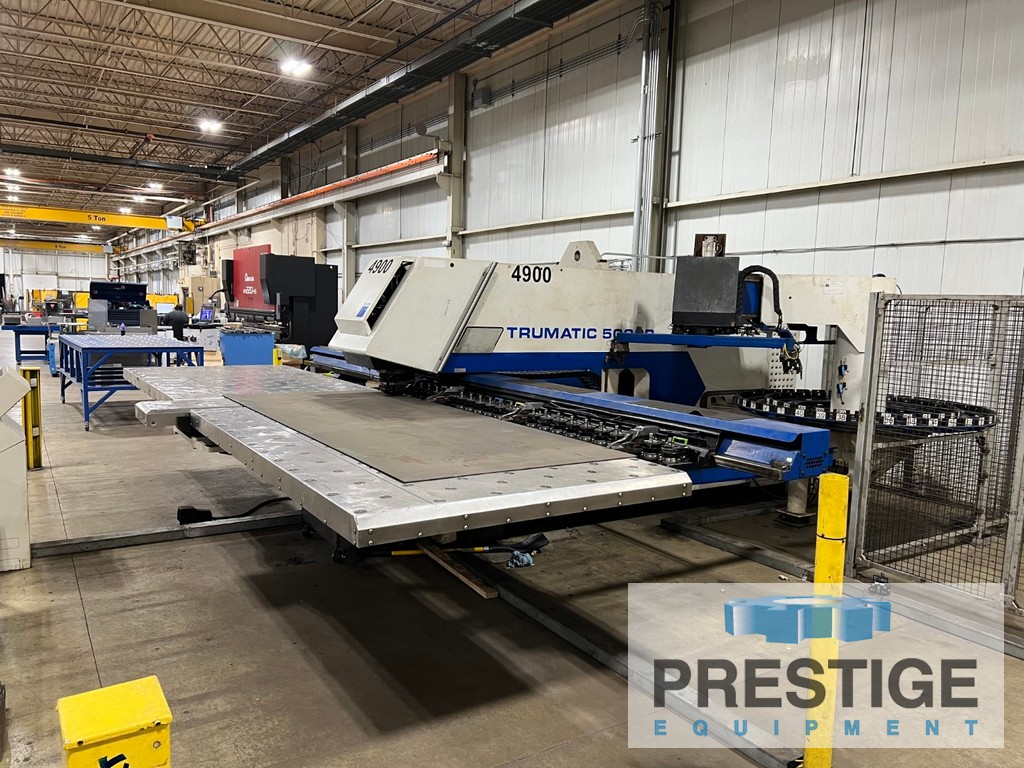

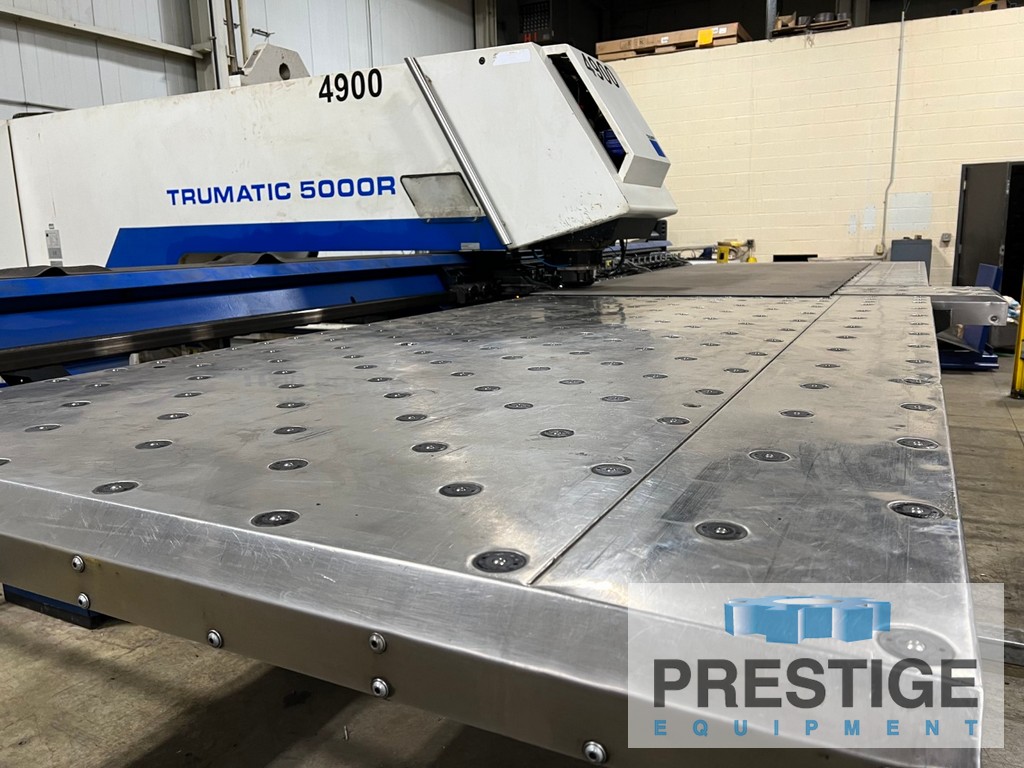

Trumpf 25 Ton TC-5000/1600 CNC Punch And Contour Machine

FEATURES:
Siemens 840D CNC Control

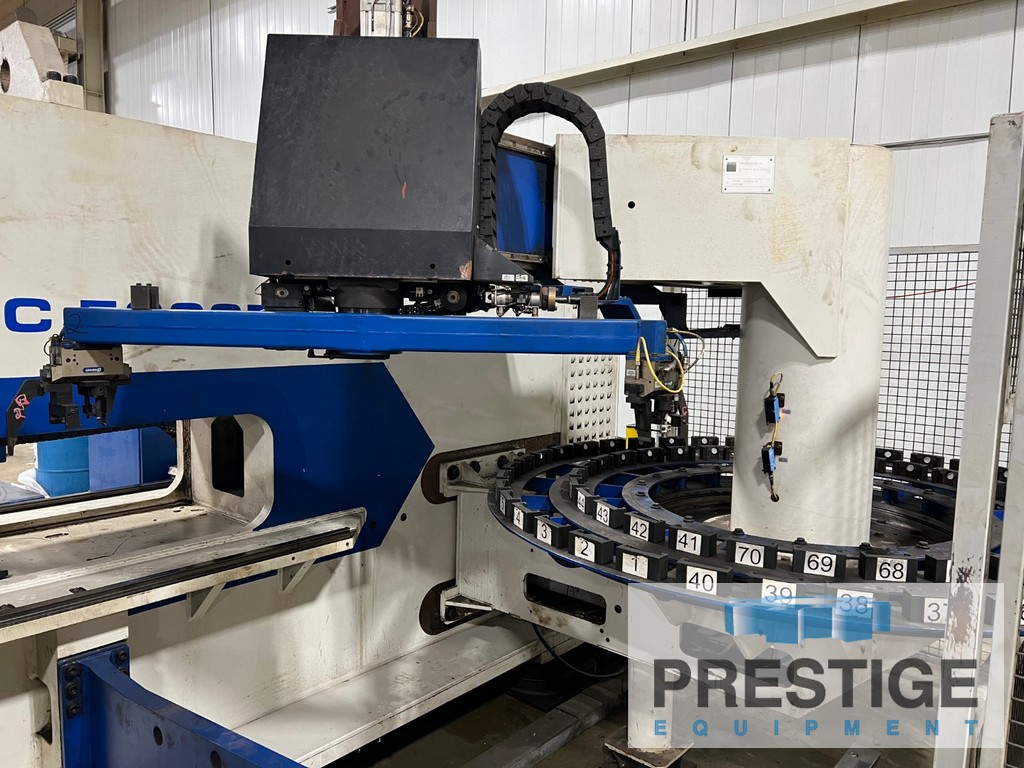

21 Station Linear Tool Changer On X-Axis Rail
CNC Rotation all 21 Stations
(4) Hydraulic Work Clamps

CAPACITY:
Tonnage Capacity ..................... 25 Tons
Maximum Sheet Thickness .............. .31"
Maximum Punch Diameter ............... 3"
Maximum Work Piece Weight ............ 510 Lbs.
Y-Axis Table Travel .................. 65"
X-Axis Table Travel .................. 120"
Max. Stroke Per Minute (1" Centers) .. 300
X-Axis Speed ......................... 4000 IPM
Y-Axis Speed ......................... 2340 IPM
C-Axis Speed ......................... 330 RPM
Positioning Accuracy ................. +/-.004"

EQUIPPED WITH:

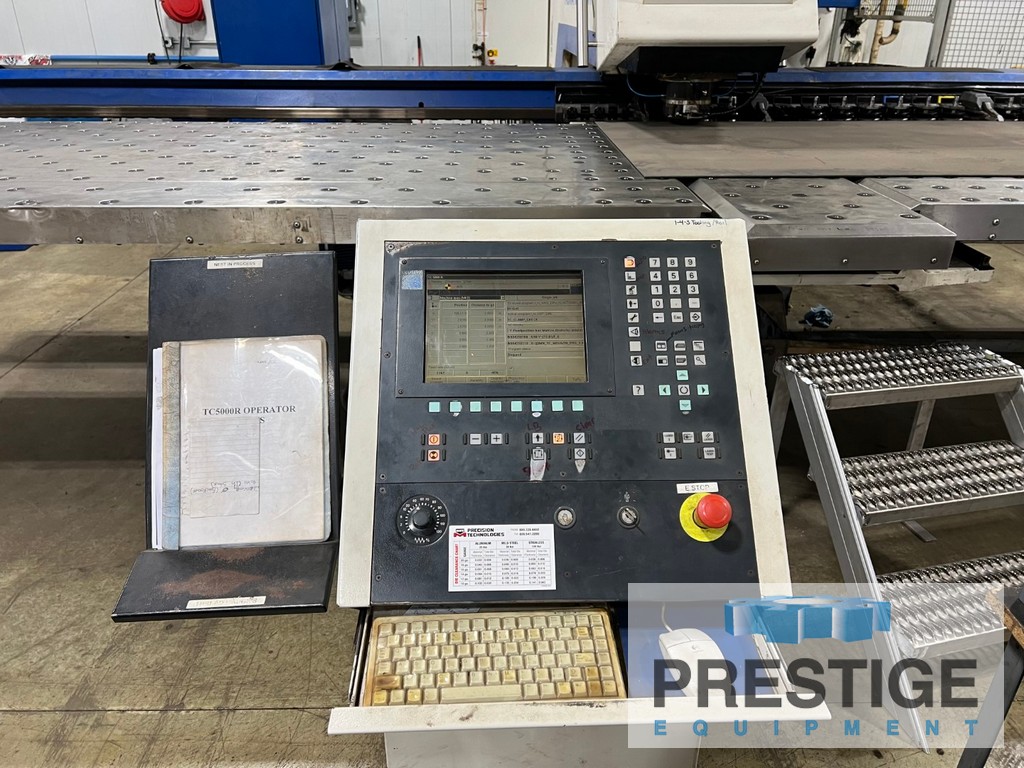

Siemens Sinumerik 840D CNC Control
Programmable Part Chute, 20" x 20" Max. Part
21 Station Linear Tool Changer On X-Axis Rail
CNC Rotation all 21 Stations
(4) Hydraulic Work Clamps
Automatic Sheet Repositioning

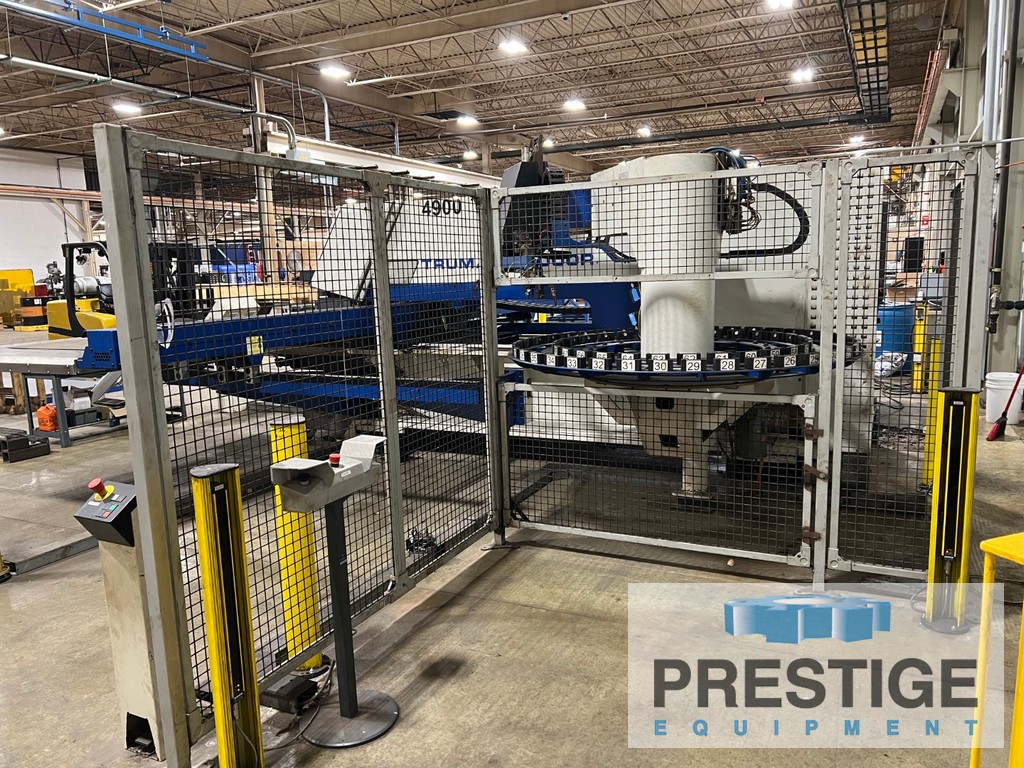

Light Barrier Safety System-Full Perimeter

NOTE:
Inspect in Plant Under Power
