Mitsubishi M-VB25-5F, 5-Face, Right Angle Hd, X-126", Y-98", 80" B/C Fanuc 31iB, 60 ATC, High Pressure TSC, 2015, #32096

Manufacturer

MITSUBISHI

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32096

Model

M-VB25-5F

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32096

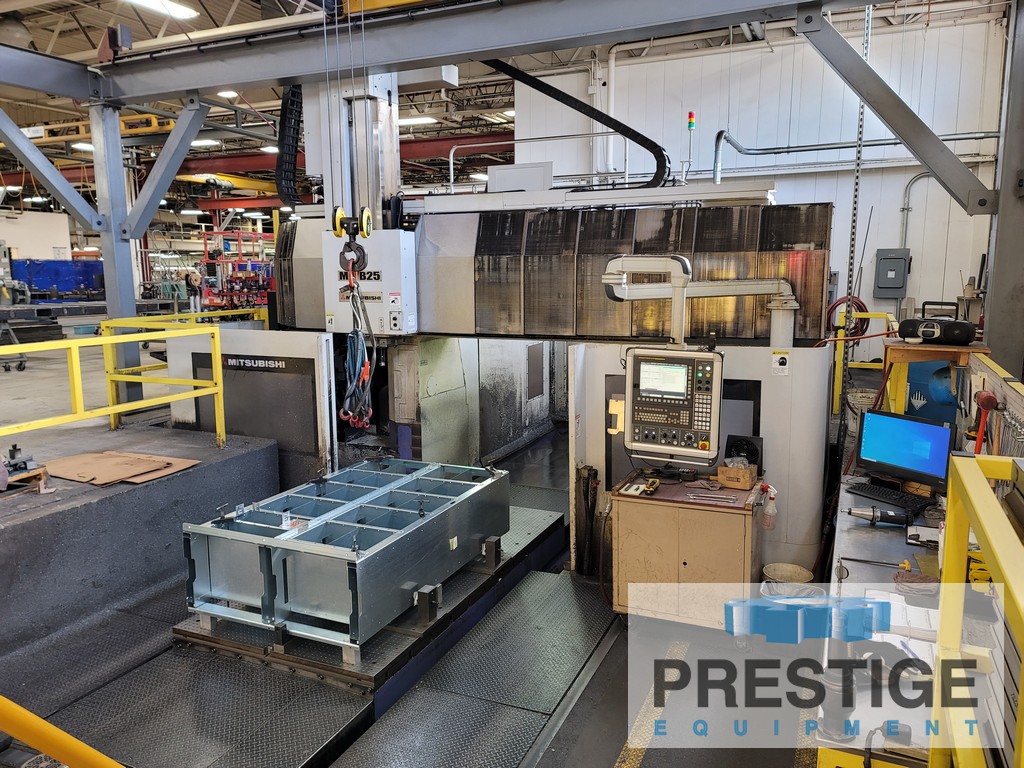

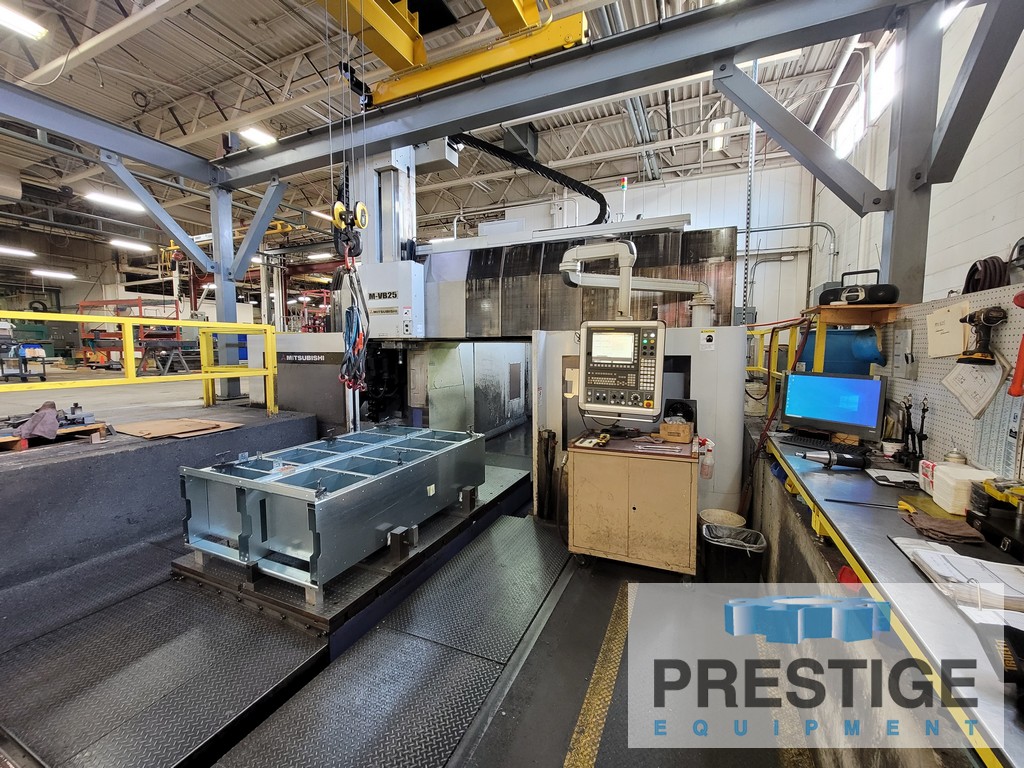

Mitsubishi M-VB25-5F Fixed Rail CNC Bridge Mill

FEATURES:

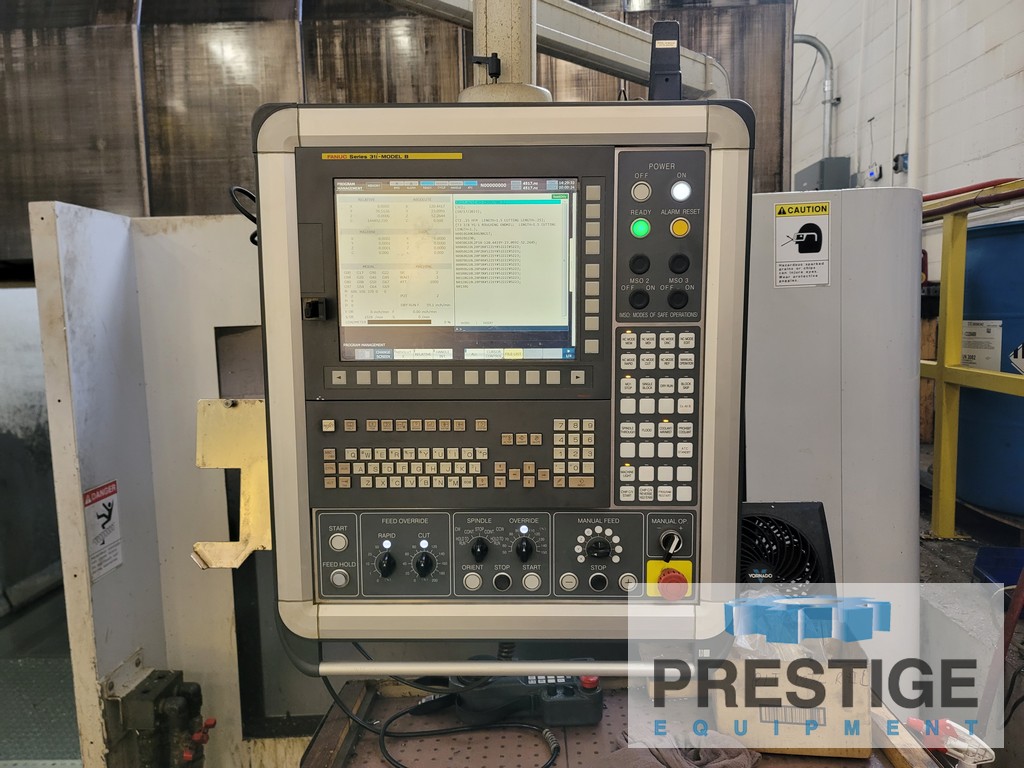

Fanuc 31iB CNC Controls

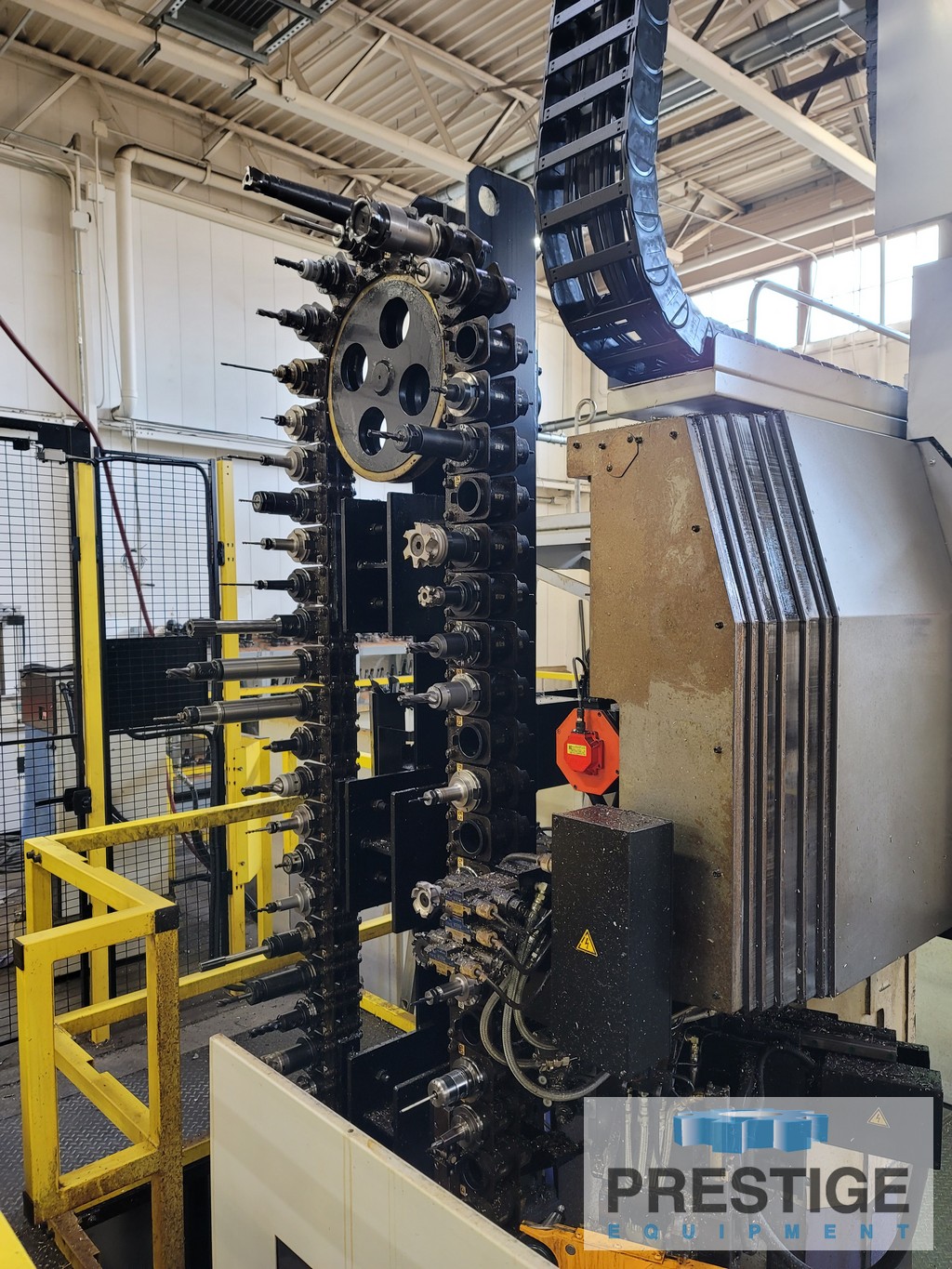

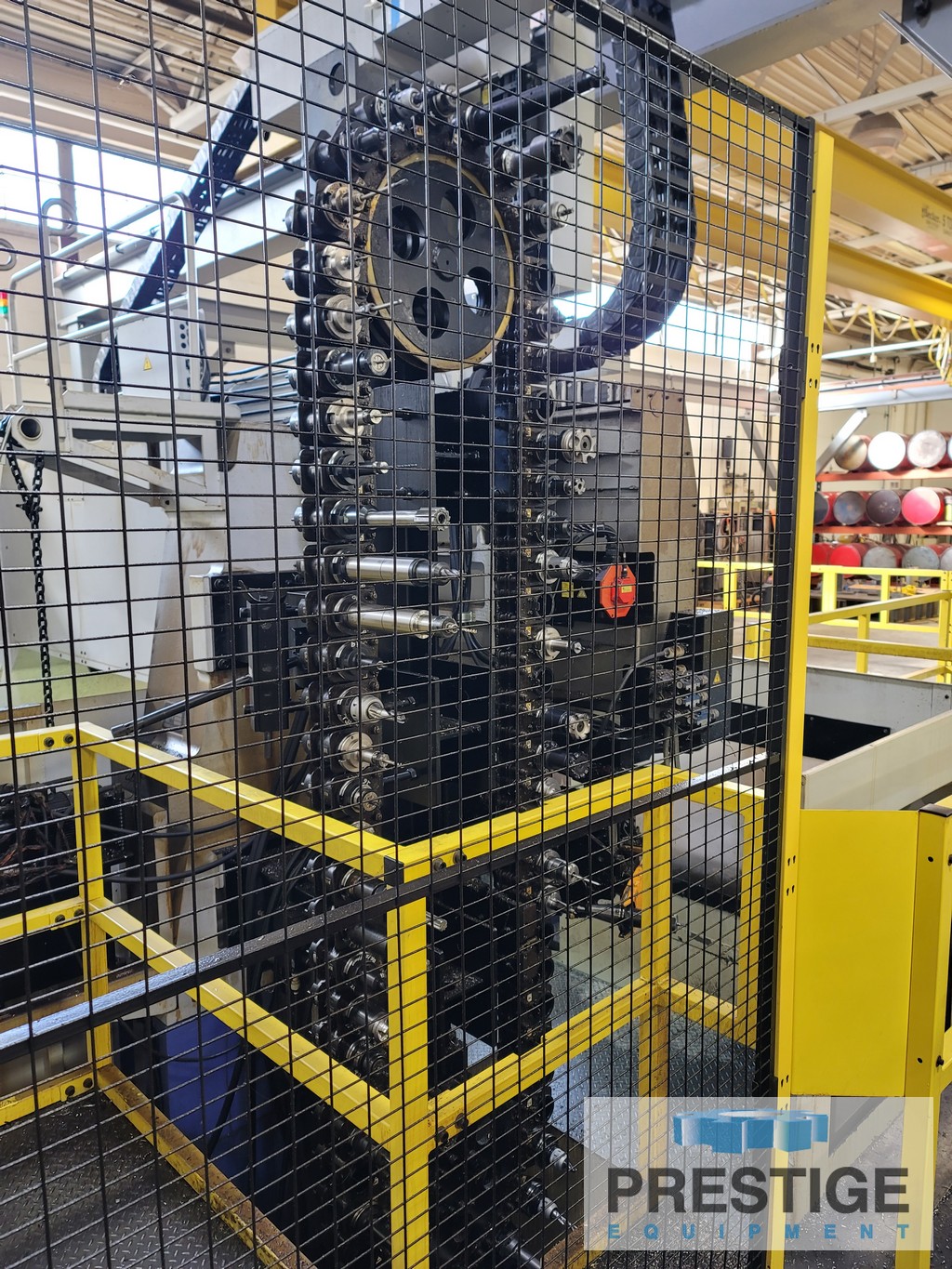

60-Station Automatic Tool Changer

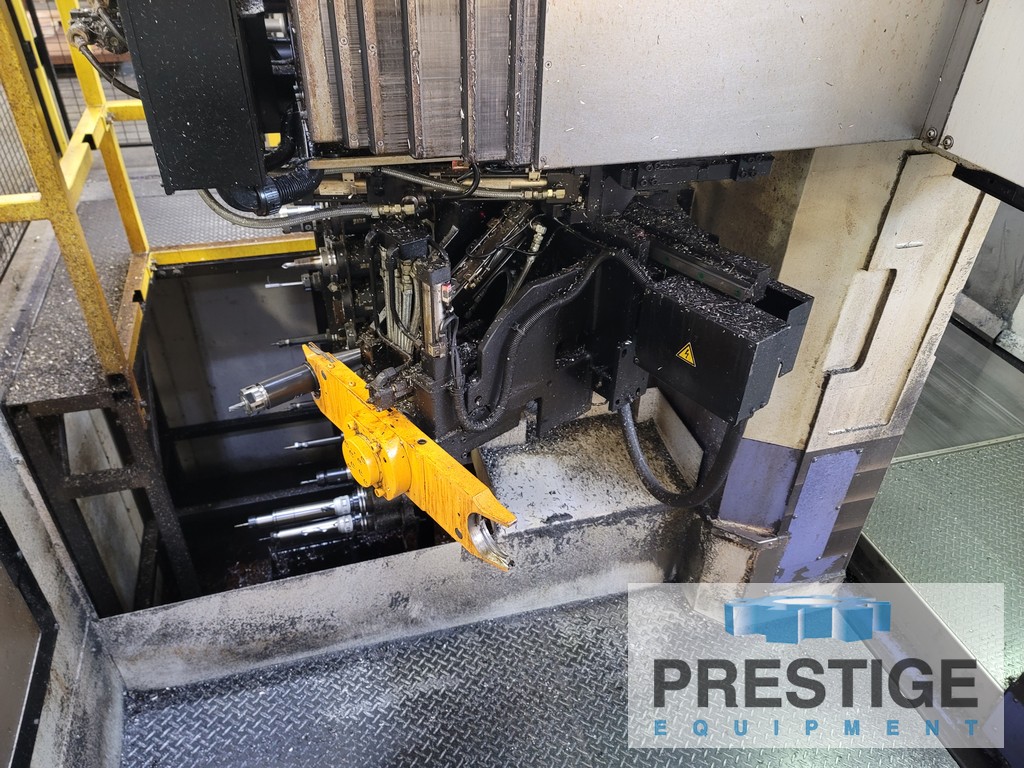

Automatic Attachement Changer
Right Angle Head
Thru Spindle Coolant

CAPACITY:
X-Axis Travel, Table .................. 125.98"
Y-Axis Travel, Head ................... 98.42"
Z-Axis Travel, Ram Vertical ........... 39.37"
Distance Between Columns .............. 80.70"
Distance from Work Face to Spindle .... 47.24"

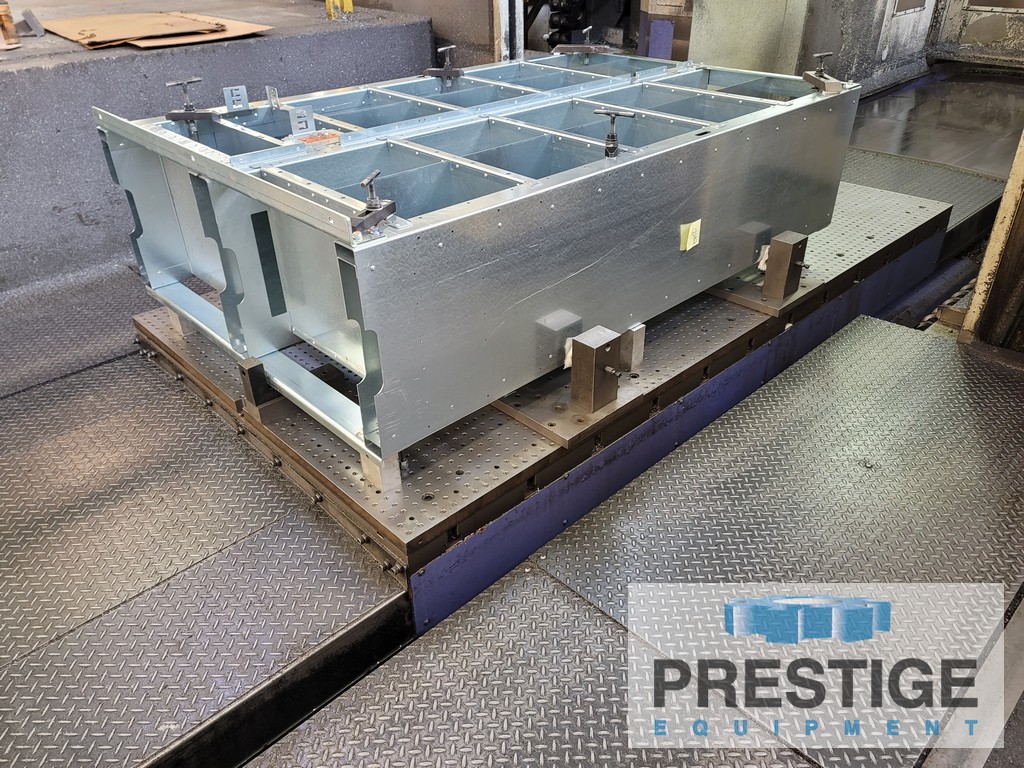

Table Size ............................ 59.05" x 118.11"
Table Load Capacity ................... 26,400 Lbs
Ram Size .............................. 13.77" x 15.74"
Spindle Speeds ........................ 20-6000 RPM
Spindle Taper ......................... #50
Diameter of Spindle ................... 4.33"
Spindle Drive Motor ................... 40 HP/30 HP
Approximate Machine Weight ............ 81,510 Lbs

EQUIPPED WITH:
Fanuc 31iB CNC Controls
Automatic Attachement Changer
60-Station Automatic Tool Changer
Right Angle Head (1 Deg.)
Thru Spindle Coolant (High Pressure Option)

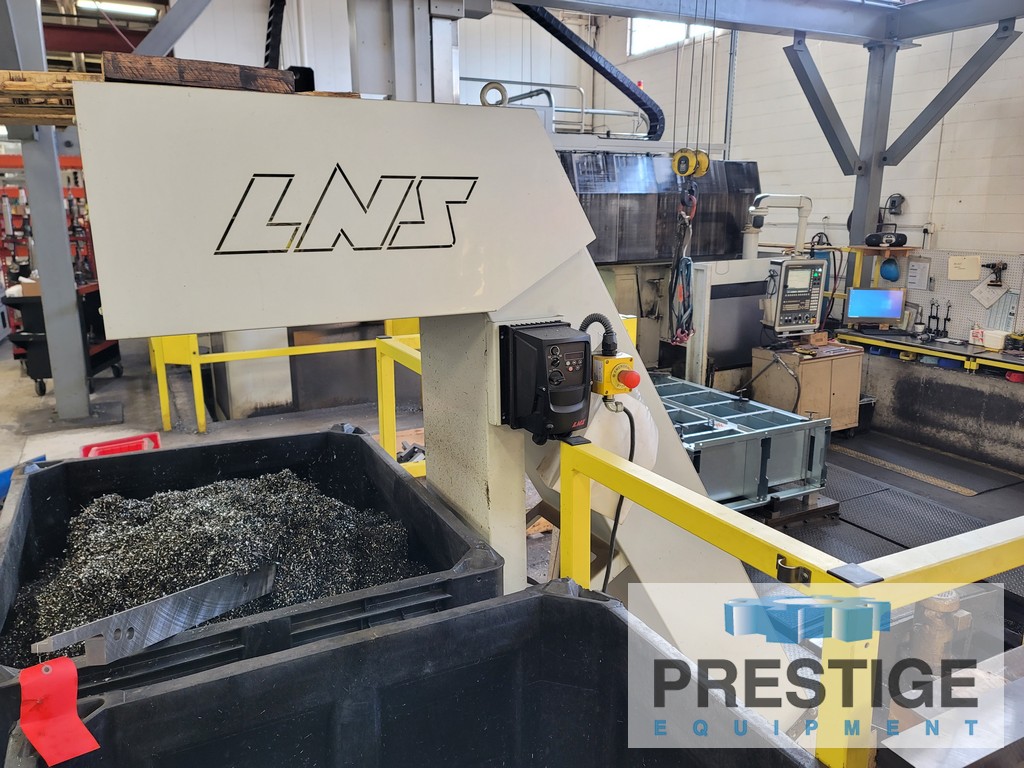

Chip Conveyor
40 HP Spindle Motor
Fixed Rail Design

NOTE:
Inspect in Plant Under Power

No Video Available
