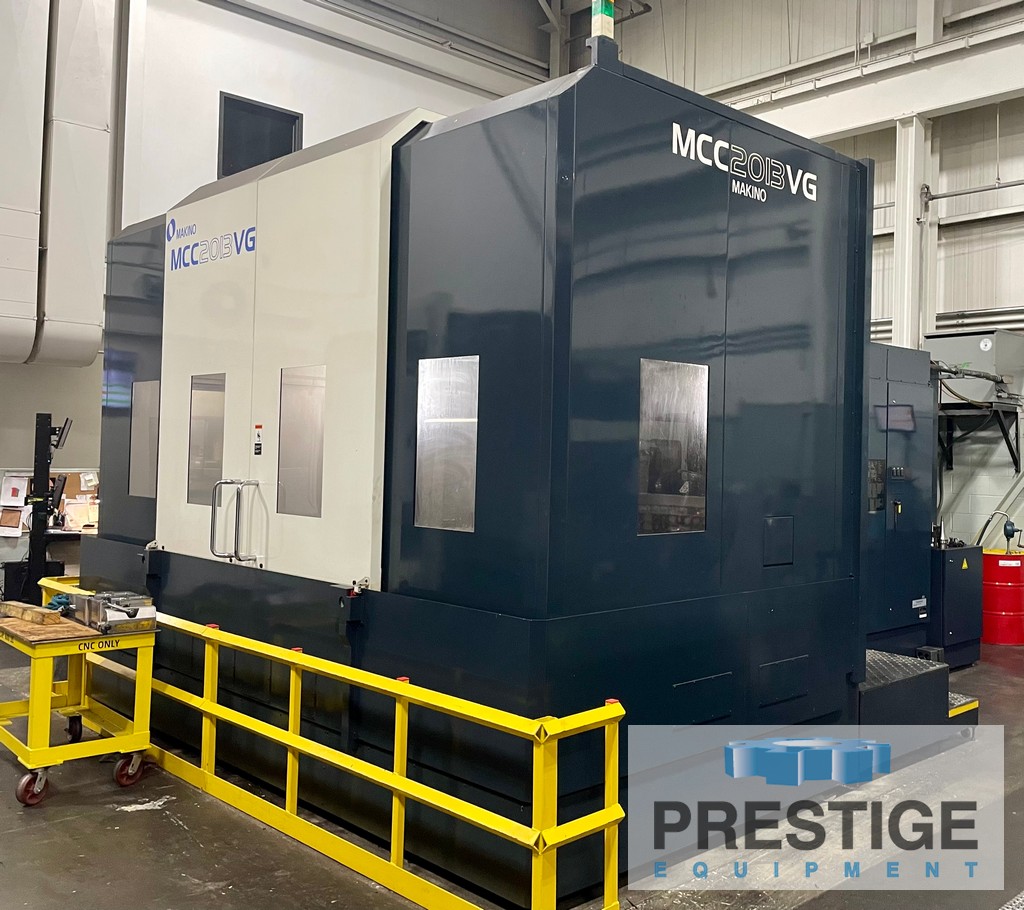

Makino MCC-2013VG, 5-Axis, X-78", Y-51", Z-51", 12,000 RPM, 120 ATC, Pro 5 CNC, TSC, 2011, #43188

Manufacturer

MAKINO

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43188

Model

MCC-2013VG

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43188
MAKINO MCC2013-VG 6-Axis Vertical Machining Center

FEATURES:
Makino Pro 5 (Fanuc Series 30i) CNC Control
3-Plus-2 Spindle Head
Through Spindle Coolant (1000 PSI)
120 Station Automatic Tool Changer
Renishaw Probe

CAPACITY:
X-Axis Cross Travel ................... 78.7"
Y-Axis Vertical Travel ................ 51.2"
Z-Axis Longitudinal Travel ............ 51.2"
A/C-AXIS SPINDLE:
Spindle Type .......................... 3 + 2 Axis
Spindle Speeds ........................ 5-12,000 RPM
Spindle Drive ......................... 40 HP / 29 HP
Spindle Taper ......................... HSK 100
A-Axis Rotation ....................... -30/+30 Degree
C-Axis Rotation ....................... +/-185 Degree
C-Axis Indexing ....................... 0.001 Degree

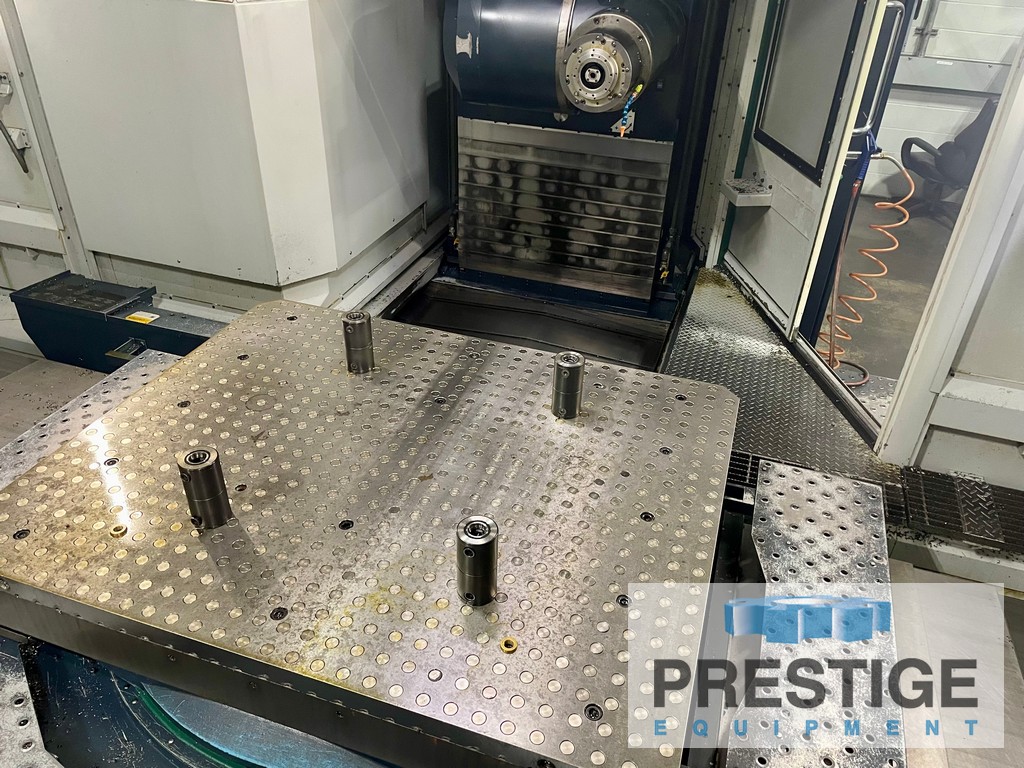

B-AXIS ROTARY TABLE:
Table Size ............................ 59" X 47.2"
Table Weight Capacity ................. 22,000 Lbs.
FEEDS:
Rapid Traverse, (X, Y & Z) ............ 787 IPM
Cutting Feed Rate ..................... 787 IPM

EQUIPPED WITH:
Makino Pro 5 (Fanuc Series 30i) CNC Control
3-Plus-2 Indexing Spindle Head
120-Station Automatic Tool Changer
Through Spindle Coolant (1000 PSI)
Renishaw OMP60 Probe
Automatic Non-Contact Tool Measuring Function
Linear Interpolation
Rigid Tapping
Adaptive Control Function
Helical Interpolation
Chip Conveyor
