DMG Mori CTX 410 Gildemeister, 20" Swing, 24" BC, Siemens 840D, 12 Sta. Trt, L. Mill, Pre-Setter, Sub Spindle 2007, #43190

Manufacturer

DMG MORI

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

43190

Model

CTX 410

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43190

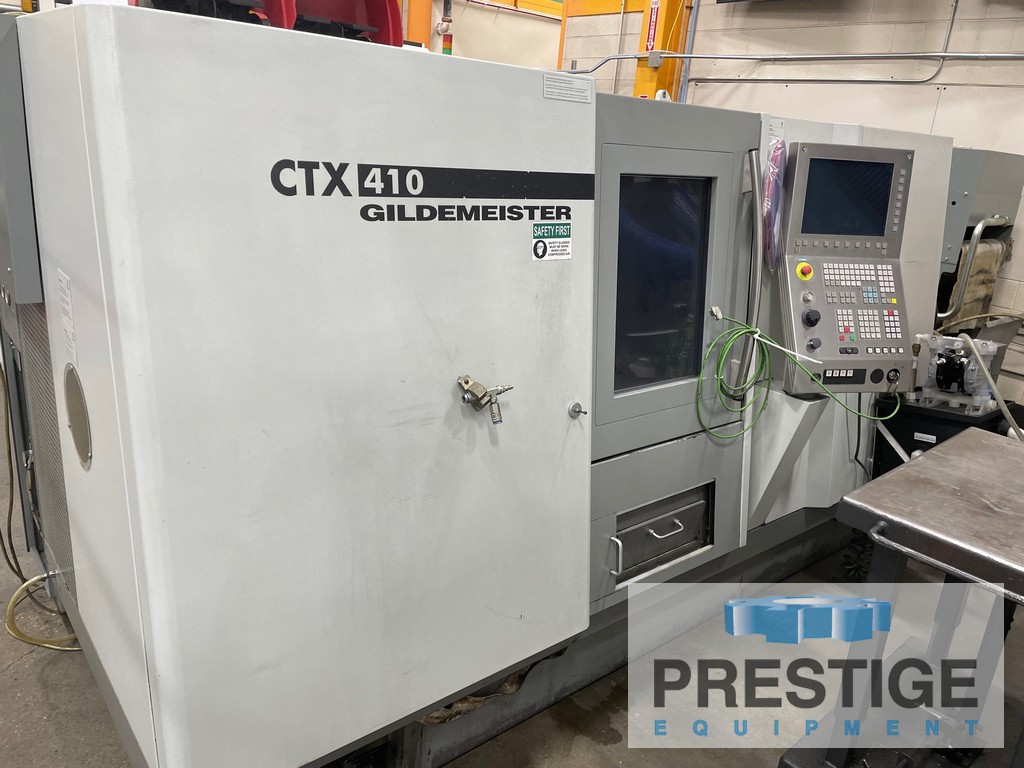

DMG Mori CTX 410 Gildemeister CNC Lathe

FEATURES:

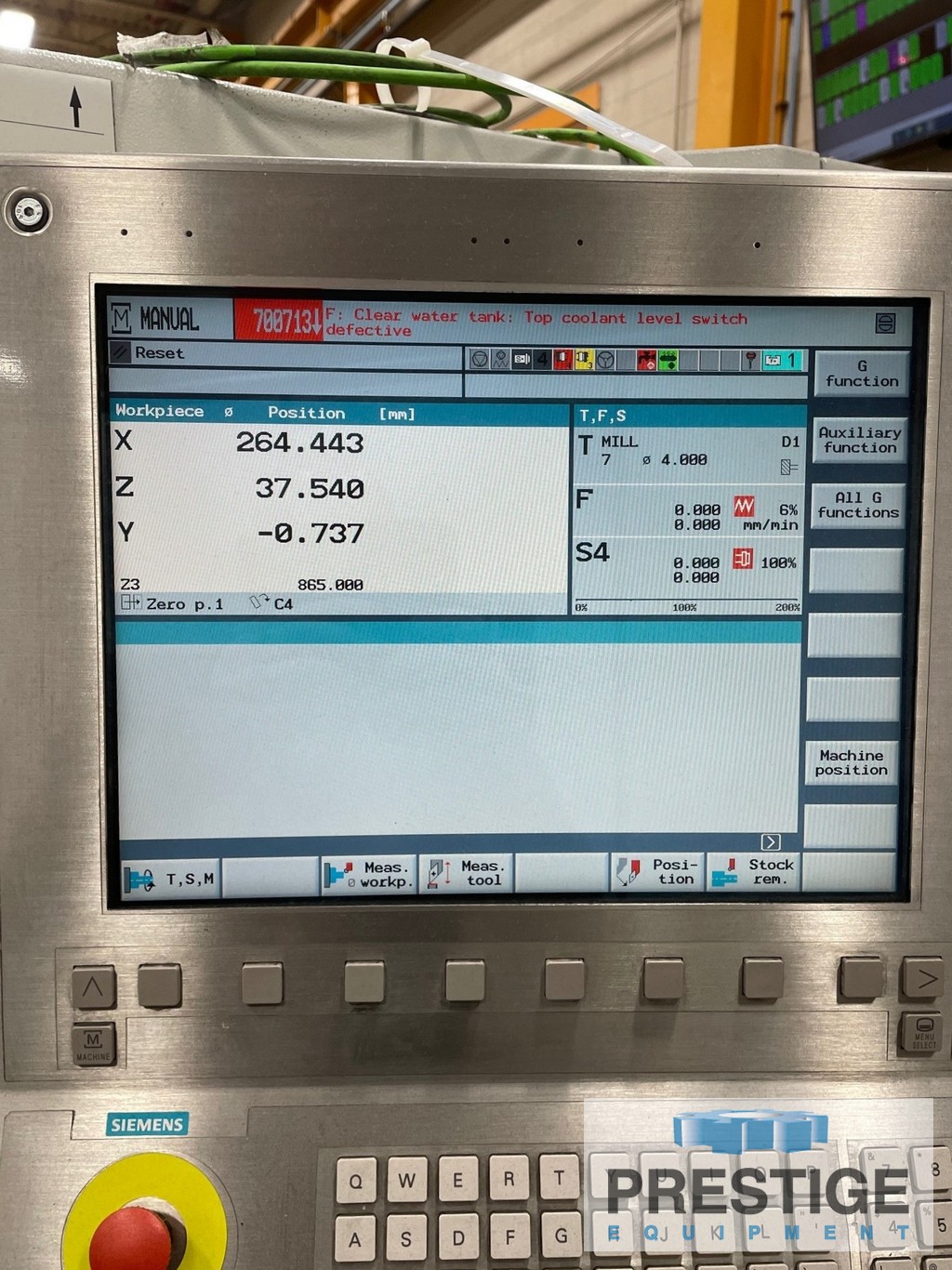

Siemens CNC Control

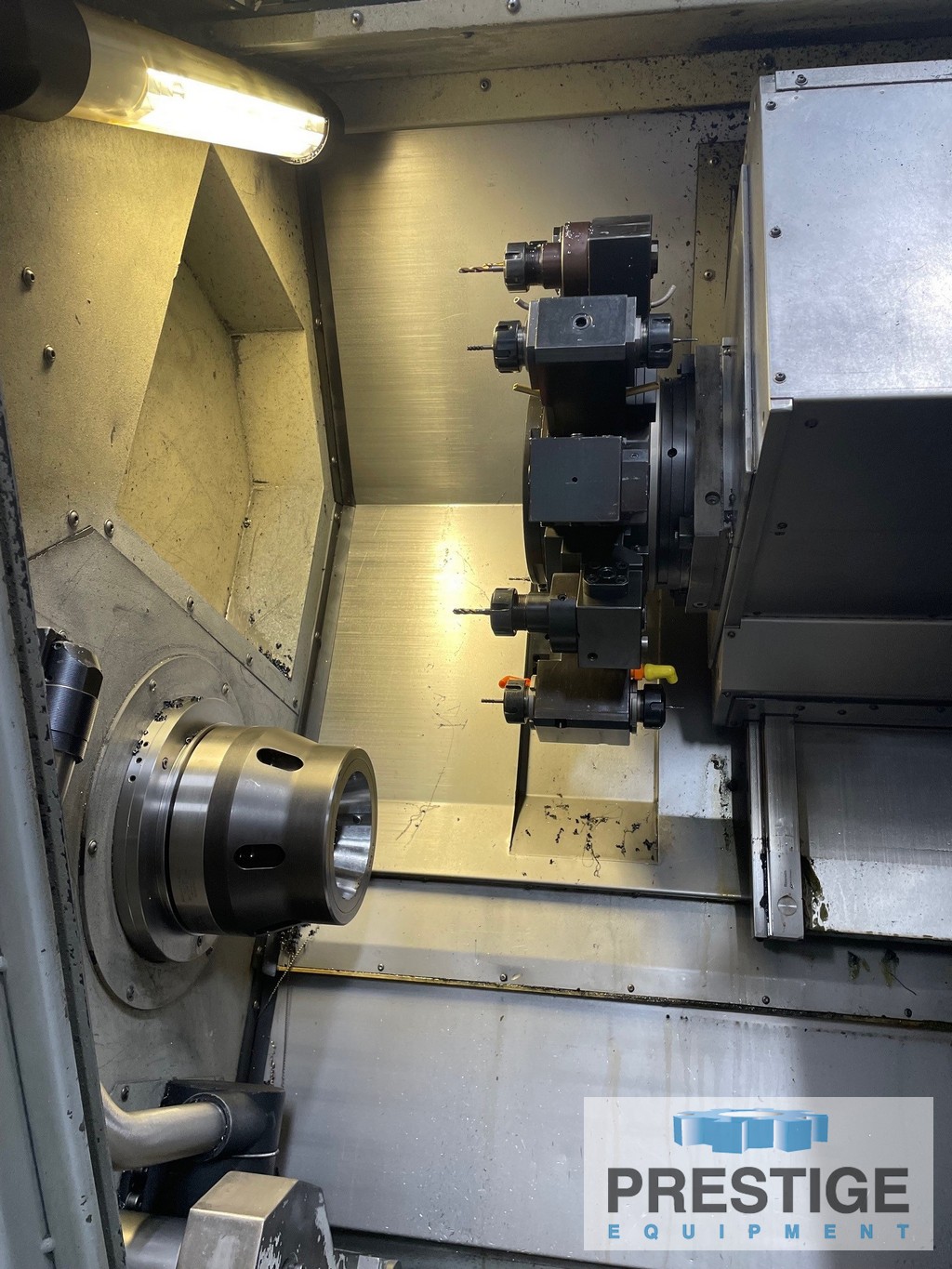

12 Position Turret
Live Milling
Automatic Tool Pre-Setter
Sub-Spindle

CAPACITY:
Maximum Swing Over Bed ................ 20"
Maximum Turning Diameter .............. 11"
Center Distance ....................... 24"
Bar Capacity .......................... 2.65"
Spindle Drive Motor ................... 28 HP
Spindle Speeds ........................ 5,000 RPM
X-Axis Travel ......................... 12.59"
Z-Axis Travel ......................... 23.62"
C-Axis Index .......................... 0.001 Deg.
Live Tooling Speed .................... 4,000 RPM
Live Tooling Motor .................... 5 HP
X-Axis Rapid Traverse ................. 315 IPM
Z-Axis Rapid Traverse ................. 394 IPM
Approximate Machine Dimensions ........ 169" x 68" x 72"
Approximate Machine Weight ............ 12,110 Lbs.

EQUIPPED WITH:
Siemens CNC Control

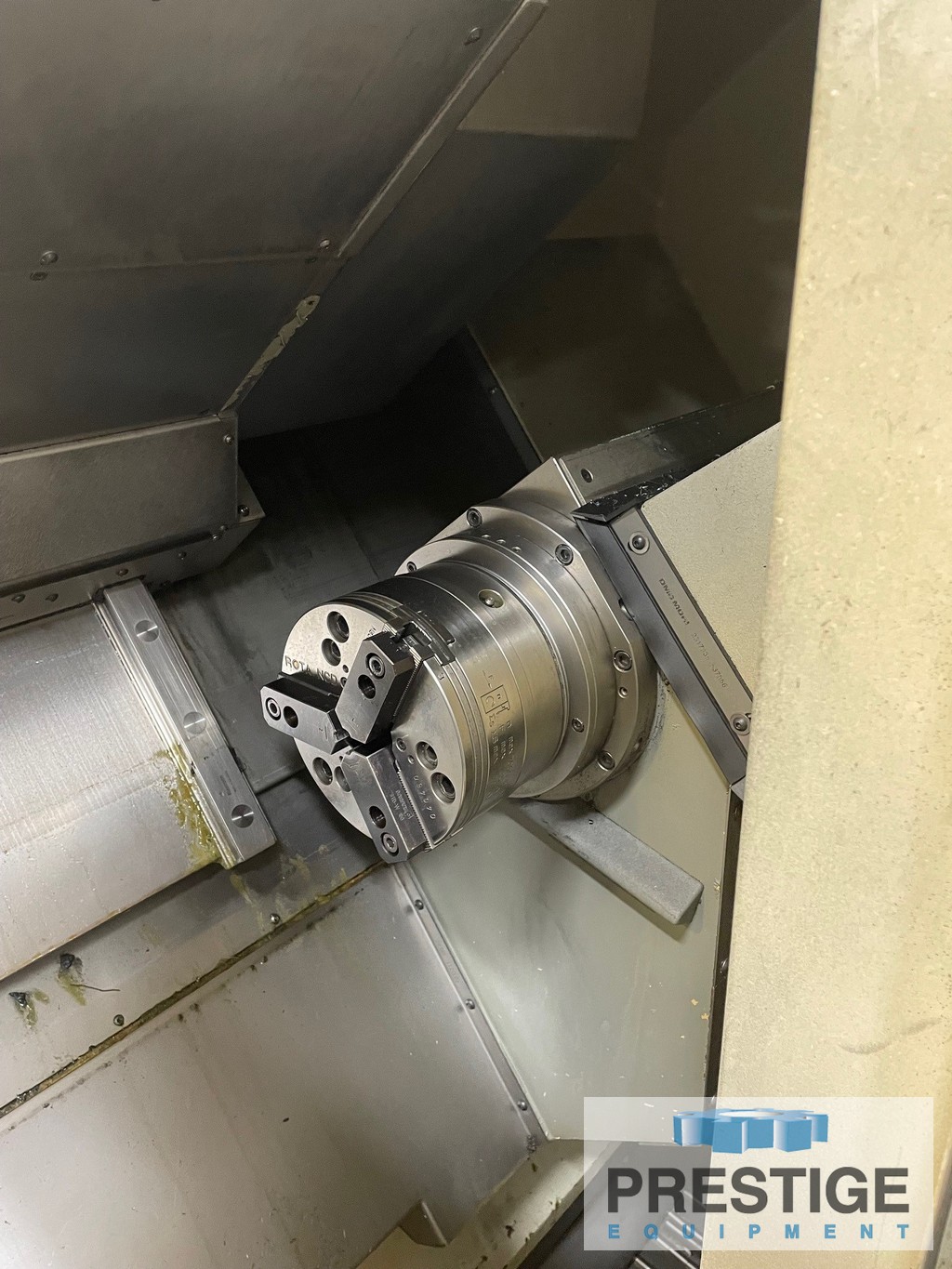

6.5" 3-Jaw Chuck (Sub-Spindle)
12 Position Turret
Live Milling
Automatic Tool Pre-Setter
Sub-Spindle

NOTE: Royal Collet Chuck Not Included
