63" x 472" Poreba TCG-160 x 12M, 50" Over Cross Slide, 200 RPM, 40 Ton Wt Capacity, 100 HP #43139

Manufacturer

POREBA

Category

Lathes

Type

LATHES, ENGINE

Stock

43139

Model

TCG-160 x 12M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43139
Poreba TCG160 x 12M 63" x 236" Heavy Duty Manual Lathe, Factory Rebuilt

FEATURES:
Digital Readouts
Power Compound For Taper Turning
Inch/Metric Threading
100 HP
40 Ton Weight Capacity

SPECIFICATIONS:
Maximum Swing Over Bedways ............ 62.99"
Maximum Swing Over Cross Slide ........ 51.18"
Distance Between Centers .............. 472.44"
Width Of Bed .......................... 63"
Spindle Bore .......................... 4.13"
Spindle Speeds (24) ................... 1.6-200 RPM
Diameter of Spindle Front Journal ..... 10.25"
Longitudinal Feeds (20) ............... 0.007-0.2 IPR
Cross Feeds (20) ...................... 0.0035-0.1 IPR
Rapid Traverse ........................ 158 IPM
Tailstock Quill Diameter .............. 11.02"
Tailstock Quill Travel ................ 23.62"
Tailstock Quill Taper ................. #6 MT
Weight Capacity Between Centers ....... 66,000 lbs
Weight Capacity With One Syeady Rest .. 77,000 lbs
Weight Capacity With Two Steady Rest .. 88,000 lbs

EQUIPPED WITH:
63" Diameter Face Plate with 4-Jaws
Digital Readouts
Inch/Metric Threading
Power Compound for Taper Turning
Pendant Station on Carriage

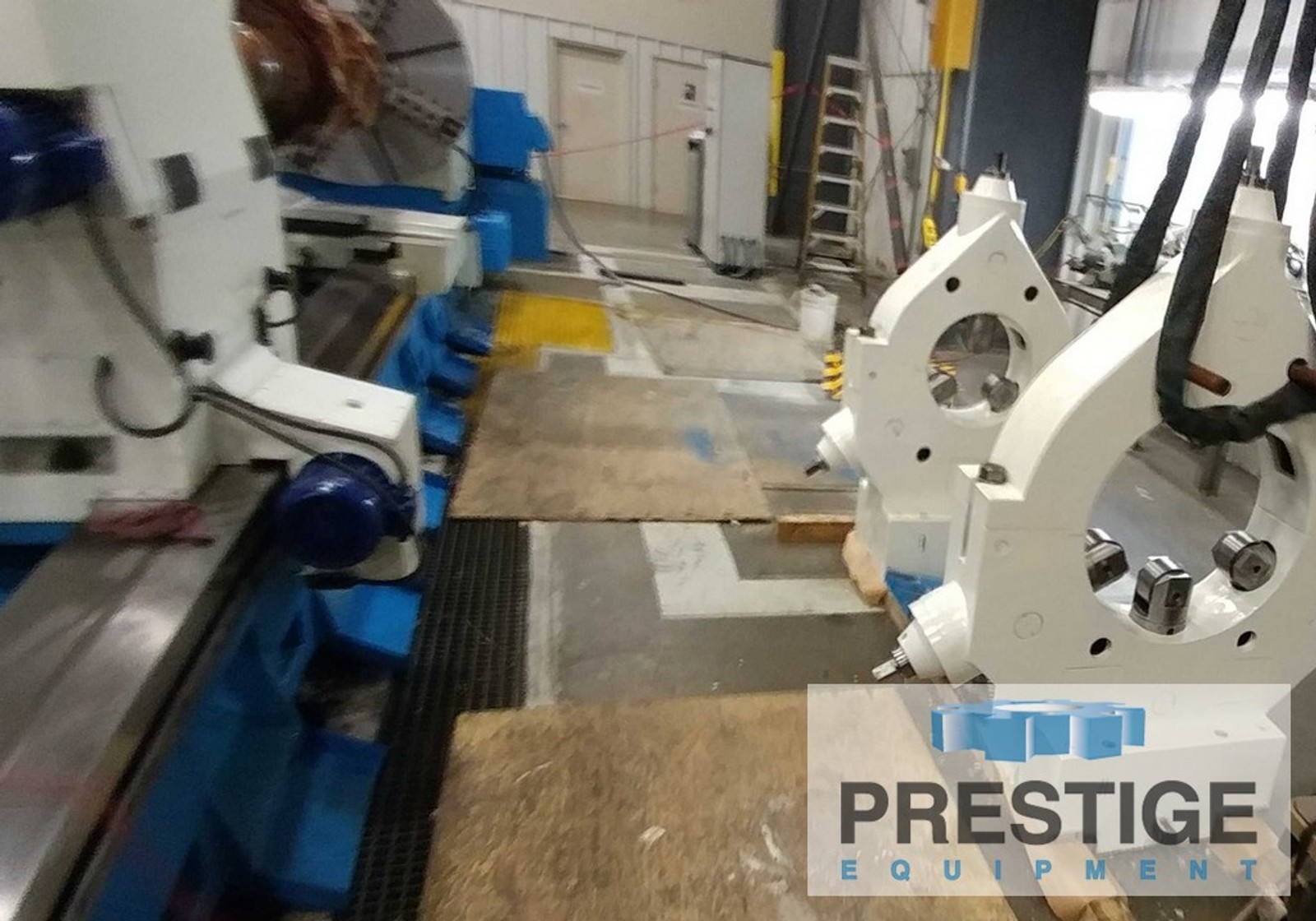

Steady Rests & Follow Rest
Hardened Ways
Power Tailstock Quill
Power Tailstock
100 HP Main Spindle Motor
