Accurpress 717512, 175 Ton x 12', 8" Stroke, ETS CNC Control, Lower Die Holder, 2005 #43262

Manufacturer

ACCURPRESS

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43262

Model

717512

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43262

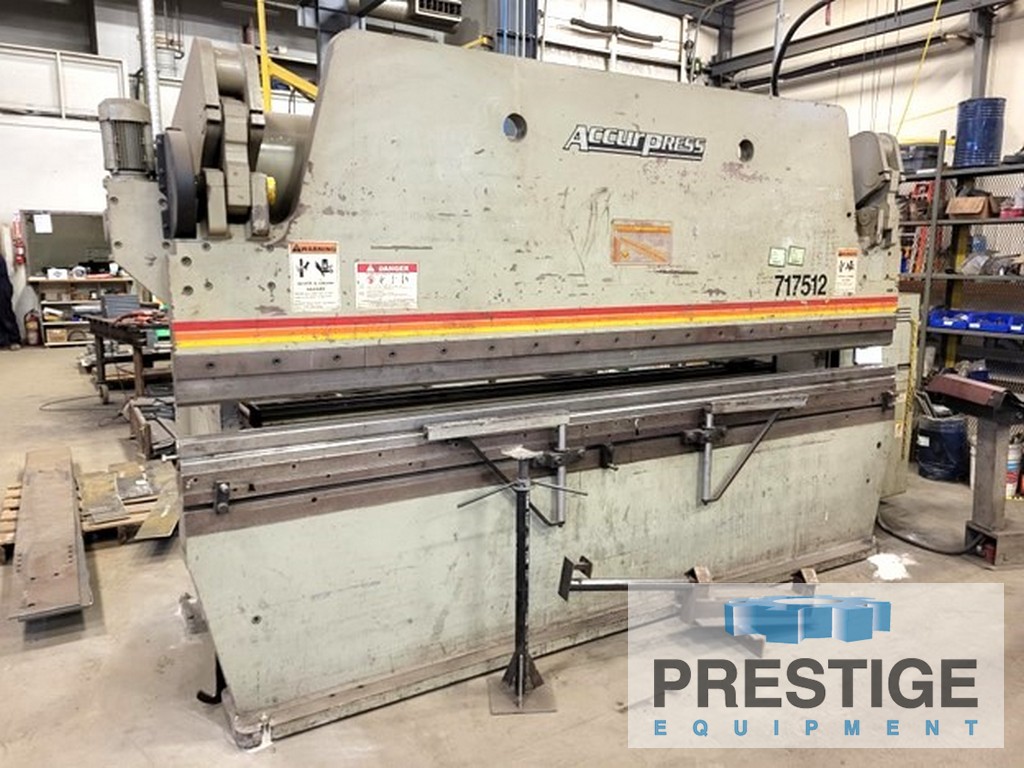

Accurpress 717512 175 Ton x 12' CNC Hydraulic Press Brake

FEATURES:

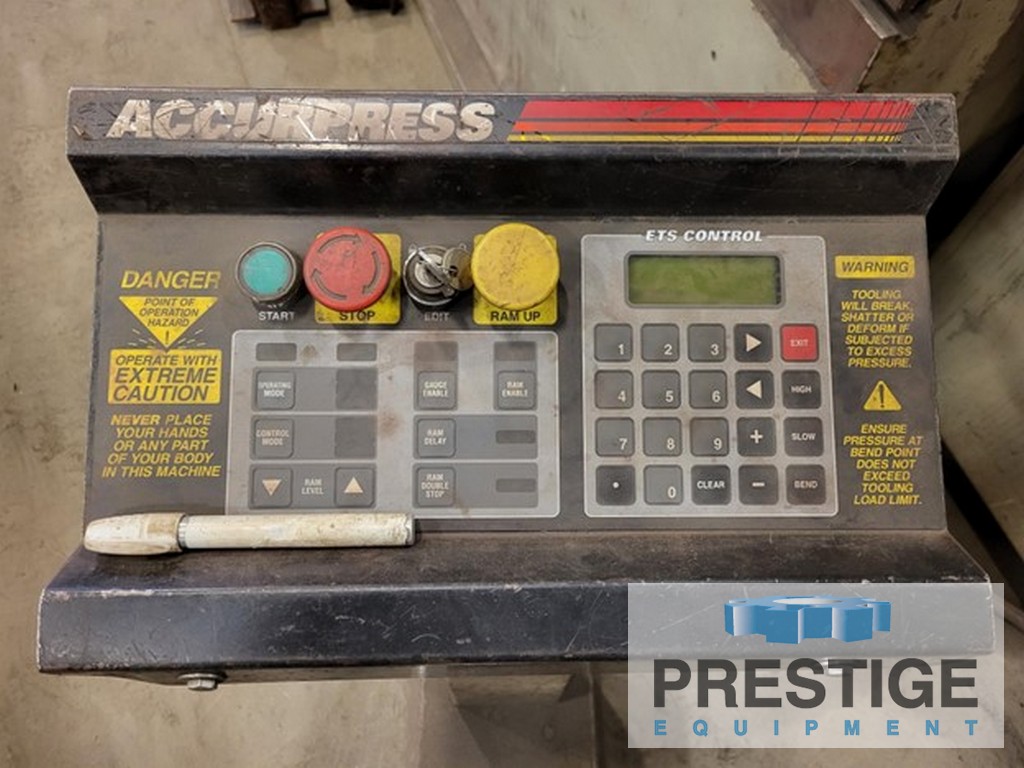

ETS 200 CNC Control
Single Axis Back Gauge
Lower Die Holder
Electric Foot Switch Control
Pedestal Control
Flush Floor Design

CAPACITY:
Tonnage Capacity ...................... 175 Ton
Overall Length of Bed and Ram ......... 12'
Distance Between Housings ............. 10'5"
Bending Capacity ...................... 1/4" x 10'
Stroke Length ......................... 8"
Open Height ........................... 14"
Closed Height ......................... 6"
Throat Depth .......................... 10"
Motor ................................. 20 HP
Approximate Dimensions ................ 156" x 52" x 92" H
Approximate Shipping Weight ........... 24,000 Lbs

EQUIPPED WITH:
ETS 200 CNC Control
Single Axis Back Gauge
Lower Die Holder
Electric Foot Switch Control
Pedestal Control
Flush Floor Design

NOTE:
Inspect In Saskatoon Canada
