Mori Seiki TL40B/3000,25" Swing,118" CC,11" Chuck, 4" Bore, Chip Conv, MSC518 CNC, #43314

Manufacturer

MORI SEIKI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

43314

Model

TL40B

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43314

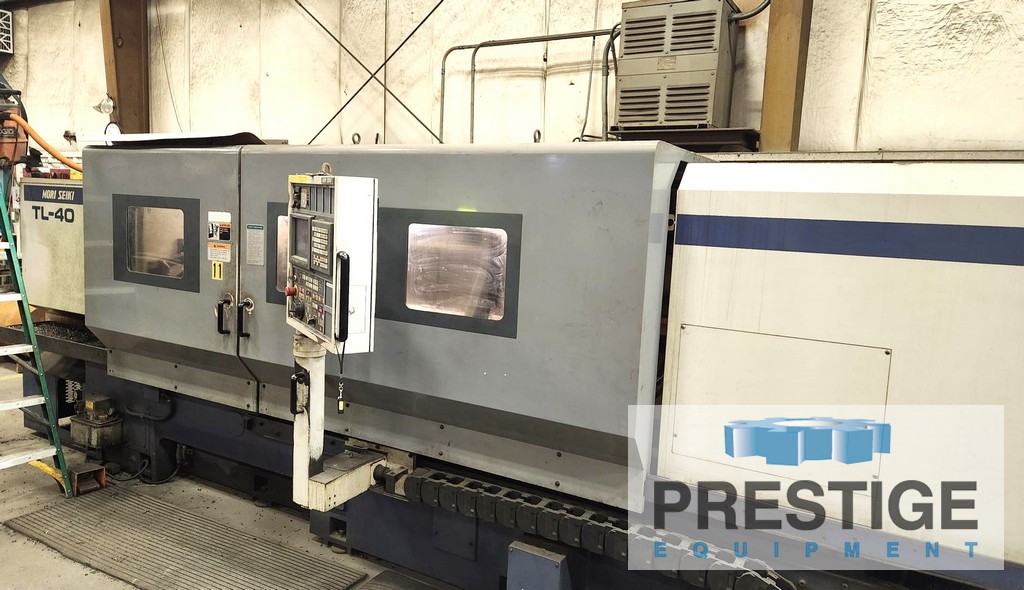

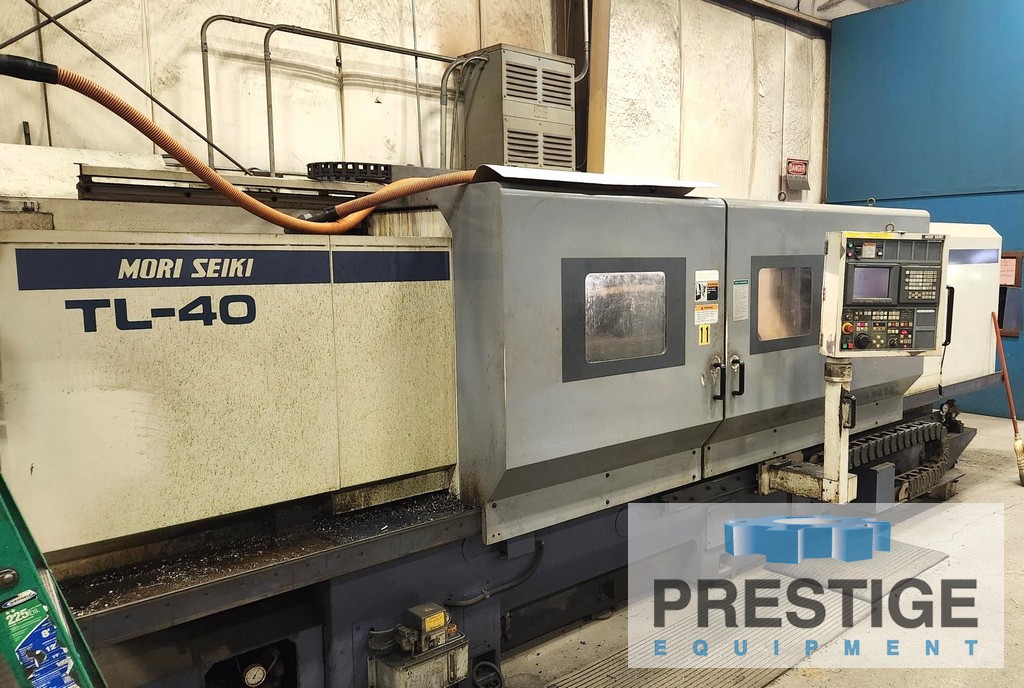

Mori-Seiki TL-40 24" x 118" CNC Lathe

FEATURES:

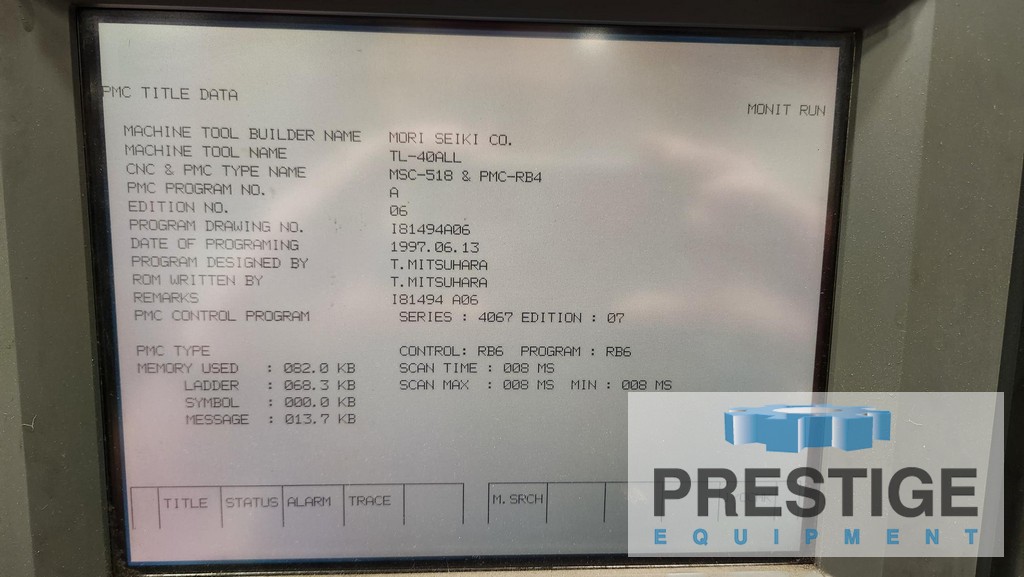

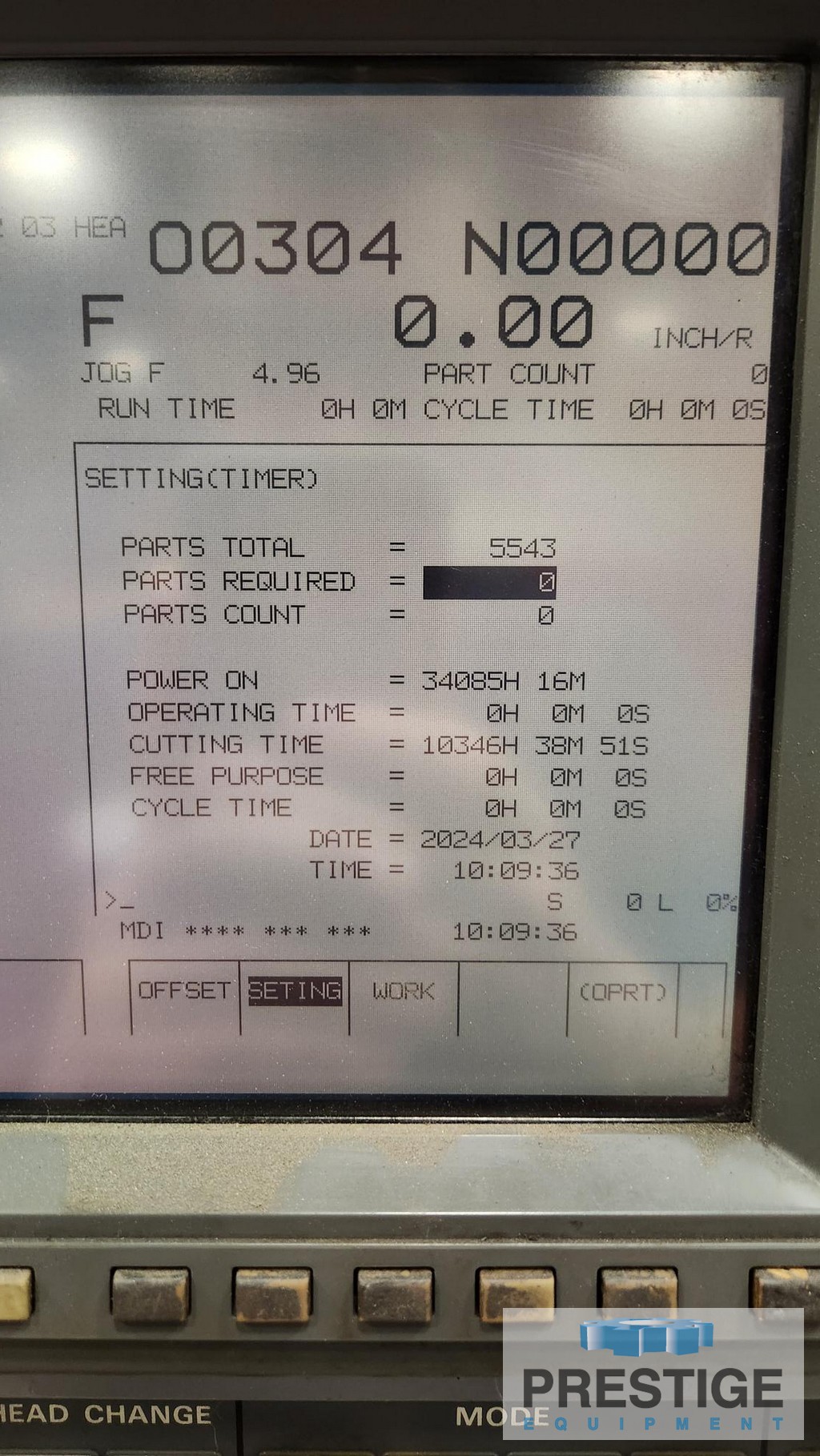

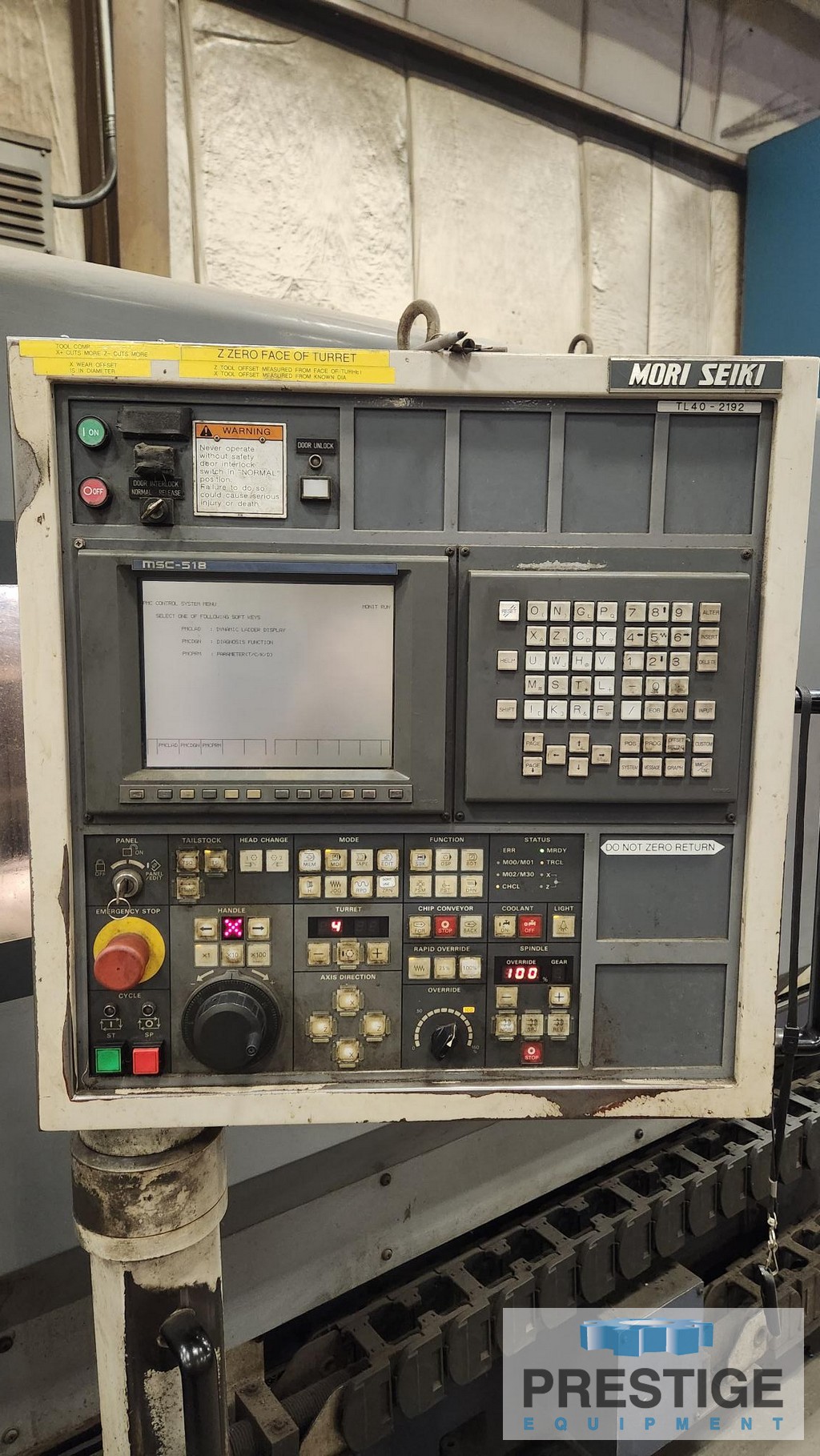

MSC-518 CNC Control
11.5" 3-Jaw Hydraulic Chuck

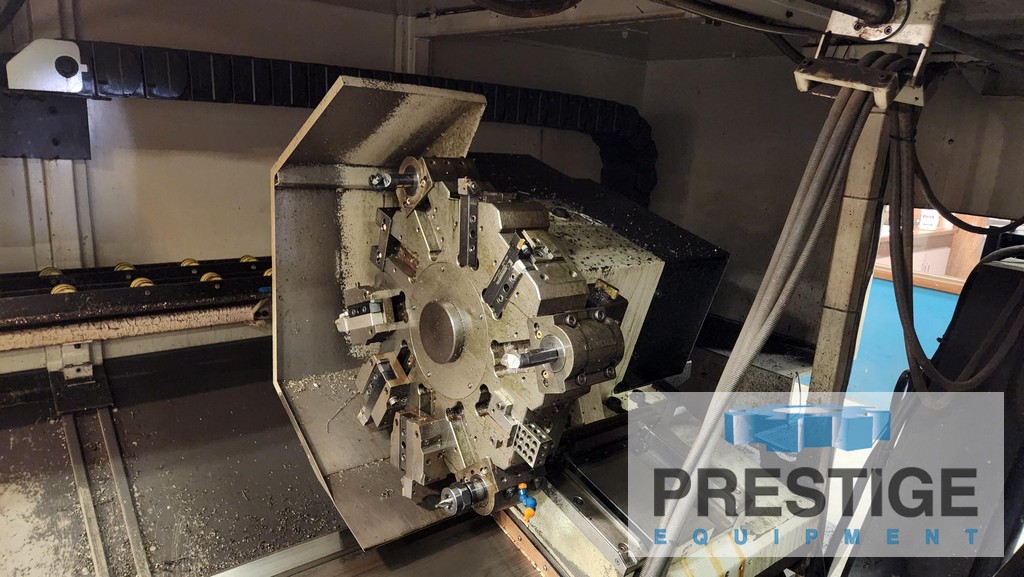

10-Position Turret
(3) Steady Rest

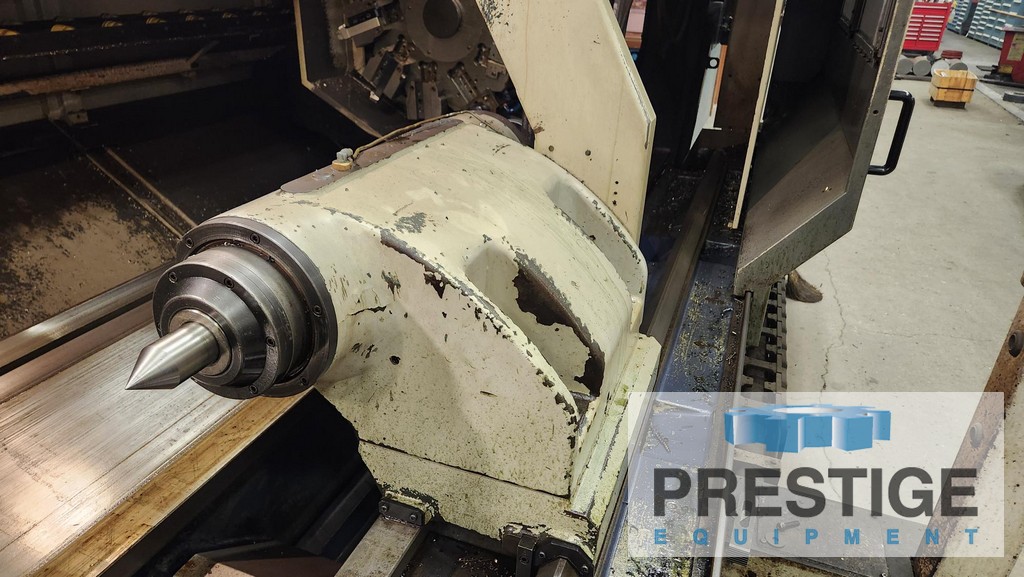

Tailstock
Chip Conveyor

SPECIFICATIONS:
Swing Over Bed ........................ 24.4"
Swing Over Cross Slide ................ 14.9"
Distance Between Centers .............. 118.11"
Max. Bar Work Diameter ................ 3.6"
Spindle Speeds ........................ 20-2000 RPM
Spindle Bore .......................... 4.1"
Spindle Nose .......................... JIS A2-8
Spindle Drive ......................... 30 HP / 25 HP
X-Axis Travel ......................... 9.3"
Z-Axis Travel ......................... 115.4"
Dimensions ............................ 268" x 100"
Approx. Weight ........................ 20,900 lbs

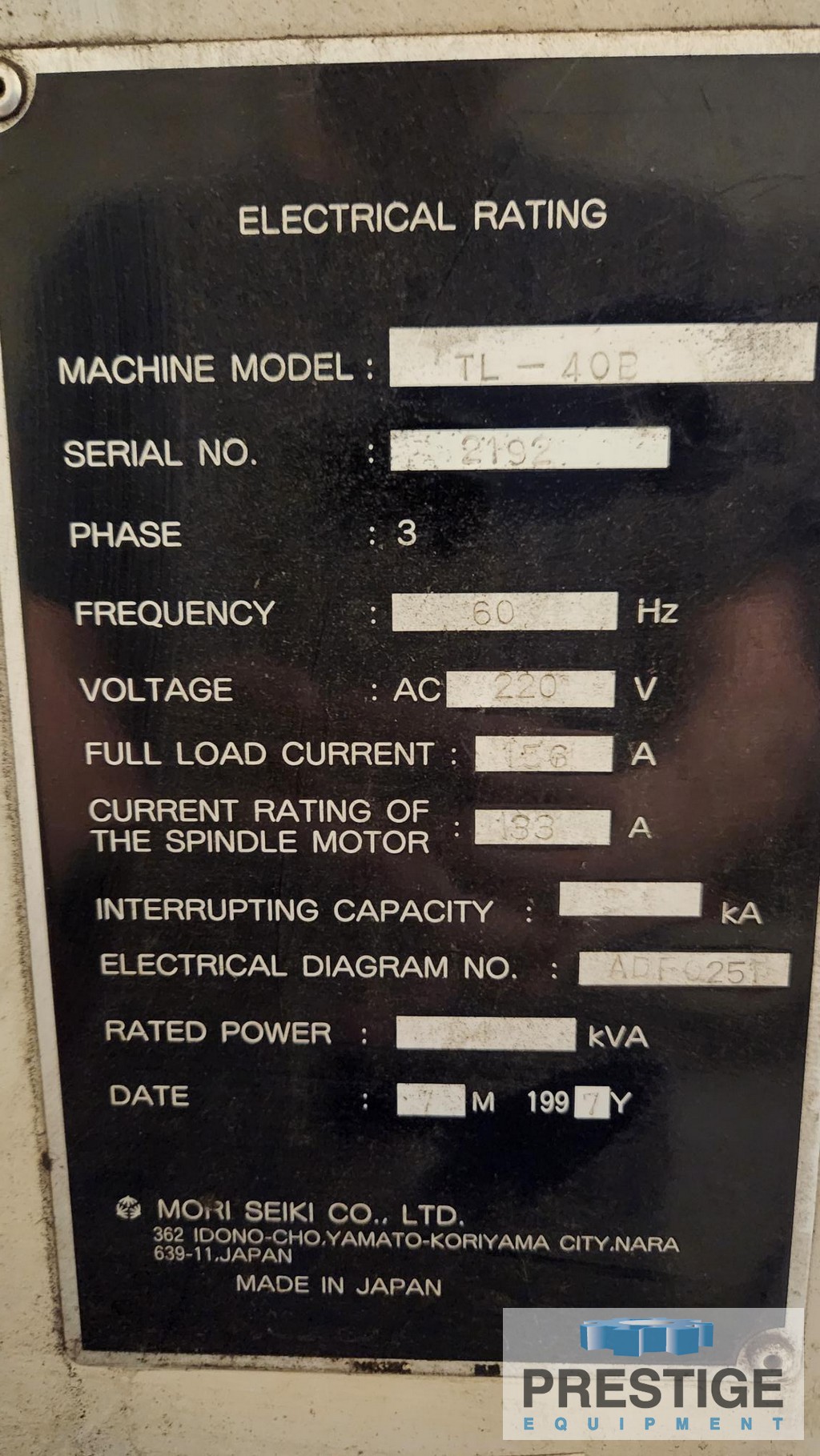

Electrics ............................. 220/3/60

EQUIPPED WITH:
MSC-518 CNC Control
11.5" 3-Jaw Hydraulic Chuck
10-Position Turret
(3) Steady Rest
Tailstock
Chip Conveyor

NOTE:
Under Power In East Coast Plant
