Ficep Excalibur 12 Single Spindle Drill, 6-ATC, 47" x 47" Max Beam, 41.5 HP, 57' Table, PC Based CNC, 2016 #43260

Stock

43260

Model

Excalibur 1201 DE

Dealer Location

New York

Spec Sheet

Reference #43260

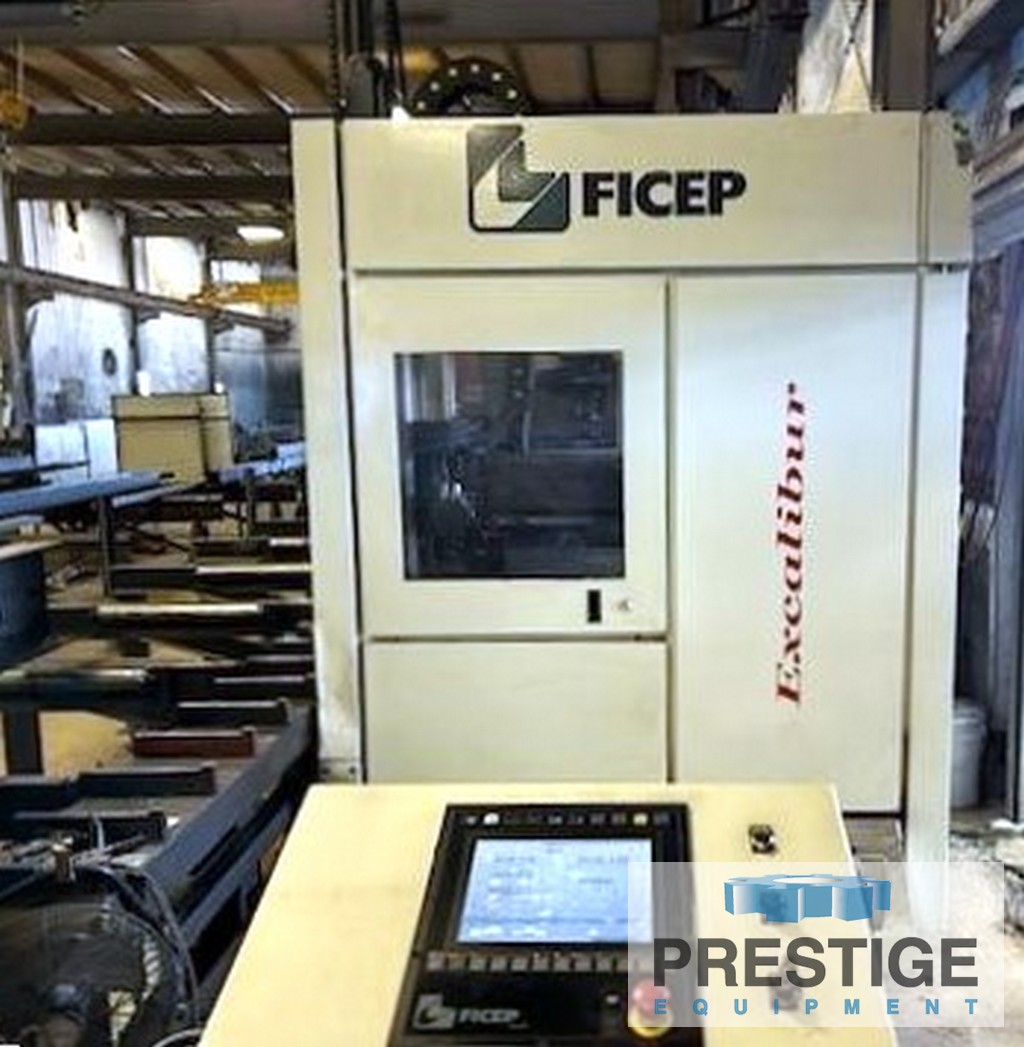

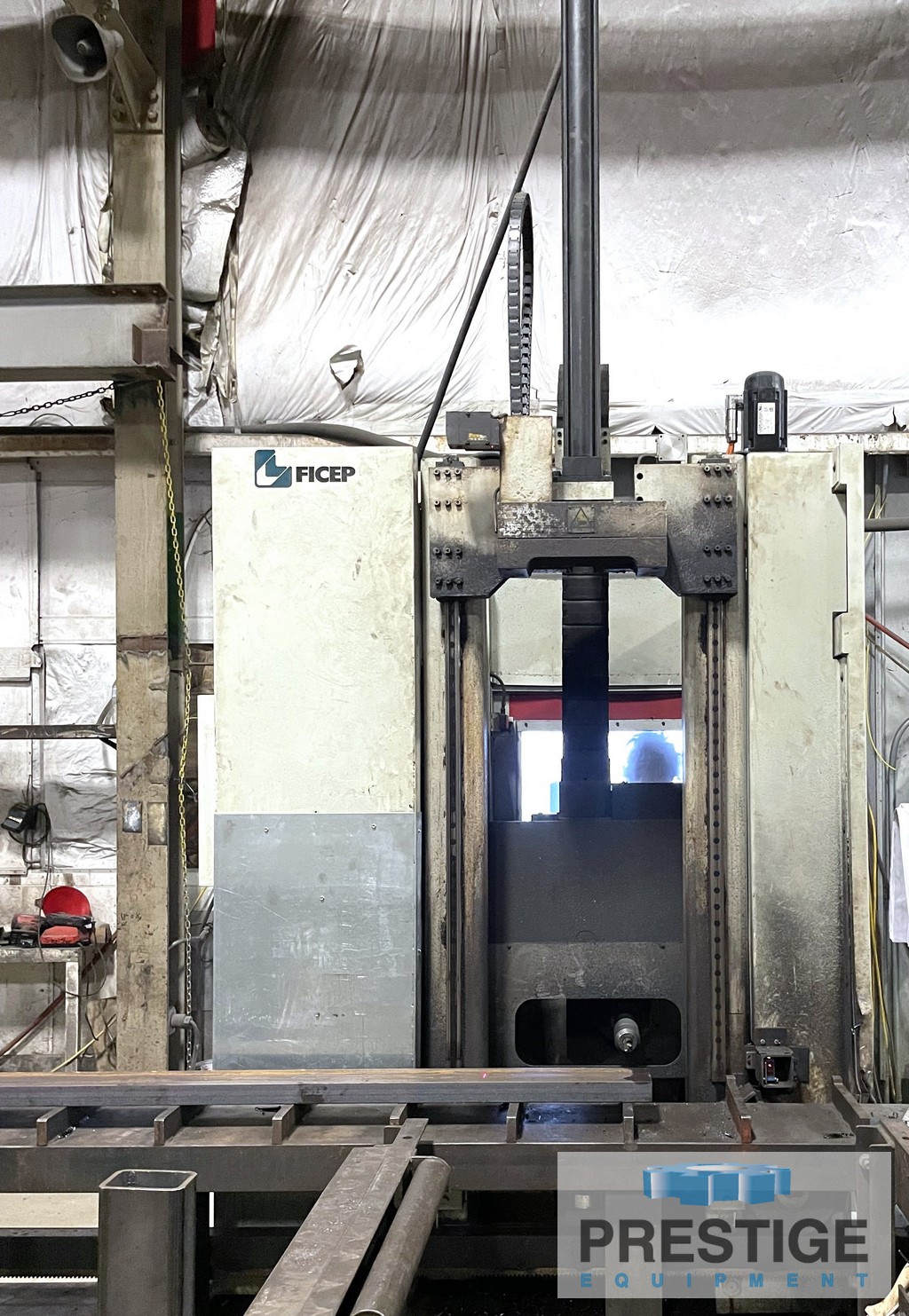

Ficep Excalibur 1201 DE CNC Single Spindle Traveling Column Drill With Automatic Tool Changer

FEATURES:

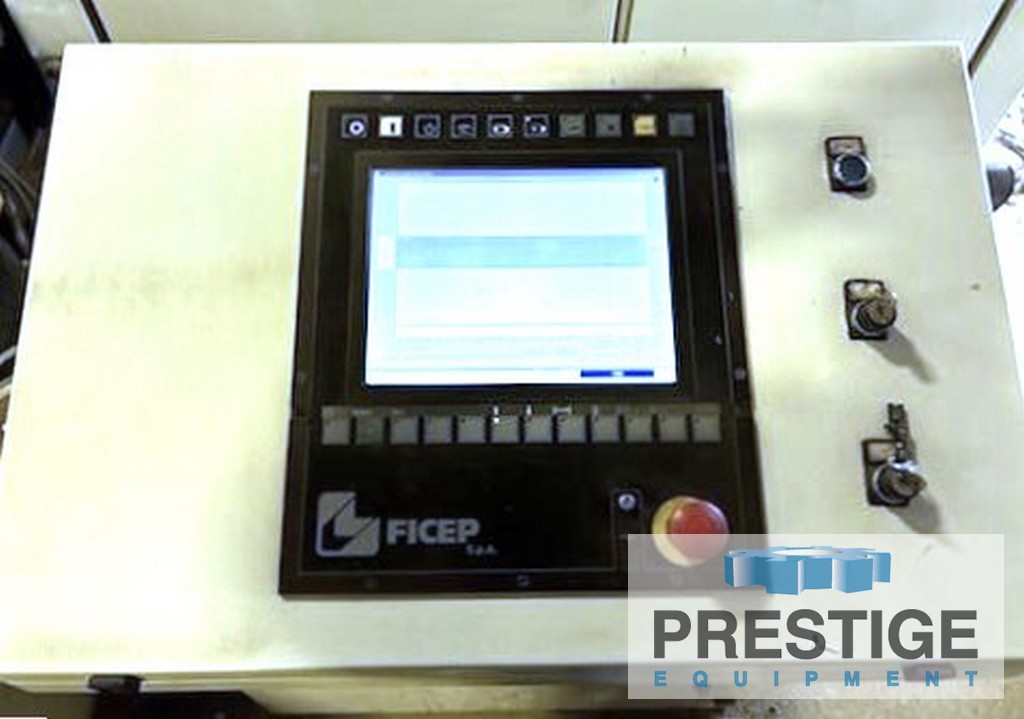

Ficep Minosse Windows PC Based CNC Control

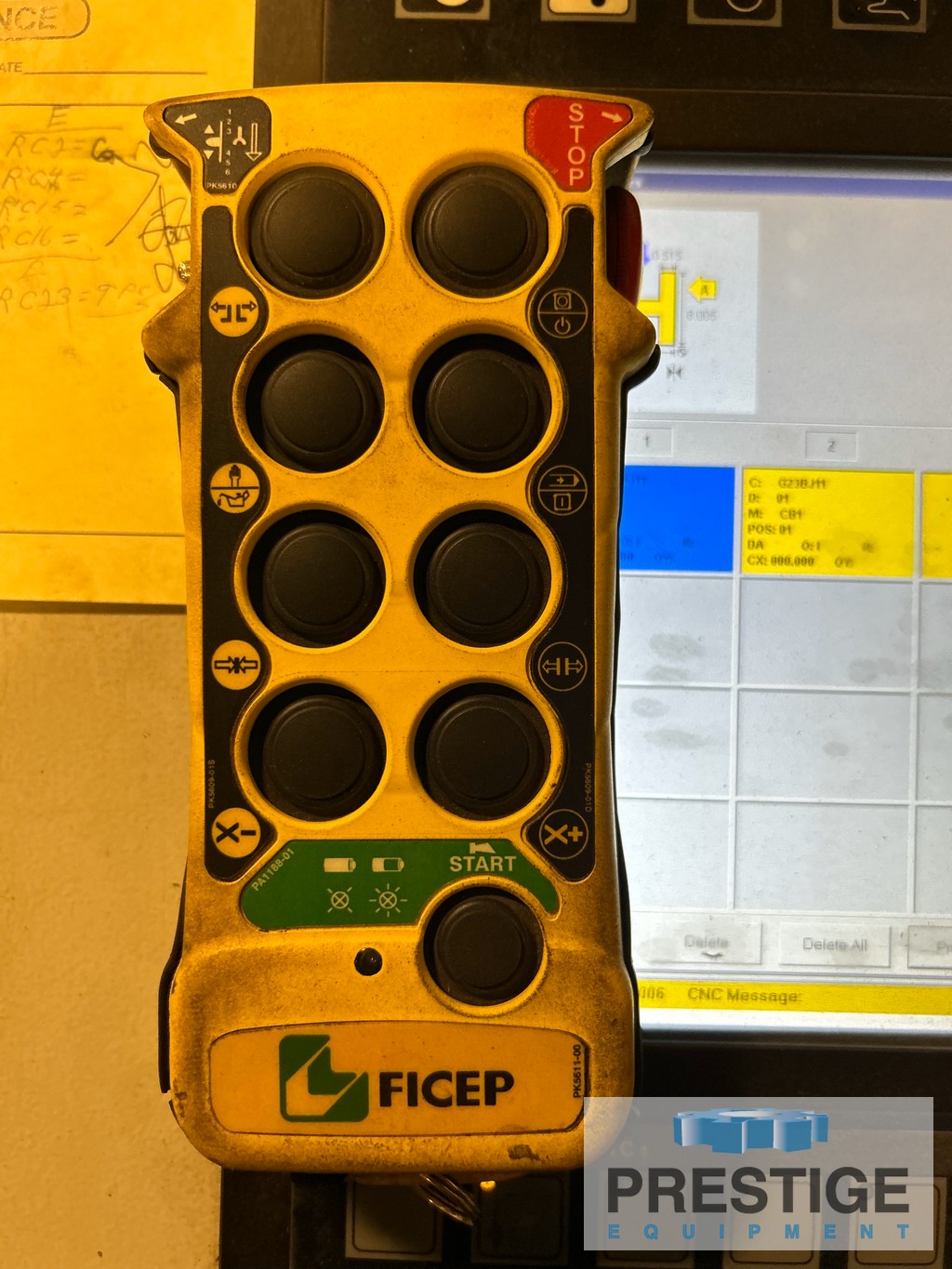

Ficep Remote Controller

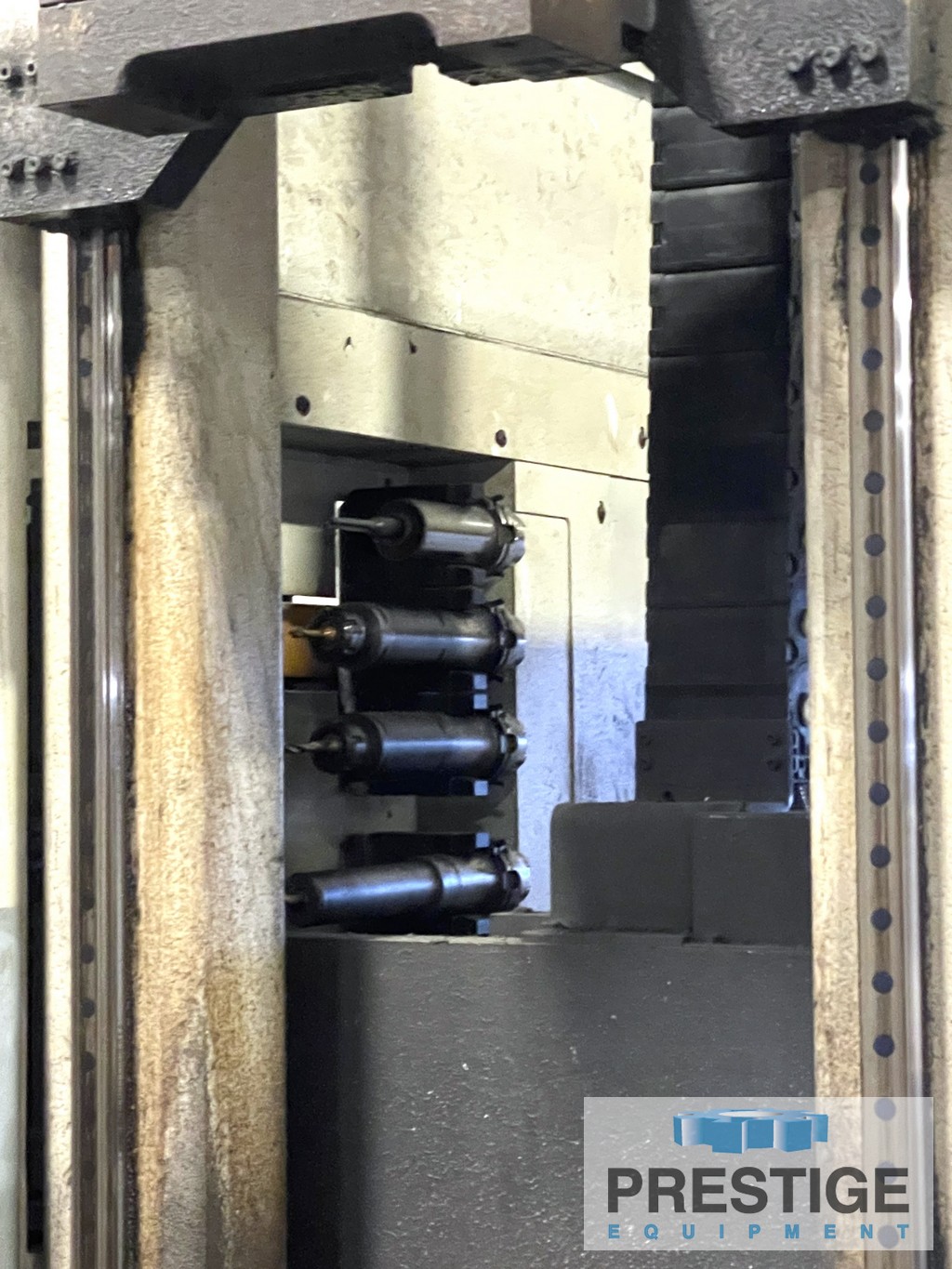

6-Station Automatic Tool Changer

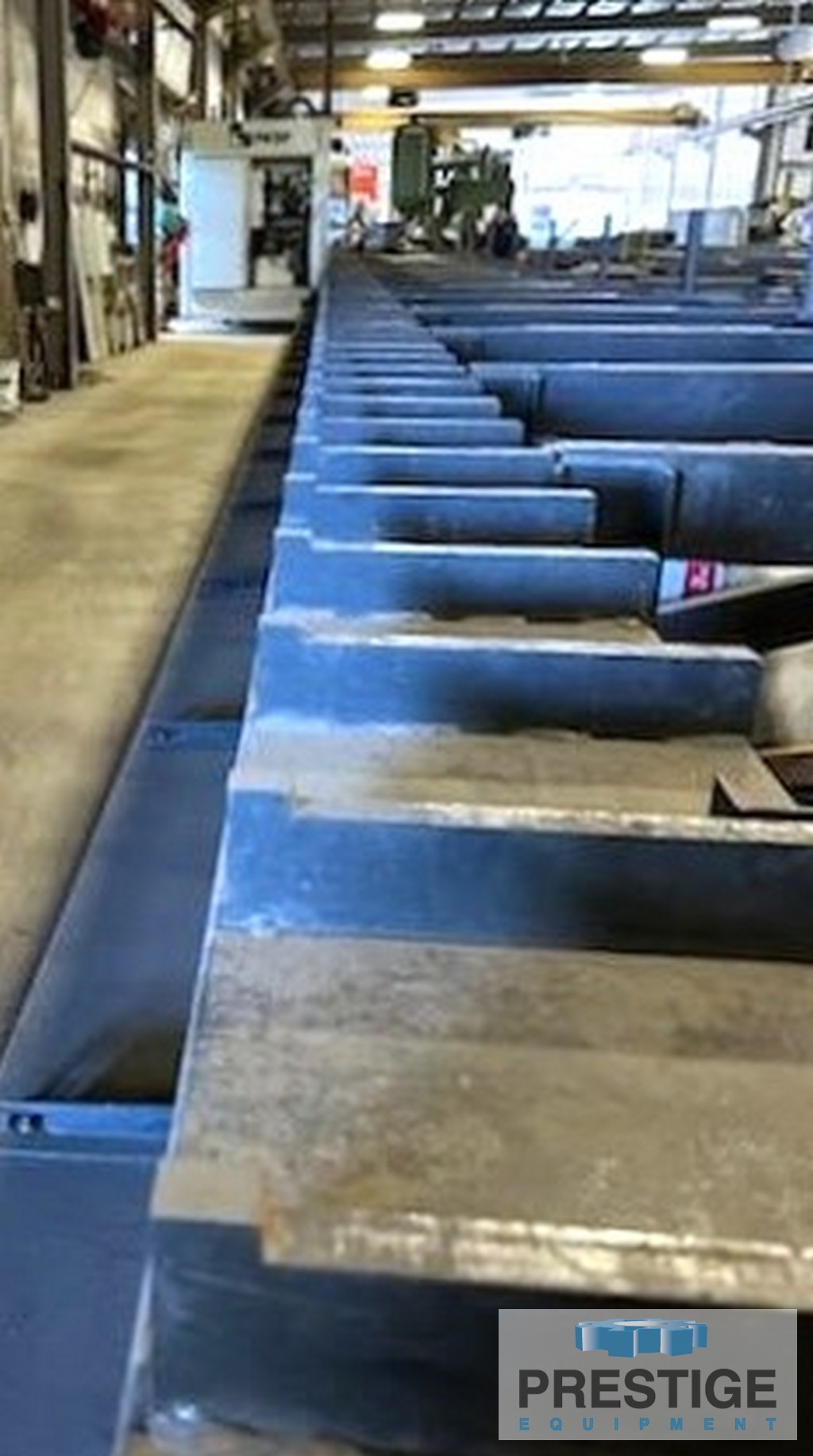

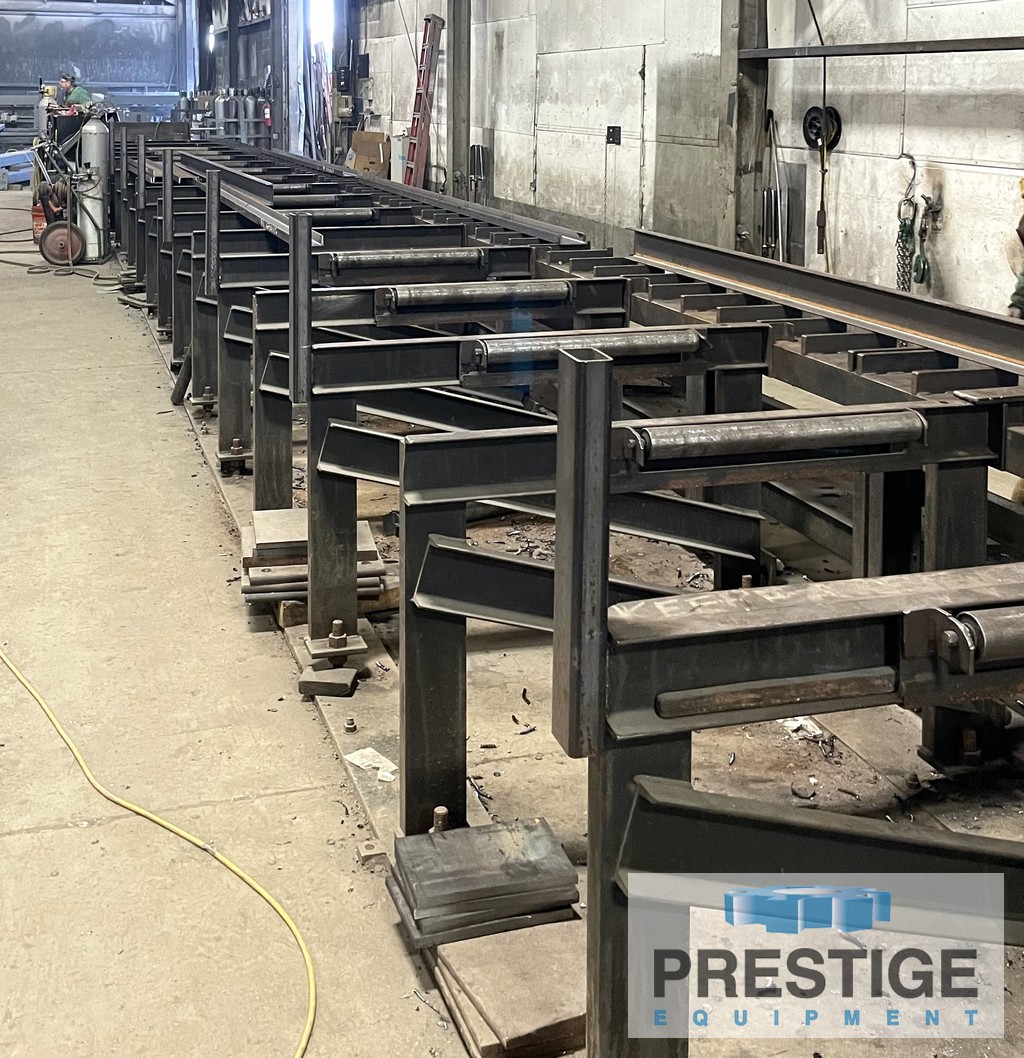

57' Fixed Bed Table

CAPACITY:
Section Volume of Beams, Max .......... 47" x 47"
Beam Processing Length ................ 50'
Drill Heads ........................... 1
Spindles .............................. 1
Drilling Diameter, Max ................ 1-9/16"
X-Axis Positioning Speed .............. 115 FPM
Y-Axis Positioning Speed .............. 470 IPM
Spindle Motor ......................... 41.57 HP
Programmable Spindle Speed, Max ....... 3000 RPM
Maximum Beam Size ..................... 47"
Total Vise Clamping Pressure .......... 10 Tons
Electrics ............................. 460 V, 3 PH, 60 HZ

EQUIPPED WITH:
Ficep Minosse Windows PC Based CNC Control
Ficep Remote Controller
6-Station Automatic Tool Changer
Servo Driven Ball Screw Spindle Feed
Internal/External Drill Coolant
57' Fixed Bed Table

NOTE:
Inspect In Plant Under Power
