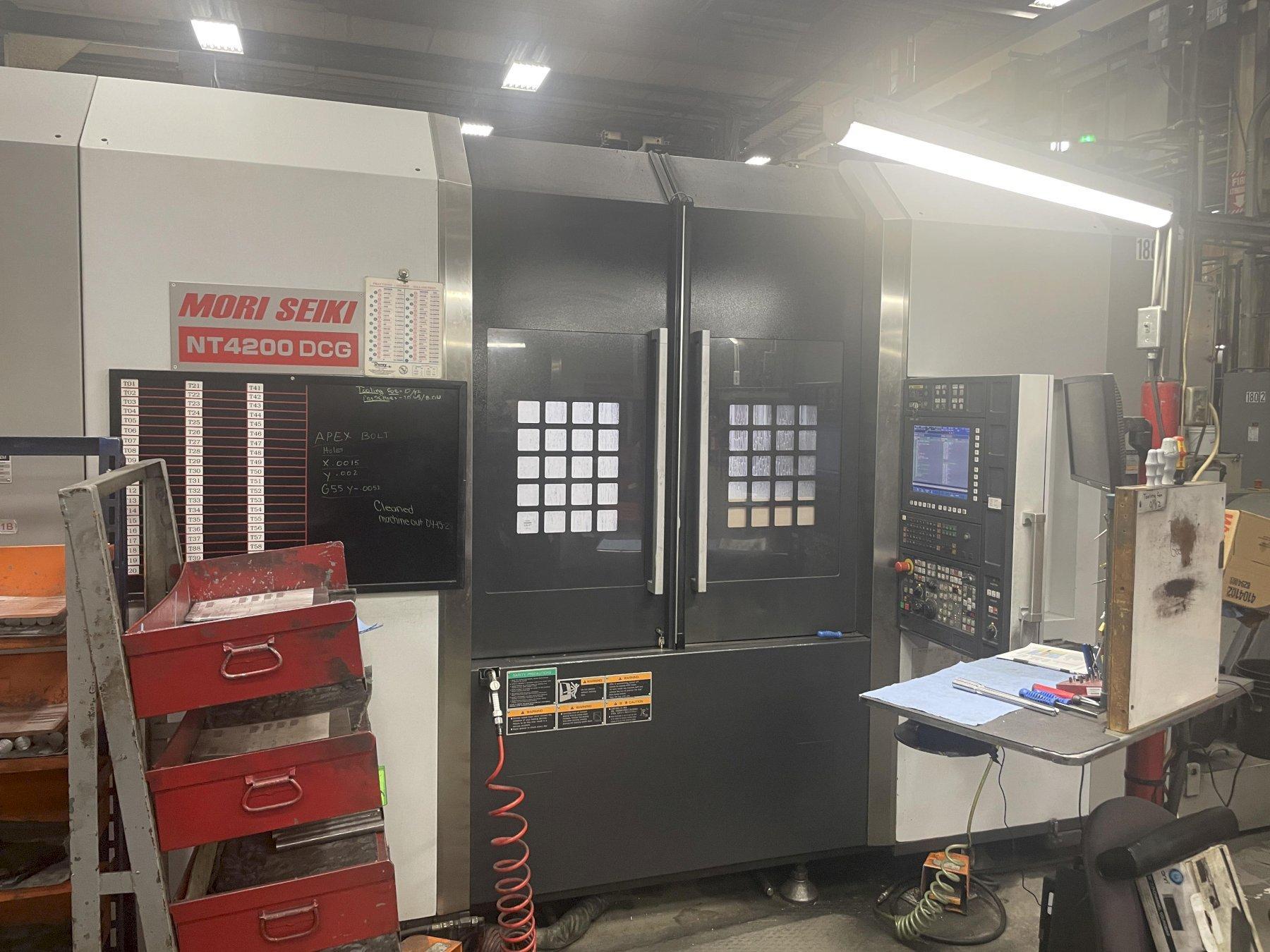

Mori Seiki NT4200/1000SZ CNC Multi-tasking Lathe For Sale - 2006

Manufacturer

MORI SEIKI

Stock

14492

Model

NT4200/1000SZ

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc

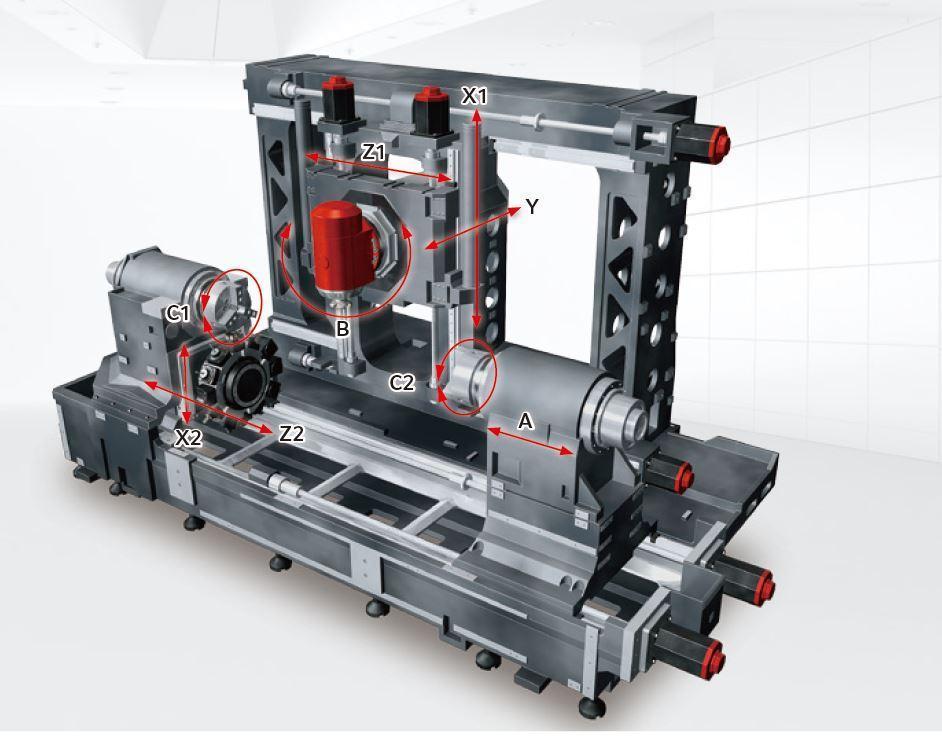

# Axis - 9
Swing - 28.7 inches
Turning Diameter - 25.9 inches
Turning Diameter Lower Turret - 13.7"
Center Distance - 42.5 inches
Bar Capacity - 2.5 inches
X Axis Travel - 29.5 inches
X2 Axis Travel - 7.7"
Y Axis Travel - 8.3 inches
Z Axis Travel - 44.1 inches
Z2 Axis Travel - 39.8"
B Axis Indexing - +/- 120°
C1/C2 Axis Index - 0.0001°
Spindle Nose - A2-6
Spindle Speed - 5,000 rpm
Main Motor - 30 hp
Tailstock - no
Y Axis - yes
Live Tooling - yes
Milling Spindle Taper - KM-63
Live Tooling Speed - 12,000 rpm - Milling Spindle
Live Tooling Motor - 25 hp
Sub Spindle - yes
Sub Spindle Bar Capacity - 2.5 inches
Sub Spindle Nose - A2-6
Sub Spindle Speed - 5,000 rpm
Sub Spindle Motor (HP) - 30 hp
Turret Capacity - 12 Stations Lower Turret

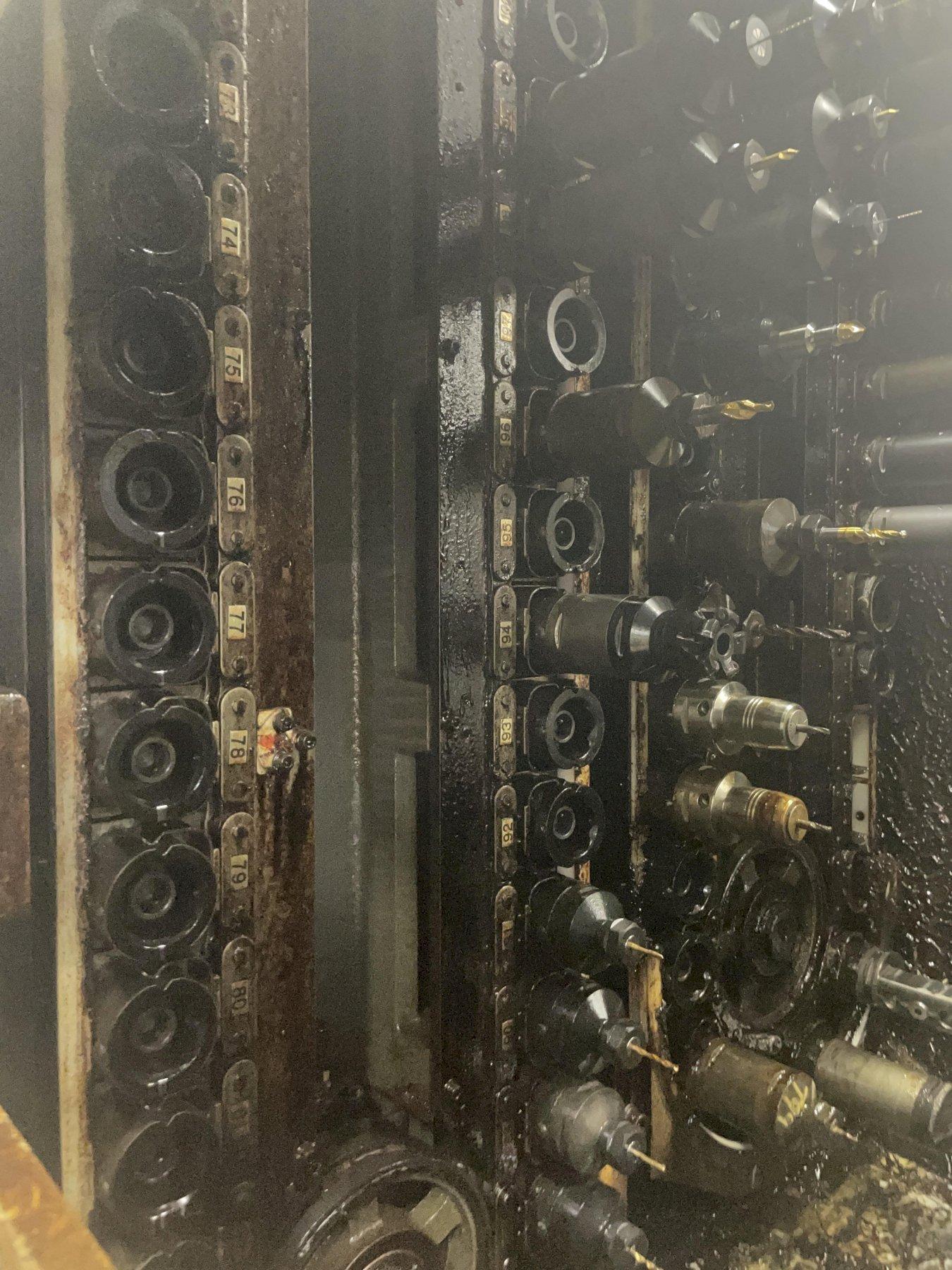

ATC Capacity - 100 Stations
Machine Weight - 49700 pounds

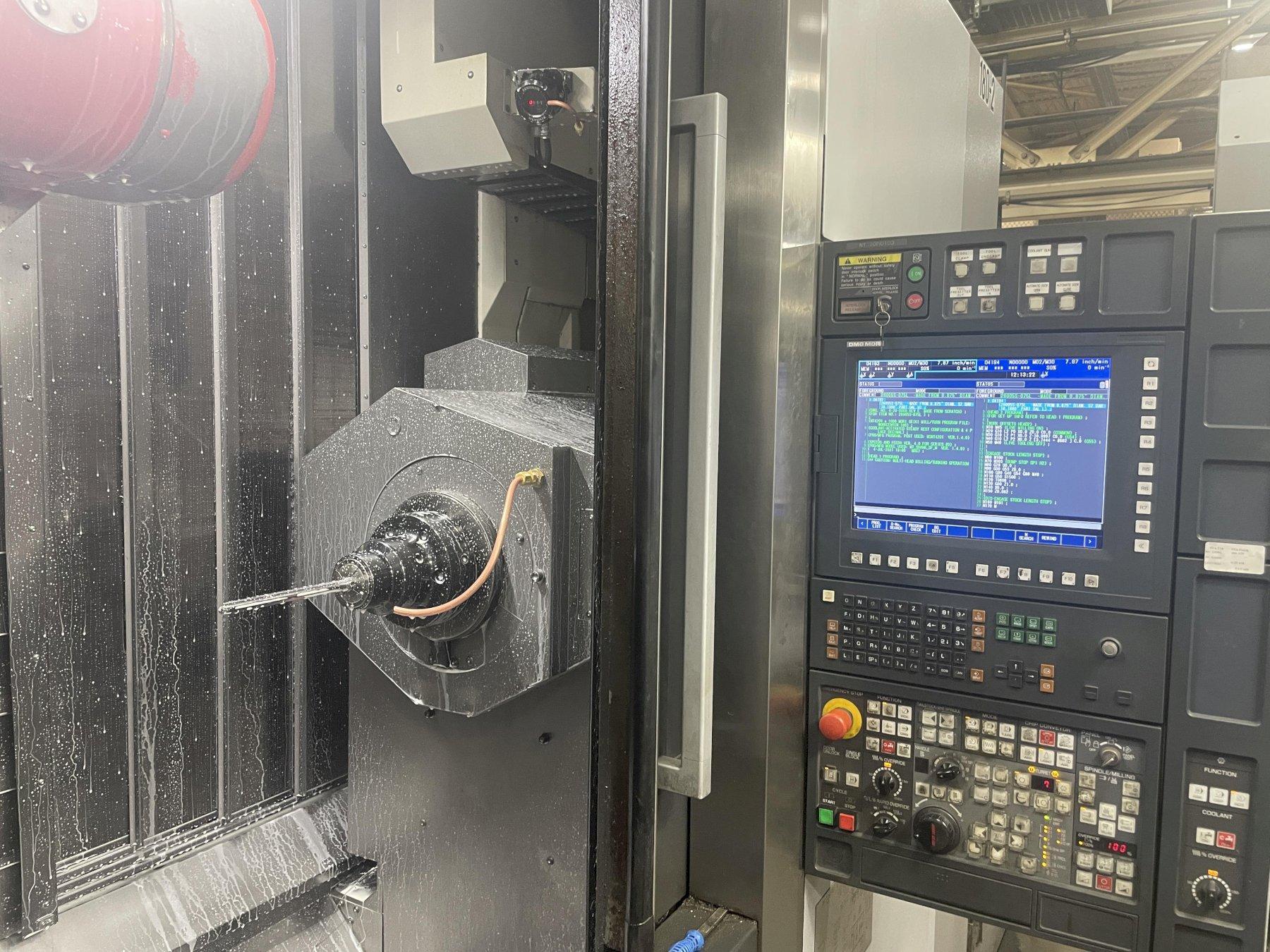

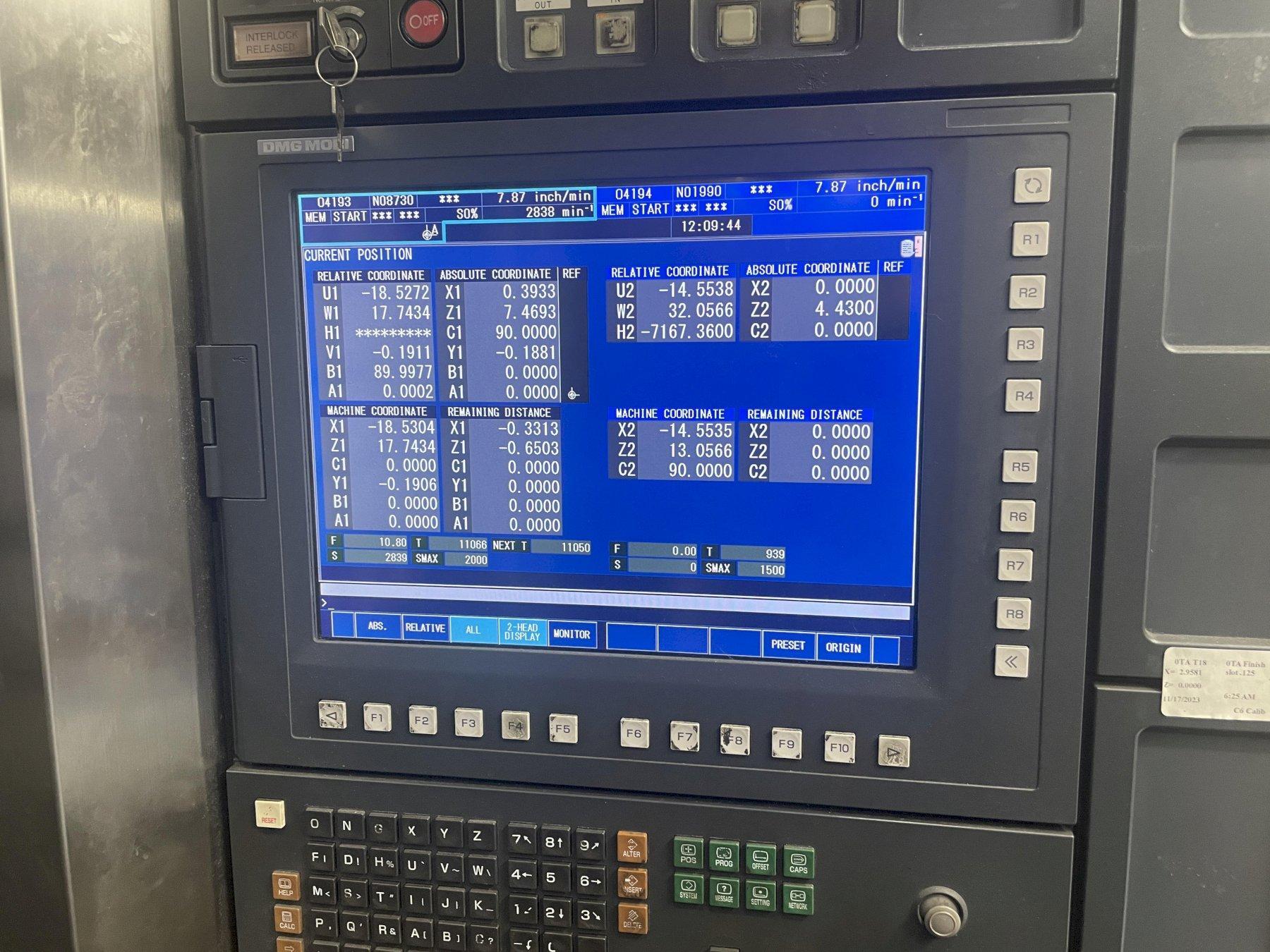

- Fanuc CNC Control
- Mapps Conversational Programming Software
- Chip Conveyor
- Coolant Tank & Pump

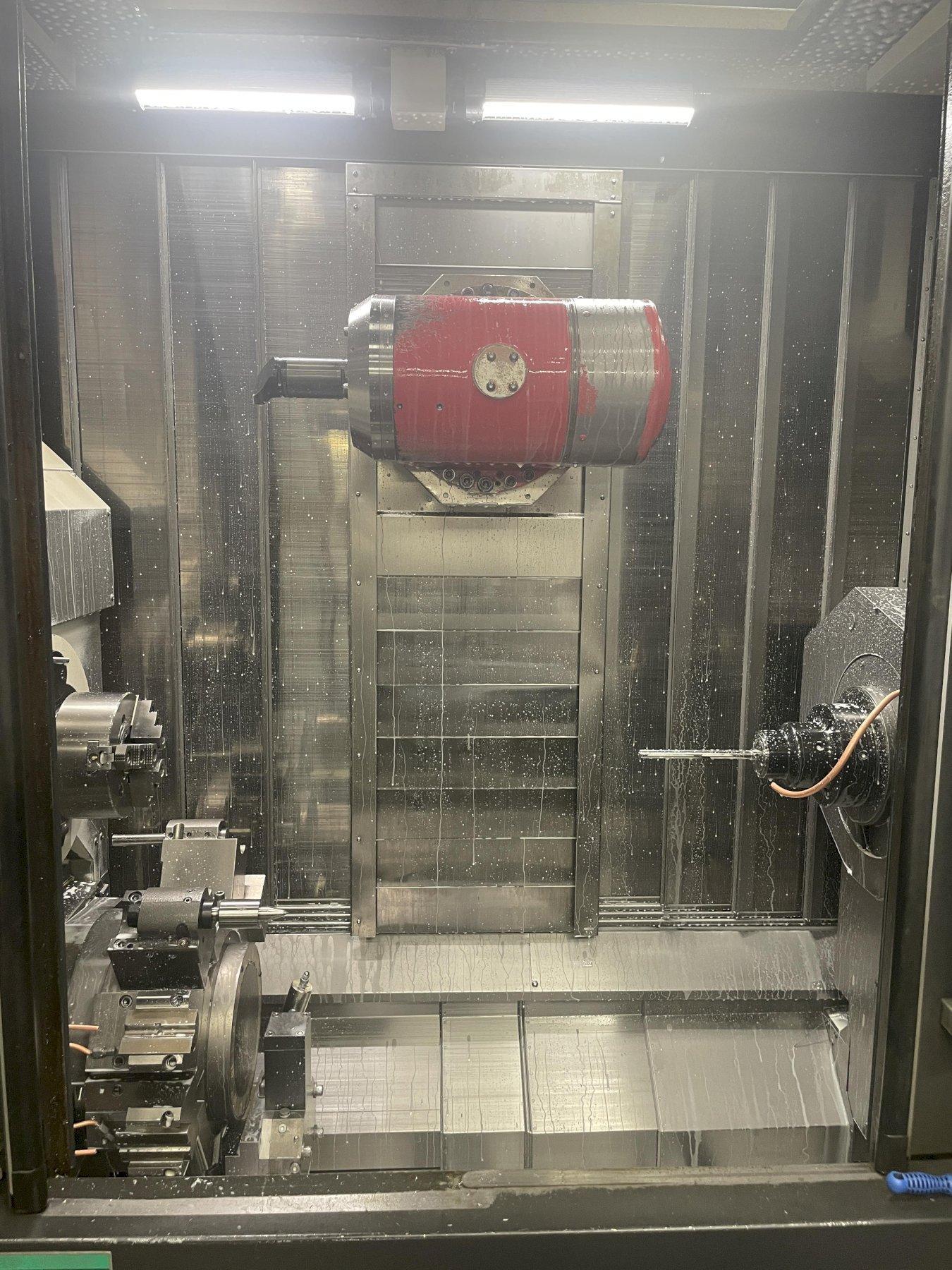

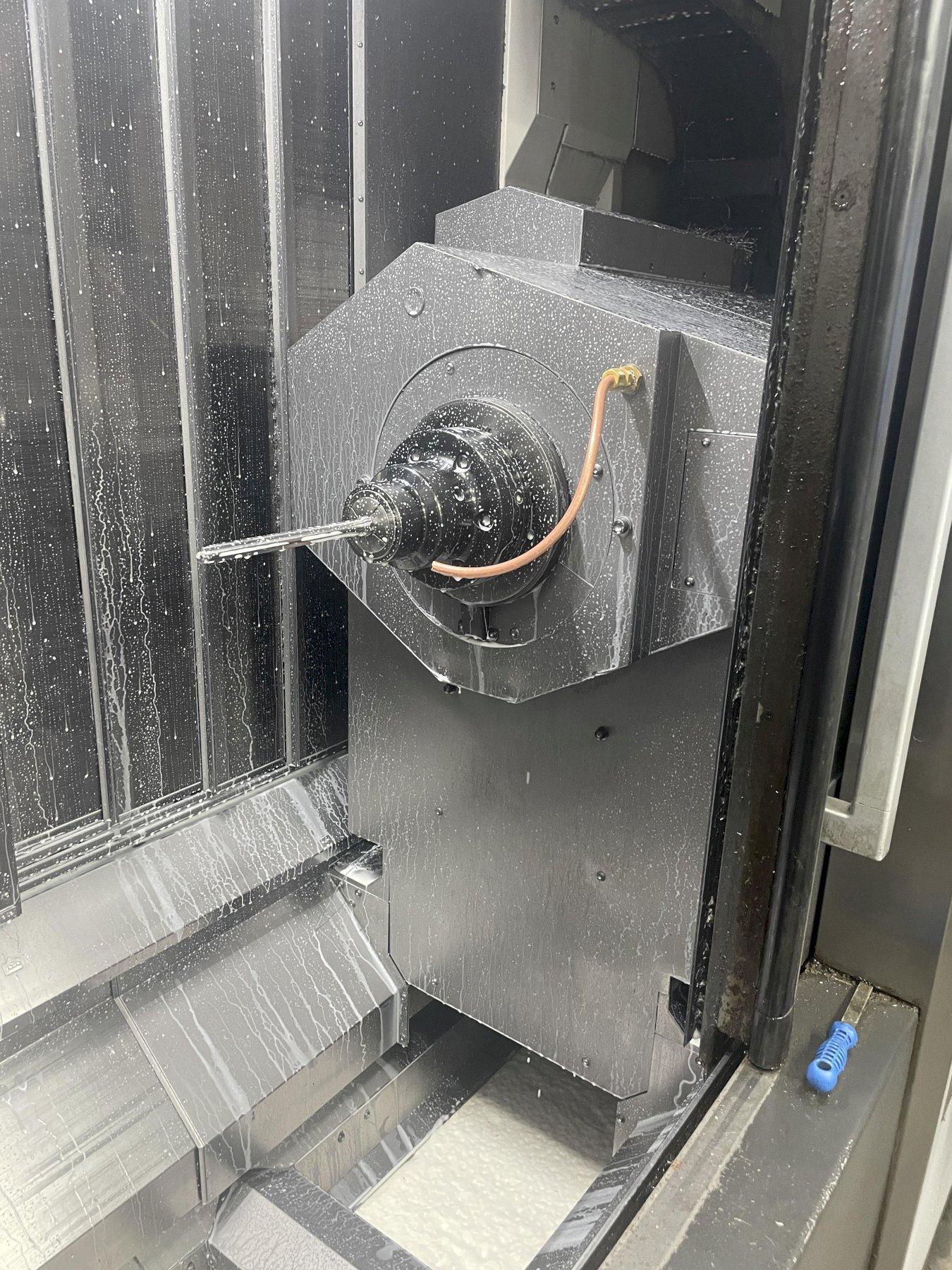

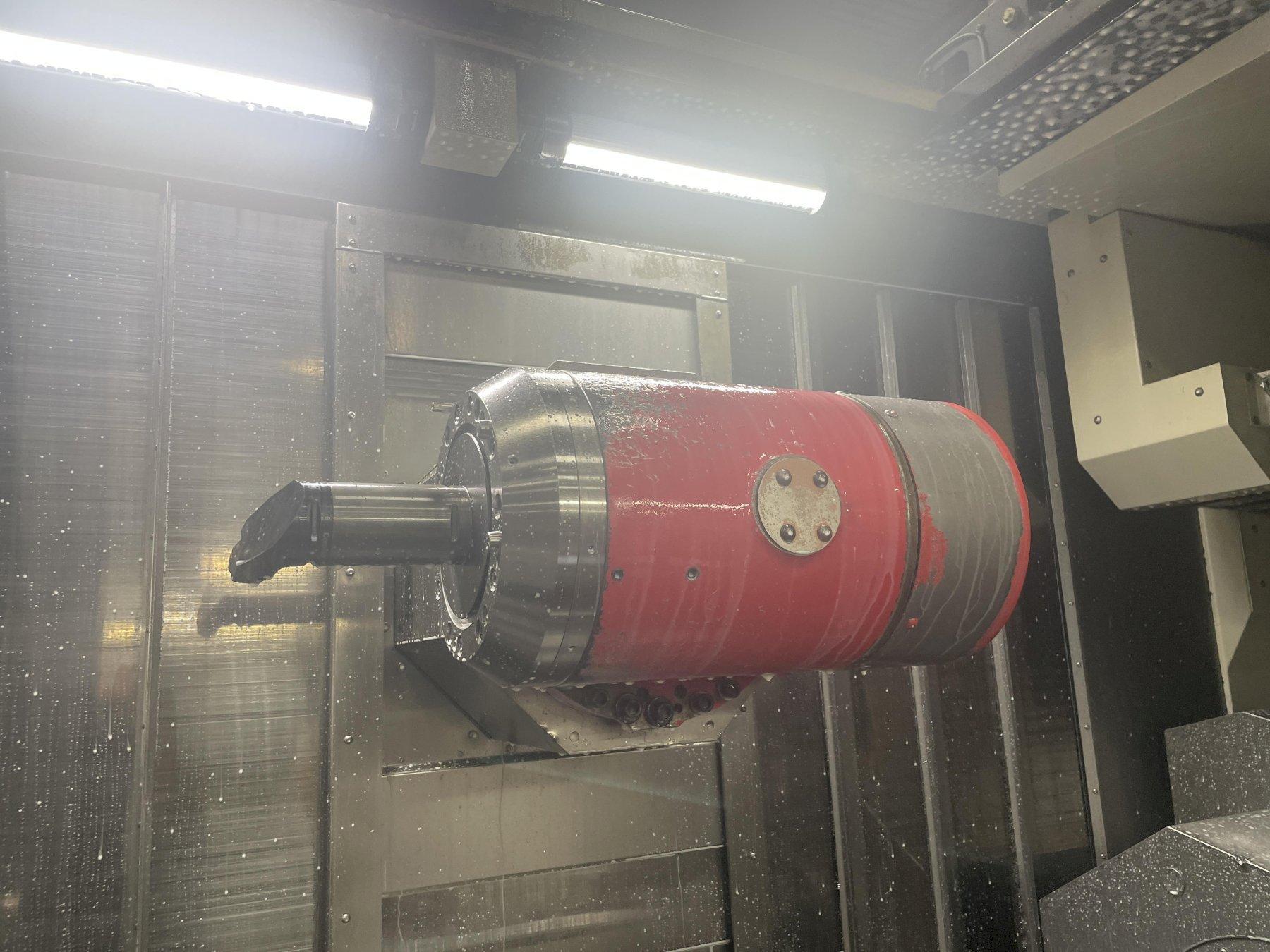

- Live Milling Spindle

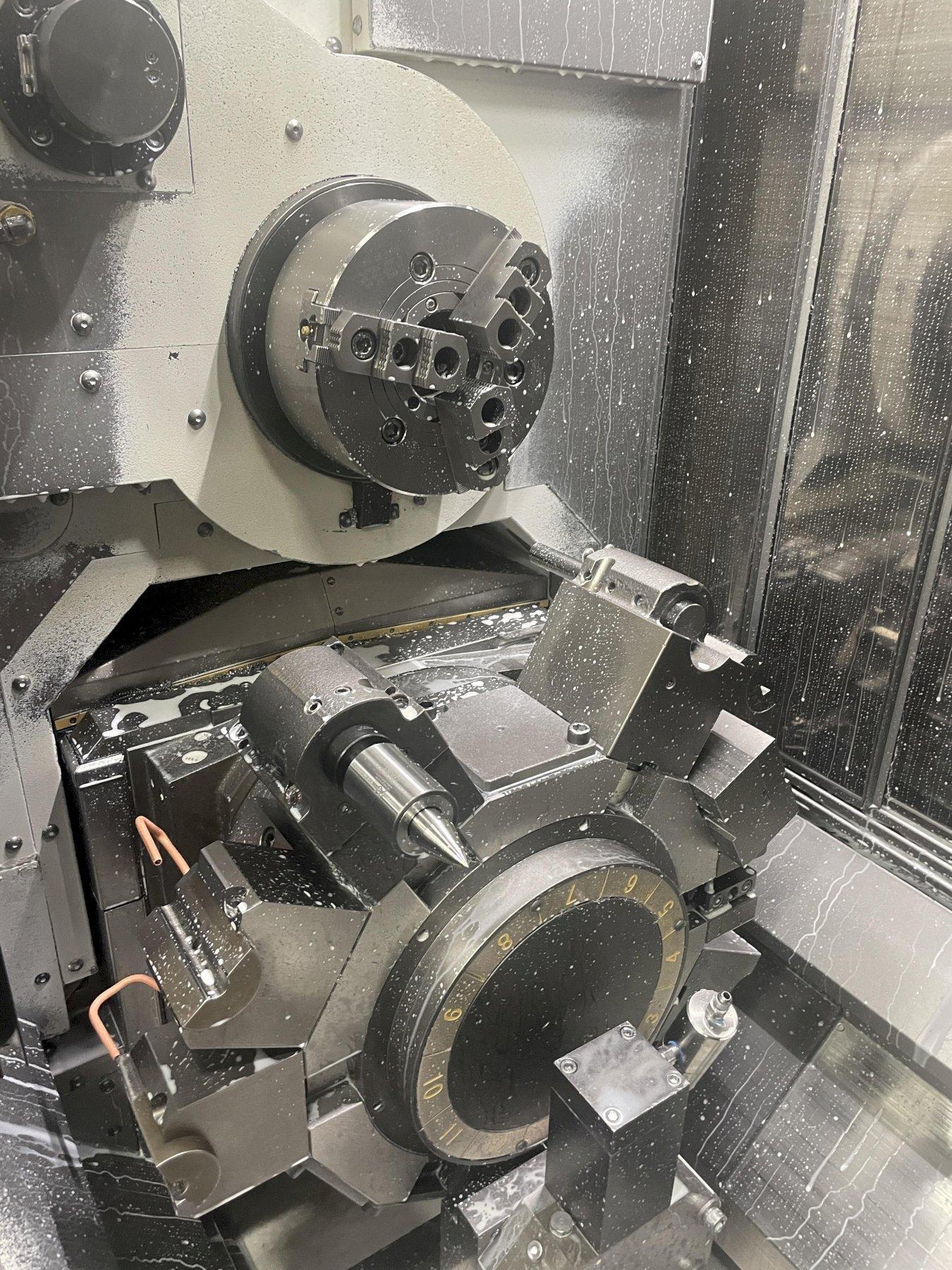

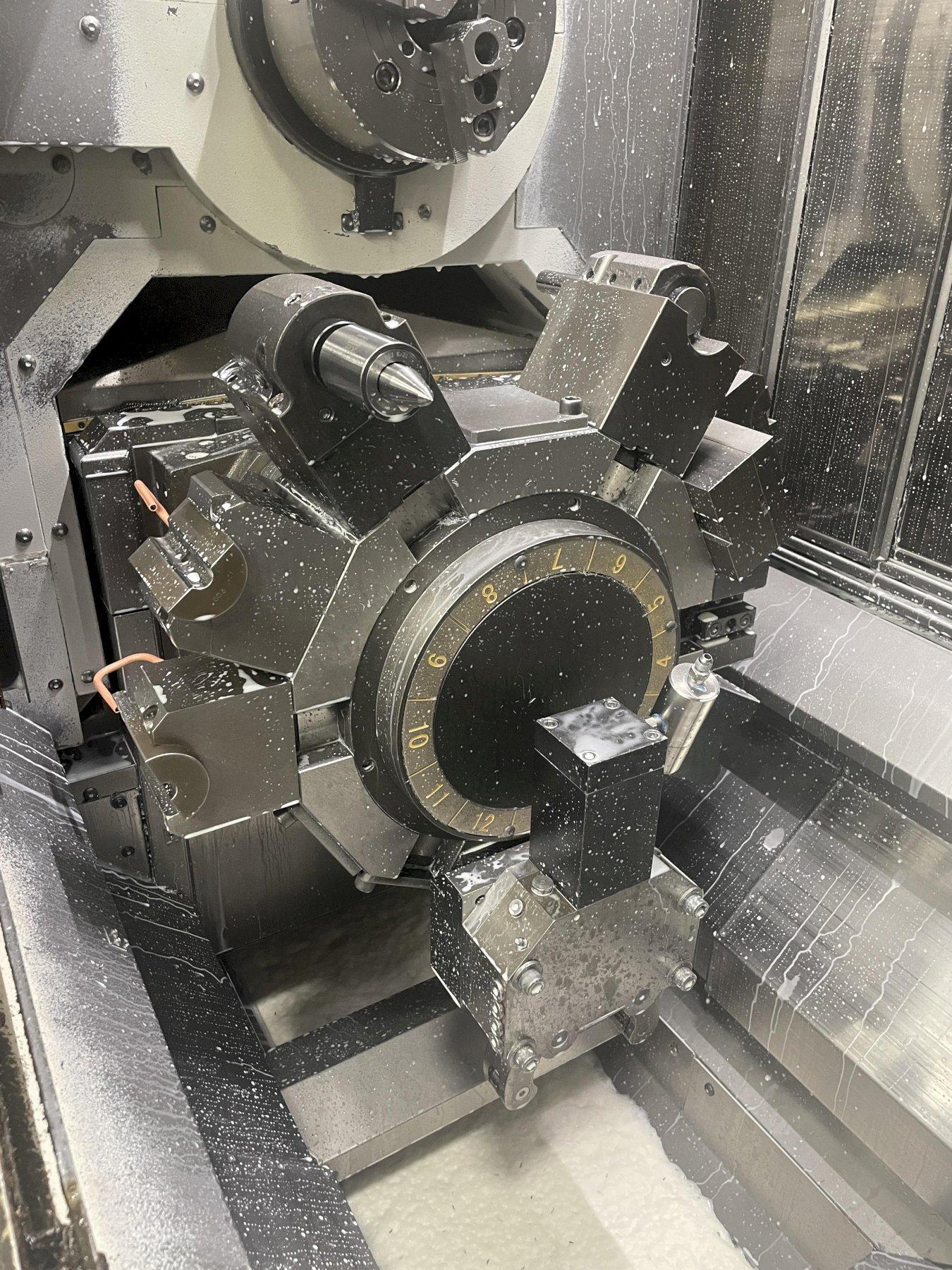

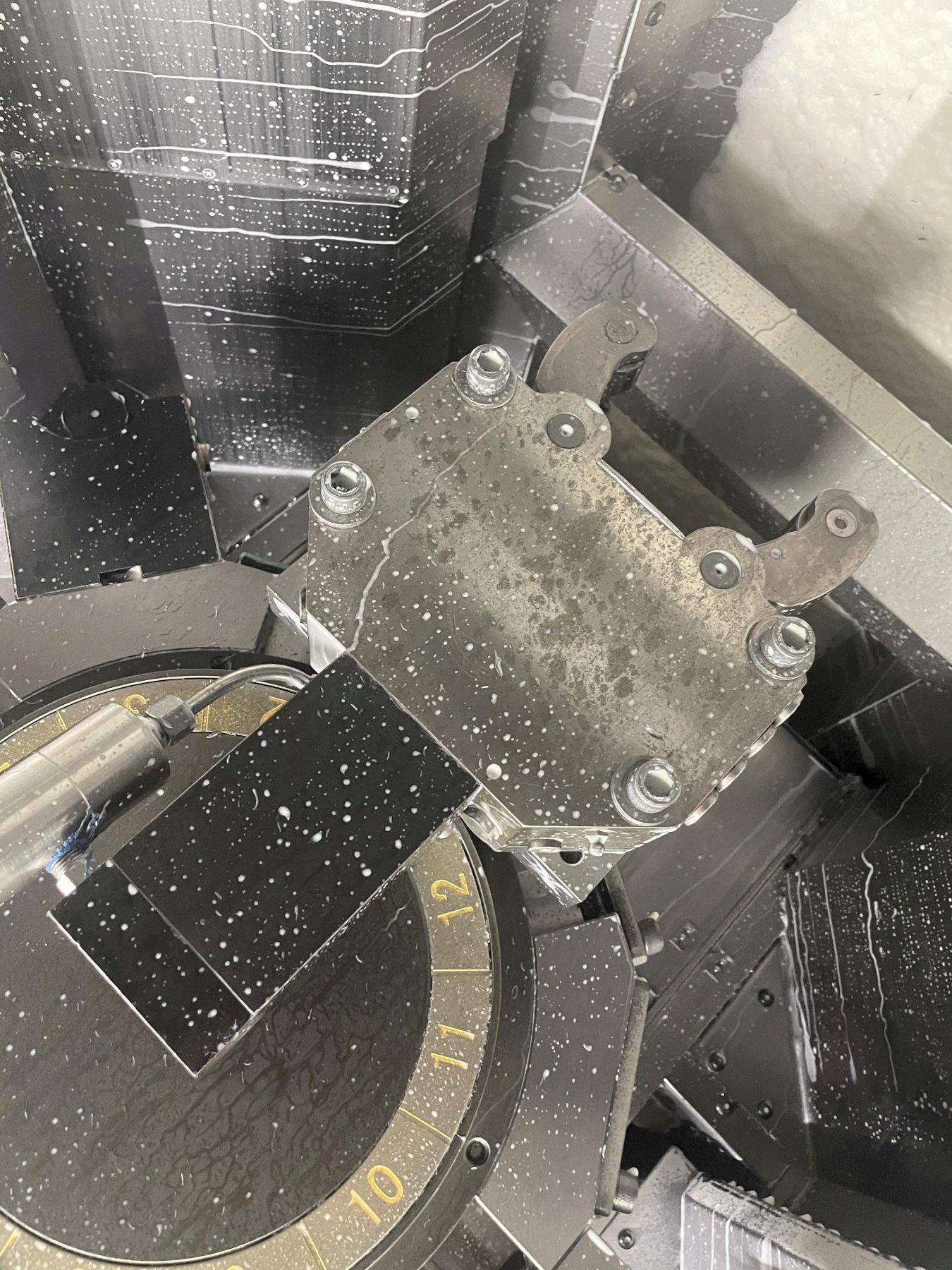

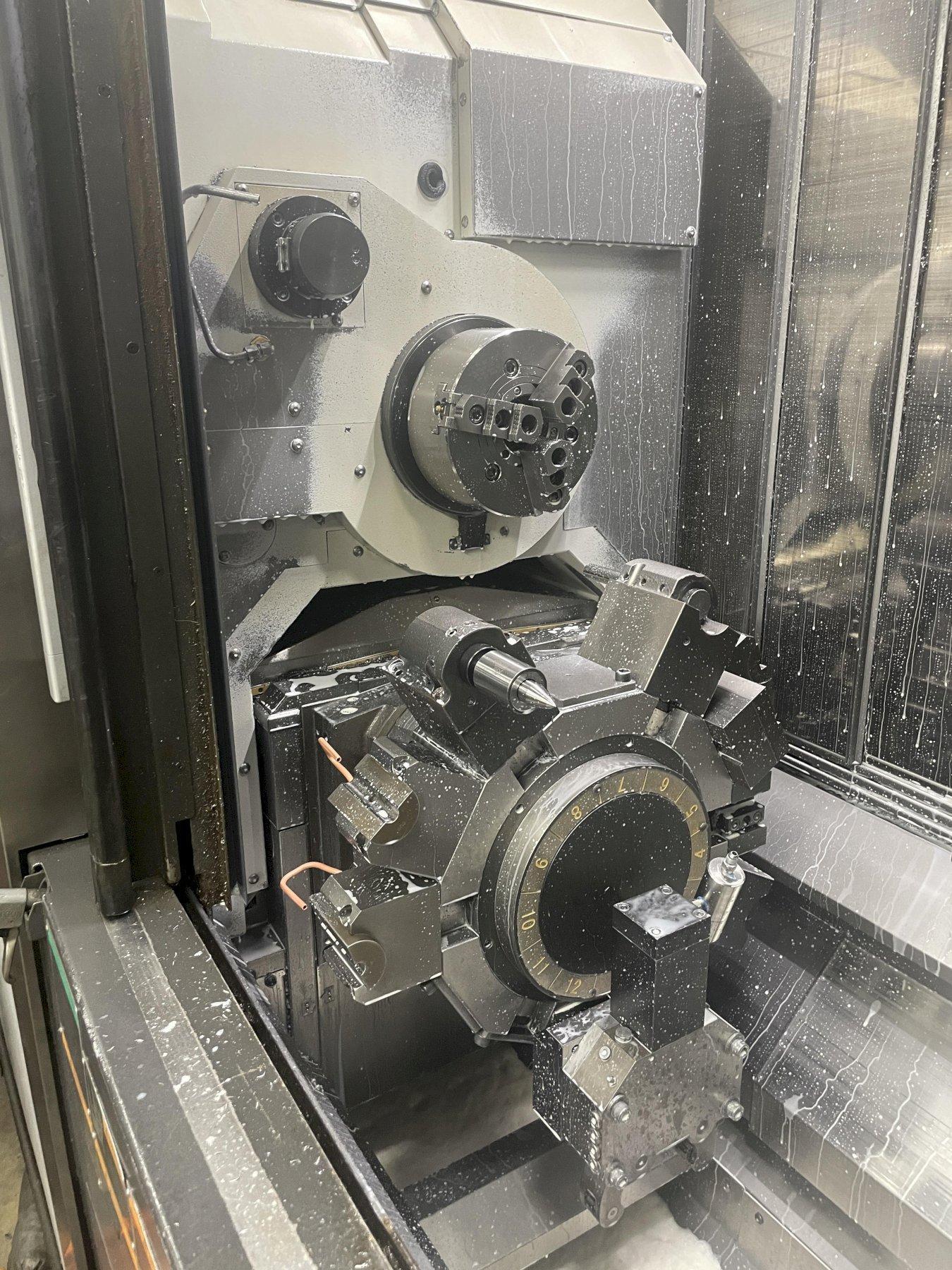

- Lower Turret

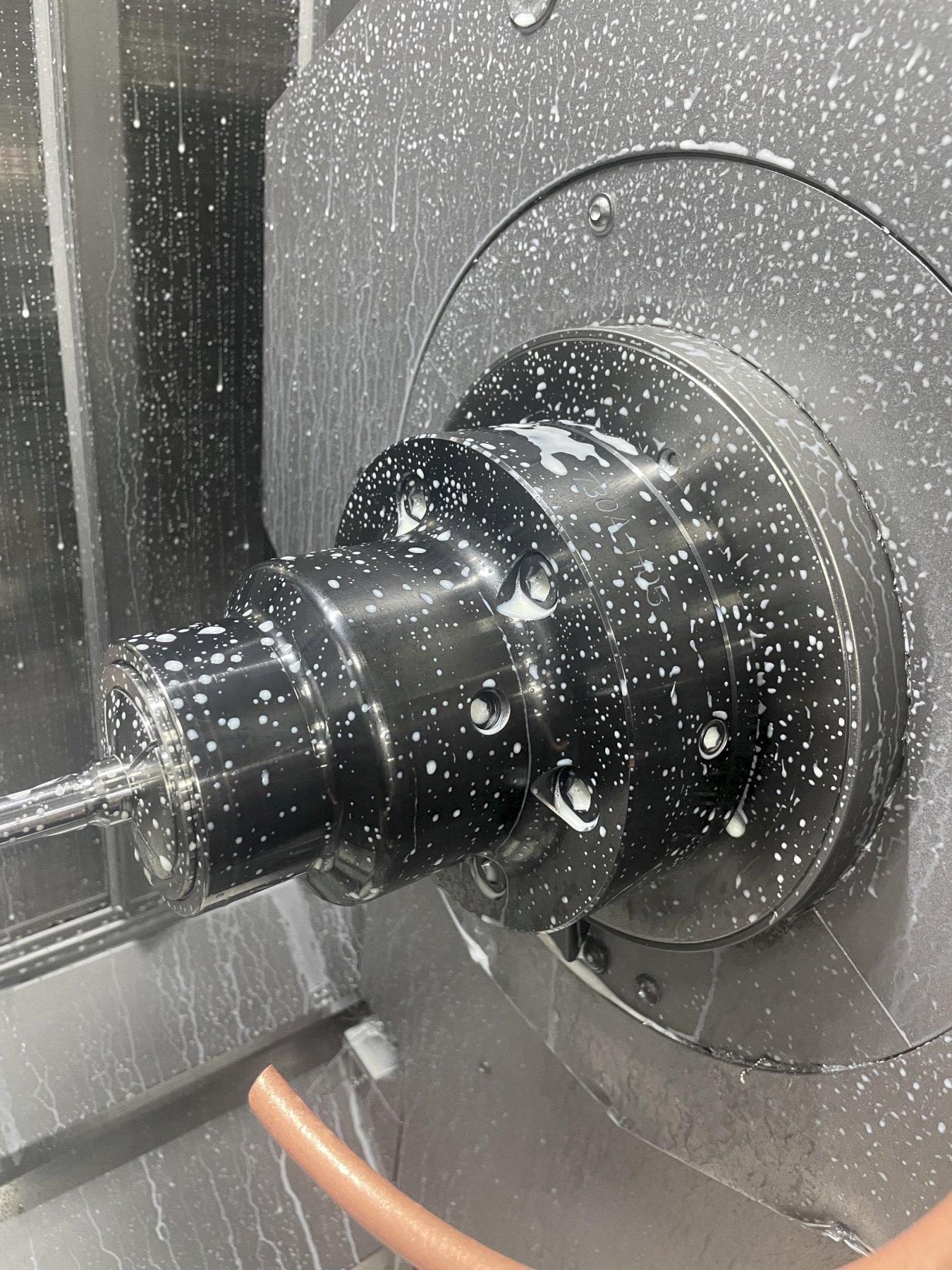

- Sub Spindle
- Y Axis
- Hyd. Steady Rest on Lower Turret
- Collet Chuck on Sub Spindle
- Probing
- Coolant Thru Spindle - High Pressure

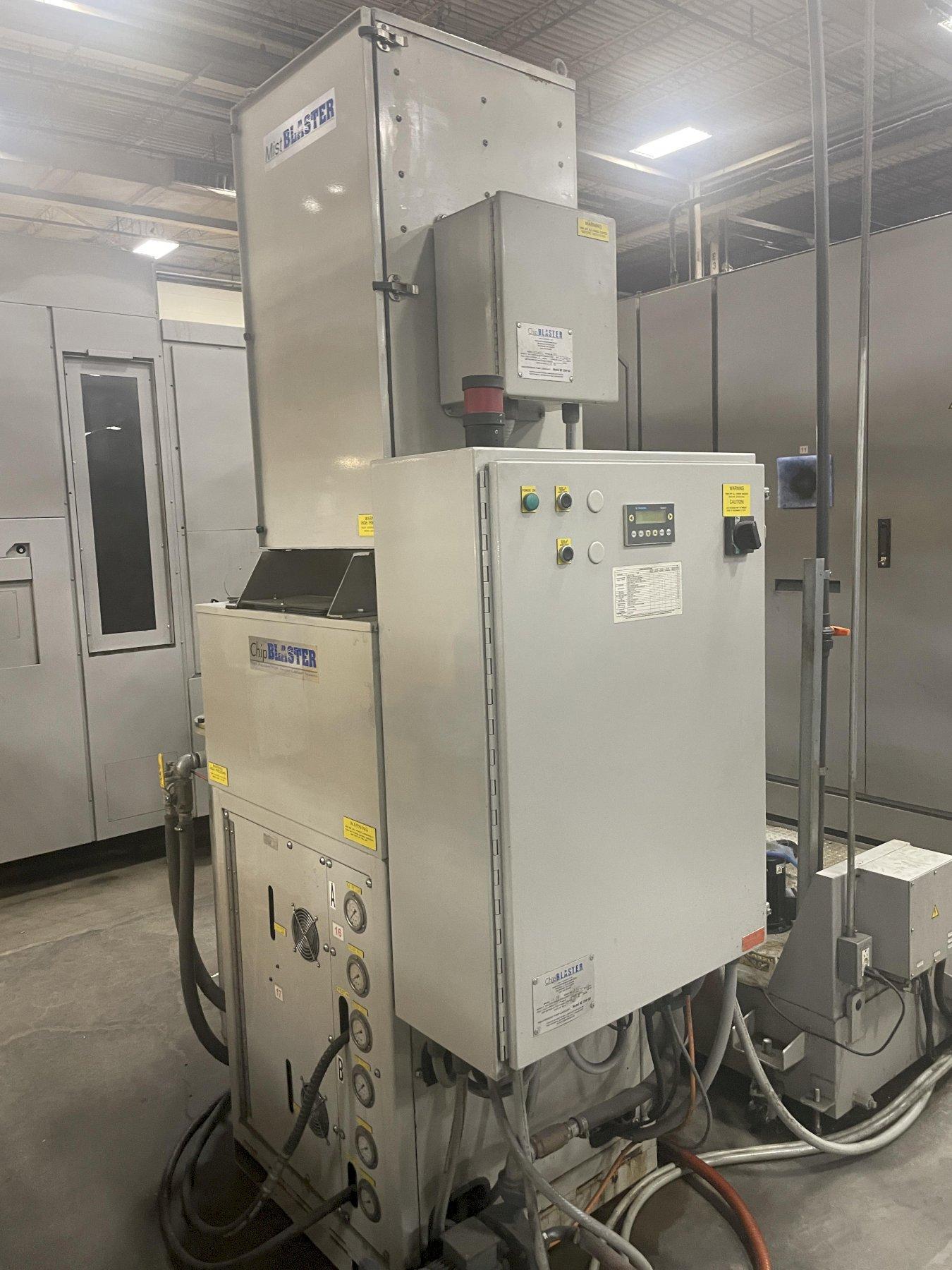

- Chip Blaster Unit
