Doosan Puma V8300R, 32.67" Cutting Diameter, 15" Chuck, 2,000 RPM, 12 Pos. Turret, Fanuc i, Chip Conveyor, 2019, #43184

Manufacturer

DOOSAN

Category

Boring Mills

Stock

43184

Model

Puma V8300R

Dealer Location

New York

Spec Sheet

Reference #43184

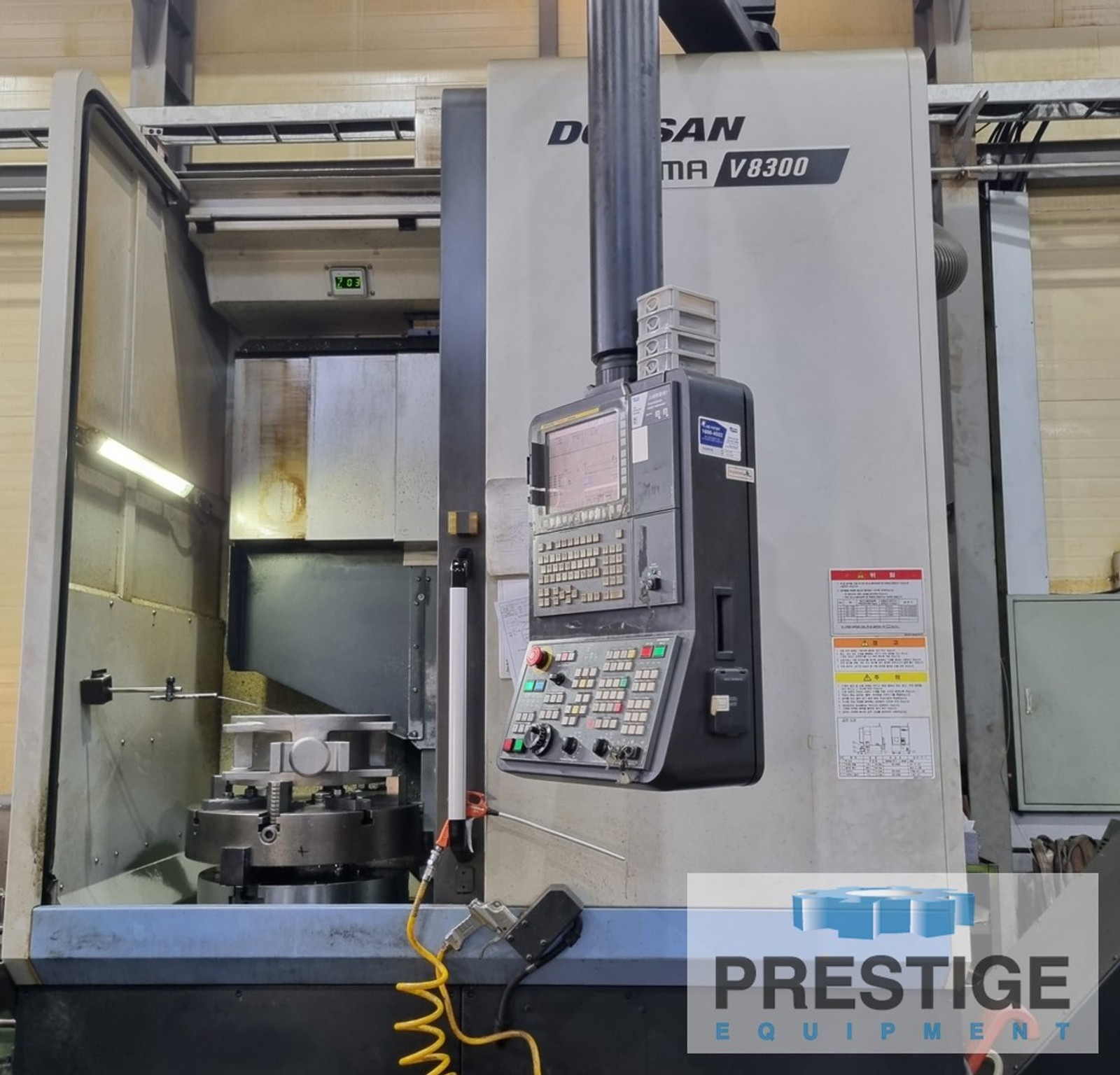

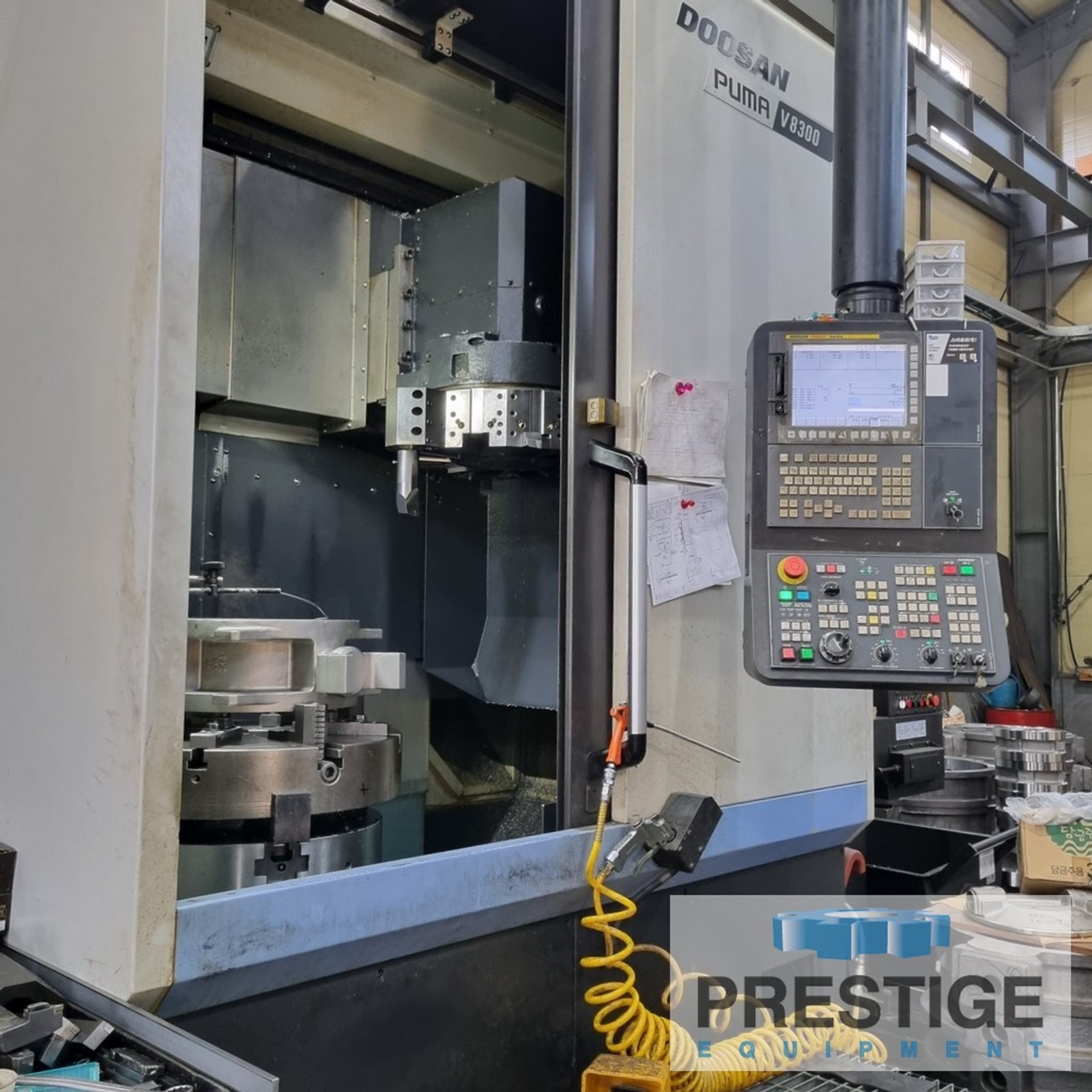

Doosan Puma V8300R 32" CNC Vertical Turning Center

FEATURES:

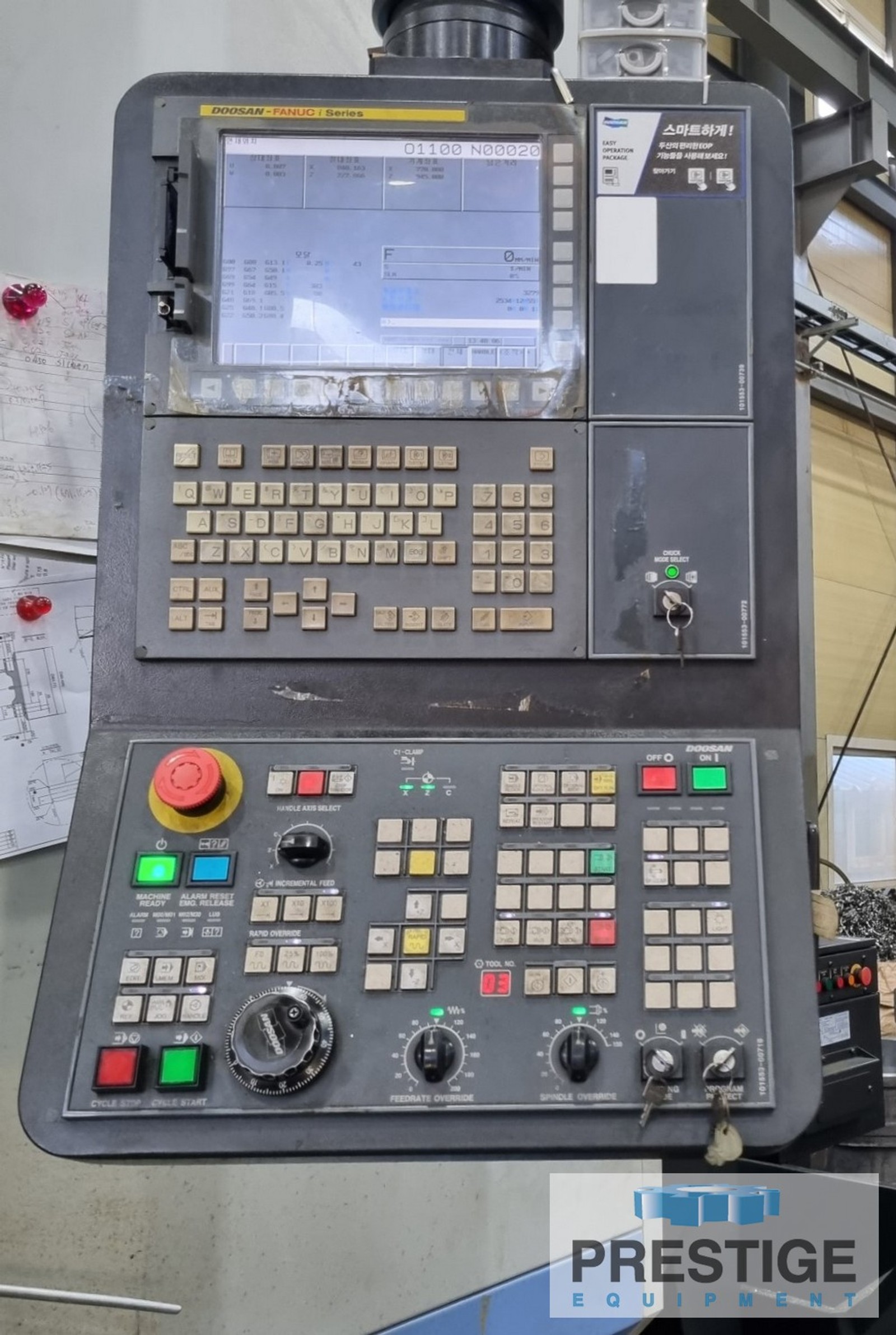

Fanuc i CNC Control

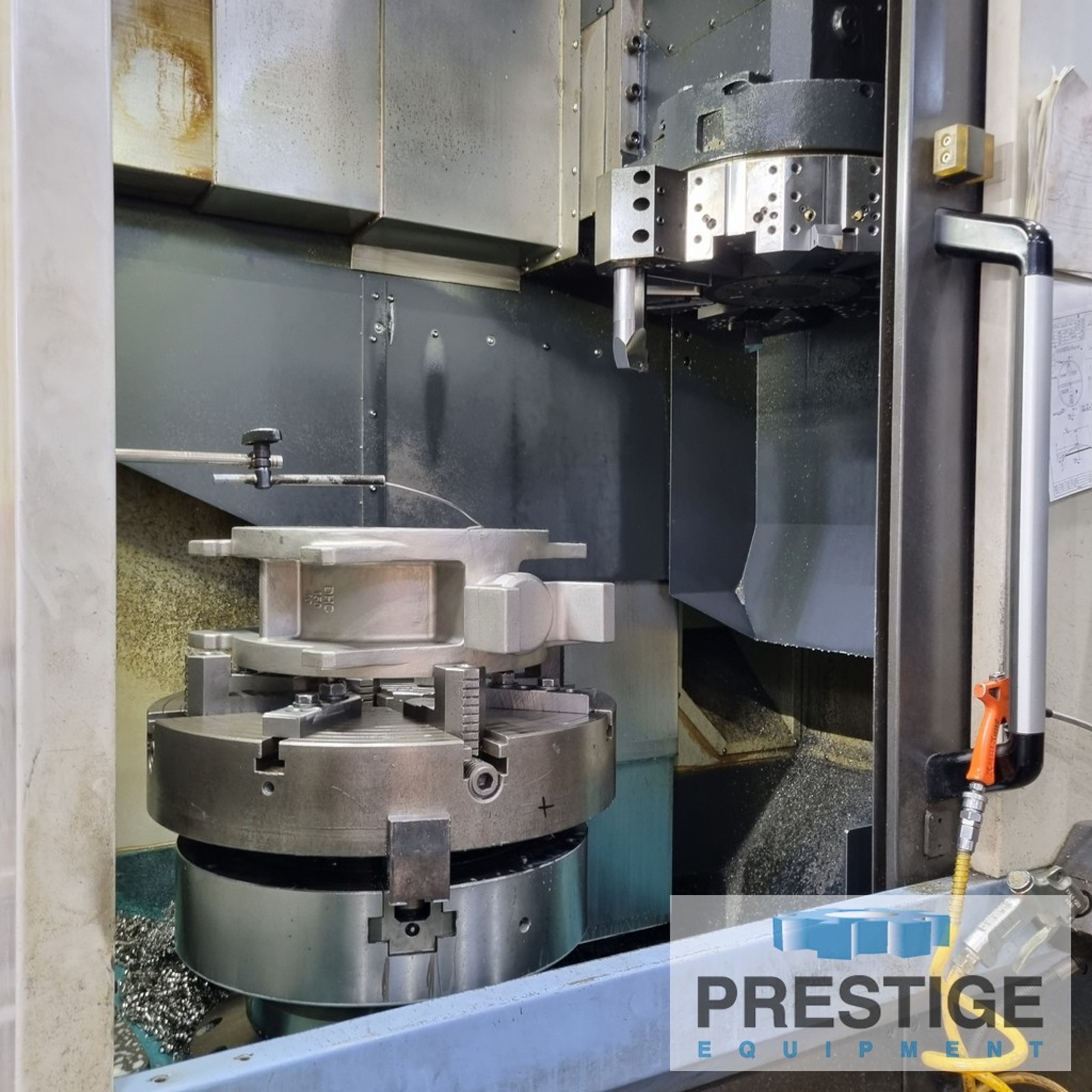

15" Chuck

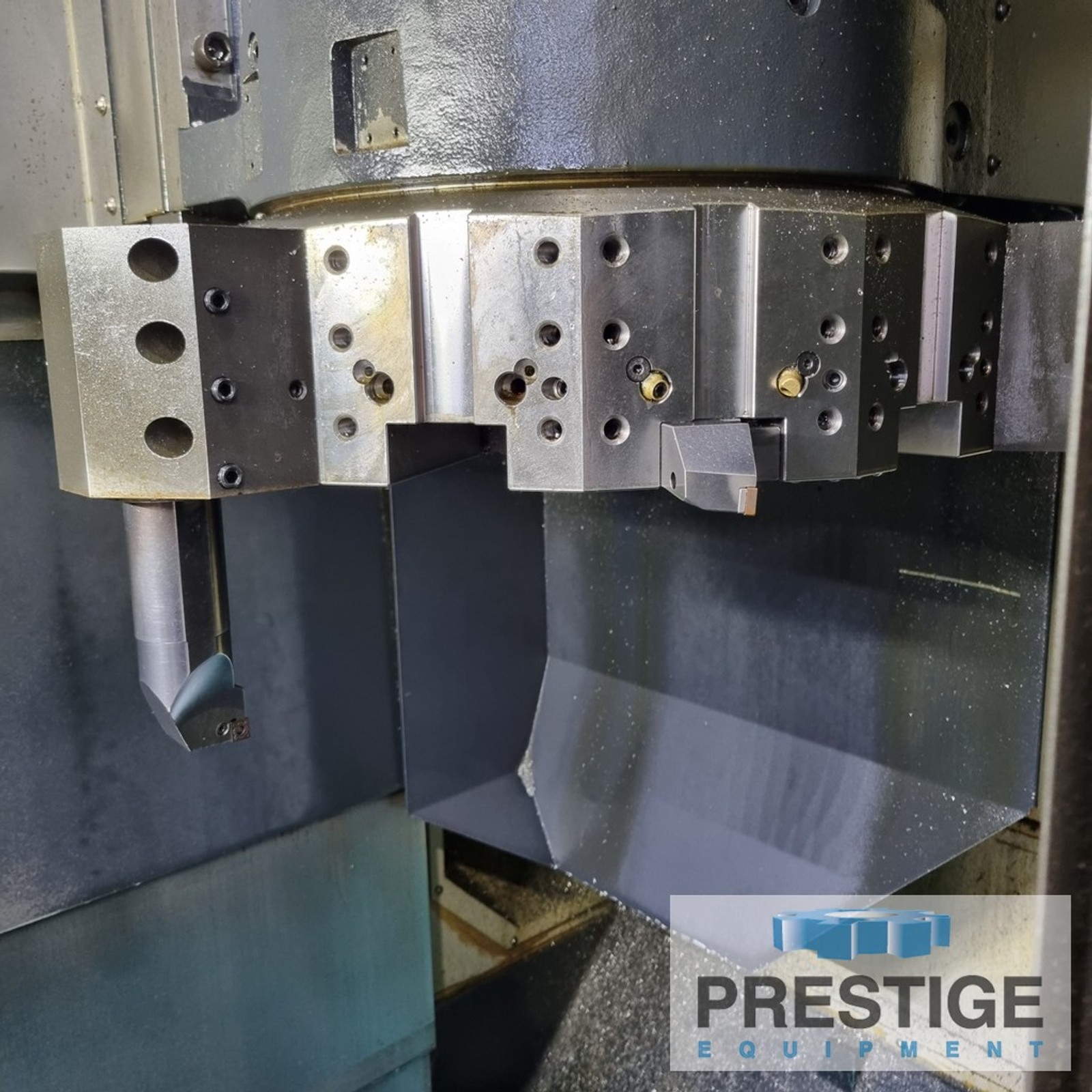

12 Position Turret
Chip Conveyor

CAPACITY:
Maximum Turning Diameter ............. 32.67"
Maximum Turning Length ............... 29.52"
Maximum Table Load ................... 1,918 Lbs.
Spindle Speed Ranges (1) ............. 1,940 RPM
Spindle Motor ........................ 50 HP
X-Axis Travel ........................ 19.5"
Z-Axis Travel ........................ 31"
Rapid Traverse (X-Axis) .............. 787 IPM
Rapid Traverse (Z-Axis) .............. 787 IPM

EQUIPPED WITH:
Fanuc i CNC Control
15" Chuck
12 Position Turret
Chip Conveyor
