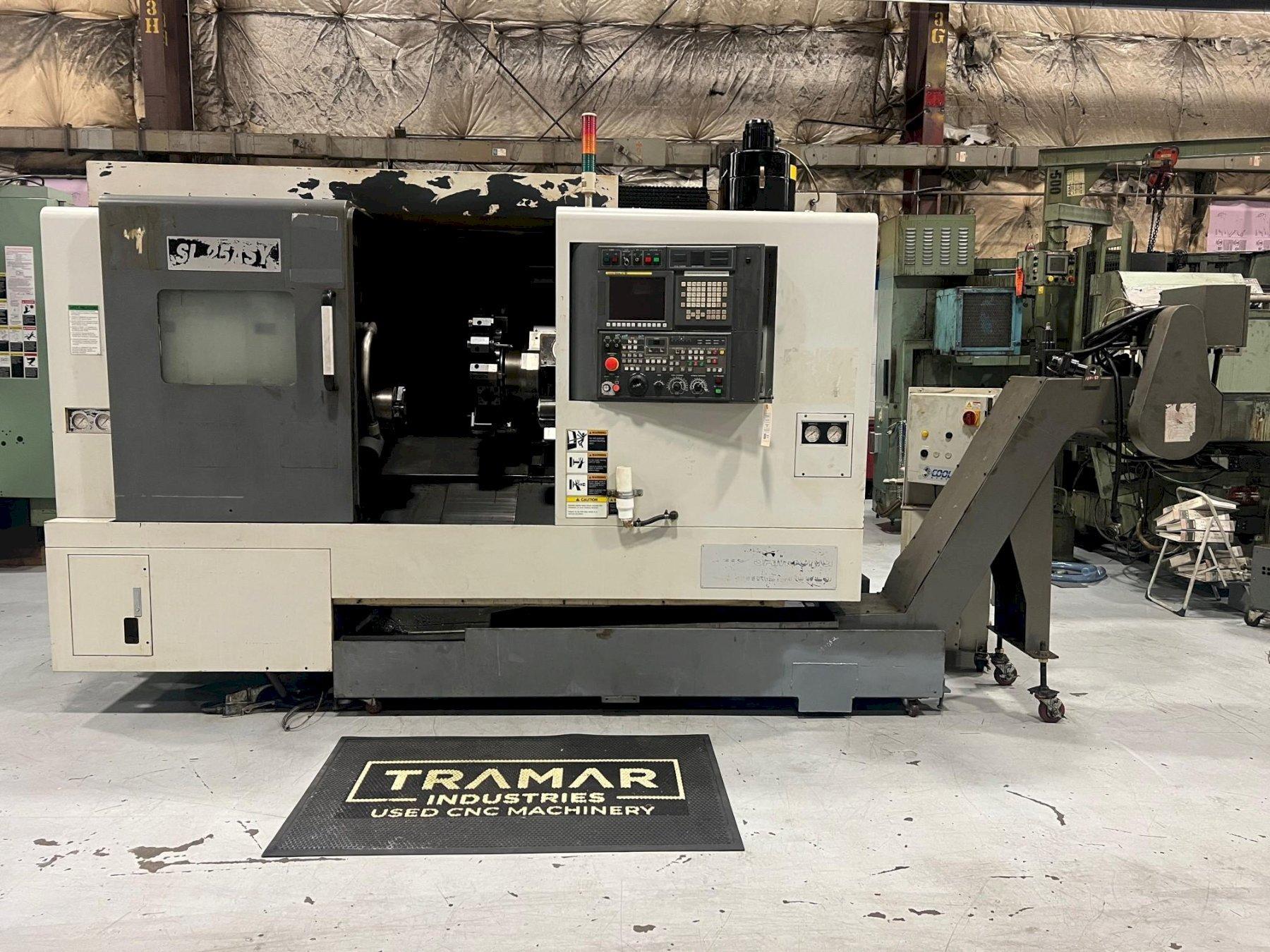

Samsung SL-25ASY Used CNC Lathe For Sale - 2013

Manufacturer

SAMSUNG

Stock

14246

Model

SL-25ASY

Dealer Location

Michigan

Spec Sheet

CNC Control - yes

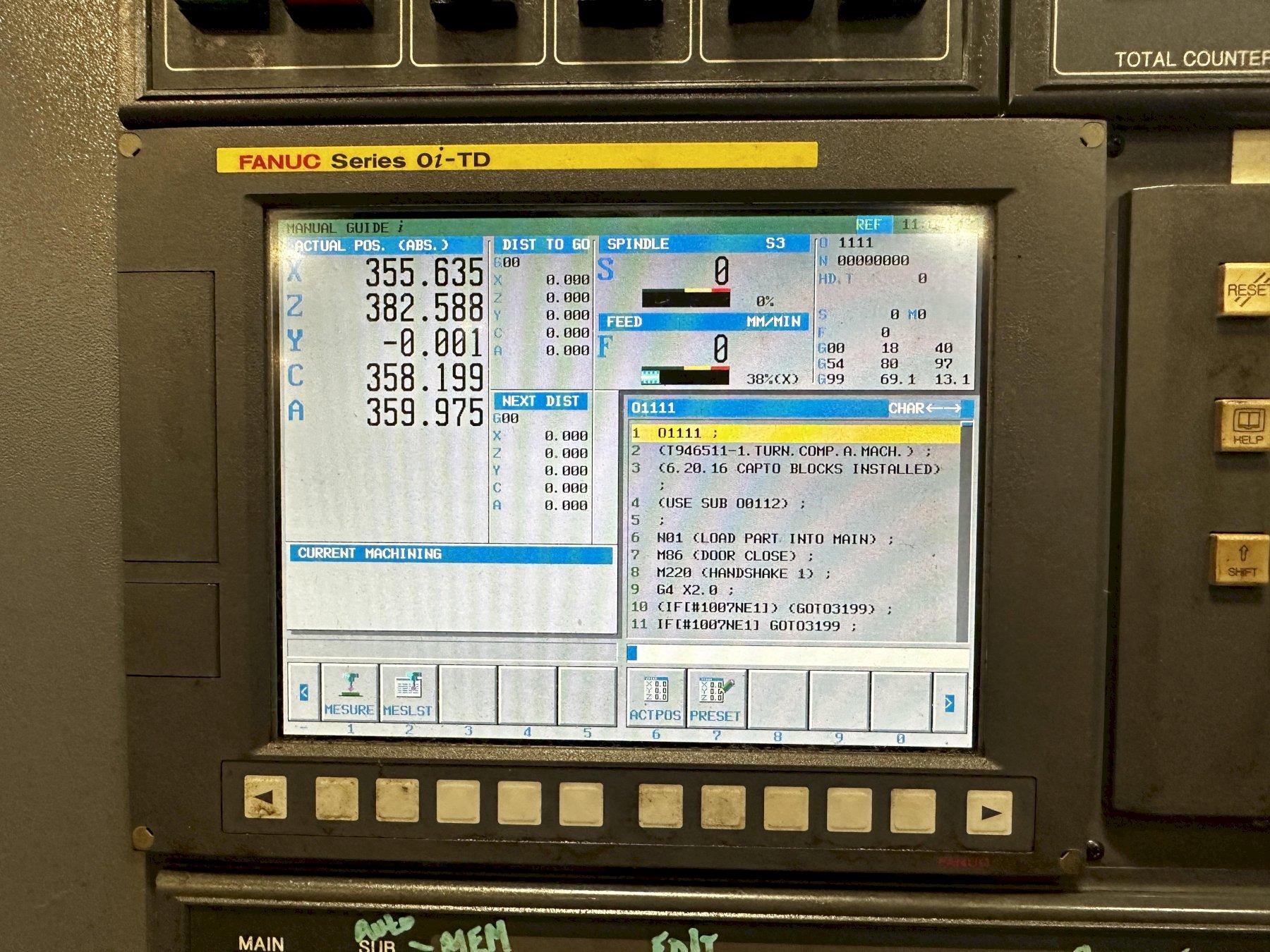

Type of CNC Control - Fanuc 0i-TD
# Axis - 5
Swing - 25.59 inches
Turning Diameter - 14.17 inches
Center Distance - 20.47 inches
Chuck Size - 8 inches
Bar Capacity - 2.56 inches
X Axis Travel - 9.25 inches
Y-Axis Travel - 3.94" (±1.97)
Z Axis Travel - 22.83 inches
B Axis Travel (Sub Spindle) - 22.83 inches
C Axis Index - 0.001°
Rapid Traverse (X/Z) - 709/472 ipm
Rapid Traverse Y-Axis - 945 ipm
Spindle Nose - A2-6
Spindle Speed - 4,000 rpm
Main Motor - 20 hp
Tailstock - no
Y Axis - yes
Live Tooling - yes
Live Tooling Speed - 5,000 rpm
Live Tooling Motor - 7.5 hp

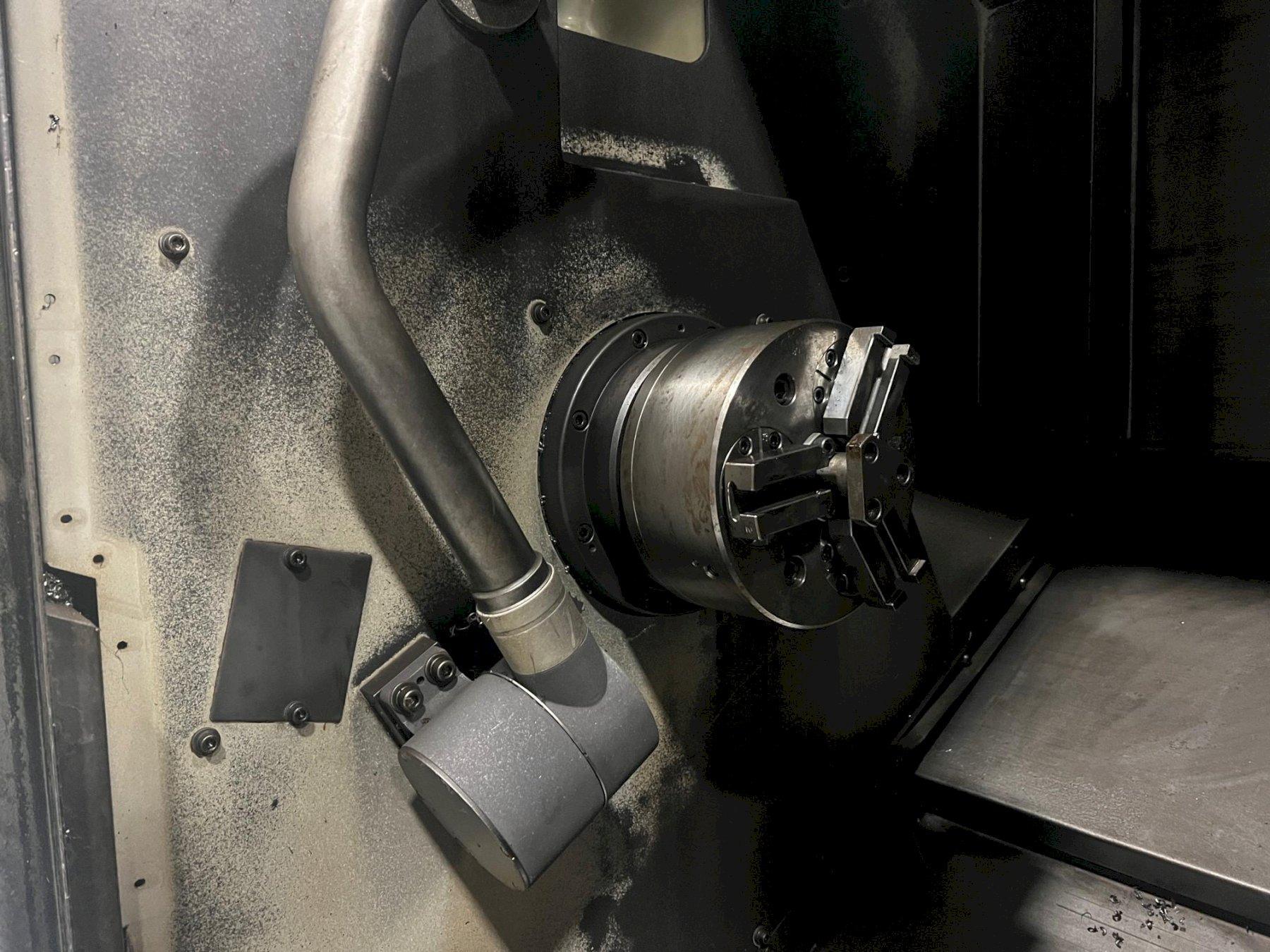

Sub Spindle - yes
Sub Spindle Chuck - 6 inches
Sub Spindle Bar Capacity - 1.77 inches
Sub Spindle Nose - A2-5
Sub Spindle Speed - 6,000 rpm
Sub Spindle Motor (HP) - 10 hp

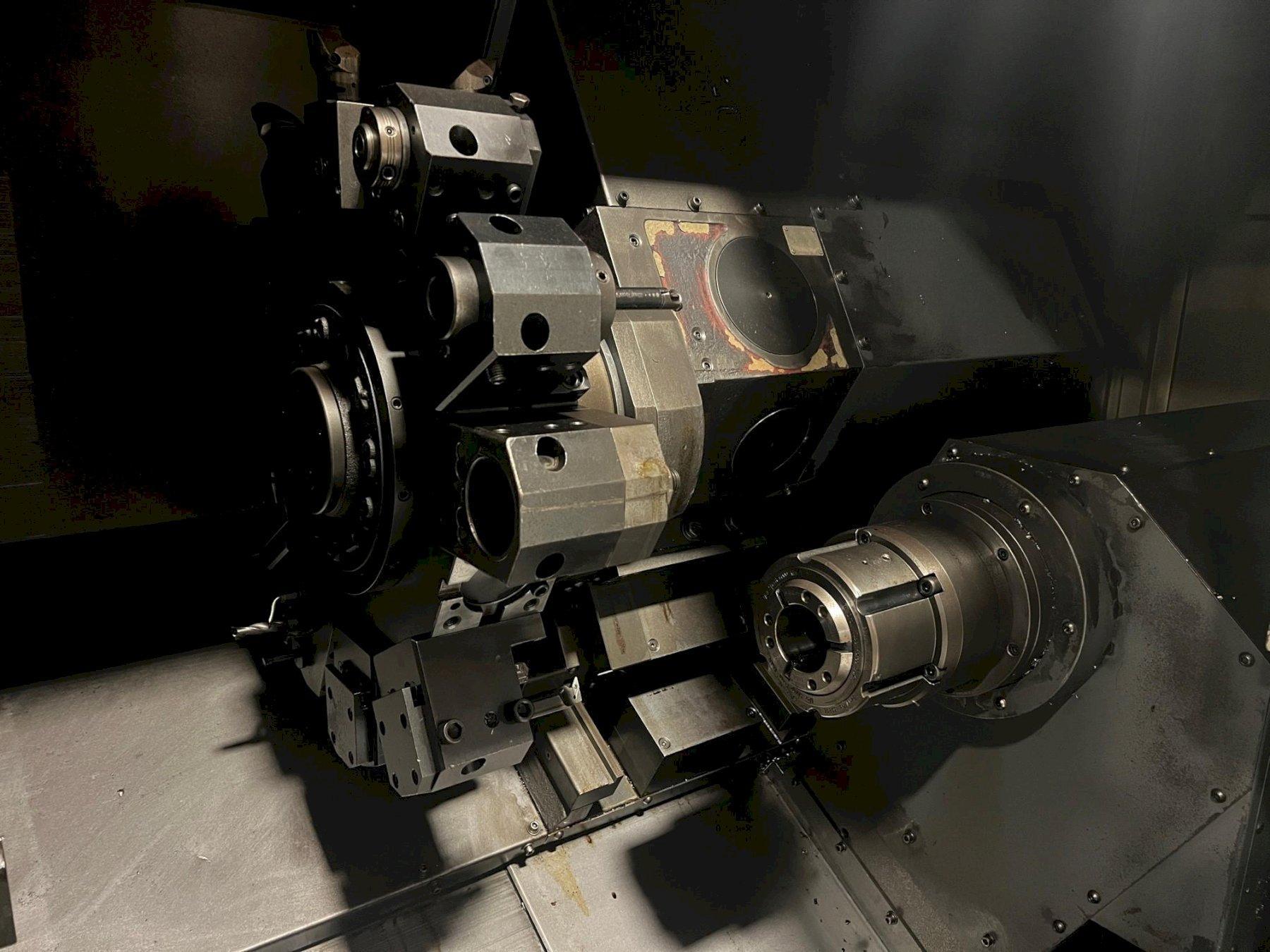

Turret Capacity - 12
Dimensions - 142" x 76" x 82"
Weight - 11023 pounds

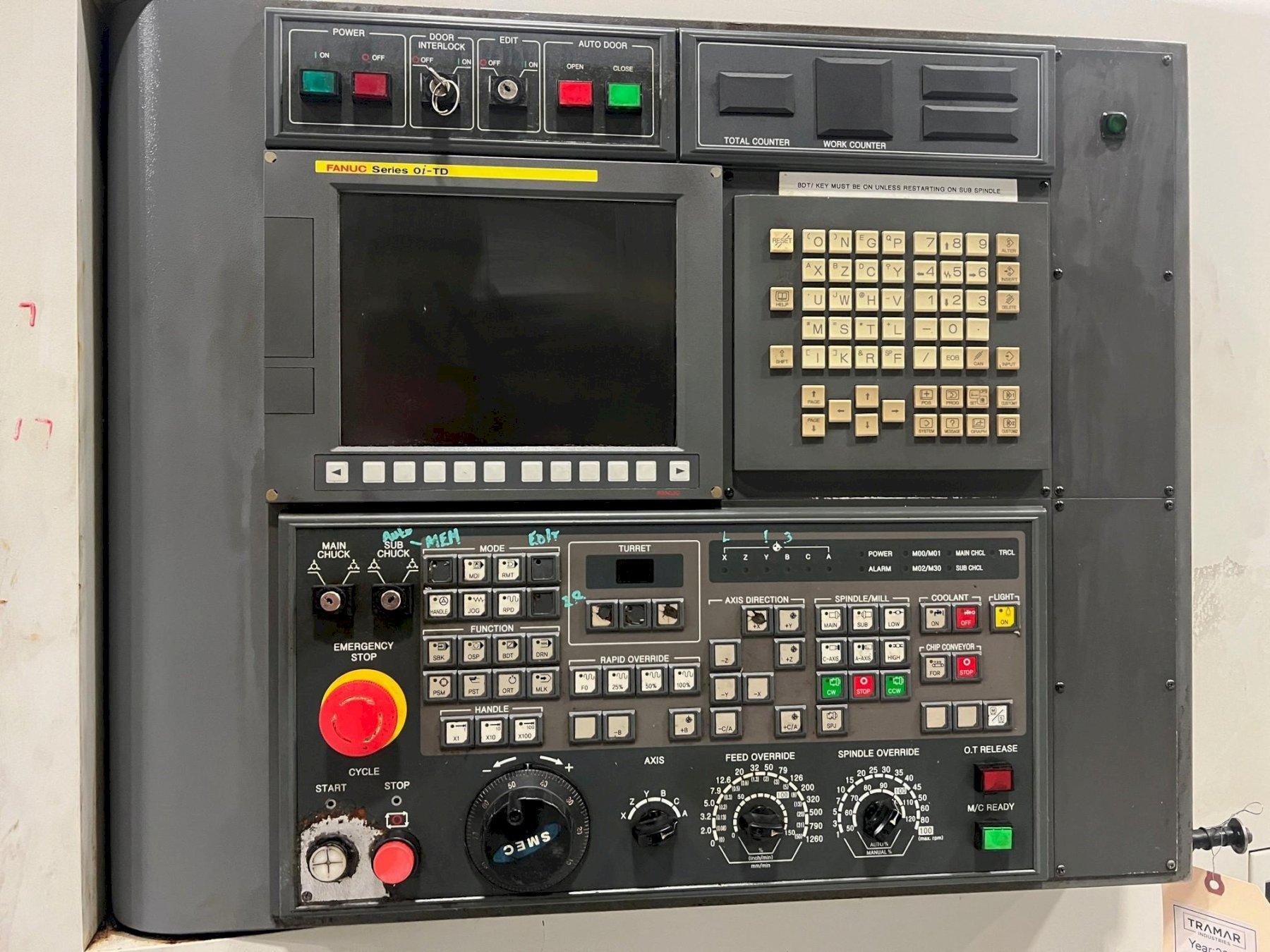

- Fanuc 0i-TD CNC Control
- Chip Conveyor

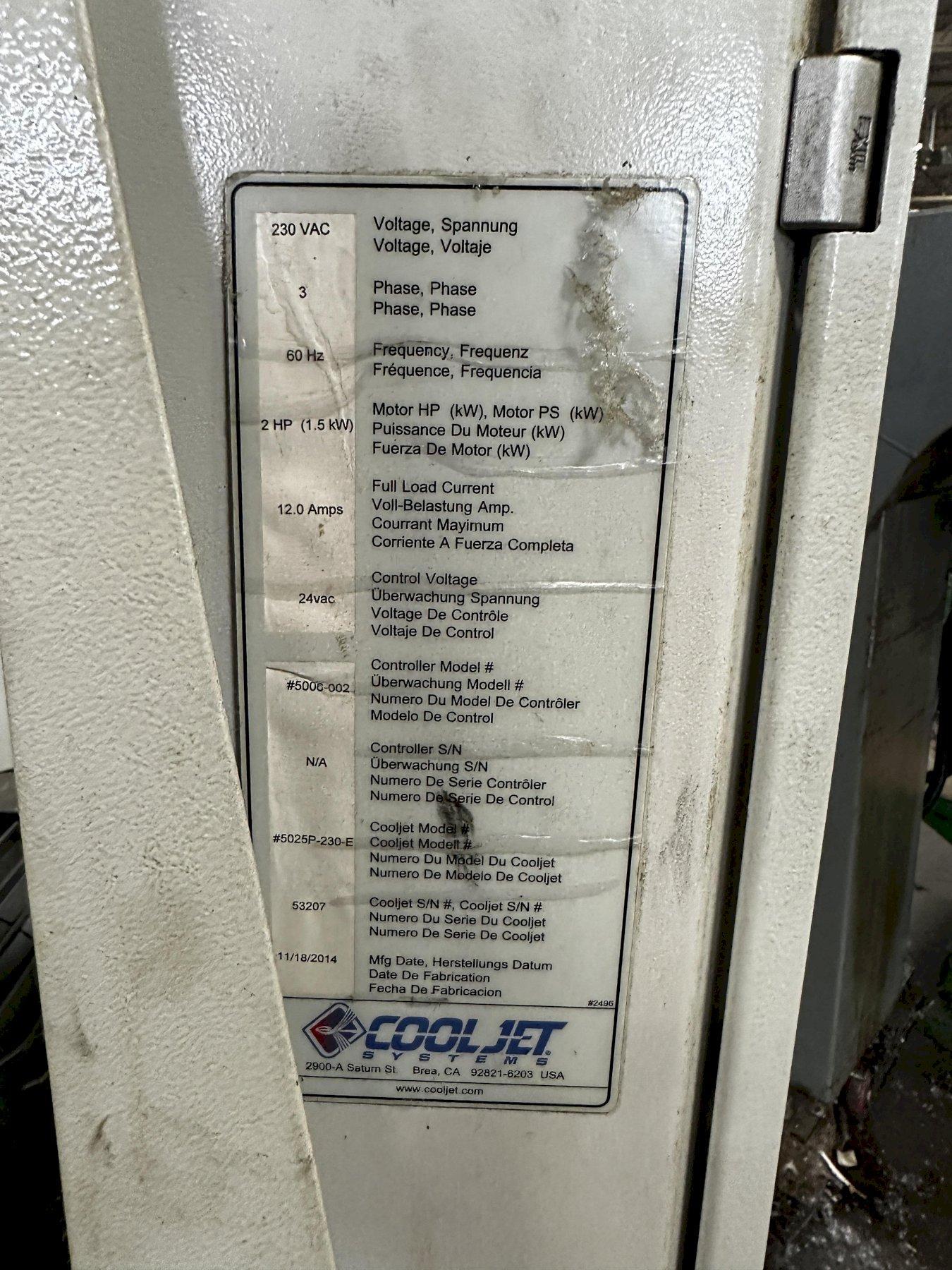

- Coolant Tank
- Live Tooling
- Y Axis
- Sub Spindle
- Tool Presetter
