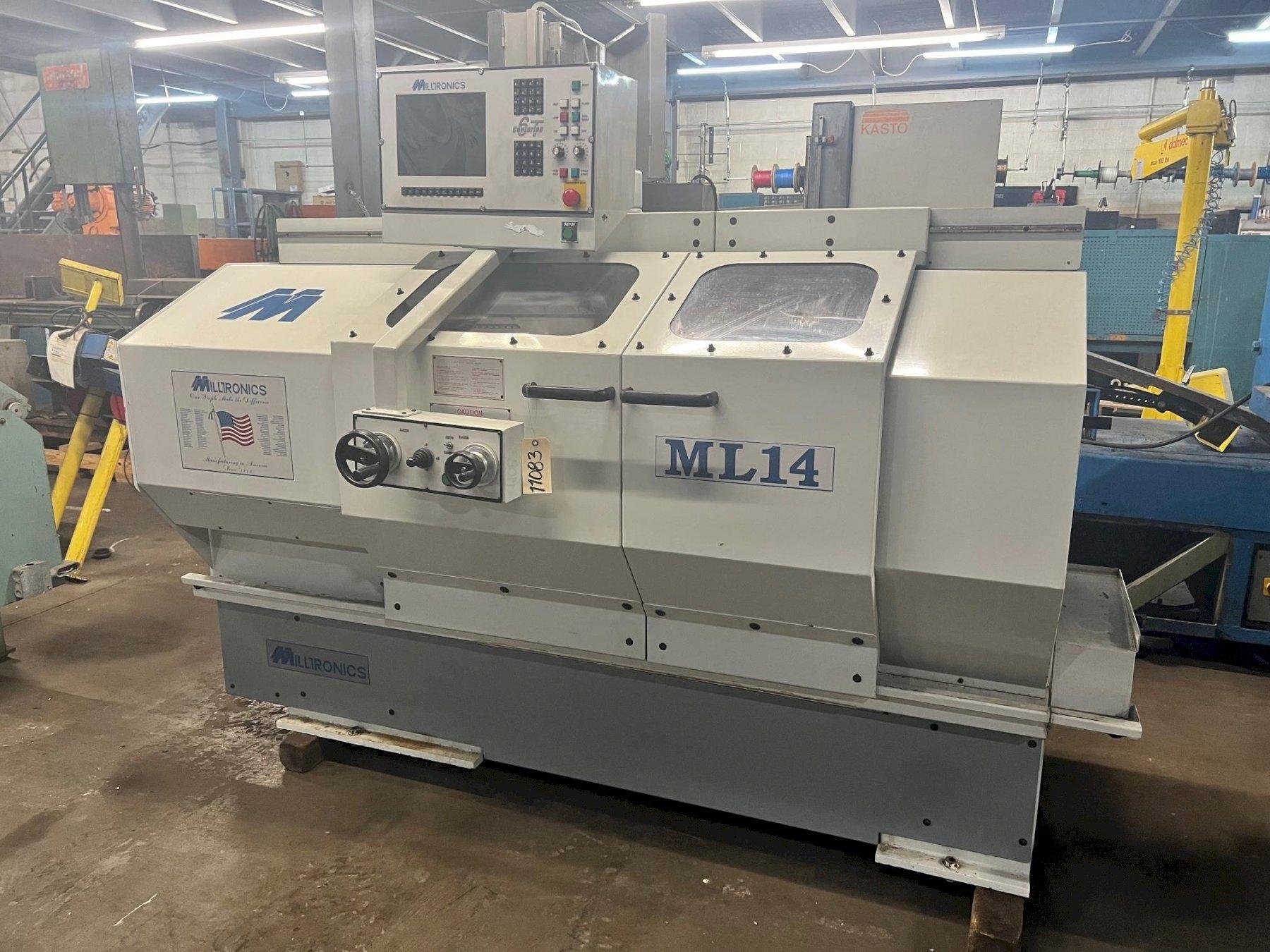

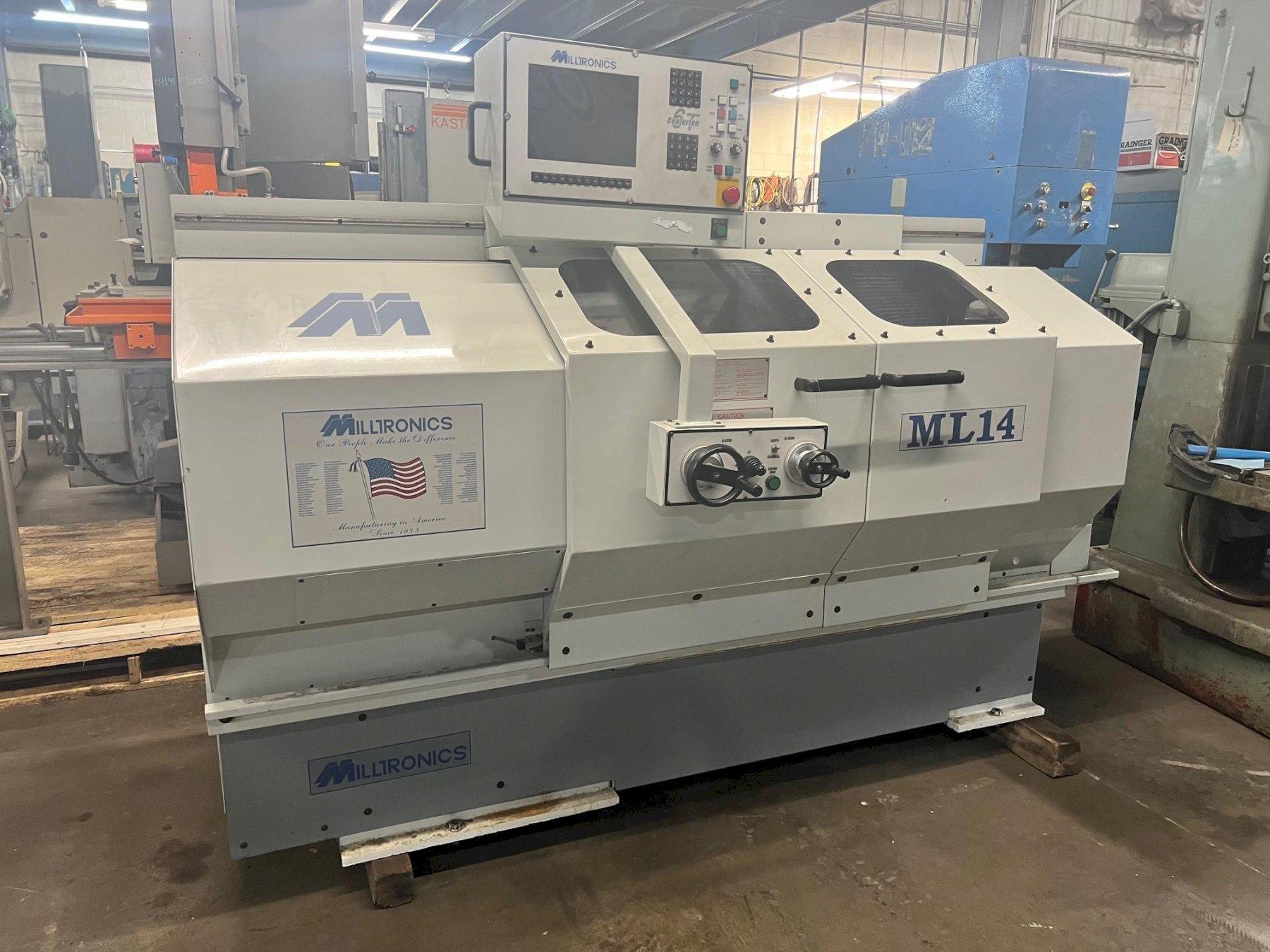

USED MILLTRONICS 14" X 40" ML-14 2-AXIS CNC LATHE, Stock# 11083, Year: 2002

Manufacturer

MILLTRONICS

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

11083

Model

ML14

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



Brand: Milltronics
Model: ML-14

Specifications:
Bed length: 40"
Swing over bed: 14"
Spindle bore: 1.65"
Swing over cross slide: 7.8"
Travel (X axis) cross slide: 7"
Travel (Z axis) long slide: 30.5"
Center height: 7"
Center distance: 36"
Bed width: 9.8"
Maximum weight of part with chuck no center: 50 Lbs.
Maximum weight of part with chuck with center: 500 Lbs.
Maximum weight of part with center and steady rest: 1,000 Lbs.
Spindle nose type: Camlock D1-5
Spindle taper: MT#4
Spindle speed: 100 - 3,000 RPM
Tailstock quill travel: 5.5"
Tailstock quill diameter: 1.875"
Tailstock quill taper: MT$4
Rapid traverse: 300 IPM
Feedrate range: .1 - 100 IPM
Main motor: 7.5 H.P.

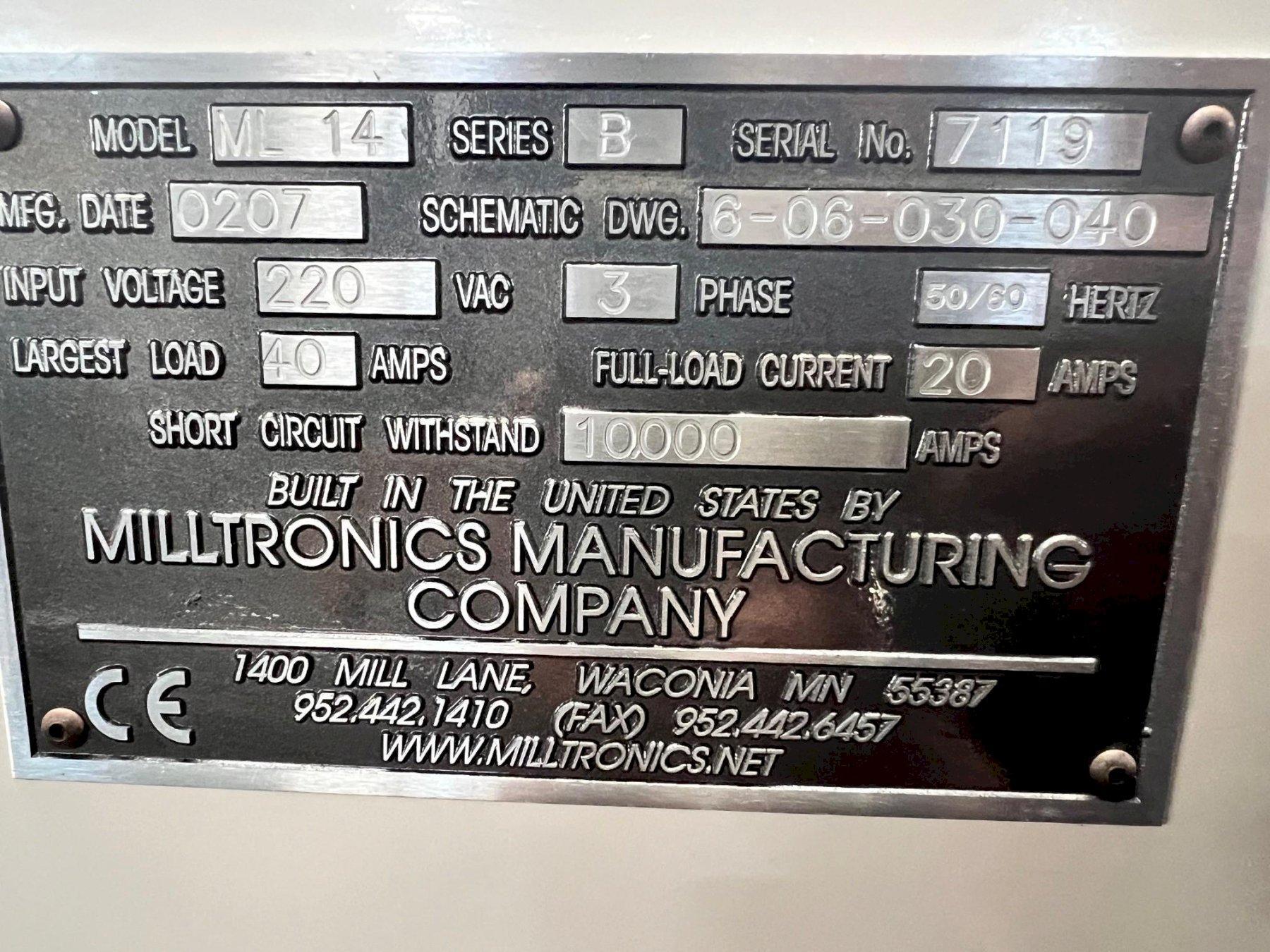

Voltage: 220 volt 3 phase
Floor space: 60" x 104"
Weight: 2,500 Lbs.

Equipped with:

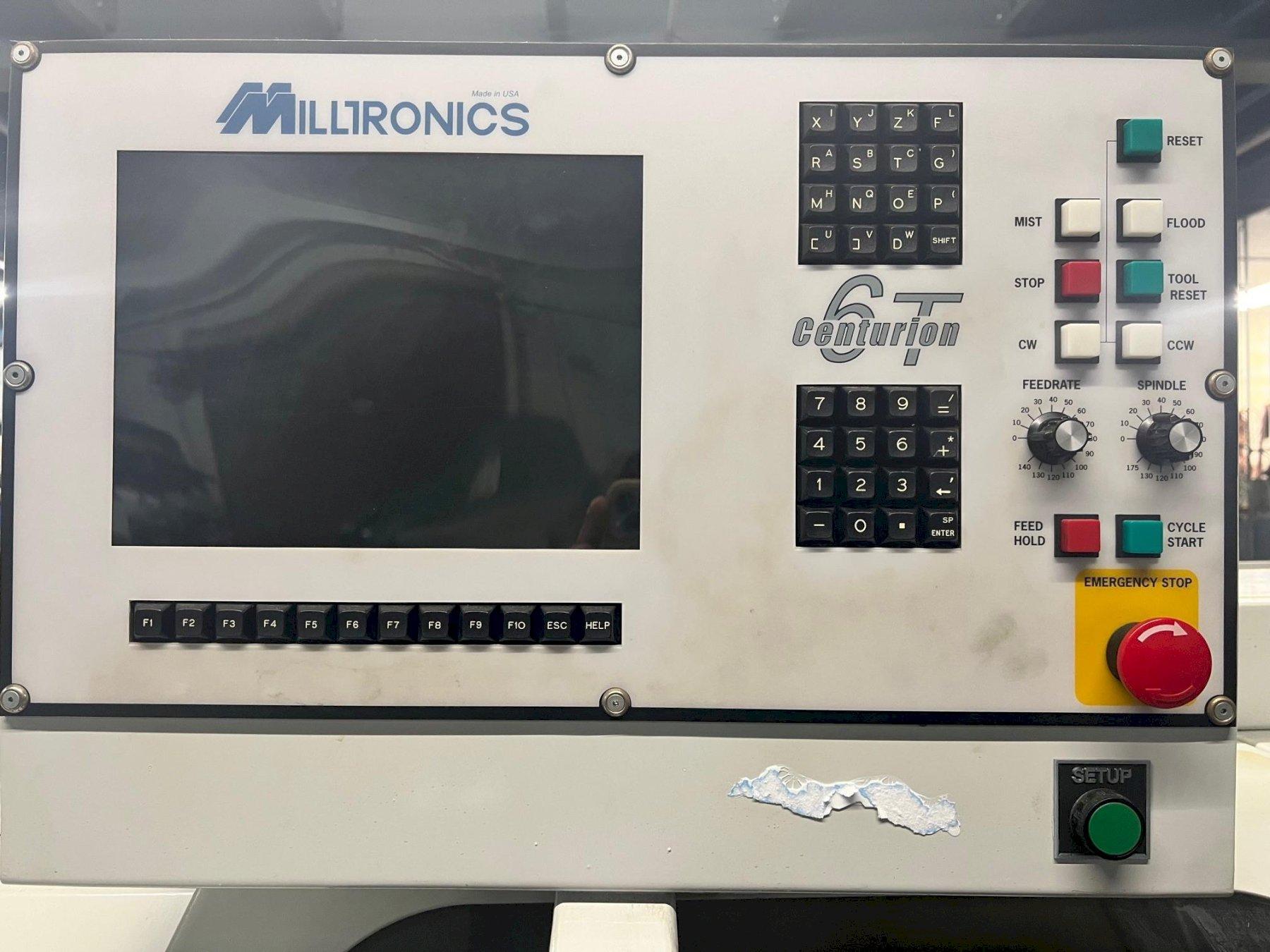

PC based Centurion 6T CNC control
10" LCD active matrix color display
Conversational plus G & M code programming with tool path graphics

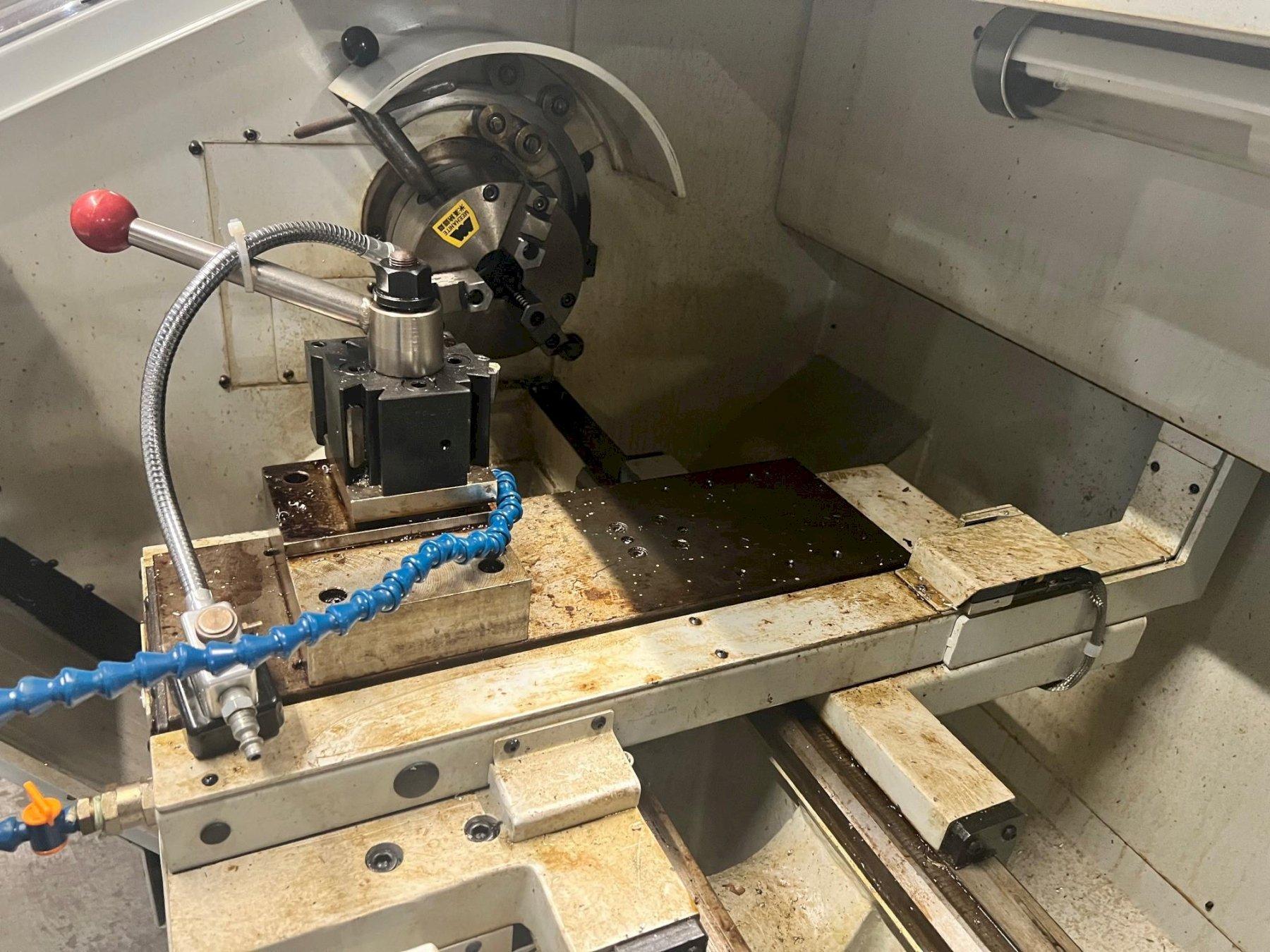

Dorian QITP 35 wedge type quick change tool post
Fully ground solid ways
Precision ground ball screws

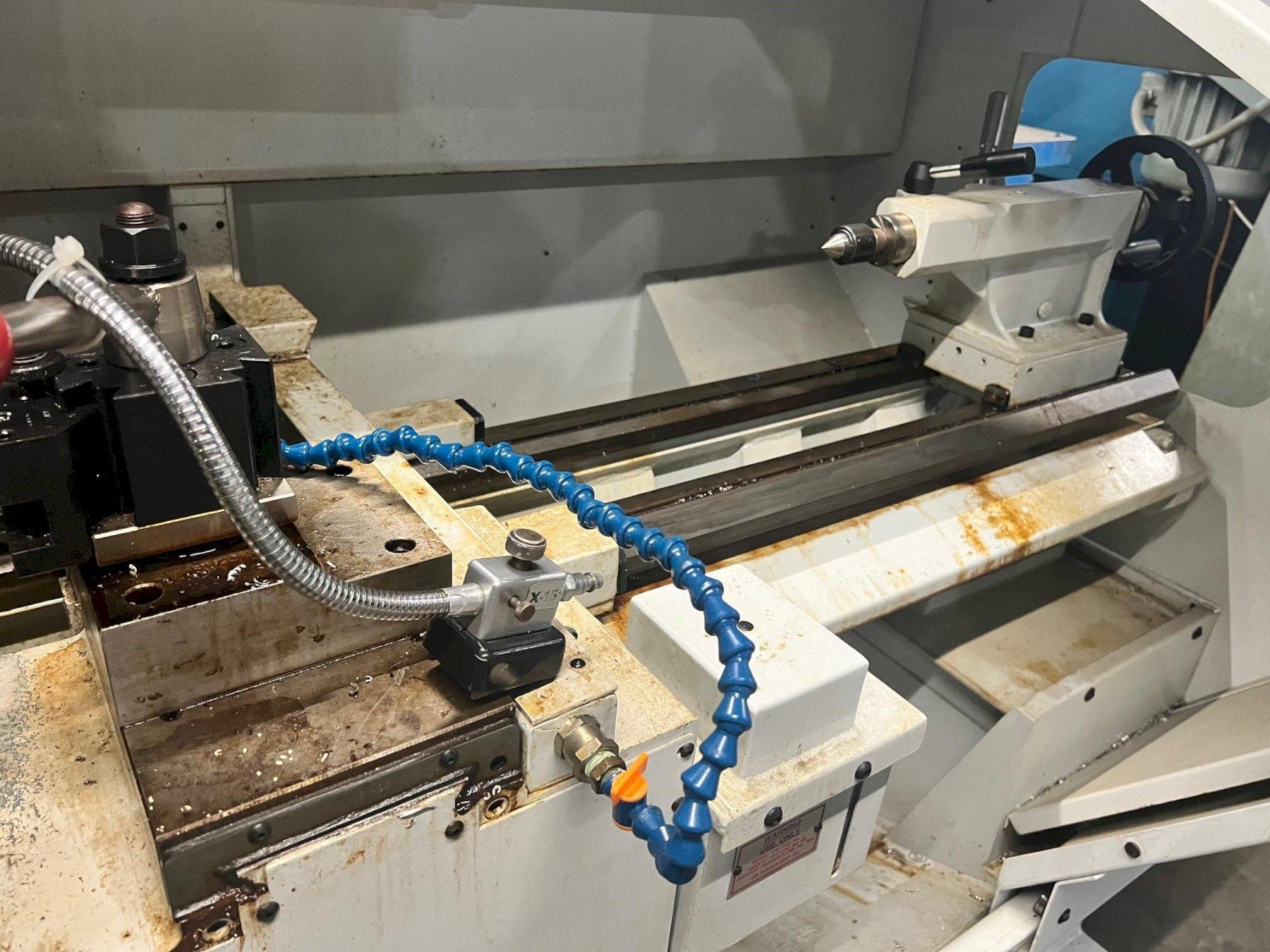

Tail stock
Heavy duty metal enclosure with sliding doors
High torque vector spindle drive
6" 3-jaw chuck
Rigid tap cycle
LCD hour meter

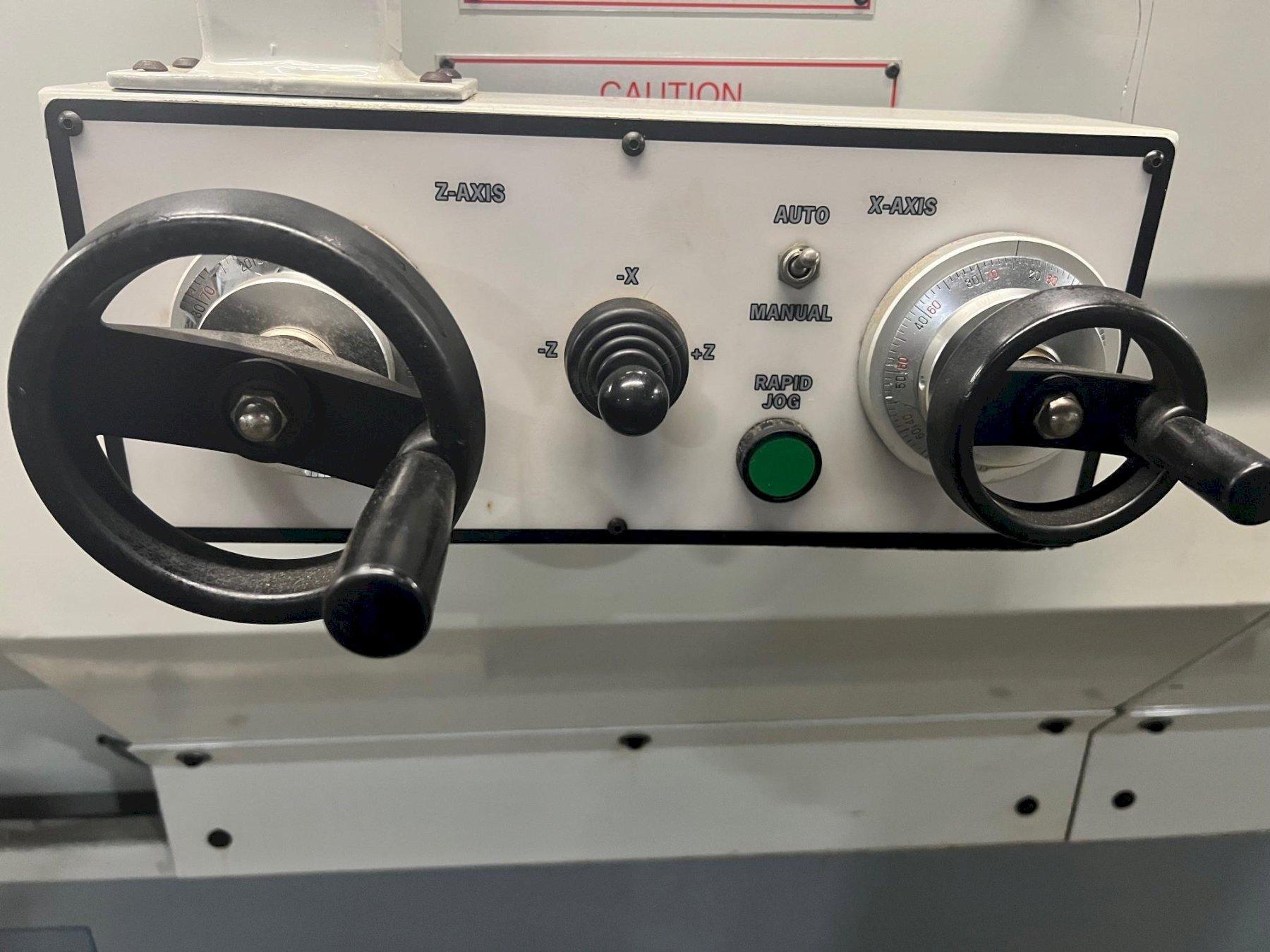

Dual electronic handwheel for teach, manual or automatic operation
Flood coolant pump with nozzle
Work lamp
