1330 ton Niagara SE4-1330-186-84 Straight Side Mechanical Metal Stamping Transfer Press For Sal

Stock

2881 - B

Model

SE4-1330-186-84

Dealer Location

Michigan

Spec Sheet

Tonnage - 1330
Stroke - 24 inches
Shut Height - 55 inches
Adjustment - 18 inches
Bed Size - 186" x 84"
Ram Area - 186" x 84"
SPM - 12-24


Standard Specifications

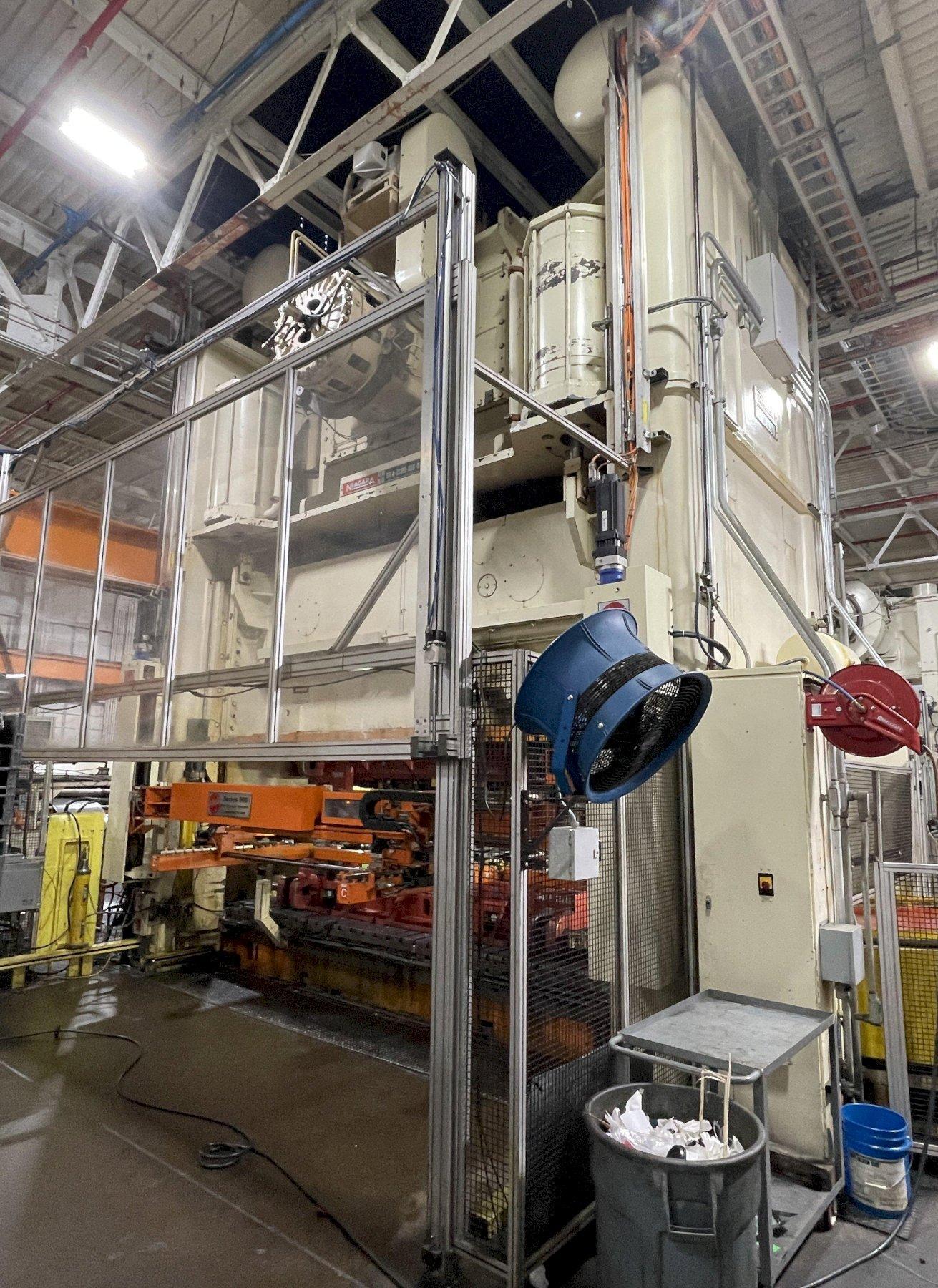

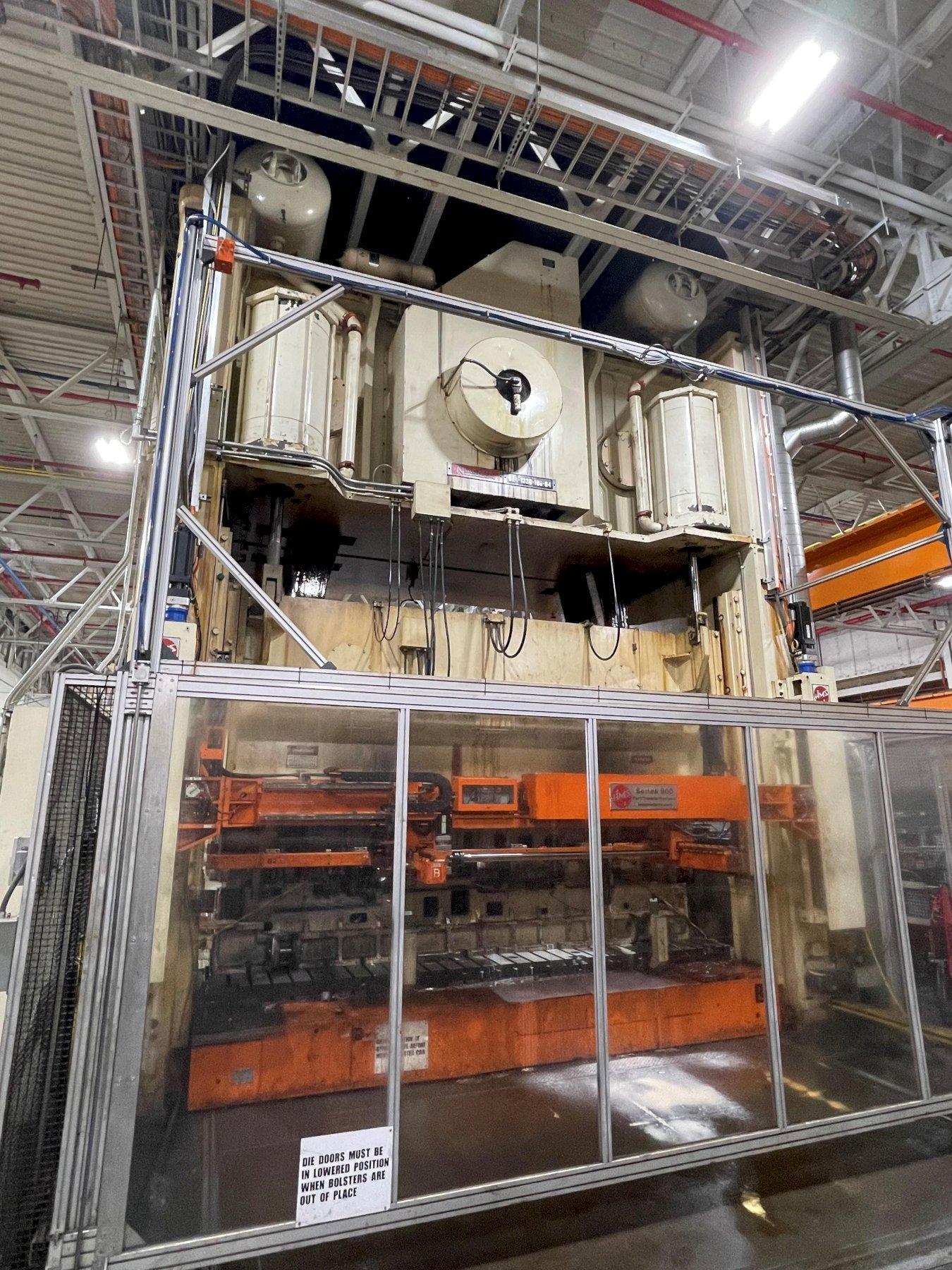

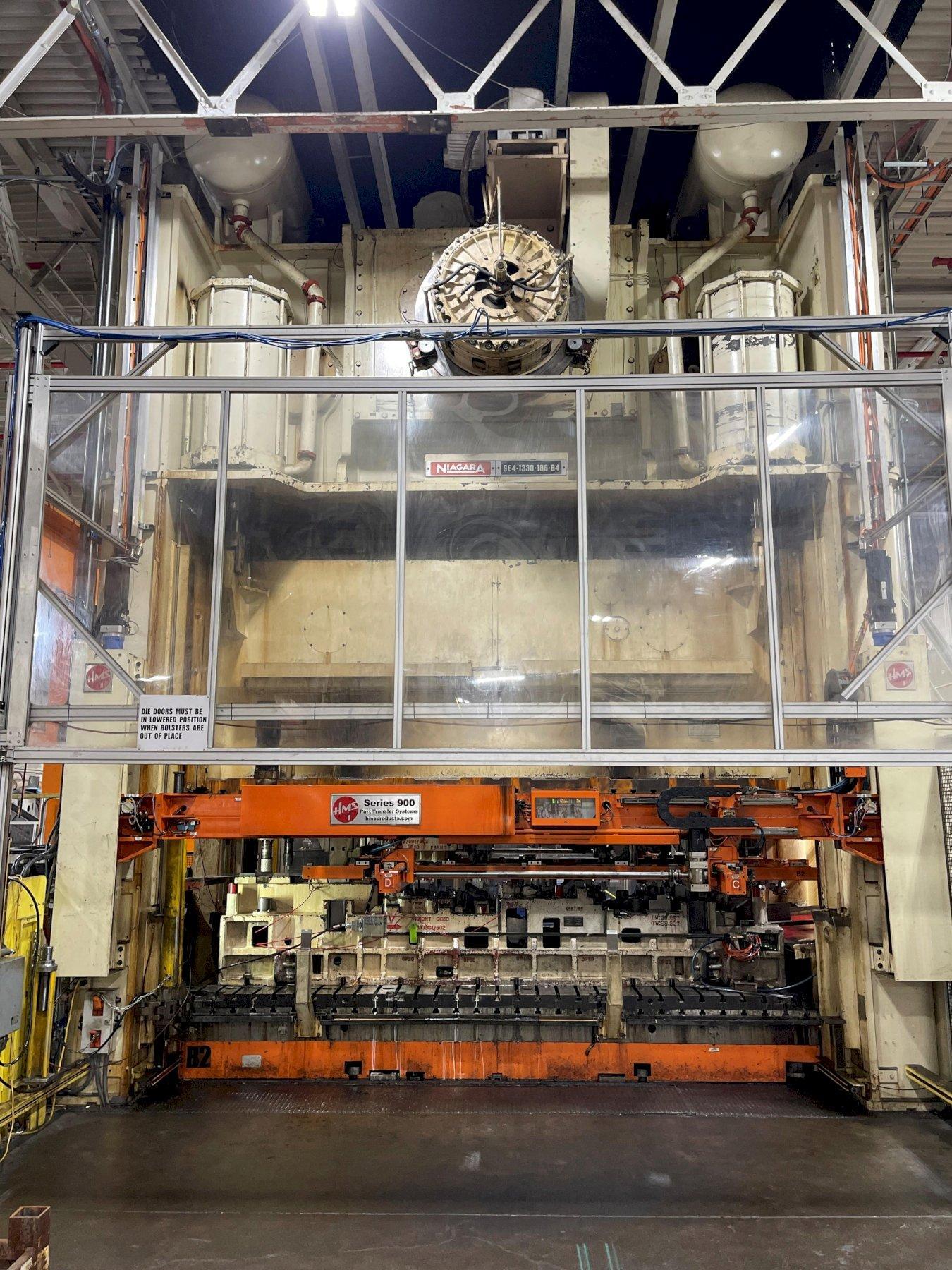

Niagara Straight Side Mechanical Transfer Press
Niagara Press Model SE4-1330-186-84
1250-ton Metric Capacity
1330-ton US Capacity
24" Stroke
55" Shut Height on Bolster
75" Shut Height on Bed
18" Motorized Adjustment
186" LR x 84" FB Bed Area
186" LR x 84" FB Slide Area
12-24 VSPM

Equipment and Features
Air Clutch And Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster

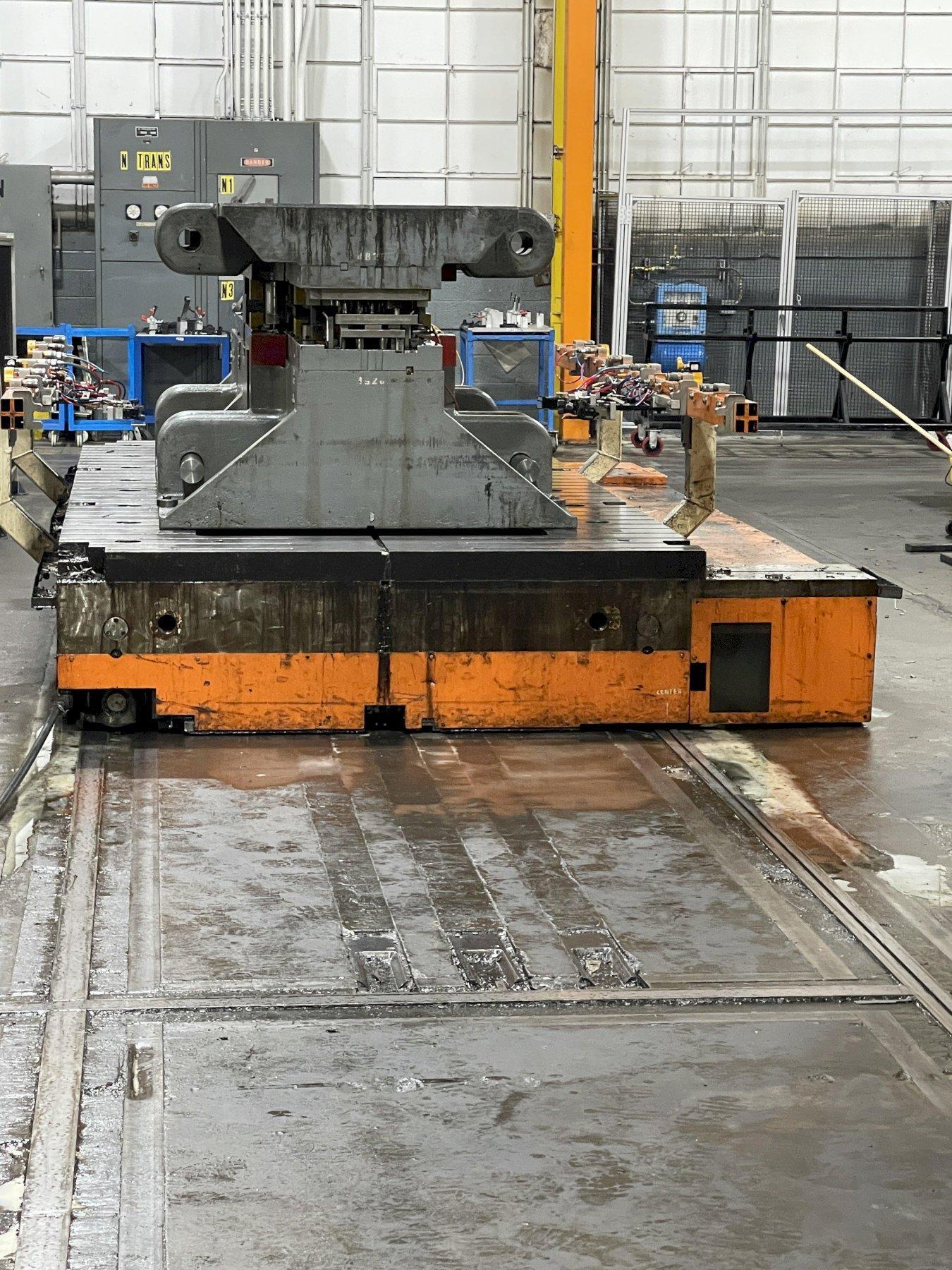

Dual Rolling Bolsters
Front and Back 16-ton Slide Clamps for Quick Die Change
Vibro Dynamic Micro Leveling Vibration Isolator Pads
Hydraulic Overloads
Hydraulic Tie-Rod Nuts
Micro Inch Drive 125 HP
150 HP Eddy Current Drive Main Motor

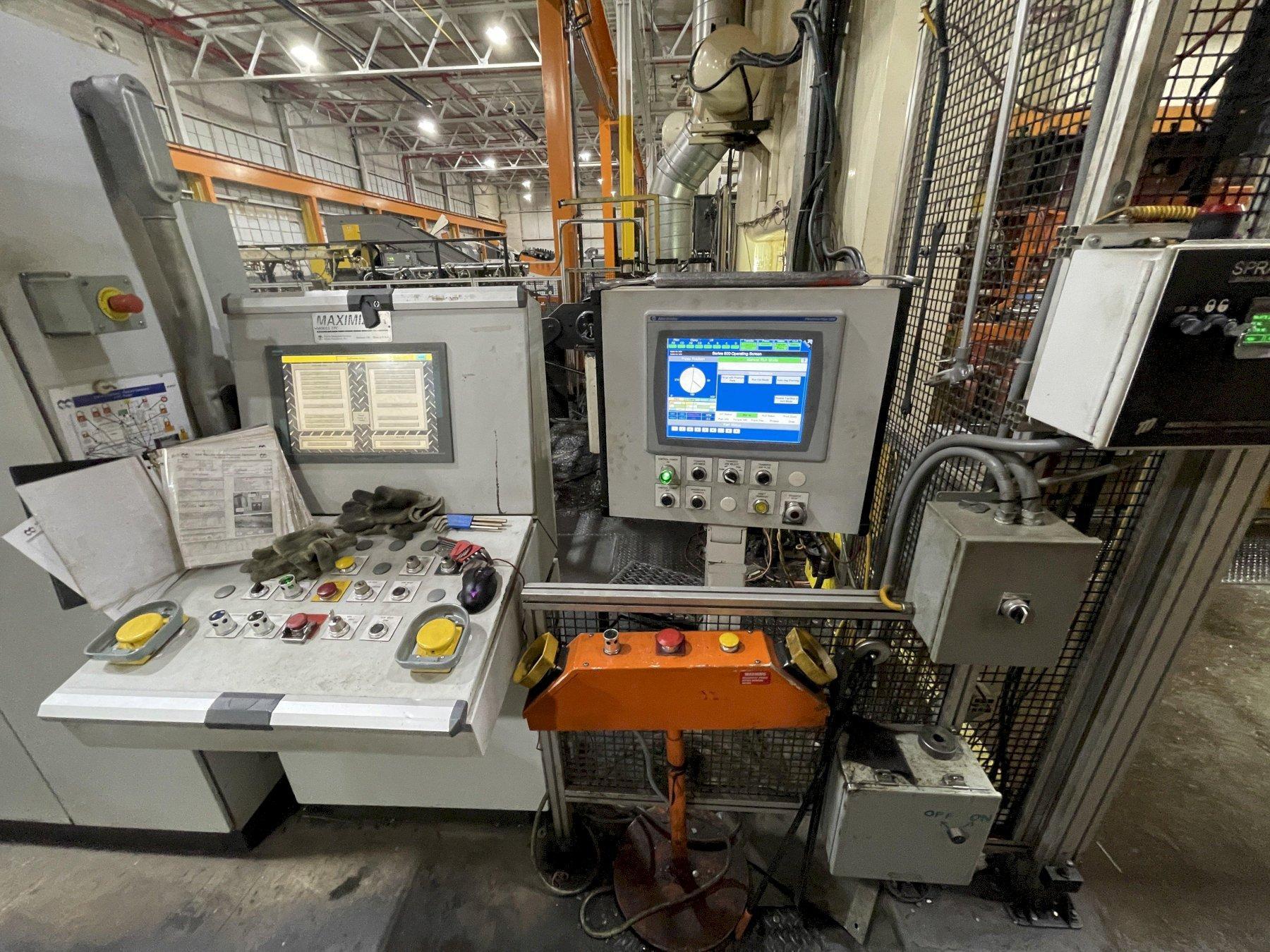

T-Stand Pedestal Operators Stations
Light Curtains Front and Back
84" Wide Windows

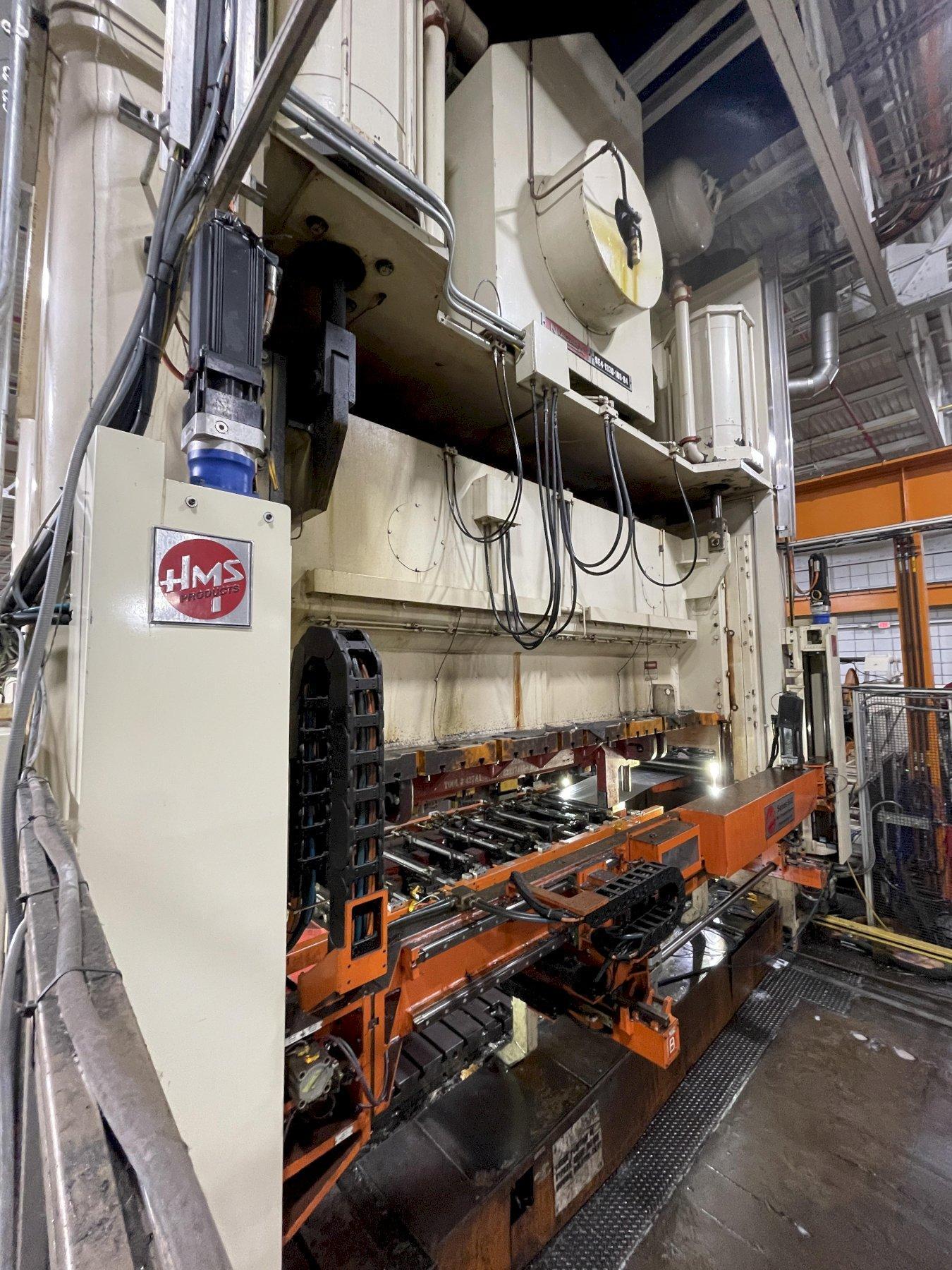

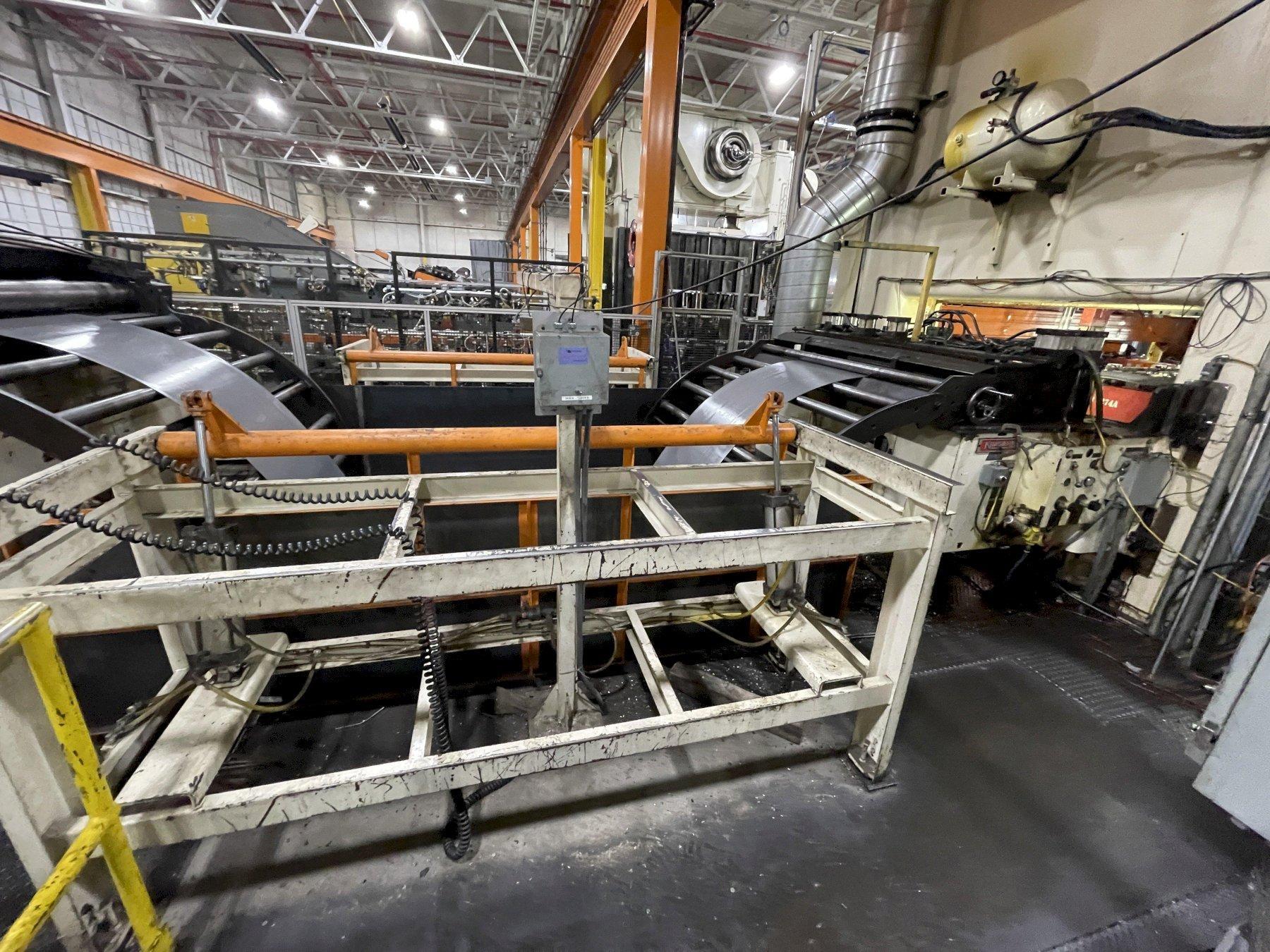

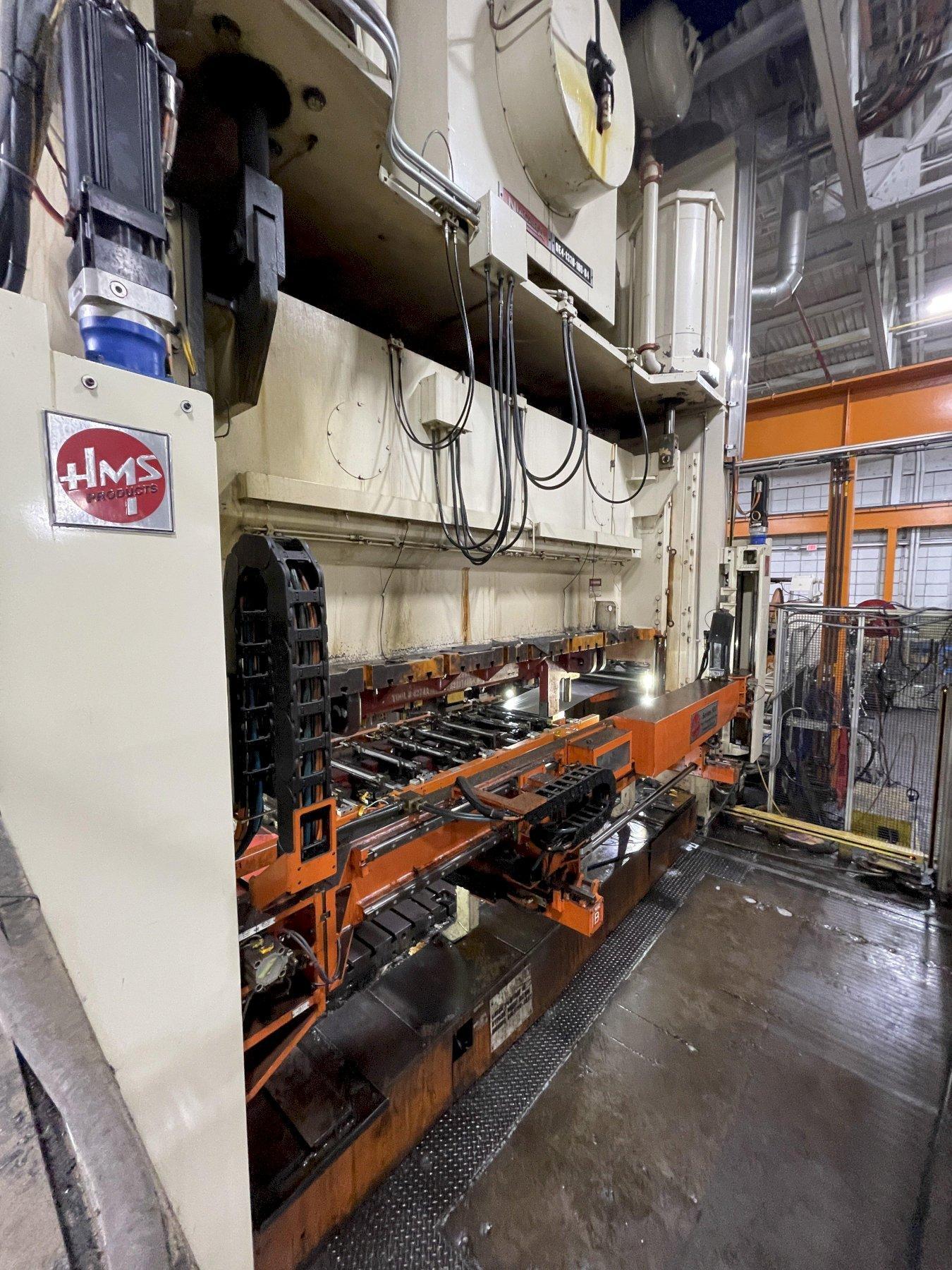

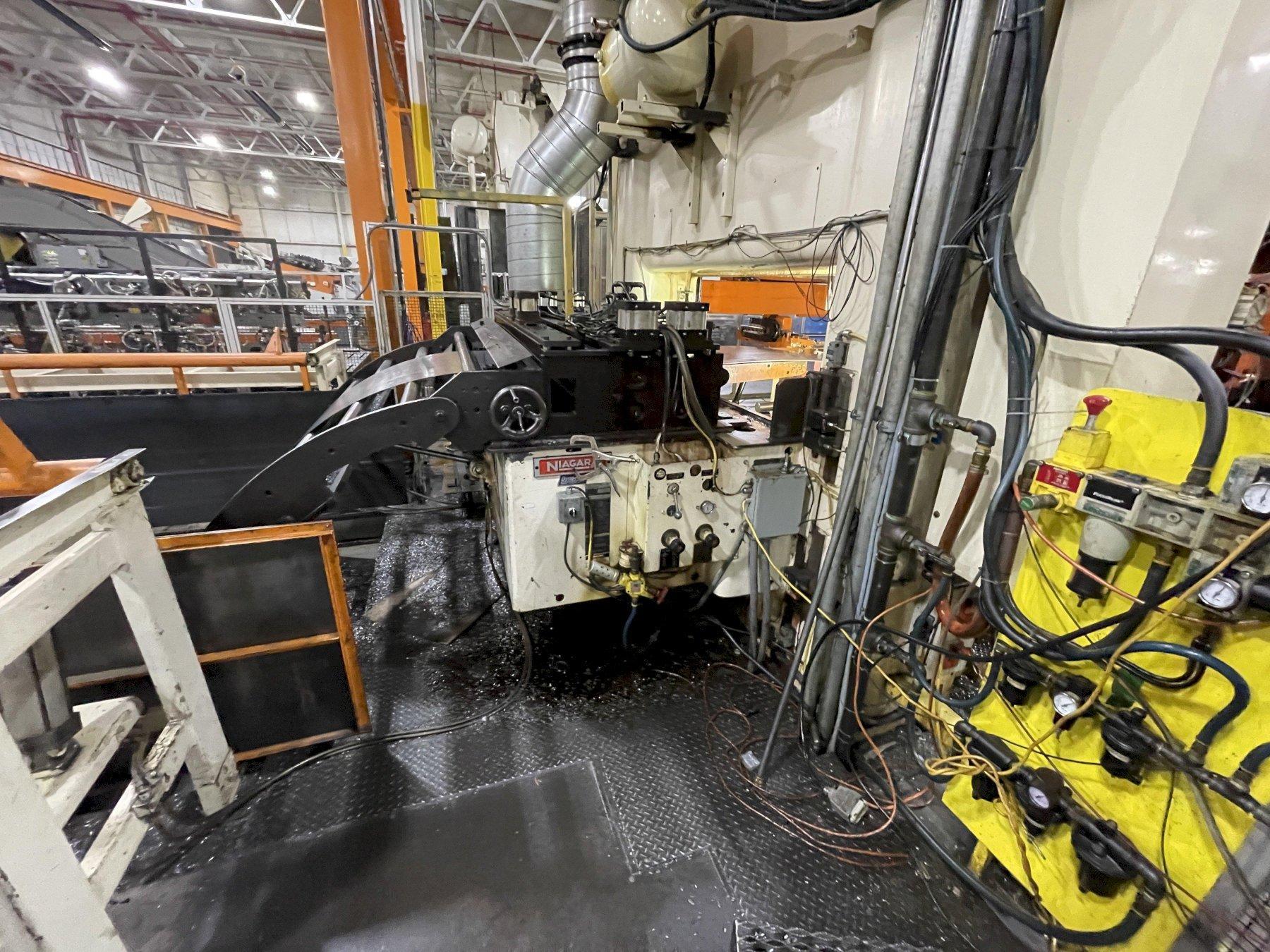

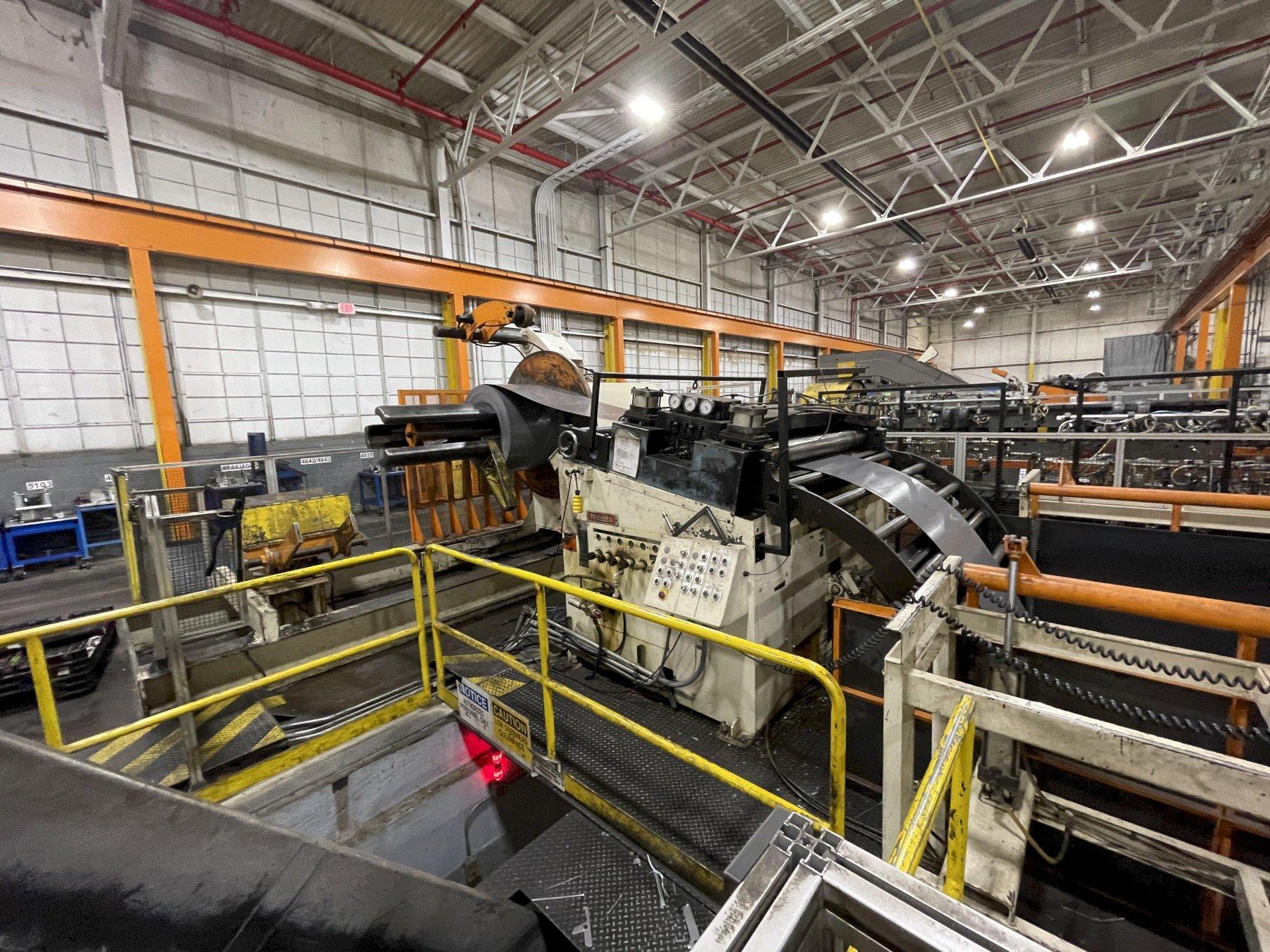

72" Wide Niagara Conventional Servo Coil Feed Line and 900 Series HMS Servo Transfer System Included with Press.

This Used Heavy Tonnage Niagara Transfer Press with Servo Transfer System Can Be Seen Under Power Upon Request!

Call only S&G Press For Full Details and Drawings.
